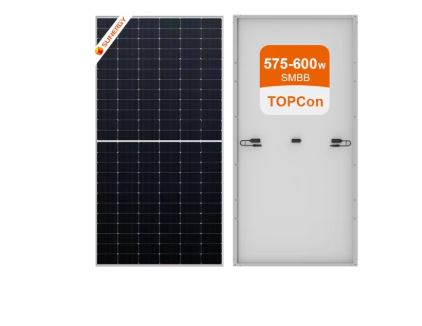

N-type TopCon
Peak Power Watt: 580W
Maximum Power Voltage: 42.78V
Maximum Power Current: 13.56A
Open Circuit Voltage: 51.32V
Short Circuit Current: 14.33A
Dimensions: 2278*1134*35mm
Weight: 27.0kg

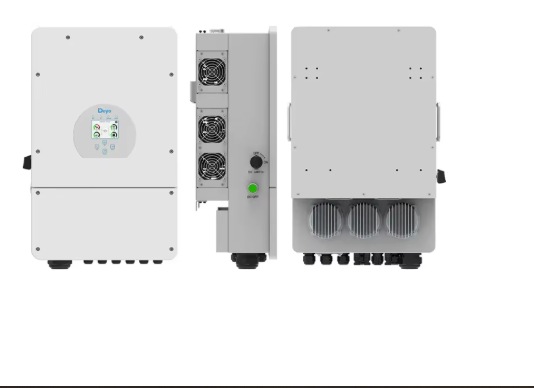

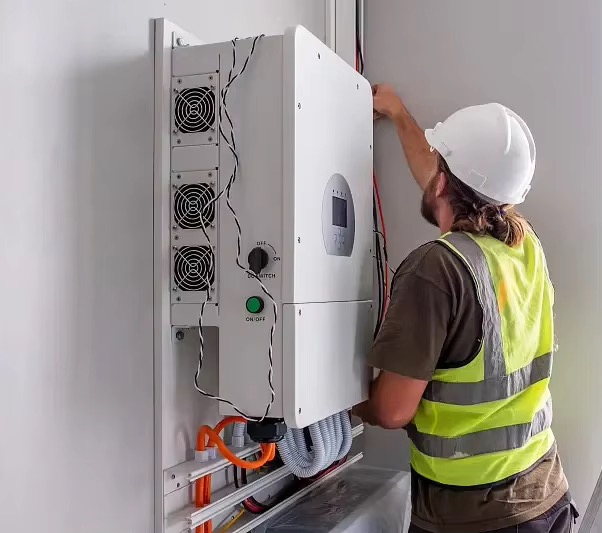

* Colorful touch LCD, IP65 protection degree.
* AC couple to retrofit existing solar system.
* Max. charging/discharging current of 250A.
* 6 time periods for battery charging /discharging.
* Support storing energy from diesel generator.
* Max. 16 pcs parallel for on-grid and off-grid operation; Support multiple batteries parallel.

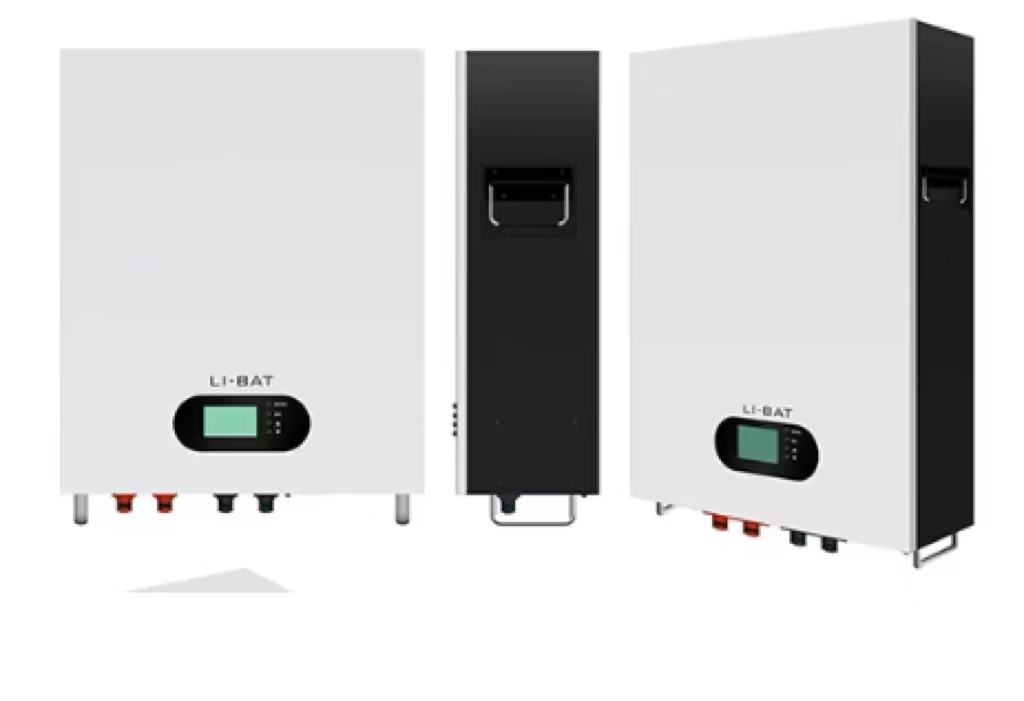

Rated Voltage: 48V/51.2V (Optional)
Rated Capacity: 100Ah/200Ah (Optional)
Cycle Life: 5000 cycles @ 80% DOD 0.5C
Material System: LiFePO4
Case Type: Wall Mounted

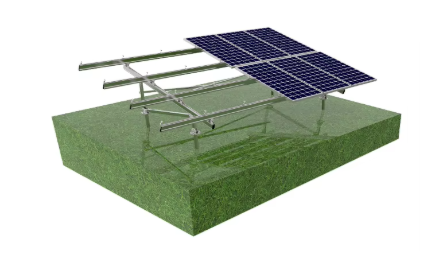

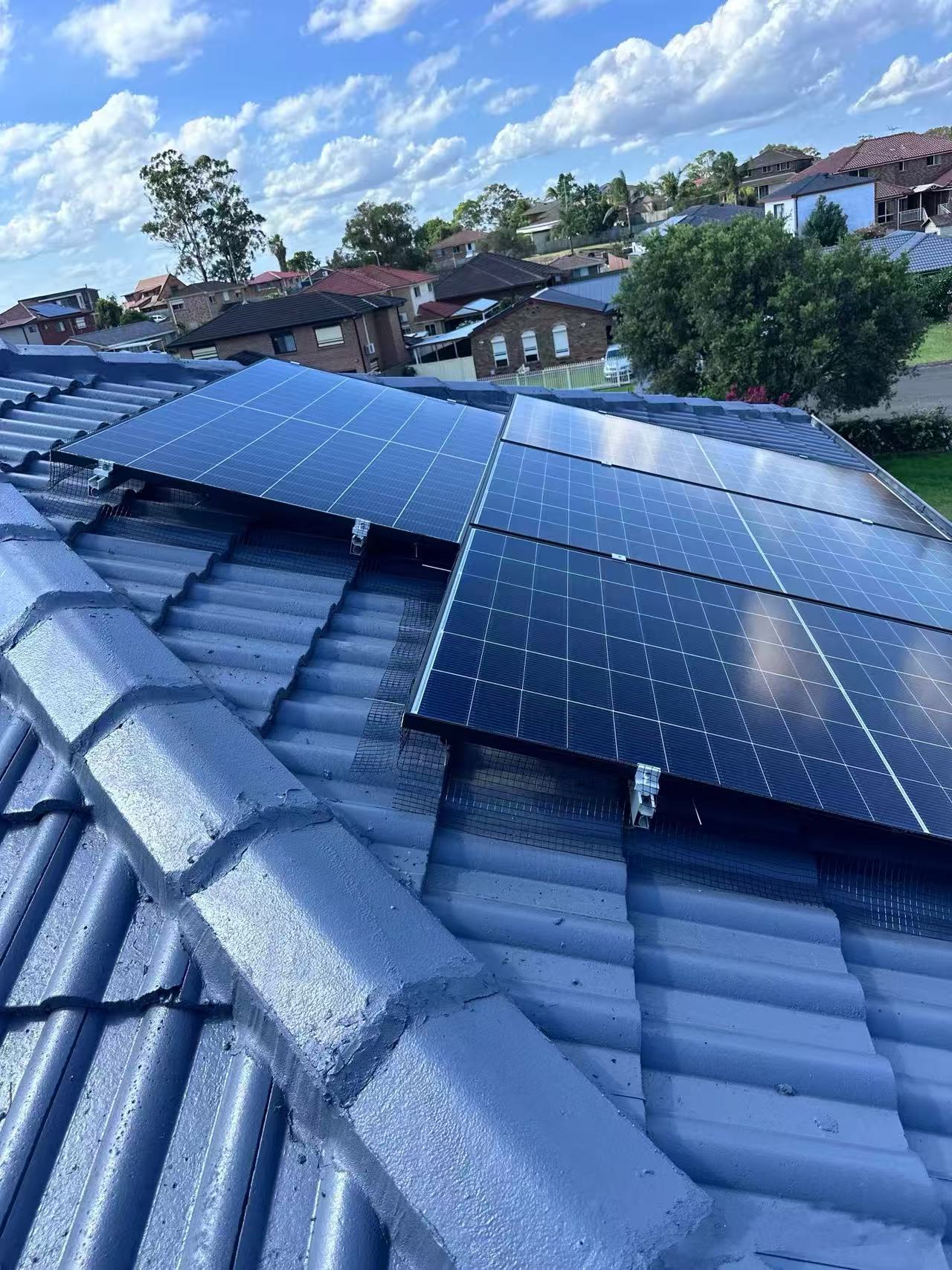

Pitched/Flat Rooftop/Ground Brackets
10 Years Warranty
Aluminum Alloy/Galvanized Steel
Provide Free Brackets Installation Design

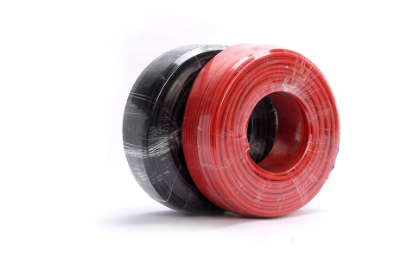

Cross Section: 4mm²/6mm² (Optional)
Rated Voltage: 600VDC(UL)/1000VDC(TUV)
Rated Current: 55A/70A
Colors: Black For STD, Red (Optional)
Lifetime: ≤25 Years

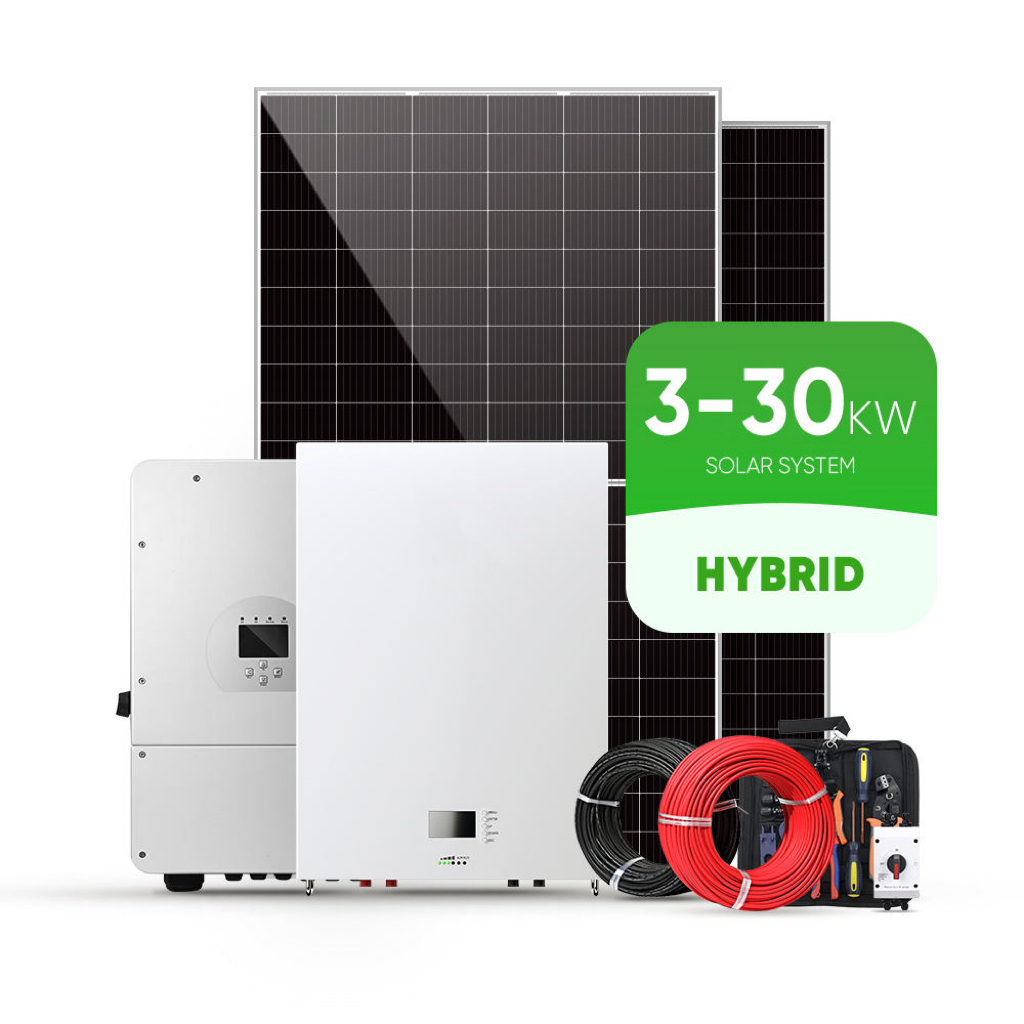

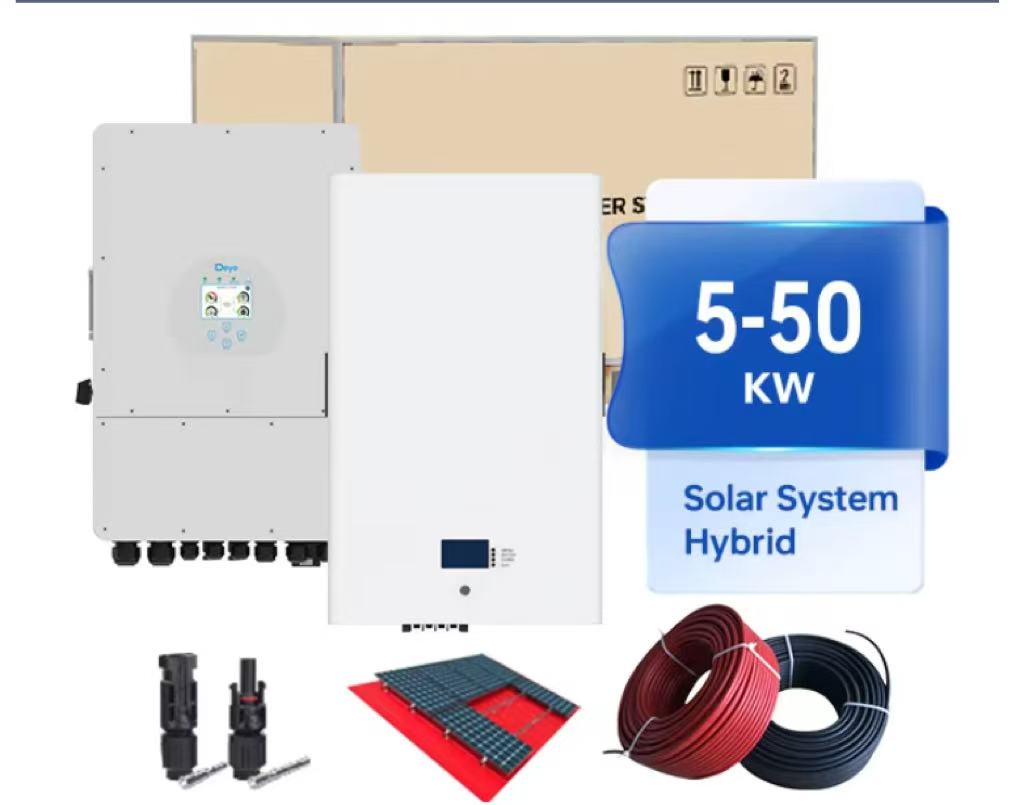

| System Model | TY5KW-HY | TY8KW-HY | TY10KW-HY | TY12KW-HY |
| PV MODULE SPECIFICATIONS (*half cell mono) | ||||
| Power (W) | 440-700 | |||
| Vmp (V) | 36.33-41.96 | |||
| Certifications | CE / TUV (IEC 61215 & IEC 61730) | |||
| INVERTER SPECIFICATIONS | ||||
| Rated Power (KW) | 5 | 8 | 10 | 12 |
| Max DC Power (W) | 6000 | 10400 | 13000 | 15600 |
| Max DC Voltage (V) | 500 | 1000 | ||
| MPPT Voltage Range (V) | 120-450 | 125-425 | 120-450 | 125-425 |
| Output Voltage (Vac) | 220/230 | 220/380, 230/400 | ||
| BATTERY BANK SPECIFICATIONS | ||||
| Number Of Batteries | 1 | 2 | 3 | 4 |
| Battery Bank Power (kWh) | 4.8 | 9.6 | 14.4 | 19.2 |
| Battery Voltage (V) | 48/51.2 | |||
| Battery Current (Ah) | 100/200/280/304 | |||
| Number Of PV Modules | 10 | 16 | 20 | 24 |
We are specialized in producing solar mounting systems for domestic and international solar power markets. Our main products contain whole solar mounting brackets, roof solar mounting accessories, solar carport, off-grid/on-grid/hybrid solar systems, etc. With a complete and scientific quality management system, we provide high-quality mounting brackets with competitive prices. Integrity, efficiency, and perfect service are our core values. Our technical experts and consultants have rich experience in engineering, manufacturing, and international building standards which ensure great quality and convenient usage. Our products are welcomed by installers, distributors, and agents around the world. We provide mounting systems covering all fields from residential and commercial to public utilities. To meet special requirements, our strong engineering team provides customized solutions, taking innovation as our mission to ensure reliable products for the PV industry.
