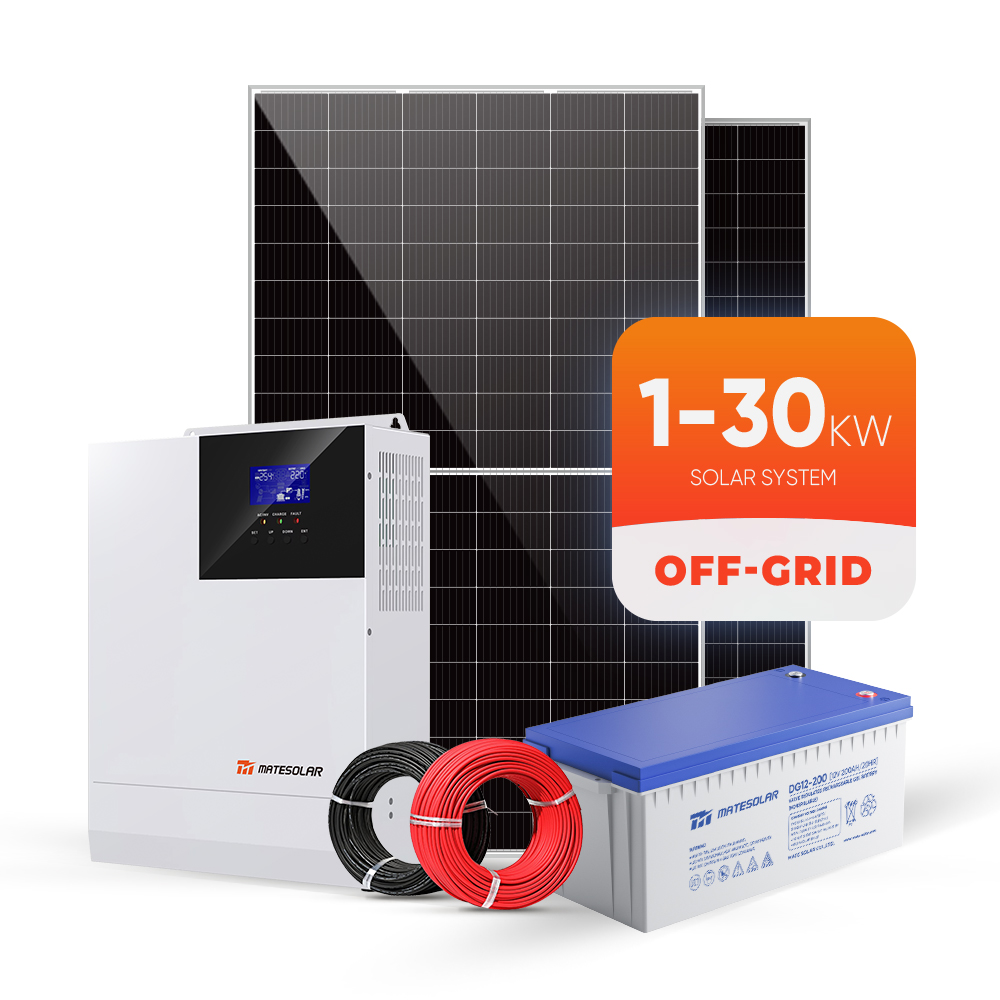

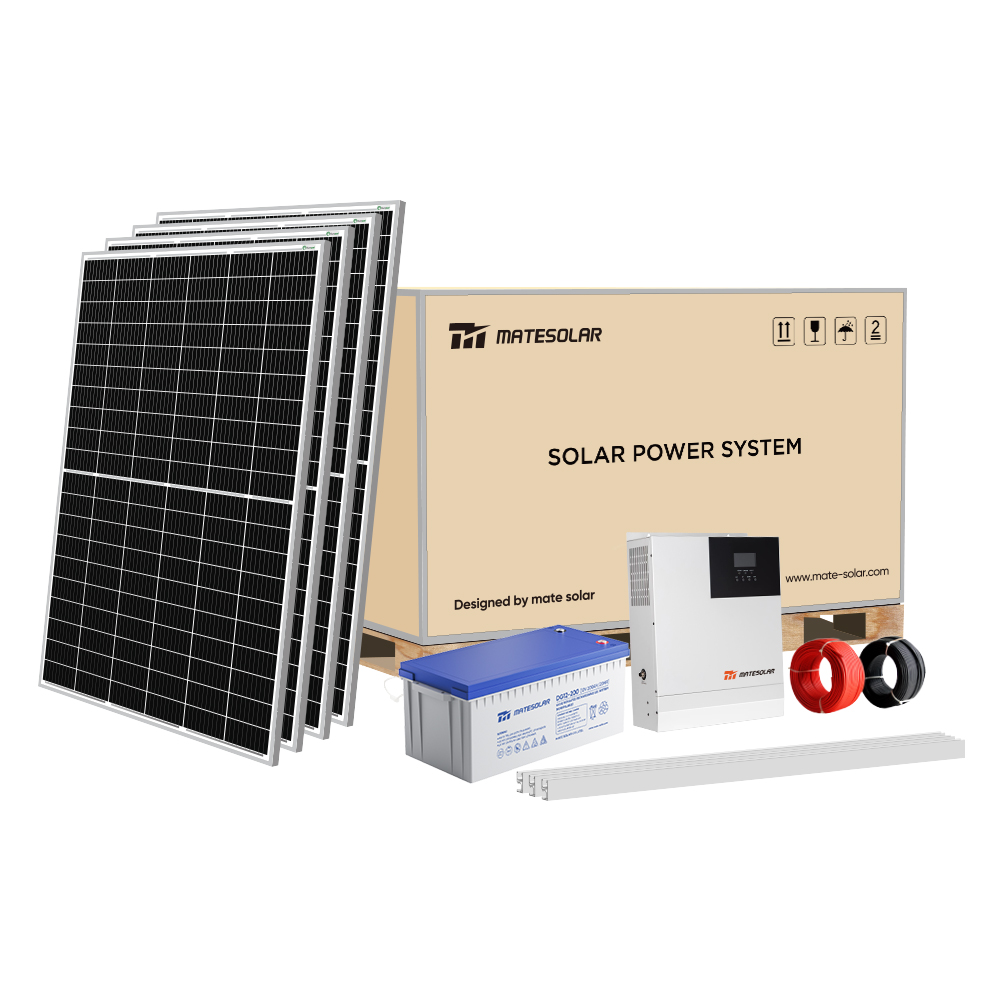

Cheap Prices Solar Panel Kit 5kW 10kW 12kW 15kW 20kW Off Grid Solar Energy System for Home Use

1 / 5

Cheap Prices Solar Panel Kit 5kW 10kW 12kW 15kW 20kW Off Grid Solar Energy System for Home Use

Send Inquiry

Product Description

⚡ Product Description

🛡️ Warranty

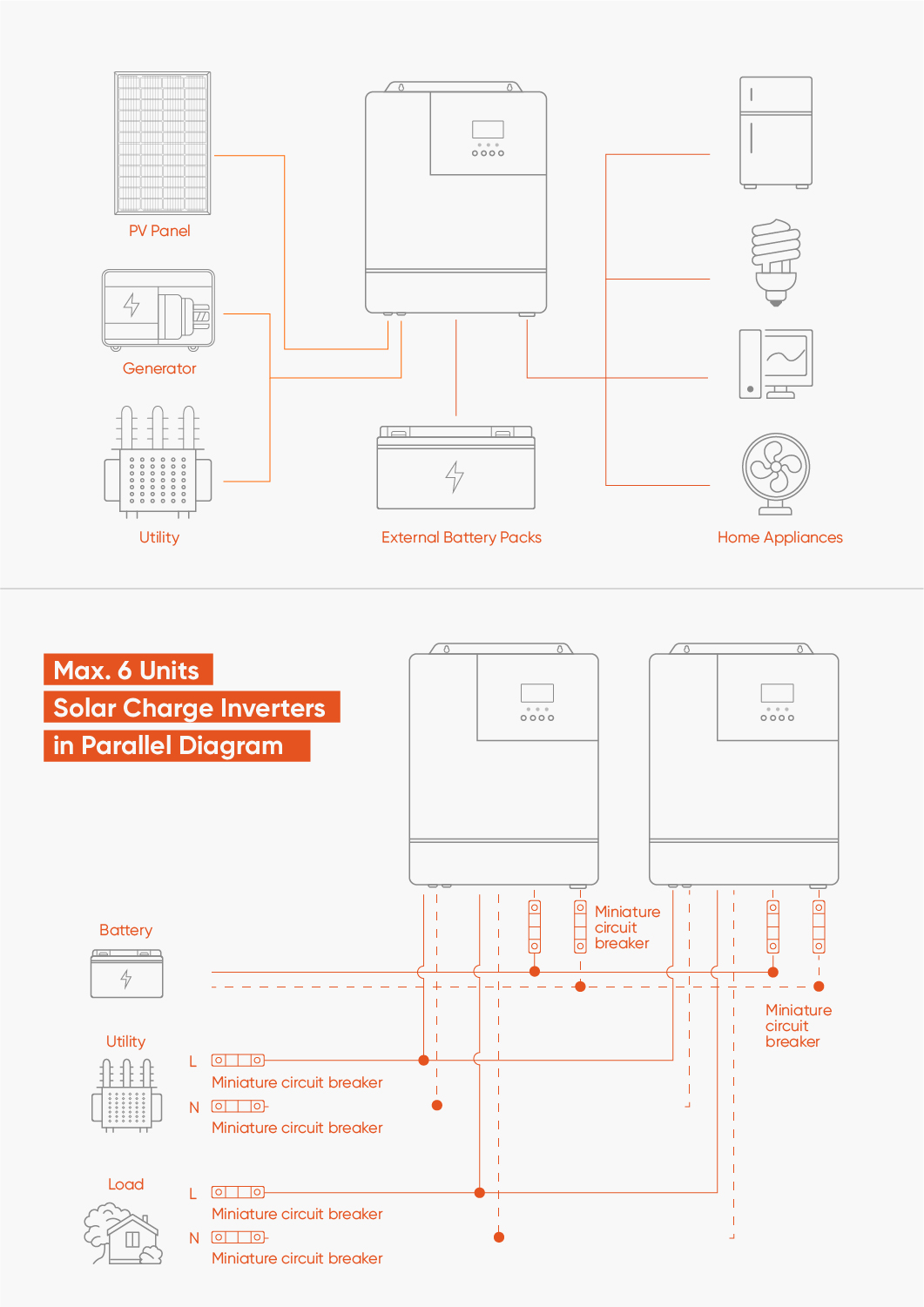

🔄 How it works

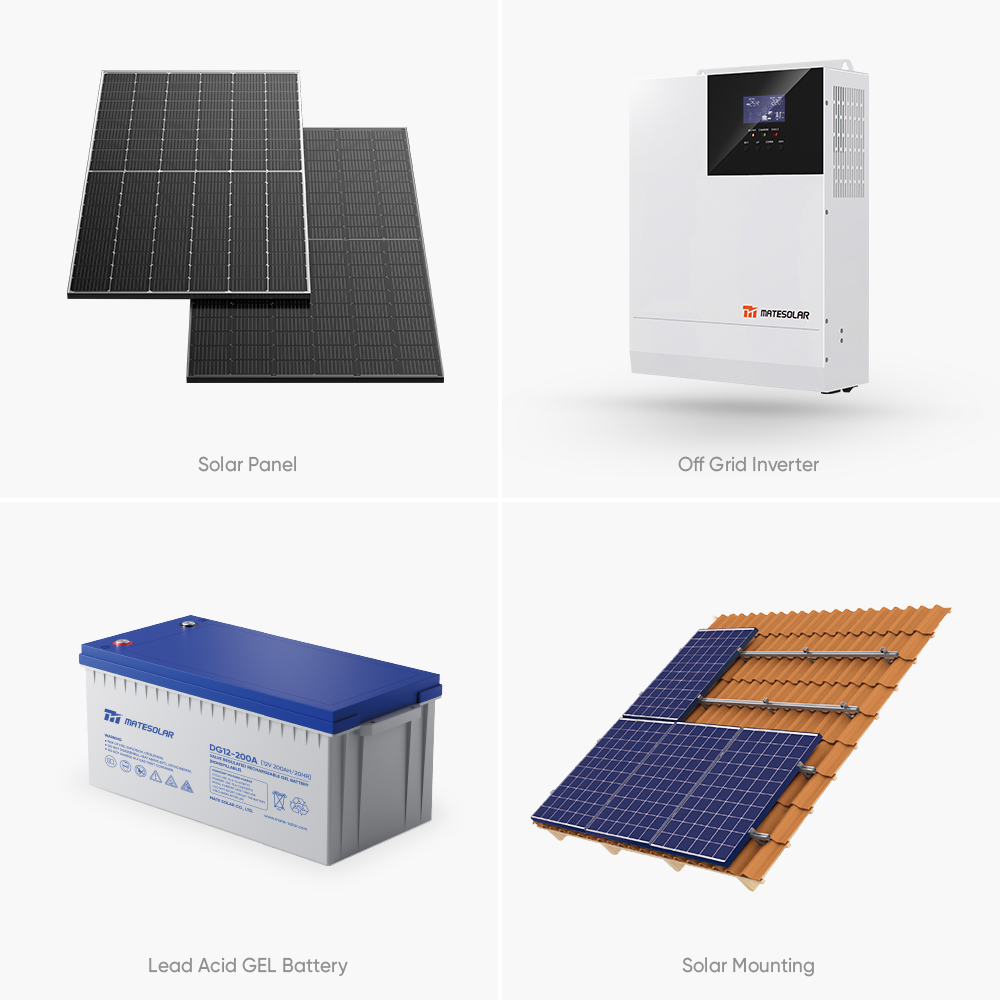

📊 What's Included: Technical Specifications

Model	3KW System	5KW System	10KW System
Half Cut Mono 550W Solar Panel	6 Pieces	8 Pieces	20 Pieces
PV Combiner Box	3 Input 1 output (1Piece)	4 Input 1 output (1Piece)	4 Input 1 output (2Pieces)
Off-Grid Hybrid Inverter	HF4830S60	HF4850S80	HFP4850S80/2PCS

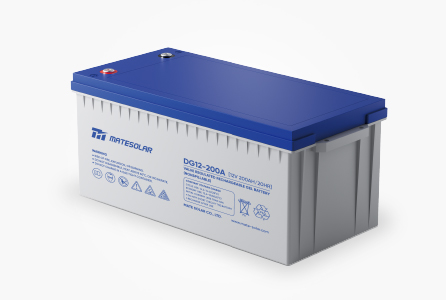

GEL Battery	12V 200AH/4PCS	12V 200AH/4PCS	12V 200AH/8PCS
DC Cable 4mm2	100 meter	200 meter	400 meter
Mounting System	Customized Product Based On Installation Roof/Ground

Model	15KW System	20KW System	30KW System
Half Cut Mono 550W Solar Panel	24 Pieces	32 Pieces	48 Pieces
PV Combiner Box	4 Input 3pcs	4 Input 4pcs	4 Input 5pcs
Off-Grid Hybrid Inverter	HFP4850S80/3PCS	HFP4850S80/4PCS	HFP4850S80/6PCS
GEL Battery	12V 200AH/12PCS	12V 200AH/16PCS	12V 200AH/20PCS
DC Cable 4mm2	600 meter	800 meter	1000 meter

⚙️ System Components

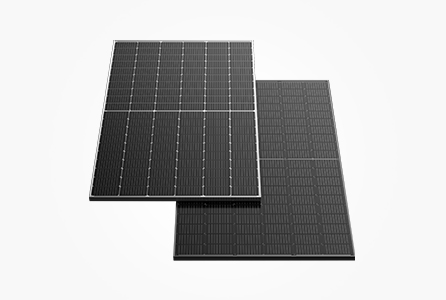

Half Cut Mono 550W Solar Panel

Peak Power: 550W | Max Voltage: 42.06V | Max Current: 12.84A | Dimensions: 2279x1134x35mm | Weight: 26.9 kg

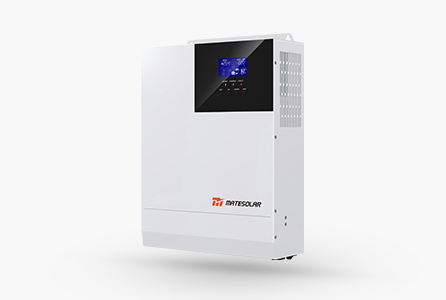

Hybrid Solar Inverter

48V low voltage battery support, transformer isolation design. 6 time periods for charging/discharging. Max charging current 240A.

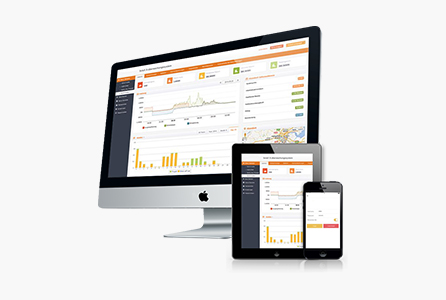

Monitoring System

One-click installation and registration. Safe operation with traceable logs. Supports full lifecycle data security.

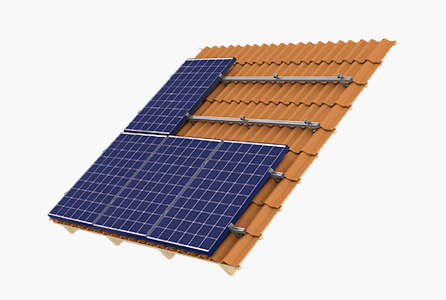

PV Mounting System

AI6005 Rail & SUS304 Bolts. Mid/End Clamps (35-50mm). L Foot Asphalt Shingle Mount & Hanger Bolt options.

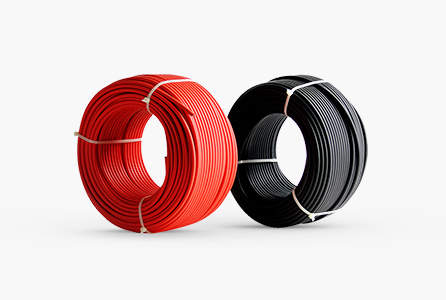

DC Cable & MC4 Connector

4mm2/6mm2 Optional. Rated Voltage: 1000VDC. Rated Current: 55A/70A. Lifetime: ≤25 Years.

Wall Mounted LiFePo4 Battery

High density LFP (>130wh/kg). Self-developed 3-level BMS. Long cycle life: 6000 cycles. Standard rack & module design.

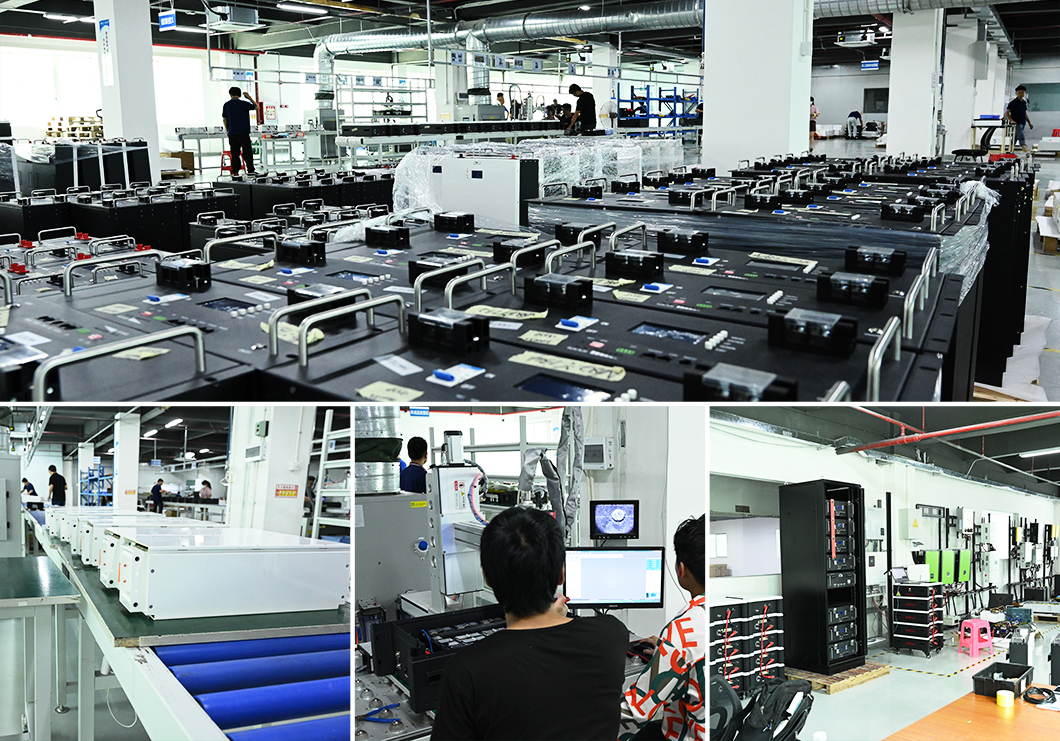

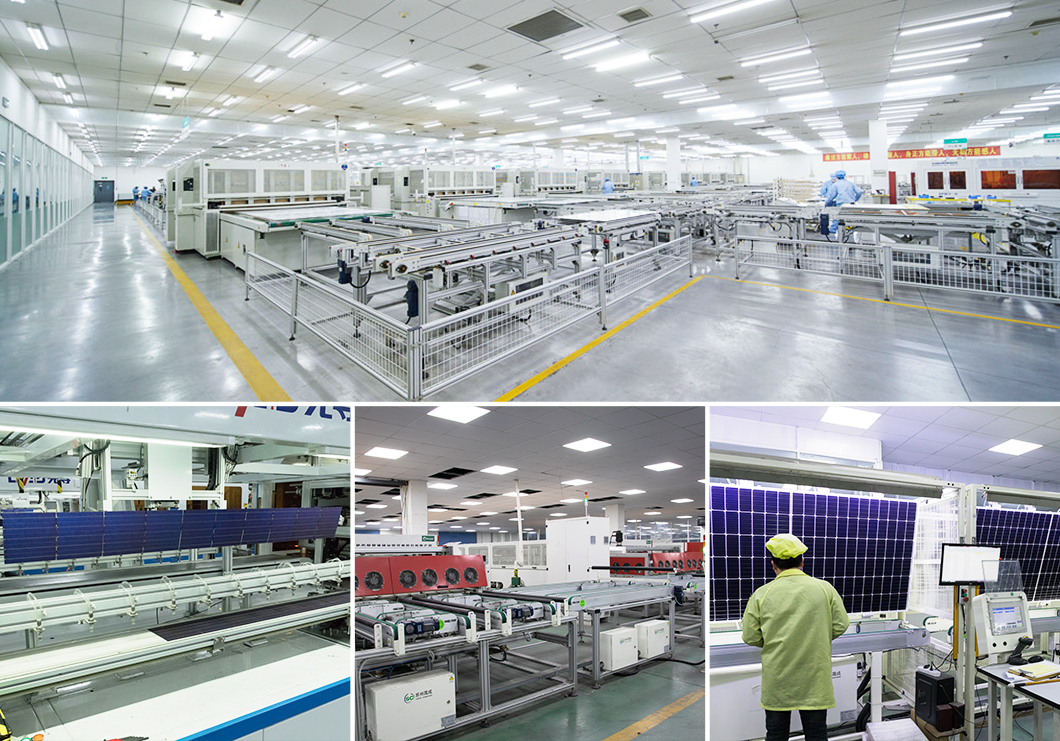

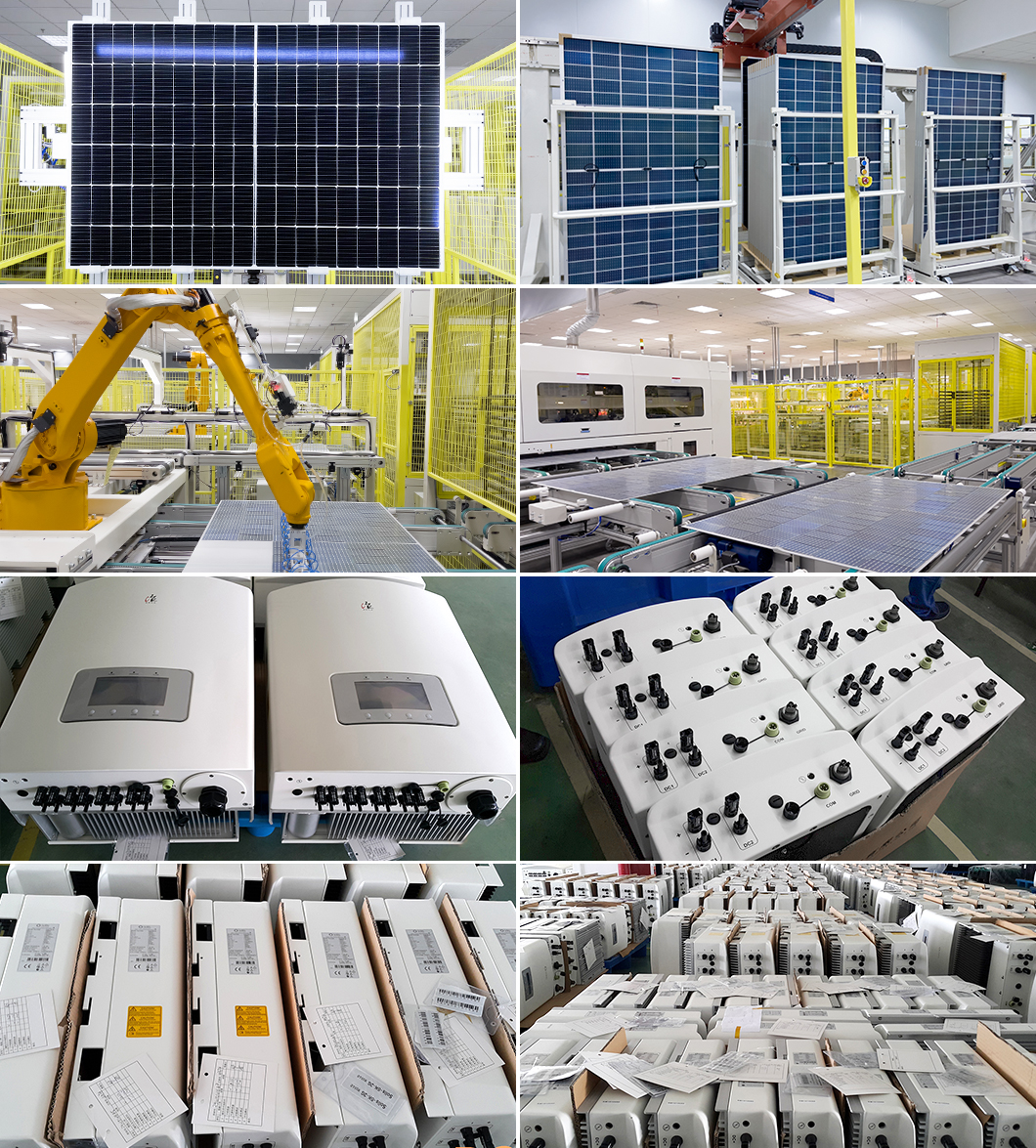

🏭 Company Overview & Production

As a world-class solar products manufacturer, we specialize in the research, development, production, and sales of solar PV products and solar panels. Focused on research and manufacture of all-black solar panels since 1998, we have exported to 86 countries. Our factory area covers 150,000 square meters with 600 experienced employees.

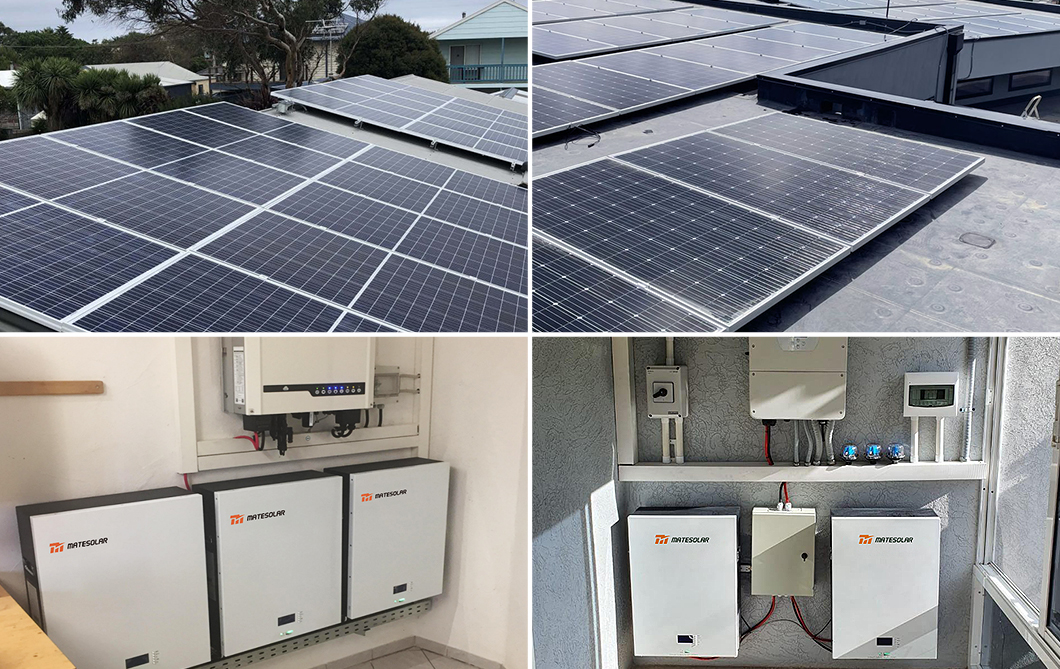

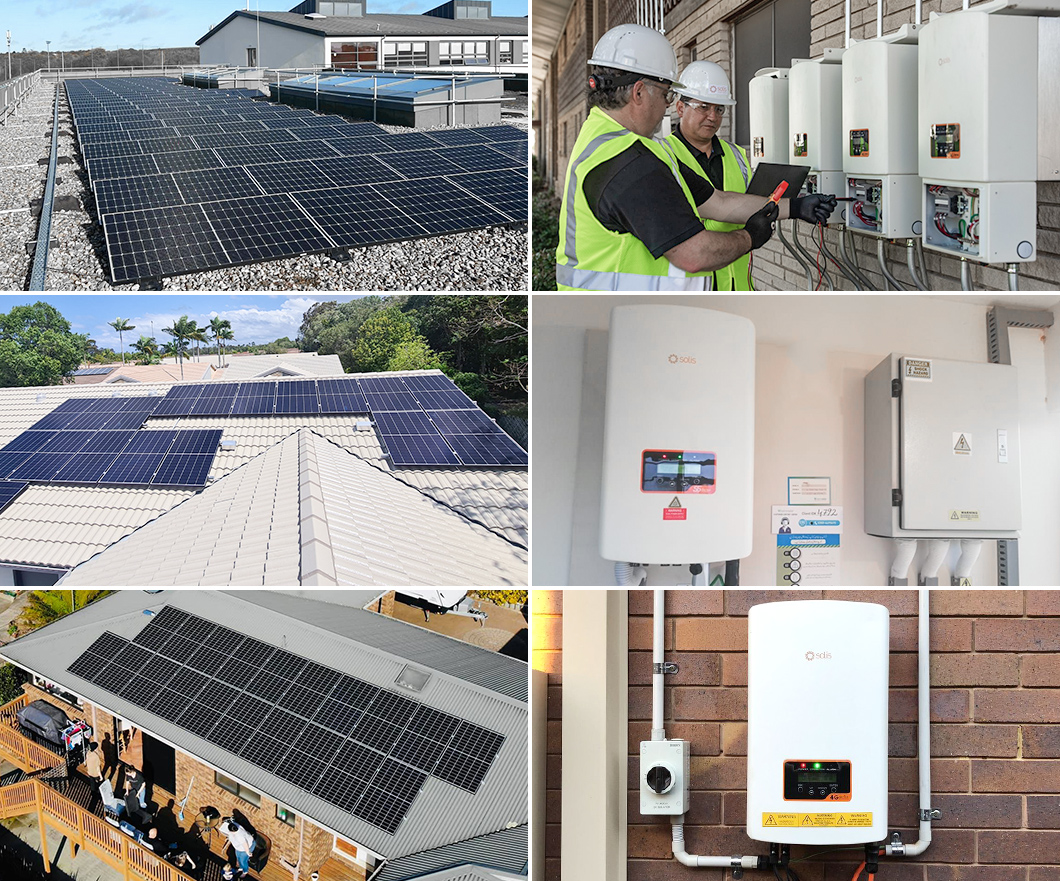

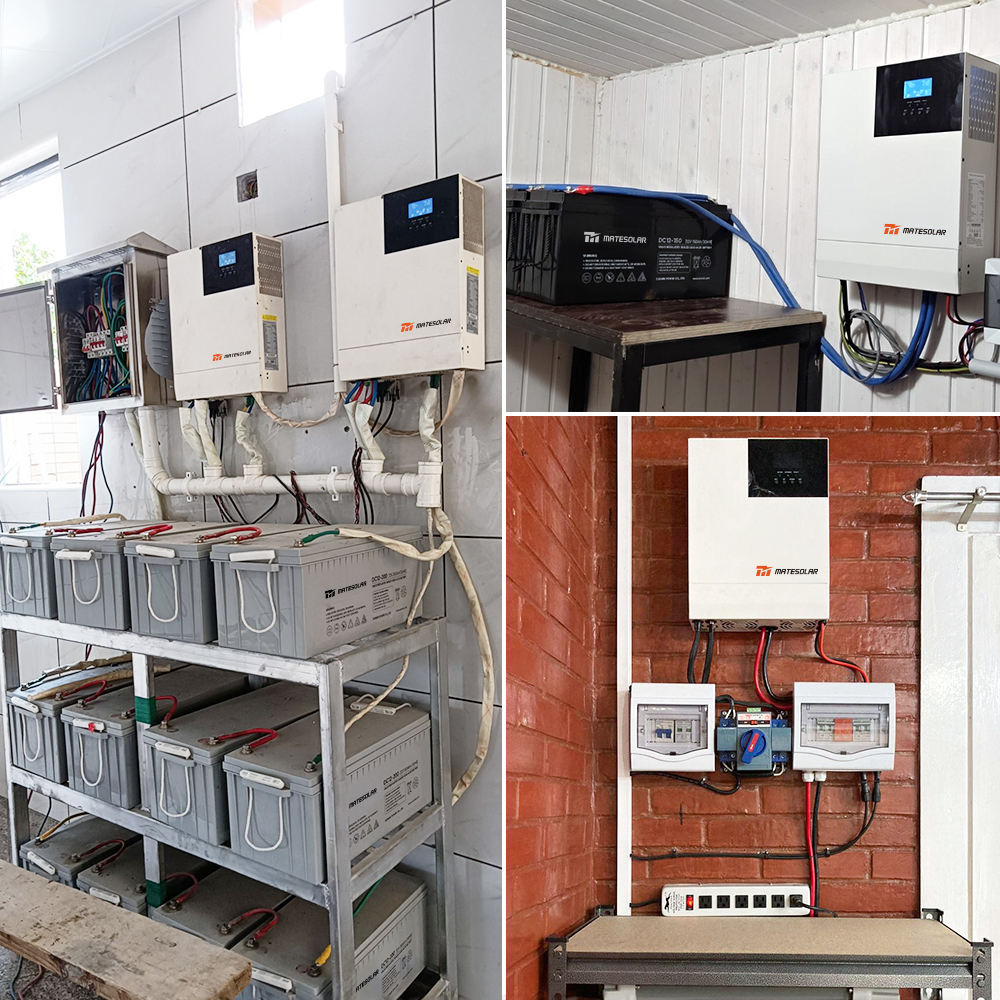

🏠 Project Cases

❓ Frequently Asked Questions

What is the lifespan of these solar panels?

The solar panels are designed for long-term durability with a lifespan of up to 25 years under standard operating conditions.

Is the system compatible with lithium batteries?

Yes, the system is fully compatible with both GEL batteries and high-density LiFePo4 batteries, featuring self-developed BMS for safety.

Can the system be monitored remotely?

Absolutely. The included monitoring system supports one-click registration and allows for safe, real-time remote data tracking.

Does the kit include all necessary installation tools?

Yes, the package includes essential PV installation tools such as wire cable cutters, strippers, and MC4 assembly/disassembly tools.

How many cycles can the LiFePo4 battery handle?

Our Wall Mounted LiFePo4 batteries are designed for high performance with a long cycle life of up to 6000 cycles.

Is the mounting system customizable for different roof types?

Yes, the mounting system is a customized product based on your specific installation requirements, whether it is for a roof or ground setup.
