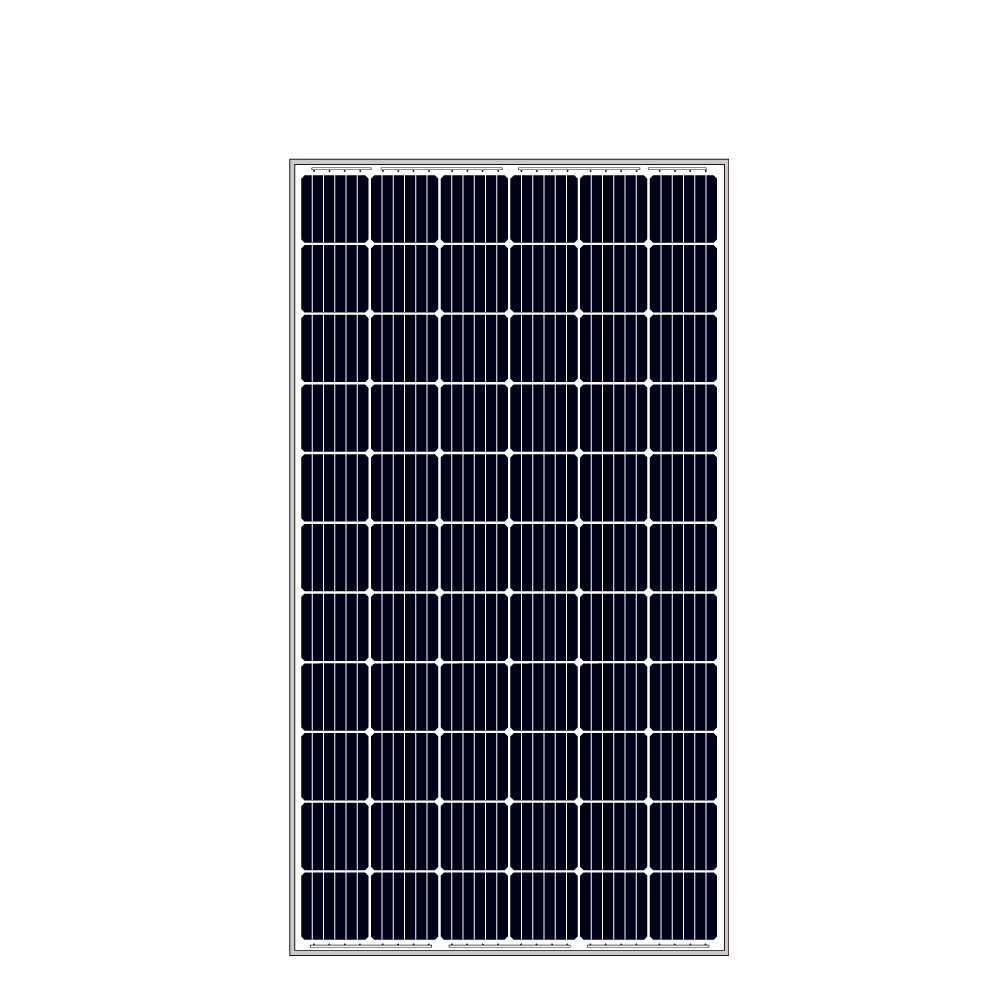

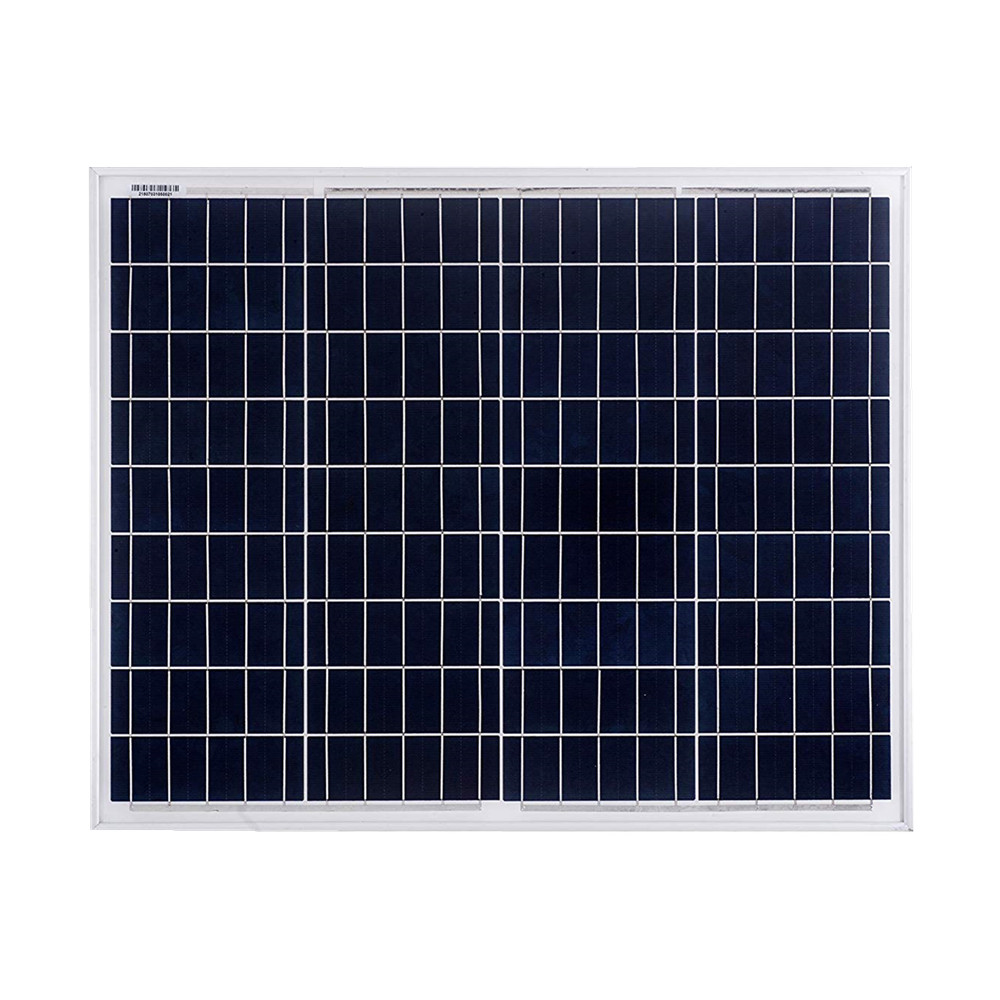

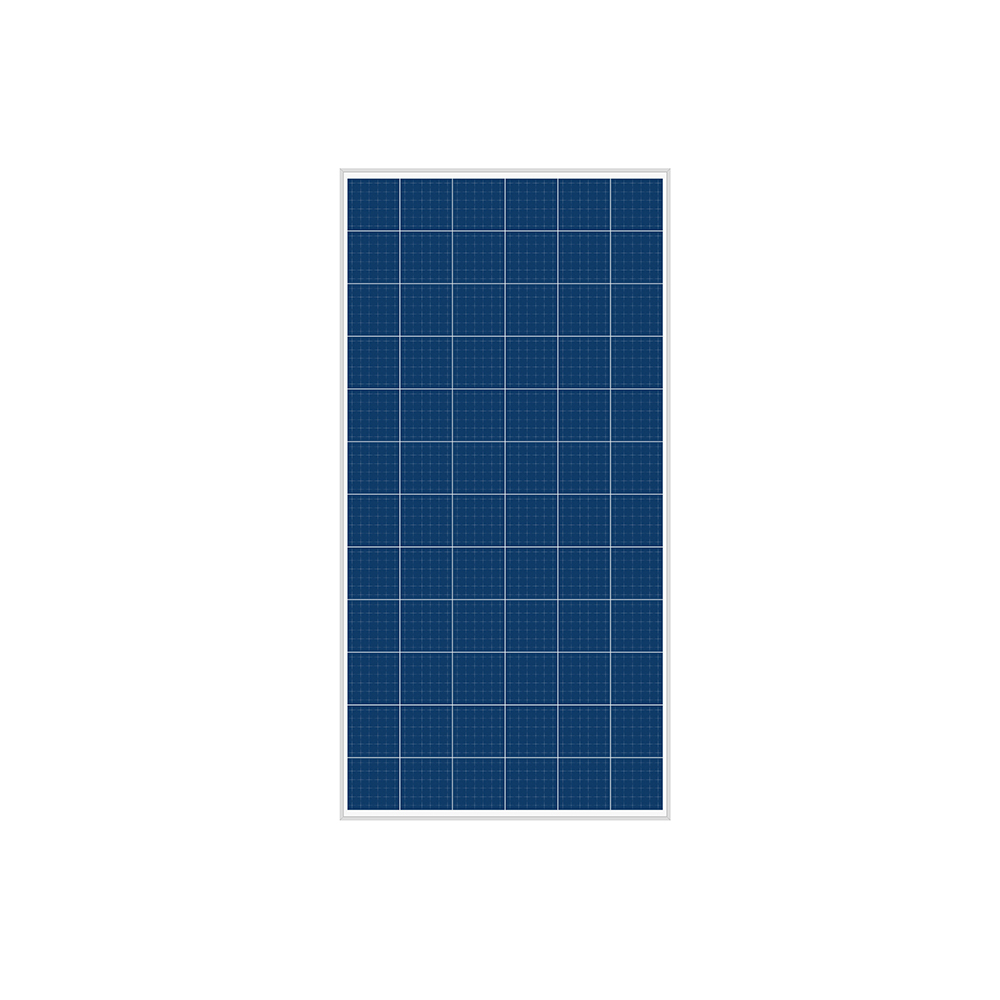

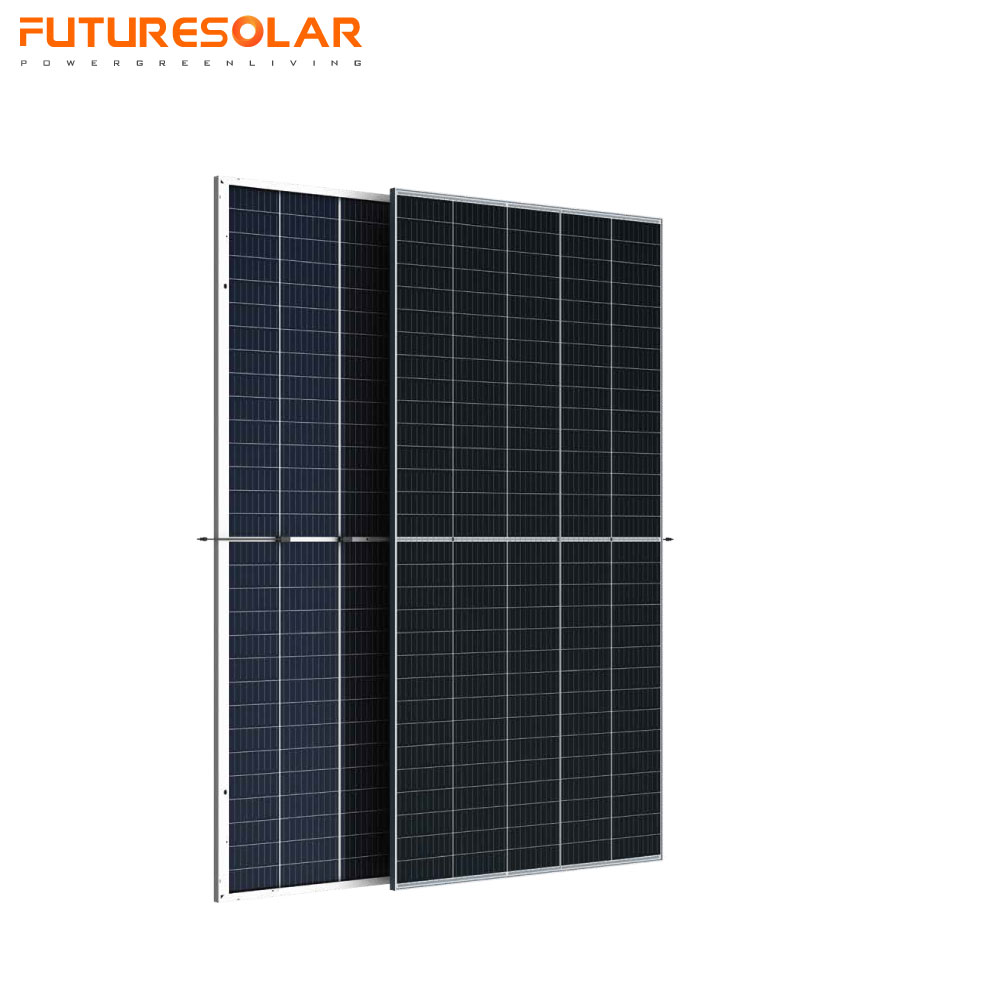

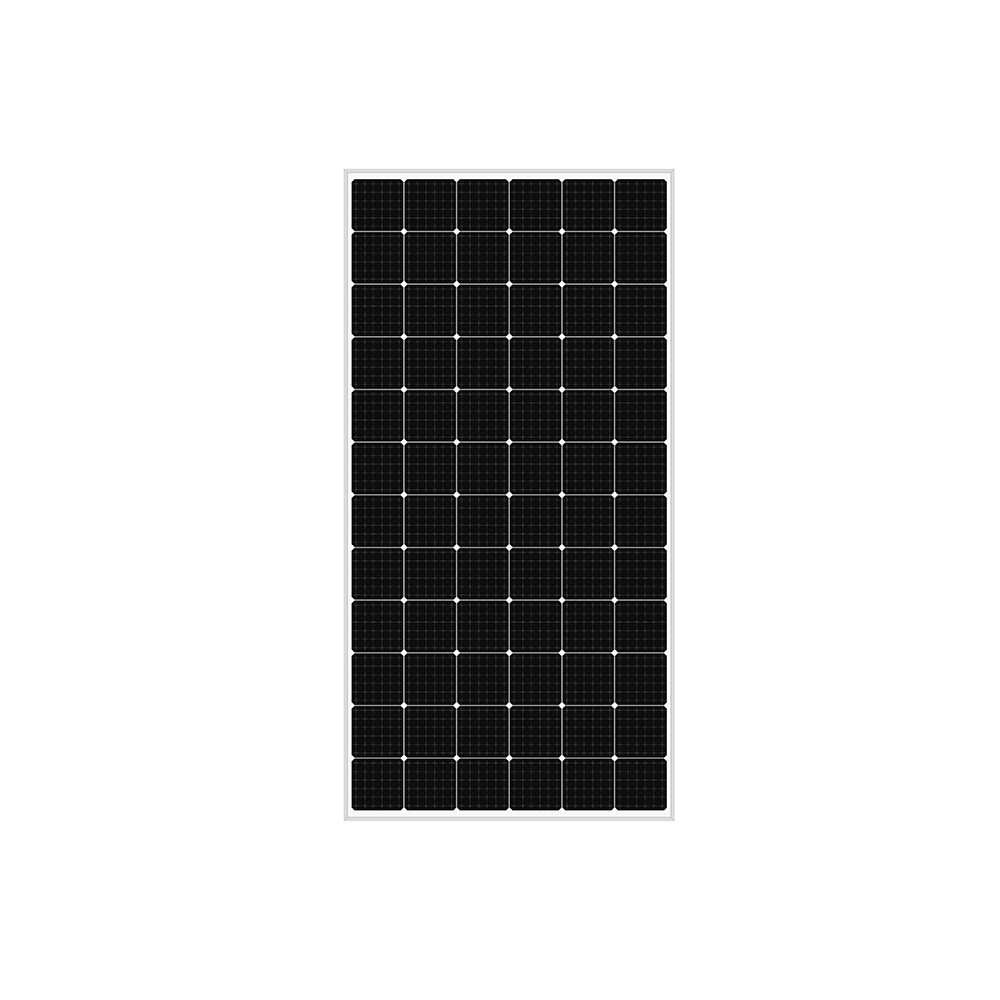

Solar Panels Motorhome Kit 400W----510W Pvt Hybrid Solar Panel Solar Panel

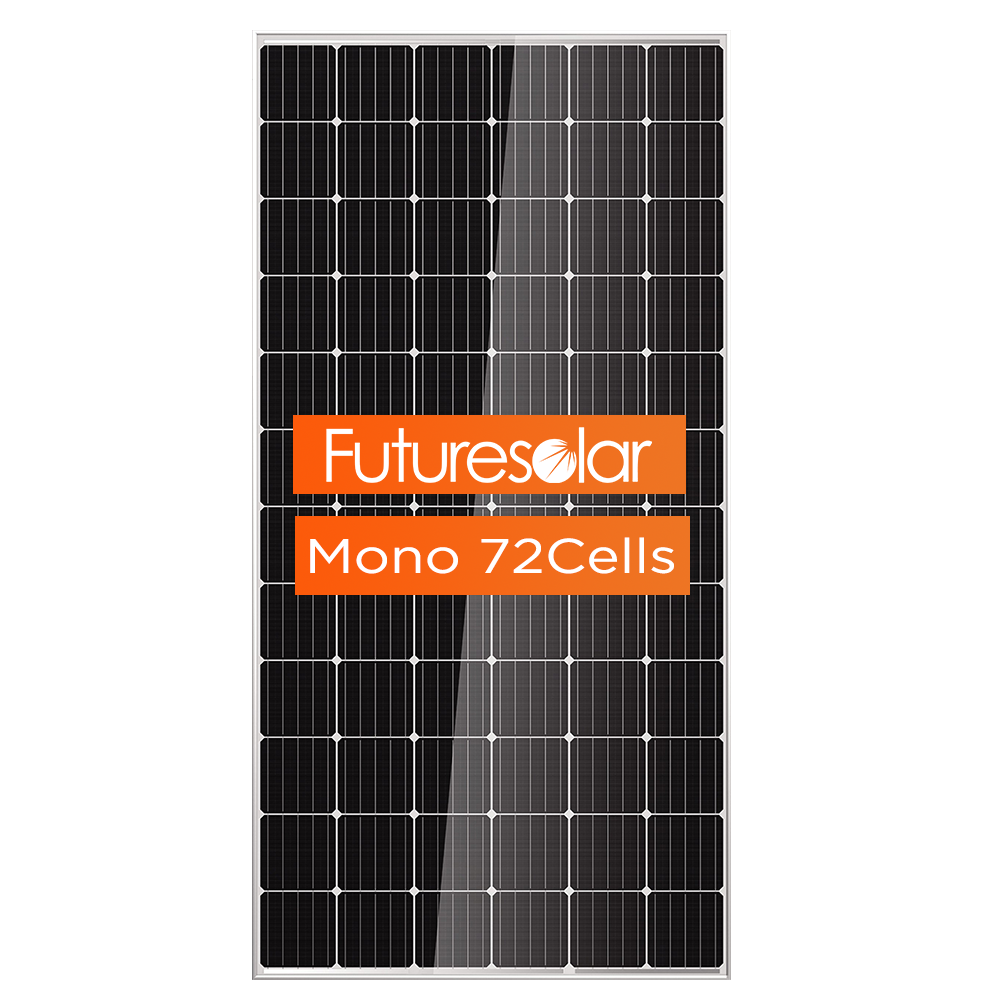

📋 Product Parameters

Model	FSM380M-72	FSM385M-72	FSM390M-72	FSM395M-72	FSM400M-72
Nominal Power	380W	385W	390W	395W	400W
Maximum Power Voltage (Vmp)	40.5V	40.8V	41.1V	41.4V	41.7V
Short-circuit Current (Isc)	9.75A	9.92A	10.12A	10.23A	10.36A
Open-circuit Voltage (Voc)	48.9V	49.1V	49.3V	49.5V	49.8V
Maximum Power Current (Imp)	9.39A	9.44A	9.49A	9.55A	9.60A
Module Efficiency (%)	19.16%	19.42%	19.67%	19.92%	20.17%
Power Tolerance	0~+5W
Maximum System Voltage	1000V / 1500V DC (IEC)
Operating Temperature	-40°C to 85°C

⚙️ Detailed & Production

Glass

Antireflective glass
Translucency of normal luminance is increased by 2%
Module efficiency is increased by 2%
Self-cleaning function
Service life is as long as 25 years (30 years optional)

Solar Cell

High Efficiency PV Cells
Appearance Consistency
Color sorting ensure consistent appearance on each module
Anti-PID

Frame

Conventional frame
Silver or black frames are optional
Boost bearing capability and prolong service life
Serrated-clip design tensile strength
Seal-lip design glue injection

Junction box

Conventional standalone edition and engineering custom edition
Quality diode ensures module running safety
IP67 protection level
Heat dissipation
Long service life

🏗️ Projects

🏭 Production Facility & Quality Control

💳 Payment & Delivery Terms

Payment Terms	T/T	EXW	30% T/T in advance, paid the balance before shipment
		FOB	30% T/T in advance, paid the balance before shipment
		CFR (C&F)	30% T/T in advance, paid the balance against copy of B/L (Not Suitable for Solar System Orders)
		CIF
		DDP
	L/C		L/C amount above 50,000 USD, we can accept L/C at sight (Not Suitable for Solar System Orders)
	West Union		Amount lower than 5000 USD
Delivery Time	7~10 days after receiving payment for one container

📦 Related Products

❓ Frequently Asked Questions (FAQ)

Q1: Can these solar panels be used for motorhome and RV kits?

Yes. These high-efficiency solar panel kits are designed to scale for off-grid applications such as motorhomes, caravans, and boats, with specific model options covering outputs from 300W up to 400W.

Q2: What are the main benefits of using PVT hybrid solar panels?

PVT (Photovoltaic-Thermal) hybrid solar panels capture both electrical power and heat energy simultaneously. This dual-generation model optimizes roof space usage and increases overall system module efficiency.

Q3: How long is the expected service life of the tempered glass and frame?

The outer glass features a self-cleaning, antireflective design with a standard service life of 25 years (up to 30 years optional). The frame uses a premium serrated-clip design for extra structural strength to support this lifespan.

Q4: What is the estimated delivery timeframe for bulk container orders?

For container-sized orders, the standard production and delivery dispatch window is within 7 to 10 days after receipt of payment.

Q5: Which payment terms are recommended for solar system orders?

For standard solar system orders, T/T 30% in advance with the balance settled before shipment is highly recommended. Please note that L/C terms or T/T against B/L copy are not suitable for complete solar system orders.
