STC: Irradiance 1000W/m², Cell Temperature 25°C, Air Mass AM1.5 NMOT: Irradiance at 800W/m², Ambient Temperature 20°C, Air Mass AM1.5, Wind Speed 1m/s
Electrical characteristics with different rear side power gain
Power Gain
5%
10%
15%
20%
25%
Maximum Power (Pmax/W)
730
765
799
834
869
Open-Circuit Voltage (Voc/V)
47.90
47.90
47.90
48.00
48.00
Operating Voltage (Vmp/V)
40.30
40.30
40.30
40.40
40.40
Short-Circuit Current (Isc/A)
18.84
19.56
20.25
20.98
21.69
Operating Current (Imp/A)
18.12
18.99
19.83
20.65
21.51

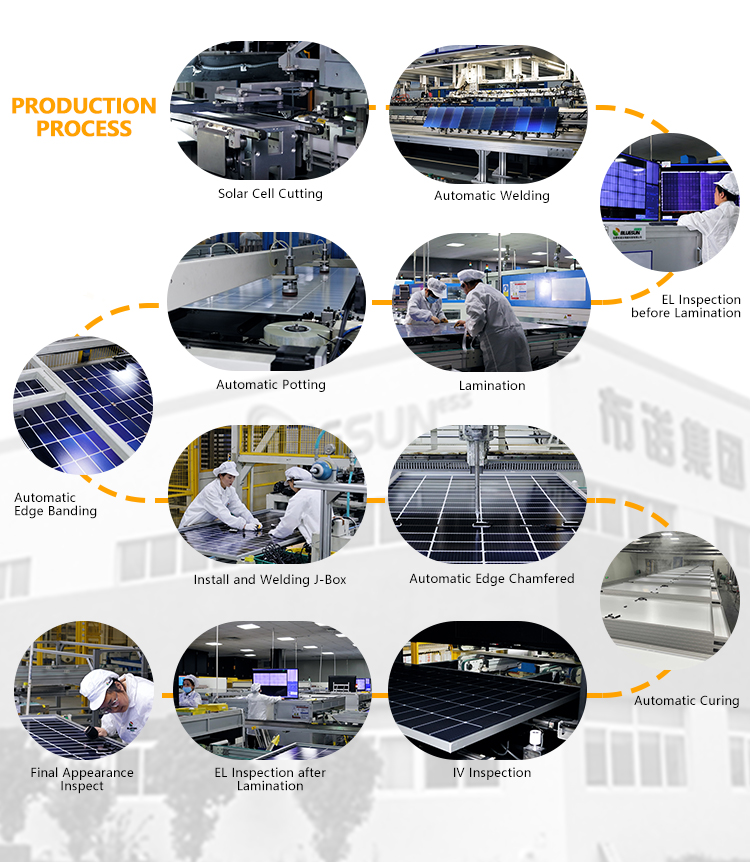

Product Process

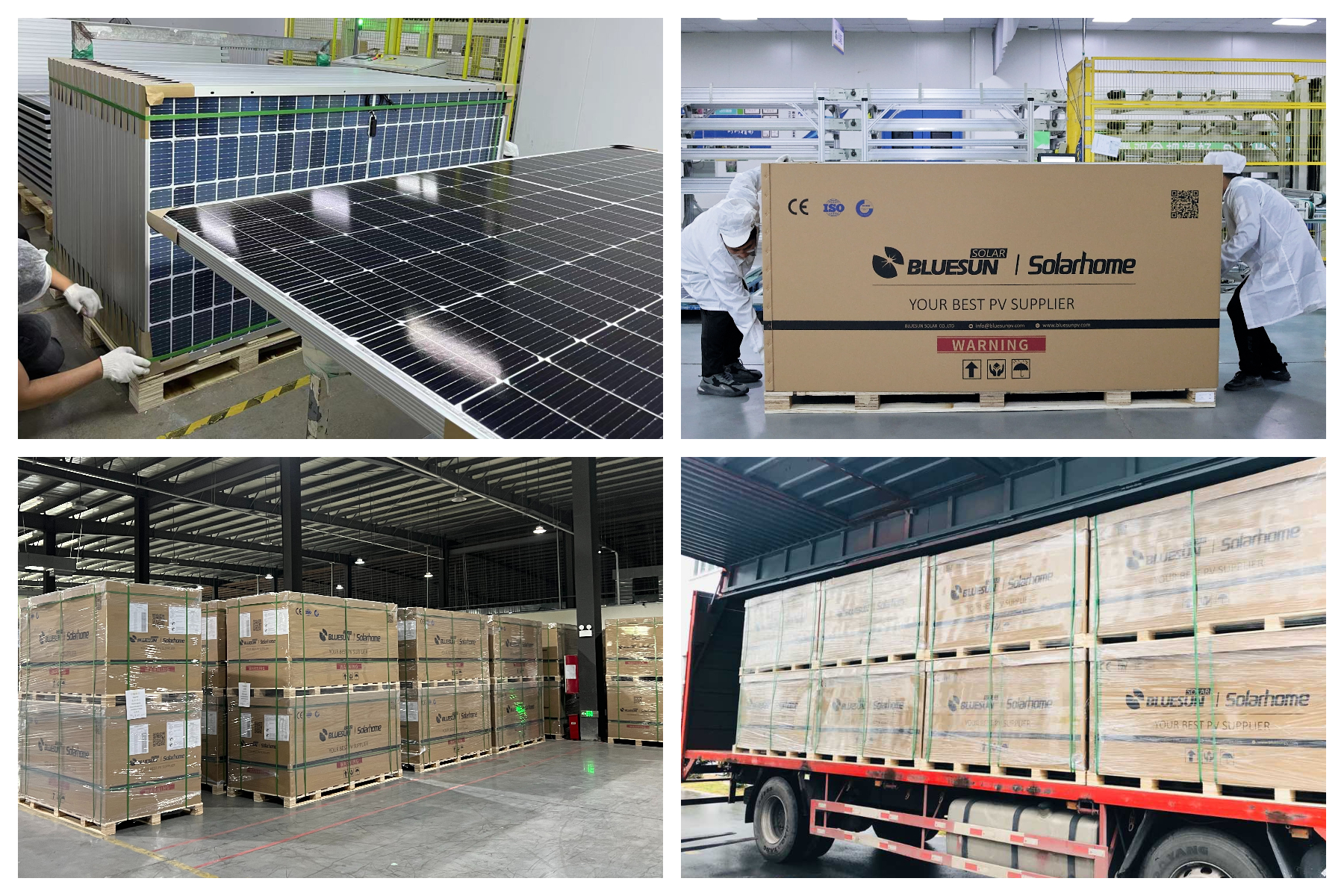

Packing & Delivery
Packing Configuration: 36pcs/carton, 720pcs/40HQ

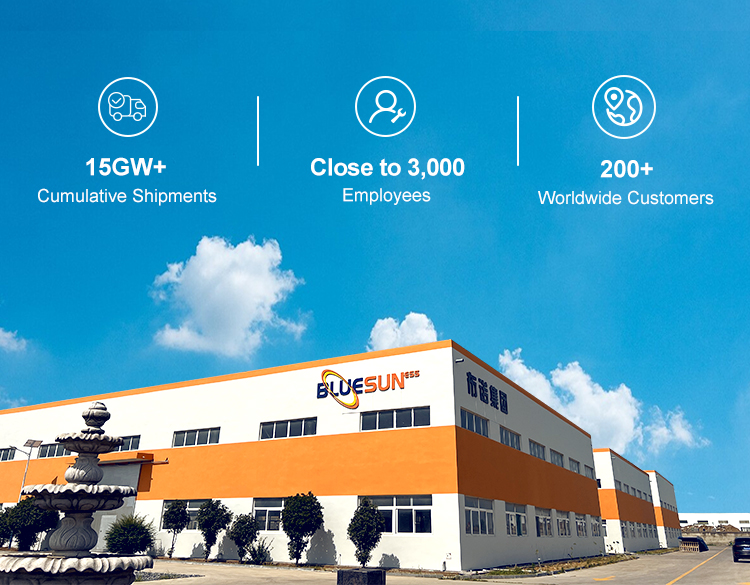

Production Facility
Global Exhibitions

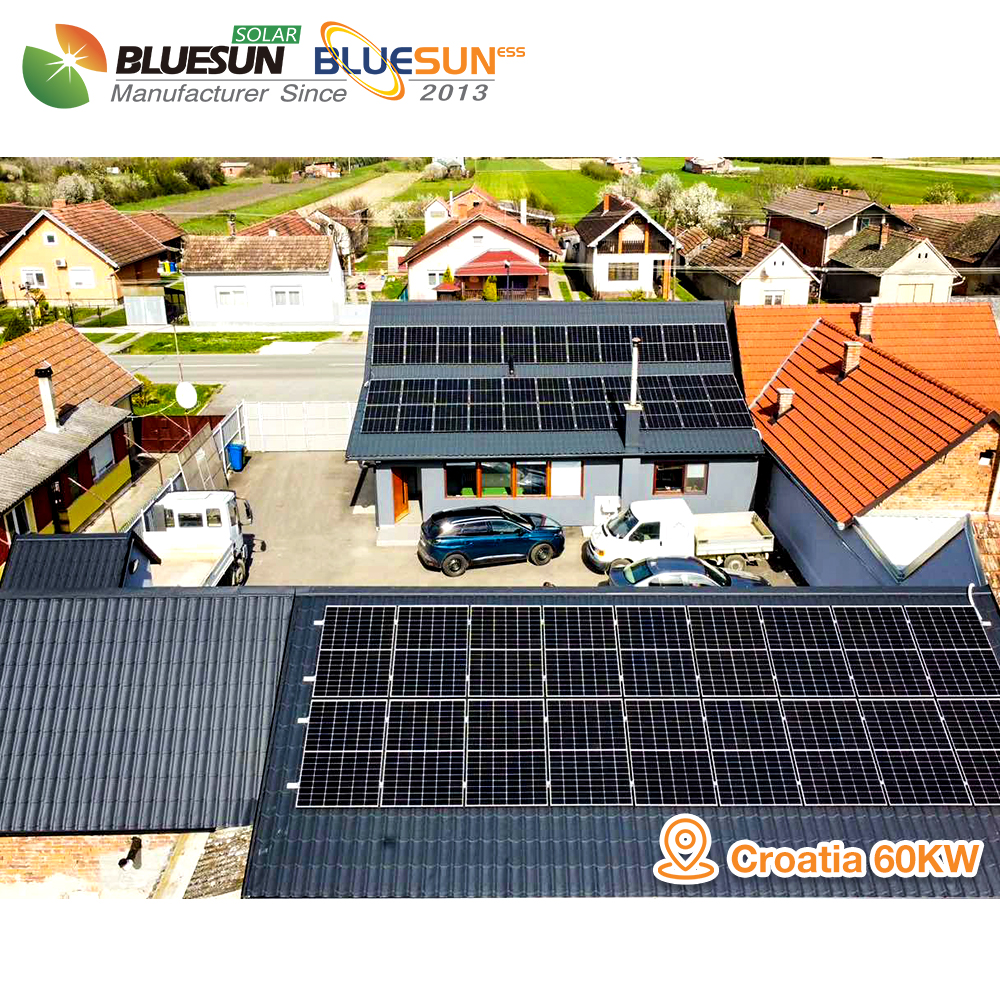

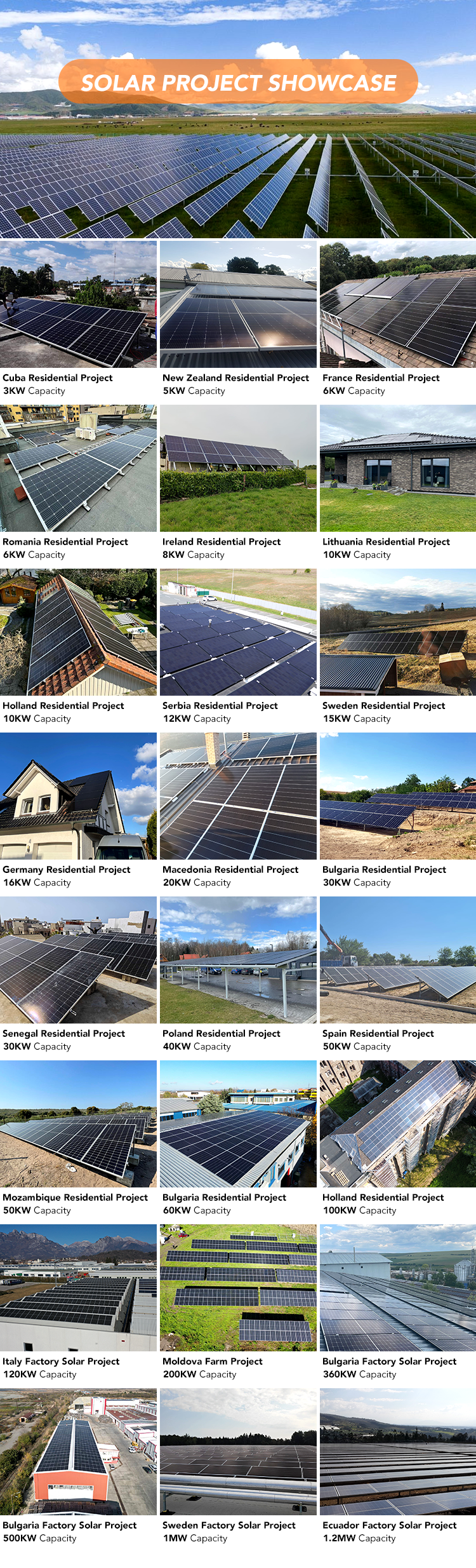

Solar Projects

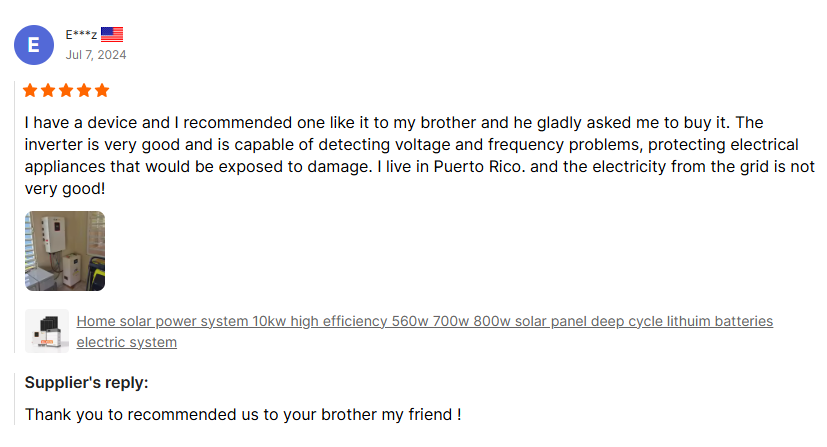

Customer Reviews
Payment & Delivery Terms
Payment Term
Trade Term
Conditions
T/T
EXW / FOB
30% T/T in advance, paid the balance before shipment
CFR(C&F) / CIF
30% T/T in advance, paid the balance against copy of B/L
L/C
-
L/C amount above 50,000 USD, we can accept L/C at sight
West Union
-
Amount lower than 5,000 USD
Delivery Time
7~10 days after receiving payment for one container
Frequently Asked Questions
Q: What is the maximum output power of these solar modules?
A: The maximum output power ranges from 710W to 720W (specifically BSM710G12-66HNH at 710W, BSM715G12-66HNH at 715W, and BSM720G12-66HNH at 720W) under Standard Test Conditions (STC).
Q: What is the difference between STC and NMOT in the specifications?
A: STC (Standard Test Conditions) refers to cell testing at 1000W/m² irradiance, 25°C cell temperature, and AM1.5. NMOT (Nominal Module Operating Temperature) represents real-world conditions at 800W/m² irradiance, 20°C ambient temperature, AM1.5, and 1m/s wind speed.
Q: How does the rear side power gain affect the total power output?
A: Depending on the rear side power gain, the maximum power output can increase. For example, a 5% gain raises the output to 730W, while a 25% gain can increase the total maximum power output up to 869W.
Q: What is the standard packaging configuration for shipping?
A: The standard packaging configuration is 36 pieces per carton, and a total of 720 pieces per 40HQ container.
Q: What are the accepted payment terms for ordering?
A: We accept T/T (with a 30% advance deposit and the remaining balance paid before shipment or against the B/L copy, depending on terms like EXW, FOB, CFR, or CIF). We also accept L/C at sight for orders exceeding 50,000 USD, and Western Union for amounts under 5,000 USD.
Q: What is the estimated delivery time for an order?
A: The typical delivery time is 7 to 10 days after receiving payment for a standard one-container order.
