| SPECIFICATIONS (STC) | |||||
|---|---|---|---|---|---|

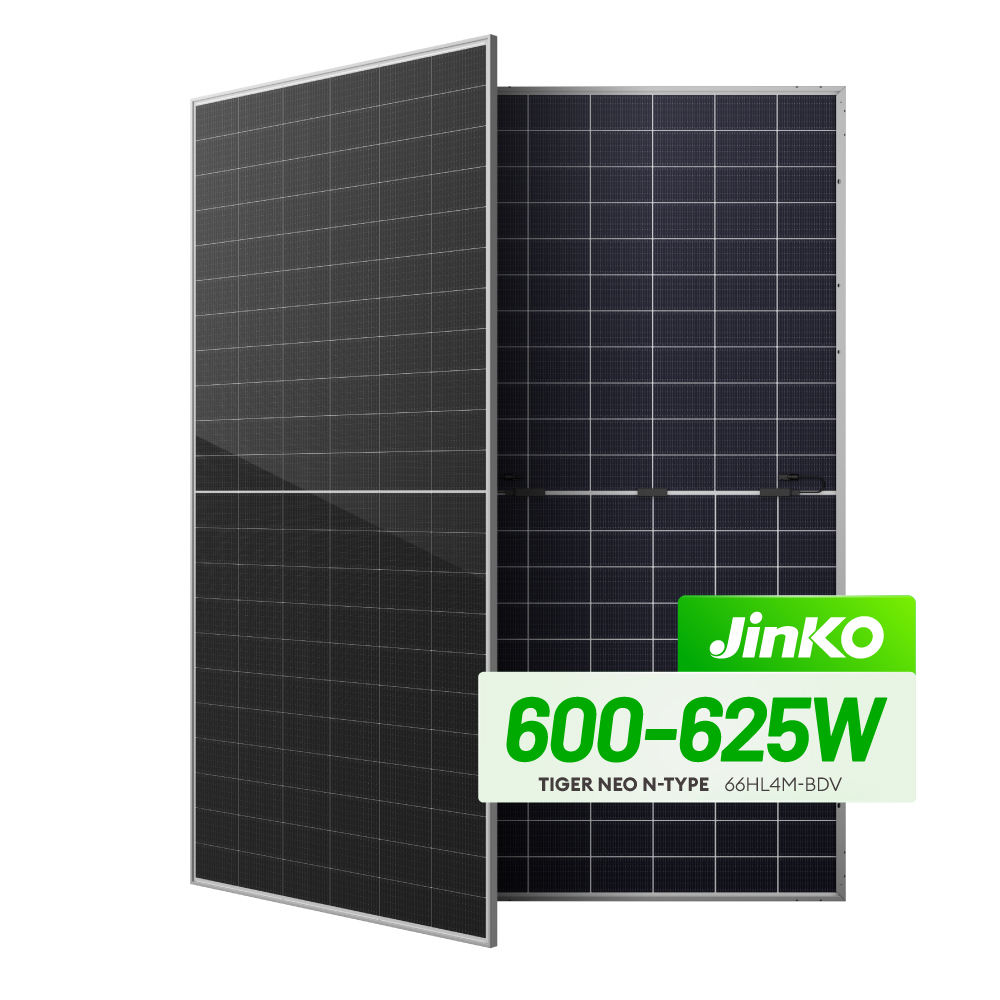

| Module Type | JKM610N-66HL4-BDV | JKM615N-66HL4-BDV | JKM620N-66HL4-BDV | JKM625N-66HL4-BDV | JKM630N-66HL4-BDV |
| Maximum Power (Pmax) | 610Wp | 615Wp | 620Wp | 625Wp | 630Wp |
| Maximum Power Voltage (Vmp) | 40.46V | 40.60V | 40.74V | 40.88V | 41.02V |
| Maximum Power Current (Imp) | 15.08A | 15.15A | 15.22A | 15.29A | 15.36A |
| Open-circuit Voltage (Voc) | 48.68V | 48.88V | 49.08V | 49.28V | 49.48V |
| Short-circuit Current (Isc) | 15.90A | 16.02A | 16.08A | 16.14A | 16.20A |
| Module Efficiency STC (%) | 22.40% | 22.77% | 22.95% | 23.14% | 23.32% |
| Operating Temperature (℃) | -40℃ ~ +85℃ | ||||
| Maximum system voltage | 1500VDC (IEC) | ||||
| Maximum series fuse rating | 30A | ||||
| Power tolerance | 0~+3% | ||||
| Temperature coefficients of Pmax | -0.30%/℃ | ||||
| Temperature coefficients of Voc | -0.25%/℃ | ||||
| Temperature coefficients of Isc | 0.046%/℃ | ||||
| Nominal operating cell temperature (NOCT) | 45±2℃ | ||||
| Refer. Bifacial Factor | 80±5% | ||||
