Solar Panels 610W 620W 630W 650W On/Off Grid One-stop Service Panel Solar for Home Electricity

1 / 5

Solar Panels 610W 620W 630W 650W On/Off Grid One-stop Service Panel Solar for Home Electricity

Send Inquiry

Product Description

Specification

Mechanical Characteristics
Cell Type	N type Mono-crystalline
No. of cells	132(66*2)
Dimensions	2382x1134x30mm
Weight	32.4kg
Front Glass	2.0mm, Anti-Reflection Coating
Back Glass	2.0mm, Heat Strengthened Glass
Frame	Anodized Aluminium Alloy
Junction Box	IP68 Rated
Protection Class	Class II
IEC Fire Type	Class C
Connector Type	JK03M/MC4/Others
Output Cables	TUV 1×4.0mm² (+): 400mm , (-): 200mm or Customized Length
Pallet Dimensions	2396x1110x1251 mm
Packing detail	36pcs/pallets, 720pcs/40'HQ Container

Specifications (STC)
Maximum Power - Pmax [Wp]	610W	615W	620W	625W	630W
Maximum Power Voltage-Vmp [V]	40.46	40.60	40.74	40.88	41.02
Maximum Power Current-Imp [A]	15.08	15.15	15.22	15.29	15.36
Open-circuit Voltage-Voc [V]	48.68	48.88	49.08	49.28	49.48
Short-circuit Current-Isc [A]	15.96	16.02	16.08	16.14	16.20
Module Efficiency STC [%]	22.58	22.77	22.95	23.14	23.32
Power Tolerance	0~+3%
Temperature Coefficients of Pmax	-0.29%/°C
Temperature Coefficients of Voc	-0.25%/°C
Temperature Coefficients of Isc	0.045%/°C
STC: Irradiance 1000W/m², Cell Temperature 25°C, AM=1.5

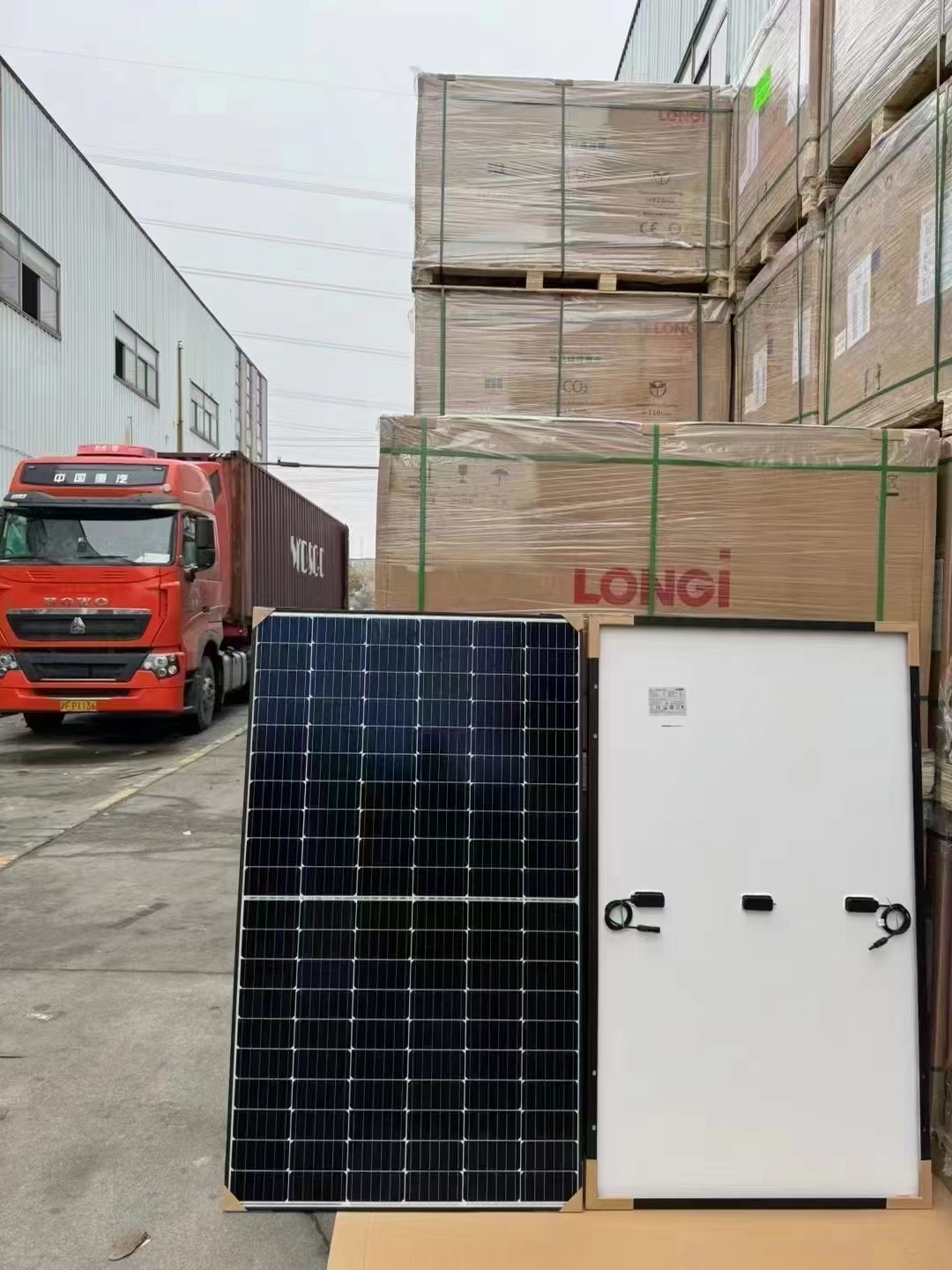

Packing & Delivery

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

Company Profile

We are a high-tech enterprise integrating R&D and production. Our products involve monocrystalline/polycrystalline photovoltaic modules, solar street lights, photovoltaic brackets, off grid solar systems, on grid solar systems, etc. Our products are widely used in all walks of life. The sales network is exported to overseas. We adhere to the tenet of "customer first, pioneering and innovative", adhering to customer-centricity, keeping improving, and committing to providing global users with professional products and efficient solar power solutions. We sincerely welcome friends from all walks of life to realize win-win business opportunities and common development.

Our major products include:

High-efficiency Solar Panels
Advanced Solar Controllers & Inverters
Reliable Battery Storage Solutions
DC Output Solar Systems & Off-Grid Solar Systems
Free technical service support

Frequently Asked Questions

What are the advantages of N-type Mono-crystalline solar cells?

N-type solar cells offer higher conversion efficiency, lower LID (Light Induced Degradation), better low-light performance, and a lower temperature coefficient compared to P-type cells, leading to higher long-term energy yields.

What is the advantage of using double glass (front & back glass)?

The dual-glass design (2.0mm heat-strengthened front and back glass) provides enhanced mechanical resistance, better protection against harsh environmental conditions (humidity, salt mist, sand), and extends the overall physical lifespan of the module.

How waterproof are the solar modules?

Our solar modules feature an IP68-rated junction box, providing the highest level of protection against dust ingress and water immersion, ensuring safe and stable operation in all weather conditions.

What certifications do these modules meet?

The modules are manufactured to meet high international standards, including TUV certified output cabling, Class II protection rating, and Class C IEC Fire safety class.

How are the solar panels packaged for delivery?

They are securely packed on pallets with dimensions of 2396x1110x1251 mm. There are typically 36 pieces per pallet, and a 40'HQ container can accommodate up to 720 pieces.

Do you provide customized cable lengths?

Yes, while the standard TUV 1×4.0mm² cable layout is (+): 400mm and (-): 200mm, we can support customized cable lengths according to your project requirements.
