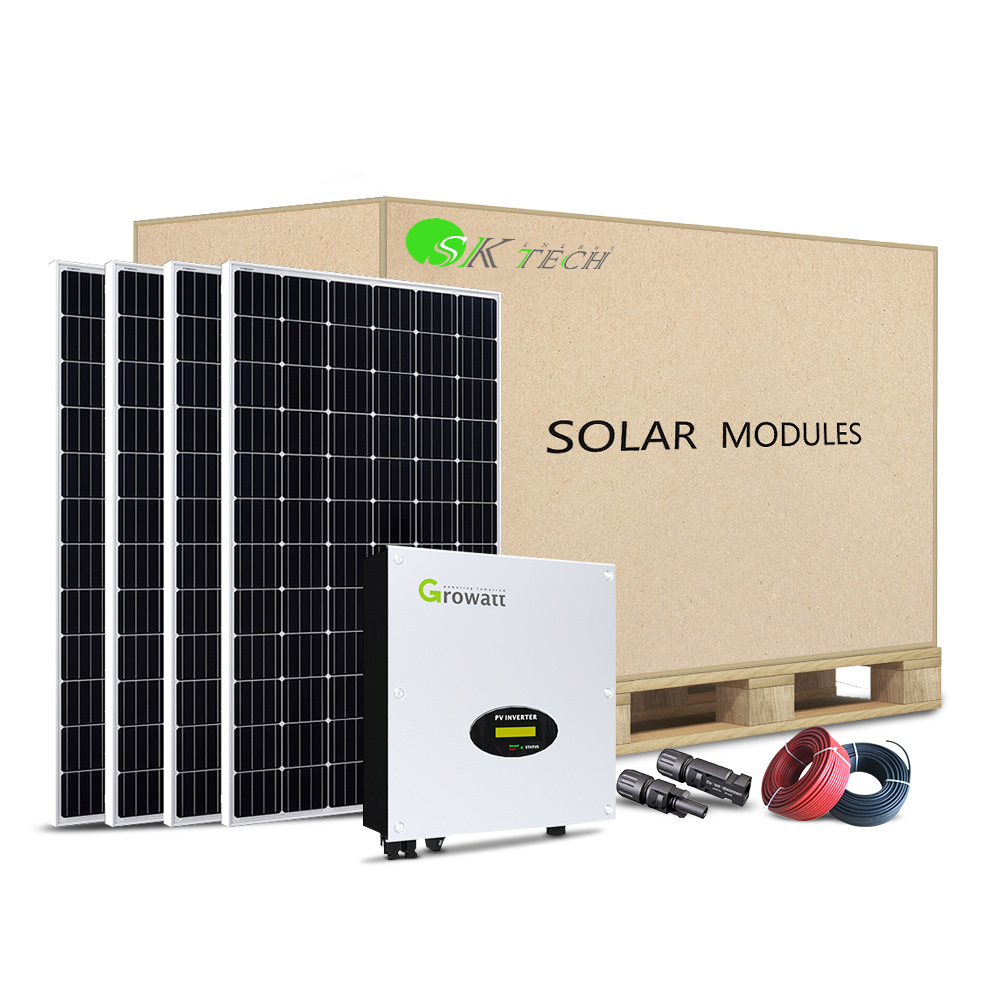

On Grid 6kw Solar Panel Set 5000w System for House Use Solar Power System 6kw
On Grid 6kw Solar Panel Set 5000w System for House Use Solar Power System 6kw
On Grid 6kw Solar Panel Set 5000w System for House Use Solar Power System 6kw
On Grid 6kw Solar Panel Set 5000w System for House Use Solar Power System 6kw
On Grid 6kw Solar Panel Set 5000w System for House Use Solar Power System 6kw
1 / 5
On Grid 6kw Solar Panel Set 5000w System for House Use Solar Power System 6kw
On Grid 6kw Solar Panel Set 5000w System for House Use Solar Power System 6kw
On Grid 6kw Solar Panel Set 5000w System for House Use Solar Power System 6kw
On Grid 6kw Solar Panel Set 5000w System for House Use Solar Power System 6kw
On Grid 6kw Solar Panel Set 5000w System for House Use Solar Power System 6kw

On Grid 6kw Solar Panel Set 5000w System for House Use Solar Power System 6kw

Send Inquiry

Product Description

Products Description
What is on grid system?
Grid-tied, on-grid, utility-interactive, grid intertie and grid backfeeding are all terms used to describe the same concept - a solar system that is connected to the utility power grid.

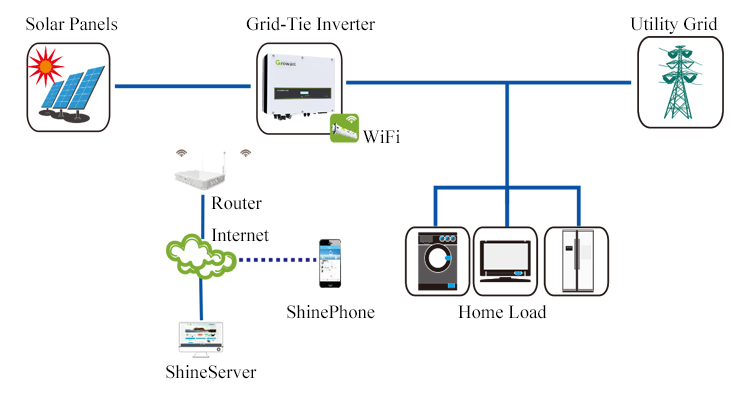

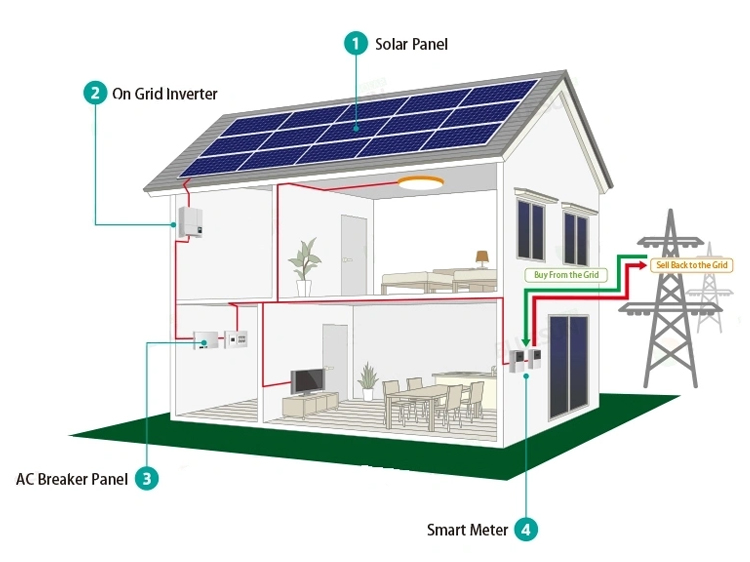

On Grid Solar System Diagram
Solar Panels Installation
Inverter Installation
1KW-6KW on grid solar system Equipment list
Item Module Description Quantity
1 Mono Solar Panel SW450M-144 Mono 450w solar panel 12pcs
2 On Grid Inverter Rated Output PV Power: 1-5kW
Output voltage: Single Phase 220V/230V/240V 50/60Hz		 1pc
3 PV Cables PV 4mm² 100m
4 Mounting System (including all parts) Roof/Ground 1set
5 MC4 connector Rated Current: 30A Rated Voltage: 1000DVC 3pairs
System Components

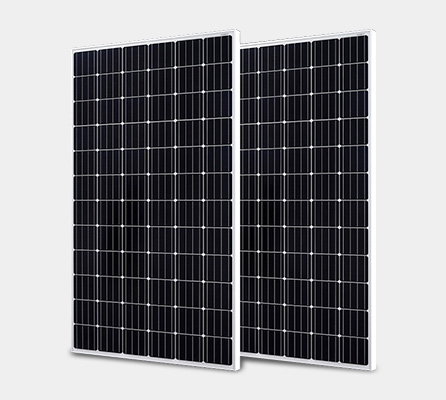

MONO/POLY Solar Panel
  • Positive power tolerance: 0~+5w 100%
  • EL Double-inspection ensures modules are defects free
  • Modules Binned by Current to improve system performance
  • Potential Induced Degradation (PID) Resistant
MONO/POLY Solar Panel

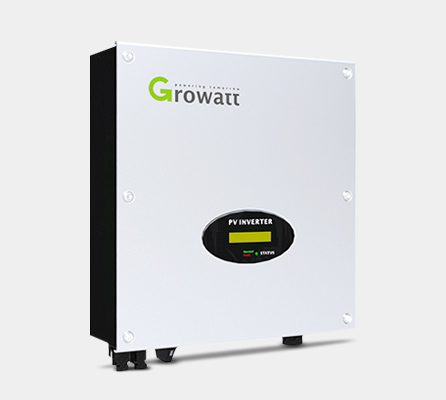

1kw-5kw On Grid Inverter
  • Double MPPT Tracker, MPPT tracking accuracy more than 99.5%
  • Max. Efficiency 97.9%, European Efficiency 97.4%
  • Transformerless design and high power density, offer lighter and more convenient installation
  • 5 years standard warranty
  • Power factor continuously adjustable
  • Flexible communication connection, support RF, WiFi, Ethernet
  • Comply with European, Australia, Asia-Pacific safety regulations
1kw-5kw On Grid Inverter

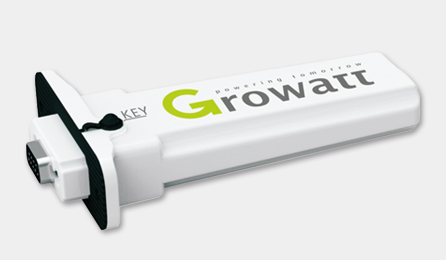

Shine WiFi
  • Easy to use
  • Plug-and-play commissioning
  • 100-meter wireless connection to inverter
  • Remote firmware updating for inverter
  • Free online monitoring via Shine Server
Shine WiFi Module

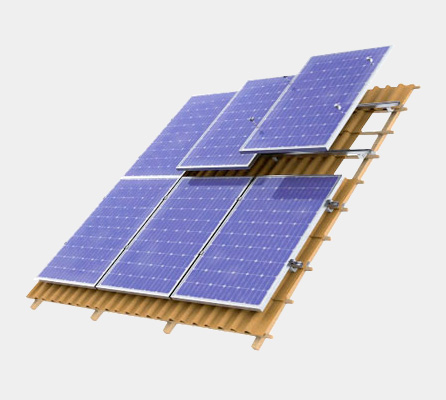

Mounting Structure
  • Residential Roof (Pitched Roof)
  • Commercial Roof (Flat roof & workshop roof)
  • Ground Solar Mounting system
  • Vertical wall solar mounting system
  • All aluminum structure solar mounting system
  • Car parking solar mounting system
Mounting Structure

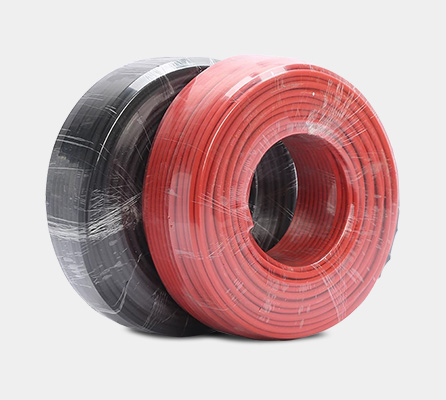

Accessories
  • PV Cable 4mm2 6mm2
  • AC Cable
  • DC Switches
  • AC Breaker
  • AC/DC Combiner box
Accessories

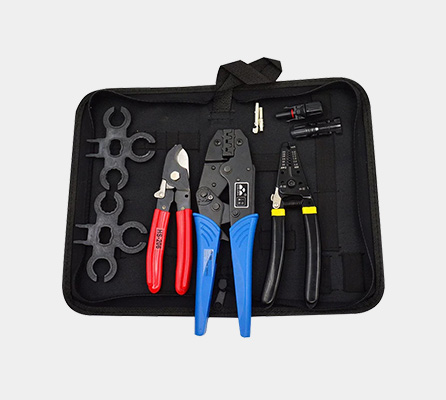

PV Tools
  • Wire Cable Cutter & Stripper
  • MC3 MC4 Crimper
  • MC4 Connectors Assembly
  • Disassembly Tool
PV Tools
Production & QC

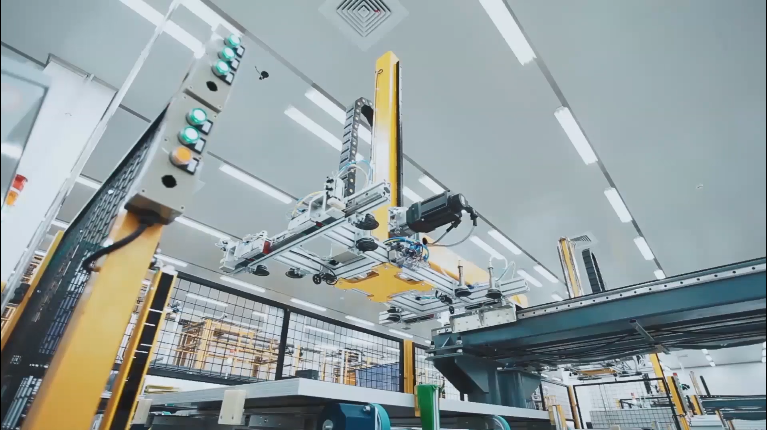

Automatic typesetting machine
Automatic typesetting machine
After setting up the program according to the requirements of the process drawings, the typesetting machine will automatically typeset the battery string. High precision, high efficiency, low defect rate.

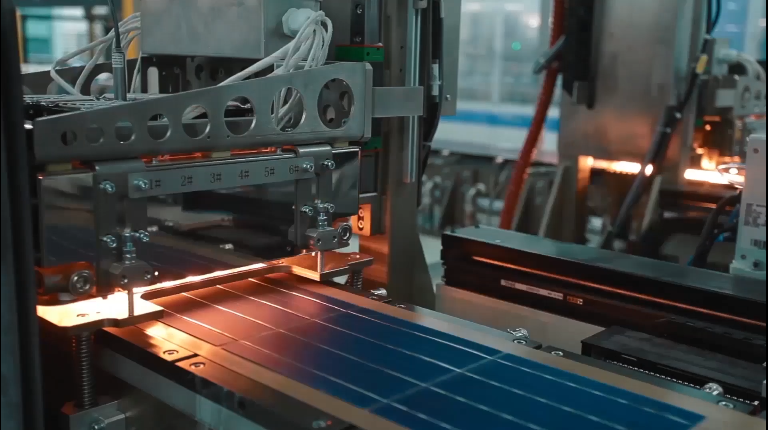

Solar cell Welding
Solar cell Welding
Use automatic welding machine to connect solar cells in series. All the solar cells are made by top class brand, like TW Solar, Longi Solar.

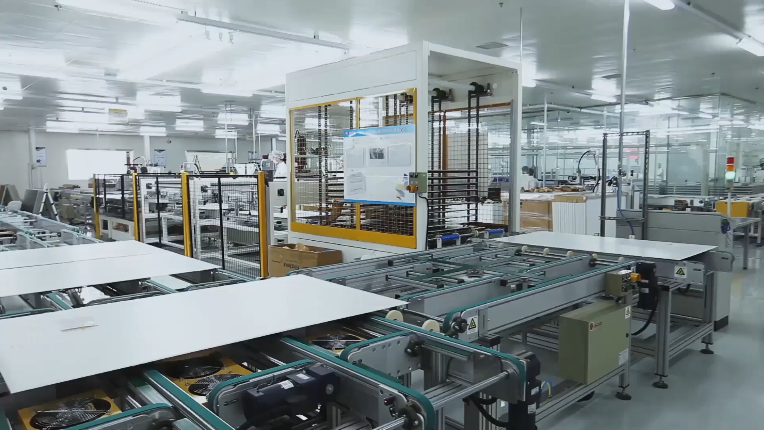

Automatic welding
Automatic welding
Automatic laying of EVA, backing, automatic cutting of excess backing material. 100% automation of the entire production process.

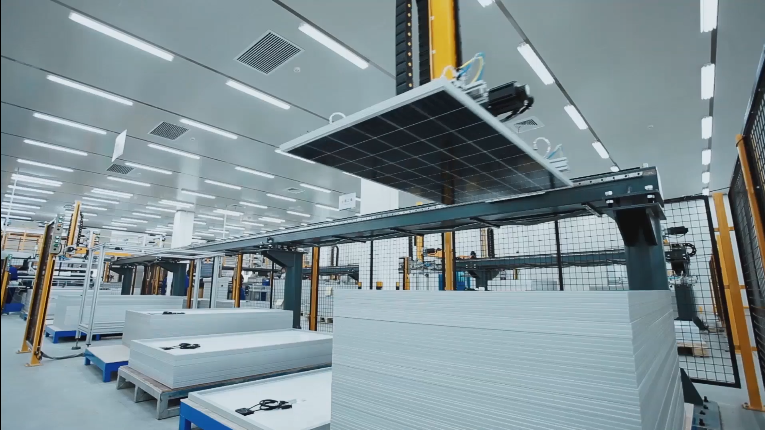

100% Cells Sorting
100% Cells Sorting
Ensure Colour and Power Difference. Ensure high yields, consistent performance and durability. First of 52 steps strict quality control and inspection process.

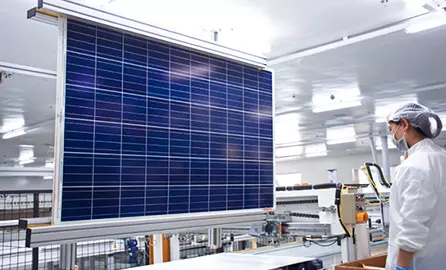

Visual Inspection
Visual Inspection
Through the turning machine, completely inspect the solar panel after lamination, and record the defects and feedback to the previous process.

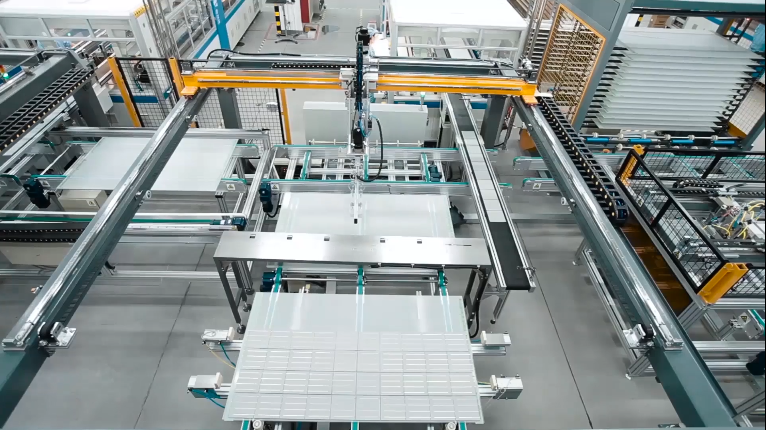

100% Optimal Testing
100% Optimal Testing
Ensure 3% Positive Power Tolerance. Comprehensive QC information management system with barcode ID. Quality traceable system in place to allow quality data flow constantly.

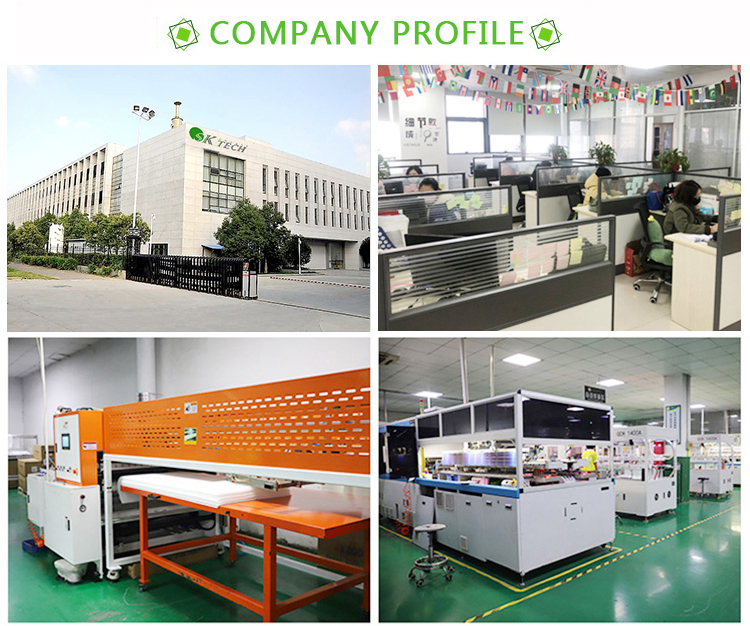

Factory Testing Facility
Quality Inspection Line
Product Packaging
Product Packaging Details
Certifications
Quality Certifications
Frequently Asked Questions (FAQ)
What is an on-grid solar system?
An on-grid solar system (also known as grid-tied, utility-interactive, or grid backfeeding) is a solar power system that remains connected directly to the local utility power grid. It allows you to feed excess solar energy back into the grid and pull electricity from the grid when your panels aren't producing enough power.
What components are included in the 1KW-6KW solar system kit?
The standard package includes highly efficient Mono 450W solar panels, an on-grid inverter, PV cables, a robust mounting structure suited for roof or ground, and MC4 connectors.
What features do the on-grid inverters offer?
The inverters feature double MPPT tracking with over 99.5% accuracy, up to 97.9% maximum efficiency, a transformerless design for easy installation, continuous power factor adjustment, and standard support for RF, WiFi, and Ethernet monitoring.
How does remote monitoring work for this solar system?
With the integrated Shine WiFi module, you can easily set up a plug-and-play wireless connection up to 100 meters away from the inverter. It supports remote firmware updates and offers free online system monitoring via the Shine Server.
What mounting options are available for the solar panels?
The mounting structure is highly versatile, supporting residential pitched roofs, commercial flat or workshop roofs, ground-mounted setups, vertical walls, all-aluminum structures, and solar carports.
How is the quality of the solar panels ensured during manufacturing?
The solar panels undergo a strict 52-step quality control process, which includes automatic cell sorting, high-precision automated welding, EL double-inspection to ensure defect-free modules, visual post-lamination checks, and final optimal power testing to ensure a positive tolerance of 0~+5W.
