PVT Solar Panels

PVT Panels Brief Introduction

Solar photovoltaic photothermal integration module is mainly composed of photovoltaic and photothermal two parts. The photovoltaic part uses mature solar photovoltaic panels to provide the required electricity for the building through the control system. The photothermal part is mainly used as a collector to convert solar energy into thermal energy. At the same time, the thermal cycle mechanism is used to cool the solar cells, improve the photoelectric conversion efficiency, and use solar thermal energy more efficiently.

Why Choose BTE PVT?

• ⚡ 88% Total Energy Utilization – vs. 20% for PV alone
• 📏 40% Less Roof Space – compared to separate PV + solar thermal systems
• ❄️ Cooler Panels = Higher Efficiency – Thermal extraction boosts electrical yield by up to 15%
• ⚙️ OEM Customization Available – Custom logo, packaging, and specifications
• 💰 Factory Direct Price – Competitive wholesale pricing
• 🏆 Global Certifications – CE, Solar Keymark, SRCC, ISO9001

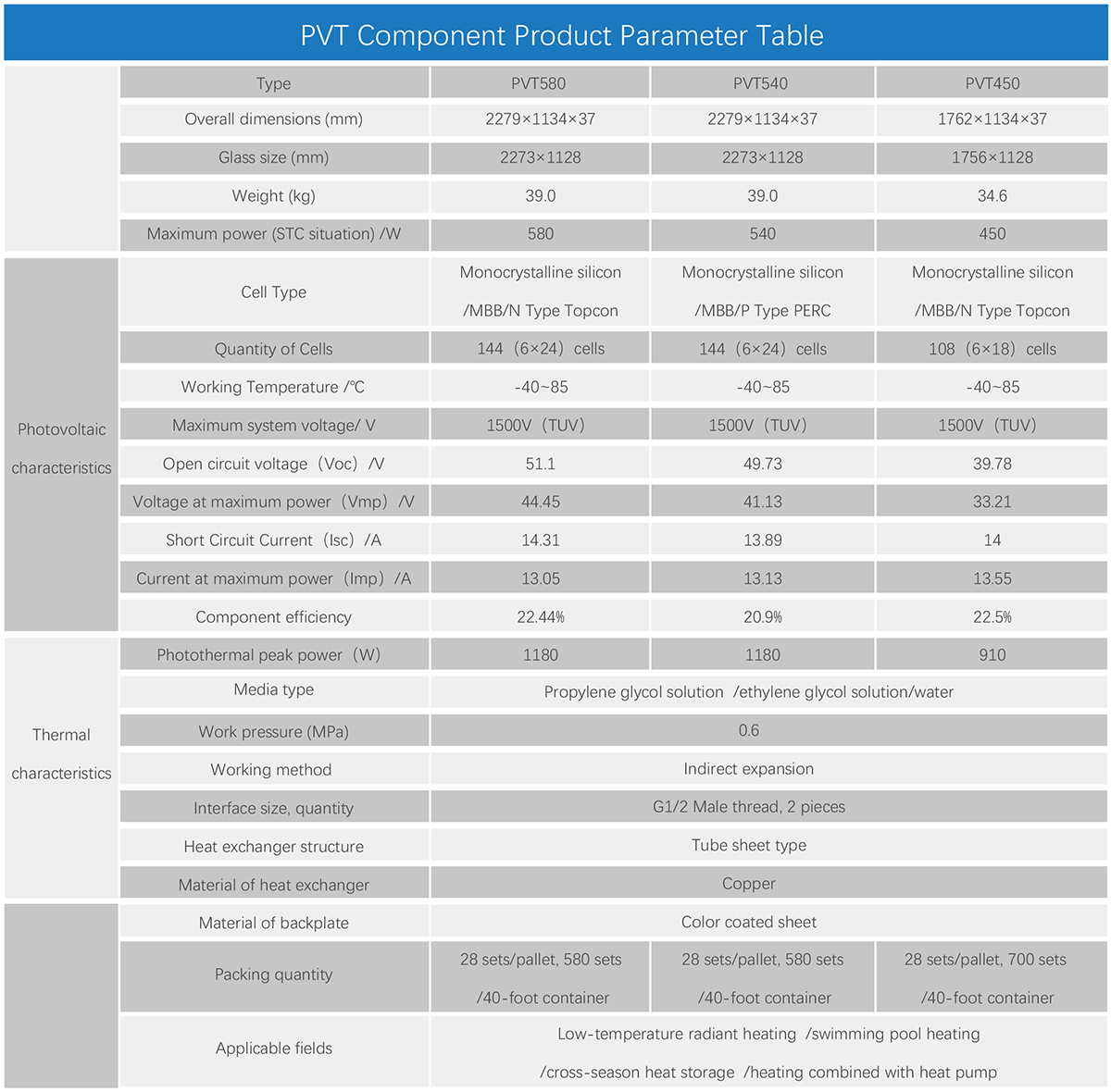

Specification

Operating Principle

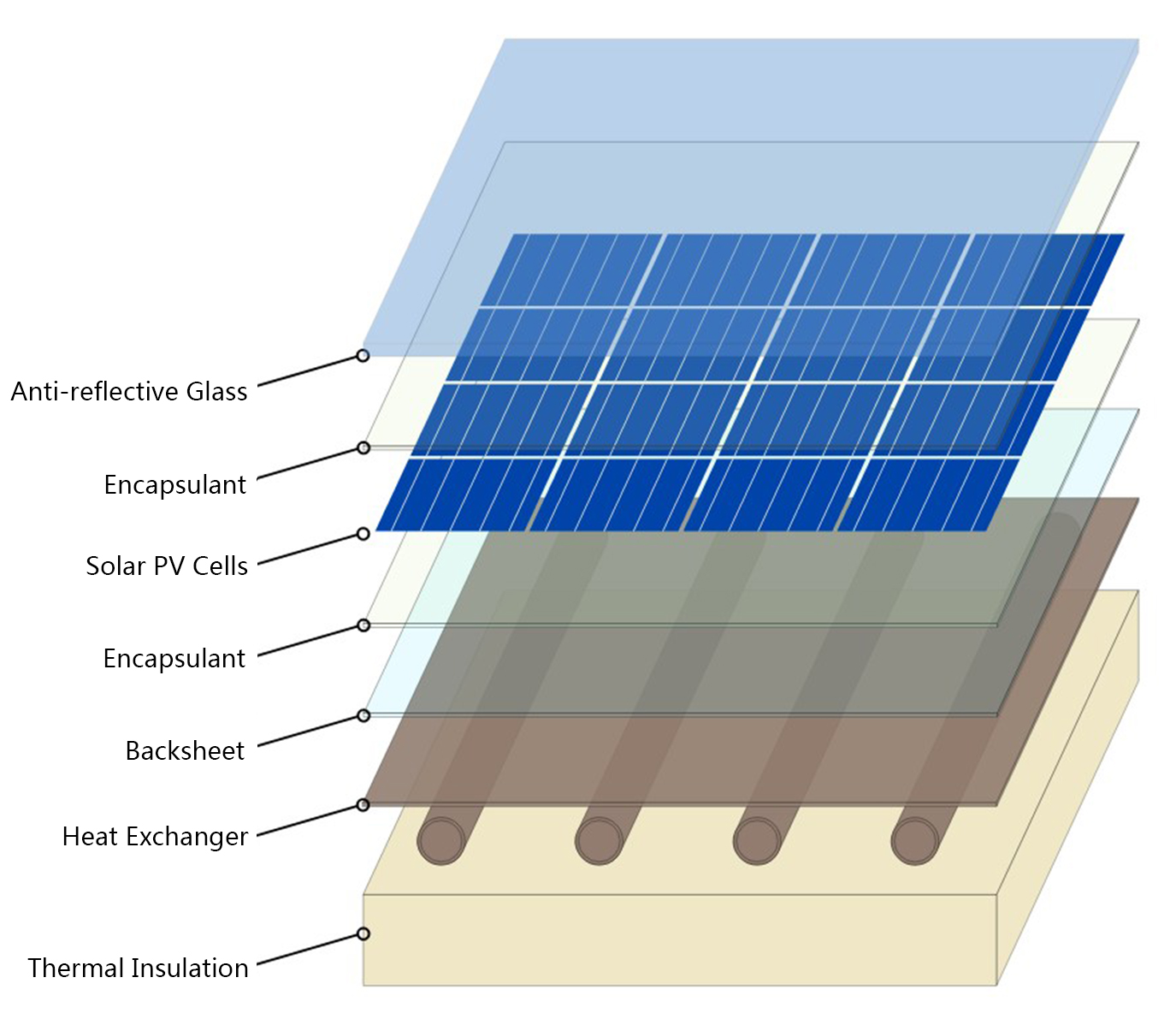

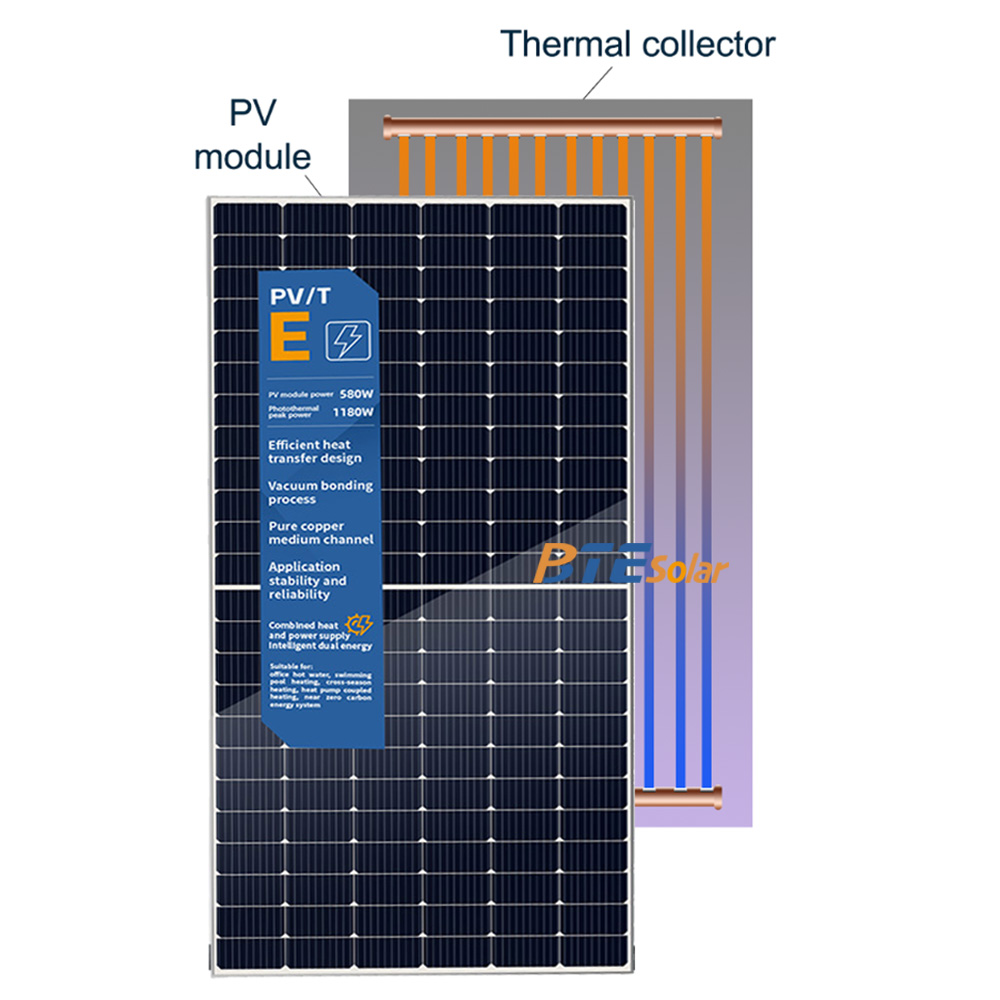

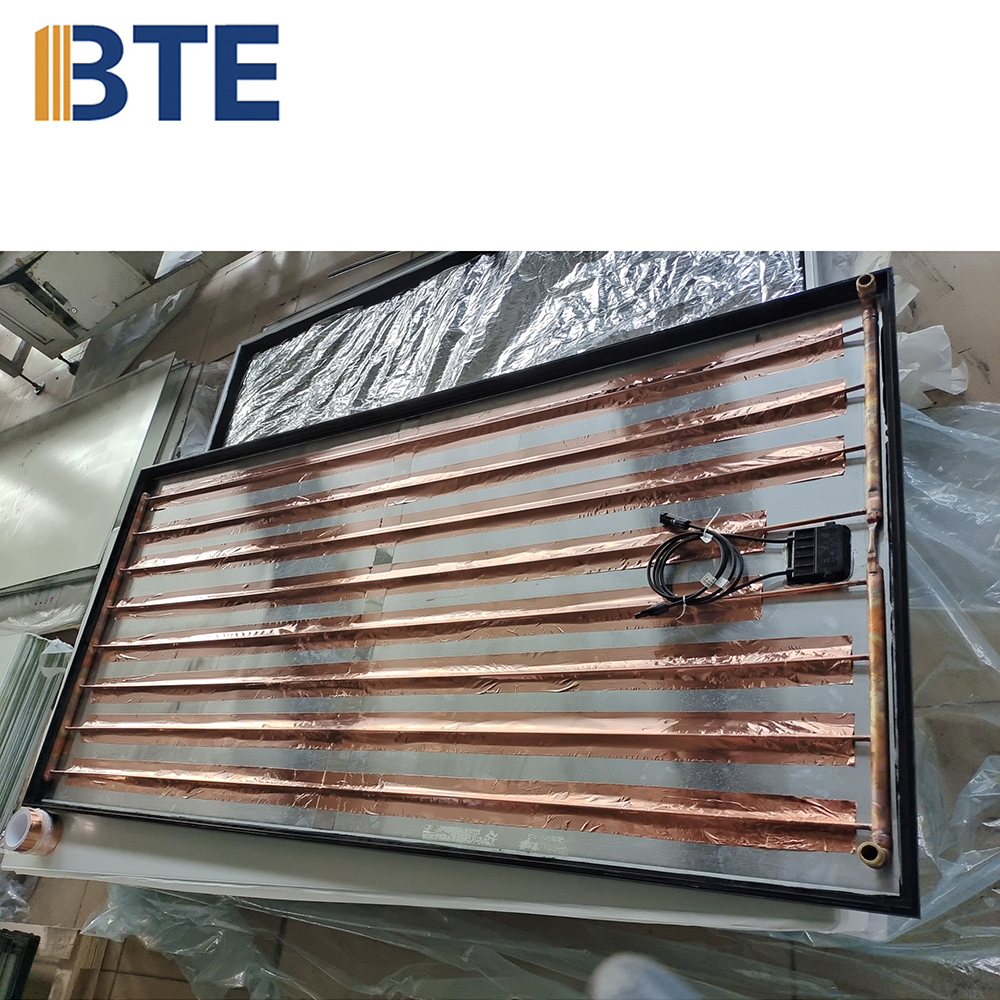

1. The photovoltaic module is combined with the heat exchanger module through a special process.
2. The heat generated by photovoltaic module when using sunlight to generate electricity is transferred to the heat storage tank by using circulating pipe and heat exchanger module. At the same time, the working temperature of photovoltaic module is reduced to improve its photoelectric conversion efficiency.
3. Then the hot water is conveyed to the user. The electric energy generated is stored in battery, and then the domestic electricity is transmitted to the end of the user.

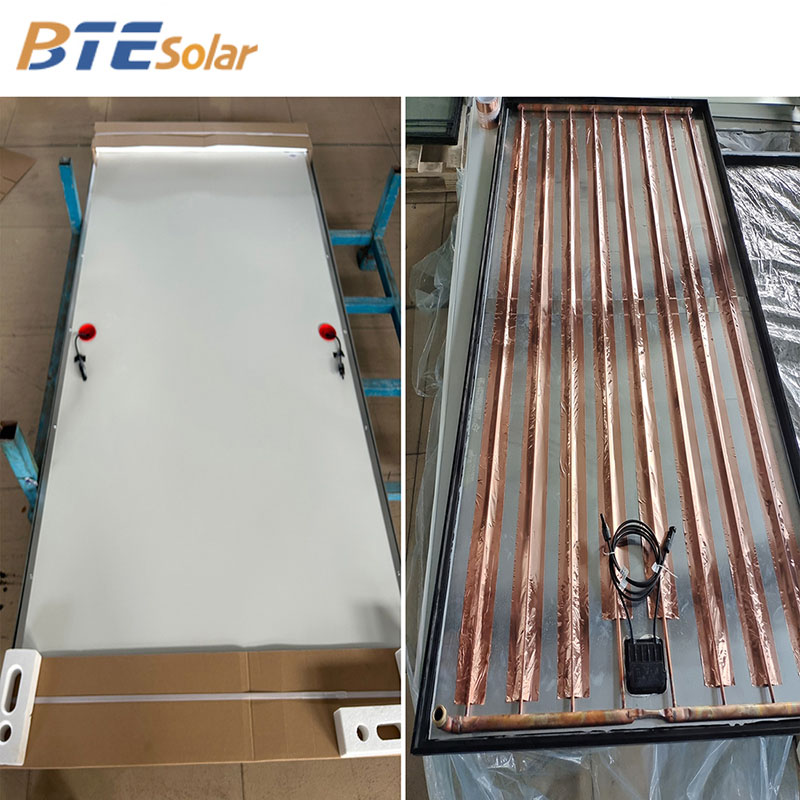

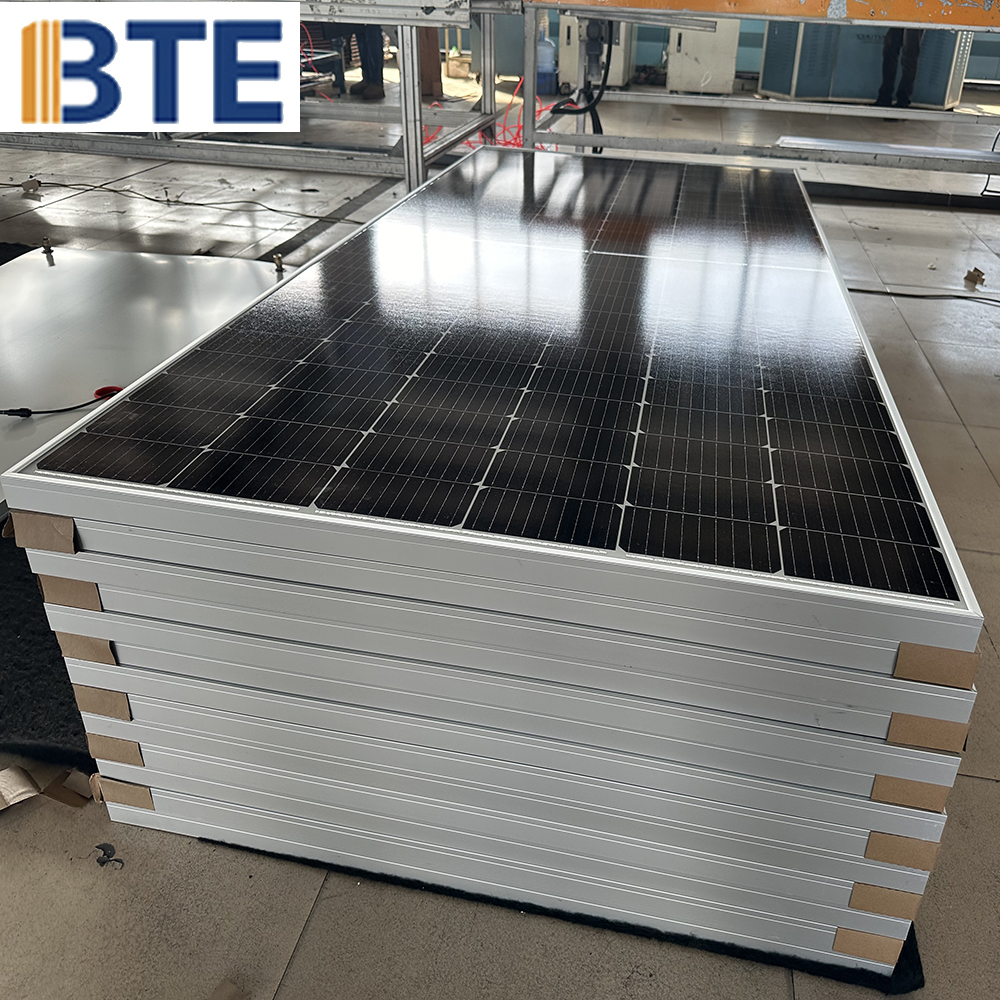

Product Details

Our Advantages

Applicable scene: Household and commercial power generation, hot water.

Benefits:

• ☀ Photovoltaic power can be generated on the grid in four seasons.
• 💧 Photovoltaic waste heat can be recovered and used for hot water.
• 📈 Reduce the temperature of photovoltaic panels and improve power generation efficiency.

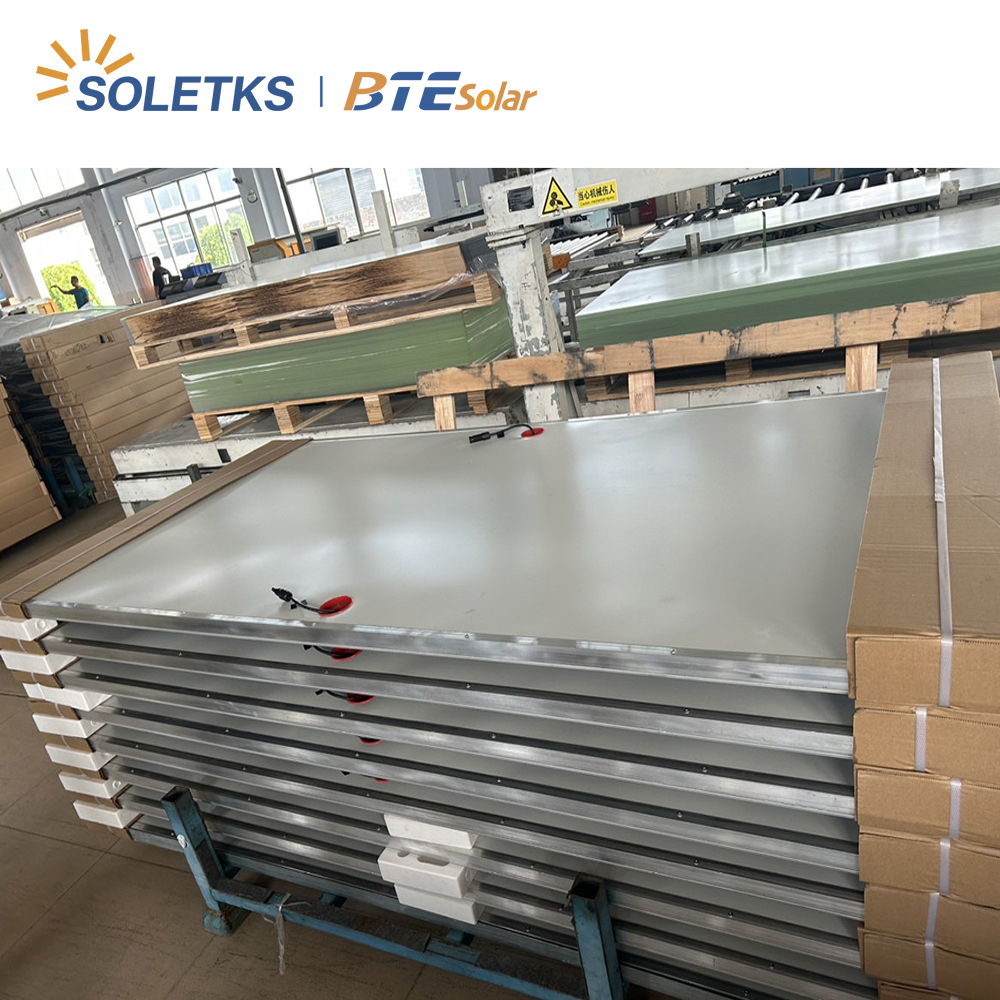

Packing & Delivery

Packing: LCL: Plywood wooden pallet/case | FCL: Export carton packing

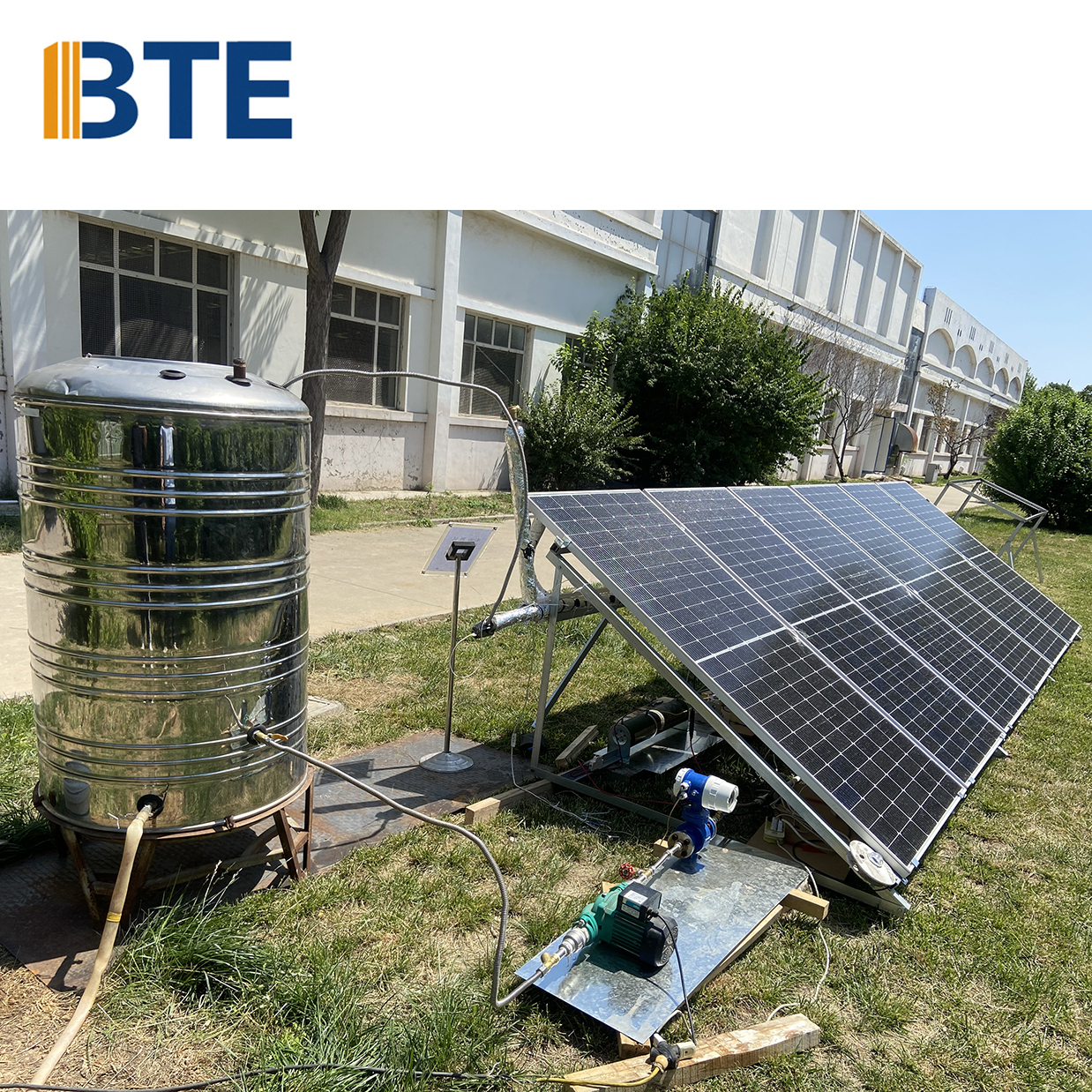

Project Case

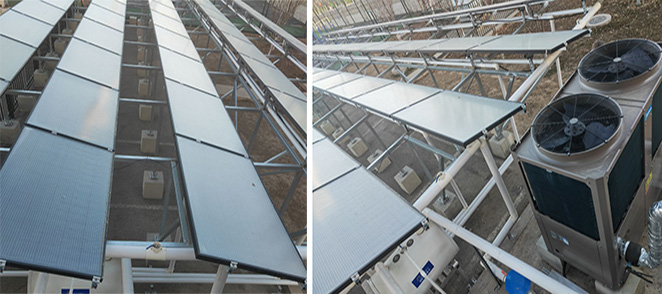

PVT Solar Thermal Panel + Heat Pump – Project Introduction

This hybrid system combines PVT solar panels (photovoltaic-thermal) with a heat pump to generate electricity and heat simultaneously. The PVT collector captures solar energy for power while recovering waste heat to boost the heat pump’s COP. This integration delivers higher energy efficiency (up to 80%), reduces grid consumption, and provides space heating, hot water, or pool heating. Ideal for residential, commercial, and industrial projects aiming for net-zero emissions.
