GAF Solar
1 / 5

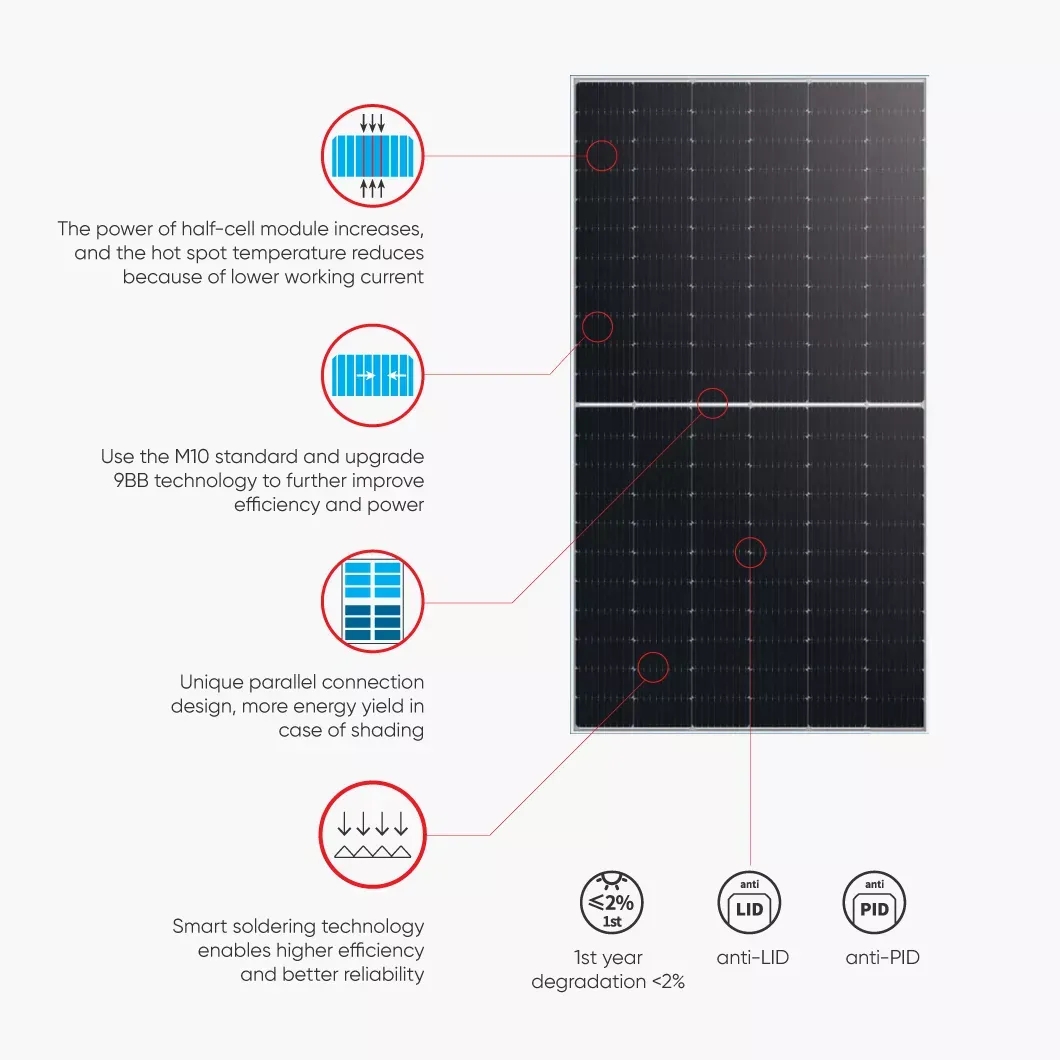

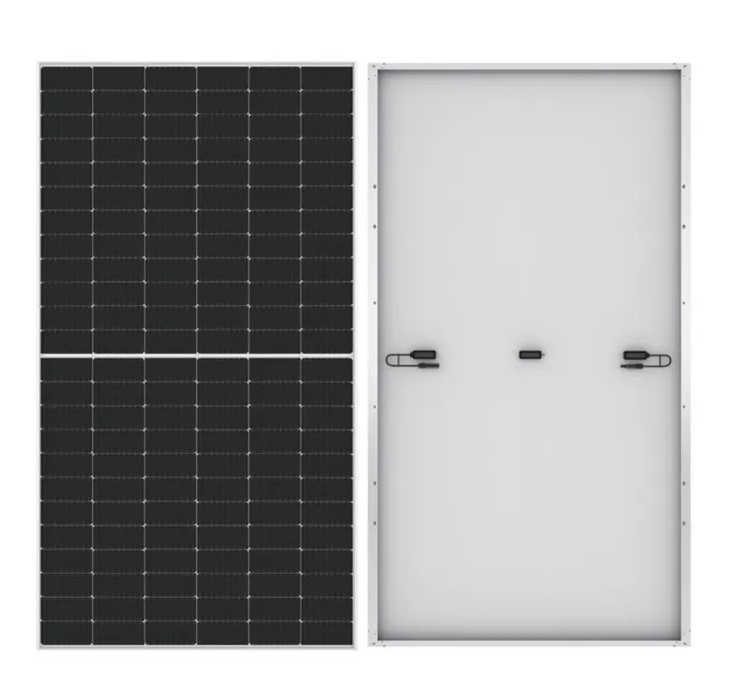

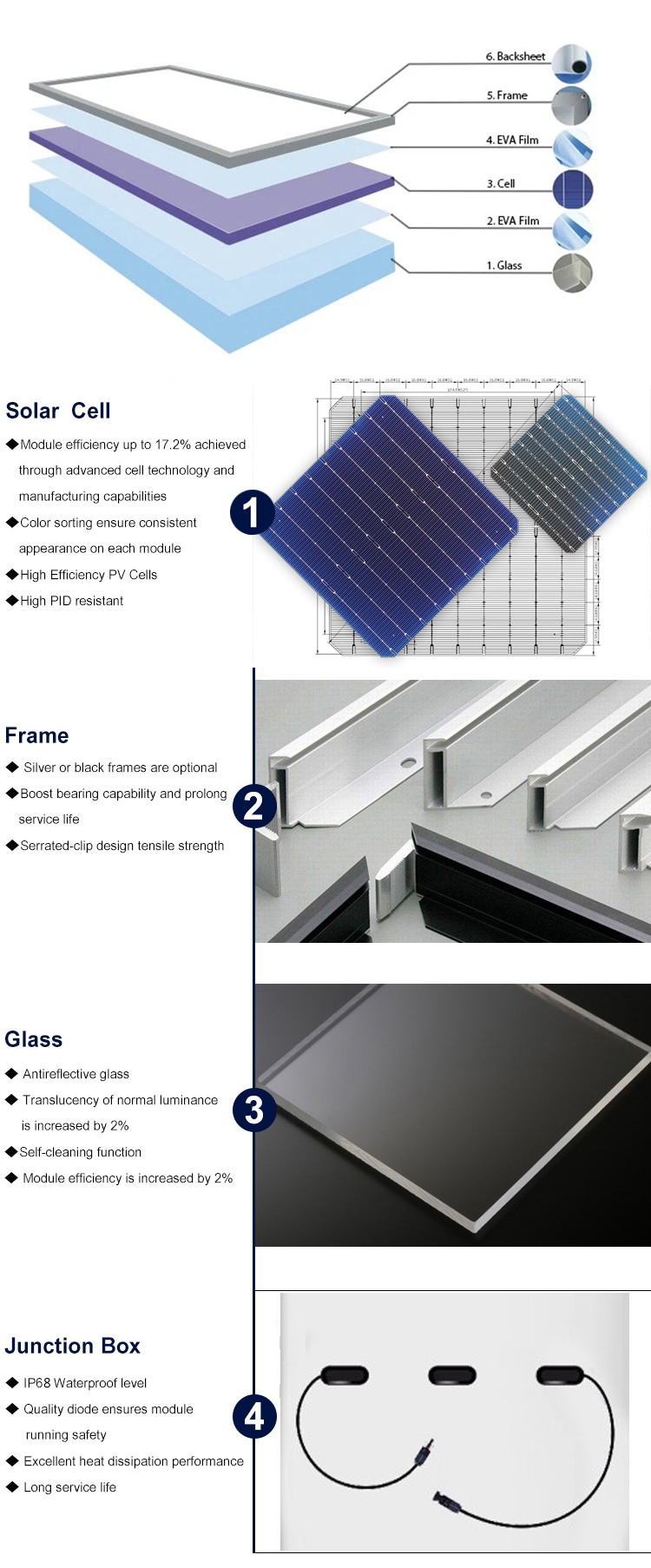

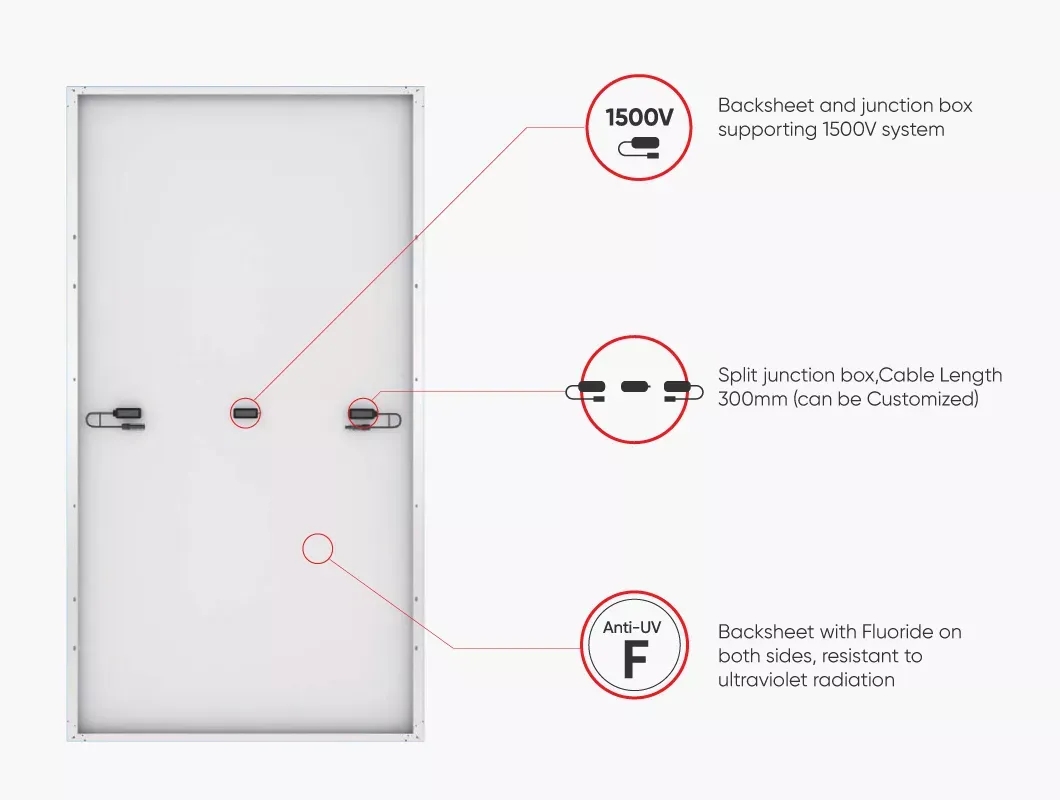

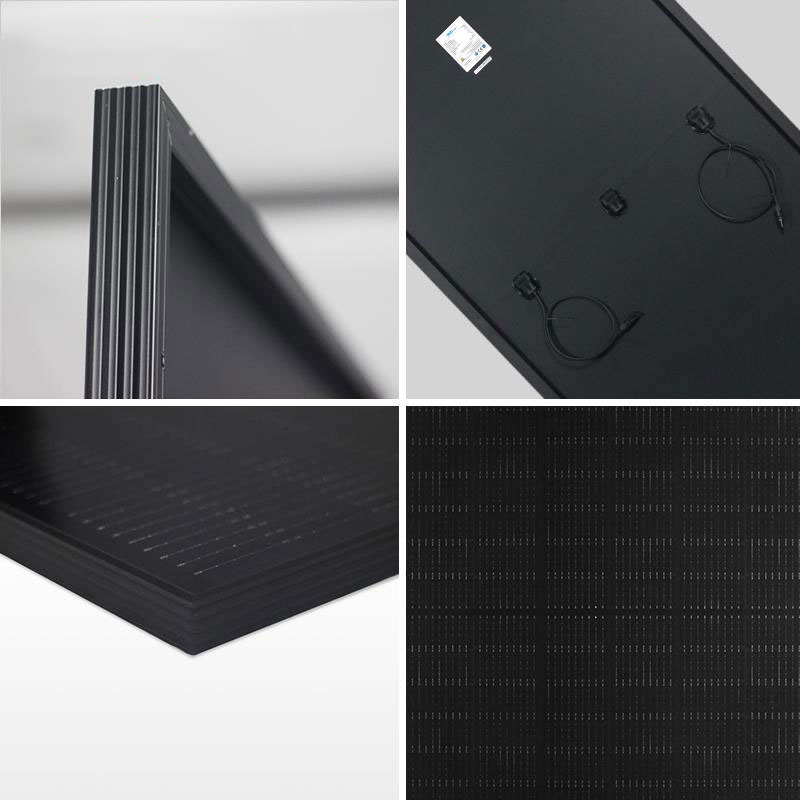

| Cell Orientation | 108(6X18) |
| Junction Box | IP68, three diodes |
| Output Cable | 4mm2, ±1200mm (length can be customized) |
| Glass | Single glass, 3.2mm coated tempered glass |
| Frame | Anodized aluminum alloy frame |
| Weight | 20.8kg |
| Dimension | 1722X1134X30mm |

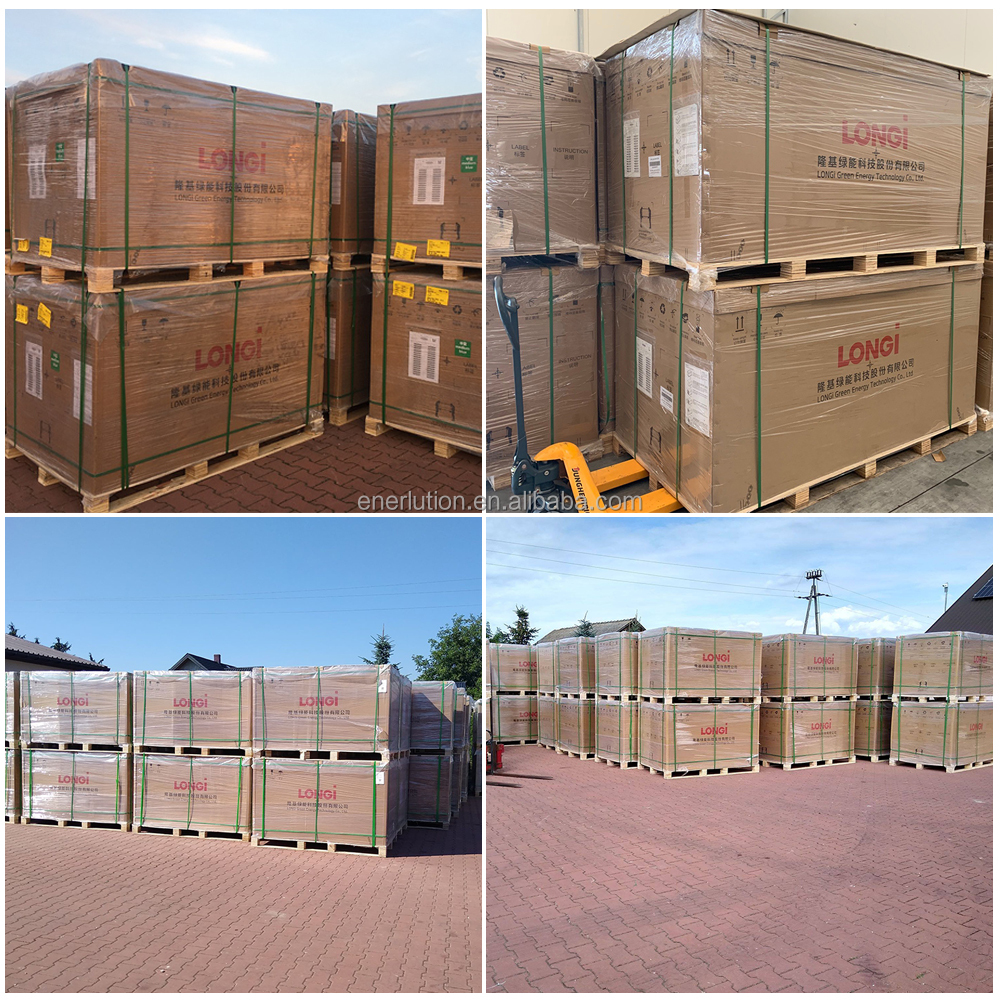

| Packaging | 36pcs per pallet / 216pcs per 20' GP / 936pcs per 40’ HC |
| STC: AM1.5 1000W/m² 25°C NOCT: AM1.5 800W/m² 20°C 1m/s | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Module Type | LR5-54HTB-410M | LR5-54HTB-415M | LR5-54HTB-420M | LR5-54HTB-425M | LR5-54HTB-430M | |||||
| STC | NOCT | STC | NOCT | STC | NOCT | STC | NOCT | STC | NOCT | |
| Maximum Power (Pmax/W) | 410 | 306 | 415 | 310 | 420 | 314 | 425 | 318 | 430 | 321 |
| Open Circuit Voltage (Voc/V) | 38.63 | 36.27 | 38.83 | 36.46 | 39.03 | 36.65 | 39.23 | 36.83 | 39.43 | 37.02 |
| Short Circuit Current (Isc/A) | 13.70 | 11.07 | 13.78 | 11.13 | 13.85 | 11.19 | 13.93 | 11.25 | 14.00 | 11.31 |
| Voltage at Maximum Power (Vmp/V) | 32.36 | 29.53 | 32.56 | 29.71 | 32.76 | 29.89 | 32.96 | 30.08 | 33.16 | 30.26 |
| Current at Maximum Power (Imp/A) | 12.67 | 10.37 | 12.75 | 10.44 | 12.83 | 10.50 | 12.90 | 10.56 | 12.97 | 10.62 |
| Module Efficiency (%) | 21.0 | 21.3 | 21.5 | 21.8 | 22.0 | |||||
| Temperature Ratings (STC) | |
|---|---|
| Temperature Coefficient of Pmax | -0.290%/°C |
| Temperature Coefficient of Voc | -0.230%/°C |
| Temperature Coefficient of Isc | +0.050%/°C |
| Mechanical Loading | |
|---|---|
| Front Side Maximum Static Loading | 5400Pa |
| Rear Side Maximum Static Loading | 2400Pa |
| Hailstone Test | 25mm Hailstone at the speed of 23m/s |
| Operating Parameters | |
|---|---|
| Operational Temperature | -40°C ~ +85°C |
| Power Output Tolerance | 0 ~ 3% |
| Voc and Isc Tolerance | ±3% |
| Maximum System Voltage | DC1500V (IEC/UL) |
| Maximum Series Fuse Rating | 25A |
| Nominal Operating Cell Temperature | 45 ± 2°C |
| Protection Class | Class II |
| Fire Rating | UL Type 1 or 2 / IEC Class C |
