Product Description

Advantage:

• Low loss, low noise, low partial discharge, high reliability.
• Powerful anti-short circuit capability, high anti-lightning impulse capability.

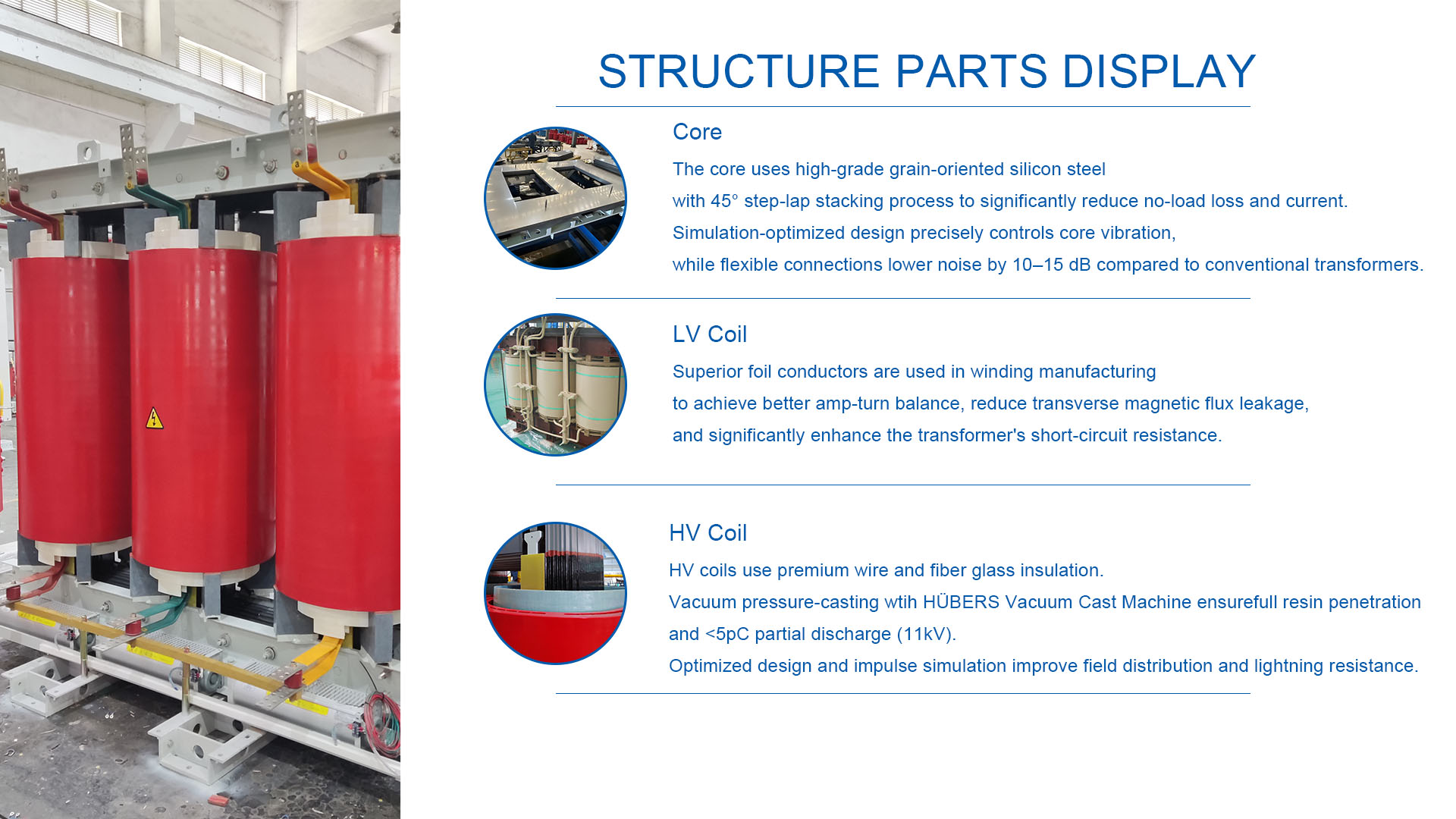

• HV coil is vacuum casted with epoxy resin with pressure, capabilities for better the cast without pressure.
• Simulating analysis is being used in the core model, the resonance can be avoided and the noise is reduced. Simulation calculation and analysis of lightning impulse wave are applied to the HV Coils; anti-lightning impulse capability is improved.

Other performance and characteristics:

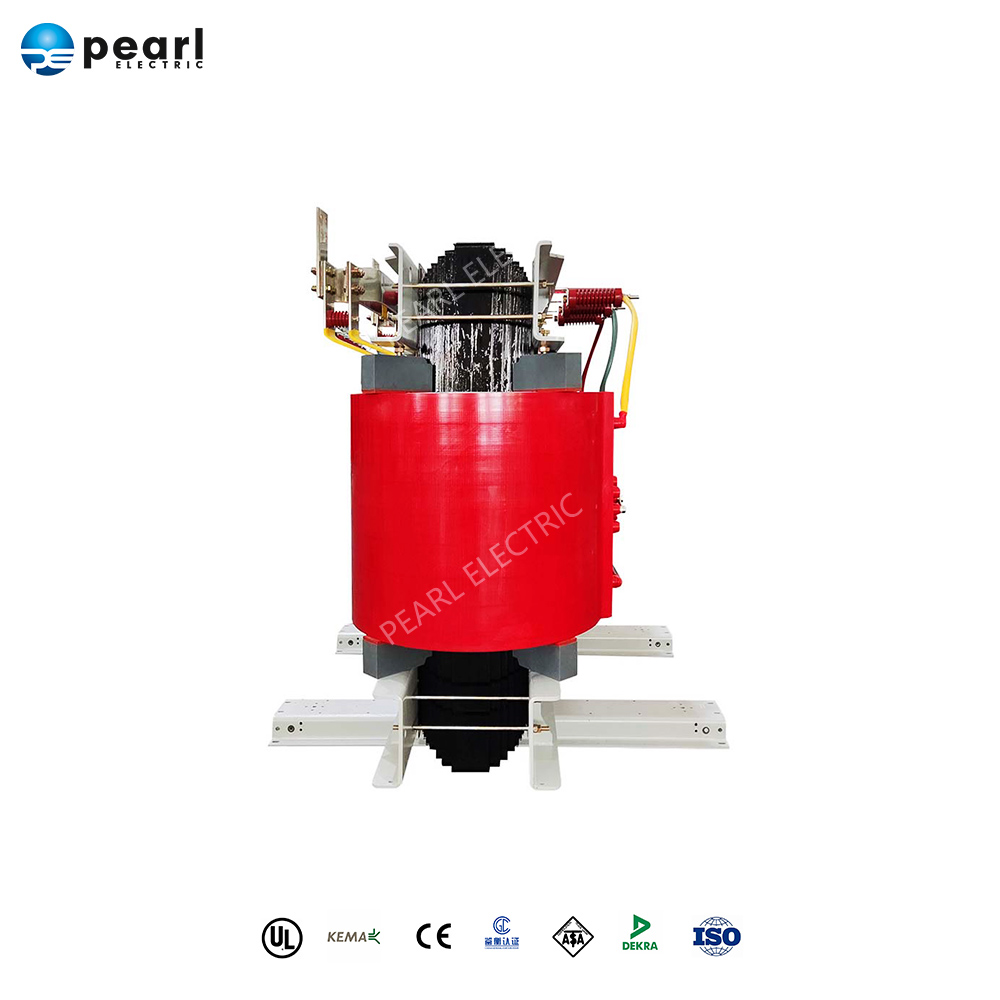

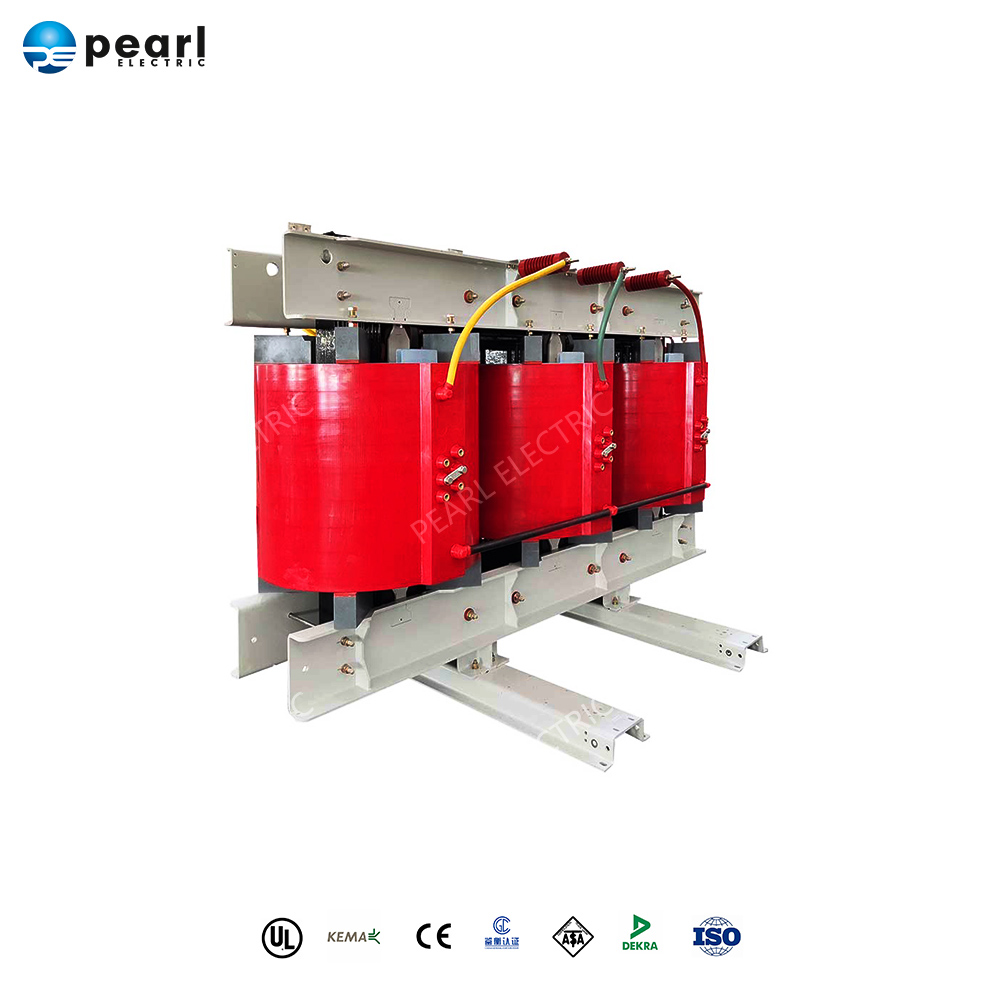

The SC(B) series cast resin dry type transformer is the kind of transformer with low noise, low loss and low partial discharge. With rational structure, high-quality material, scientific design, strict craftsmanship and advanced test method, the characteristics of the products are as follows:

1. Flameproof and no blast, no pollution, no venomous gas.
2. High damp proof, Safe operation in 100% relative humidity and other tough environment, no moisture procedure is needed.
3. Strong capacity of heat resistant.
4. High over-load capability, running at 110% rated load, and 150% rated load at AF.
5. Contour artistic and compact size, low cost for installing.
6. Performance and parameter conform to or excel the standards of GB, IEC or industry.

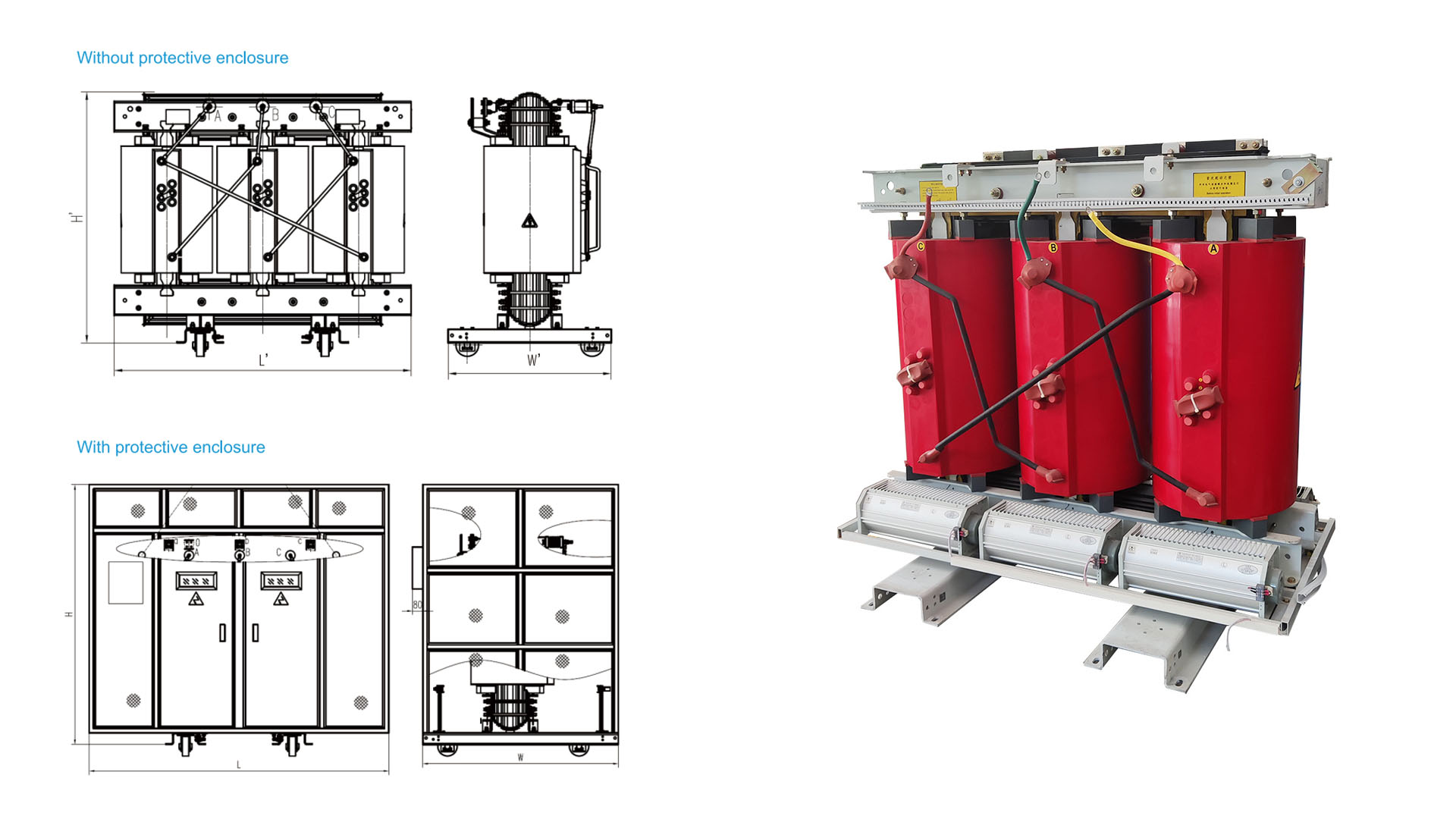

Accessories

Technical Specifications

Certificates

We have established a sound quality management system, and have passed the certification of ISO9001:2015 quality management system, ISO14001:2015 environmental management system, and ISO45001:2018 occupational health and safety management system. We participate in type and special tests of internationally recognized independent testing laboratories to ensure product quality.

Company Profile

We are a professional manufacturer of power transmission and distribution equipment and power transformers. With a national-level R&D center, we are dedicated to power transformer innovation and technological advancement.

We manufacture distribution transformers and power transformers up to 200MVA 230KV, delivering tailored solutions for diverse grid requirements worldwide. Our core products cover 35kV and below dry-type transformers, 220kV and below oil-immersed transformers, pad mounted transformers, prefabricated substations, and special transformers for wind, photovoltaic and nuclear power projects.

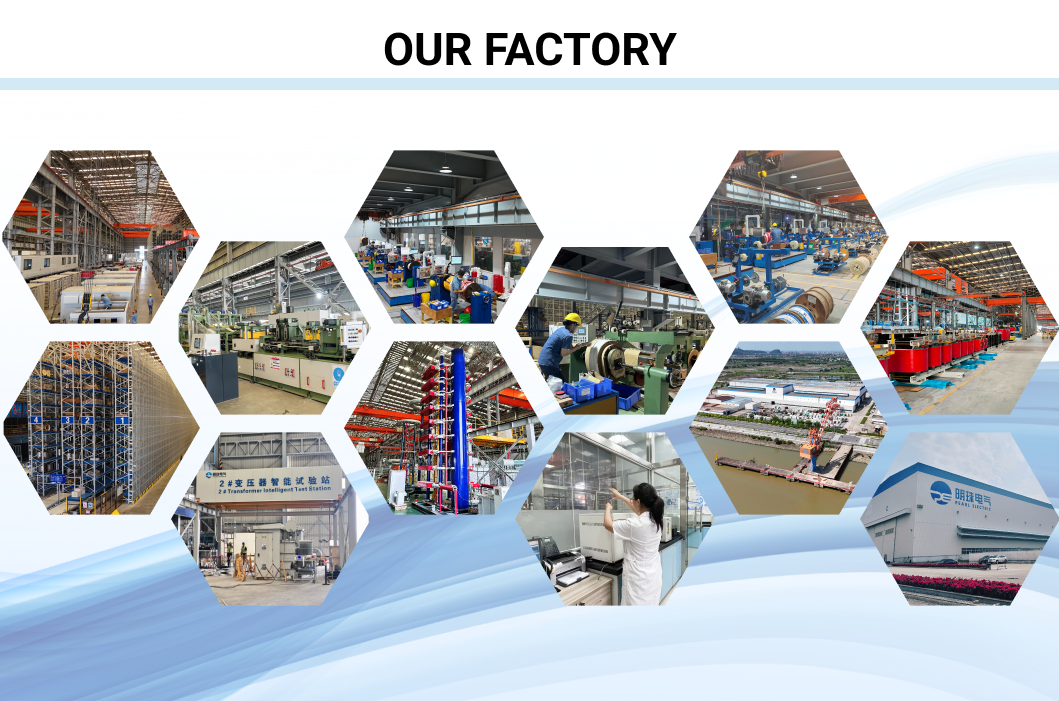

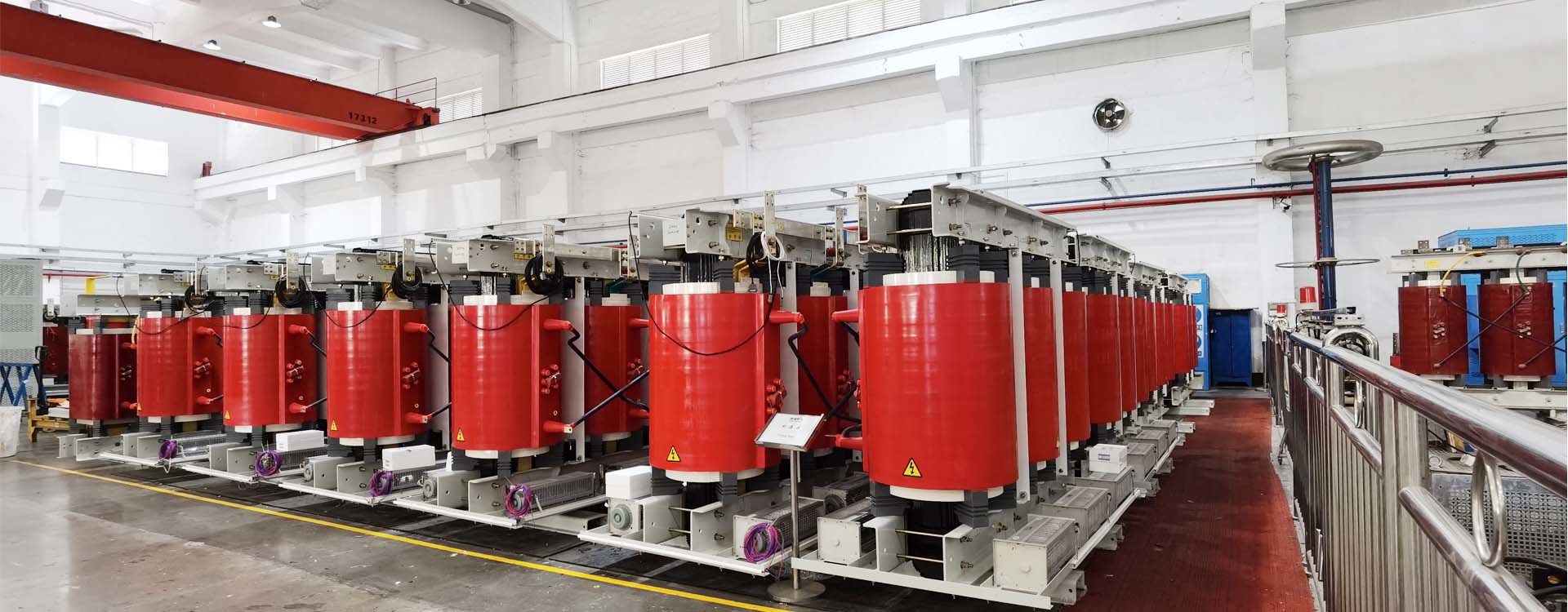

We adopt German-imported HüBERS vacuum casting equipment to ensure excellent long-term reliability. Implementing full-process quality control, we ensure our products meet the highest quality standards. Exported to over 70 countries, our products have obtained authoritative certifications including ISO9001, ISO14001, UL and CE.
