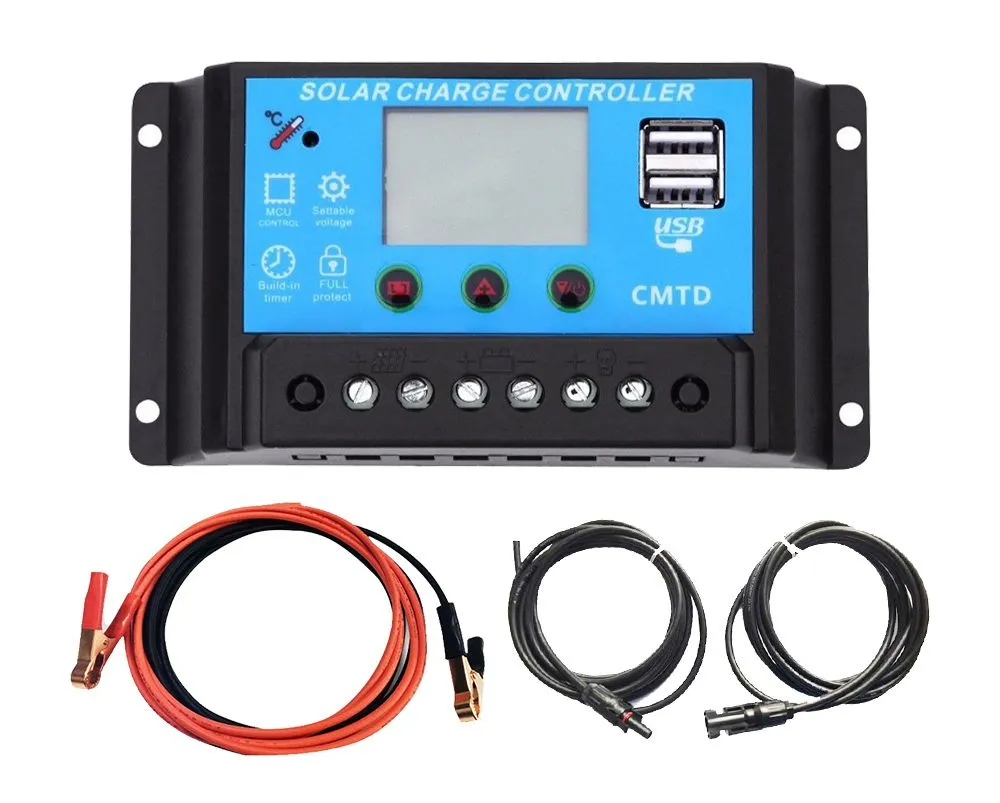

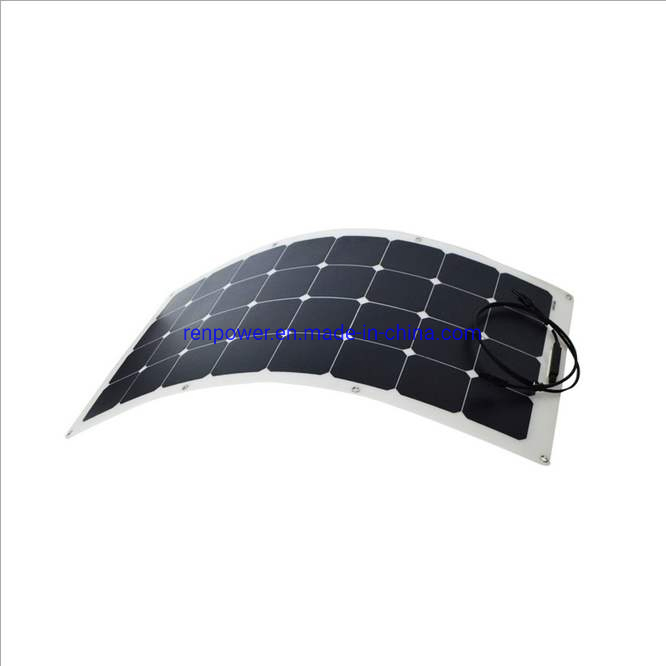

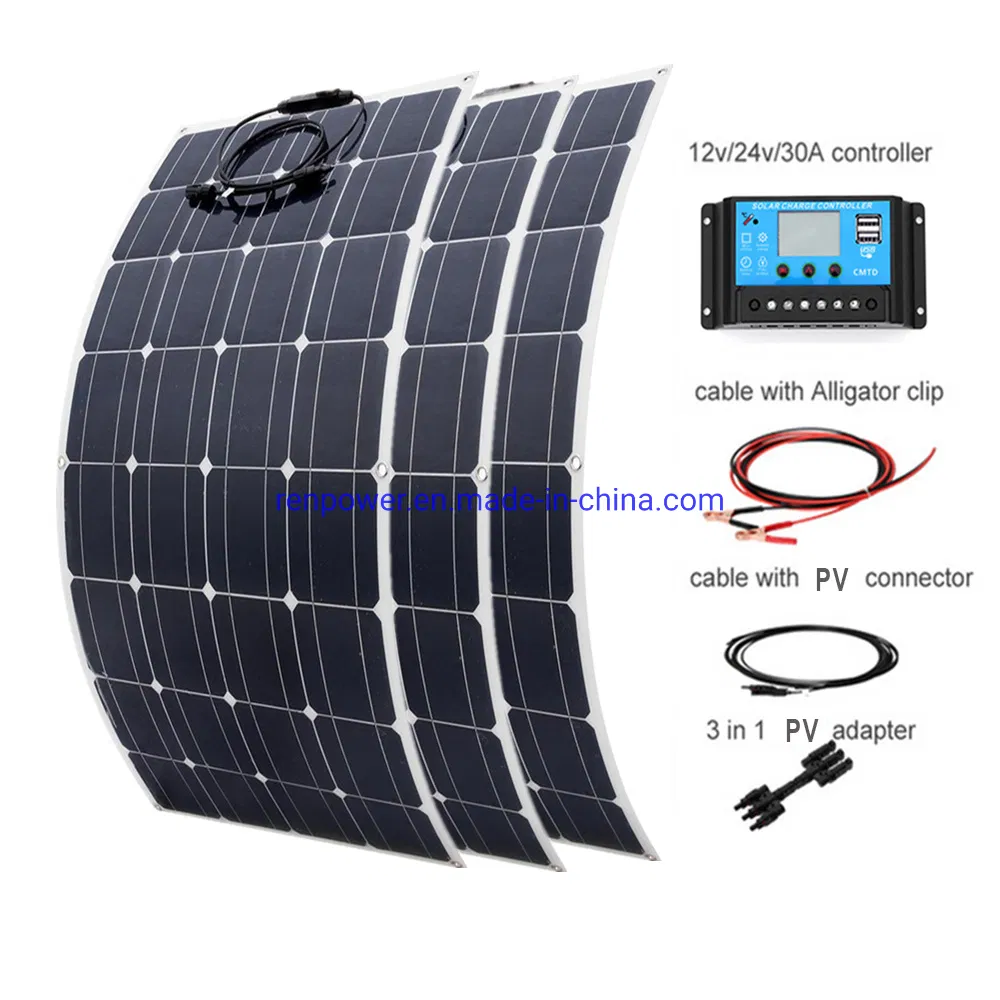

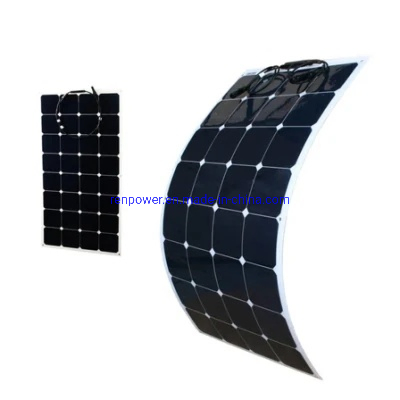

100watt 12volt Flexible Solar Panel Kit for off Grid Home RV, Boat and Uneven Surfaces: 2PCS 120W Bc Solar Panel + 30A 12V Charger Controller + Solar Cable

Still deciding? Get samples of $ !
Order Sample

Product Description

Overview & Basic Info

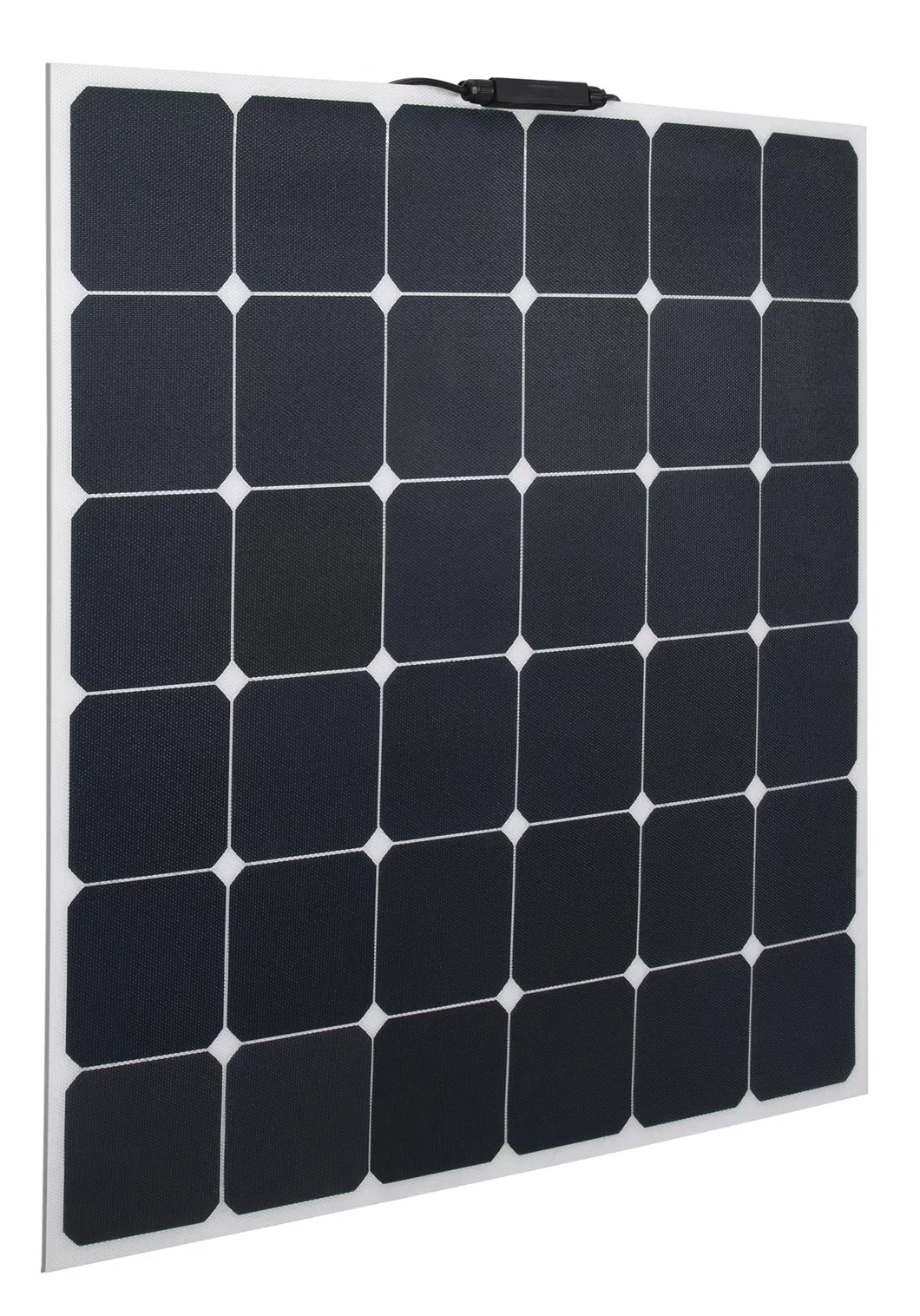

100Watt 12Volt Flexible Solar Panel Kit for Off Grid Home RV, Boat and Uneven Surfaces: 2pcs 120W Bc Solar Panel + 30A 12V Charger Controller + Solar Cable

Model NO.VSSH100-02-M10-02
ConditionNew
CertificationISO, CE
MaterialMonocrystalline Silicon
Power100W
Junction BoxIP68 Rated
Vmp17.16V
Voc21.95V
Imp5.83A
Short Circuit Current6.32A
Size585*1080*3.5mm
Transport PackageCarton and Wooden Pallet
Specification585*1080*3.5mm
TrademarkOEM/ODM
OriginChina
HS Code8541420000
Production Capacity500000

Packaging & Delivery

Package Size68.50cm * 118.00cm * 13.50cm
Package Gross Weight3.370kg

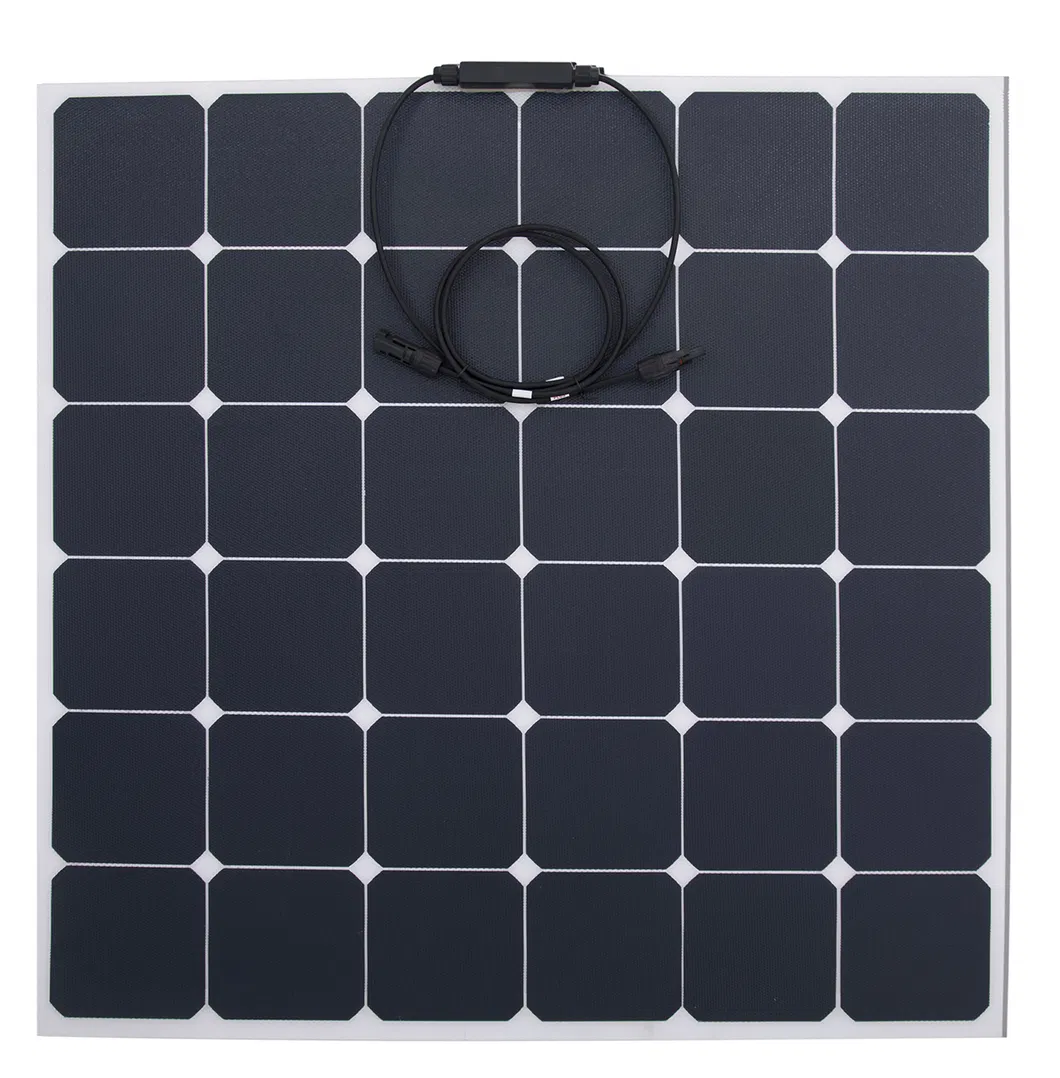

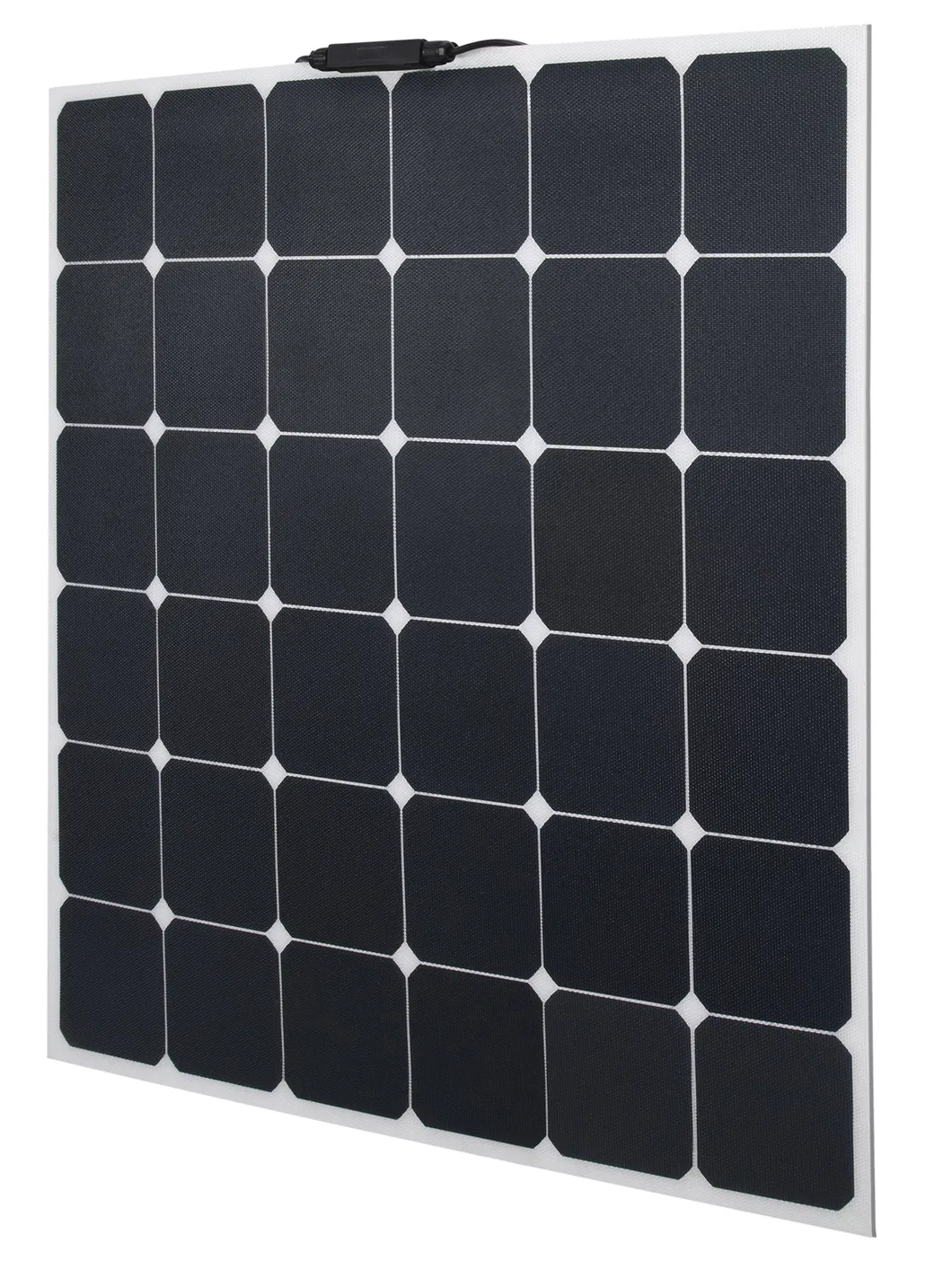

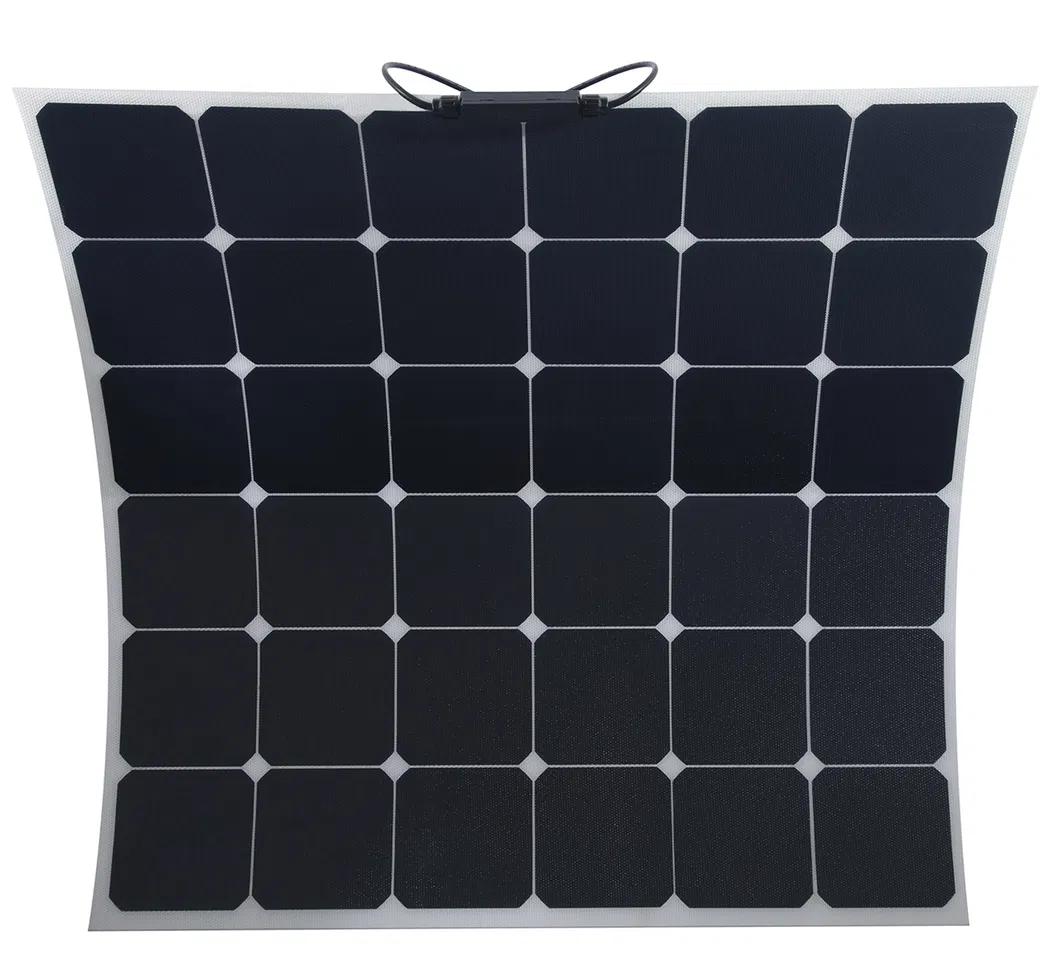

Features

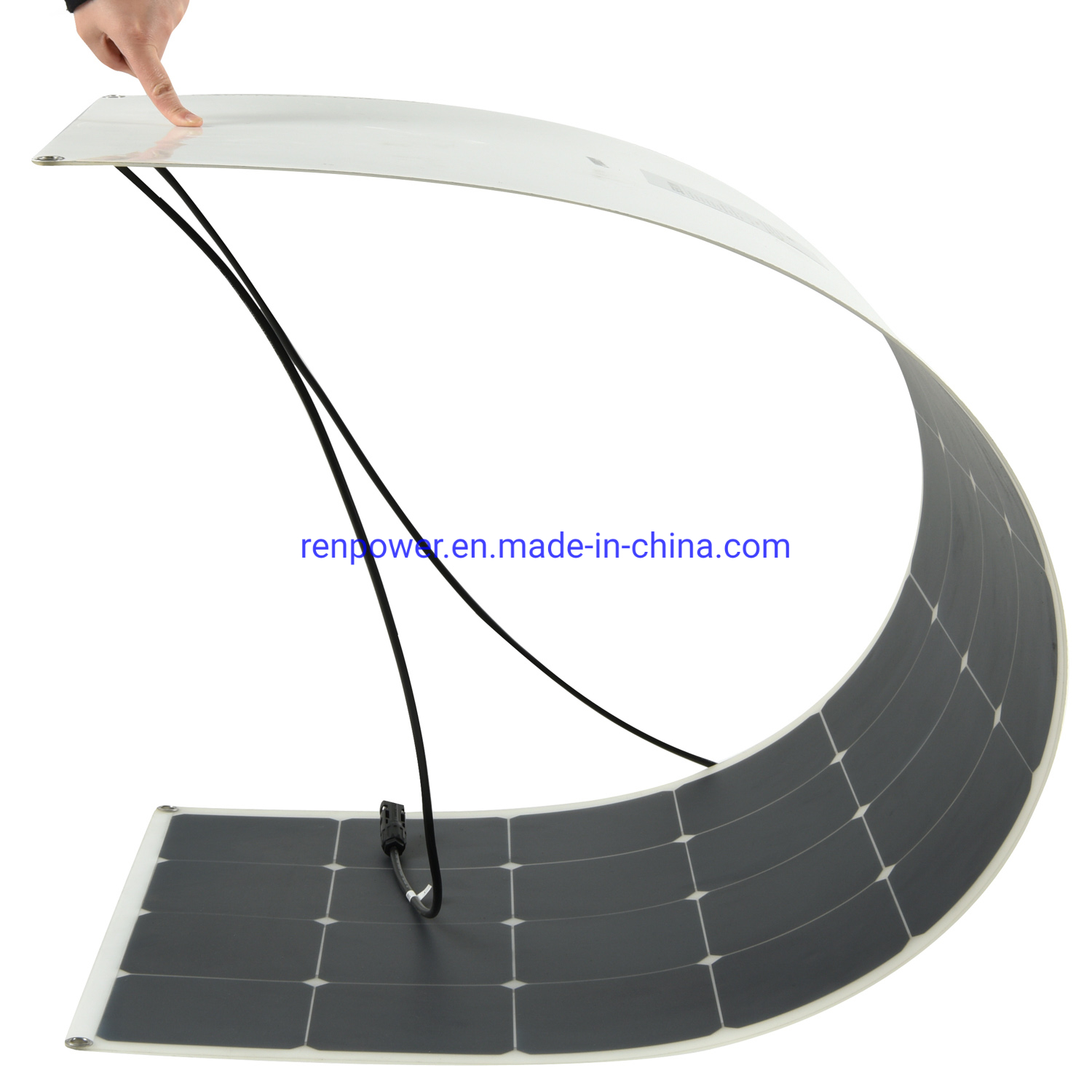

Flexible solar panels can be widely used for Boat, Yacht, Caravan, Vehicle RV, Electrical Car...

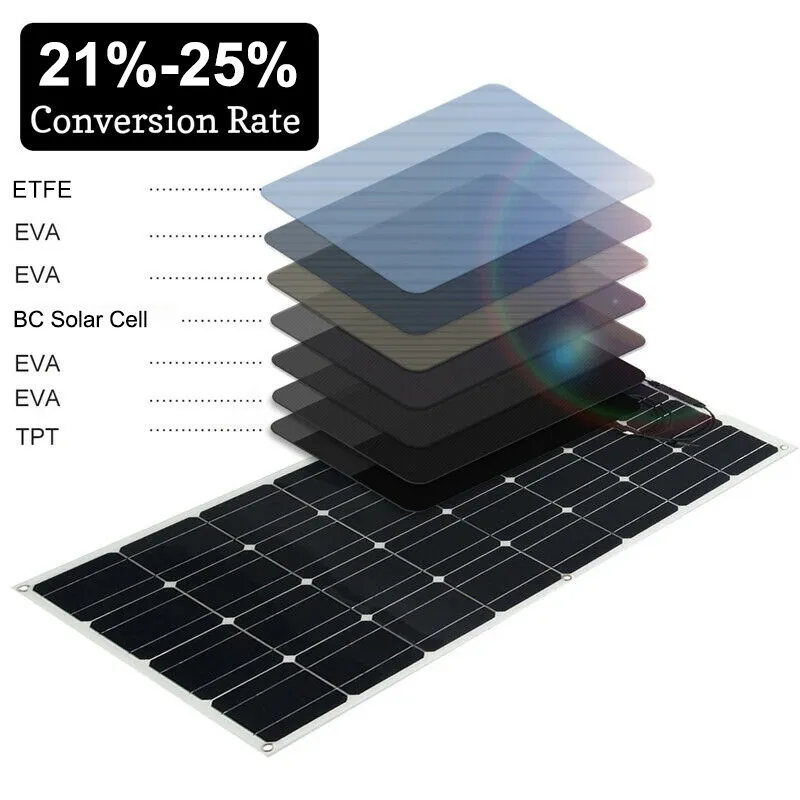

Material: TPT + EVA + BC solar cells + EVA + Frosted ETFE
Light weight, easy to carry and install.

Product Parameters

Output Power (W) Working Voltage (Vmp) Working Current (Imp) Open-Circuit Voltage (Voc) Short-Circuit Current (Isc) Dimensions (MM) Weight (KG)
50 21.66 2.31 26.22 2.44 690*420*3.5 1.01
60 18.24 3.29 22.08 3.84 800*420*3.5 1.18
80 18.24 4.39 22.08 4.65 800*590*3.5 1.65
100 21.66 4.62 26.22 4.89 800*710*3.5 1.99
120 18.24 6.58 22.08 6.97 800*830*3.5 2.32
140 20.52 6.82 24.84 7.23 910*800*3.5 2.55
150 22.80 6.58 27.6 6.97 1030*800*3.5 2.88
200 21.66 9.23 26.22 9.78 1310*800*3.5 3.67
240 18.24 13.16 22.08 13.94 1580*800*3.5 4.42
280 20.52 13.65 24.84 14.45 1760*800*3.5 4.93
430 30.78 13.97 37.26 14.80 1750*1160*3.5 7.11

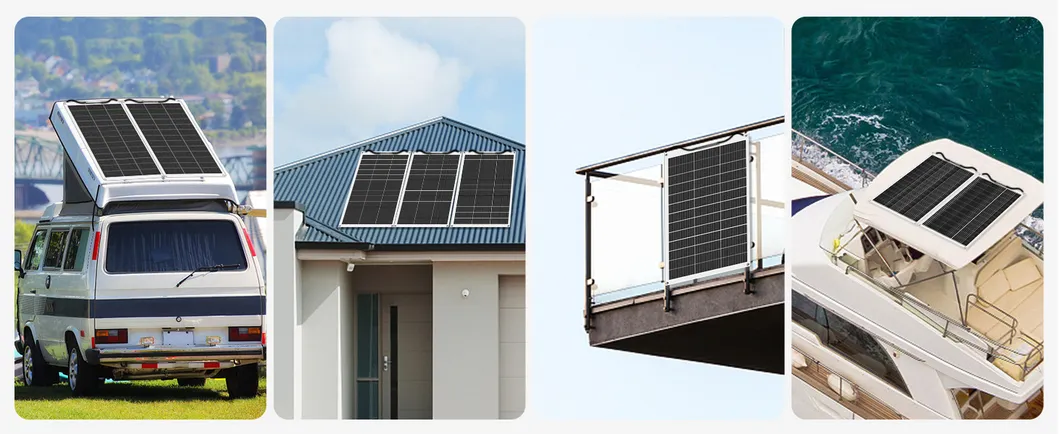

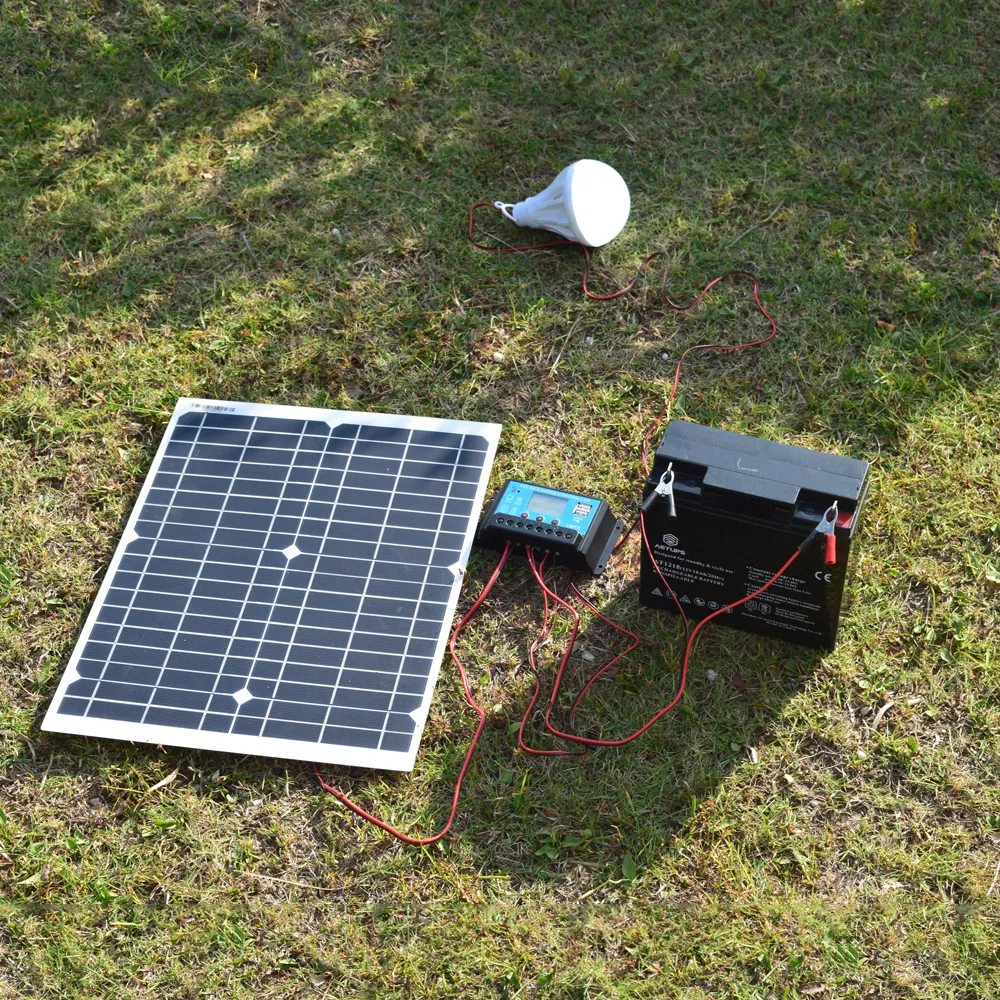

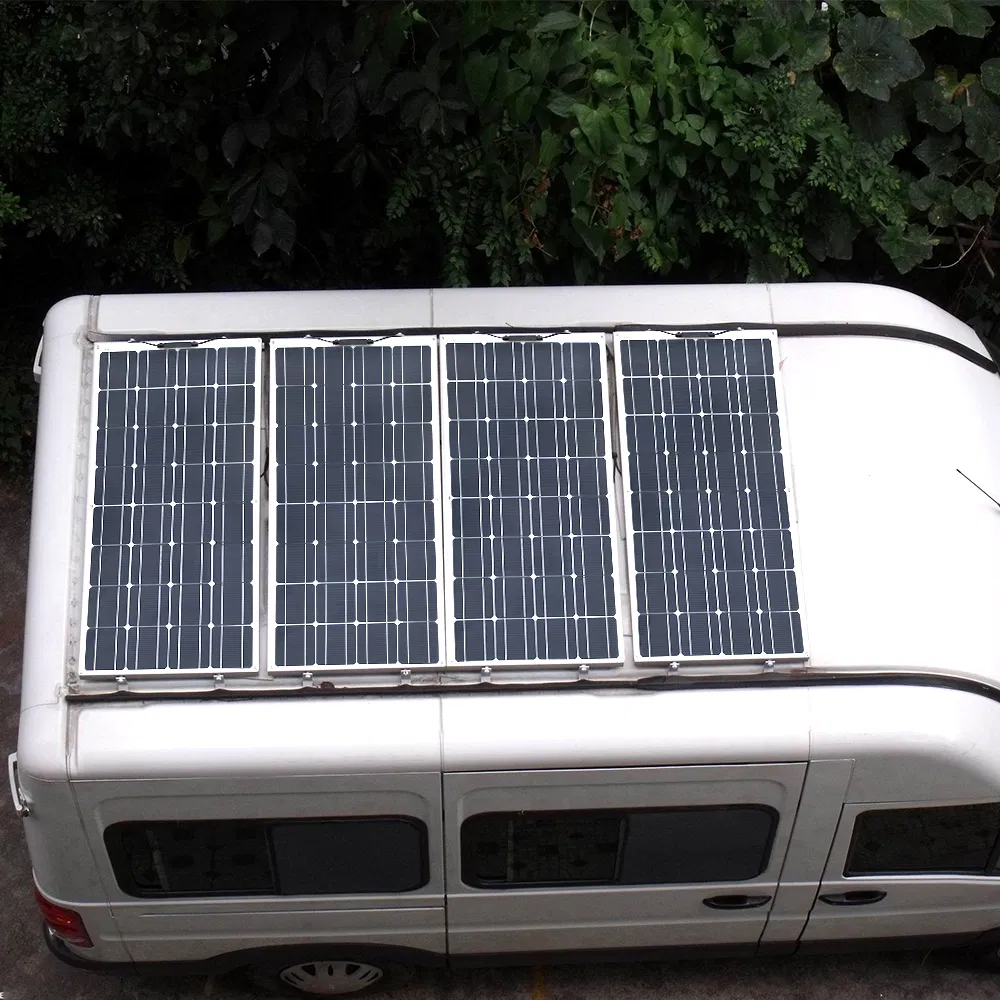

Applications

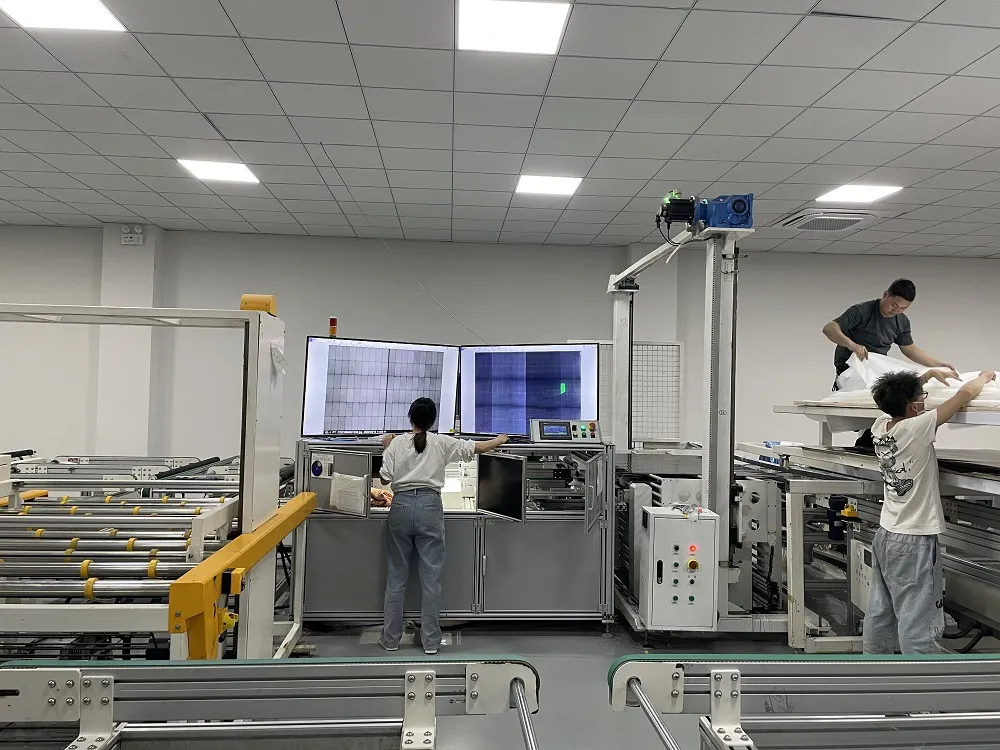

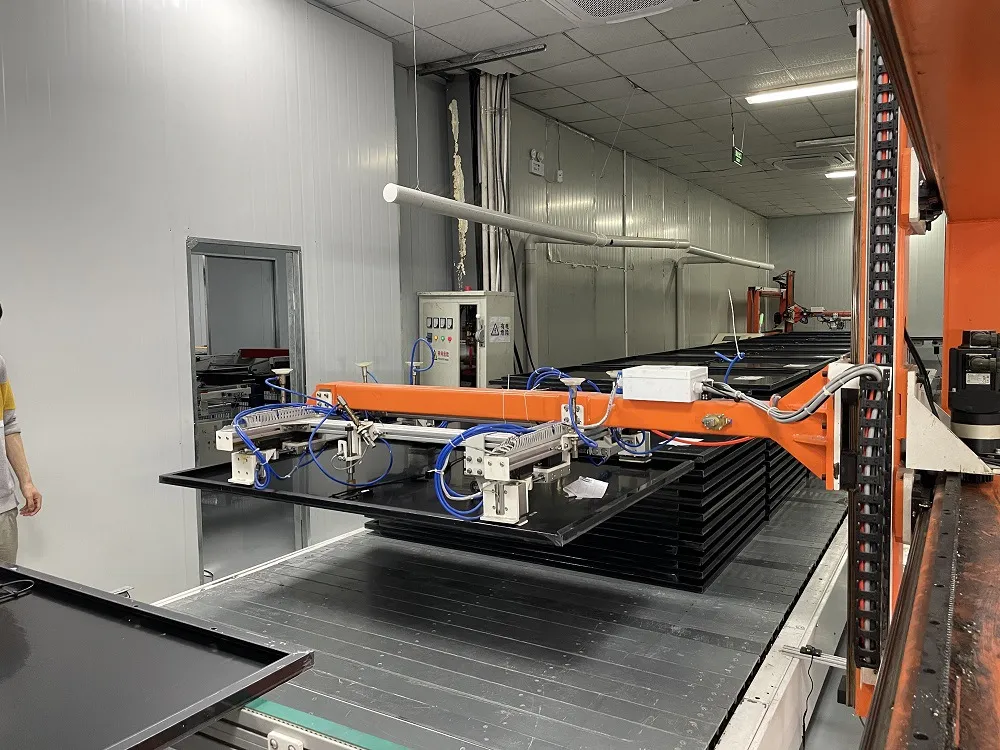

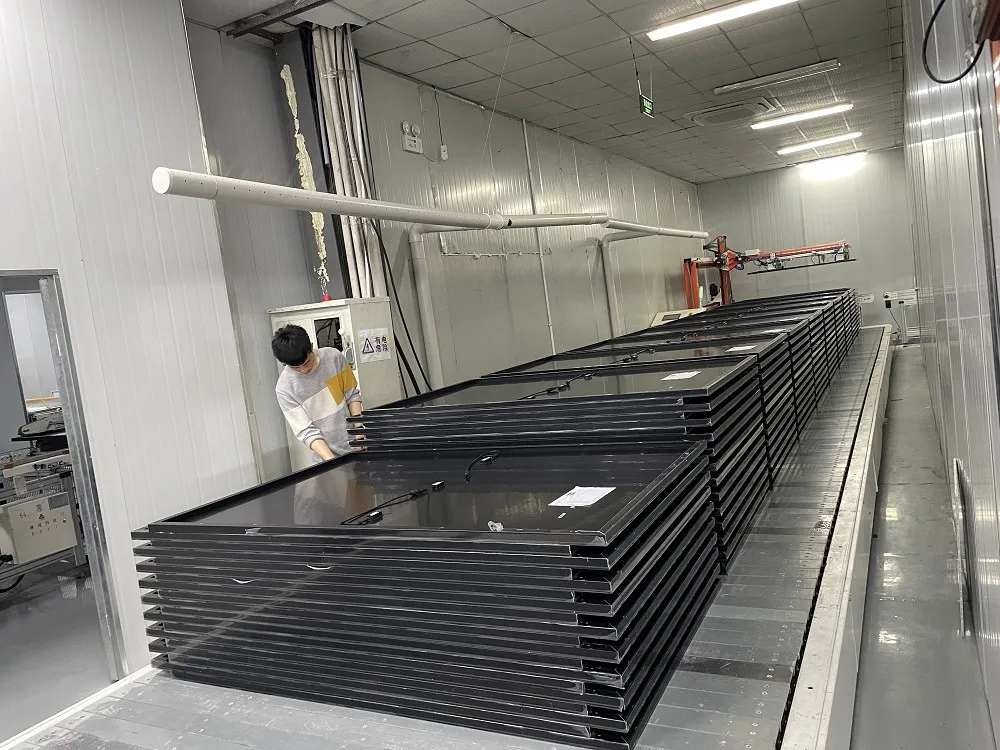

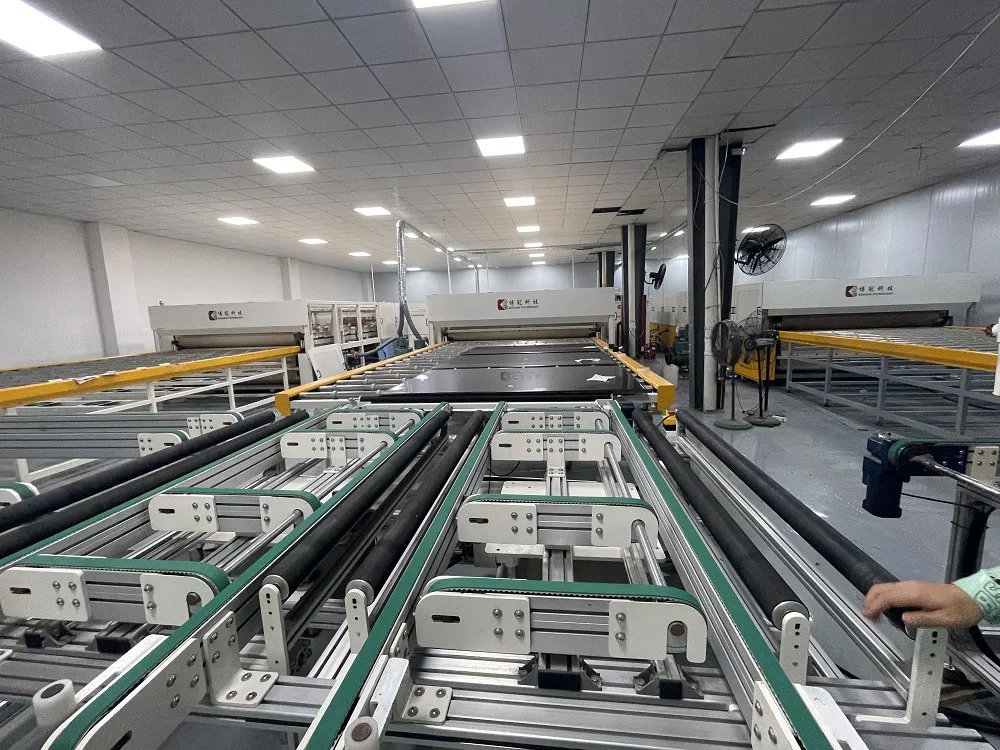

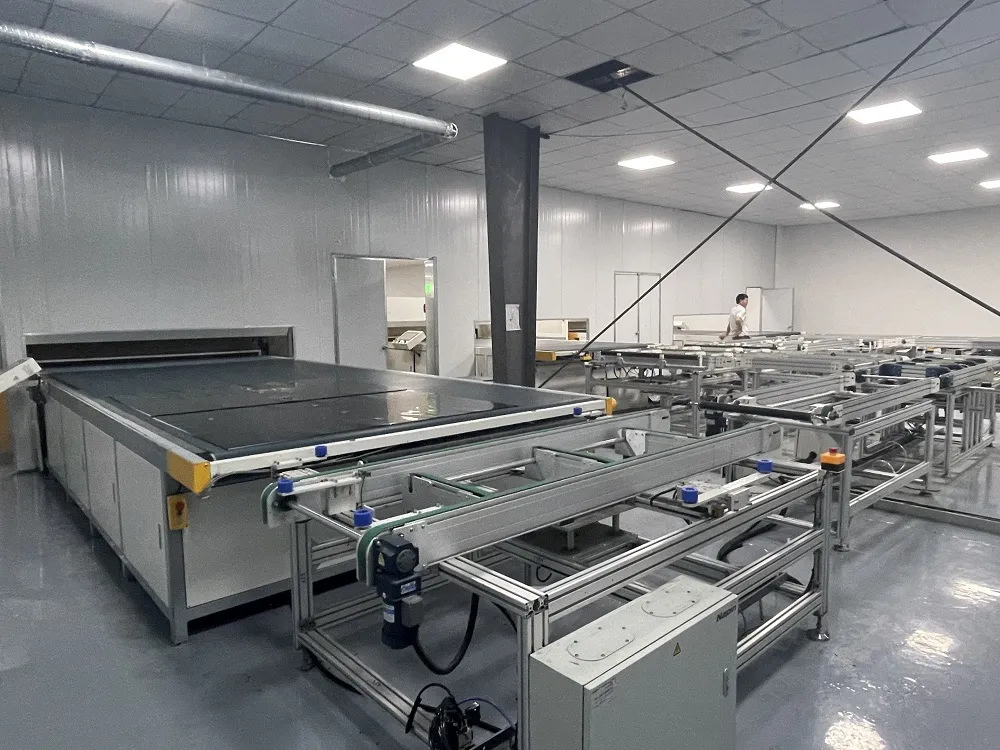

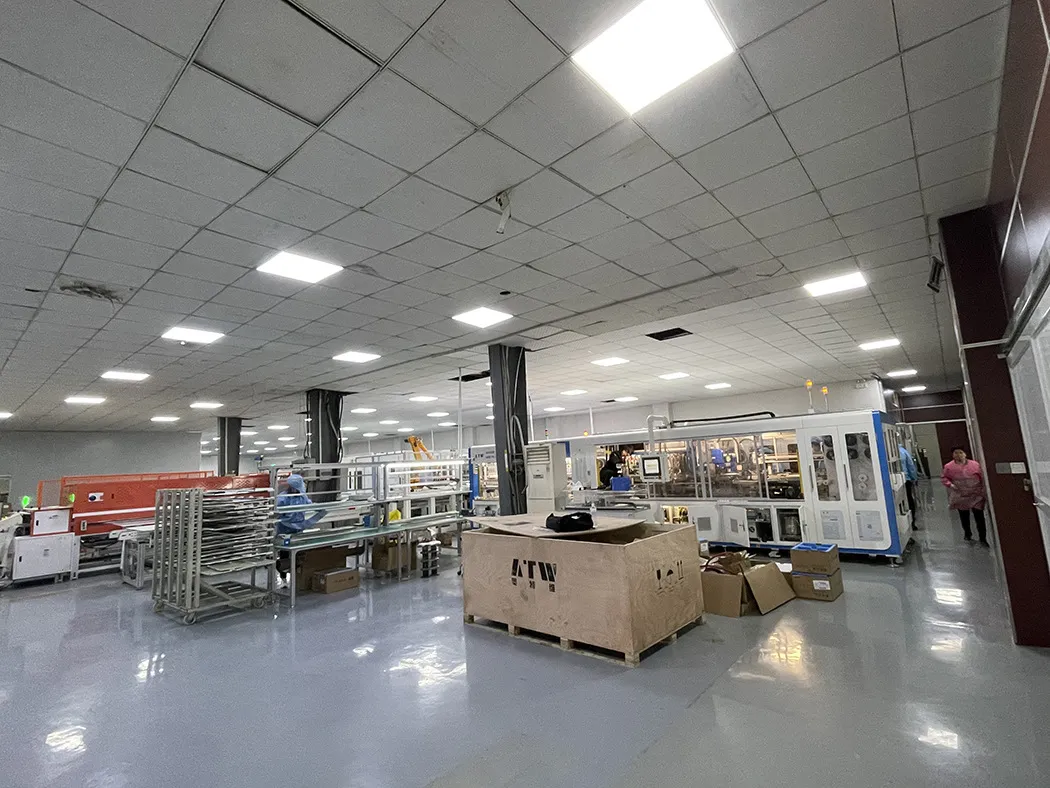

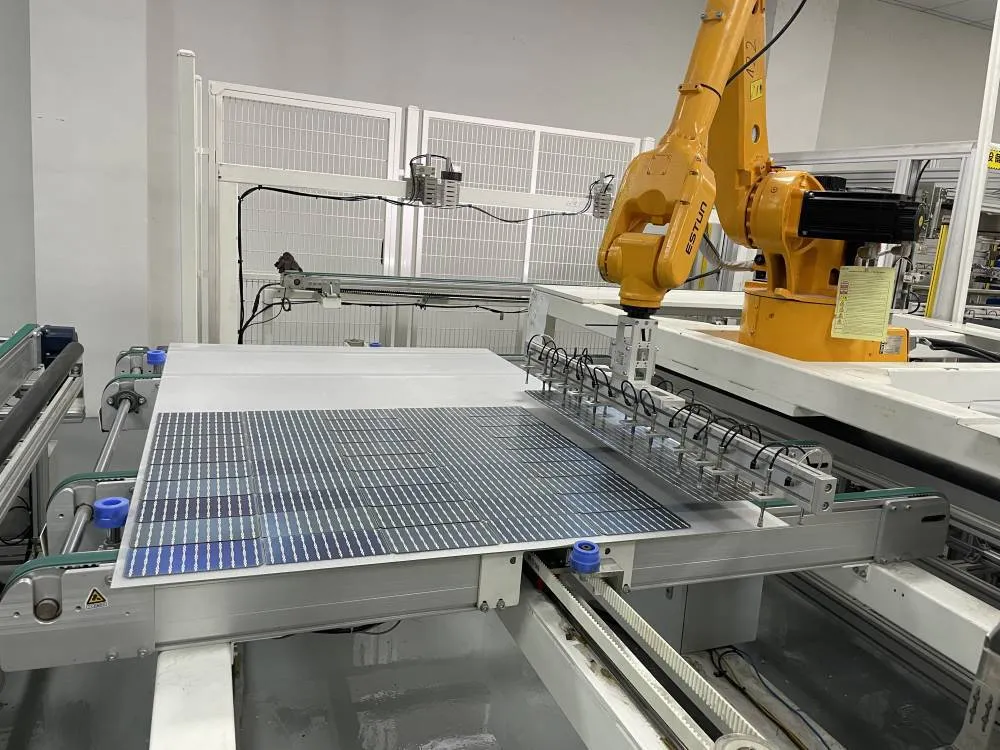

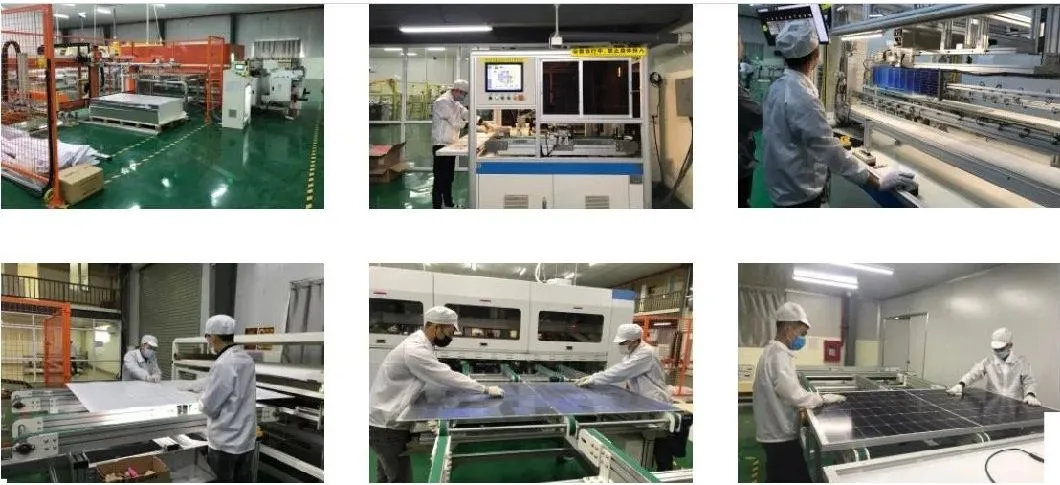

Production Facility

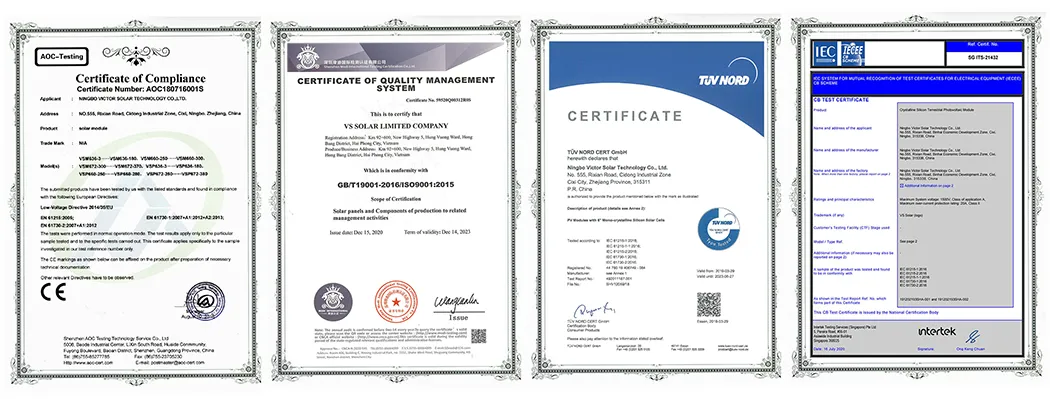

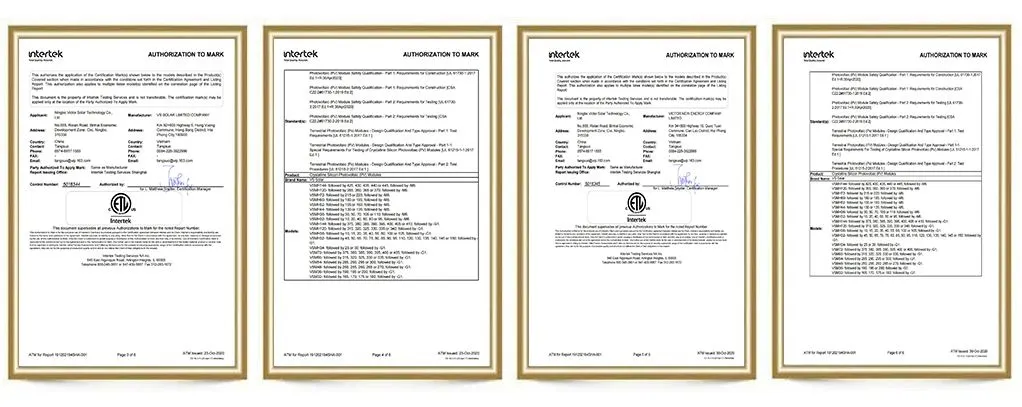

Certifications

Frequently Asked Questions

Q1: Does this flexible solar panel come with connectors?

A1: Yes, this flexible solar panel comes equipped with standard MC4 connectors.

Q2: Do I need to buy additional connectors to use this solar panel with my device?

A2: It depends on your device's connector type. If your device requires a different style of connection, you may need to purchase a compatible connector separately. If you are unsure about compatibility, please consult support for advice to ensure you have the proper setup.

Q3: Can this solar panel be used in cloudy weather?

A3: Yes, the solar panel functions in cloudy weather, though the actual power output may be lower than the rated 100W due to reduced sunlight intensity.

Q4: Can I connect multiple solar panels in parallel for more power output?

A4: Yes, multiple panels can be connected in parallel. To do so, you will need to purchase an MC4 branch connector. Ensure all panels in the configuration share identical voltage and current ratings to prevent system damage.

Q5: What certifications do these flexible solar panels have?

A5: These flexible solar panels are certified with both ISO and CE standards, complying with international quality management and safety regulations.

Q6: What material layers make up the construction of these panels?

A6: The panels feature a durable composite structure consisting of a Frosted ETFE outer layer, high-efficiency Monocrystalline Silicon cells, and protective TPT and EVA encapsulation layers.
