GAF Solar
1 / 5
| Model NO. | G90-4 | Number of Cells | 12PCS |
| Application | Light Industry | Condition | New |
| Certification | CE, CE/FCC/RoHS | Material | Monocrystalline Silicon |
| Customized Services | Support OEM/ODM | Protection Rating | IP68 |
| Conversion Efficiency | 23% | Product Certification | CE/FCC/RoHS IEC61215/IEC61730 |
| Transport Package | Individually Packaged in a Cardboard | Specification | 1320×405×17MM |

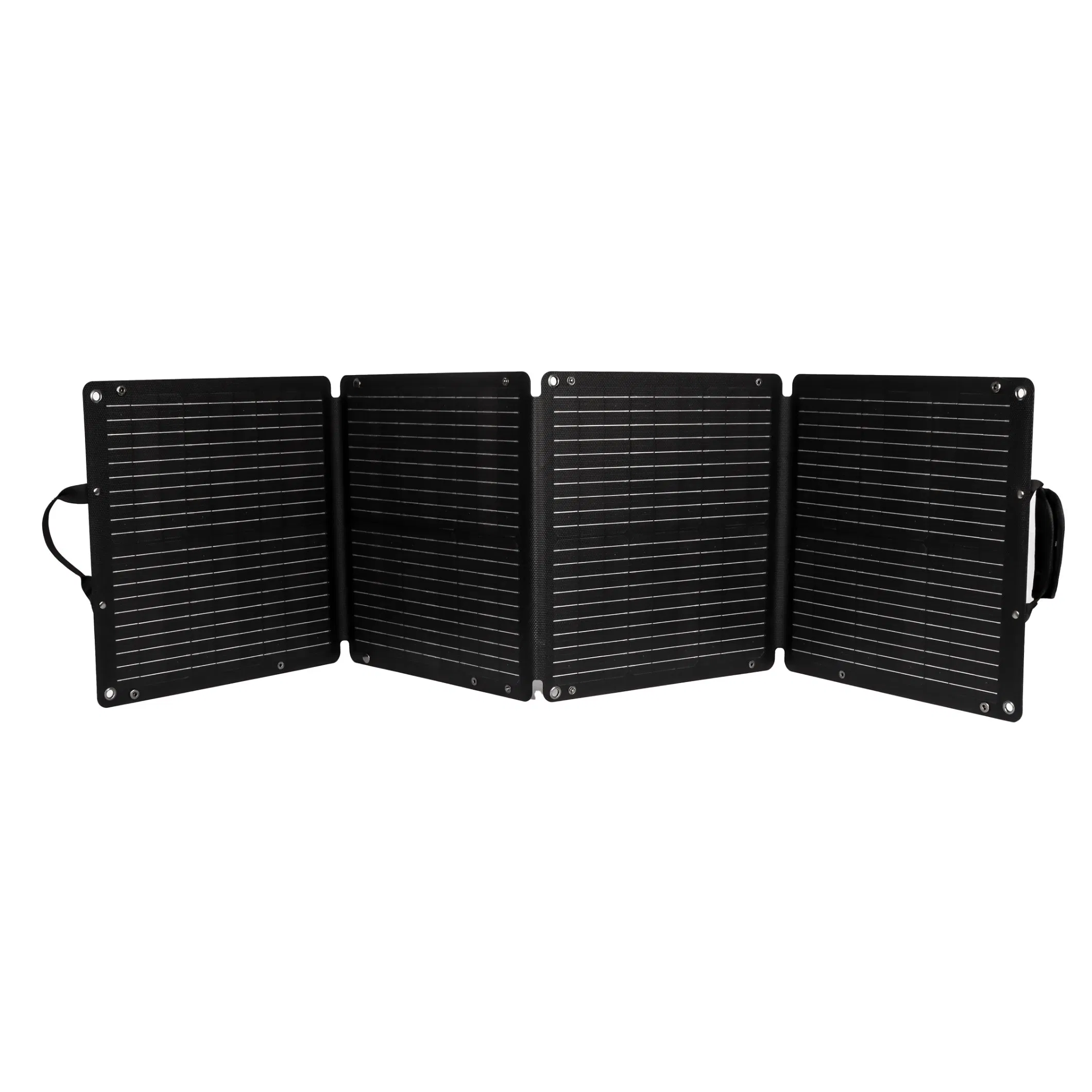

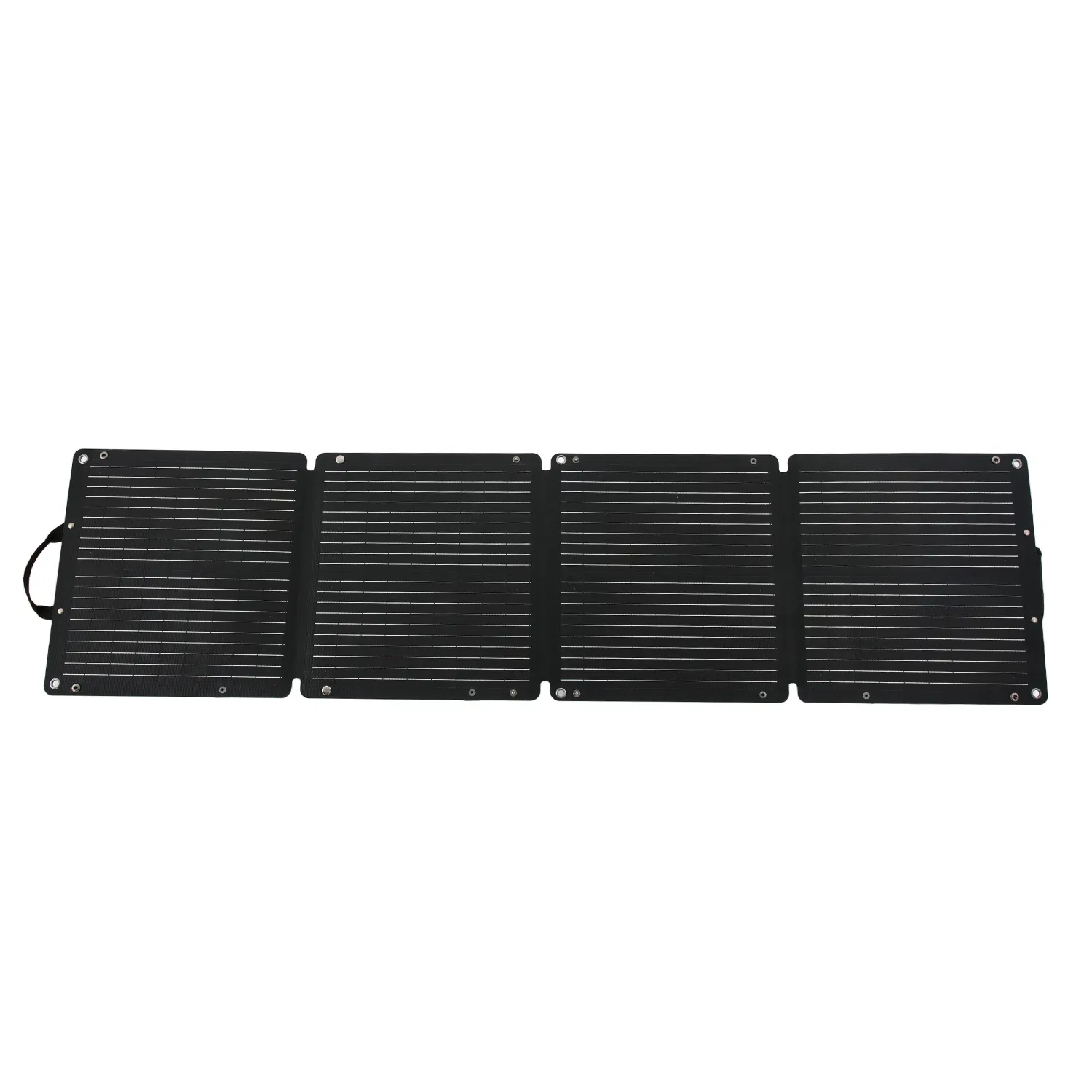

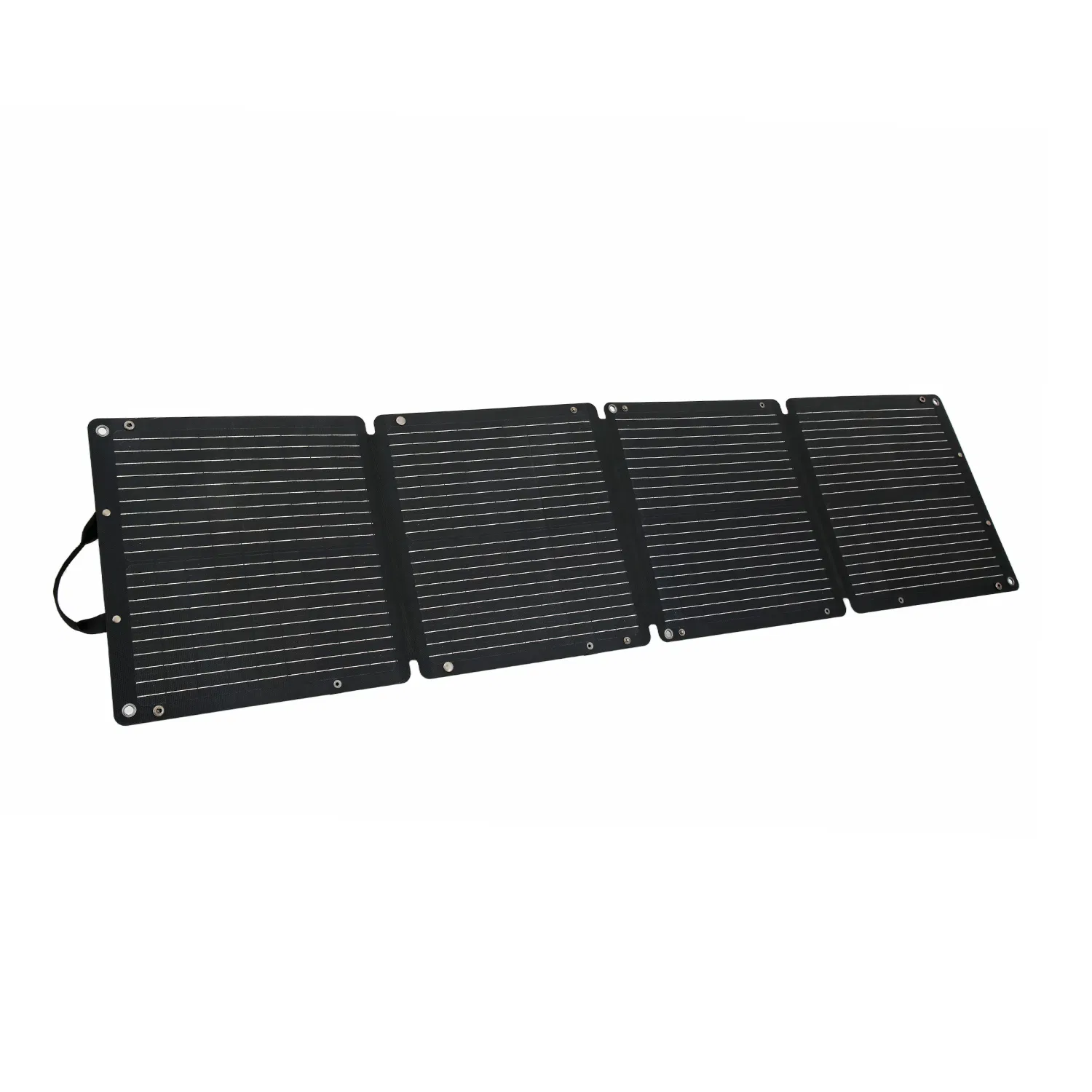

This solar panel features a foldable design for easy storage and portability. Its compact size makes it extremely convenient for travel. Using high-efficiency silicon wafers, it offers outstanding power generation performance. Equipped with USB-A and USB-C ports, it supports fast charging for various devices including smartphones, tablets, and power banks.
Built with an integrated molding process, the surface is fully sealed, providing excellent waterproof and dustproof performance. The high-strength materials allow for slight bending, making it ideal for outdoor environments.
| Output Power | 90W | Working Voltage | 19.44V |
| Working Current | 3.34A | Open Circuit Voltage | 23.6V |
| Short Circuit Current | 3.61A | Conversion Efficiency | 23% |
| Protection Rating | IP68 | Work Environment | -20℃~60℃ |
| Unfolded Size | 1320×405×17mm | Folded Size | 330×405×34mm |
We export to most countries/regions globally. After you provide your region, we will confirm delivery options. We can also ship to your freight forwarder in China.
We accept 100% TT, or 30% TT in advance with the remaining 70% TT upon readiness for shipment.
Yes, we welcome sample orders for quality inspection and testing. Mixed samples are also acceptable.
Yes, we support OEM/ODM services. We can customize wattage, voltage, size, and packaging. The MOQ for customization is 100 units.
Typically, delivery time is approximately 3-25 working days, depending on the order model and quantity.
Currently, we hold CE, FCC, and RoHS certifications. We can arrange additional certifications for large volume orders.
