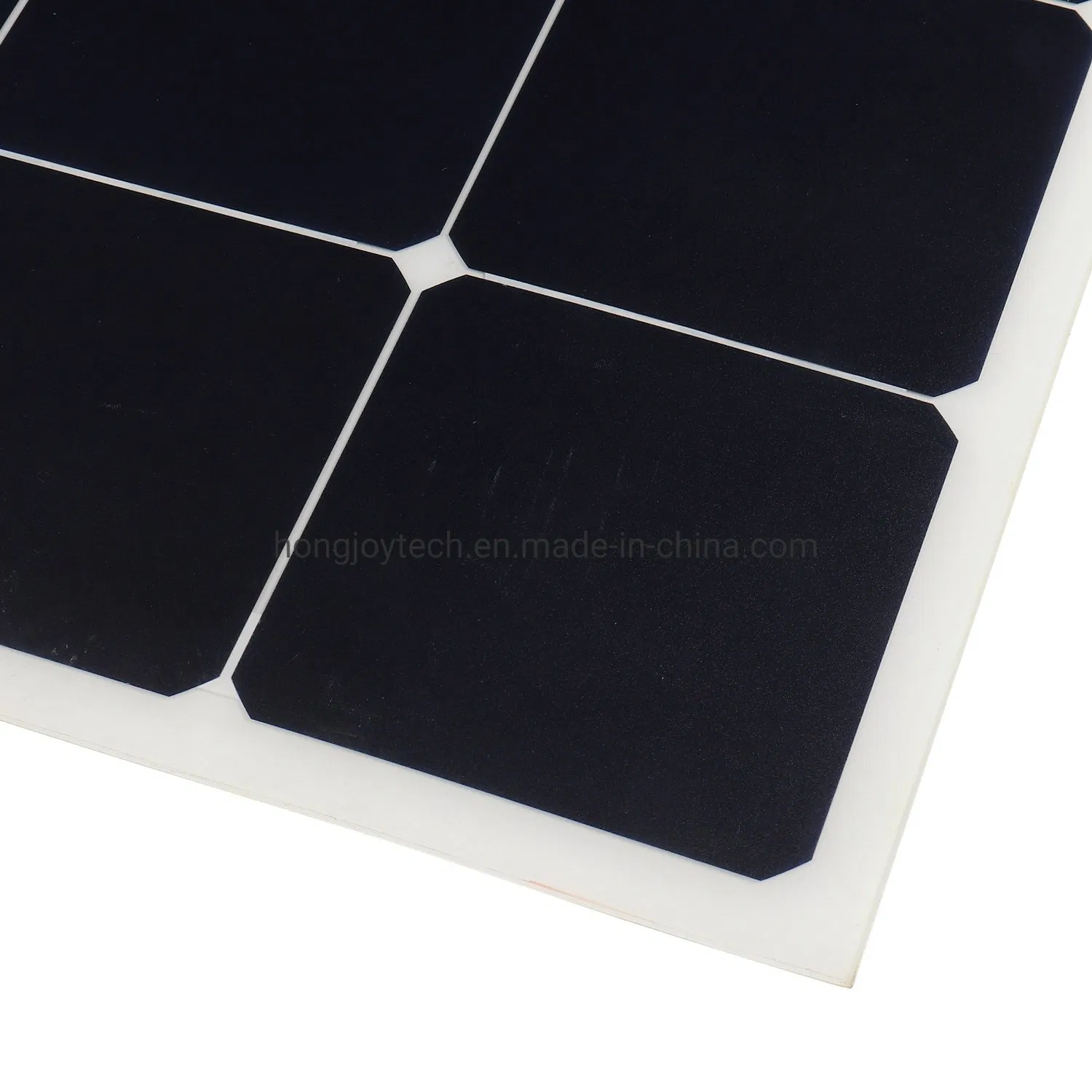

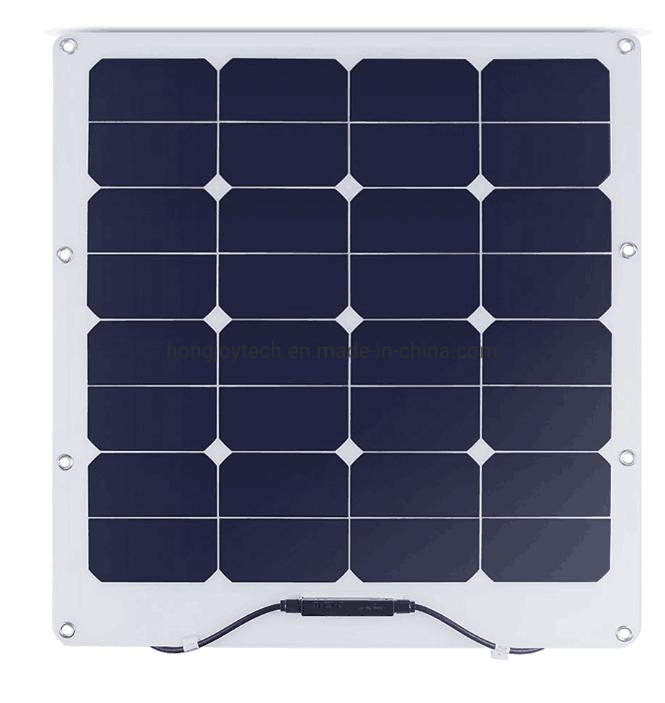

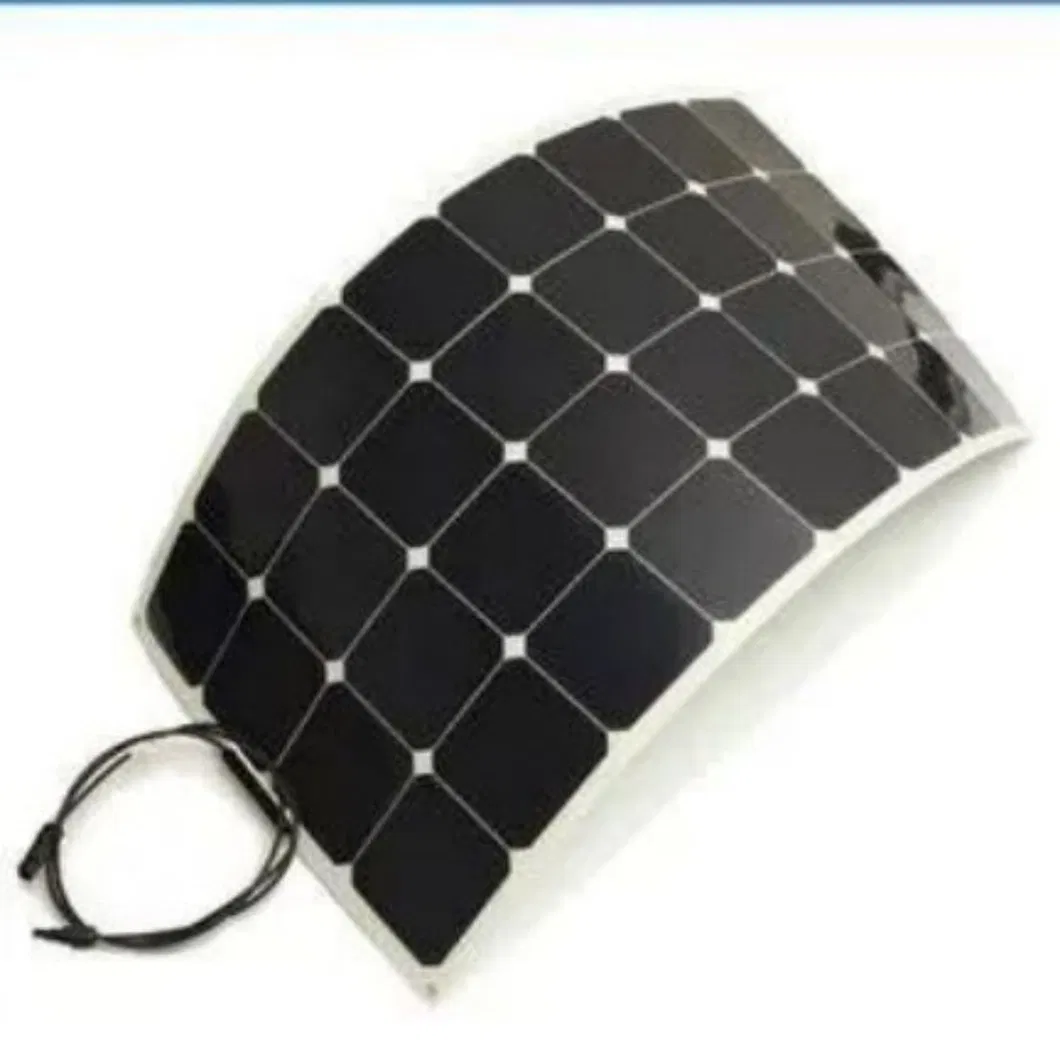

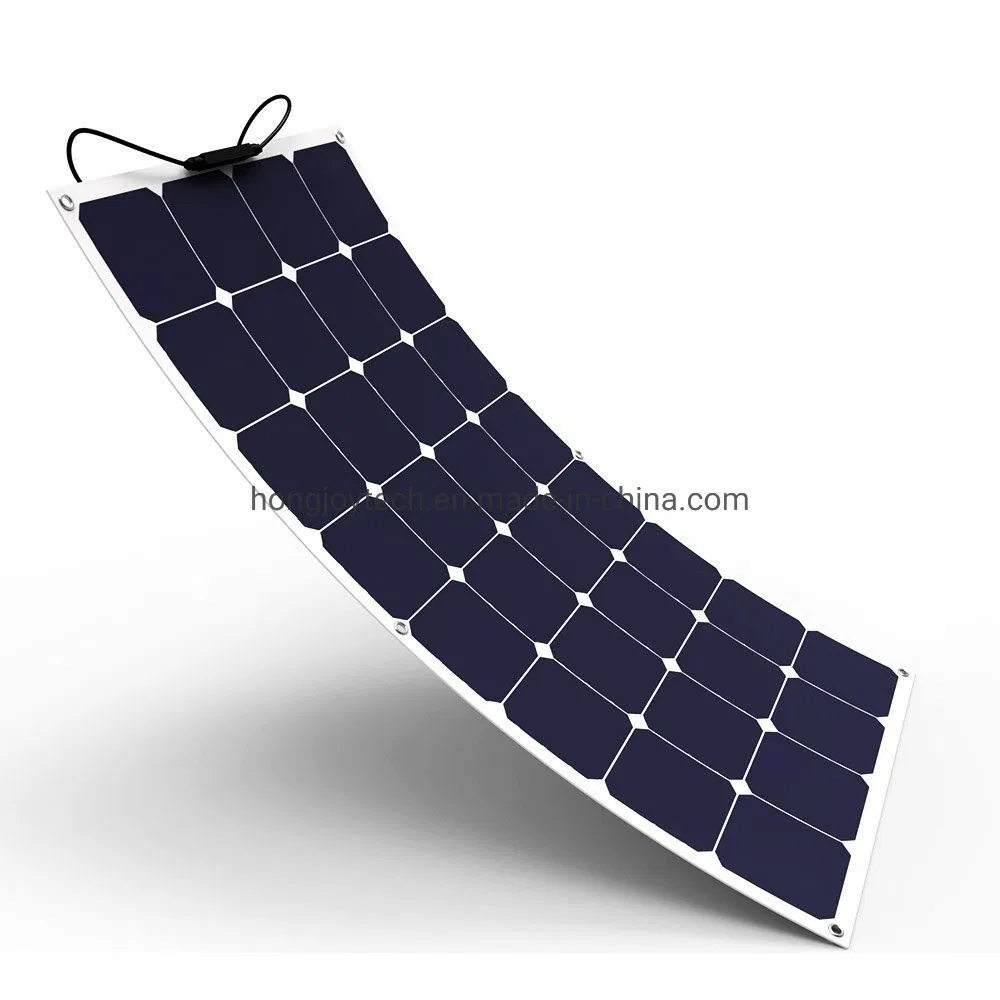

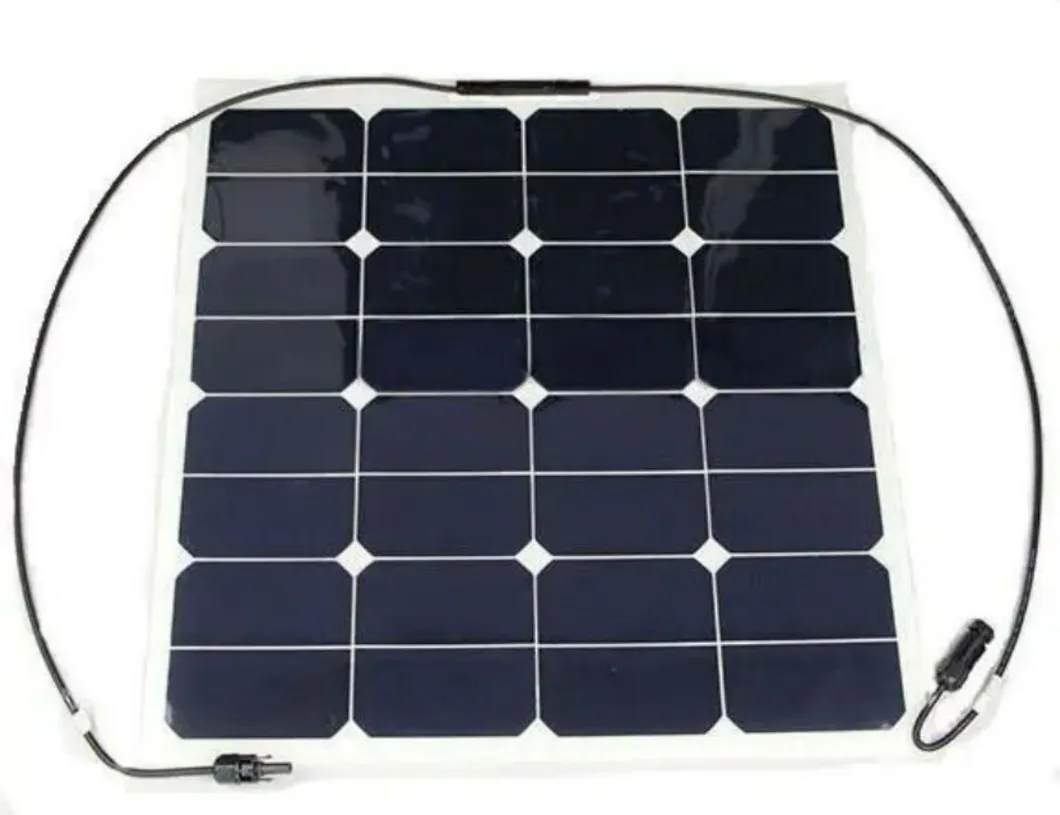

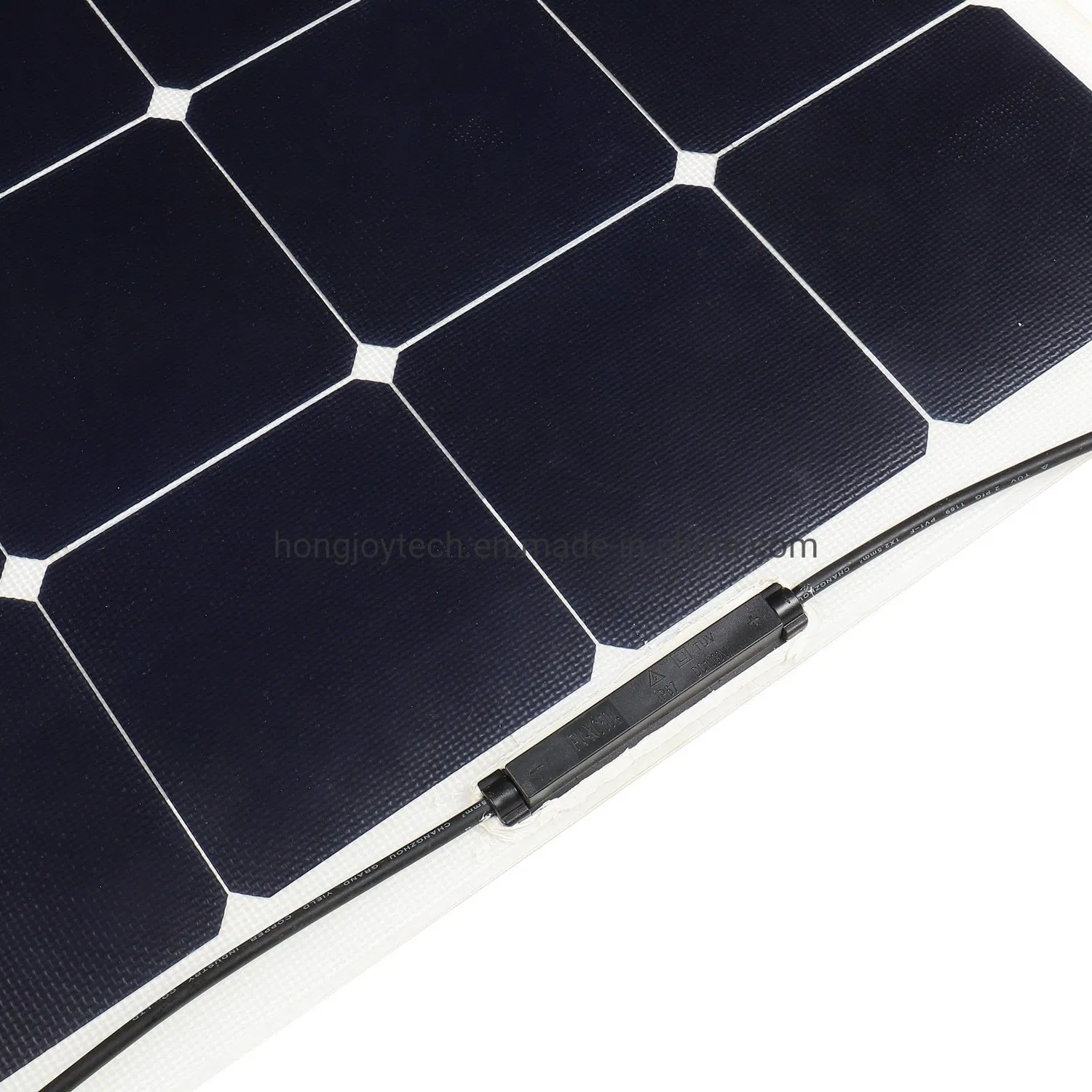

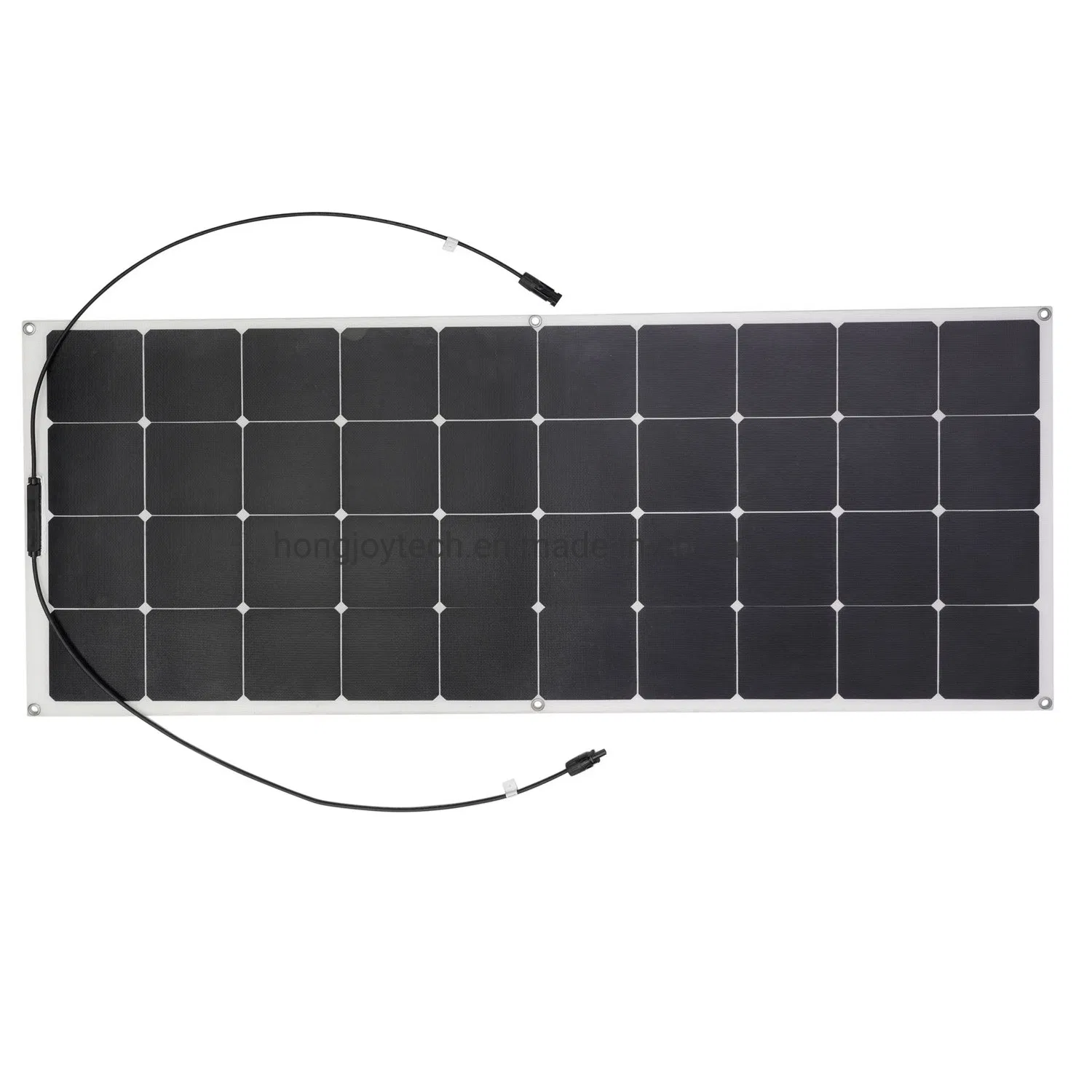

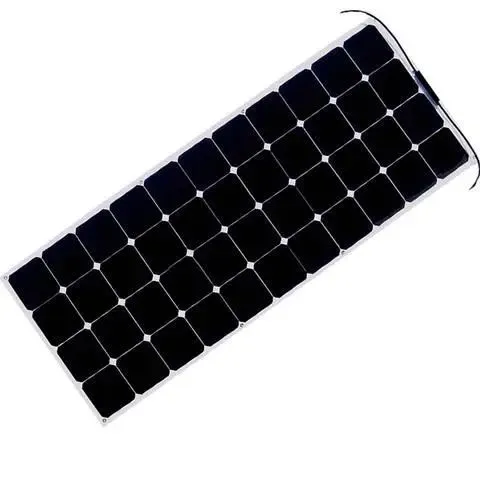

The high efficiency bendable PV modules adopt the world's highest conversion efficiency back-contact solar cells. The efficiency of the module is 30% higher than that of the conventional ones.

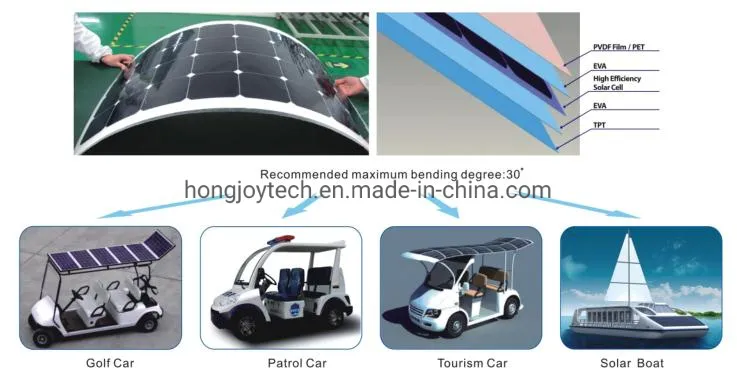

Versatile Applications: These bendable modules are widely applied to electric golf cars, patrol cars, tourism cars, yachts, roof power generation systems, backpacks, tents, and various curved surfaces.
| Parameter | Symbol | Value |
|---|---|---|
| Max Power | Pmax | 100W |
| Max Power Voltage | Vmp | 17.8V |
| Open Circuit Voltage | Voc | 21.6V |
| Maximum System Voltage | Voc | 600V |
| Cell Efficiency | - | 21% |
| Number of Cells in Series | - | 32 |
| Weight | KGS | 2.0KG |
| Dimension | mm | 1060*540*3 |
| Power (Pm) | Voc | Isc | Vmp | Imp | Cell Eff. | Weight | Dimension (mm) |
|---|---|---|---|---|---|---|---|

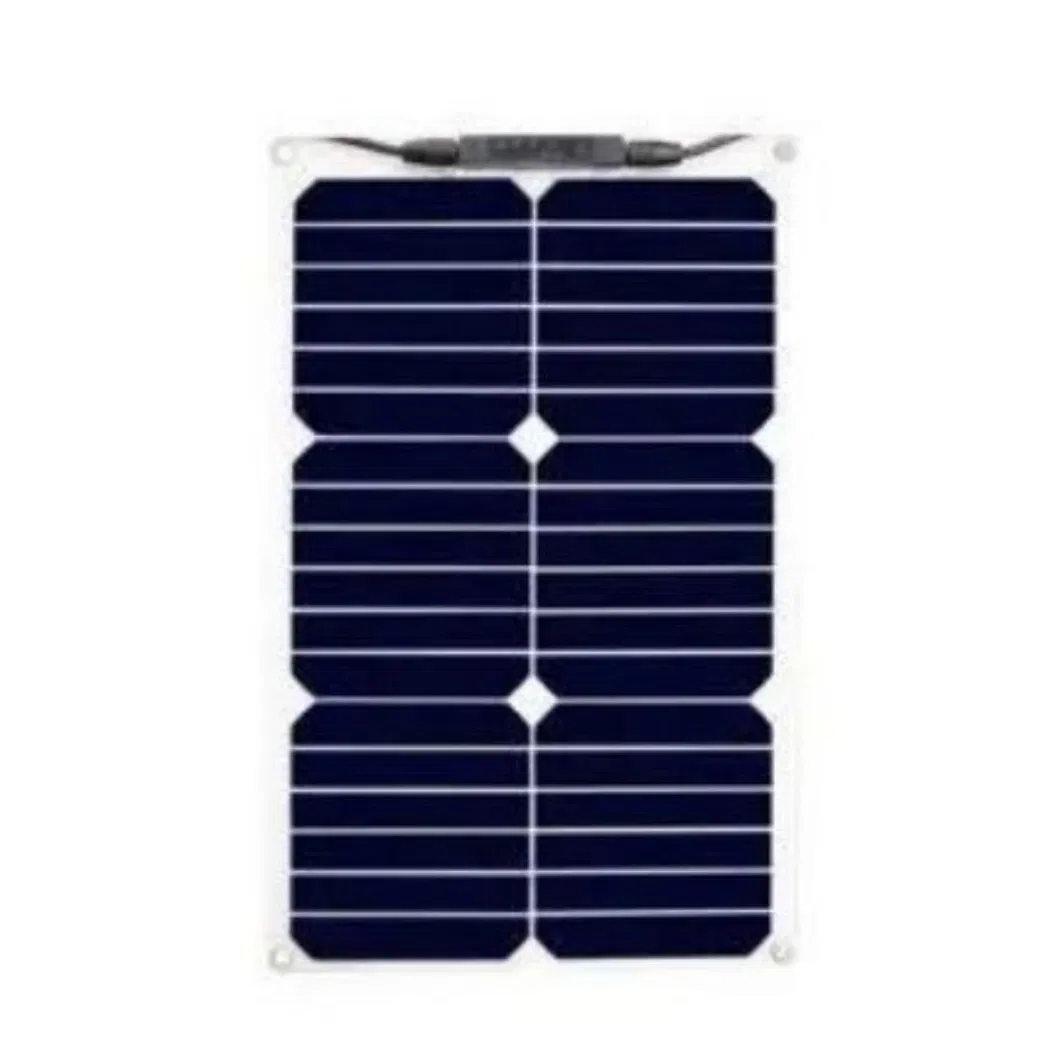

| 18W | 23.7V | 0.98A | 19.8V | 0.91A | 20.30% | 0.50kg | 434*277*3 |
| 30W | 21.2V | 1.83A | 17.6V | 1.70A | 19.50% | 0.75kg | 535*378*3 |
| 50W | 21.2V | 3.05A | 17.6V | 2.84A | 21.50% | 1.20kg | 545*535*3 |
| 80W | 18.5V | 5.58A | 15.4V | 5.19A | 19.60% | 1.80kg | 922*540*3 |
| 100W | 21.6V | 5.97A | 17.8V | 5.62A | 21.00% | 2.00kg | 1050*540*3 |
| 120W | 26.4V | 5.87A | 22.0V | 5.45A | 20.50% | 2.45kg | 1305*540*3 |
| 135W | 29.6V | 5.90A | 24.6V | 5.49A | 20.70% | 2.67kg | 1435*540*3 |
