| Physical parameters | |

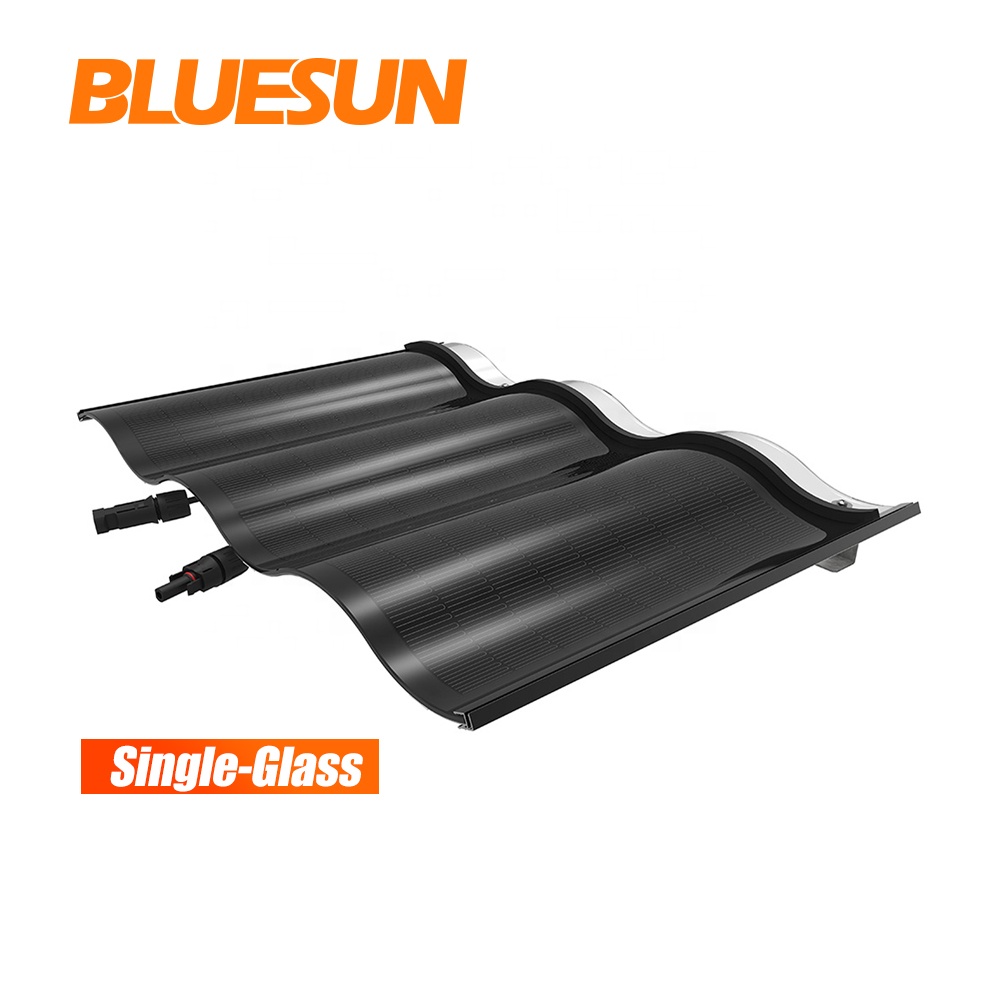

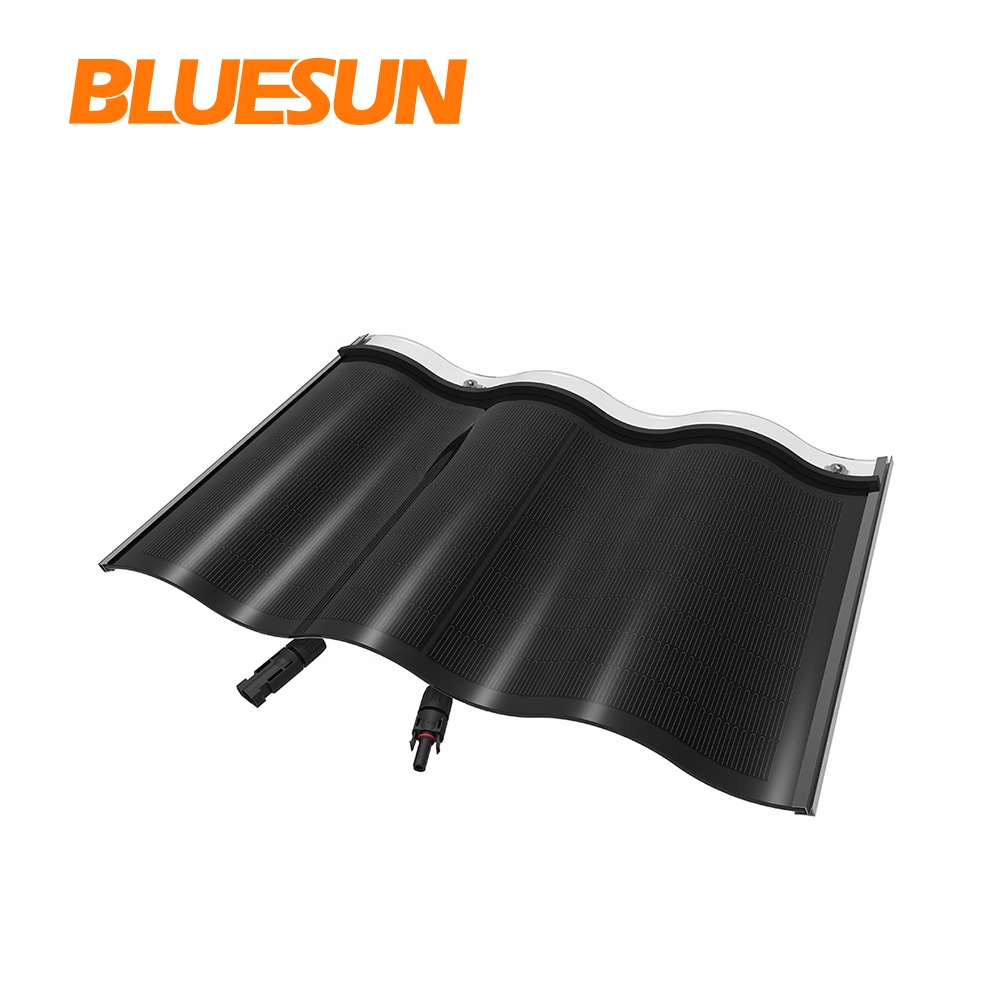

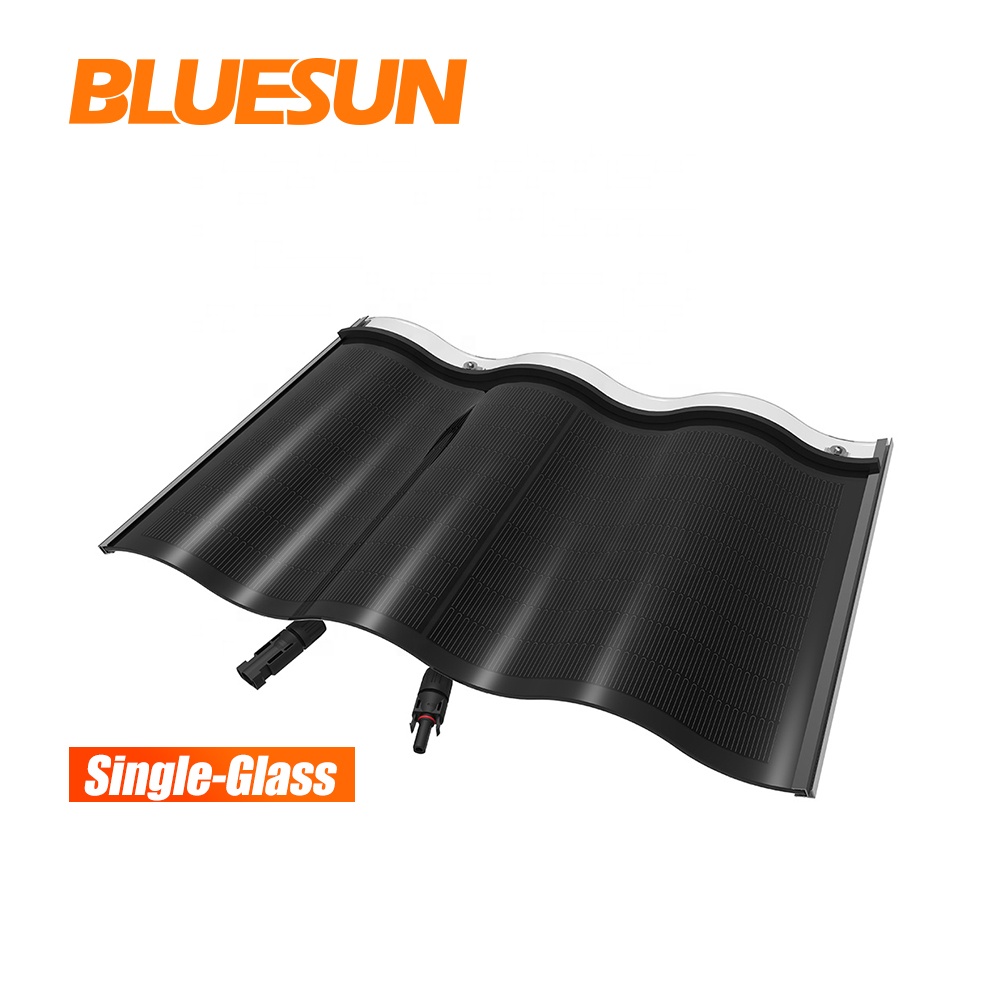

| product model: | BSM-30S |
| length: | 700mm |
| width: | 500mm |
| arch height: | 35mm |
| weight: | 5.2KG |
| color: | black |
| junction box: | 68*68*19.7 (mm) IP67 |
| cable type: | 2.5mm solar cable 450 (+10/-0) mm |
| cable connector: | pv connector |
| Electrical parameters | |
| chip type: | CIGS |

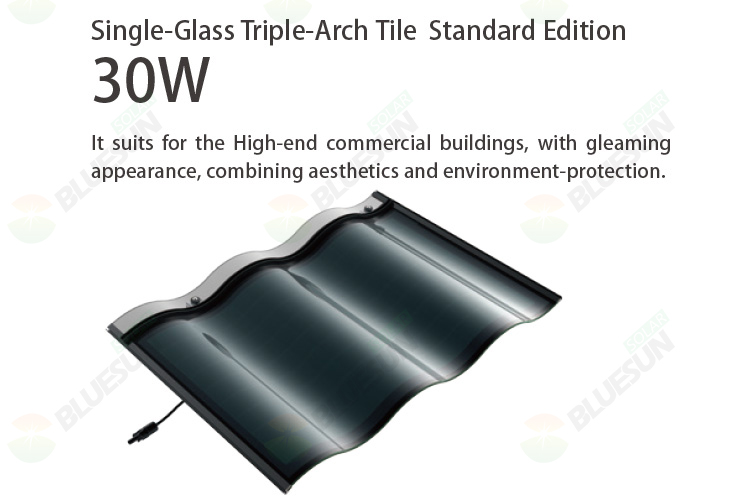

| power: | 30W |
| short-circuit current: | 4.45A |
| open-circuit voltage: | 10.16V |
| current at PMPP: | 3.87A |
| voltage at PMPP: | 7.79V |
| Operating parameters | |
| loading grade: | 2400Pa |
| waterproof grade: | IP67 |
| fire-proof grade: | A |
| hail-proof grade: | level 4 (ANSI FM 4473) |
| working temperature: | -40°C to +85°C |
| Shipping Mode | Details |
|---|---|
| By sea | Delivery from Shanghai or Ningbo seaport |
| By air | Departure from Shanghai Pudong Airport |
| By express | By TNT/DHL |
| One Box | Packing Specification (mm) | Gross Weight | Net Weight | Number per carton (pcs) |
|---|---|---|---|---|
| Specs | 1260*780*690 | 263 | 210 | 40 |
| Container Type | Loading Quantity (CTN) | Loading Quantity (PCS) | Total Weight (T) | Volume (m3) |
|---|---|---|---|---|
| 20ft Container | 39 | 1560 | 10.3 | 27.6 |
| 40ft Container | 81 | 3240 | 21.5 | 54 |
