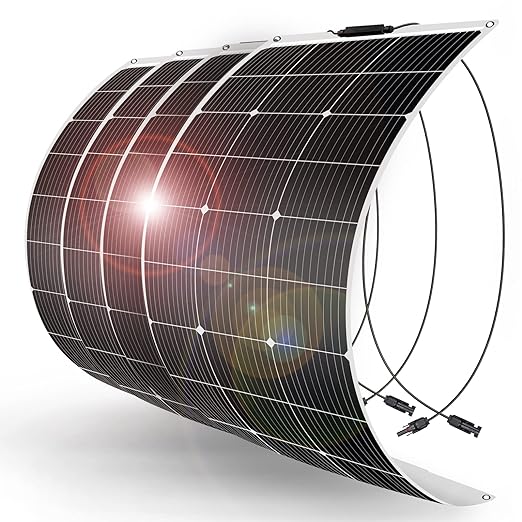

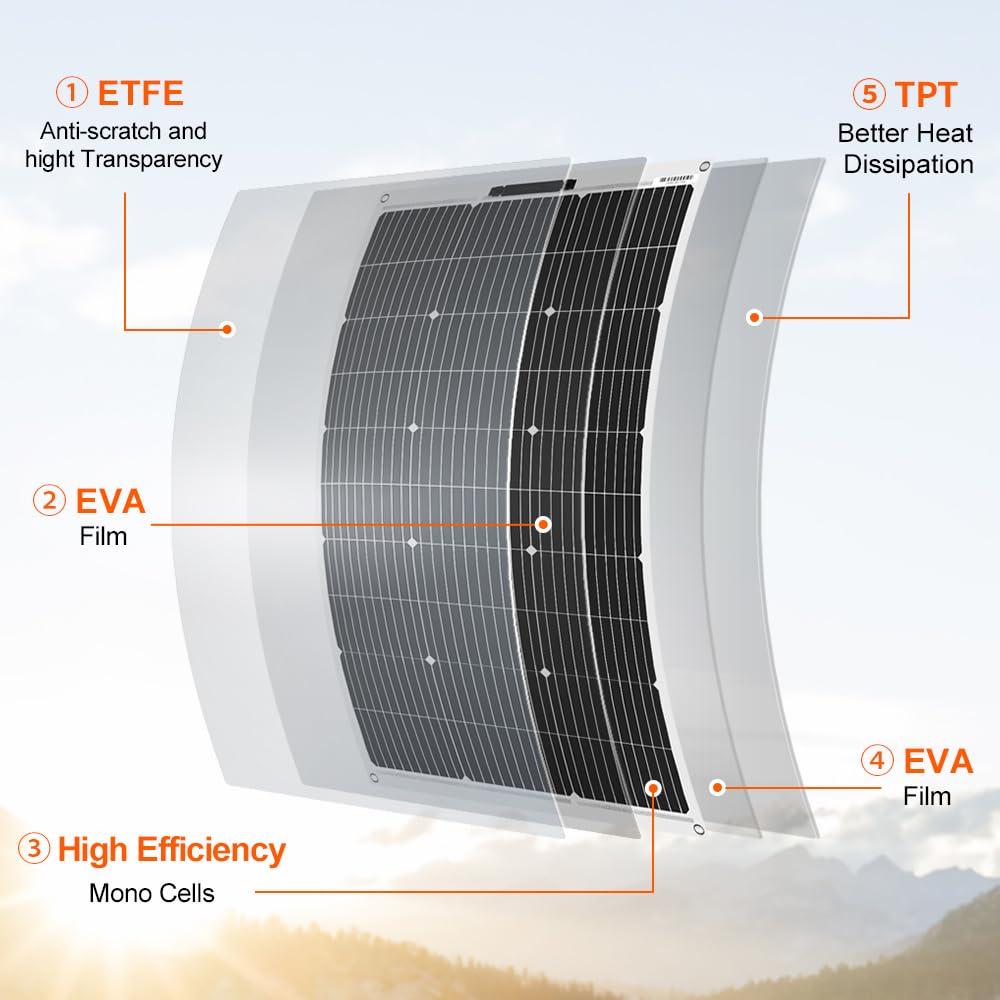

| Custom Monocrystalline Solar Cell ETFE 100W Flexible Solar Panel | |
|---|---|
| Model | SN-MH100WN |
| Maximum Power/Pmax | 100W |
| Operating Voltage/Vmp | 18V |
| Operating Current/Imp | 5.56A |
| Open Circuit Voltage/Voc | 21.6V |
| Short Circuit Current/Isc | 6.11A |
| Dimensions | 1050X530X3mm |
| Weight | 1.9kgs |
| Model | SN-MH50W | SN-MH100W | SN-MH120W | SN-MH140W | SN-MH180W | SN-MH200W | SN-MH260W |
|---|---|---|---|---|---|---|---|
| Maximum Power/Pmax | 50W | 100W | 120W | 140W | 180W | 200W | 260W |
| Operating Voltage/Vmp | 18.00V | 19.44V | 21.60V | 25.92V | 17.28V | 19.44V | 20.16V |
| Operating Current/Imp | 2.78A | 5.14A | 5.56A | 5.40A | 10.42A | 10.29A | 12.90A |
| Open Circuit Voltage/Voc | 21.60V | 23.33V | 25.92V | 31.10V | 20.74V | 23.33V | 24.19V |
| Short Circuit Current/Isc | 3.06A | 5.65A | 6.12A | 5.94A | 11.46A | 11.32A | 14.19A |
| Cell Efficiency | 19.50% | 22.00% | 22.50% | 22.00% | 22.00% | 22.00% | 23.00% |
| Maximum System Voltage | 600V | 600V | 1000V | 1000V | 1000V | 1000V | 1200V |
| Maximum Fuse Rating | 18A | 18A | 18A | 18A | 18A | 18A | 18A |
| No. of Cells | 36(4*9) | 36(4*9) | 10(4*10) | 48(4*12) | 32(4*8) | 36(4*9) | 36(4*9) |
| Cell Dimension | 125*62.5 mm | 166*83 mm | 166*83 mm | 166*83 mm | 166*166 mm | 166*166 mm | 182*182 mm |
| Dimensions | 665*530*3mm | 845*710*3mm | 930*710*3mm | 1100*710*3mm | 1425*710*3mm | 1590*710*3mm | 1735*775*3mm |
| Weight | 1.0kg | 1.9kg | 2.2kg | 2.6kg | 3.3kg | 3.65kg | 4.6kg |
| Junction Box | IP68 Rated |
| Cables | 35cm 2x4.0mm² |
| Connector | MC Four Compatible |
| Power Tolerance | 0~+5 |
| Cell Type | Monocrystalline |
| Working Temperature | -40℃ ~ +85℃ |
