Industrial Hjt Bifacial Split 144 Cell n Type Solar Panel 400wp 500w 480 w 500 Watt 540 Wp 560w 750w 1000watts Solar Pv Panel
Industrial Hjt Bifacial Split 144 Cell n Type Solar Panel 400wp 500w 480 w 500 Watt 540 Wp 560w 750w 1000watts Solar Pv Panel
Industrial Hjt Bifacial Split 144 Cell n Type Solar Panel 400wp 500w 480 w 500 Watt 540 Wp 560w 750w 1000watts Solar Pv Panel
Industrial Hjt Bifacial Split 144 Cell n Type Solar Panel 400wp 500w 480 w 500 Watt 540 Wp 560w 750w 1000watts Solar Pv Panel
Industrial Hjt Bifacial Split 144 Cell n Type Solar Panel 400wp 500w 480 w 500 Watt 540 Wp 560w 750w 1000watts Solar Pv Panel
1 / 5
Industrial Hjt Bifacial Split 144 Cell n Type Solar Panel 400wp 500w 480 w 500 Watt 540 Wp 560w 750w 1000watts Solar Pv Panel
Industrial Hjt Bifacial Split 144 Cell n Type Solar Panel 400wp 500w 480 w 500 Watt 540 Wp 560w 750w 1000watts Solar Pv Panel
Industrial Hjt Bifacial Split 144 Cell n Type Solar Panel 400wp 500w 480 w 500 Watt 540 Wp 560w 750w 1000watts Solar Pv Panel
Industrial Hjt Bifacial Split 144 Cell n Type Solar Panel 400wp 500w 480 w 500 Watt 540 Wp 560w 750w 1000watts Solar Pv Panel
Industrial Hjt Bifacial Split 144 Cell n Type Solar Panel 400wp 500w 480 w 500 Watt 540 Wp 560w 750w 1000watts Solar Pv Panel

Industrial Hjt Bifacial Split 144 Cell n Type Solar Panel 400wp 500w 480 w 500 Watt 540 Wp 560w 750w 1000watts Solar Pv Panel

Send Inquiry

Product Description

You May Like

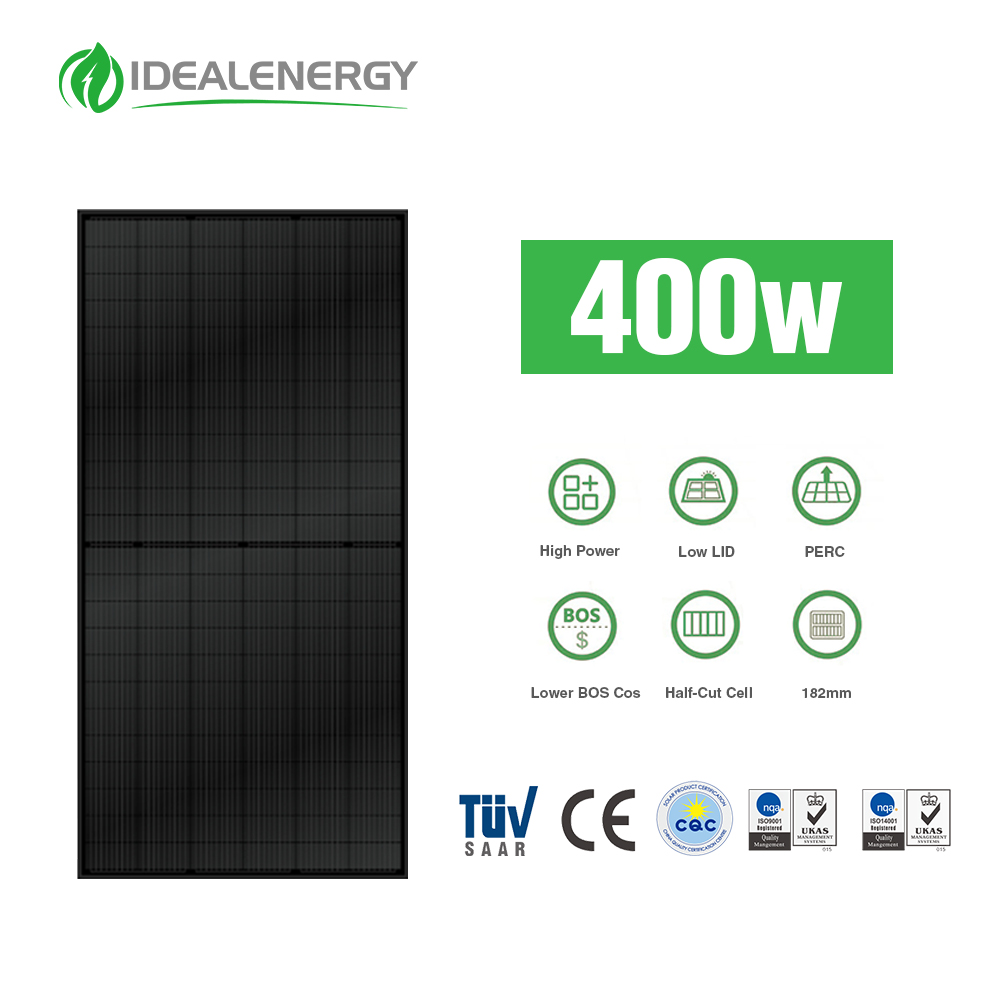

Solar Module Image 1

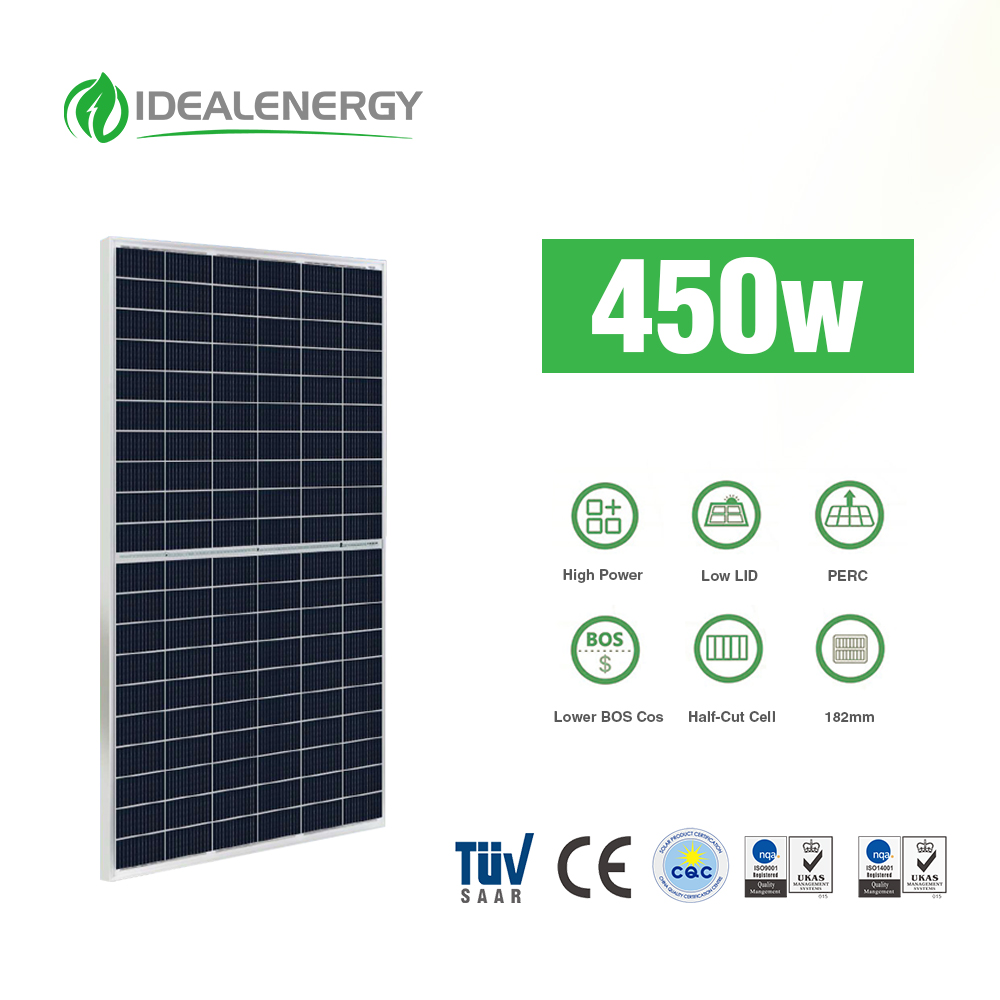

Solar Module Image 2

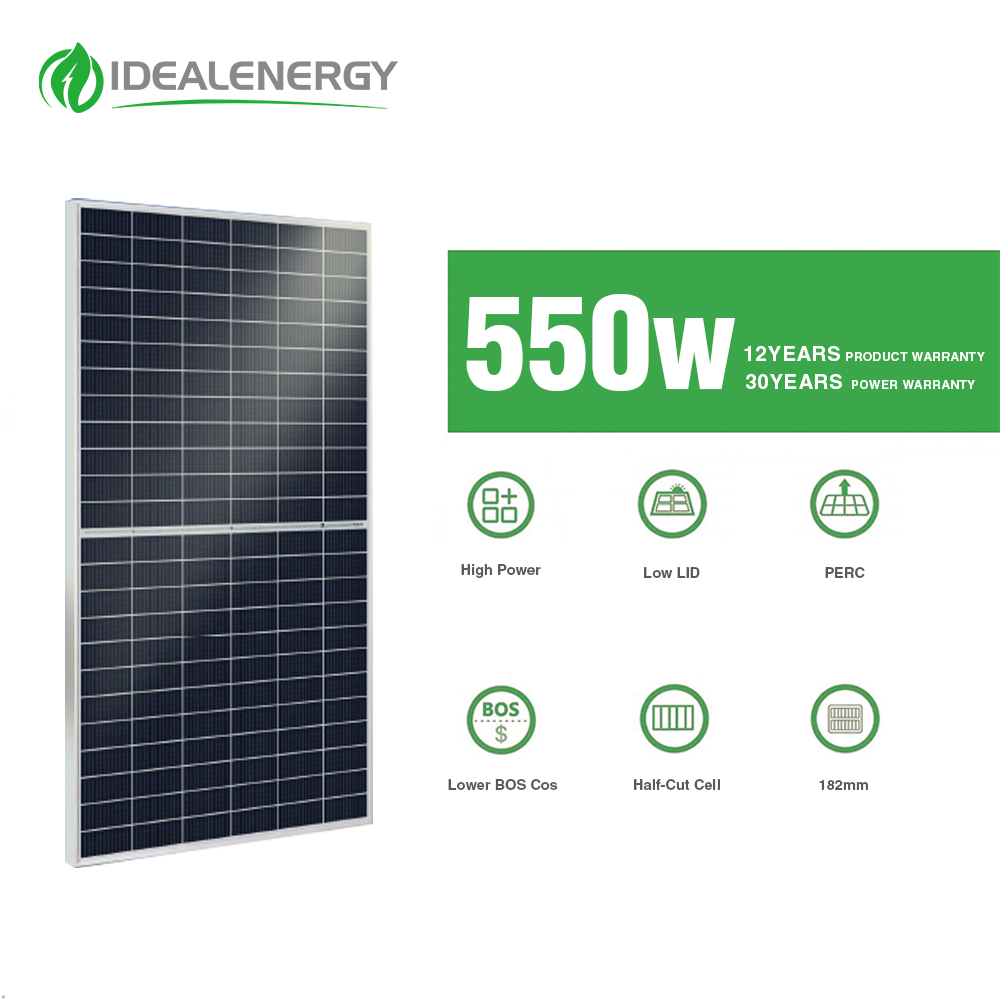

Solar Module Image 3

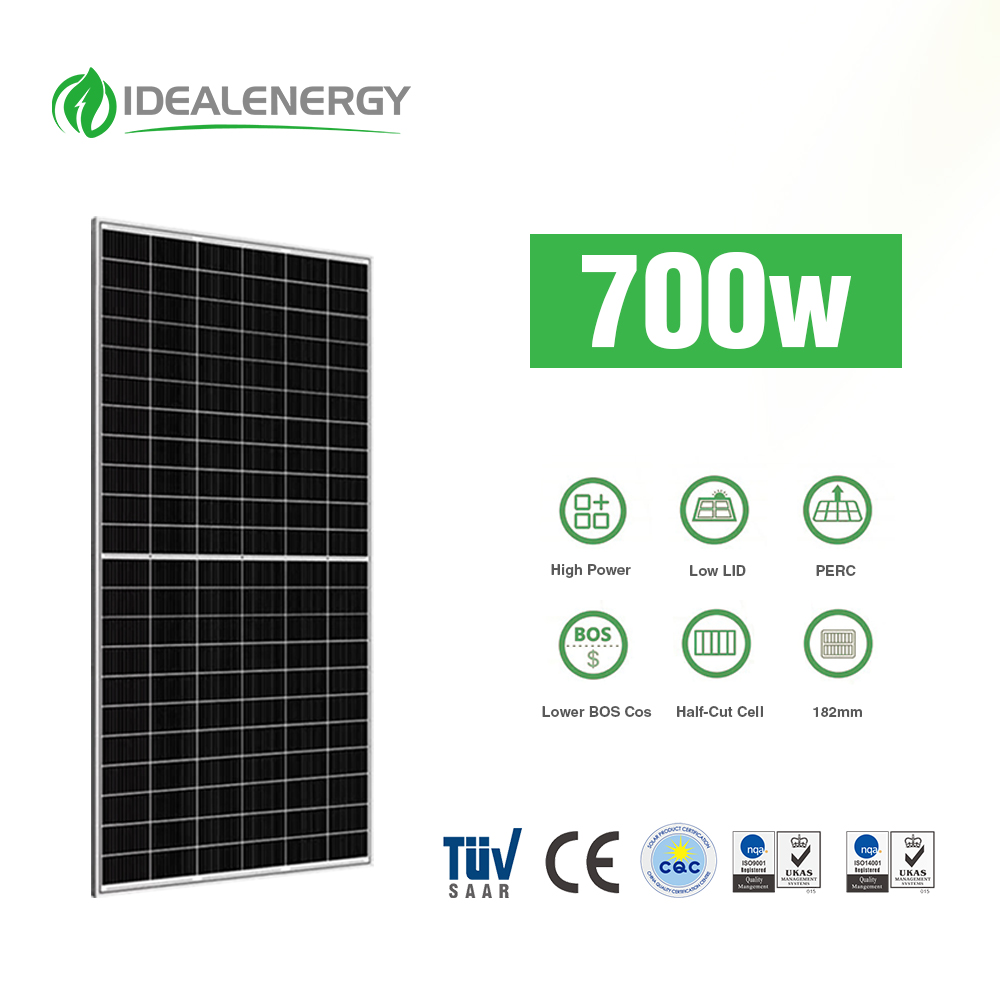

Solar Module Image 4

Product Description

Product Description Image 1

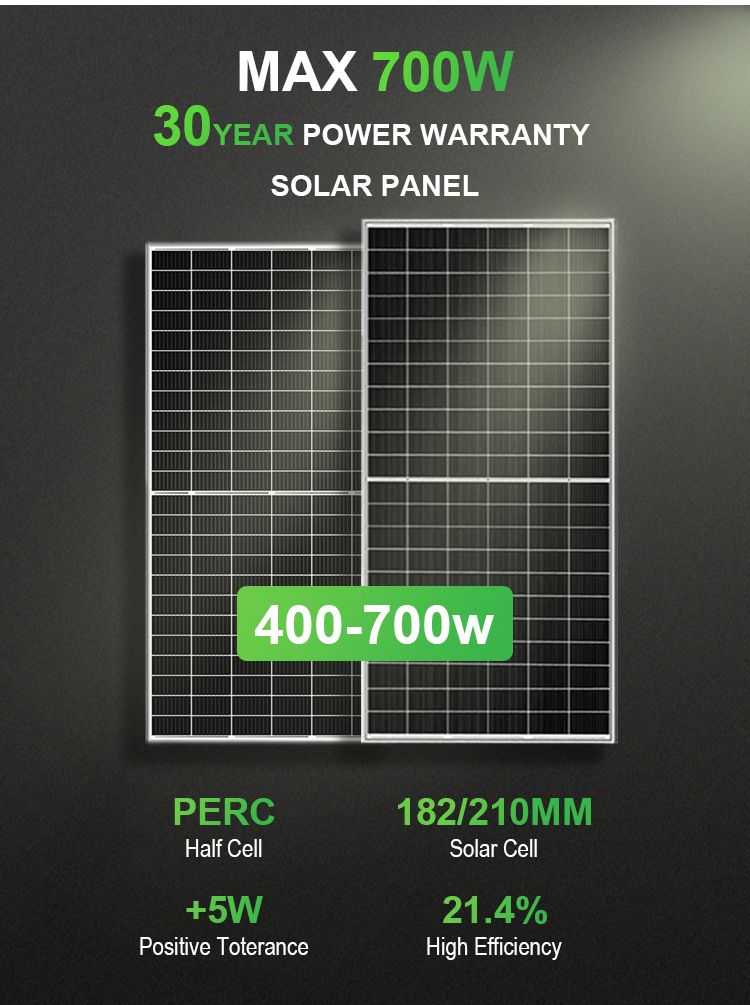

Product Description Image 2

Electrical Parameters

ELECTRICAL PARAMETERS AT STC (INE-530-72MH to INE-550-72MH)

Module Type INE-530-72MH INE-535-72MH INE-540-72MH INE-545-72MH INE-550-72MH
Rated Maximum Power(Pmax) [W] 530 535 540 545 550
Open Circuit Voltage(Voc) [V] 49.30 49.45 49.60 49.75 49.90
Maximum Power Voltage(Vmp) [V] 41.34 41.47 41.64 41.80 41.96
Short Circuit Current(Isc) [A] 13.72 13.79 13.86 13.93 14.00
Maximum Power Current(Imp) [A] 12.83 12.90 12.97 13.04 13.11
Module Efficiency [%] 20.5 20.7 20.9 21.1 21.3

STC: Irradiance 1000 W/m² module temperature 25°C AM=1.5

ELECTRICAL PARAMETERS AT STC (INE-670-66MH to INE-710-66MH)

Module Type INE-670-66MH INE-680-66MH INE-690-66MH INE-700-66MH INE-710-66MH
Rated Maximum Power(Pmax) [W] 670 680 690 700 710
Open Circuit Voltage(Voc) [V] 46.10 46.50 46.90 47.40 47.8
Maximum Power Voltage(Vmp) [V] 38.20 38.60 39.00 39.40 39.80
Short Circuit Current(Isc) [A] 18.62 18.67 18.72 18.77 18.82
Maximum Power Current(Imp) [A] 17.55 17.62 17.70 17.77 17.84
Module Efficiency [%] 21.5 21.8 22.2 22.5 22.8

STC: Irradiance 1000 W/m² module temperature 25°C AM=1.5

OEM & ODM

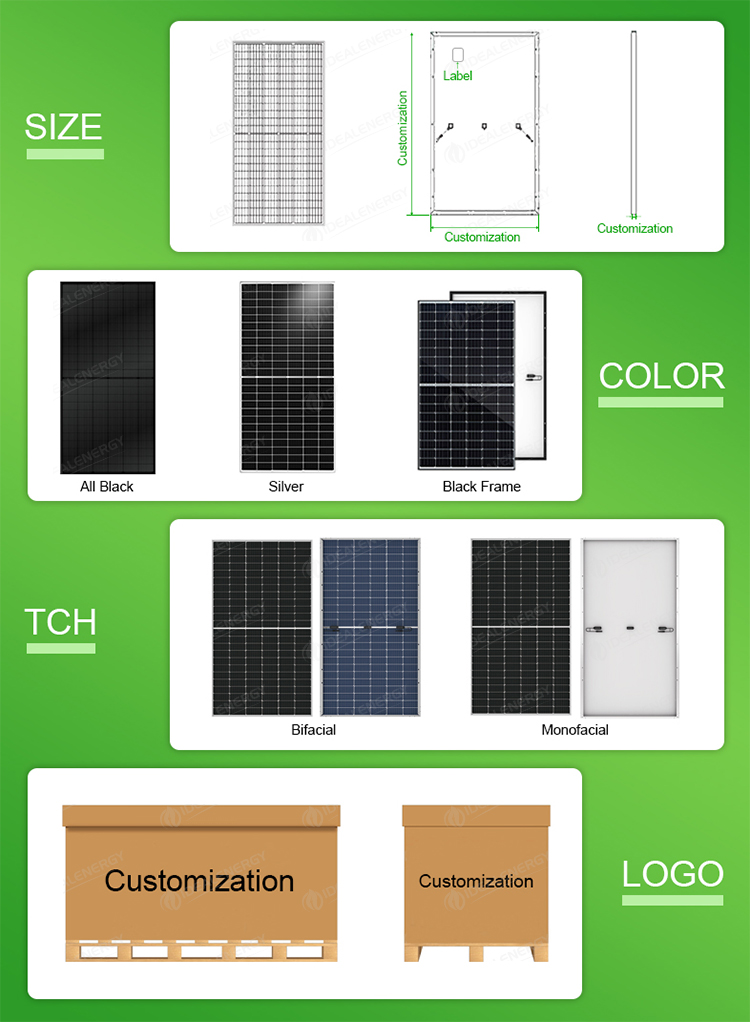

OEM and ODM customization services

Our Factory

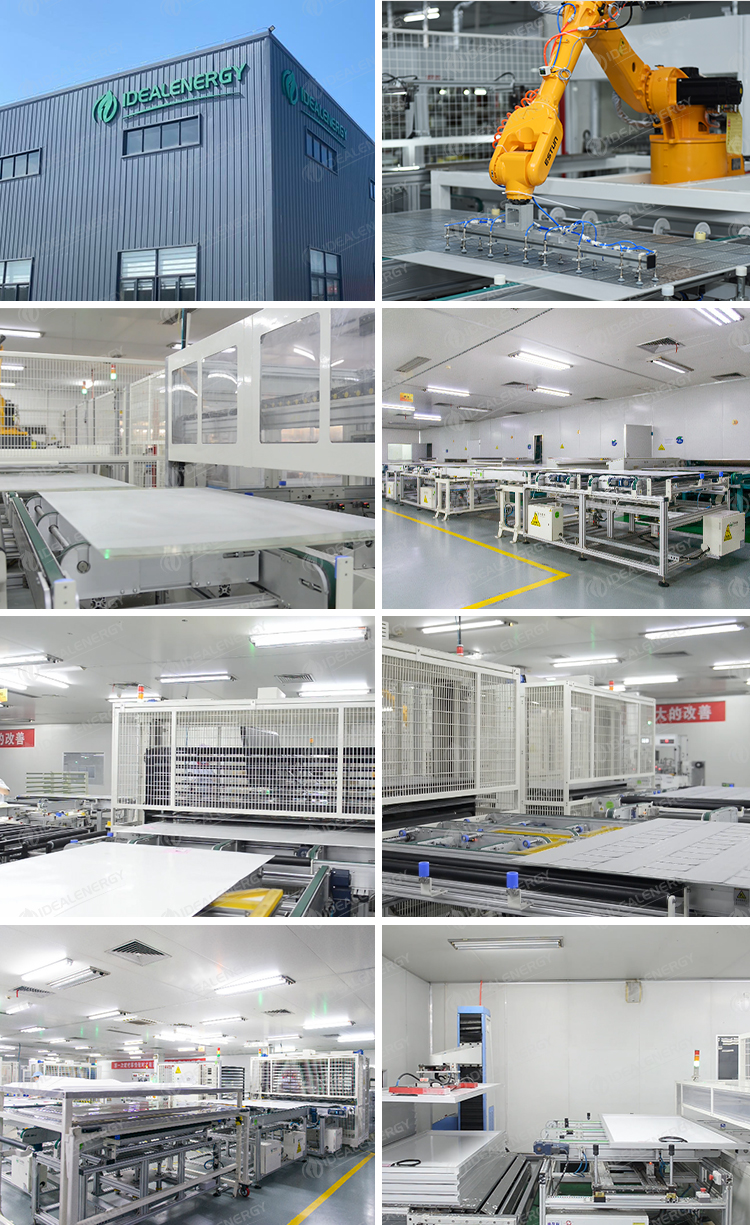

Solar Panel Manufacturing Factory Overview

Strict QC System

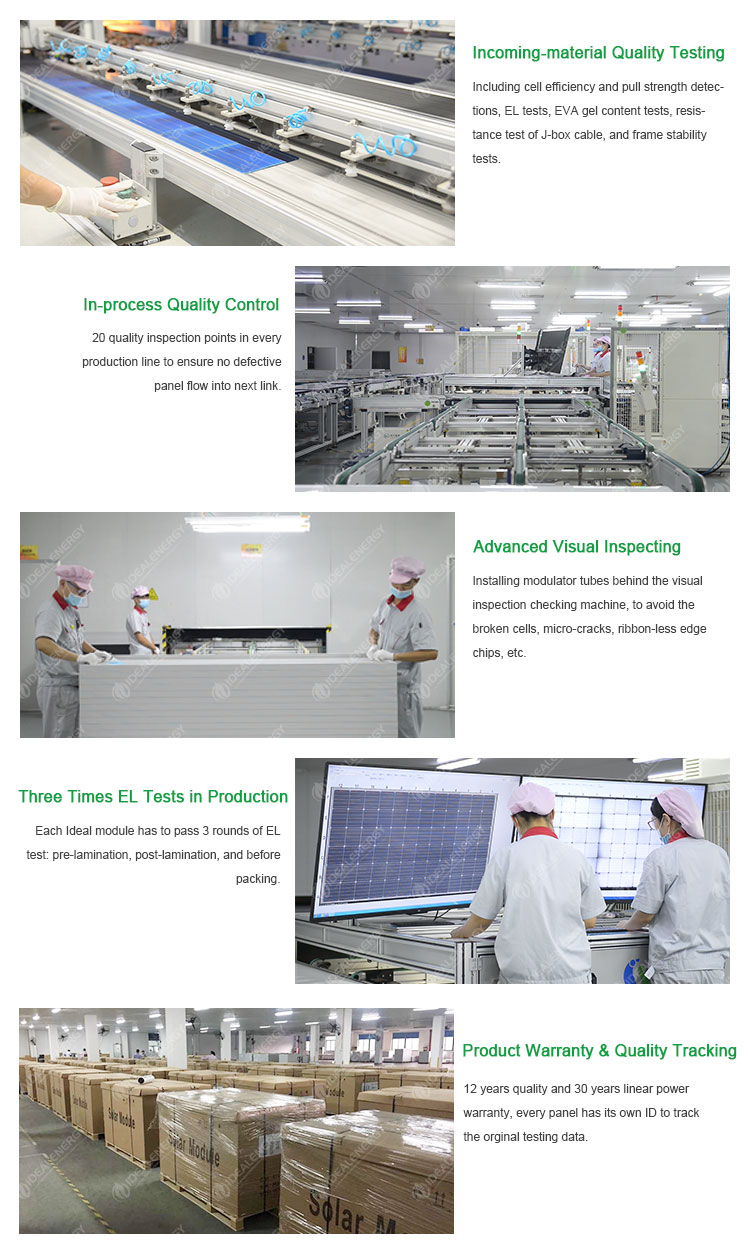

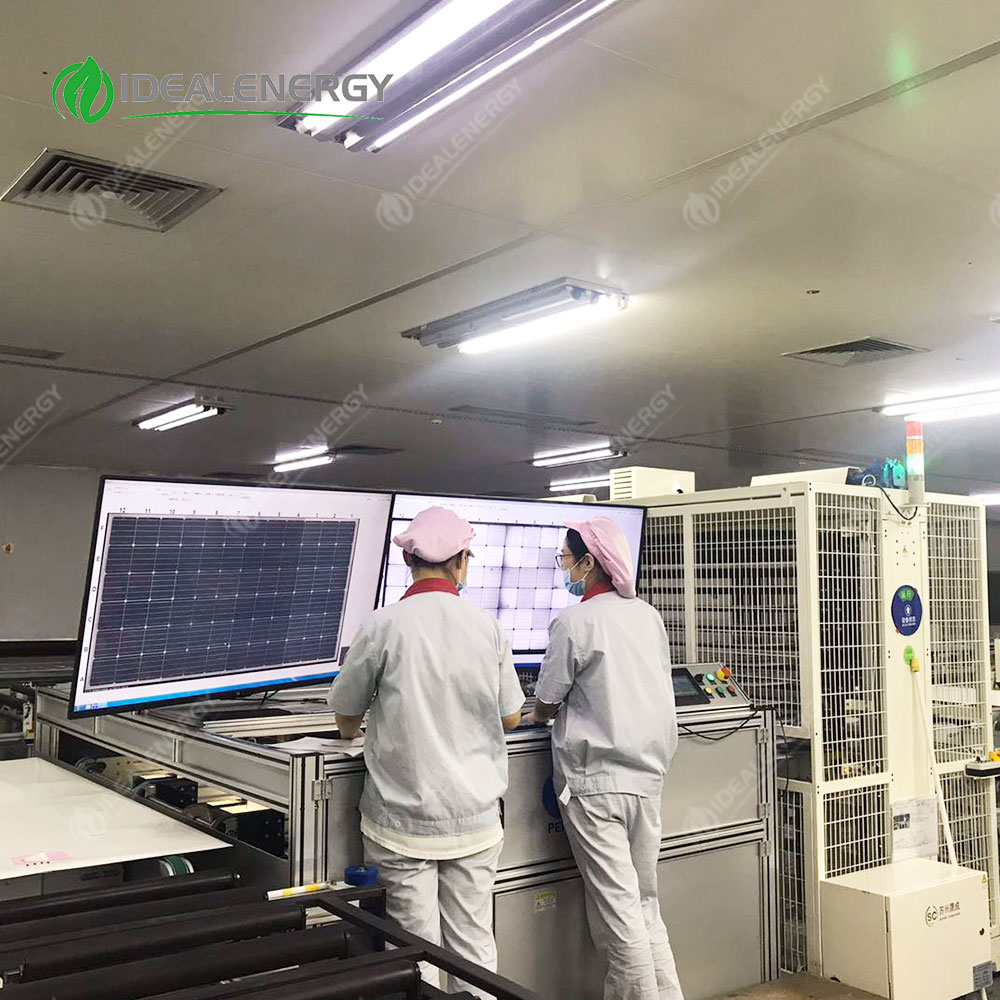

Strict Quality Control Testing Process

Packing & Delivery

Secure Packing and Worldwide Safe Delivery

Application

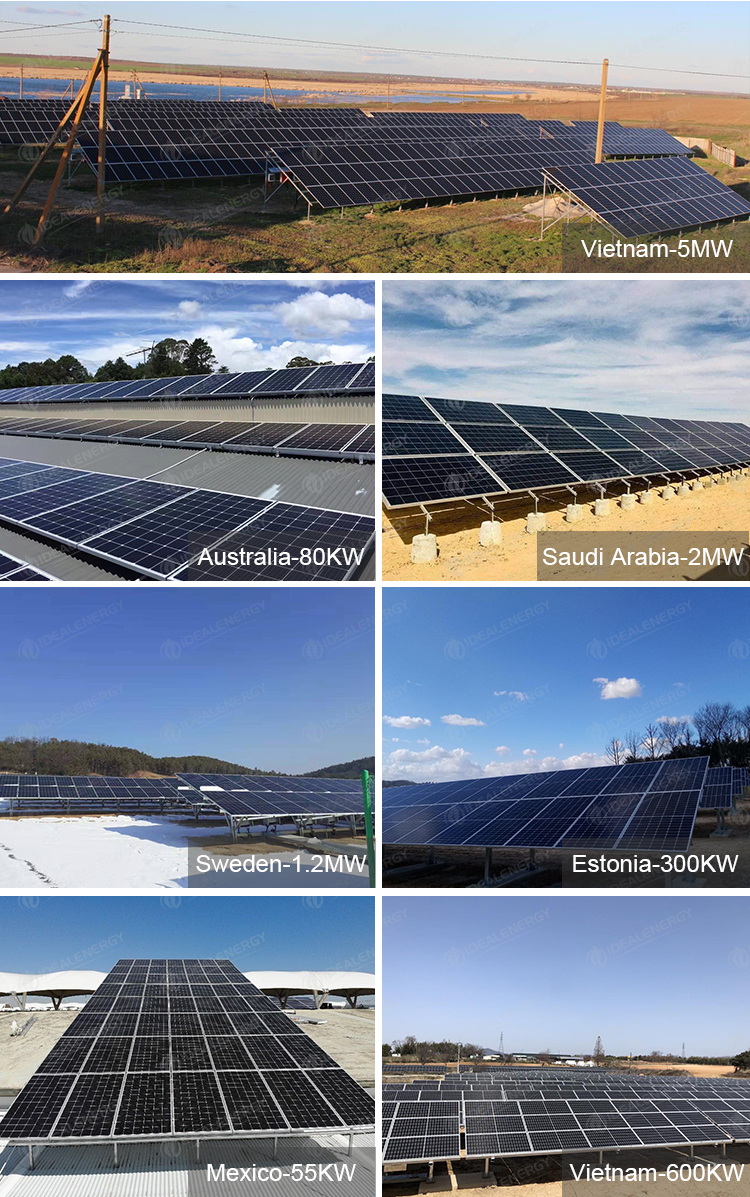

Solar Module Applications and Projects

Customer Reviews

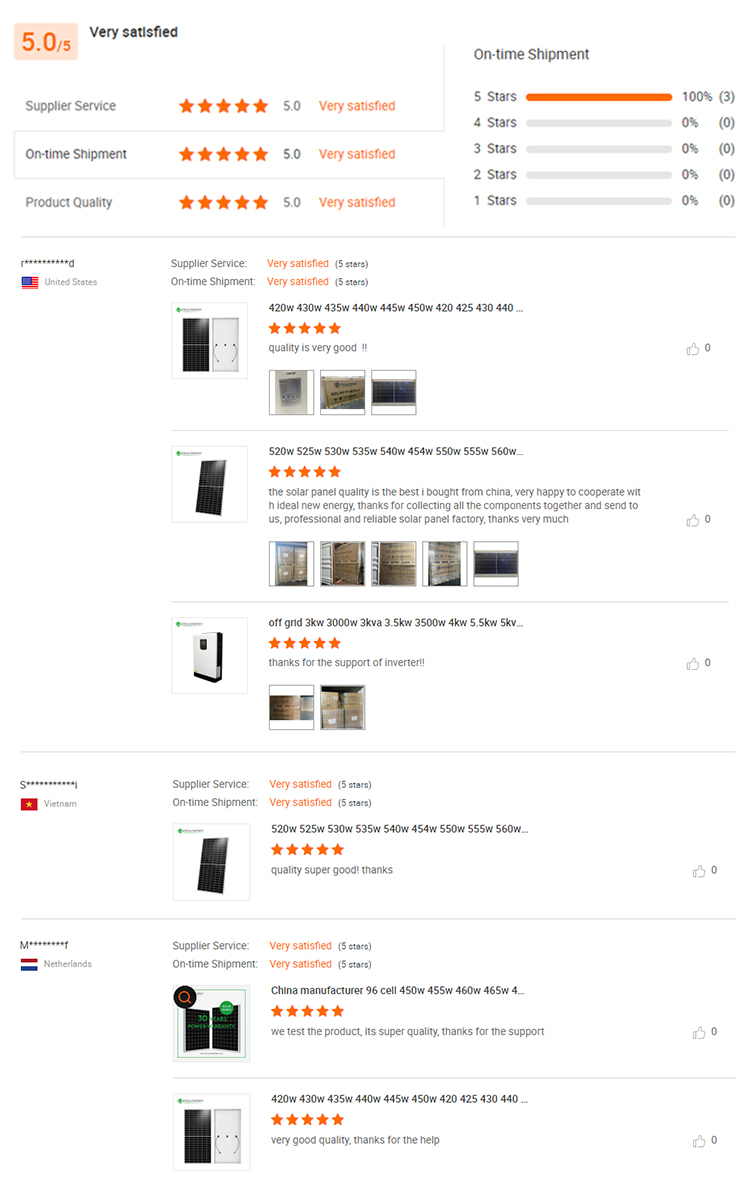

Client Feedback and Customer Reviews

Frequently Asked Questions

Q1: What are the standard test conditions (STC) for these solar panels?
A: The performance parameters of our solar modules are tested under Standard Test Conditions (STC), which specify an irradiance of 1000 W/m², a module temperature of 25°C, and an air mass of AM=1.5.
Q2: Do you support custom branding and specifications (OEM/ODM)?
A: Yes, we provide full OEM and ODM services. We can customize module dimensions, electrical parameters, cell layouts, and frame colors to meet your project's specific design requirements.
Q3: How do you ensure the quality of your solar modules?
A: We implement a strict QC (Quality Control) system. This includes incoming material inspection, in-line process monitoring, EL (Electroluminescence) testing to detect micro-cracks, and final electrical performance testing before packing.
Q4: What is the maximum module efficiency of your solar panels?
A: Our high-performance monocrystalline modules reach efficiency levels of up to 21.3% for the INE-550-72MH series and up to 22.8% for the high-power INE-710-66MH series.
Q5: How are the solar panels packaged to prevent damage during shipping?
A: Panels are packaged in heavy-duty cardboard boxes, mounted on reinforced wooden pallets with corner protection wrap, and secured using robust binding straps to ensure they arrive in perfect condition.
Q6: What applications are these solar modules suitable for?
A: These modules are highly versatile and ideal for utility-scale ground mounts, industrial and commercial rooftop systems, residential installations, and various off-grid energy configurations.
