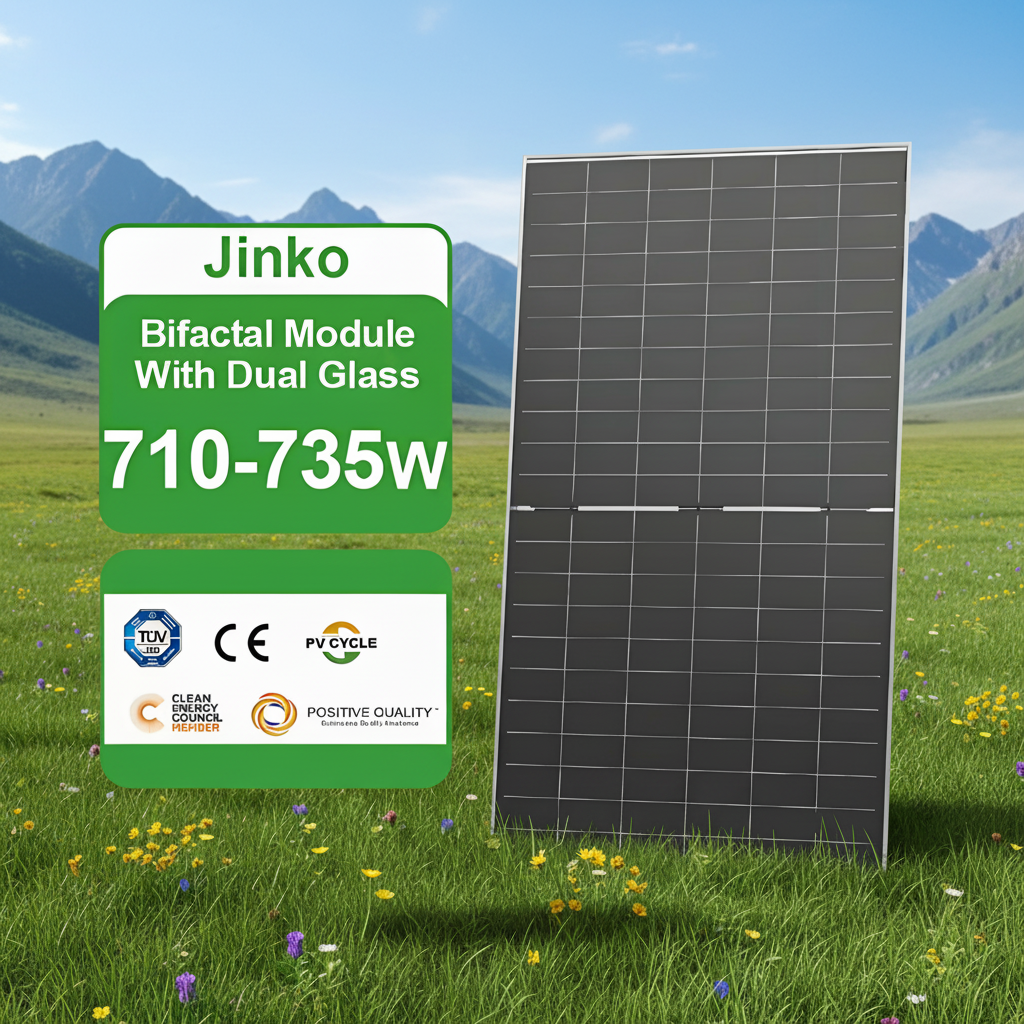

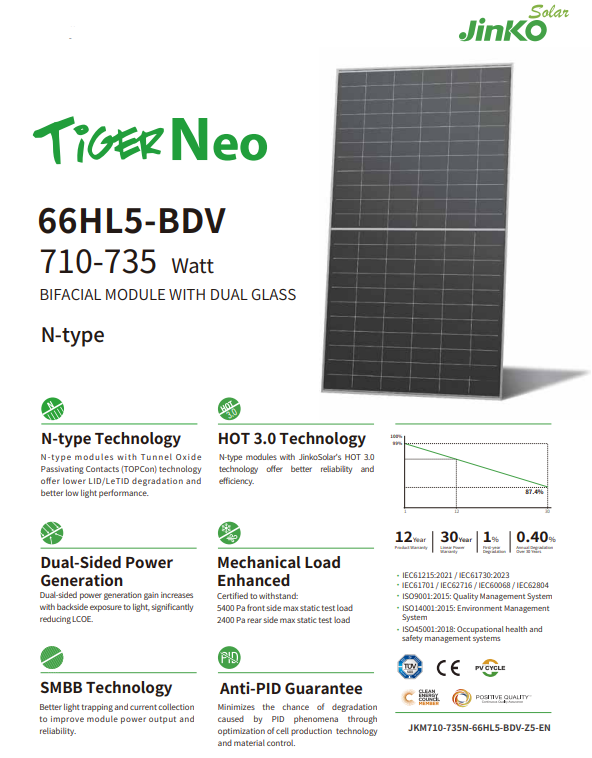

The JKM710-735N-66HL5-BDV is a new generation of bifacial solar modules in the Tiger Neo series. It utilizes N-type monocrystalline silicon cells and advanced HOT 3.0 technology, offering power outputs from 710W to 735W with a maximum conversion efficiency of 23.66%. This module is renowned for its high power, high efficiency, and excellent bifacial power generation capabilities. Its core advantage lies in its N-type TOPCon cell structure—a combination of a tunneling oxide layer and a doped polycrystalline silicon layer—significantly reducing carrier recombination losses and improving open-circuit voltage and conversion efficiency, offering significant advantages over traditional PERC cells. The module supports back-side reflected light generation, further increasing the overall power output per unit area.
It measures 2384×1303×33mm and weighs approximately 37.5kg. It employs a half-cell, bifacial, double-glass design, with 2.0mm coated tempered glass on both the front and back sides. Combined with an IP68-rated junction box and an anodized aluminum alloy frame, it boasts excellent PID resistance and weather resistance. This module boasts a power temperature coefficient of -0.29%/°C, maintaining high power generation efficiency even in high-temperature environments. It offers a 12-year product warranty, with a first-year power degradation guarantee of no more than 1% and a 30-year linear power output guarantee of no less than 87.4%.

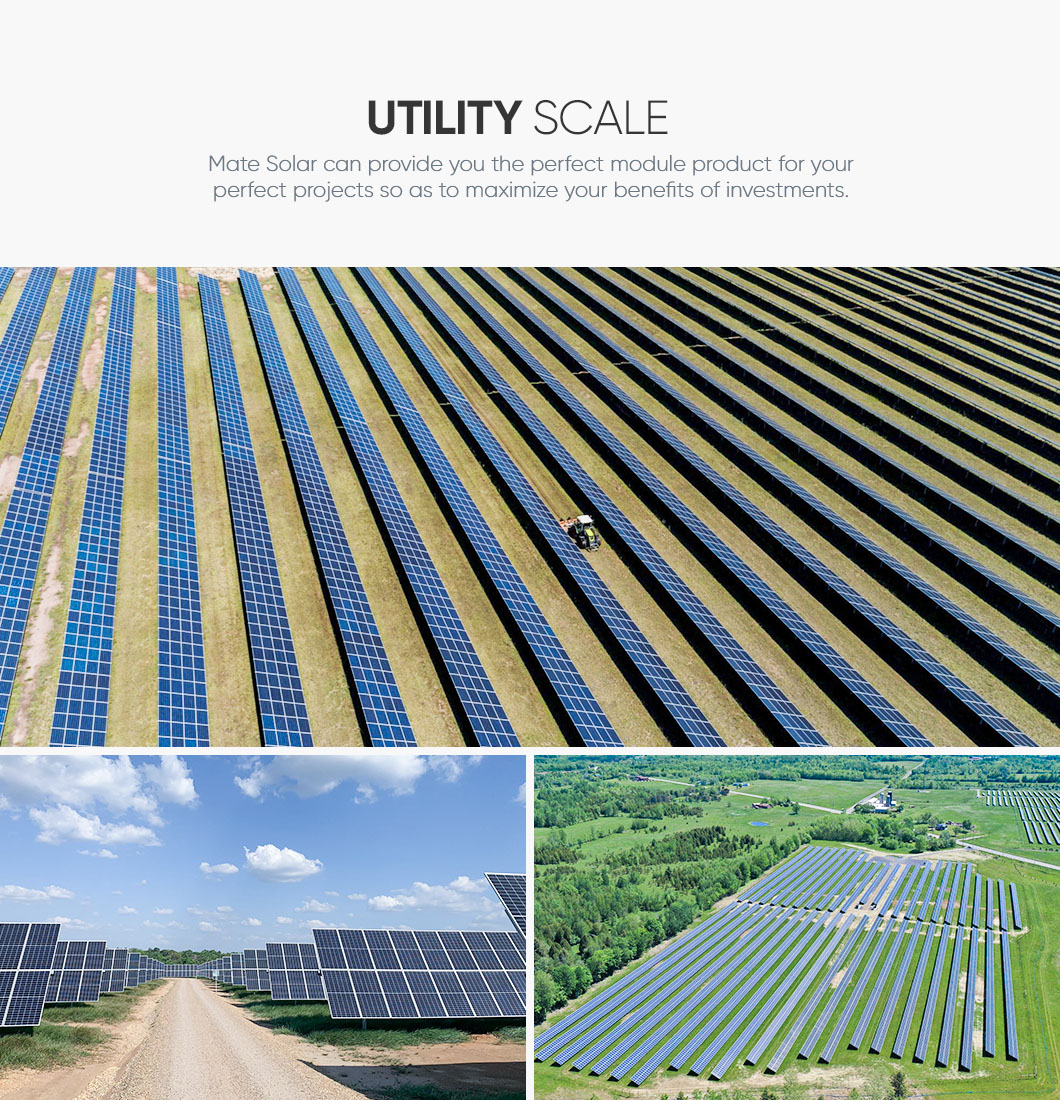

This module is suitable for various scenarios including rooftop distributed photovoltaics, commercial and industrial power plants, and large-scale ground-mounted power plants. It has already been deployed in actual projects such as the 1100kW rooftop photovoltaic project in Shanxi, demonstrating stable and reliable power generation performance in real-world environments.

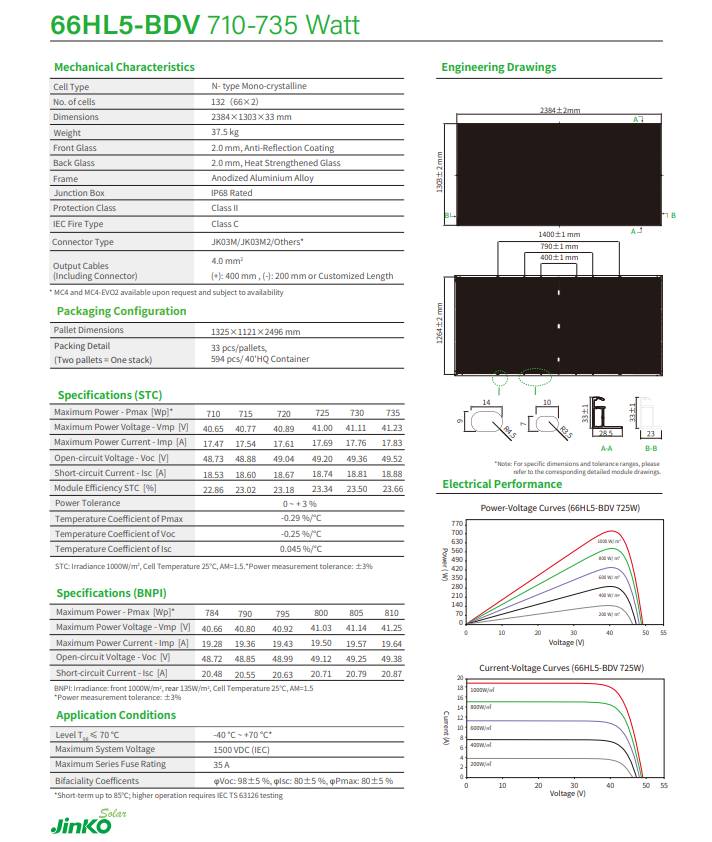

| TIGER Neo JKM710-735N-66HL5-BDV Specifications (STC) | ||||||
|---|---|---|---|---|---|---|
| Maximum Power-Pmax [Wp] | 710 | 715 | 720 | 725 | 730 | 735 |
| Maximum Power Voltage-Vmp [V] | 40.65 | 40.77 | 40.89 | 41.00 | 41.11 | 41.23 |
| Maximum Power Current-Imp [A] | 17.47 | 17.54 | 17.61 | 17.69 | 17.76 | 17.83 |
| Open-circuit Voltage-Voc [V] | 48.73 | 48.88 | 49.04 | 49.20 | 49.36 | 49.52 |
| Short-circuit Current-Isc [A] | 18.53 | 18.60 | 18.67 | 18.74 | 18.81 | 18.88 |
| Module Efficiency STC [%] | 22.86 | 23.02 | 23.18 | 23.34 | 23.50 | 23.66 |
| Power Tolerance | 0~+3% | |||||
| Temperature Coefficients of Pmax | -0.29 %/°C | |||||
| Temperature Coefficients of Voc | -0.25 %/°C | |||||
| Temperature Coefficients of Isc | 0.045%/°C | |||||
| STC: Irradiance 1000W/m², Cell Temperature 25°C, AM = 1.5 | ||||||
This module covers a power range from 710W to 735W, specifically including six levels: 710W, 715W, 720W, 725W, 730W, and 735W. Based on N-type TOPCon technology, it features higher output and lower degradation.
The module's conversion efficiency reaches up to 23.3% (based on 735W). It uses 66 half-cell cells and an SMBB design, effectively reducing series resistance and shading losses, and increasing power generation density.
The dimensions are 2384×1303×35mm (L×W×D), and the weight is approximately 31.5kg. It is suitable for large-scale industrial and commercial power plants and ground-mounted power stations. Attention should be paid to installation load-bearing capacity and handling requirements.
Yes, the BDV suffix represents a bifacial dual-glass version, with a back-side gain of up to 30%, which can increase total power generation and is suitable for high-reflectivity scenarios.
It offers a 15-year product warranty and a 30-year linear power warranty. Degradation is ≤1% in the first year, 0.4%/year in the second year, and the output at the end of 30 years is no less than 87.4% of the original power.
The temperature coefficient is as low as -0.29%/°C, resulting in less power loss at high temperatures; excellent response under low-light conditions (such as cloudy days, early mornings and evenings) thanks to the high internal resistance characteristics of the N-type cells.
