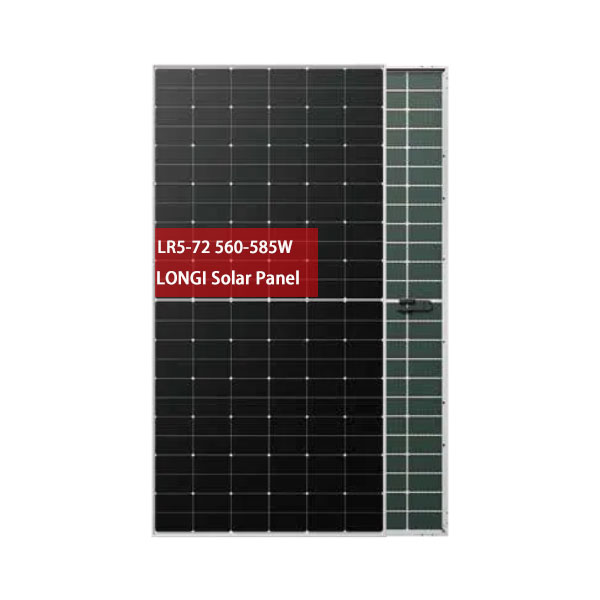

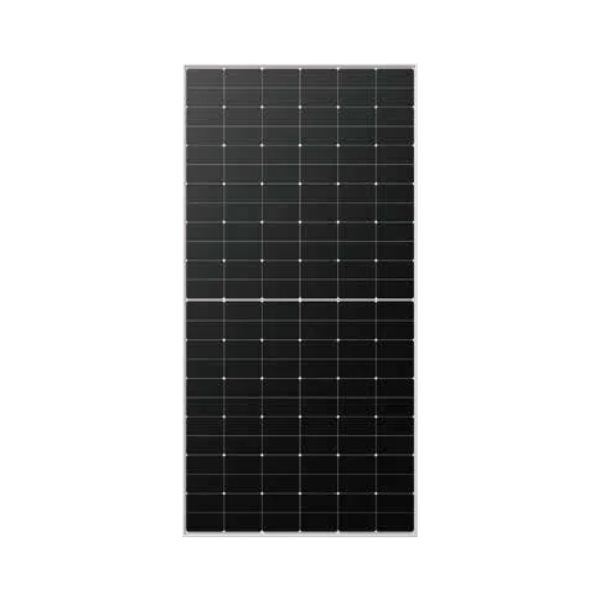

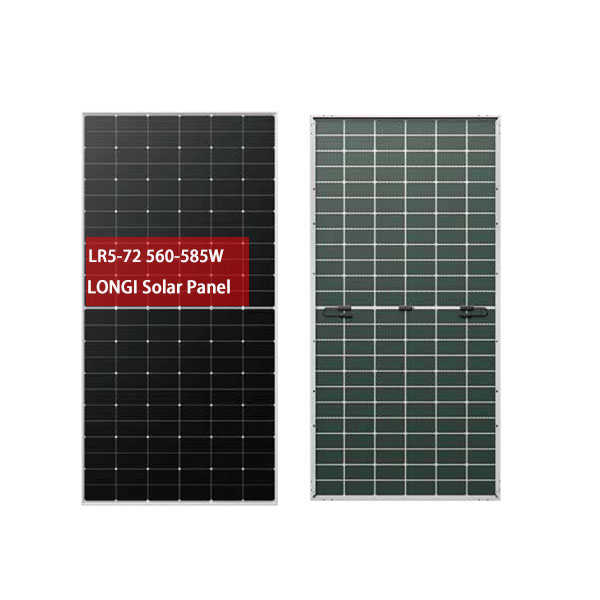

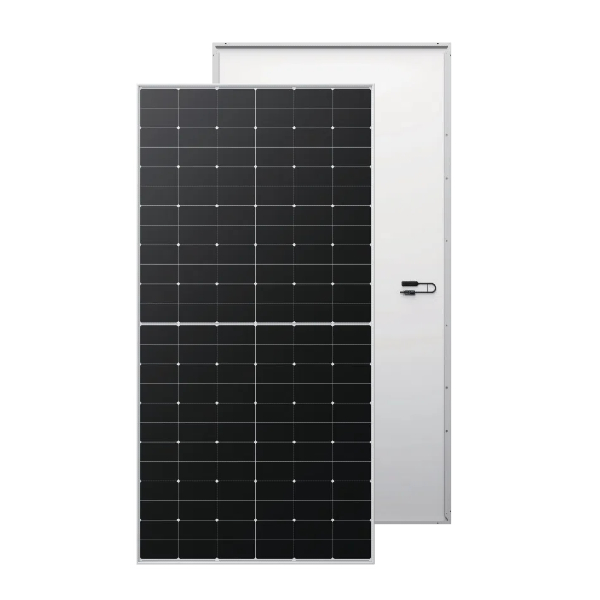

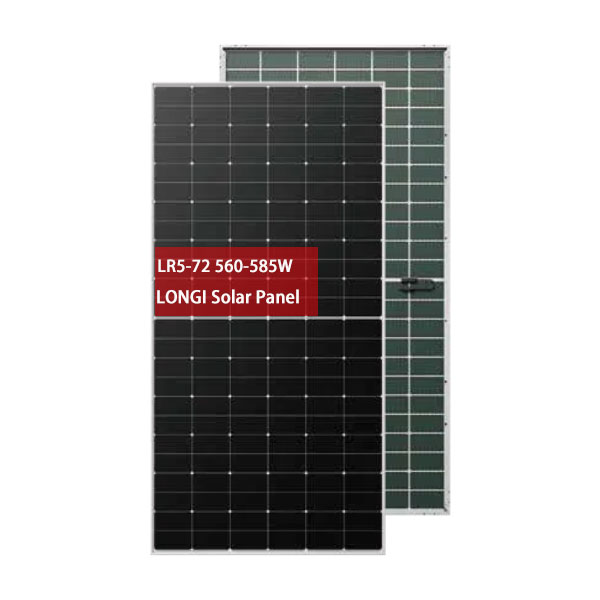

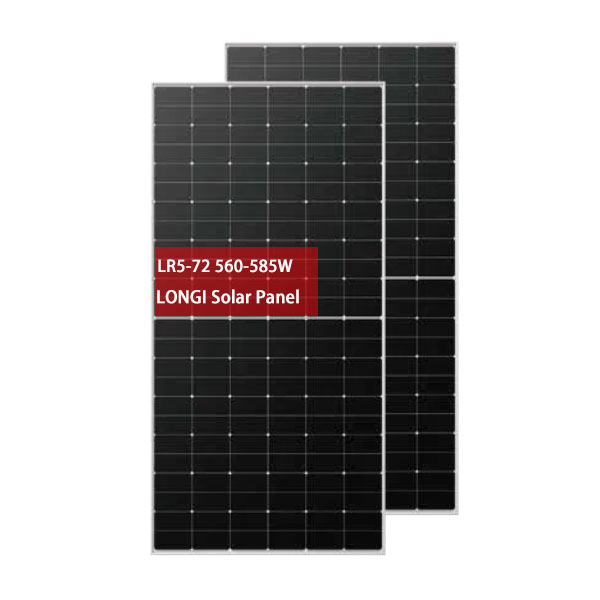

Longi Solar Transparent Organic Hi-MOX6LR5 72HTD 560-585W Bifacial Mono PERC High Power Module 22.6% Efficiency Solar Panel

Product Description

📋Product Description

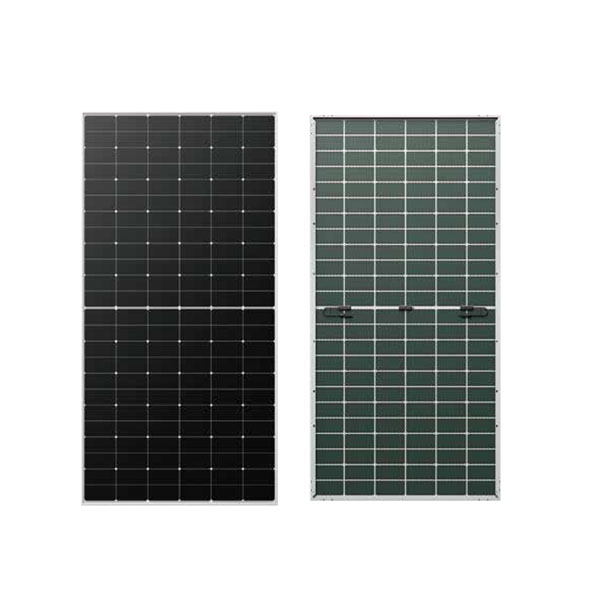

Product
Product
Product
⚙️Specification
Spec
Spec
ItemValue
Product NameLongi Solar Hi-MOX6 LR5-72HTD 565-585W
Cell Orientation144(6*24)
Junction BoxIP68
Output Cable4mm2, +400, -200mm/±1400mm length can be customized

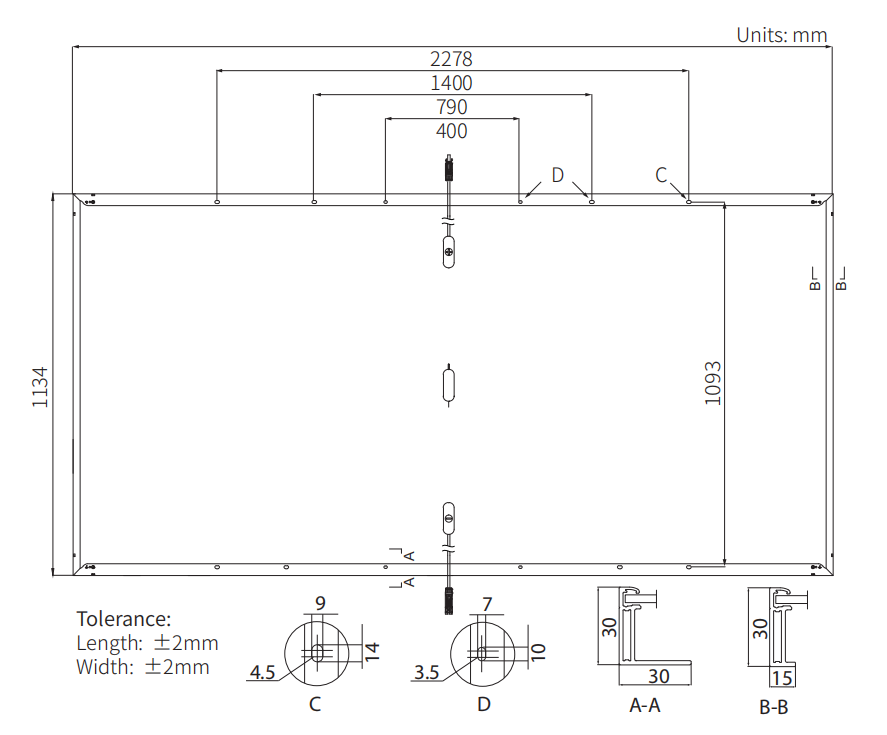

Panel Dimensions2278*1134*30mm
Weight27.2kg
FrameAnodized aluminum alloy frame
GlassSingle glass, 3.2mm coated tempered glass
Packaging36pcs per pallet / 180pcs per 20’GP / 720pcs per 40’HC
Electrical CharacteristicsSTC: AM1.5 1000W/m2 25℃ / NOCT: AM1.5 800W/m2 20℃ 1m/s
Module TypeLR5-72HTD-560MLR5-72HTD-565MLR5-72HTD-570MLR5-72HTD-575MLR5-72HTD-580MLR5-72HTD-585M
Maximum Power (Pmax/W)560/418565/422570/426575/430580/433585/437
Open Circuit Voltage (Voc/V)51.76/48.6051.91/48.7452.06/48.8852.21/49.0252.36/49.1652.45/49.25
Short Circuit Current (Isc/A)14.01/11.3114.07/11.3614.14/11.4214.20/11.4714.27/11.5214.19/11.46
Voltage at Maximum Power (Vmp/V)43.61/39.7943.76/39.9343.91/40.0744.06/40.2044.21/40.3444.00/40.15
Current at Maximum Power (Imp/A)12.96/10.6113.03/10.6813.10/10.7313.17/10.7813.24/10.8413.30/10.89
Module Efficiency(%)21.721.922.122.322.522.6
Operating Parameters
Operational Temperature-40℃ ~ +85℃
Power Output Tolerance0 ~ 3%
Voc and Isc Tolerance±3%
Maximum System VoltageDC1500V (IEC/UL)
Maximum Series Fuse Rating30A
Nominal Operating Cell Temperature45±2℃
Protection ClassClass II
Fire RatingUL type 1 or 2 IEC Class C
Mechanical Loading
Front Side Maximum Static Loading5400Pa
Rear Side Maximum Static Loading2400Pa
Hailstone Test25mm Hailstone at the speed of 23m/s
Temperature Ratings (STC)
Temperature Coefficient of Isc+0.050%/℃
Temperature Coefficient of Voc-0.230%/℃
Temperature Coefficient of Pmax-0.280%/℃
Recommend Products
Recommend
Recommend
Recommend
Recommend
Recommend
Recommend
Recommend
Recommend
🏢Company Profile
Company
Company
Company
Company
Company
📦Product packaging
Packaging
Packaging
FAQ
Q1: What are photovoltaic panels?
Photovoltaic (PV) panels are devices that convert light, especially sunlight, into electricity using photovoltaic cells. They are key components in solar energy systems and are widely used for generating renewable and sustainable power.
Q2: How do photovoltaic panels work?
PV panels work by allowing photons from sunlight to knock electrons free from atoms in the panel's silicon-based cells. This creates a flow of electricity that can be used to power homes, businesses, or stored in batteries for later use.
Q3: What are the benefits of using photovoltaic panels?
PV panels offer numerous benefits, including reducing reliance on fossil fuels, lowering energy costs, and decreasing greenhouse gas emissions. They also require minimal maintenance and have a long lifespan.
Q4: How do I choose the right photovoltaic panel for my needs?
Choosing the right PV panel depends on several factors, including your energy needs, budget, space availability, and climate. It's important to consult with a professional to assess your specific situation and recommend the best panel type and size for your needs.
Q5: How much energy can photovoltaic panels produce?
The amount of energy a PV panel can produce depends on several factors, including its size, efficiency, and the amount of sunlight it receives. In general, a typical residential PV system can produce enough energy to offset a significant portion of a household's electricity use.
Q6: Can photovoltaic panels be used in cloudy or rainy weather?
Yes, PV panels can still produce electricity on cloudy or rainy days, although they will produce less energy than on sunny days. The panels can still capture diffuse sunlight and some light can pass through clouds and be converted into electricity.
