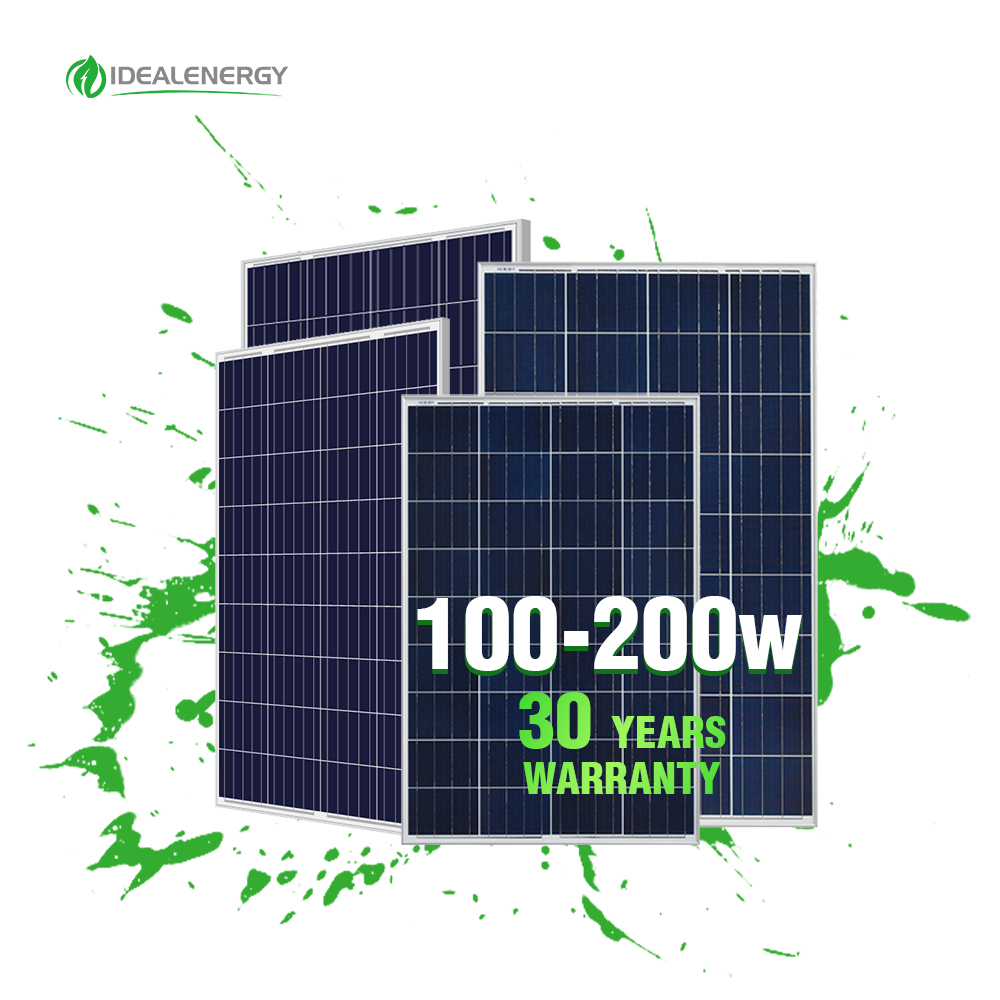

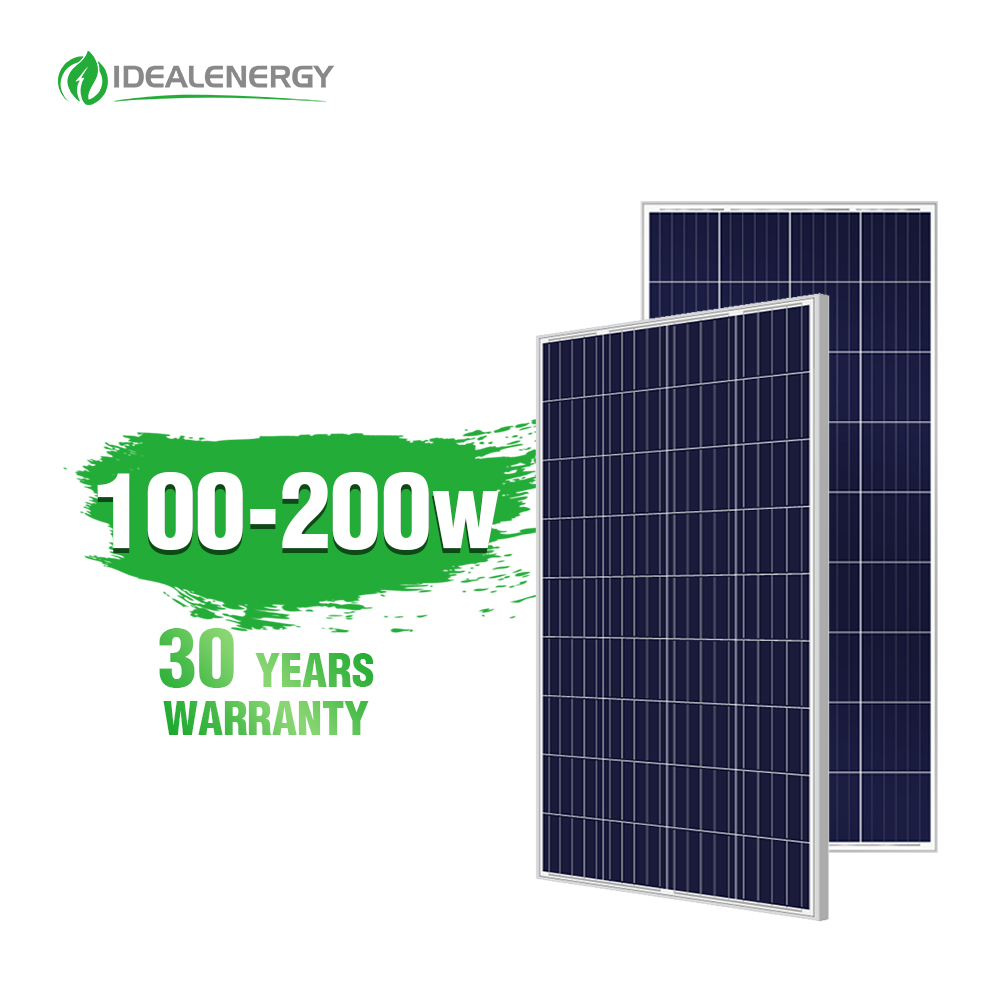

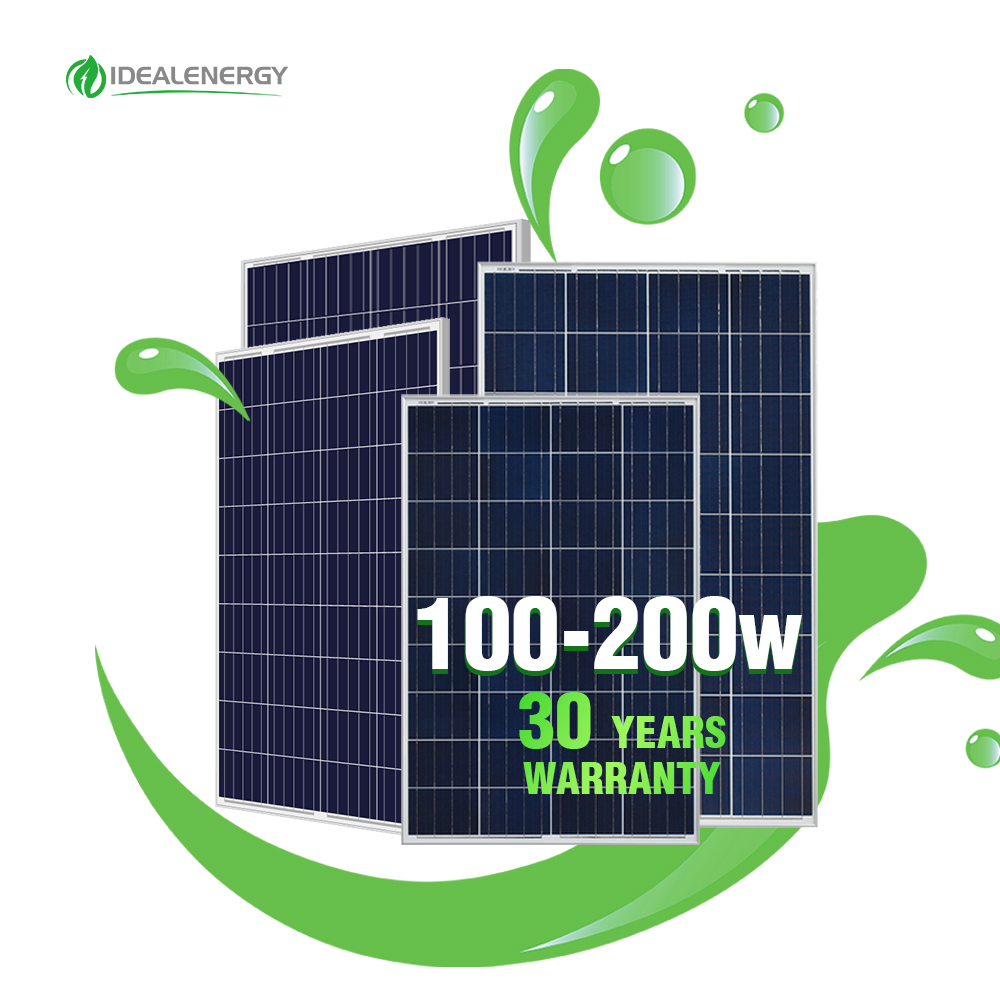

| Module Type | INE-100-36P | INE-110-36P | INE-120-36P | INE-130-36P | INE-140-36P |
|---|---|---|---|---|---|
| Rated Maximum Power(Pmax)[W] | 100W | 110W | 120W | 130W | 140W |
| Open Circuit Voltage(Voc/V) | 22.6 | 22.8 | 22.8 | 23.4 | 22.9 |
| Maximum Power Voltage(Vmp/V) | 18.5 | 18.6 | 18.5 | 18.6 | 18.7 |
| Short Circuit Current(Isc) [A] | 5.87 | 6.39 | 6.97 | 7.43 | 8.13 |
| Maximum Power Current(Imp/A) | 5.4 | 5.91 | 6.49 | 6.99 | 7.48 |
| Module Dimension(mm) | 1000*665*30 | 1120*665*30 | 1270*674*35 | 1270*674*35 | 1270*674*35 |
| Weight | 7.5kg | 8.4kg | 9.5kg | 9.5kg | 9.5kg |
| Model | INE-150-36P | INE-160-36P | INE-170-36P | INE-180-36P | INE-200-36P |
|---|---|---|---|---|---|
| Rated Maximum Power(Pmax) [W] | 150W | 160W | 170W | 180W | 200W |
| Open Circuit Voltage(Voc/V) | 22.48 | 22.90 | 23.31 | 23.00 | 23.40 |
| Maximum Power Voltage(Vmp/V) | 17.49 | 18.32 | 19.15 | 18.10 | 18.50 |
| Short Circuit Current(Isc) [A] | 9.22 | 9.31 | 9.39 | 10.23 | 11.15 |
| Maximum Power Current(Imp/A) | 8.58 | 8.73 | 8.88 | 9.94 | 10.82 |
| Module Efficiency [%] | 15.12 | 16.13 | 17.14 | 18.20 | 20.17 |

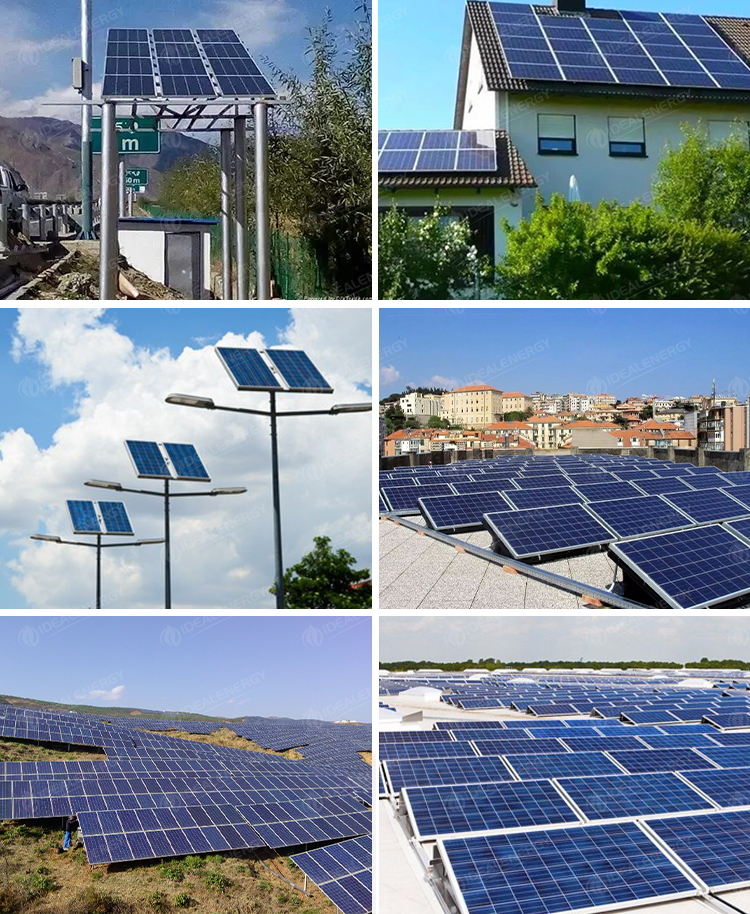

These solar panels are highly versatile and widely used in residential rooftop systems, commercial installations, off-grid power stations, solar street lighting, and agricultural irrigation systems.
Like all photovoltaic panels, efficiency is measured at standard test conditions (25°C). While power output may experience a minor drop under extremely high temperatures, our panels are engineered with a low temperature coefficient to maintain optimal performance.
Yes, our solar panels are designed to withstand harsh outdoor conditions. They feature highly transparent tempered glass and robust corrosion-resistant frames certified to endure heavy snow loads and strong wind pressures.
The primary difference is the electrical output capacity and module dimensions. Higher wattage panels produce more electricity per unit area, which helps optimize installations where roof or ground space is constrained.
The panels are packed in heavy-duty, reinforced export cartons with protective corner pieces and secure wrapping to prevent shifting and physical damage during shipping, ensuring safe delivery to your site.
