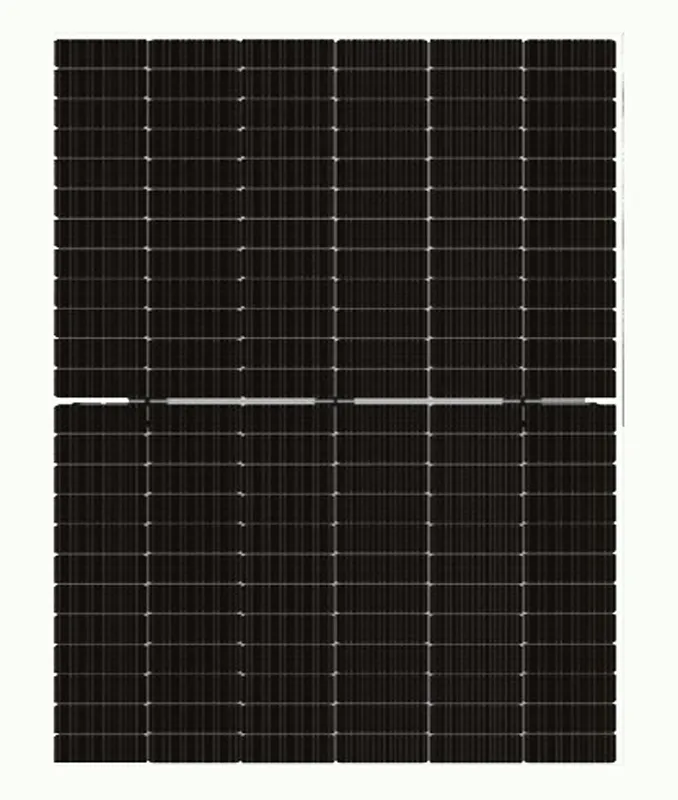

Solar Panels is a type of optoelectronic semiconductor wafer that directly generates electricity using sunlight, also known as a "solar chip" or "photovoltaic cell". As long as it meets certain illumination conditions, it can instantly output voltage and generate current with a circuit.
Solar Panels are devices that directly convert light energy into electrical energy through photoelectric or photochemical effects. Crystalline silicon solar cells that work with photovoltaic effects are the mainstream, while thin-film solar cells that work with photochemical effects are still in their infancy for implementing solar cells.
| Testing Condition | 695W / 531W | 700W / 534W | 705W / 540W | 710W / 543W | 715W / 547W | 720W / 551W |
|---|---|---|---|---|---|---|
| Peak Power Watts-PMAX(Wp) | STC: 695 NOCT: 531 |
STC: 700 NOCT: 534 |
STC: 705 NOCT: 540 |
STC: 710 NOCT: 543 |
STC: 715 NOCT: 547 |
STC: 720 NOCT: 551 |
| Power Tolerance-PMAX(W) | 0 ~ +5 | |||||
| Maximum Power Voltage-VMPP(V) | STC: 40.3 NOCT: 37.9 |
STC: 40.5 NOCT: 38.0 |
STC: 40.7 NOCT: 38.3 |
STC: 40.9 NOCT: 38.5 |
STC: 41.1 NOCT: 38.7 |
STC: 41.3 NOCT: 38.8 |
| Maximum Power Current-IMPP(A) | STC: 17.25 NOCT: 14.00 |
STC: 17.29 NOCT: 14.04 |
STC: 17.33 NOCT: 14.08 |
STC: 17.36 NOCT: 14.12 |
STC: 17.40 NOCT: 14.14 |
STC: 17.44 NOCT: 14.19 |
| Open Circuit Voltage-VOC(V) | STC: 48.3 NOCT: 45.9 |
STC: 48.6 NOCT: 46.1 |
STC: 48.8 NOCT: 46.3 |
STC: 49.0 NOCT: 46.5 |
STC: 49.2 NOCT: 46.7 |
STC: 49.4 NOCT: 46.9 |
| Short Circuit Current-ISC(A) | STC: 18.28 NOCT: 14.72 |
STC: 18.32 NOCT: 14.76 |
STC: 18.36 NOCT: 14.80 |
STC: 18.40 NOCT: 14.83 |
STC: 18.44 NOCT: 14.86 |
STC: 18.49 NOCT: 14.90 |
| Module Efficiency ηm(%) | 22.4% | 22.5% | 22.7% | 22.9% | 23.0% | 23.2% |
| Operating temperature range | -40℃ to 85℃ |
| NOCT (Nominal Operating Cell Temperature) | 43°C (±2°C) |
| Max.system voltage | 1500Voc |
| Max.series fuse rating | 35A |
| Nominal operating cell temperature | 45±2℃ |
