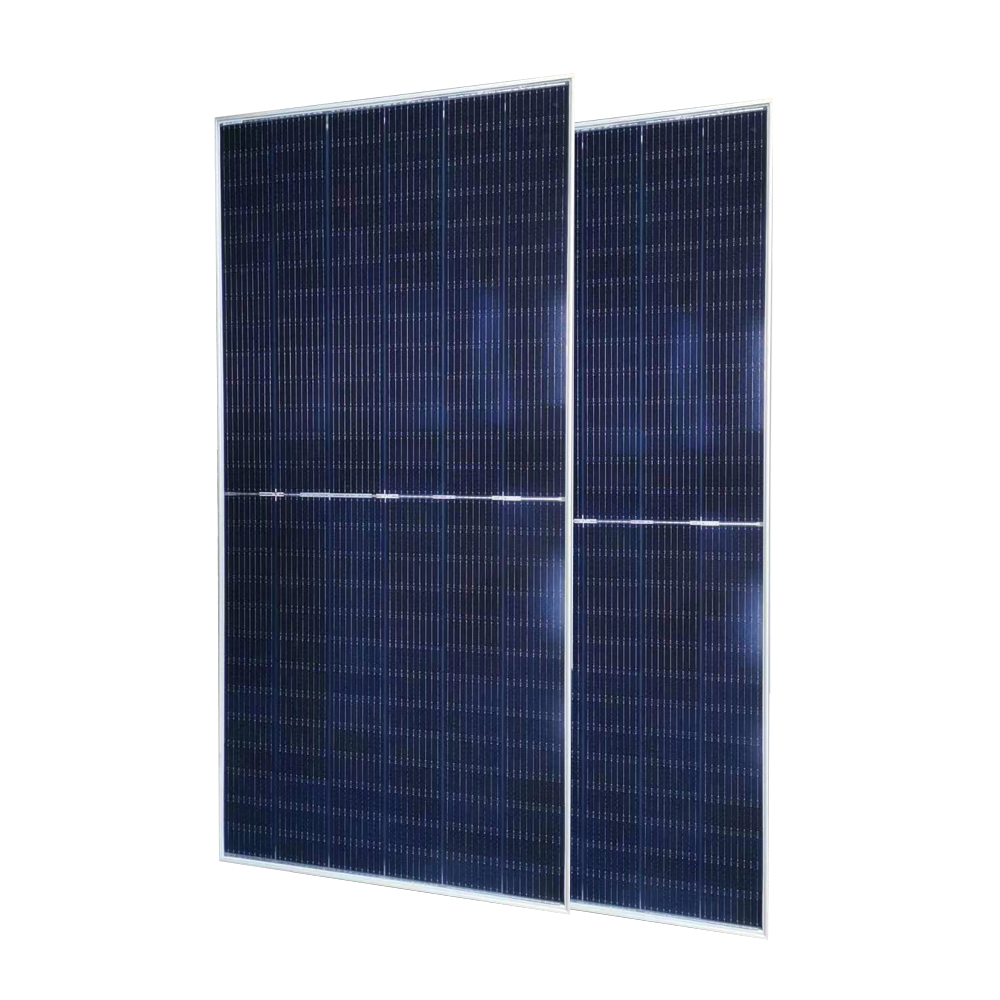

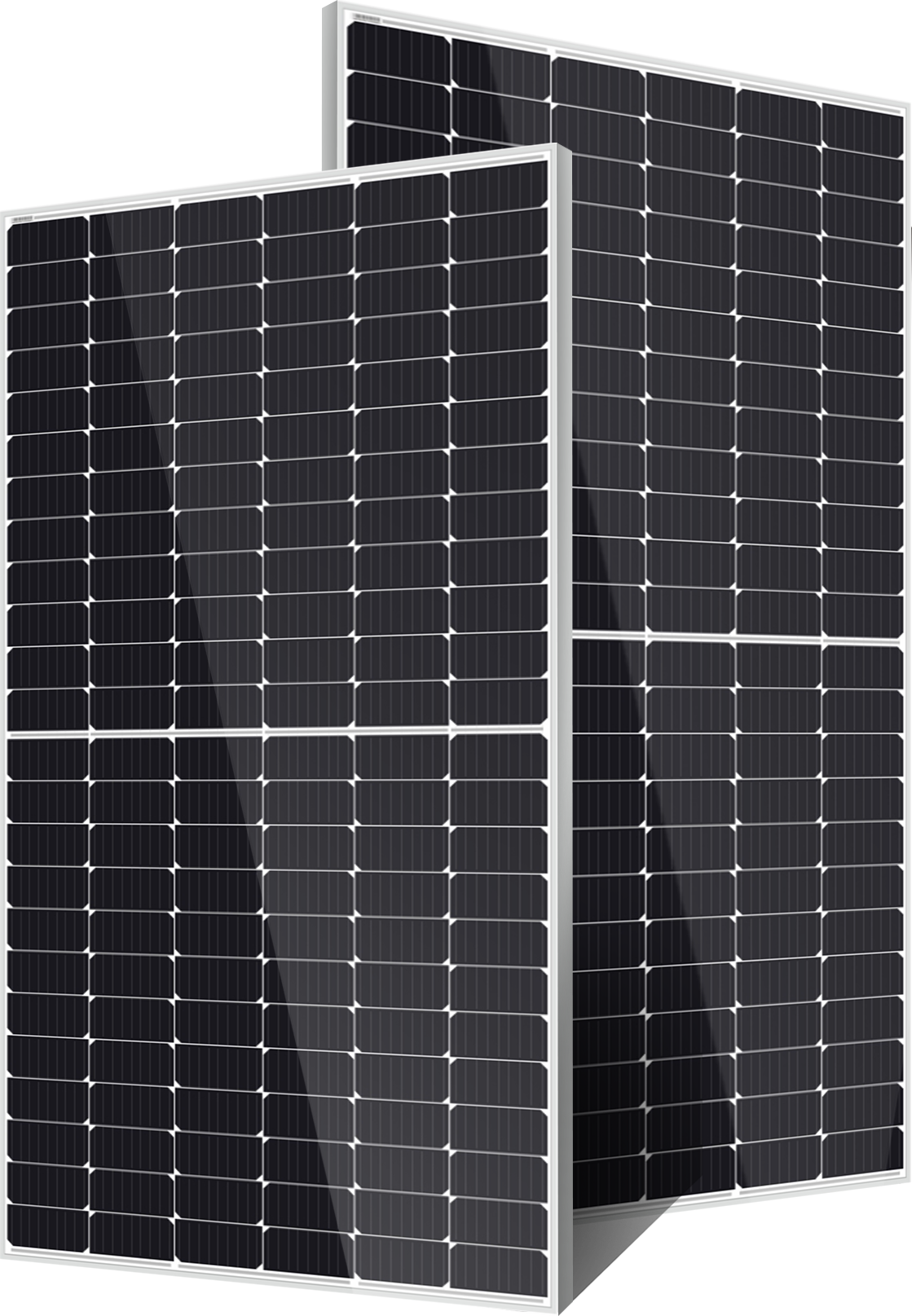

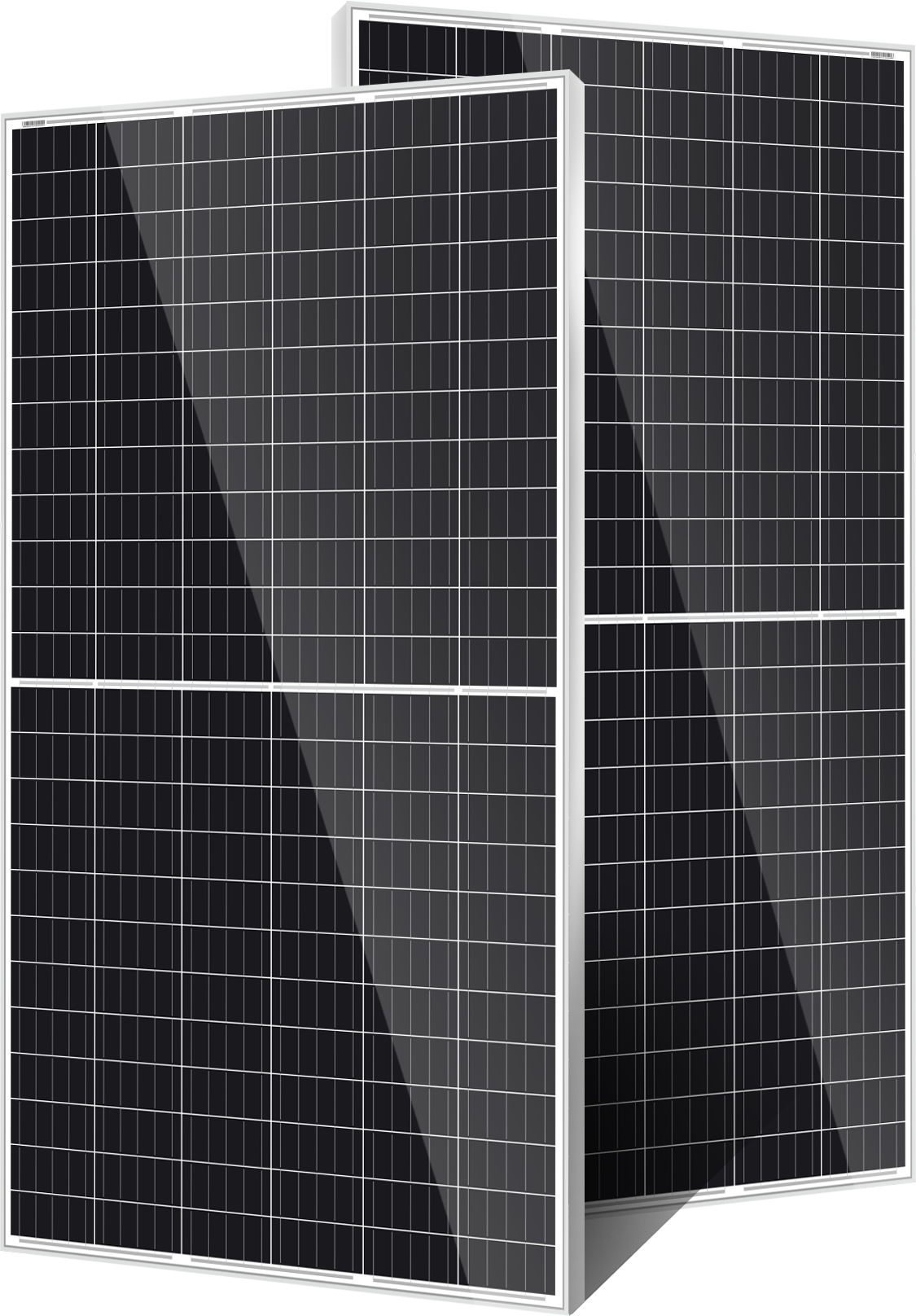

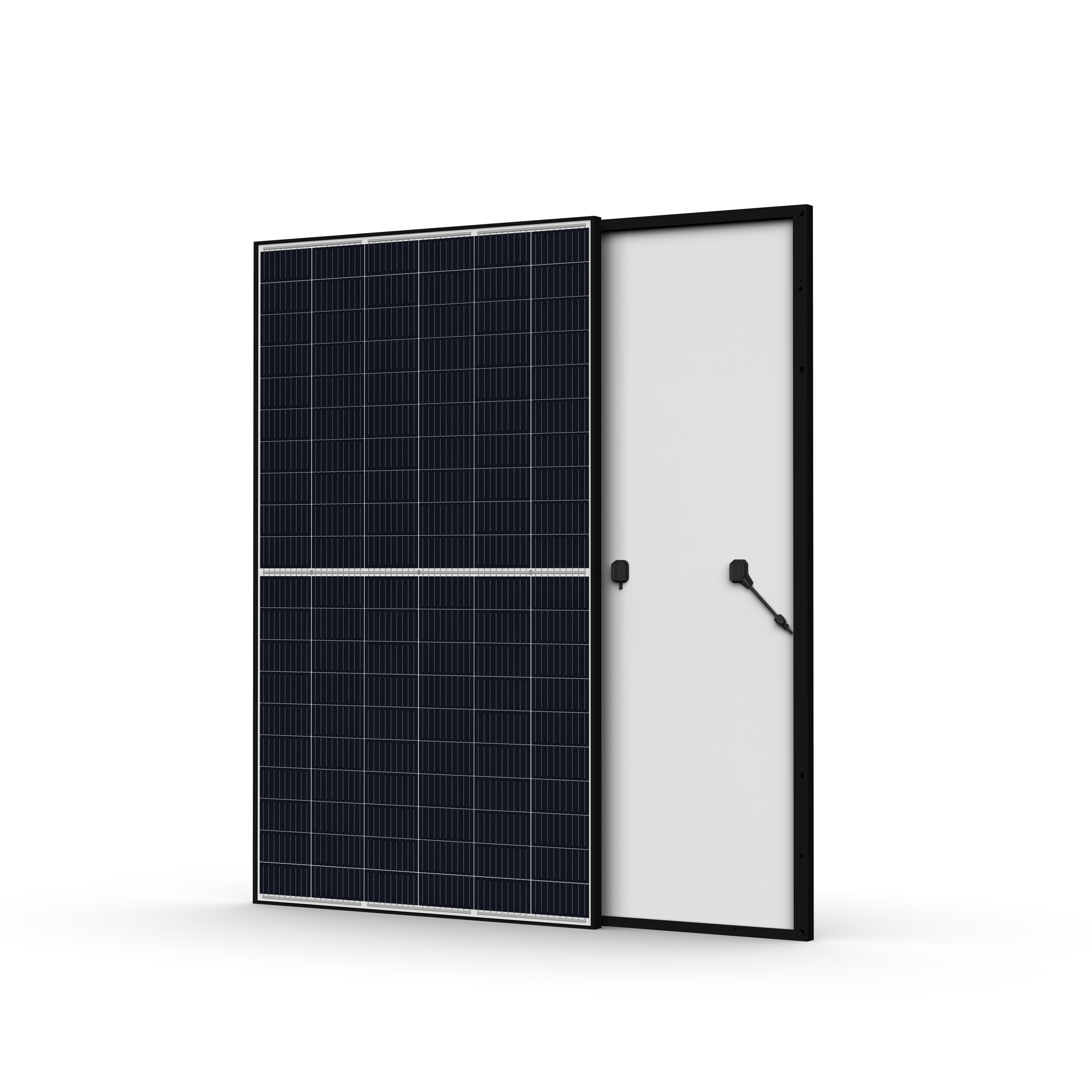

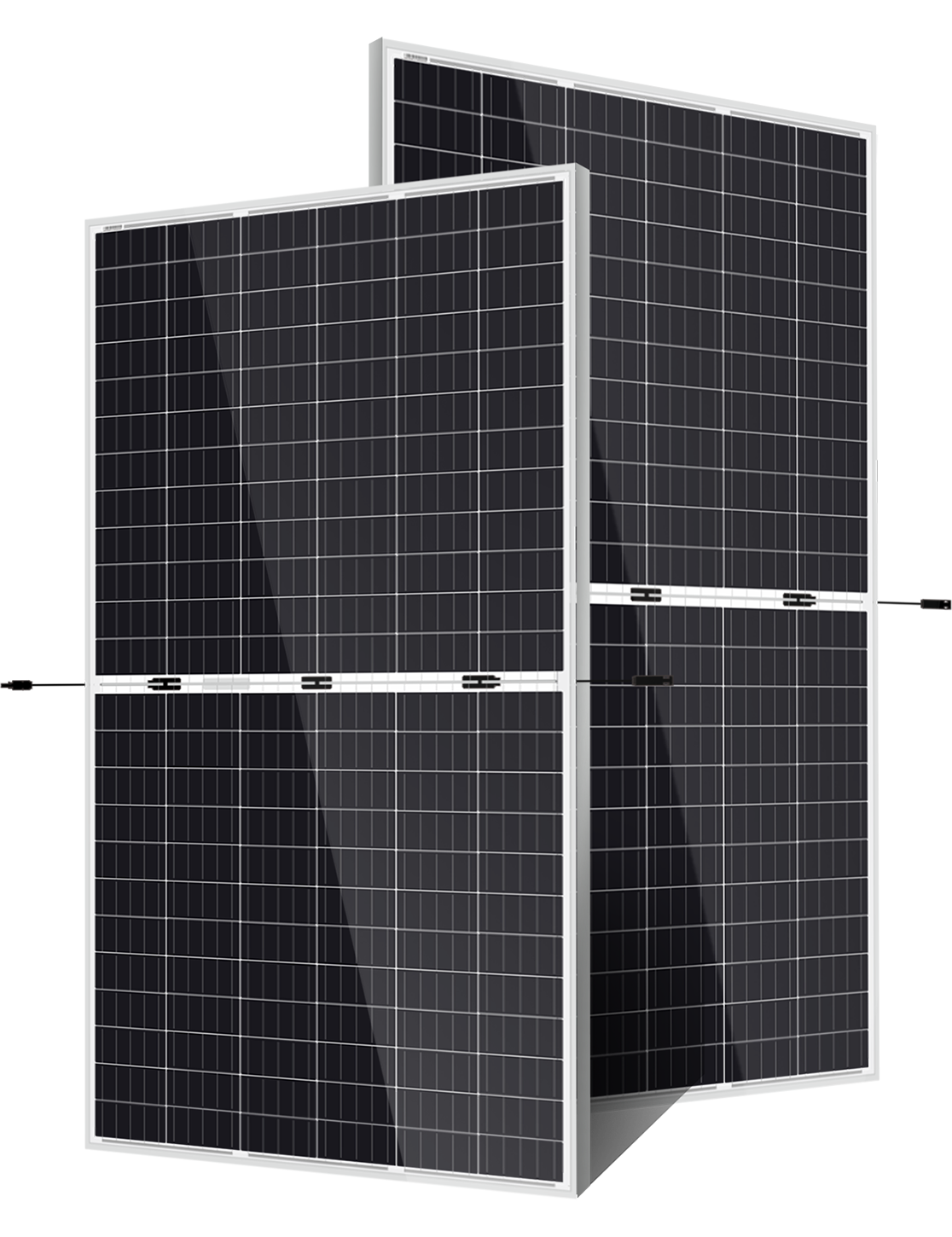

Photovoltaic Solar Panel Futuresolar Industrial Solar Panel 550W

Product Description

Photovoltaic Solar Panel Industrial Solar Panel 570Wp 575Wp 580Wp 585Wp 590Wp Solar Energy

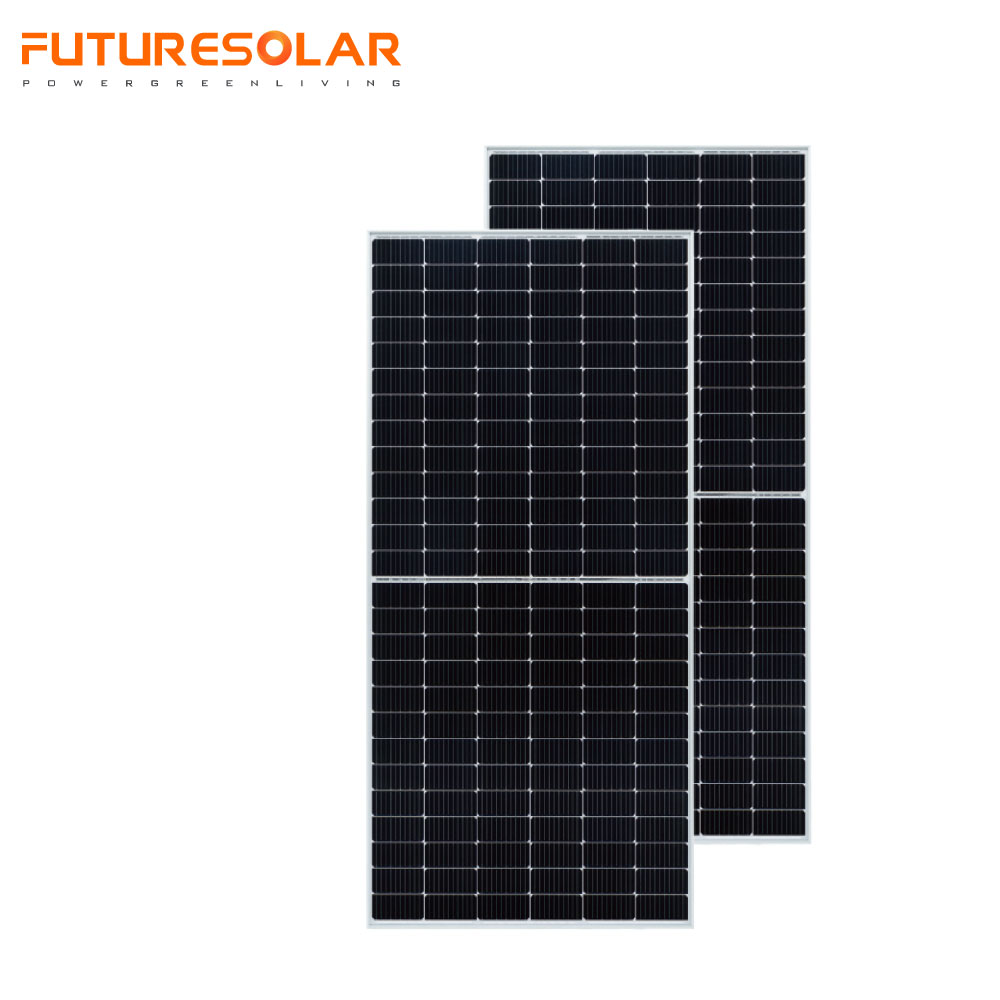

Industrial Solar Panel Specification
Product Parameters
Model FSM570M-72H FSM575M-72H FSM580M-72H FSM585M-72H FSM590M-72H
Nominal Power 570W 575W 580W 585W 590W
Maximum Power Voltage(Vmp) 44V 44.2V 44.4V 44.6V 44.8V
Short-circuit Current(Isc) 13.69A 13.75A 13.81A 13.87A 13.94A
Open-circuit Voltage(Voc) 52.9V 53.1V 53.3V 53.5V 53.7V
Maximum Power current(Imp) 12.96A 13.01A 13.07A 13.12A 13.17A
Module Efficiency(%) 20.3% 20.5% 20.7% 20.9% 21.0%
Power Tolerance 0~+5W
Maximum System Voltage 1000V / 1500V DC(IEC)
Operating Temperature -40 ℃ to 85 ℃
Detailed & Production

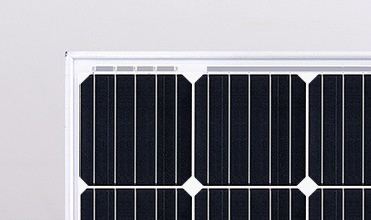

Glass Technical Details
Glass
  • Antireflective glass
  • Translucency of normal luminance is increased by 2%
  • Module efficiency is increased by 2%
  • Self-cleaning function
  • Service life is as long as 25 years (30 years optional)

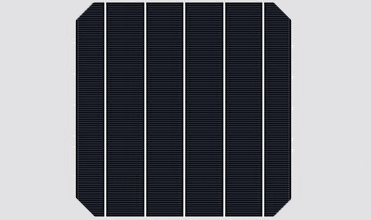

Solar Cell
  • High Efficiency PV Cells
  • Appearance Consistency
  • Color sorting ensure consistent appearance on each module
  • Anti-PID
Solar Cell Technology

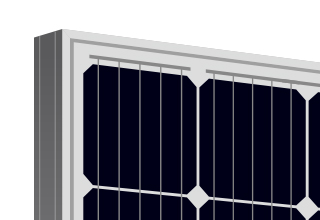

Anodized Aluminum Frame
Frame
  • Conventional frame
  • Silver or black frames are optional
  • Boost bearing capability and prolong service life
  • Serrated-clip design tensile strength
  • Seal-lip design glue injection

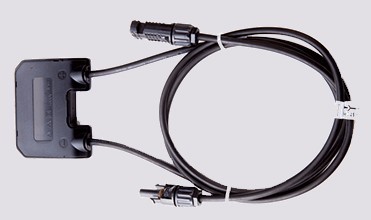

Junction Box
  • Conventional standalone edition and engineering custom edition
  • Quality diode ensures module running safety
  • IP67 protection level
  • Heat dissipation
  • Long service life
Waterproof Junction Box
Projects

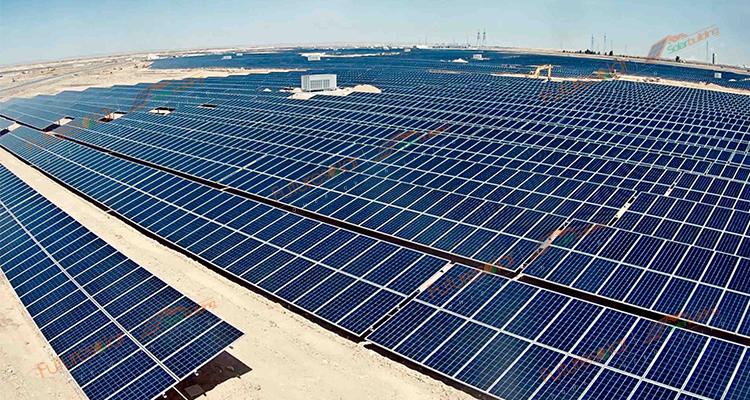

Project Overview

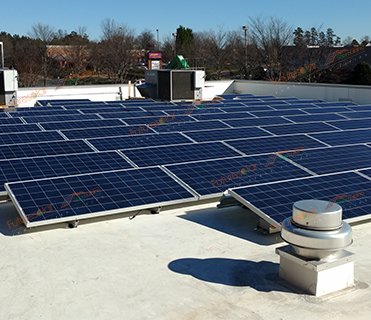

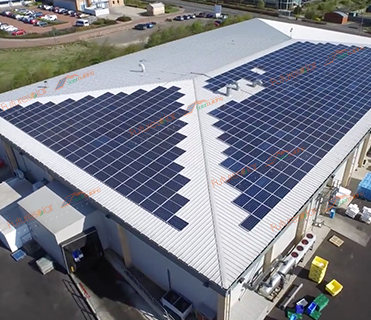

Solar Project Installation 1 Solar Project Installation 2

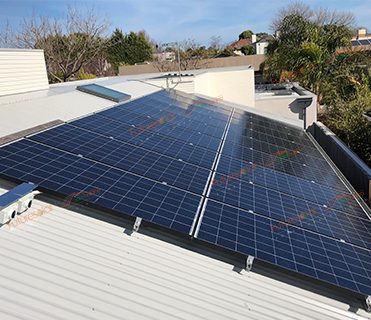

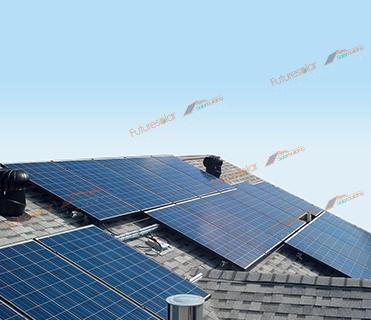

Solar Project Installation 3 Solar Project Installation 4
Production Facility Overview
Production Facility Area
Payment & Delivery
Payment Terms T/T EXW 30% T/T in advance, paid the balance before shipment
FOB 30% T/T in advance, paid the balance before shipment
CFR(C&F) 30% T/T in advance, paid the balance against copy of B/L (Not Suitable for Solar System Orders)
CIF
DDP
L/C L/C amount above 50,000 usd, we can accept L/C at sight (Not Suitable for Solar System Orders)
West Union Amount lower than 5000usd
Delivery Time 7~10 days after receiving payment for one container
Related Products

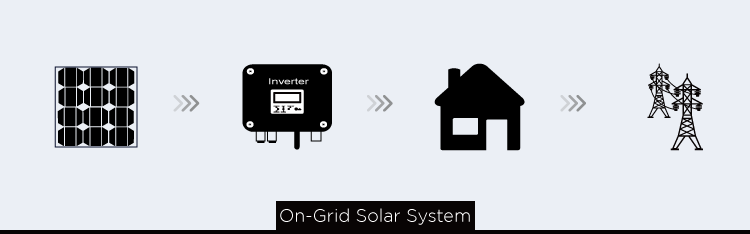

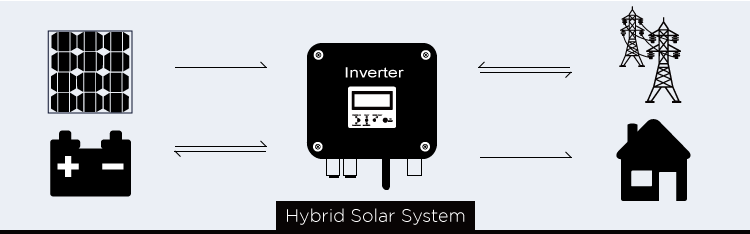

Related Panel Model 1 Related Panel Model 2 Related Panel Model 3
Frequently Asked Questions
What is the range of nominal power options available?
We offer industrial solar panels with nominal power outputs of 570W, 575W, 580W, 585W, and 590W to suit various energy requirement scenarios.
What are the benefits of the anti-reflective glass?
The anti-reflective glass increases translucency of normal luminance by 2%, enhances module efficiency by 2%, features a self-cleaning function, and has an expected service life of 25 to 30 years.
What type of junction box is integrated with the panels?
The panels feature an IP67 protection-level junction box available in conventional standalone or custom engineering editions. It includes high-quality diodes for running safety, excellent heat dissipation, and a long service life.
Are different frame colors and custom specs available?
Yes, conventional frames are available in optional silver or black. The frame uses a serrated-clip design for tensile strength and a seal-lip design for glue injection to boost bearing capability and service life.
What are your accepted payment terms?
We accept T/T (EXW, FOB, CFR, CIF, DDP), L/C at sight for order values above $50,000 USD (excluding solar system orders), and West Union for payment amounts below $5,000 USD.
What is the estimated delivery time for orders?
The estimated delivery time is typically 7 to 10 days after receiving the payment for a one-container order.
