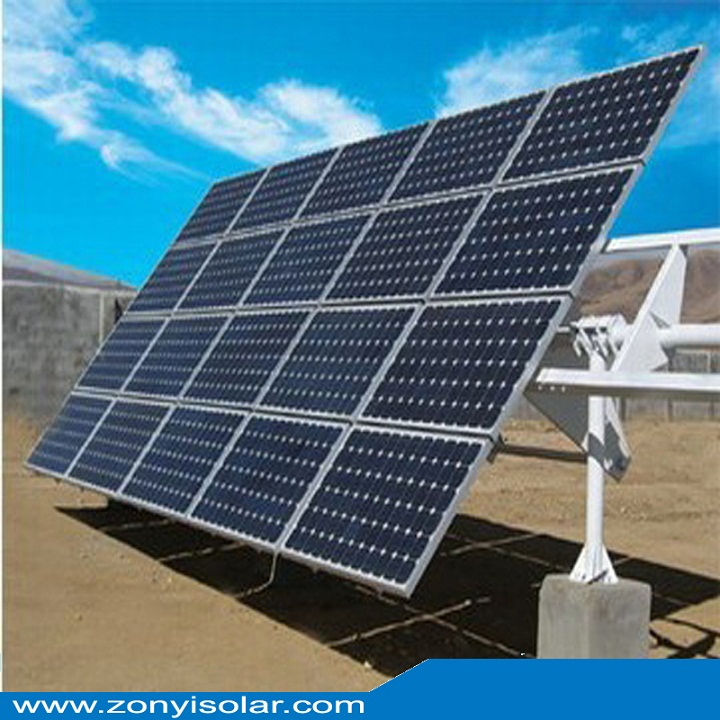

Solar panel refers to a panel designed to absorb the sun's rays as a source of energy for generating electricity or heating. Solar Photovoltaic panels constitute the solar array of a photovoltaic system that generates and supplies solar electricity in commercial and residential applications. A single solar module can produce only a limited amount of power; most installations contain multiple modules.
| Power(W) | Size(MM) | VM(V) | IPM(A) | VOC(V) | ISC(A) |
|---|---|---|---|---|---|
| ZY-P10W | 350*240*17MM | 17.8V | 0.56A | 22.3V | 0.61A |
| ZY-P15W | 390*360*20MM | 17.8V | 0.84A | 22.3V | 0.92A |
| ZY-P20W | 420*350*17MM | 17.8V | 1.12A | 22.3V | 1.22A |
| ZY-P30W | 640*350*25MM | 17.8V | 1.68A | 22.3V | 1.82A |
| ZY-P40W | 670*420*25MM | 17.8V | 2.25A | 22.3V | 2.42A |
| ZY-P50W | 700*540*30MM | 17.8V | 2.81A | 22.3V | 3.03A |
| ZY-P60W | 830*540*30MM | 17.8V | 3.37A | 22.3V | 3.64A |
| ZY-P80W | 780*670*30MM | 17.8V | 4.50A | 22.3V | 4.90A |
| ZY-P100W | 1200*540*30MM | 17.8V | 5.62A | 22.3V | 6.12A |
| ZY-P150W | 1480*680*35MM | 17.8V | 8.42A | 22.3V | 9.18A |
| ZY-P200W | 1330*992*35MM | 36.1V | 5.54A | 44.6V | 5.98A |
| ZY-P270W | 1640*992*40MM | 30.2V | 8.94A | 36.9V | 8.94A |
| ZY-P330W | 1950*992*40MM | 37.59V | 8.91A | 44.6V | 8.98A |

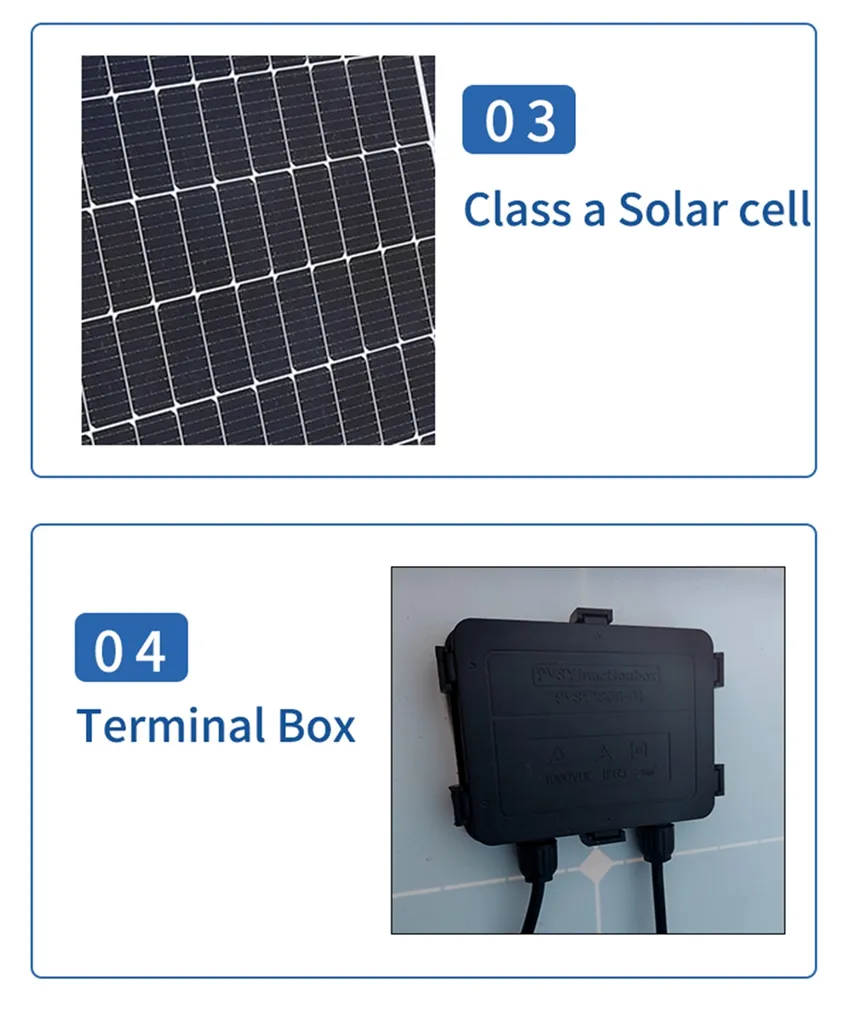

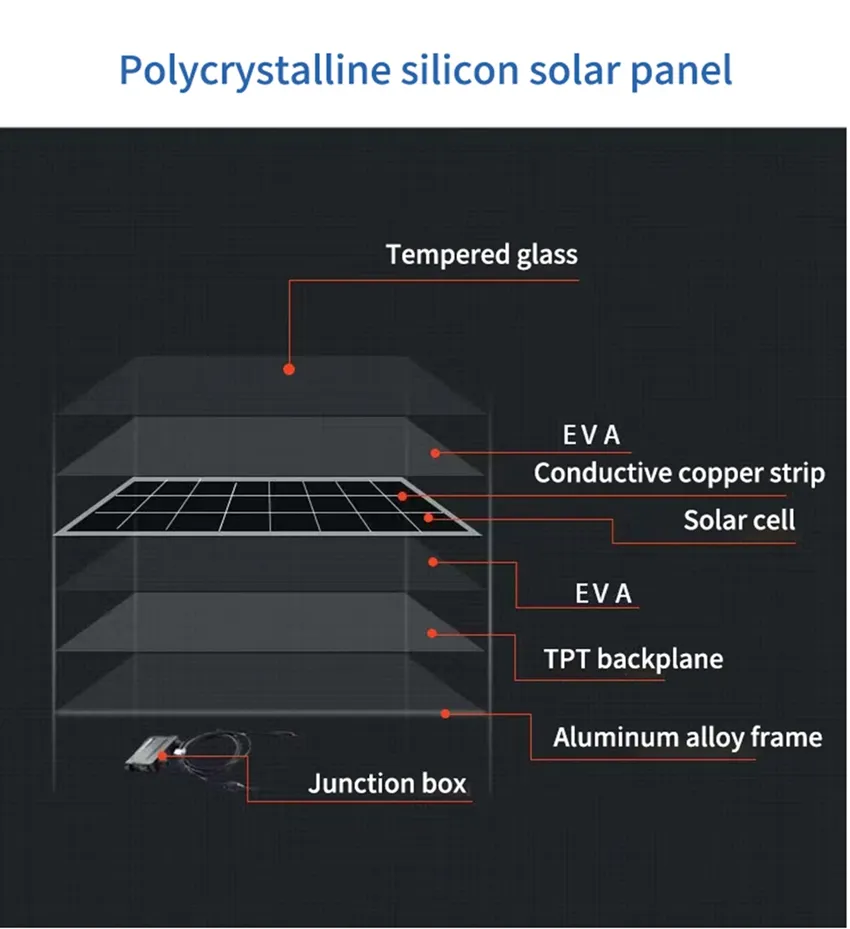

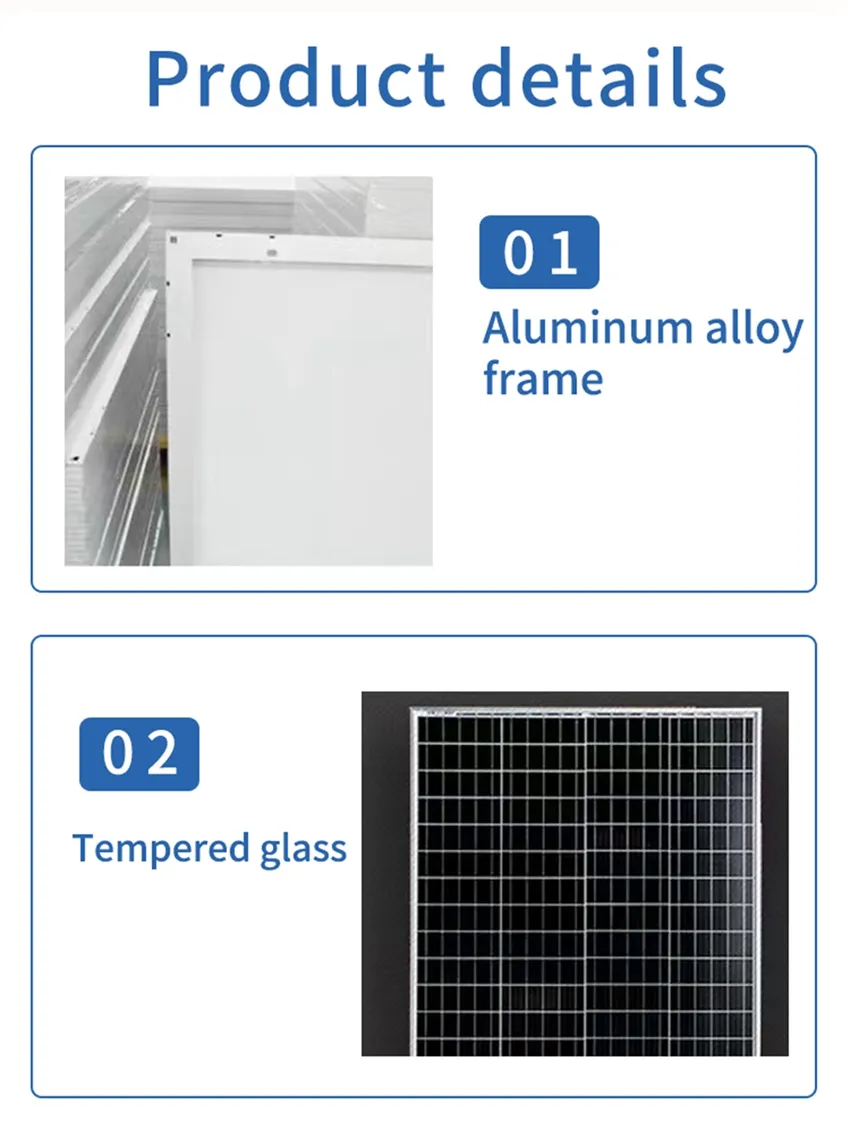

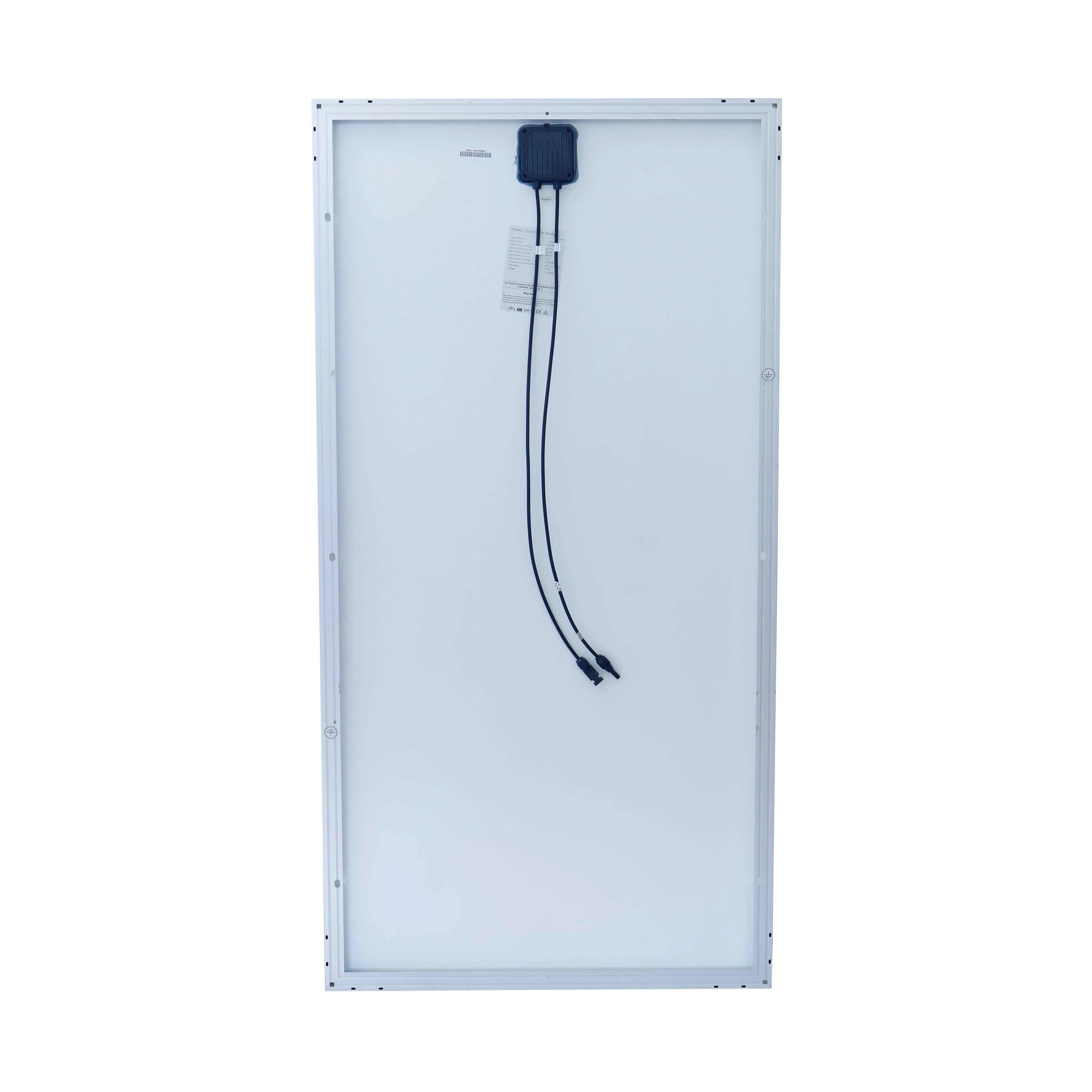

1. All solar module produces without any aberration or bubble. 2. Back sheet is TPT&PET, and the thickness is 0.3mm. 3. The thickness of EVA is 0.4mm, better than other company use 0.3mm or 0.35mm. We use new EVA material. 4. New aluminum with 1.00mm thickness, high hardness, good impact resistance. 5. Tempered glass with 3.2mm has advantages of high strength, impact resistance, good light transmittance. 6. The solar cells made in Taiwan, high efficiency, low attenuation. 7. The junction box has good waterproof, good anti-aging, PV wire. 8. Package by 7 layers thick carton, moisture proof and anti-cracking.

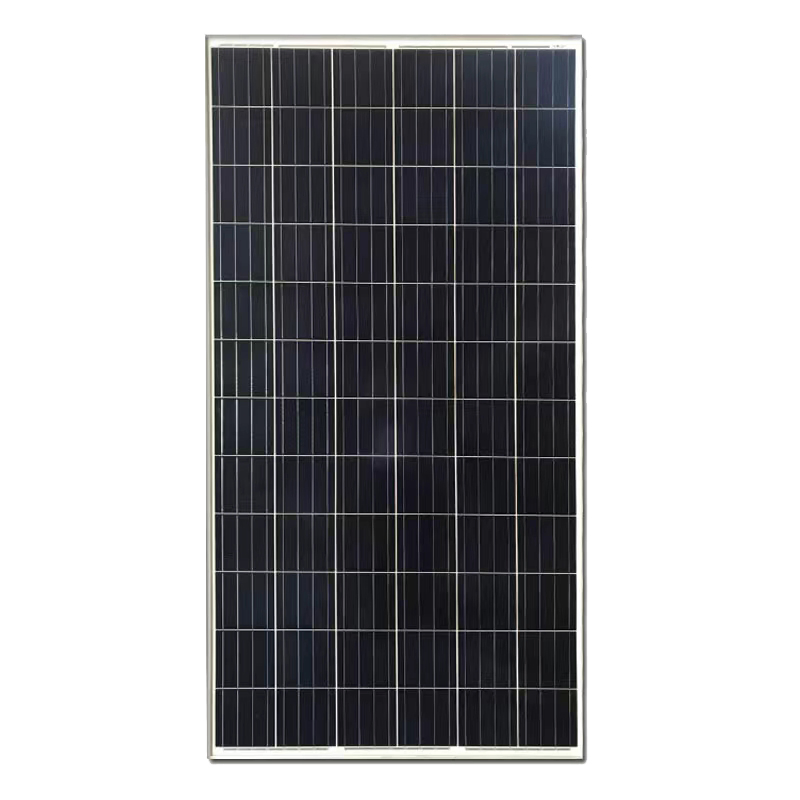

A polycrystalline solar module is made from a block of silicon that has multiple crystals. These panels are square in shape, and may have a surface that looks some what like a mosaic. This mix of different crystals makes the polycrystalline module a good performing type of cell. Polycrystalline solar panels historically have been a popular choice.
