50w 100w 150w 200w 250w Solar Module 330w 340w 350w Solar Panel Polycrystalline

1 / 5

50w 100w 150w 200w 250w Solar Module 330w 340w 350w Solar Panel Polycrystalline

Send Inquiry

Product Description

Module	FSM335P-72	FSM340P-72	FSM345P-72	FSM350P-72
Rated Maximum Power at STC	335	340	345	350
Open Circuit Voltage(Voc/V)	46.3	46.5	46.7	46.9
Maximum PowerVoltage(Vmp/V)	37.9	38.2	38.4	38.5
Short Circuit Current(Isc/A)	8.84	8.90	9.00	9.09
Maximum Power Current(Imp/A)	9.36	9.45	9.50	9.60
Module Efficiency(%)	17.3	17.5	17.8	18.0
Power Tolerance	-0~+3%
Standard Test Condition(STC)	Irradiance 1000W/m2, Cell Temperature 25℃, Air Mass 1.5

Detailed & Production

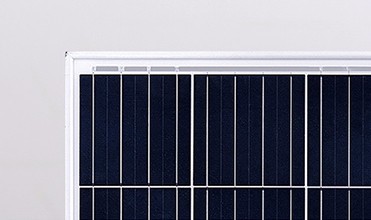

Glass

Antireflective glass
Translucency of normal luminance is increased by 2%
Module efficiency is increased by 2%
Self-cleaning function
Service life is as long as 25 years (30 years optional)

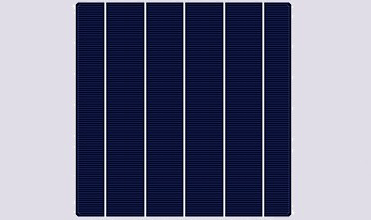

Solar Cell

High Efficiency PV Cells
Appearance Consistency
Color sorting ensure consistent appearance on each module
Anti-PID

Frame

Conventional frame
Silver or black frames are optional
Boost bearing capability and prolong service life
Serrated-clip design tensile strength
Seal-lip design glue injection

Junction box

Conventional standalone edition and engineering custom edition
Quality diode ensures module running safety
IP67 protection level
Heat dissipation
Long service life

Projects

Related Product

Frequently Asked Questions

What are the power options available for these solar modules?

The solar modules are available in four maximum power ratings: 335W, 340W, 345W, and 350W under Standard Test Conditions (STC).

How does the antireflective glass improve module performance?

The antireflective glass increases the translucency of normal luminance by 2%, which directly translates to a 2% boost in overall solar module efficiency. It also features self-cleaning properties.

What is the expected service life of these solar panels?

The high-quality glass component is designed for a service life of up to 25 years, with an optional upgrade path extending up to 30 years.

Are these solar cells protected against degradation?

Yes, our high-efficiency PV cells come standard with Anti-PID (Potential Induced Degradation) protection to ensure stable performance over their entire lifespan.

What features does the junction box provide?

The junction box features an IP67 protection rating for exceptional weatherproofing. It includes quality diodes to ensure module running safety, optimal heat dissipation, and a long service life.

What frame designs and colors are available?

You can choose between silver and black frames. The structural design features a serrated-clip layout to improve tensile strength, and a seal-lip setup for secure glue injection to boost overall bearing capability.
