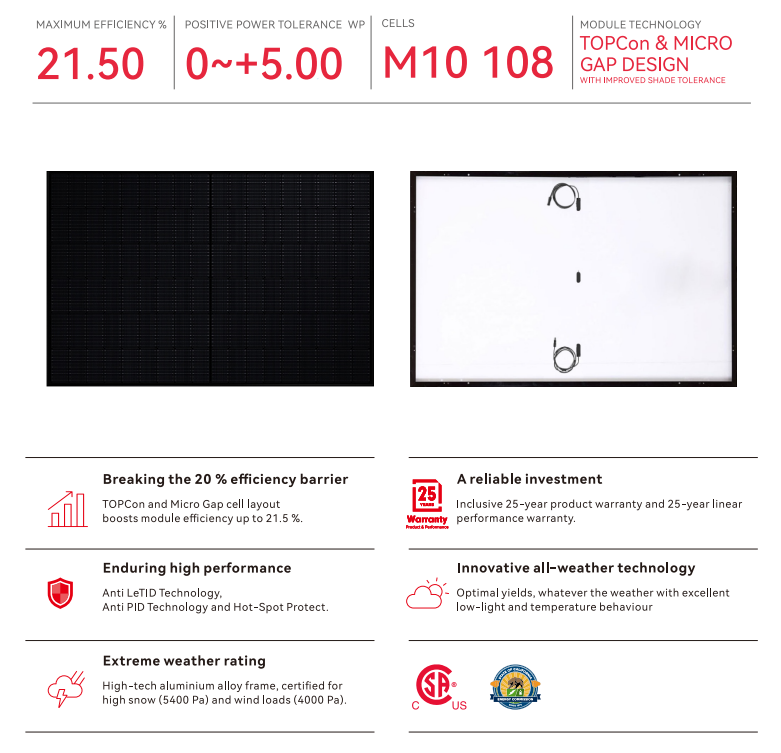

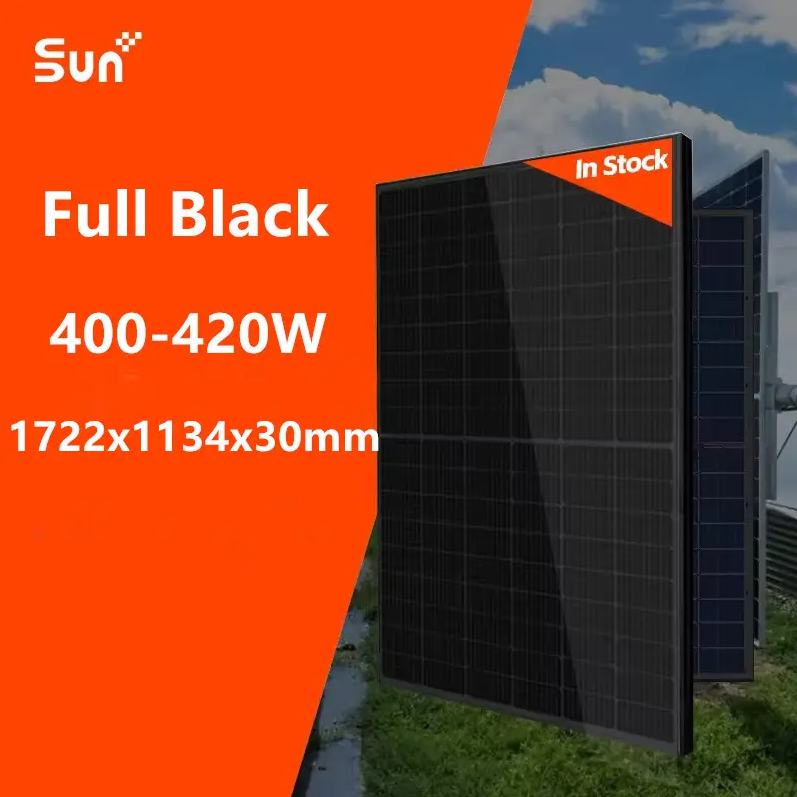

| Model | 54HTB-400M | 54HTB-405M | 54HTB-410M | 54HTB-415M | 54HTB-420M |
| Nominal Power | 400W | 405W | 410W | 415W | 420W |
| Maximum Power Voltage (Vmp) | 30.80V | 31.00V | 31.20V | 31.40V | 31.60V |
| Short-circuit Current (Isc) | 13.01A | 13.08A | 13.15A | 13.22A | 13.30A |
| Open-circuit Voltage (Voc) | 37.80V | 38.00V | 38.20V | 38.40V | 38.60V |
| Module Efficiency STC (%) | 20.48% | 20.74% | 21.00% | 21.25% | 21.50% |
| Operating Temperature (°C) | -40 ℃ to 85 ℃ | ||||
| Maximum System Voltage | 1000V / 1500V DC (IEC) | ||||
| Power Tolerance | 0~+5W | ||||
| Temp. Coefficients of Pmax | -0.36%/°C | ||||
| Temp. Coefficients of Voc | -0.26%/°C | ||||
| Temp. Coefficients of Isc | +0.043%/°C | ||||
Empowering the Solar Revolution: As a dedicated force in the solar industry, we are revolutionizing the market supply chain for developers, contractors, and EPCs. Our mission is to solve supply chain challenges through innovative technology and strategic distribution.
