* STC: Irradiance 1000 W/m², Cell Temperature 25°C, Air Mass AM1.5.
TEMPERATURE RATINGS
Nominal Operating Cell Temperature (NOCT)
44°C (±2°C)
Temperature Coefficient of PMAX
-0.39% / °C
Temperature Coefficient of VOC
-0.29% / °C
Temperature Coefficient of ISC
0.05% / °C
Frequently Asked Questions (FAQ)

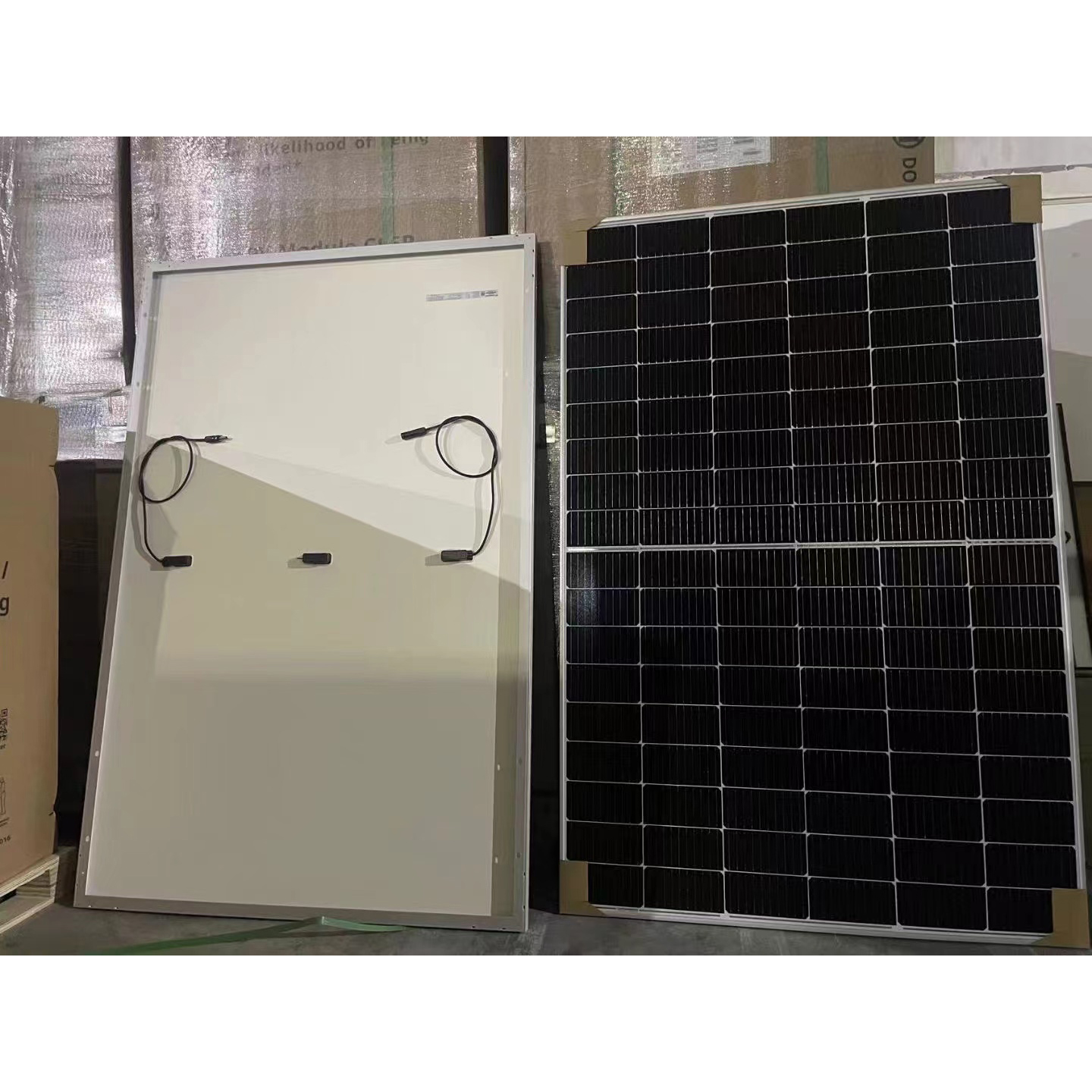

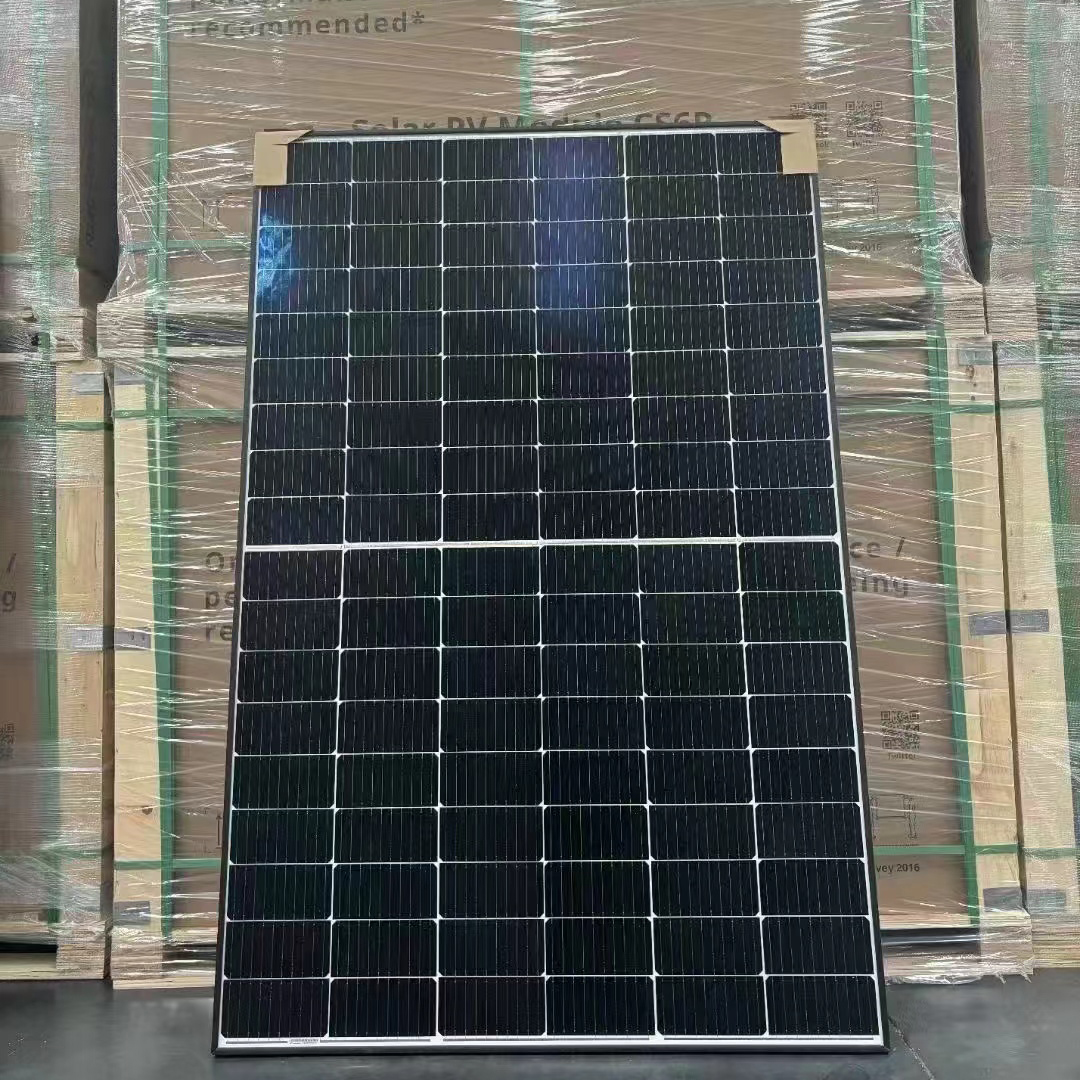

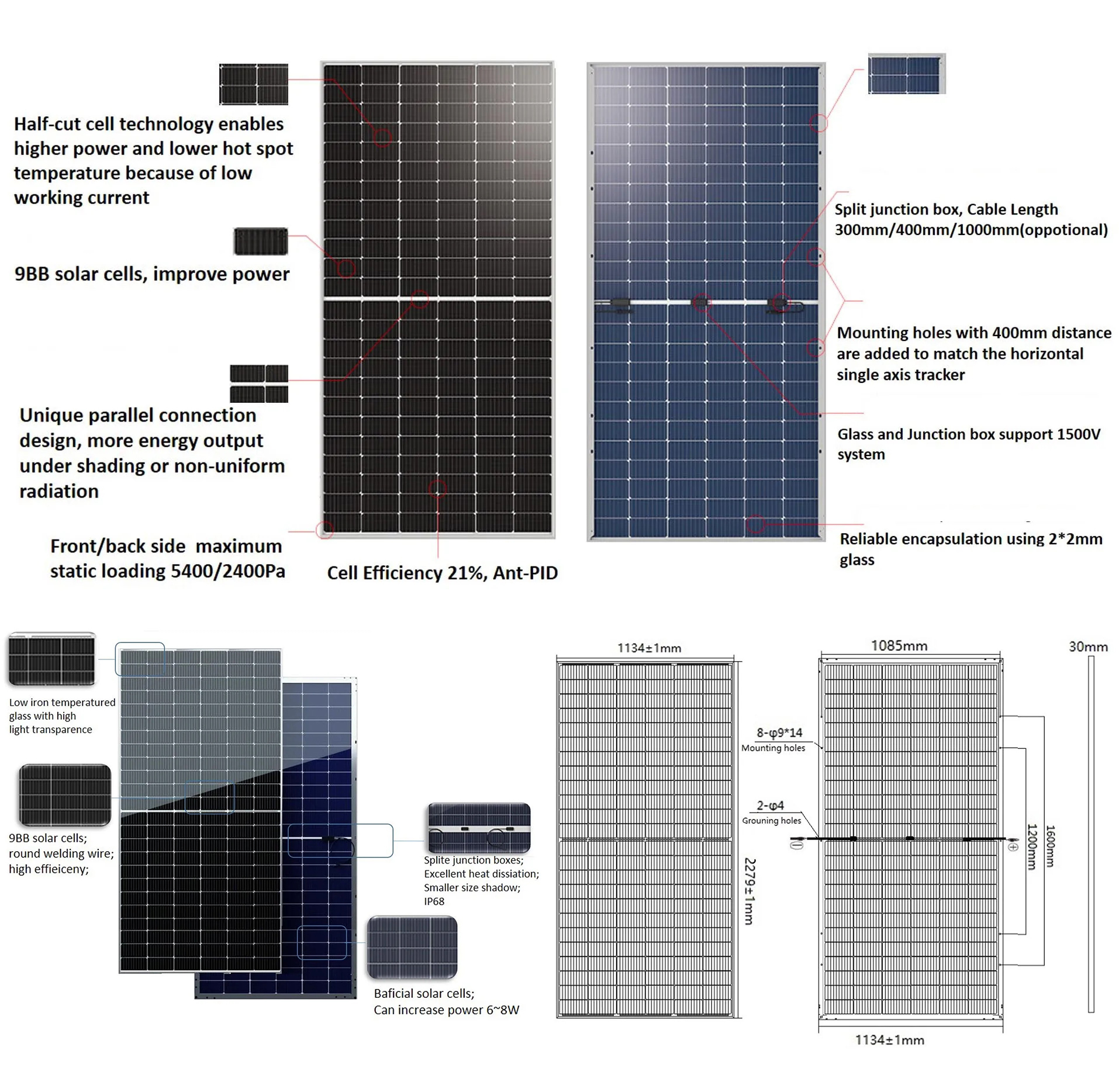

What are the physical dimensions and weight of these monocrystalline solar modules?
Each module has physical dimensions of 2279 × 1134 × 30 mm and weighs approximately 32.5 kg.
What is the typical power output range for this series?
This series is available in four typical power outputs: 535W, 540W, 545W, and 550W, with a power output tolerance of 0~+5W.
What are the temperature coefficients of these solar panels?
The Nominal Operating Cell Temperature (NOCT) is 44°C (±2°C). The temperature coefficient of PMAX is -0.39%/°C, VOC is -0.29%/°C, and ISC is 0.05%/°C.

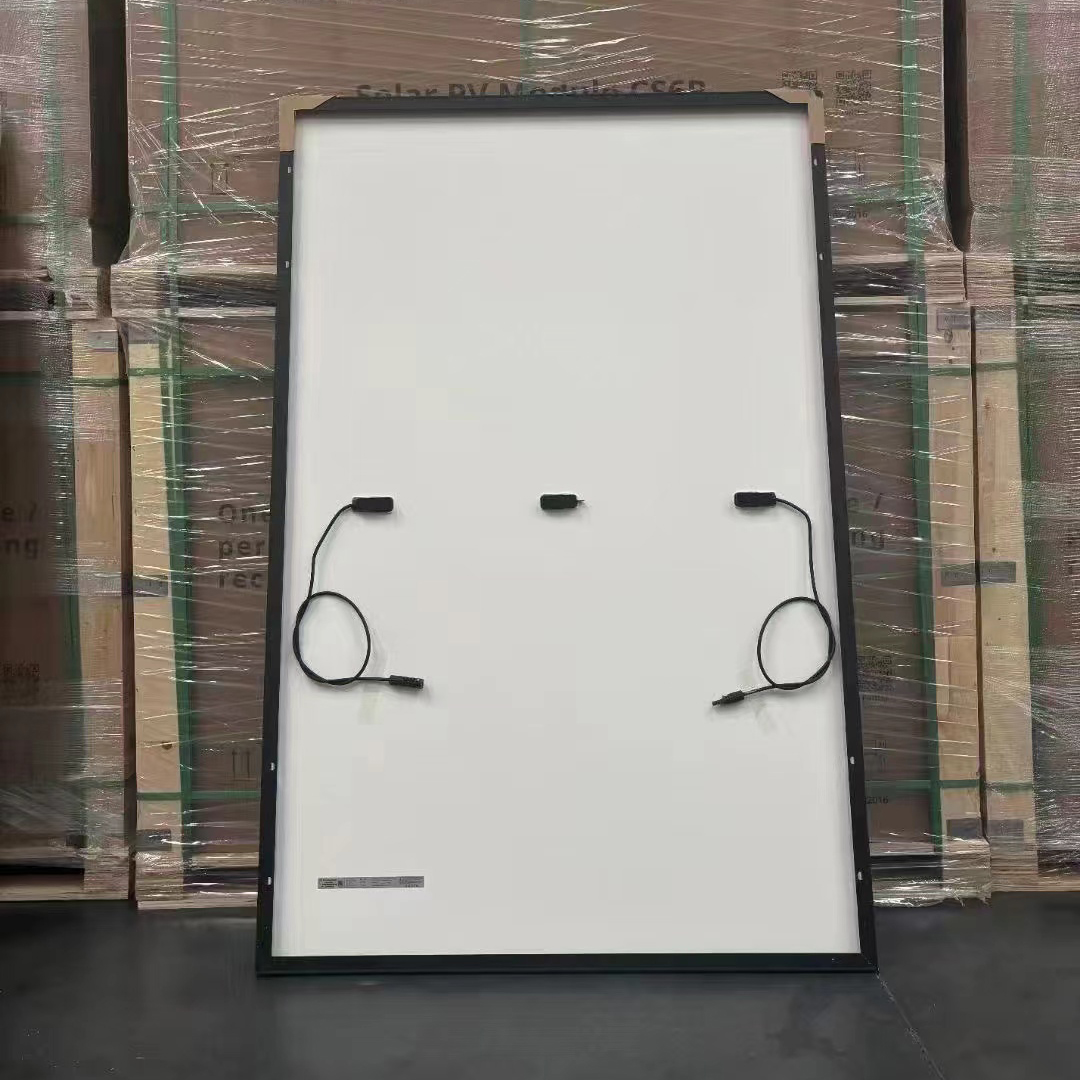

What type of front glass and back materials are used?
The front features a 2.0mm high transmission, AR coated tempered glass, and the back is constructed with 2.0mm tempered glass, configured with a split, IP68-rated junction box.
What type of frame and connectors do these panels use?
They are constructed with a durable silver anodized aluminum alloy frame and utilize standard MC4 connectors with portrait 300mm(+)/300mm(-) 4mm2 cables.
