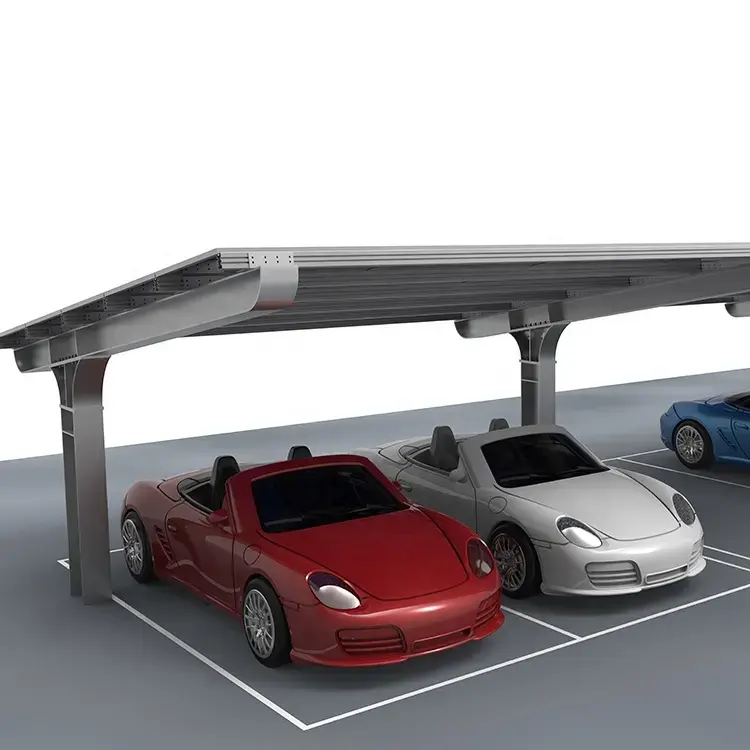

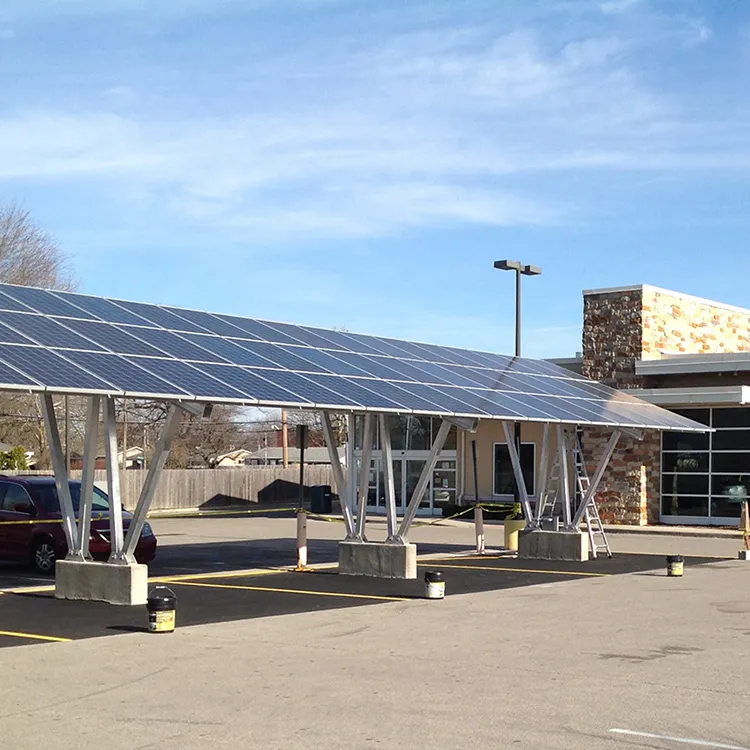

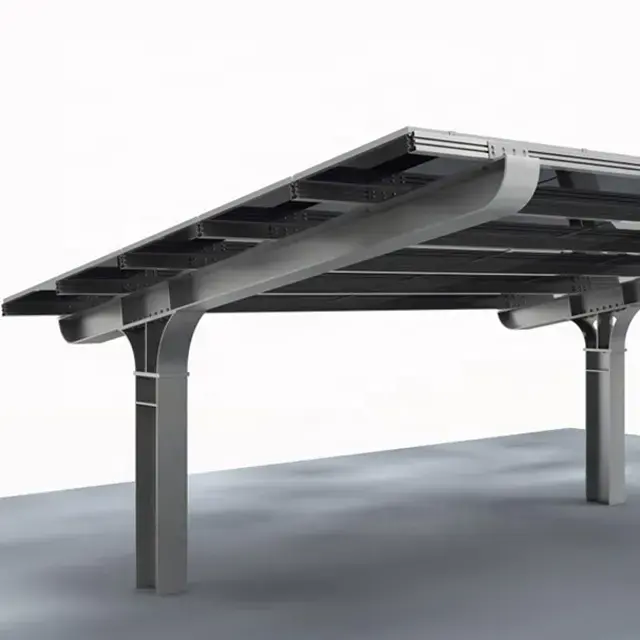

Waterproof Solar PV Panels Mounting Bracket System Car Parking Shed For Carport PV Parking Lot

Product Description

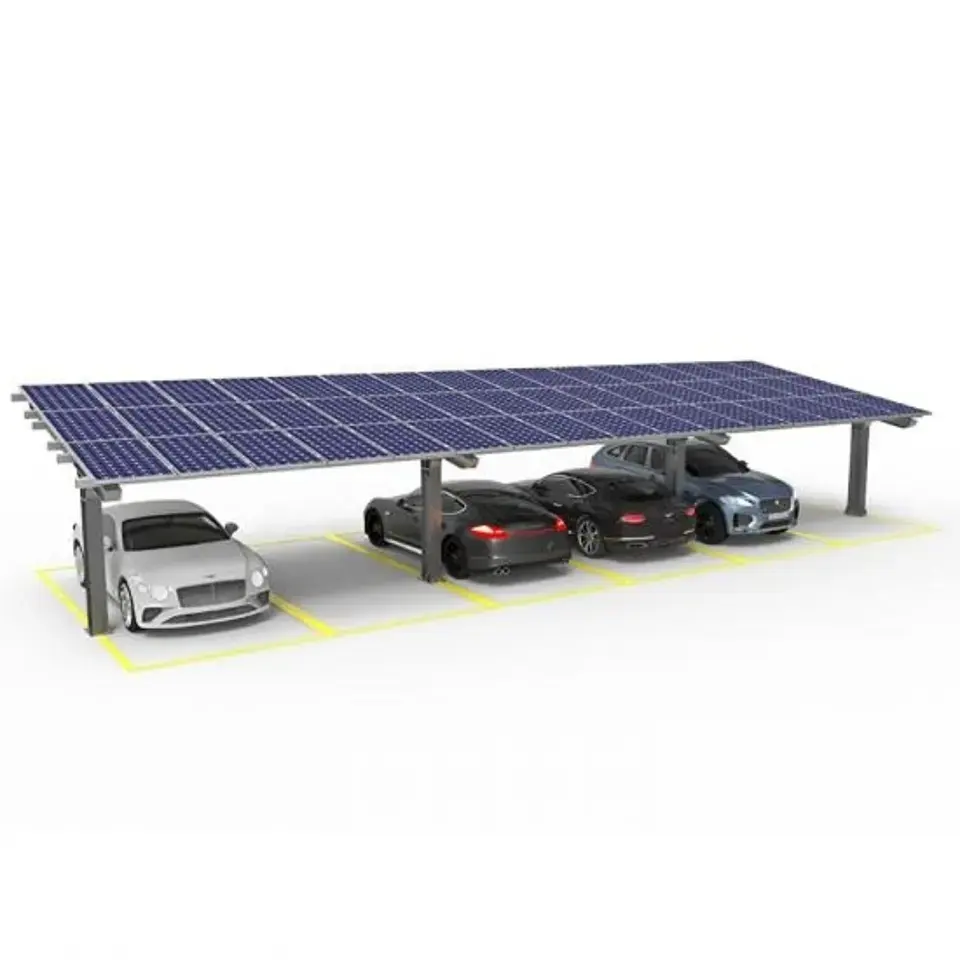

Metal Solar Carport

The whole structure looks simple, generous and beautiful. The sheds are suitable for application in shopping malls, companies, hospitals, government offices, parks, etc. Not only can they meet parking demand, but they also produce grid power, recover costs, and generate profit.

The frame is composed of foundation bolts, posts, beams, rails, rail splice kits, and high-strength bolts. Main materials used: Hot-dip galvanizing Q235B and SUS304 stainless steel. The surface of the carport is treated by anodic oxidation. All components and accessories are rust-proof.

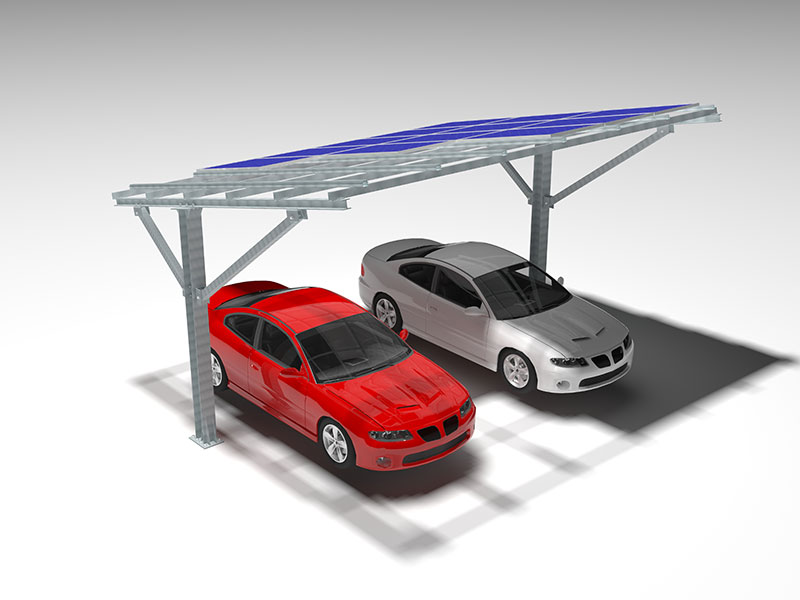

Solar Carport Design

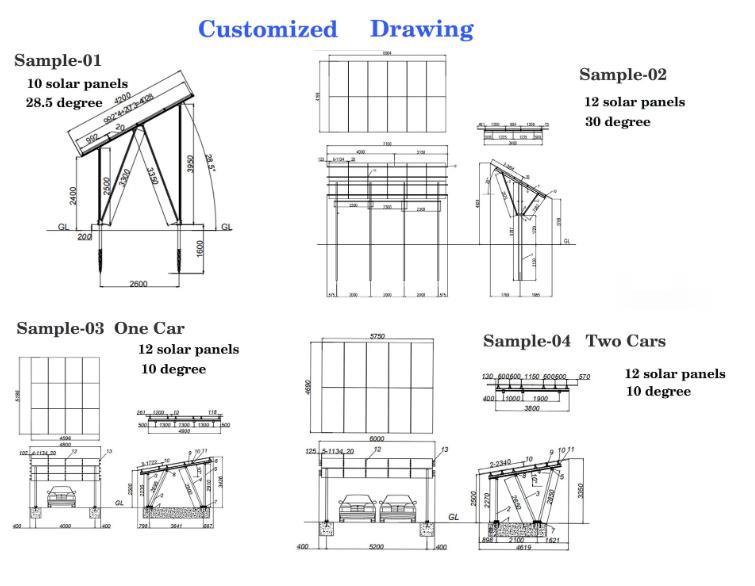

Solar Carport Structure

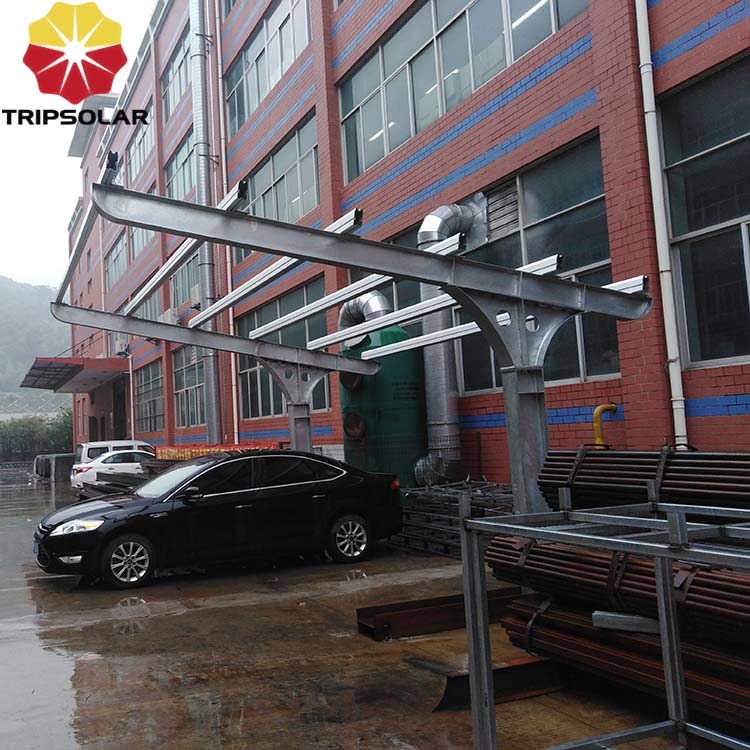

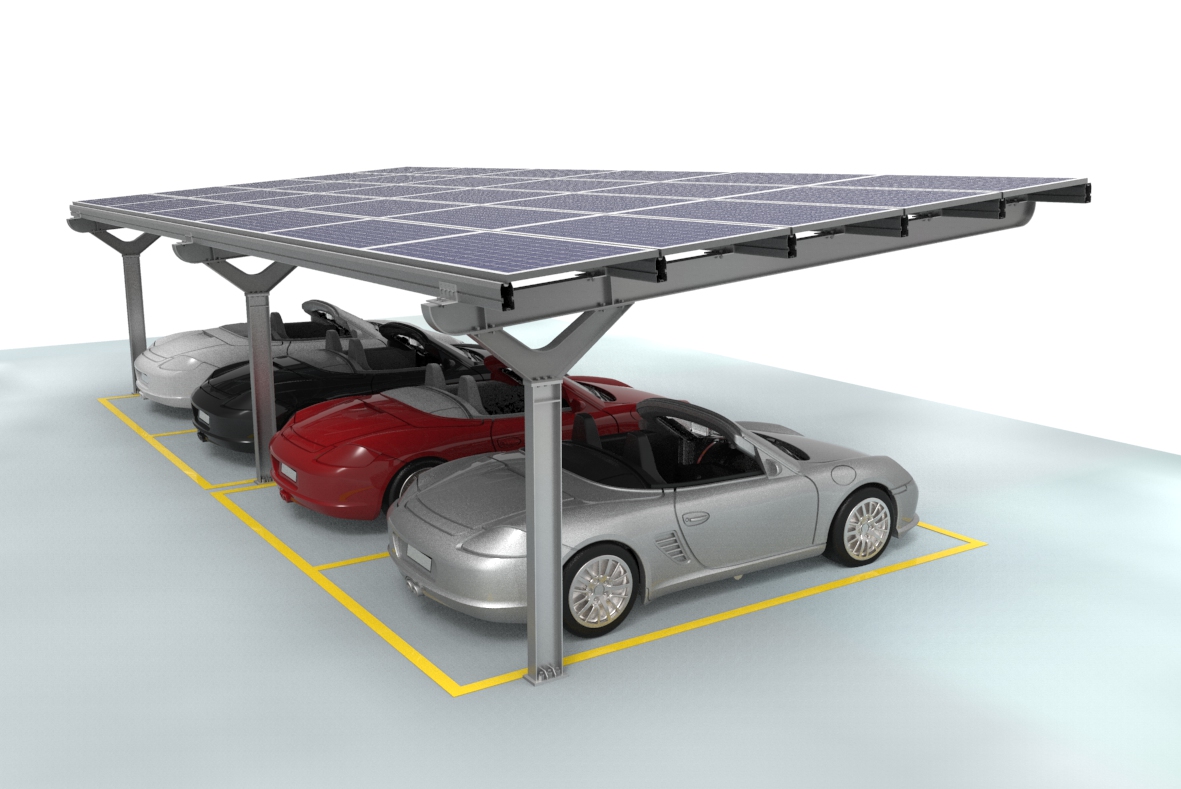

Metal Support

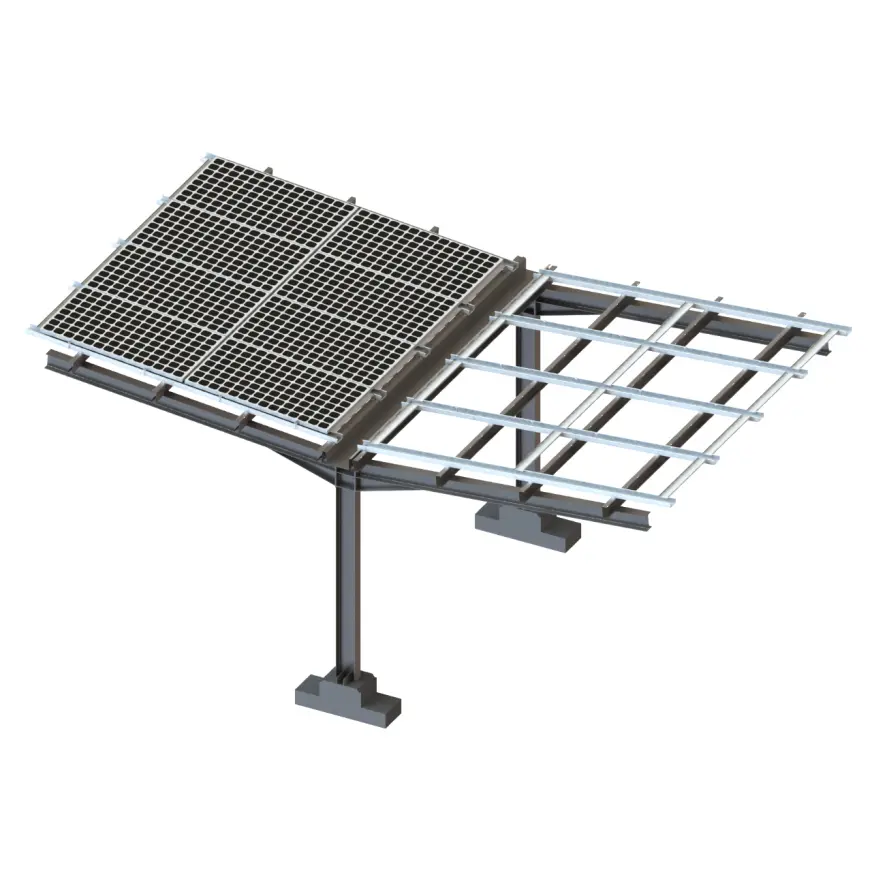

Foundation Detail

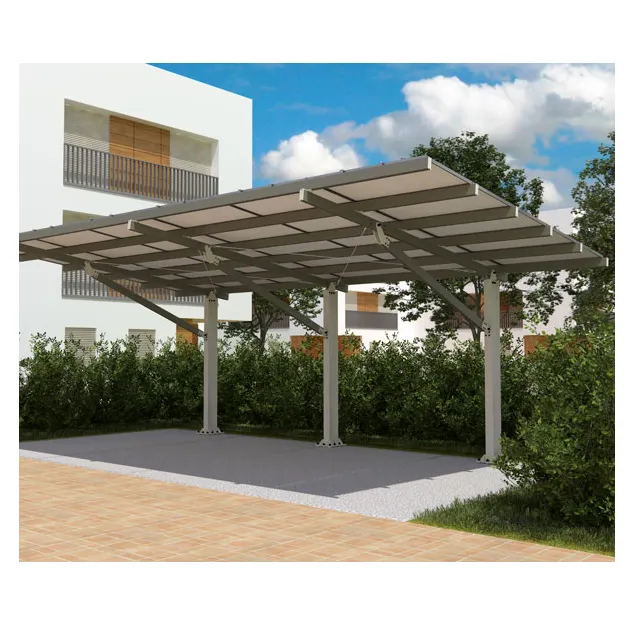

Solar Mounting

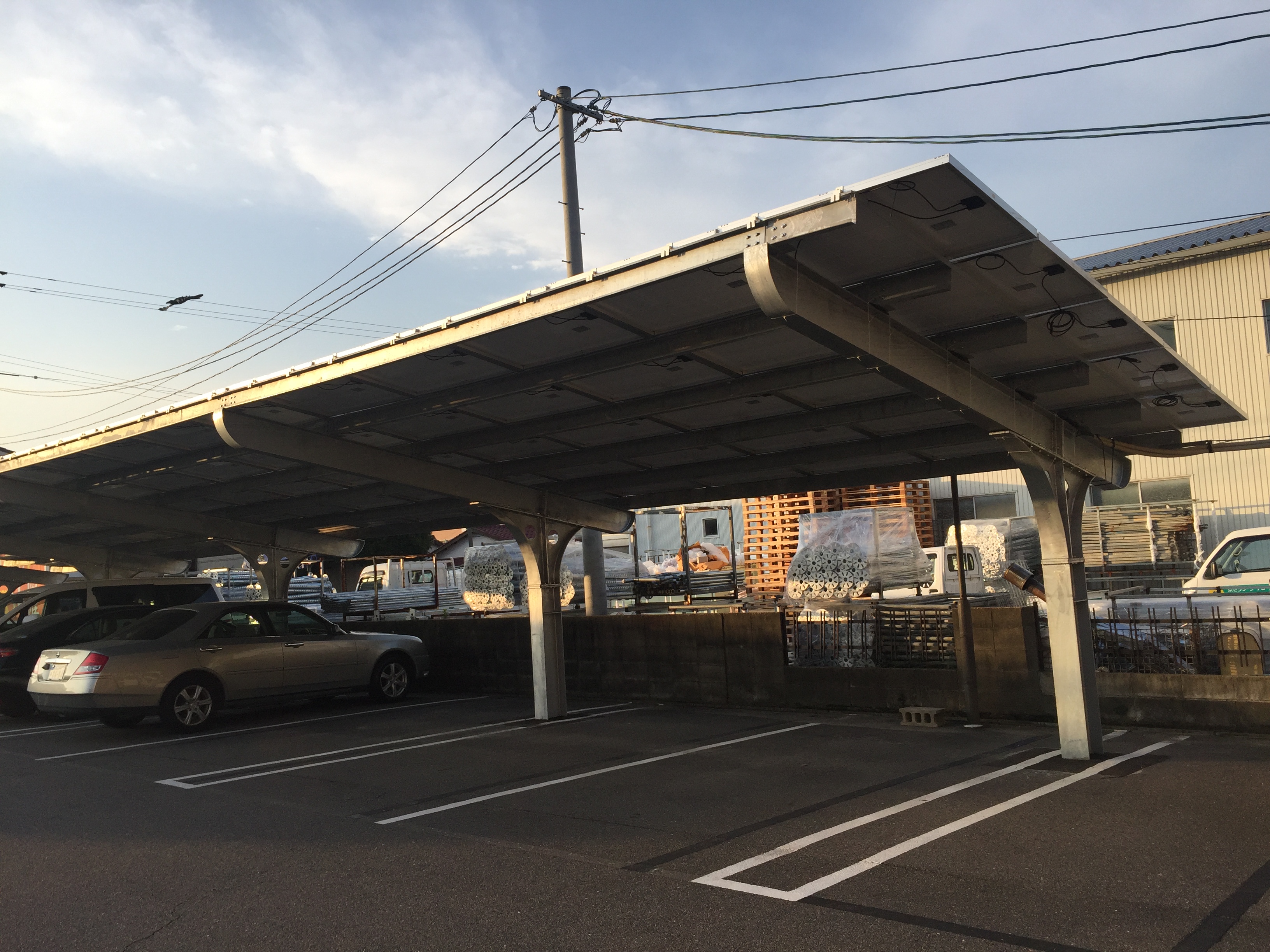

Installation Site
Technical Parameters
Item Details
Install Site Open Field
Tilt Angle 0deg ~ 30deg
Max Wind Speed up to 60m/s
Snow Load up to 150cm
Standards AS/NZS 1170 & DIN 1055 & Other
Distance between poles 2500mm/5200mm or above
Solar Panel Framed or Frameless
Solar Panel Orientation Landscape, Portrait
Foundation Foundation bolt assembly in cement block
Main Material Hot-dip galvanizing Q235B & SUS304
Anti-corrosive Anodized & Galvanized

Contact us for a suitable solution including drawings, quotations, and installation videos.

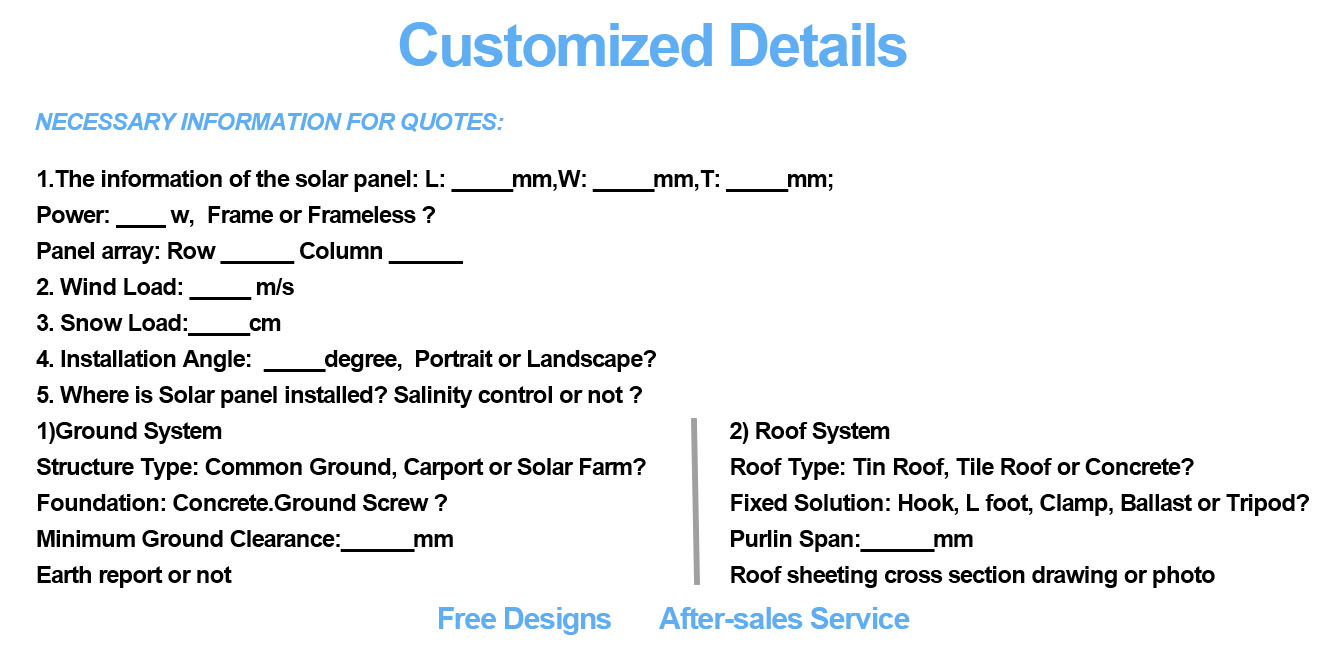

Technical Drawing
System Components

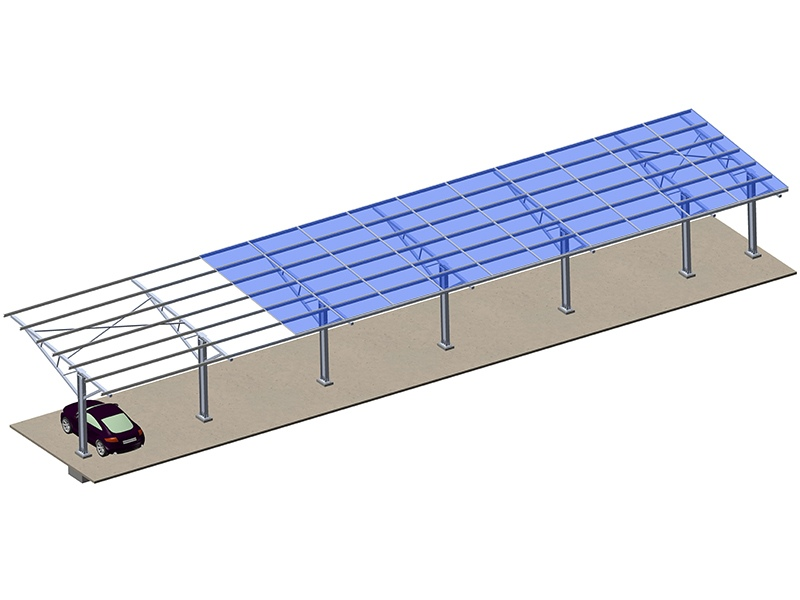

Rail Component

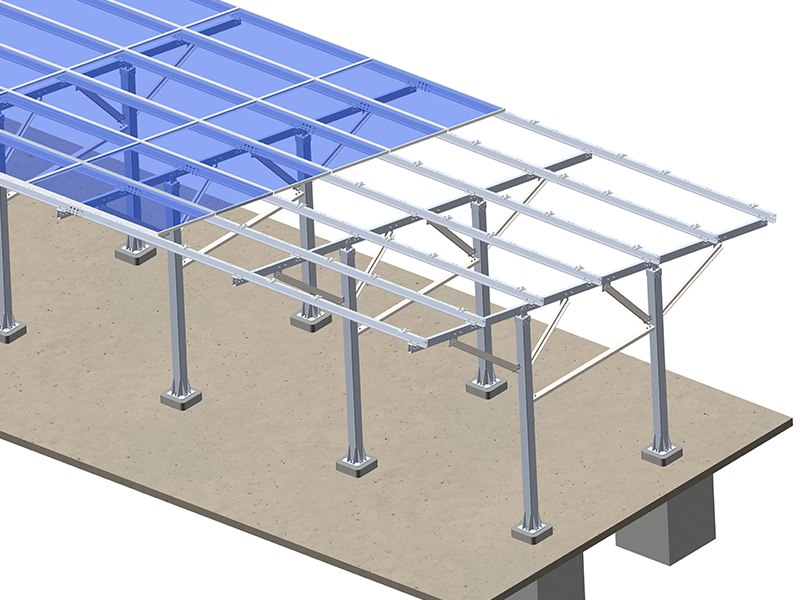

Bolt Component

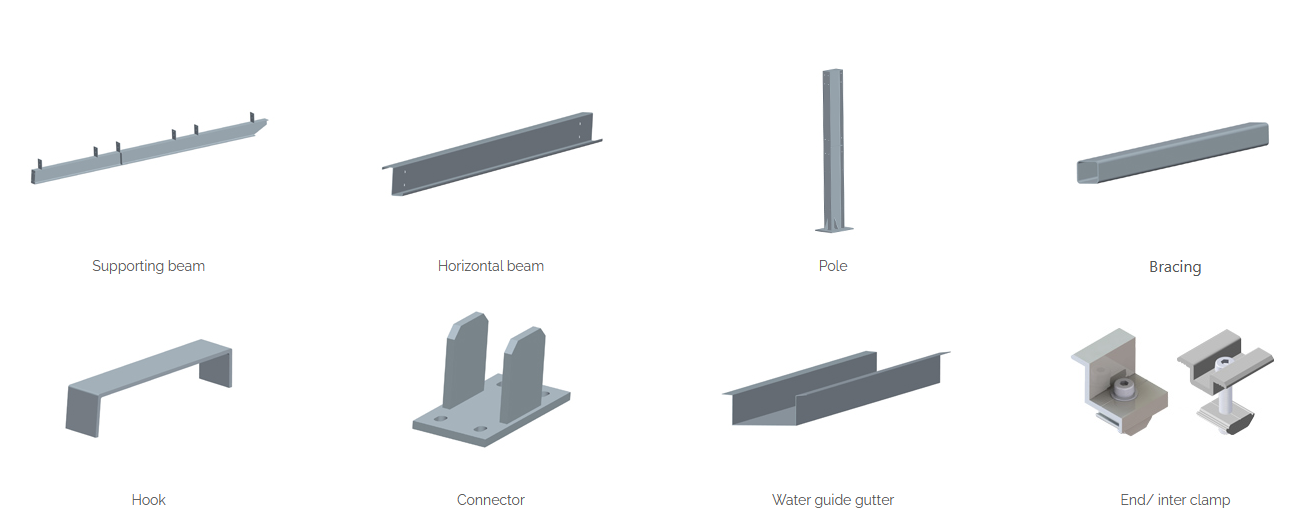

Assembly Part

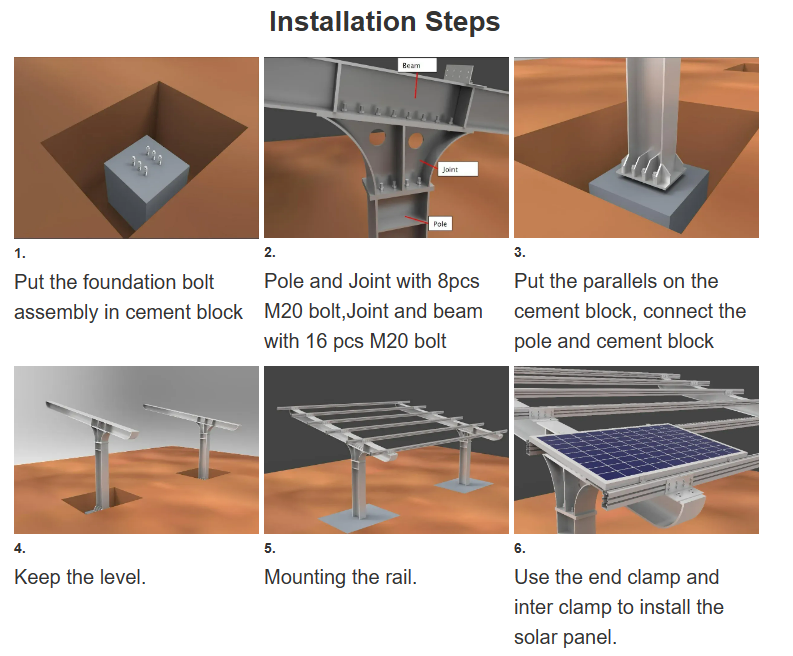

Connection Part
Installation Cases

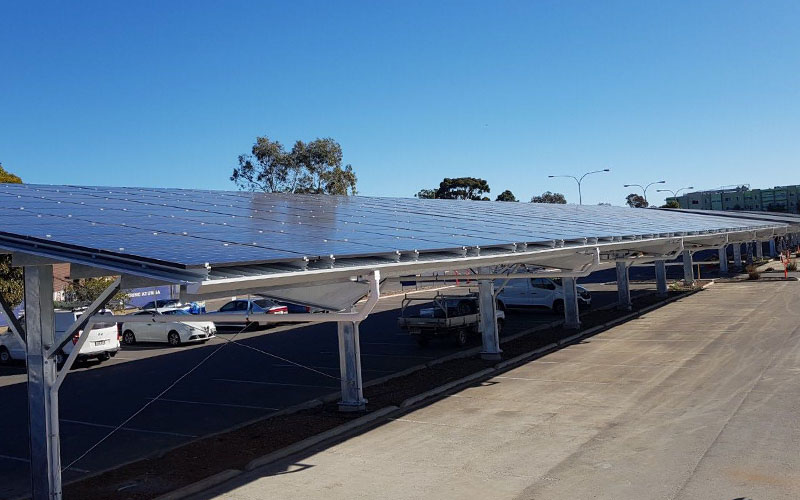

Case 1

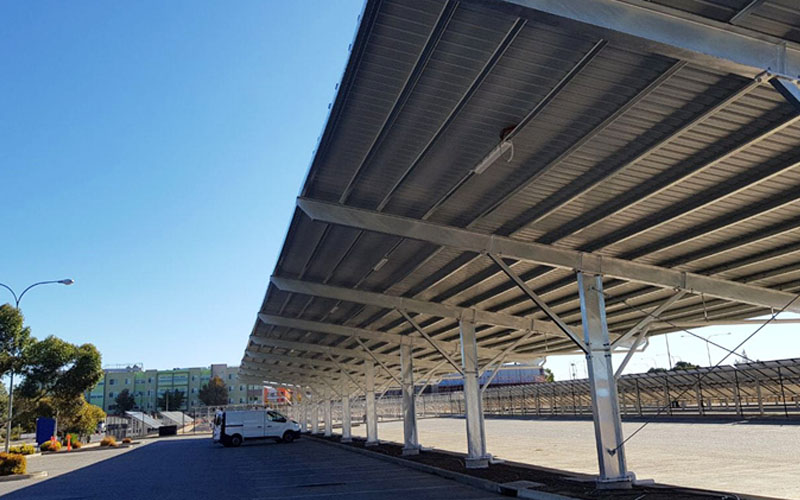

Case 2

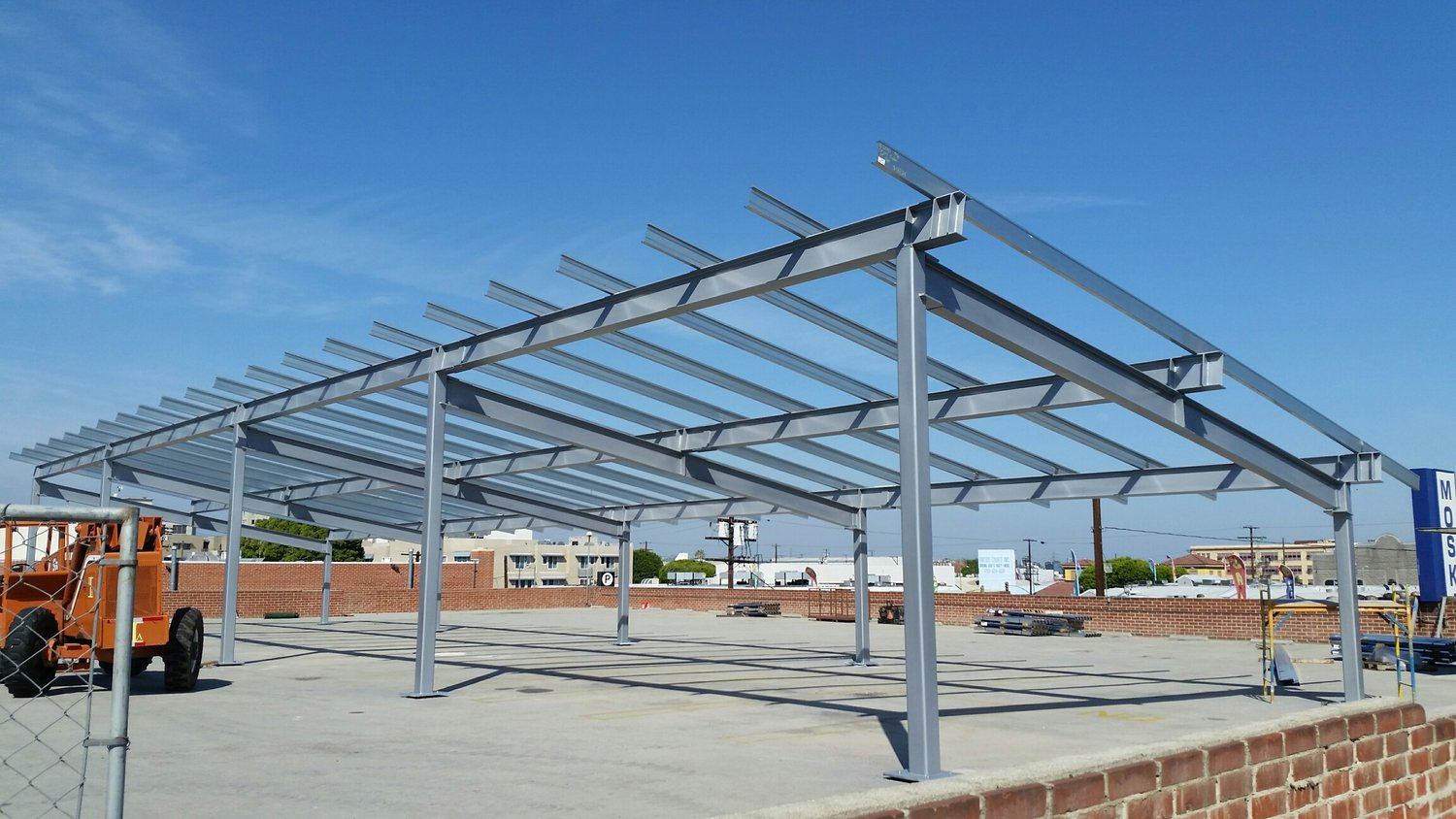

Case 3

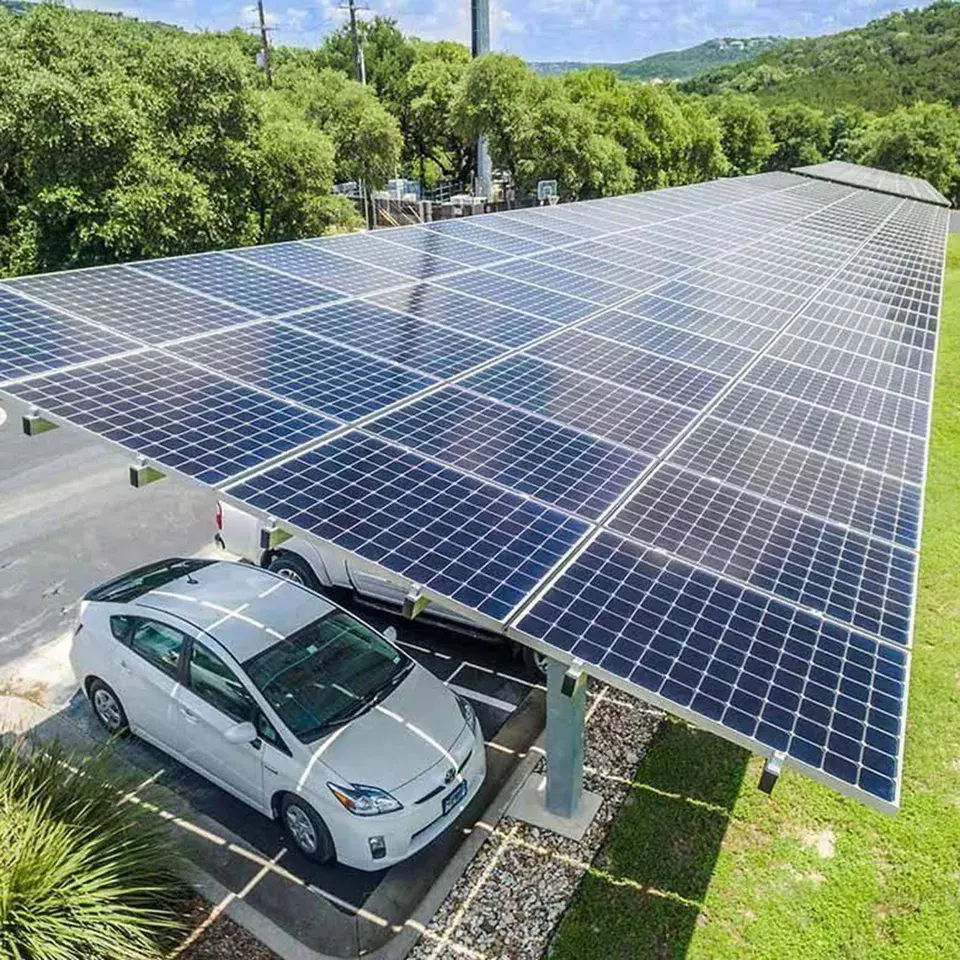

Case 4

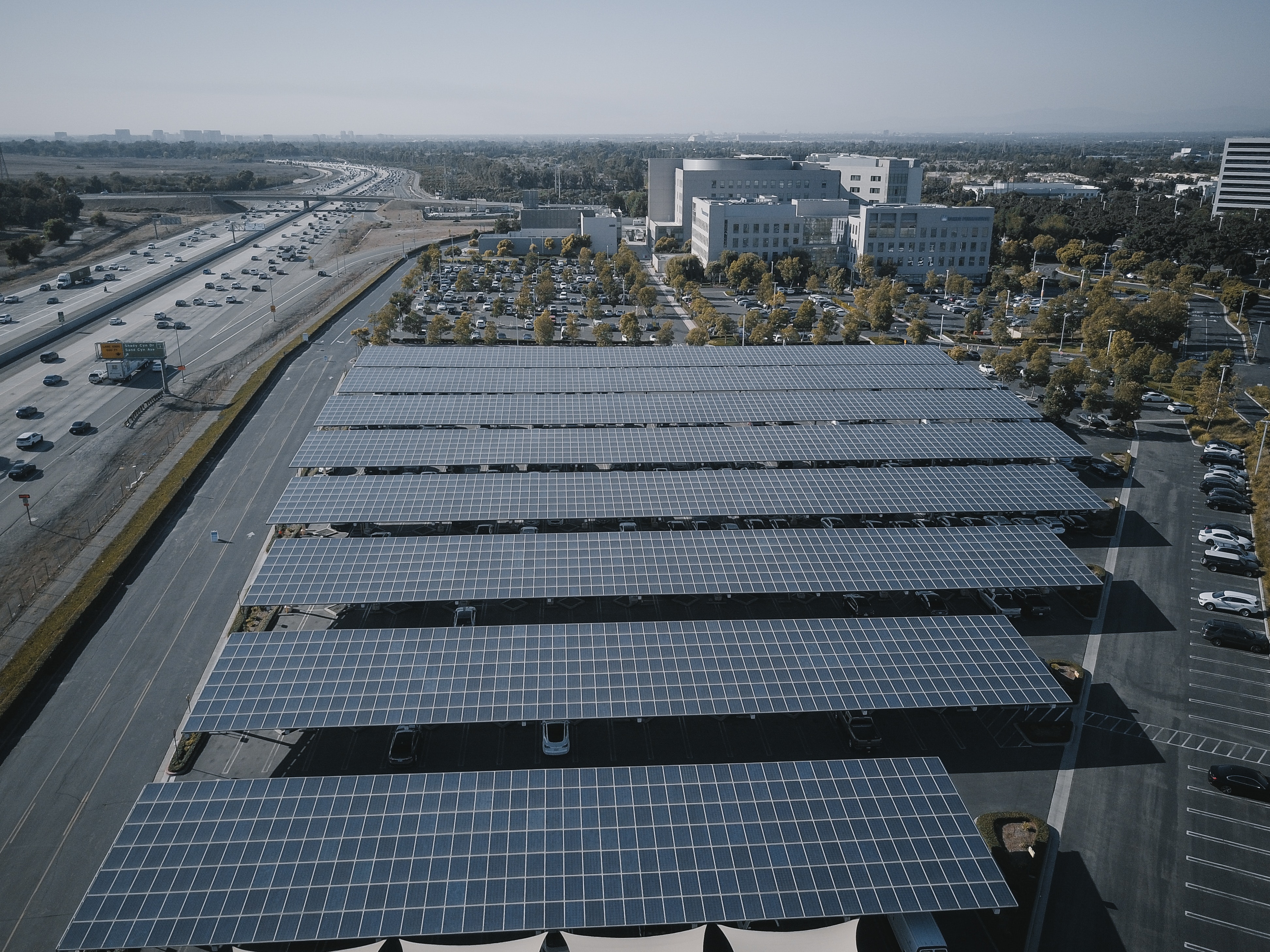

Case 5

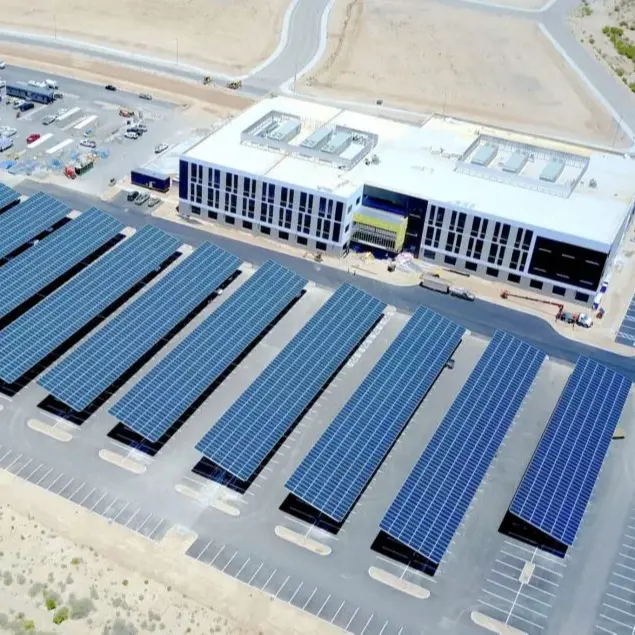

Case 6
Test Photos & Reports

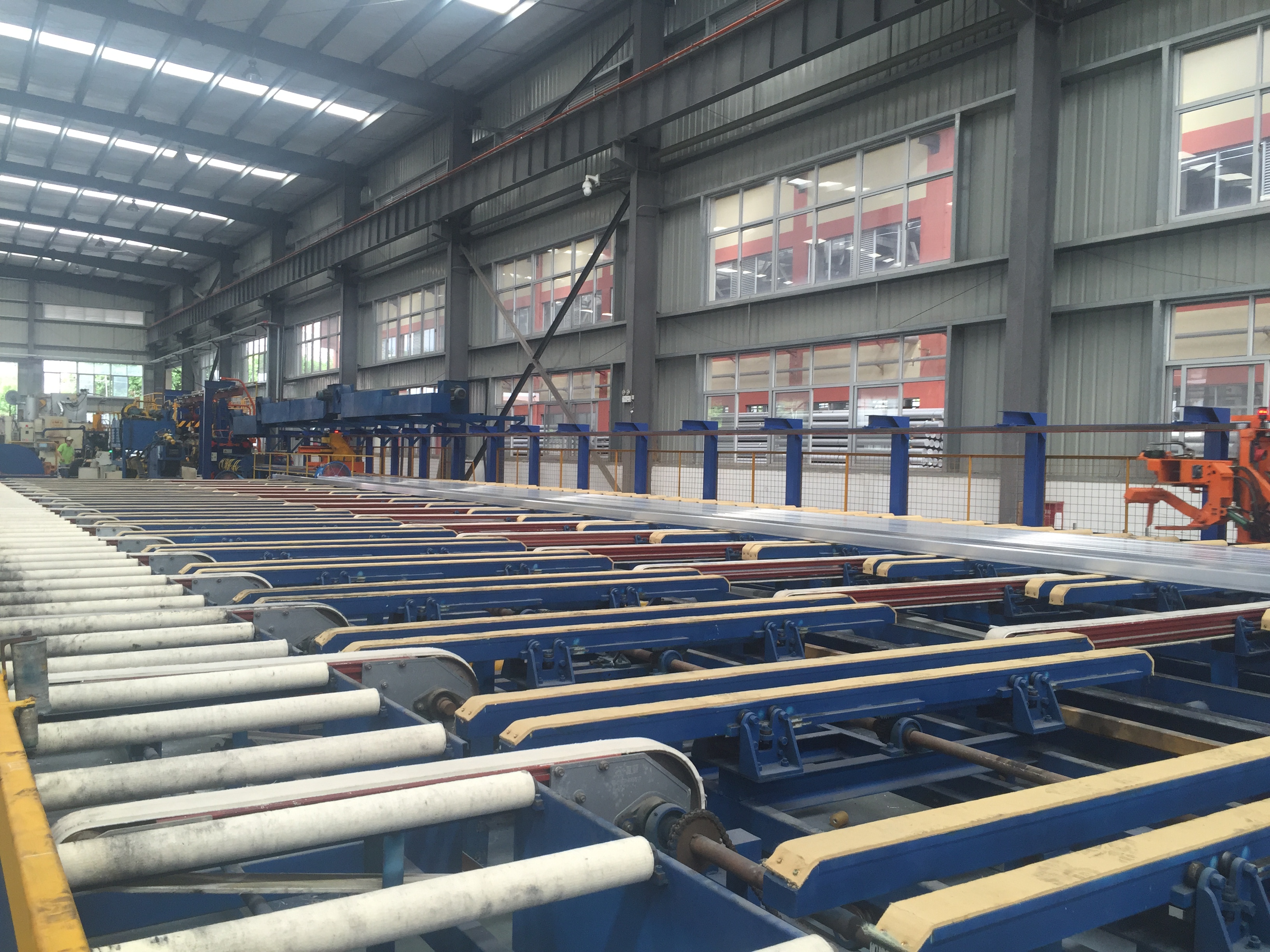

Test 1

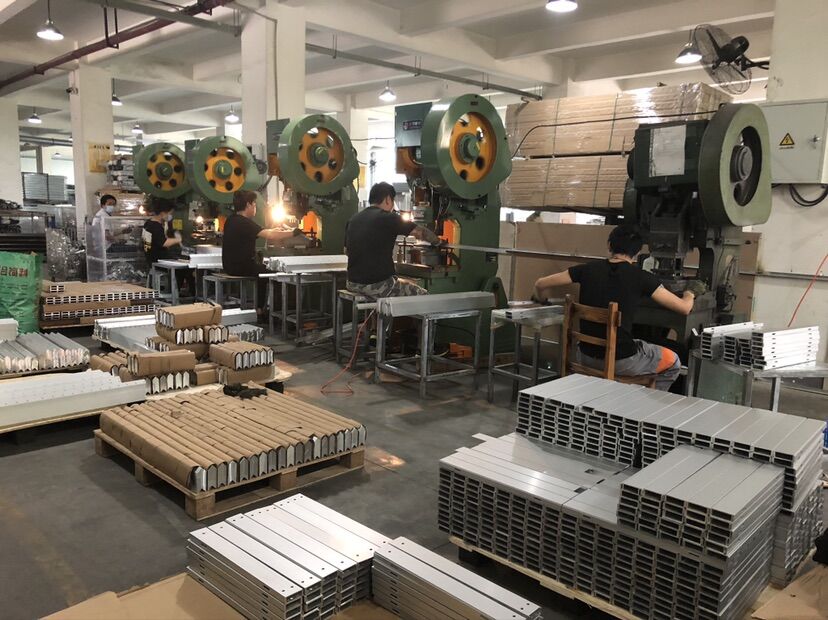

Test 2

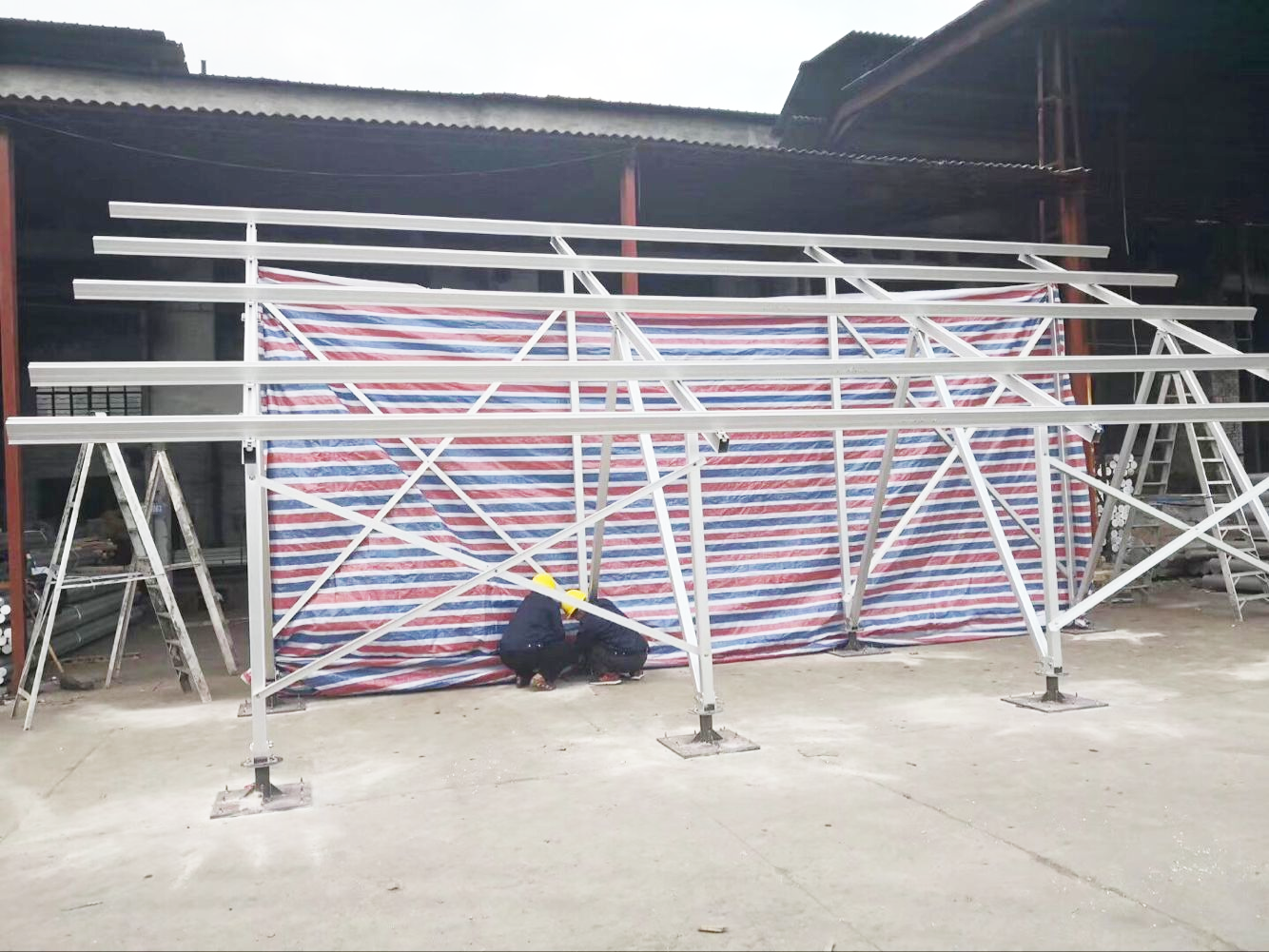

Test 3

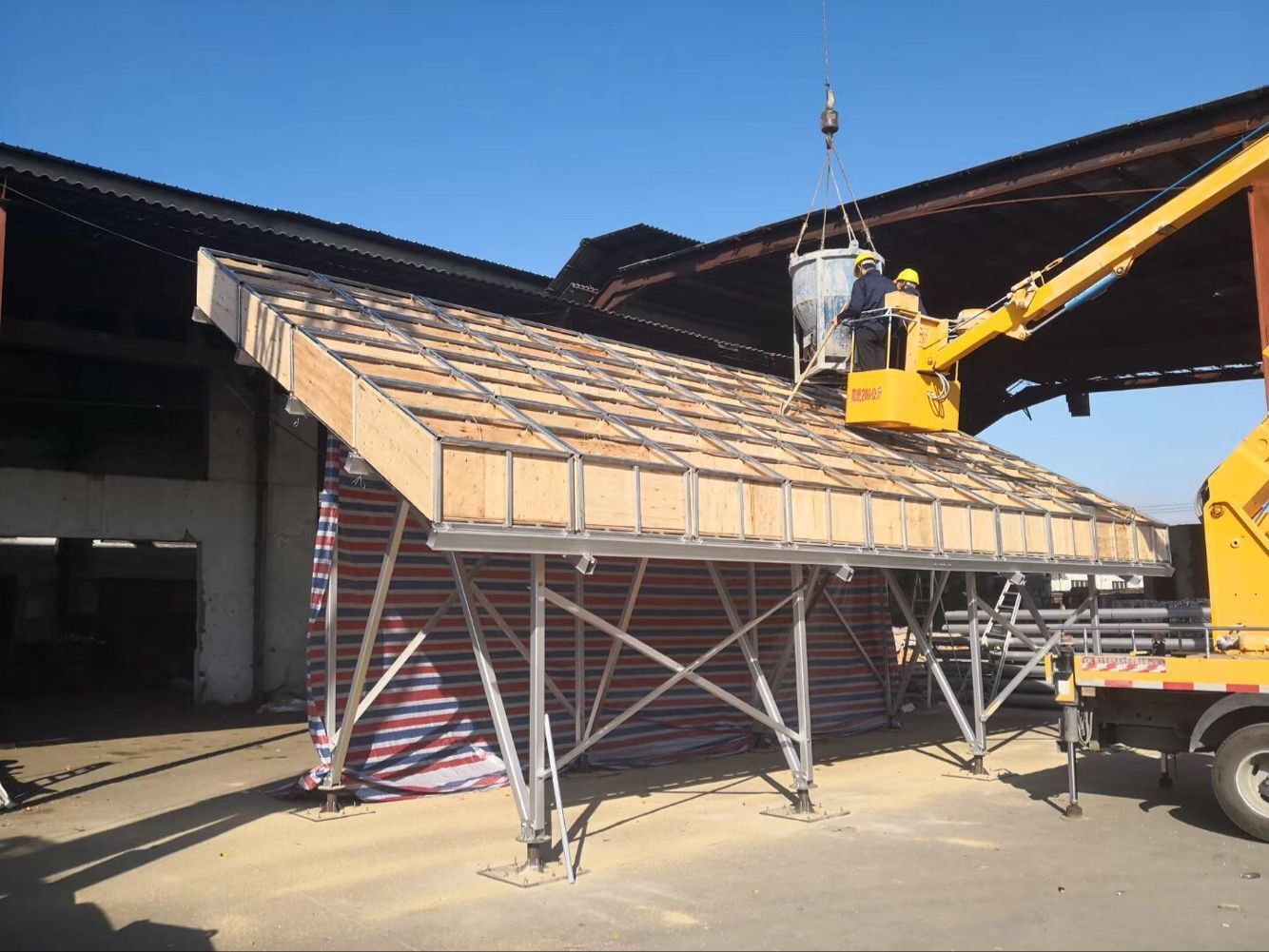

Test 4

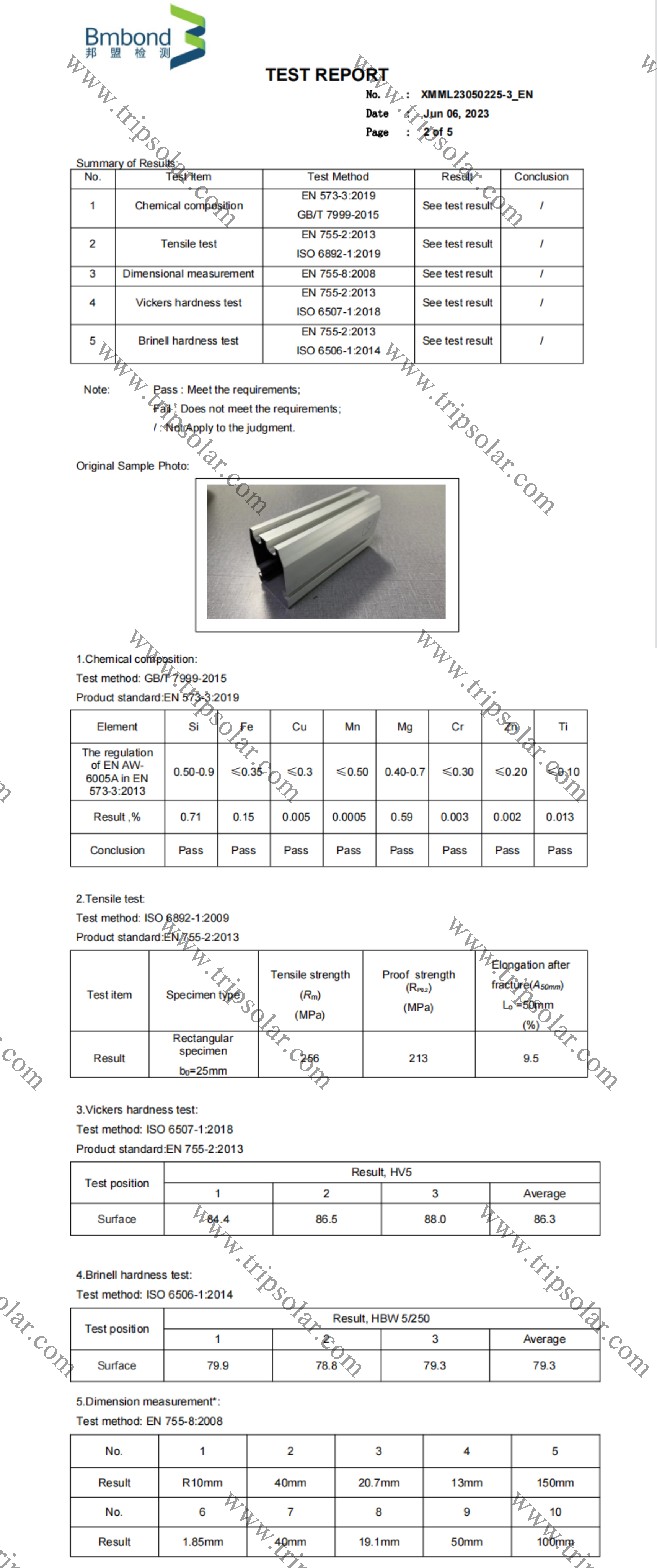

Report 1

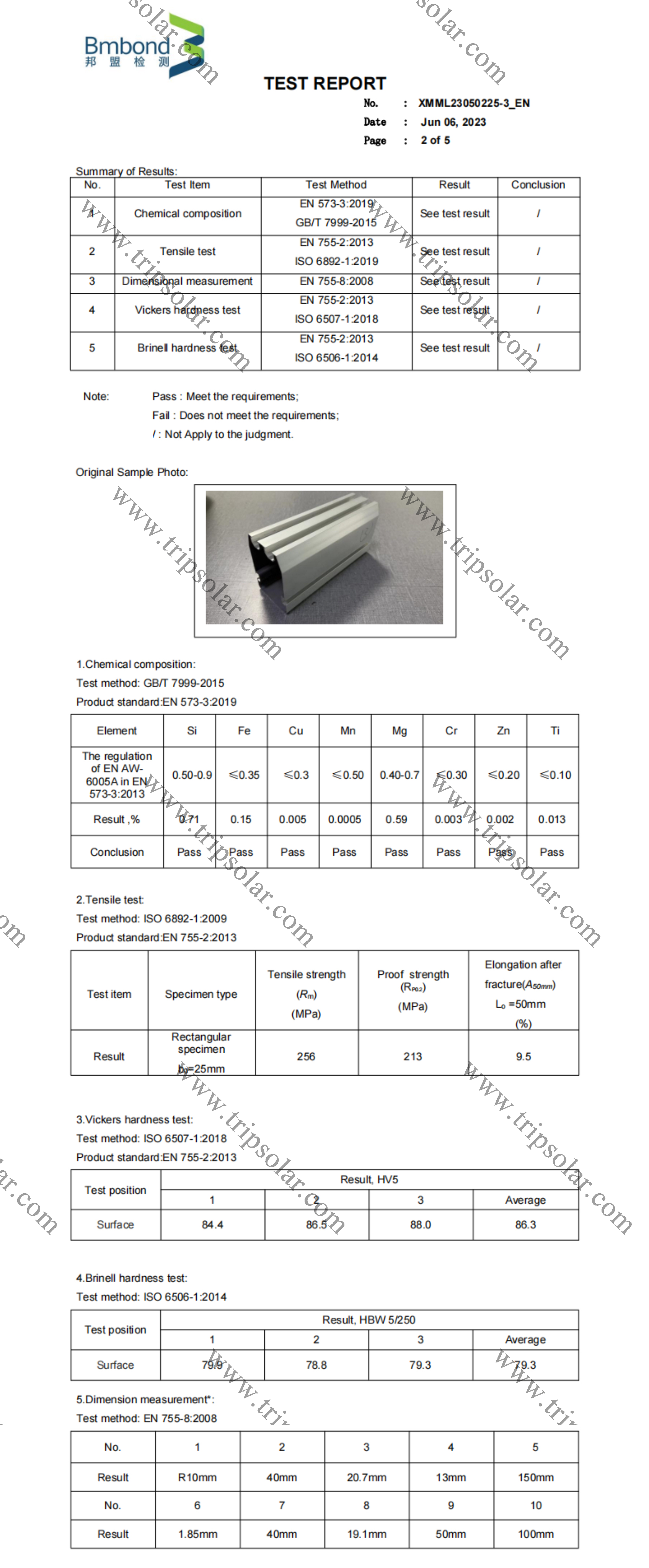

Report 2

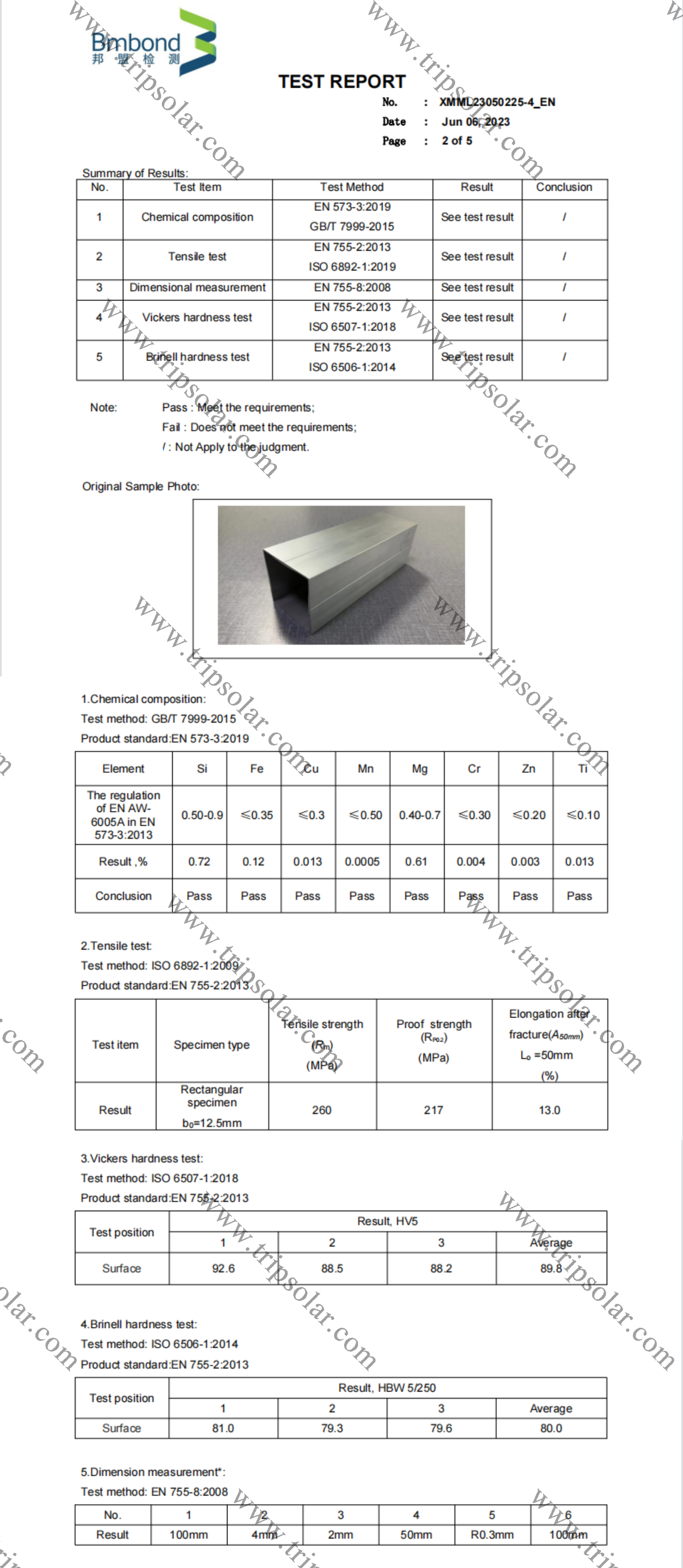

Report 3
Packaging & Delivery

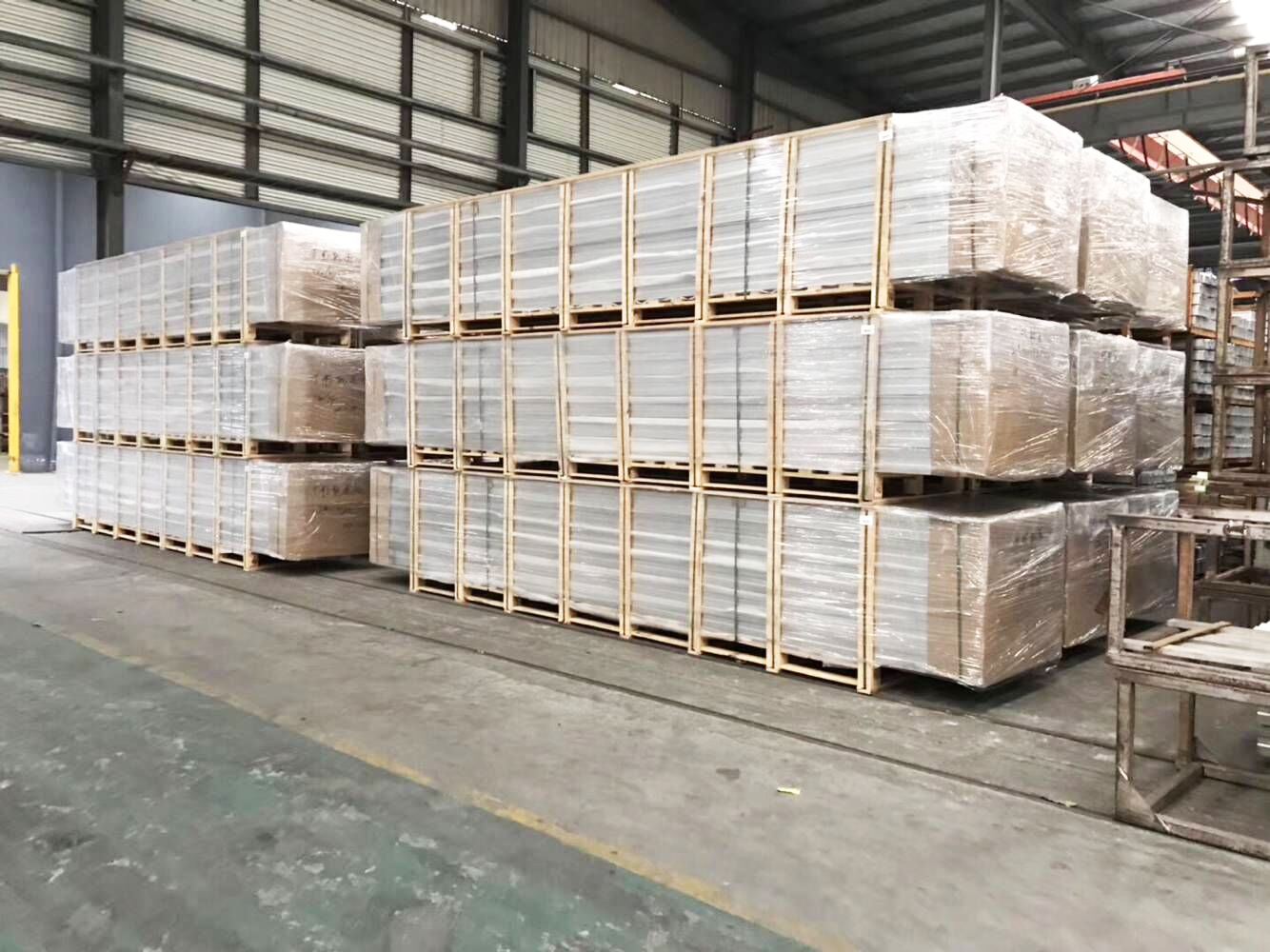

Package 1
Package 2
Package 3
Profile
Factory
Team
Equipment
We are a high-tech enterprise in the solar PV field specializing in solar PV products with advanced technology and excellent service. Our members devote themselves to researching, designing, manufacturing, and selling steady, trustable, and cost-efficient solar PV mounting system solutions. As one of the largest PV solar products exporters, our pioneering products have been installed in more than 100 countries and regions.
🛡️
Mission
Provide the best renewable energy solutions worldwide.
🔭
Vision
Become the preferred supplier for solar mounting systems globally.
🎯
Goal
Manufacture the best PV mounting systems with superior quality.
Frequently Asked Questions
Why choose our solar carport solutions?
We are a professional manufacturer providing high-quality products, competitive pricing, and excellent technical service based on years of industry experience.
Is customization available for specific sites?
Yes, we provide customization based on your detailed drawings or our engineer's design tailored to your specific requirements and site conditions.
How is the pricing determined?
Pricing depends on your order quantity and specific product details. We offer favorable rates for mass quantities.
What is the typical delivery time?
It depends on the order quantity and requirements, but usually, it takes about 7-15 working days.
Can we inspect the goods before delivery?
Absolutely. Customers are welcome to visit our facilities to inspect the quality. we aim to establish honest, long-term business relationships.
What materials are used for durability?
We primarily use hot-dip galvanizing Q235B and SUS304 stainless steel with anodic oxidation treatment to ensure maximum rust prevention and durability.
