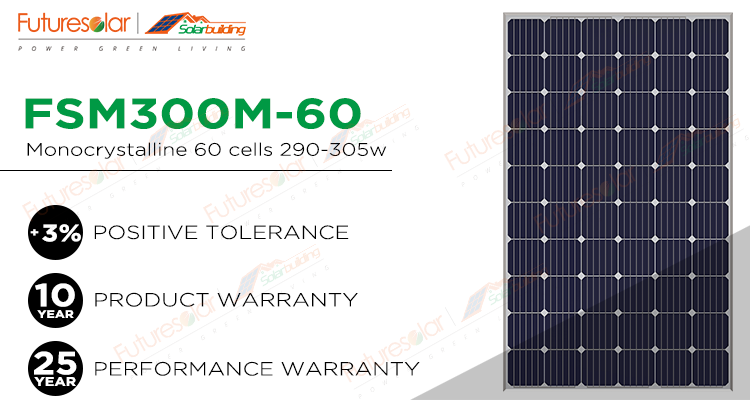

| Specification | FSM295-60 | FSM300-60 | FSM310-60 | FSM320-60 | FSM330-60 |
|---|---|---|---|---|---|
| Rated Max Power at STC | 295W | 300W | 310W | 320W | 330W |
| Open Circuit Voltage (Voc/V) | 39.64 | 39.82 | 40.18 | 40.9 | 41.3 |
| Max Power Voltage (Vmp/V) | 32.29 | 32.51 | 32.95 | 33.4 | 33.8 |
| Short Circuit Current (Isc/A) | 9.67 | 9.84 | 10.08 | 10.15 | 10.34 |
| Max Power Current (Imp/A) | 9.23 | 9.23 | 9.41 | 9.59 | 9.77 |
| Module Efficiency | 18.04% | 18.44% | 19.05% | 19.66% | 20.28% |
| Standard Test Condition | Irradiance 1000w/m2, Cell Temperature 25 Centigrade, Air Mass 1.5 | ||||
| Standard Test Condition (STC) | Irradiance 1000W/m2, Cell Temperature 25℃, Air Mass 1.5 | ||||
Ensure Colour and Power Difference. Ensure high yields, consistent performance and durability. First of 52 steps strict quality control and inspection process.
Before and After Lamination. Most stringent acceptance criteria and tightest tolerance. Intelligent alarm and stop mechanism in case of any deviation or errors.
Before and Following Lamination. Ensure "Zero" micro-crack monitoring before final inspection. Continuous line monitoring and video/photo record for each cell and panel.

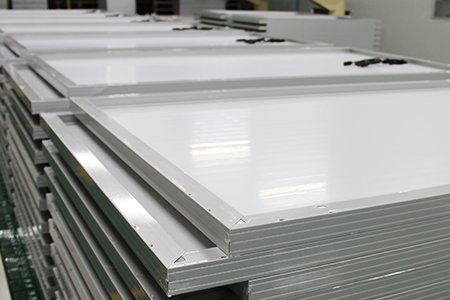

Defects Objective Before Shipment. Most stringent acceptance criteria and tightest tolerance. Ensure the best modules on the market- guaranteed!
Ensure 3% Positive Power Tolerance. Comprehensive QC information management system with barcode ID. Quality traceable system in place to allow quality data flow constantly.
What ranges of power outputs are available for these solar modules?
The solar modules are available in power outputs ranging from 295W to 330W, specifically in FSM295-60 (295W), FSM300-60 (300W), FSM310-60 (310W), FSM320-60 (320W), and FSM330-60 (330W) models.
What are the advantages of the glass used in these panels?
The panels use high-transmission antireflective glass which increases normal luminance translucency by 2% and boosts overall module efficiency. It features a self-cleaning function and provides a service life of up to 25 to 30 years.
How does your quality control system ensure product reliability?

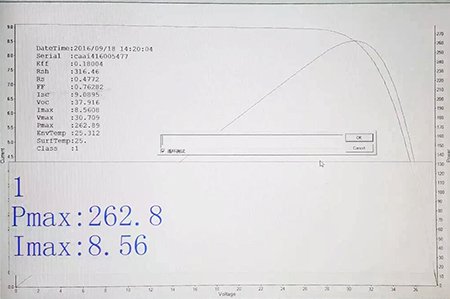

We execute a strict 52-step quality control system. This process includes 100% cells sorting to prevent power variations, dual-stage lamination inspections, 100% EL testing to eliminate micro-cracks, and optimal performance testing with a guaranteed 3% positive power tolerance.
What options are available for frame and junction box specifications?
Frames are available in conventional configurations with silver or black finish choices, designed to enhance mechanical load capability. The junction boxes are IP67-rated with quality bypass diodes to ensure safe heat dissipation and steady long-term performance.

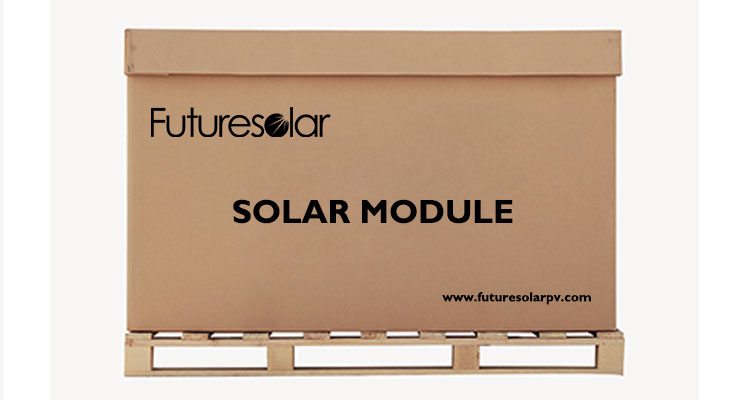

Can I customize the packing for shipment?
Yes, we support customized packing solutions per your request. The standard packaging setup is palletized. For orders that are less than a full pallet, we provide robust wooden box packing options to guarantee safe transport.
Do the solar cells offer resistance against degradation (Anti-PID)?
Yes, the modules use high-efficiency PV cells featuring anti-PID (Potential Induced Degradation) characteristics. Complete color-sorting processes are also executed to ensure uniform visual appearance across all installed panels.
