Technical specifications, pricing, MOQ, and detailed documentation are available for all types of solar panels, lithium batteries, inverters, and containerized ESS products.
| Model | RSM690-132HC | RSM700-132HC | RSM710-132HC | RSM720-132HC |
| Rated Maximum Power at STC | 690W | 700W | 710W | 720W |
| Open Circuit Voltage(Voc/V) | 47.90 | 48.50 | 49.10 | 49.30 |
| Maximum Power Voltage(Vmp/V) | 40.00 | 40.40 | 40.80 | 41.20 |
| Short Circuit Current(Isc/A) | 18.25 | 18.31 | 18.37 | 18.43 |
| Maximum Power Current(Imp/A) | 17.26 | 17.33 | 17.41 | 17.48 |
| Module Efficiency | 22.2% | 22.5% | 22.9% | 23.2% |
| Standard Test Condition(STC) | Irradiance 1000w/m2, Cell Temperature 25 Centigrade, Air Mass 1.5 | |||
High Transmittance EVA, High GEL Content to provide good encapsulation and protect cells from vibration with longer durability.

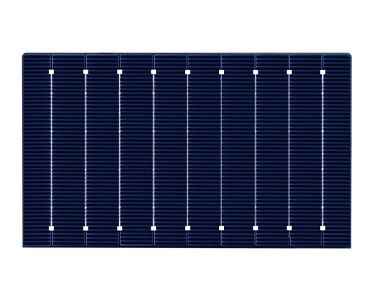

5BB, 6BB, 9BB available. 158.75mm, 166mm, 182mm, and 210mm high-efficiency cells with Anti-PID properties.

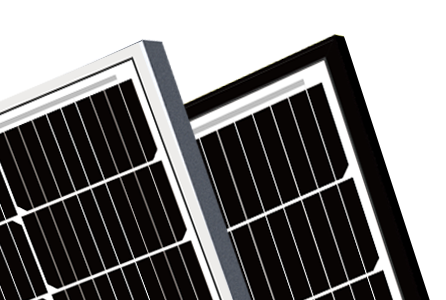

35mm and 40mm anodized aluminium alloy frame options available in black and silver colors.
IP68-rated waterproof junction box featuring an innovative full-glue-filled design with portrait or landscape cables.

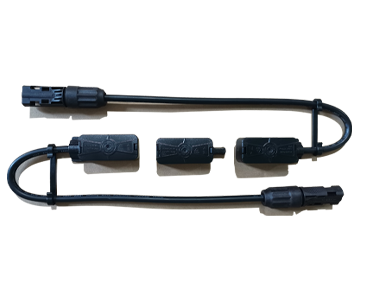

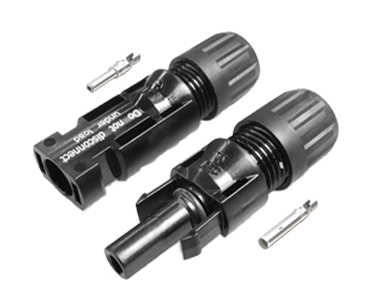

MC4 Compatible / MC4 EVO2 / TS4* options. 500N tensile strength with female/male configuration and fuse options.

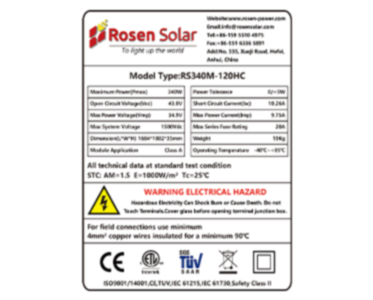

Waterproof customized label. OEM supported. Professional silver design. Warranty extends up to 25 years.

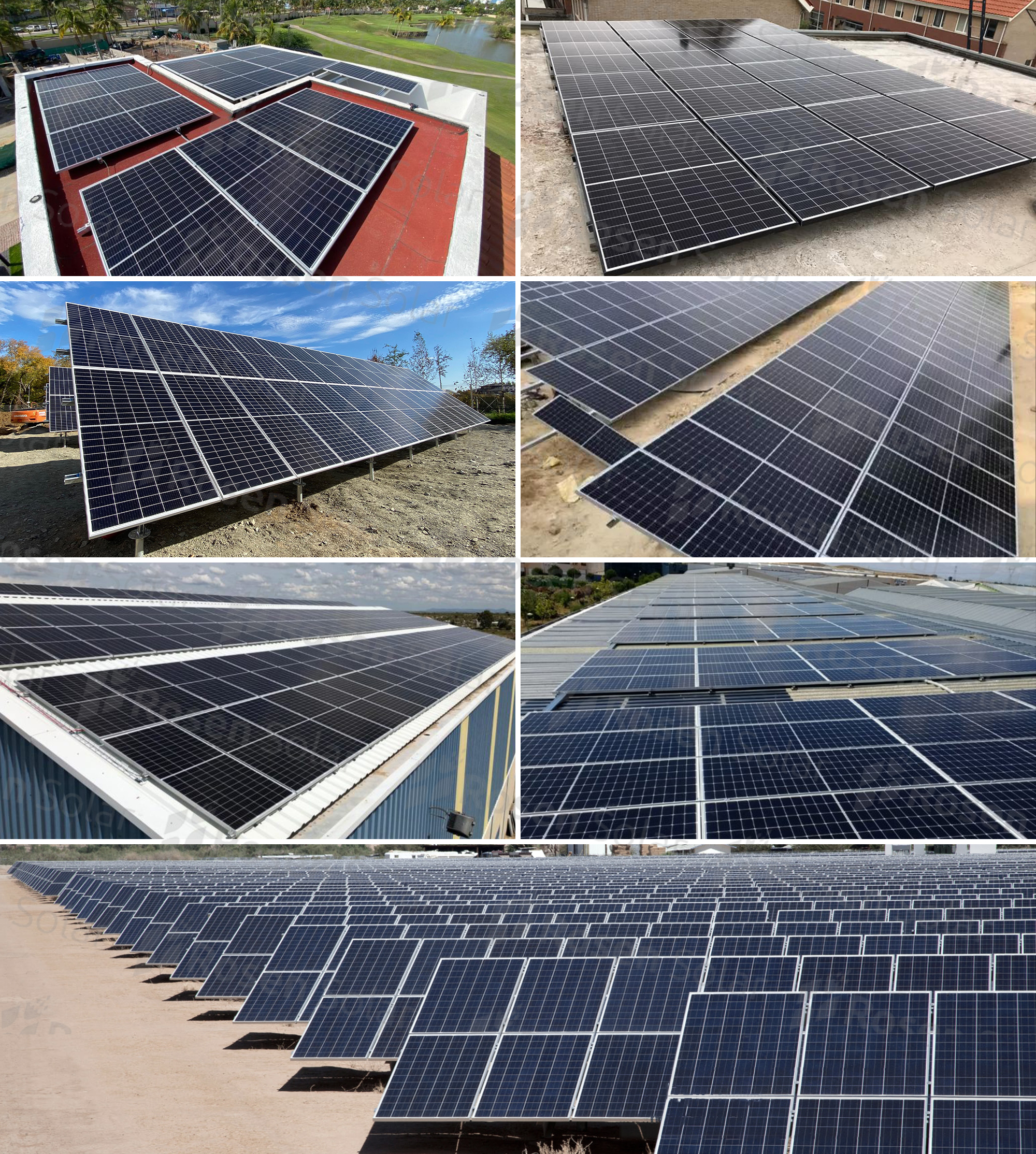

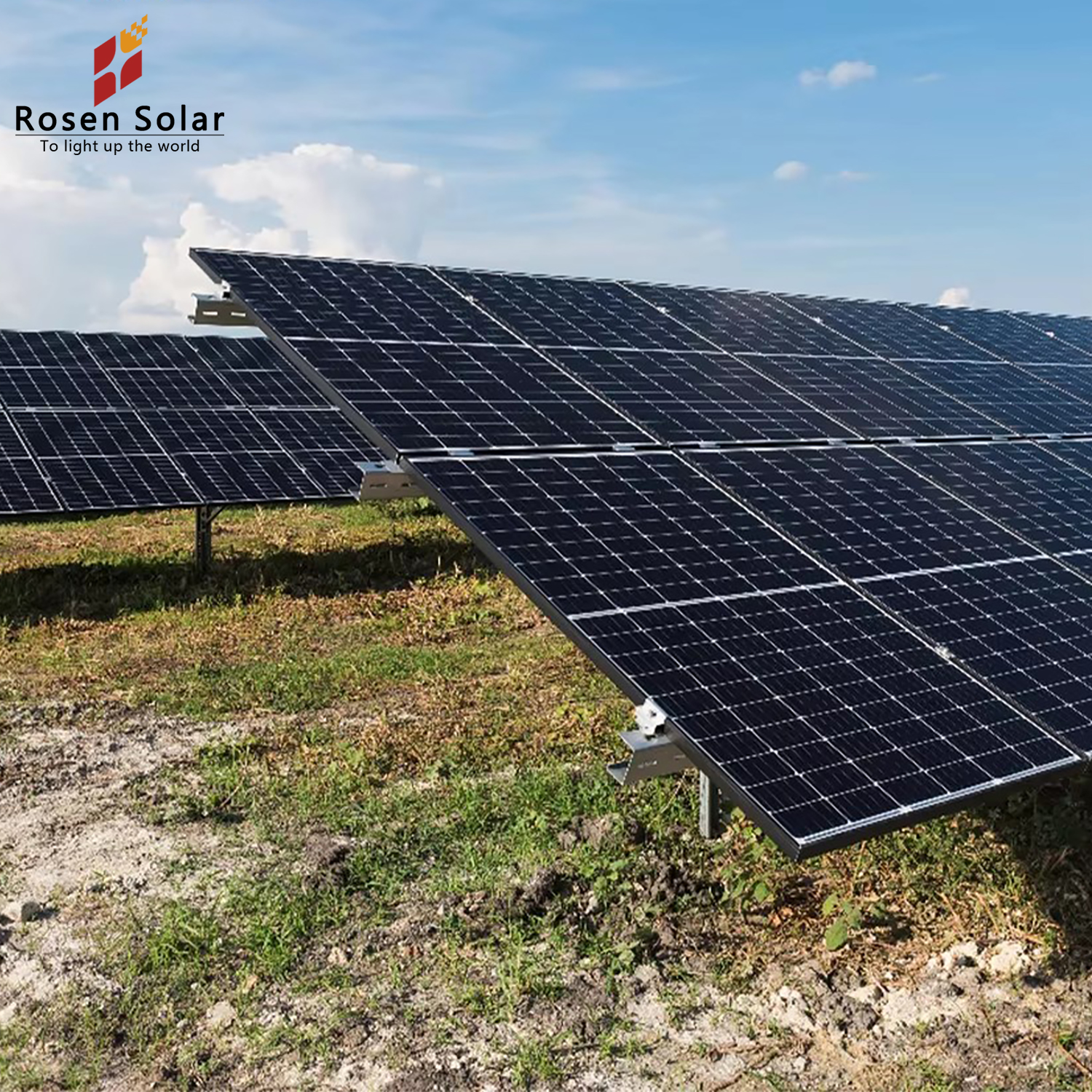

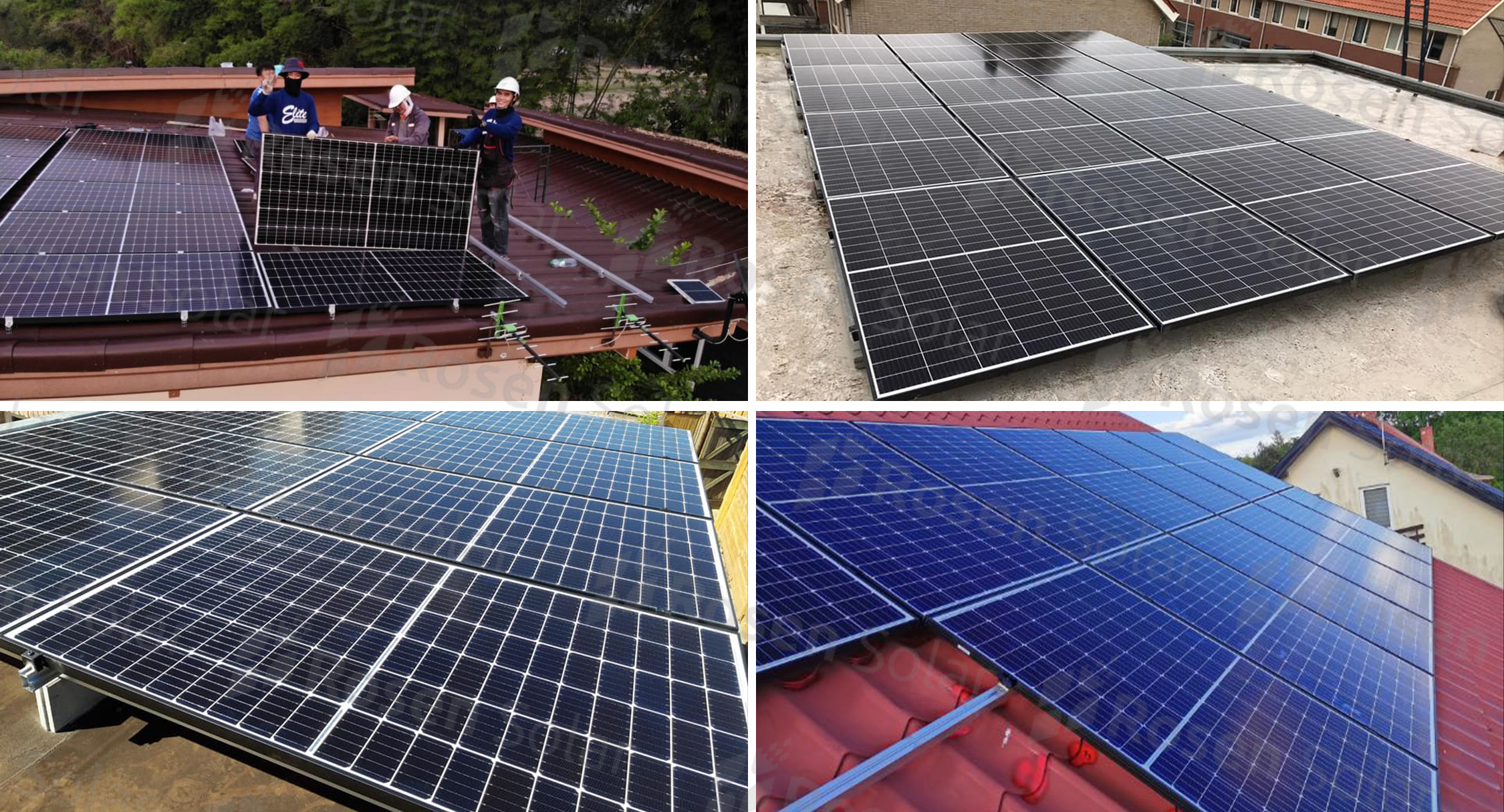

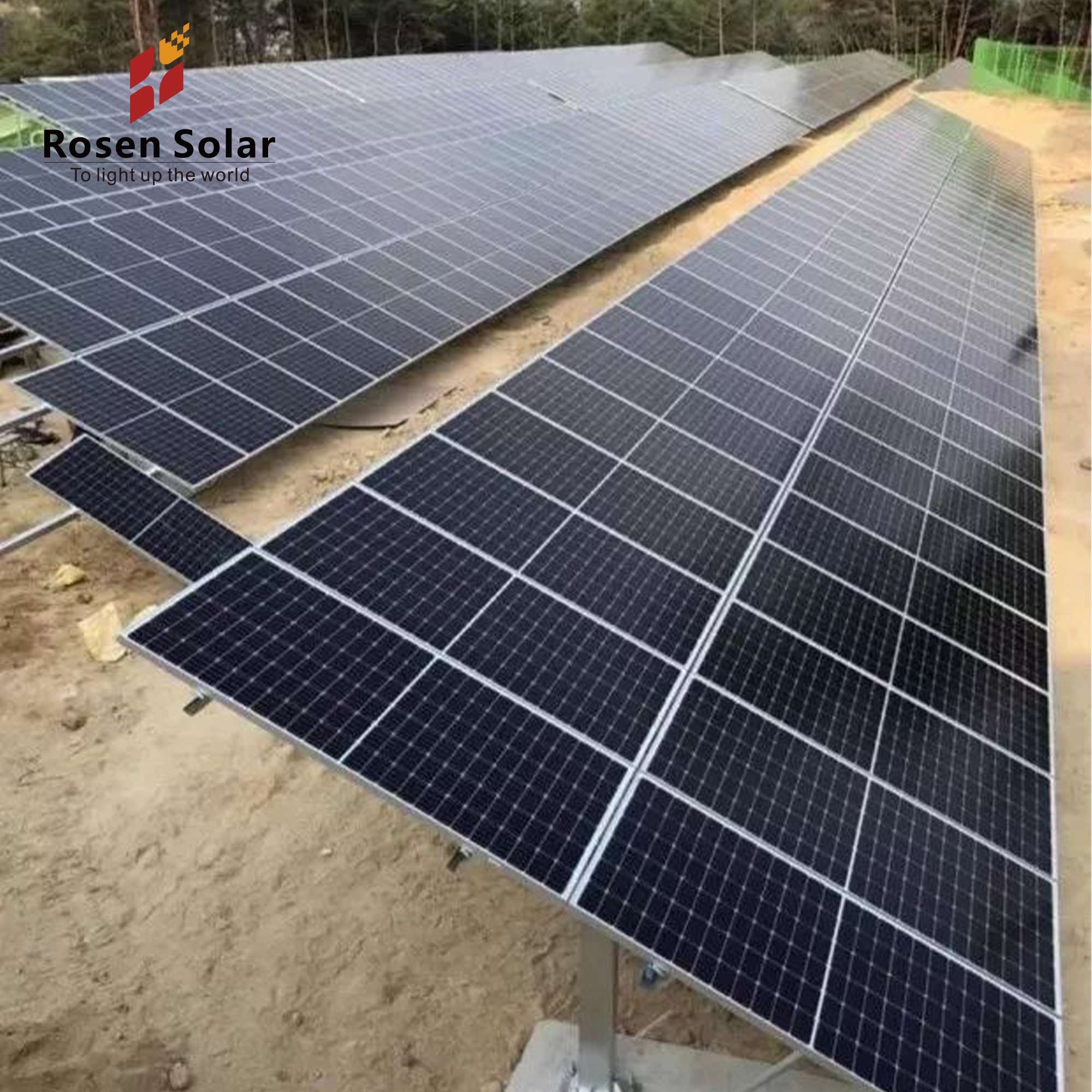

A photovoltaic system utilizes solar modules, with each module containing multiple solar cells that generate electricity. PV installations are typically ground-mounted, rooftop-mounted, wall-mounted, or floating. Mounts can be fixed or utilize solar tracking technology to follow the path of the sun.
A solar panel converts sunlight directly into electrical energy using photovoltaic (PV) cells. These cells release electrons when exposed to light, establishing a direct current (DC) flow. This power can supply electronic loads or be stored inside battery units for backup.
Yes. High-quality Tier 1 solar cells are utilized during production, and stock is maintained for various Tier 1 brands, including TW, JA, and others.

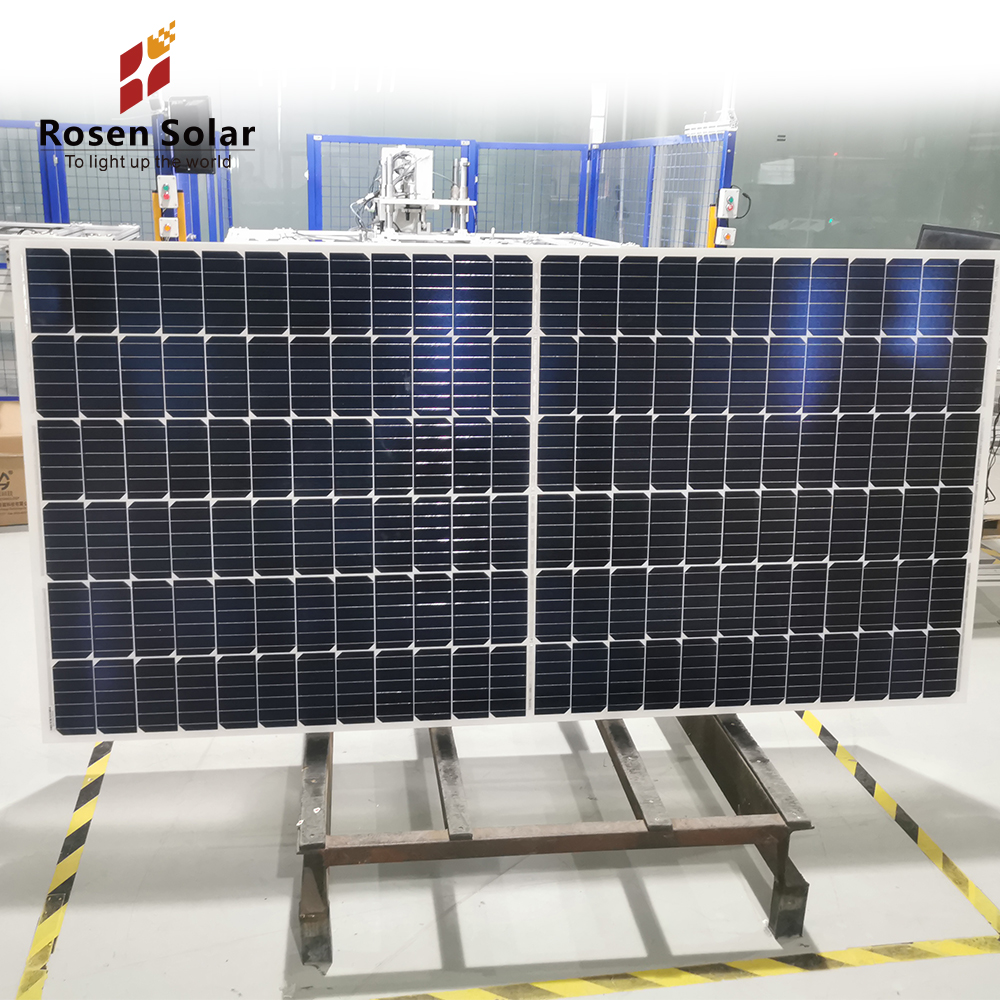

The main products in production are TOPCON N-type (Bifacial/double face, monofacial, and black versions). Utilizing cell sizes of 182mm and 210mm with up to 12bb, 18bb, and 20bb bus bars, these modules offer power options up to 700W and 800W. Other types like PERC, HJT, and BC remain in production as well.

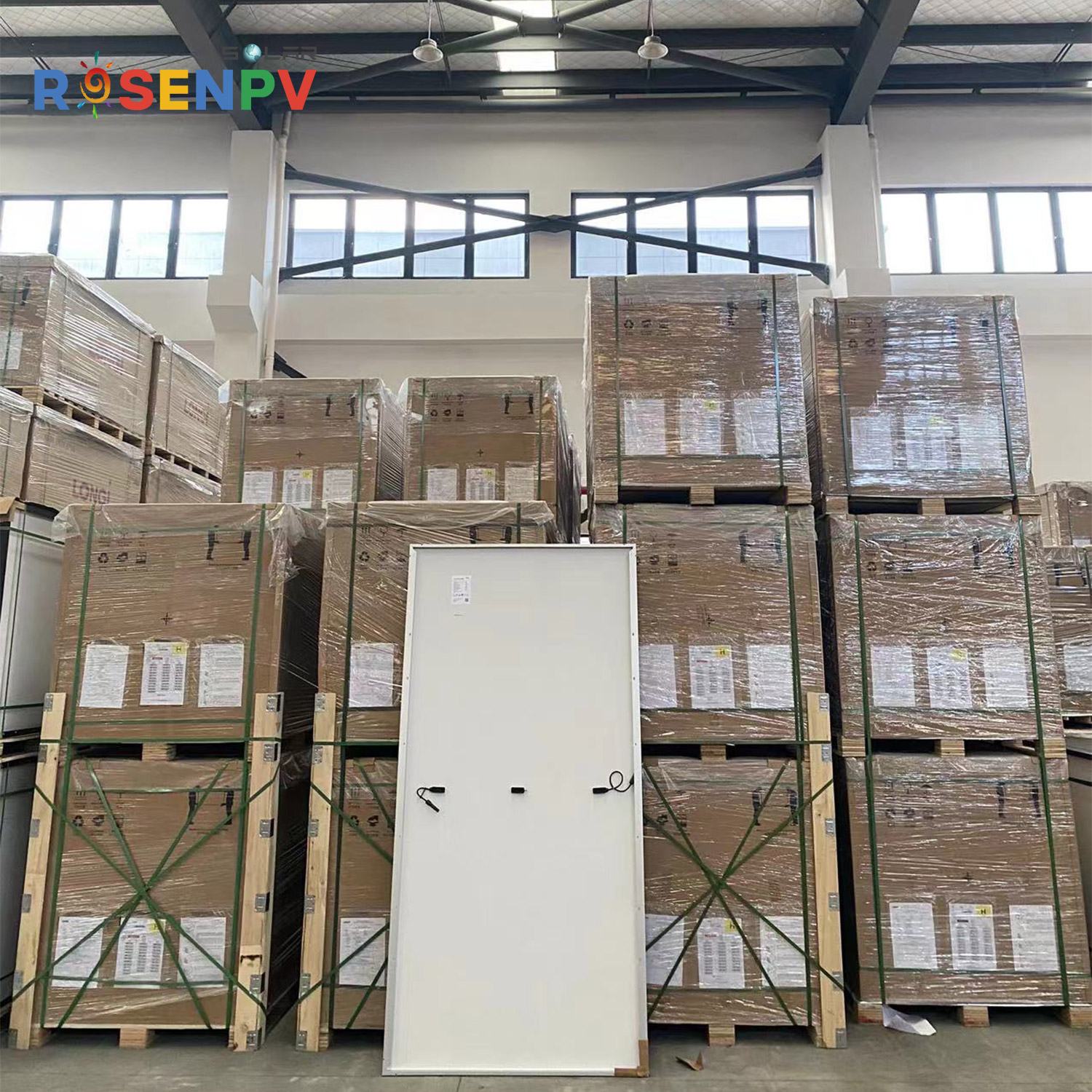

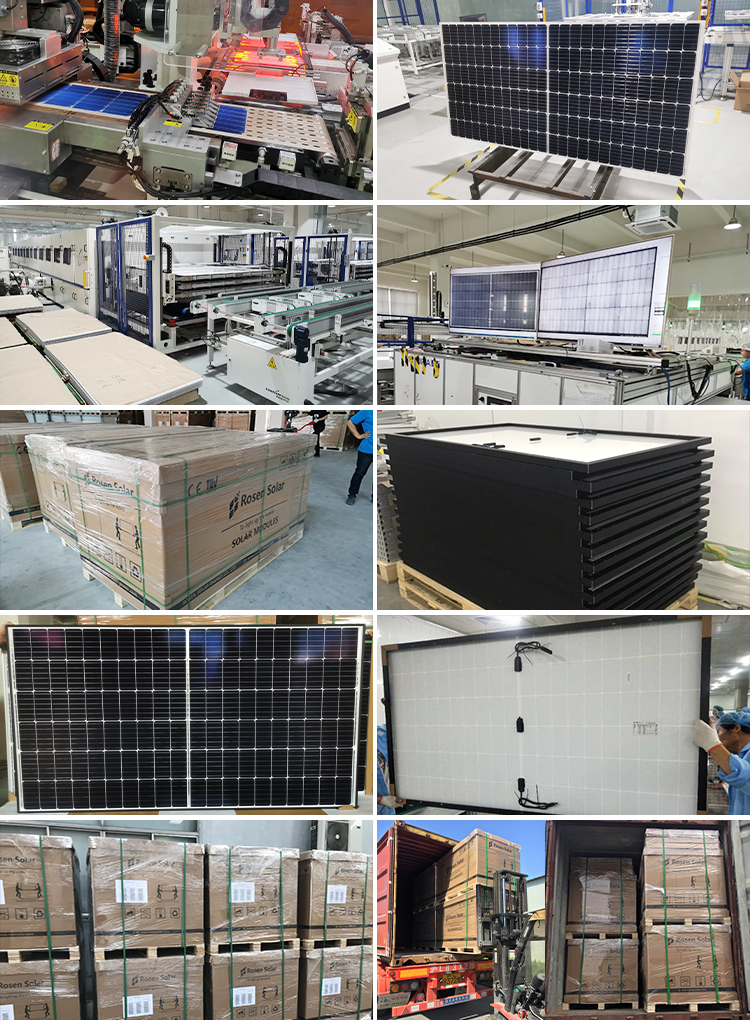

Normally, PV panels are packed on pallets inside protective cartons, with 31 pieces per package. For long-term ocean shipping or challenging logistics routes, custom wooden boxes can be provided.
A warranty spanning 25 to 30 years is provided. Full support for OEM and ODM customization is available, including customized backsheet labeling and branded carton packaging.
