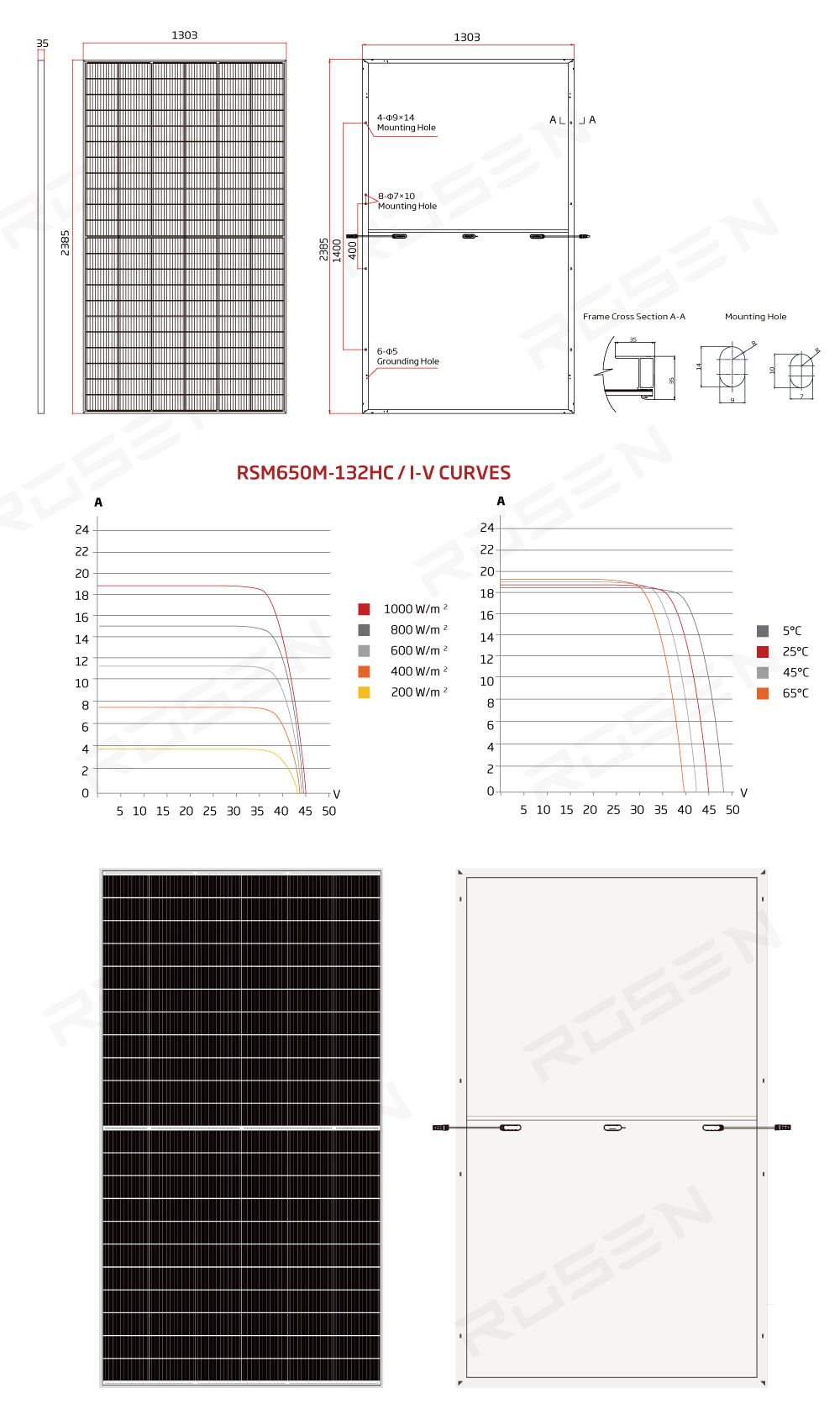

| Model | RSM650-132HC | RSM660-132HC | RSM680-132HC | RSM690-132HC | RSM700-132HC |
|---|---|---|---|---|---|
| Rated Maximum Power at STC | 650W | 660W | 680W | 690W | 700W |
| Open Circuit Voltage (Voc/V) | 45.0 | 45.4 | 46.2 | 46.8 | 47.2 |
| Maximum Power Voltage (Vmp/V) | 37.9 | 38.3 | 39.1 | 39.5 | 39.9 |
| Short Circuit Current (Isc/A) | 18.39 | 18.47 | 18.63 | 18.71 | 18.79 |
| Maximum Power Current (Imp/A) | 17.16 | 17.24 | 17.40 | 17.48 | 17.55 |
| Module Efficiency | 20.9% | 21.2% | 21.9% | 22.2% | 22.5% |
| ELECTRICAL DATA (NOCT) | |||||
|---|---|---|---|---|---|
| Parameter | RSM650-132HC | RSM660-132HC | RSM680-132HC | RSM690-132HC | RSM700-132HC |
| Maximum Power-PMAX (Wp) | 487 | 495 | 510 | 518 | 526 |
| Maximum Power Voltage (VMPP/V) | 35.5 | 35.9 | 36.7 | 37.1 | 37.5 |
| Maximum Power Current-IMPP (A) | 13.74 | 13.79 | 13.91 | 13.97 | 14.03 |
| Open Circuit Voltage-VOC (V) | 42.5 | 42.9 | 43.7 | 44.1 | 44.5 |
| Short Circuit Current-ISC (A) | 14.83 | 14.89 | 15.03 | 15.11 | 15.18 |

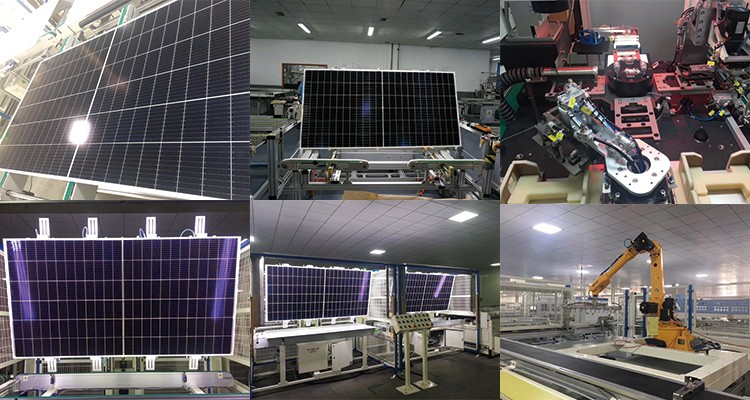

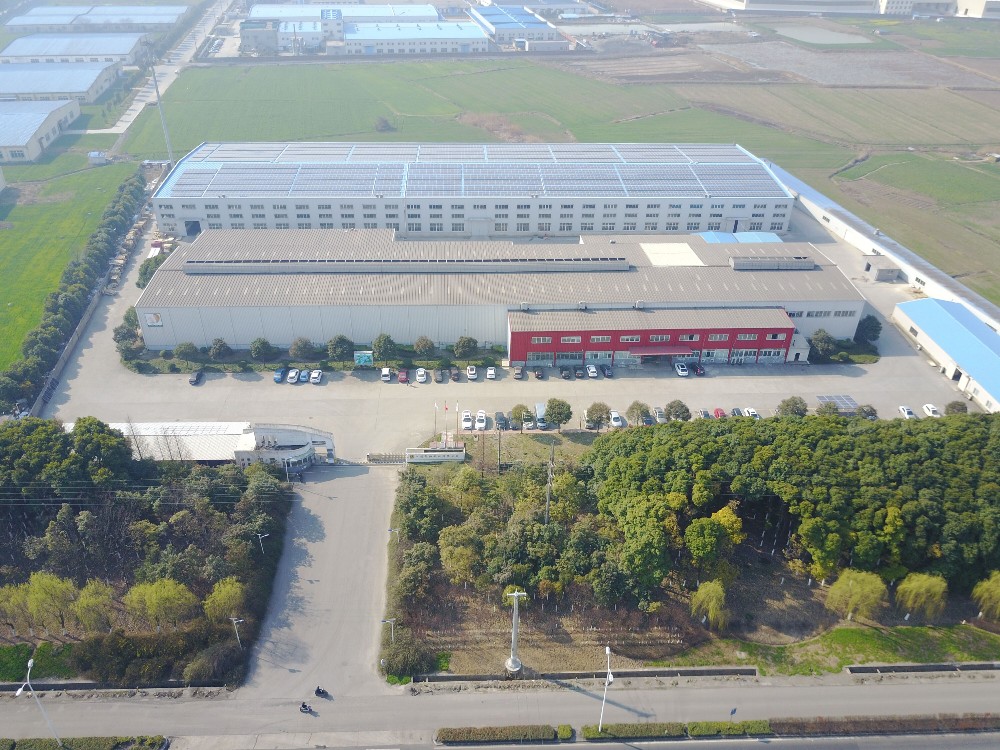

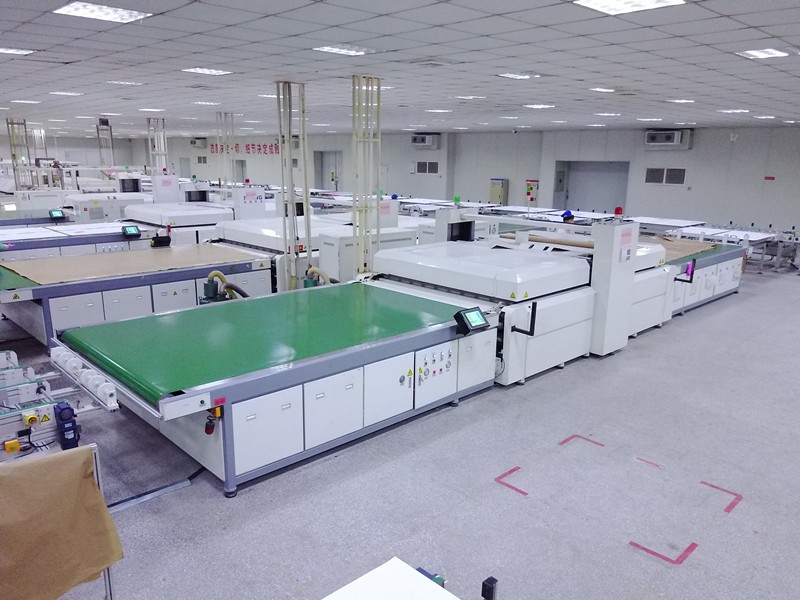

Our Factory

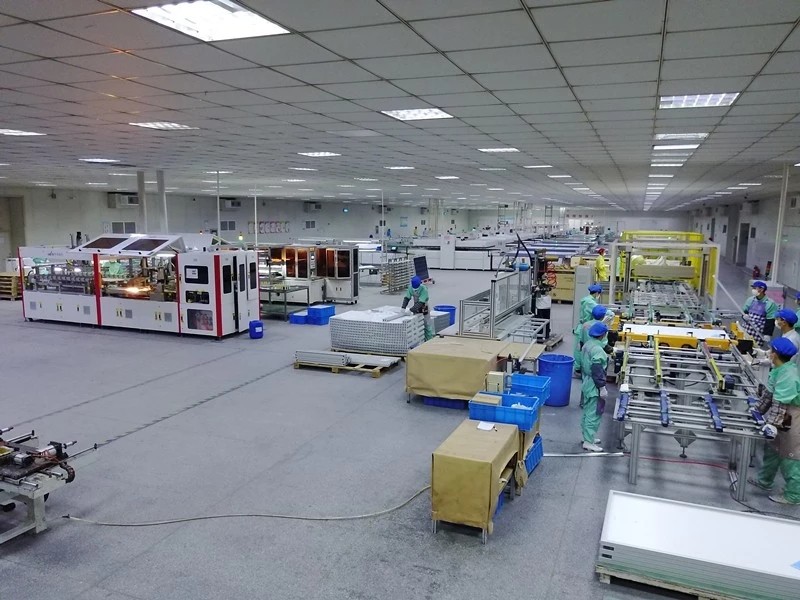

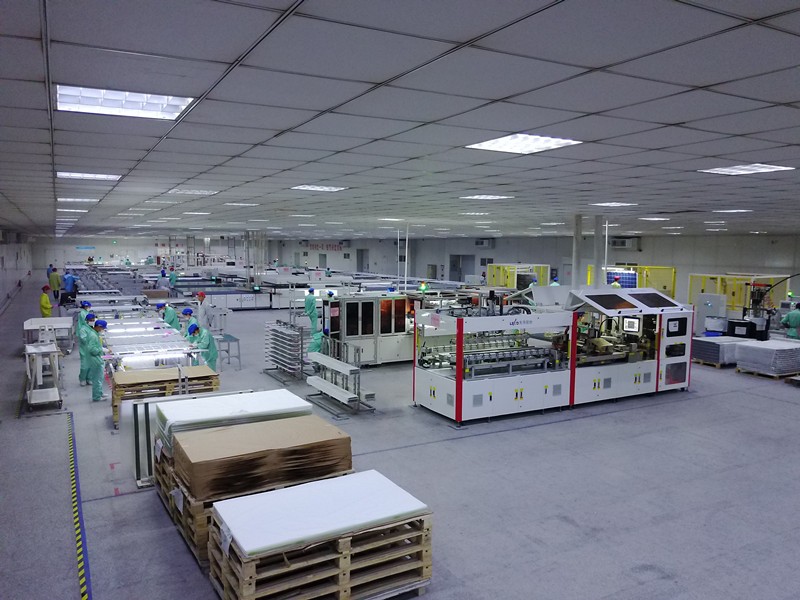

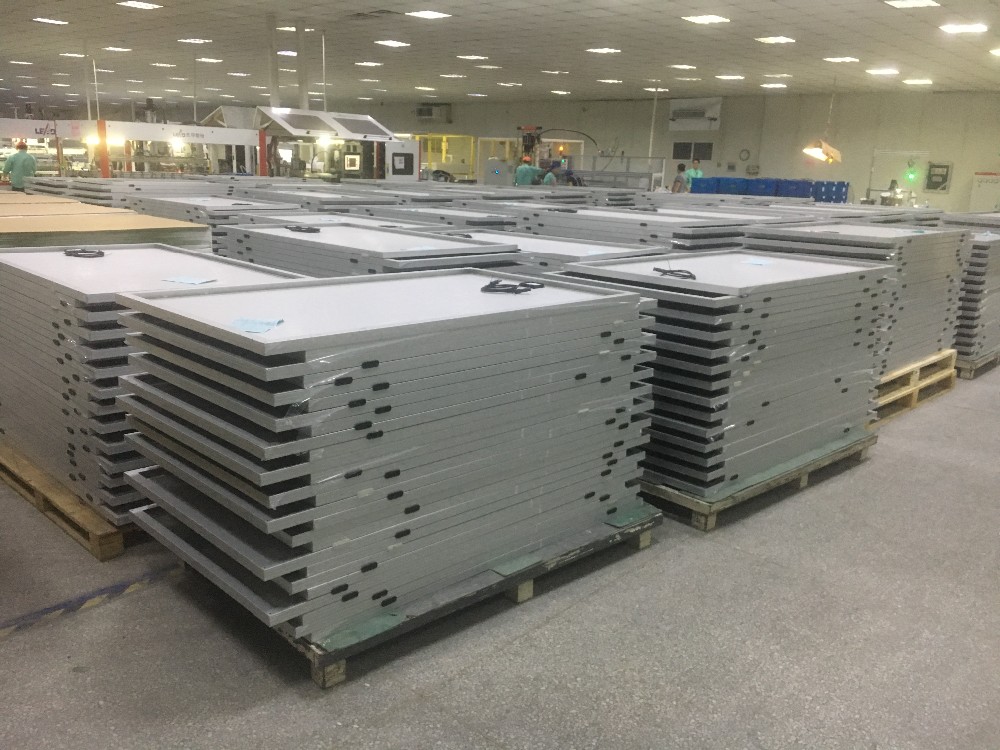

Our Workshop

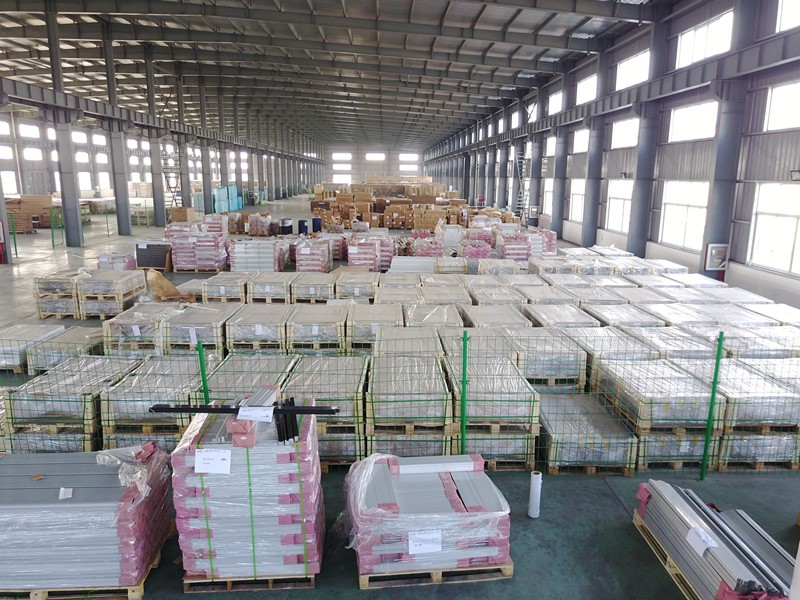

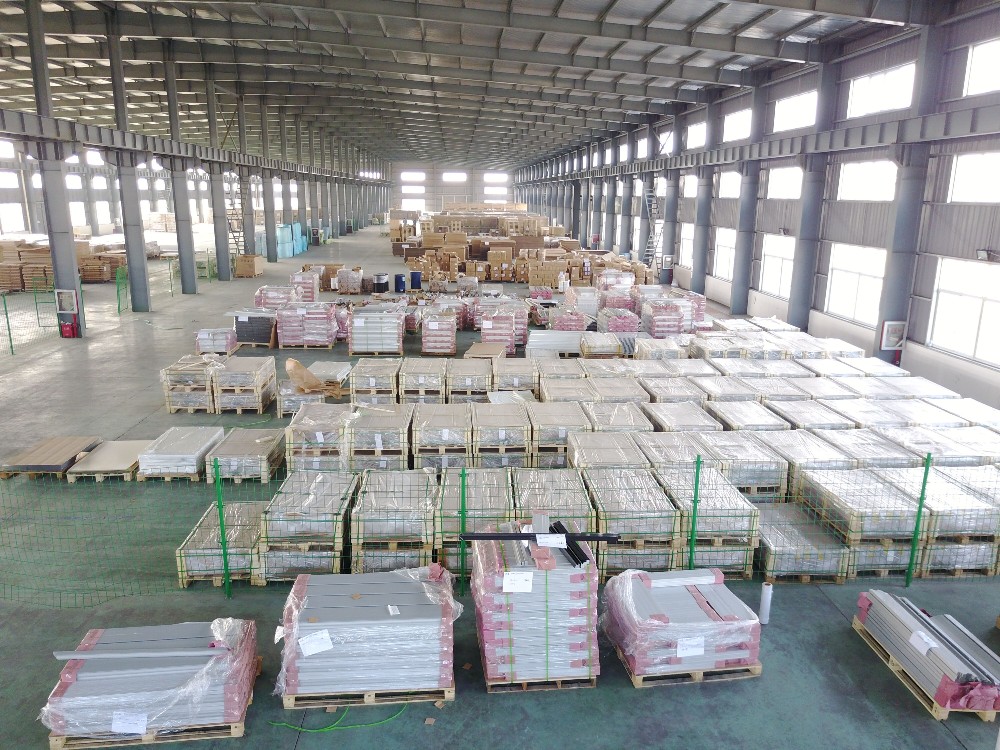

Our Warehouse
Our Team

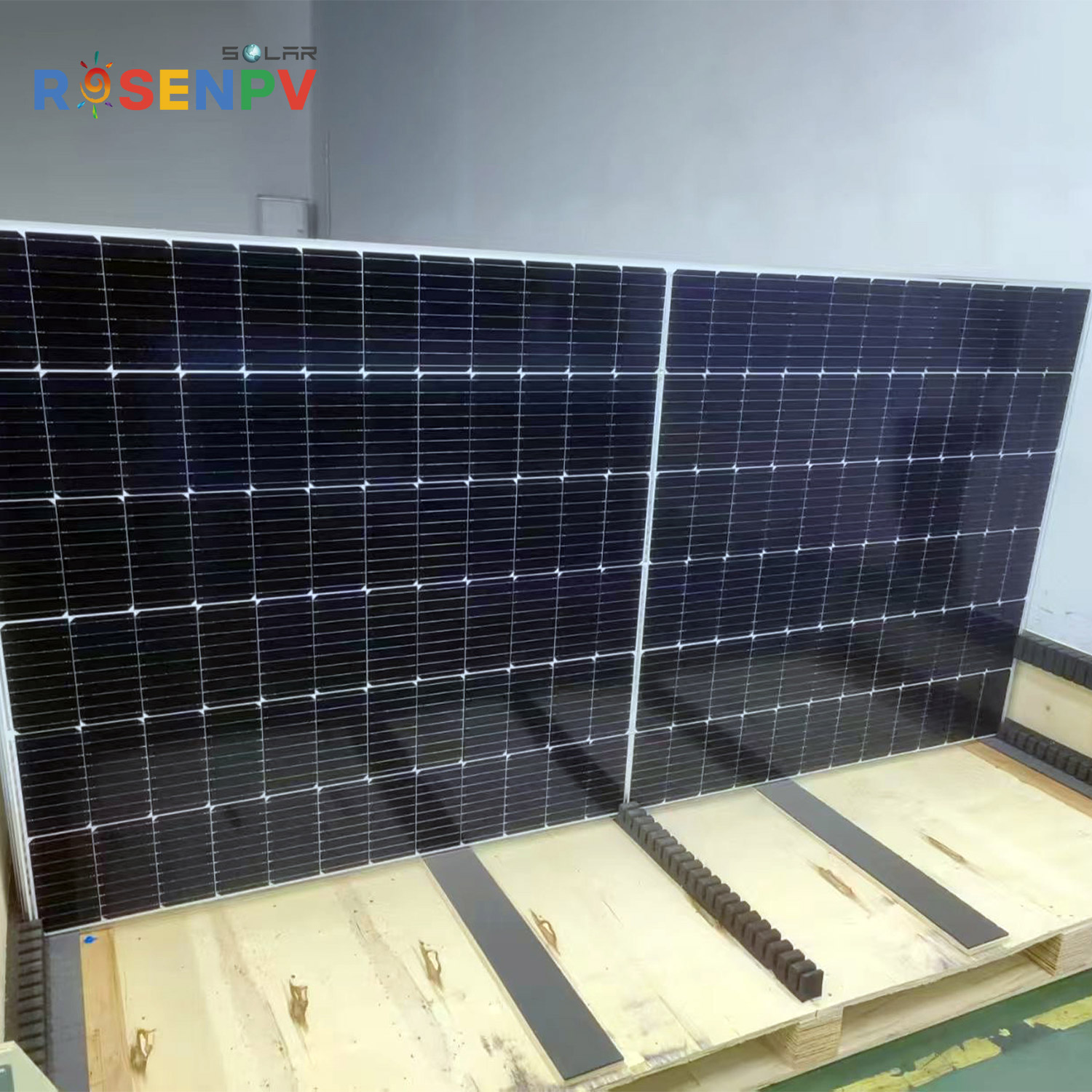

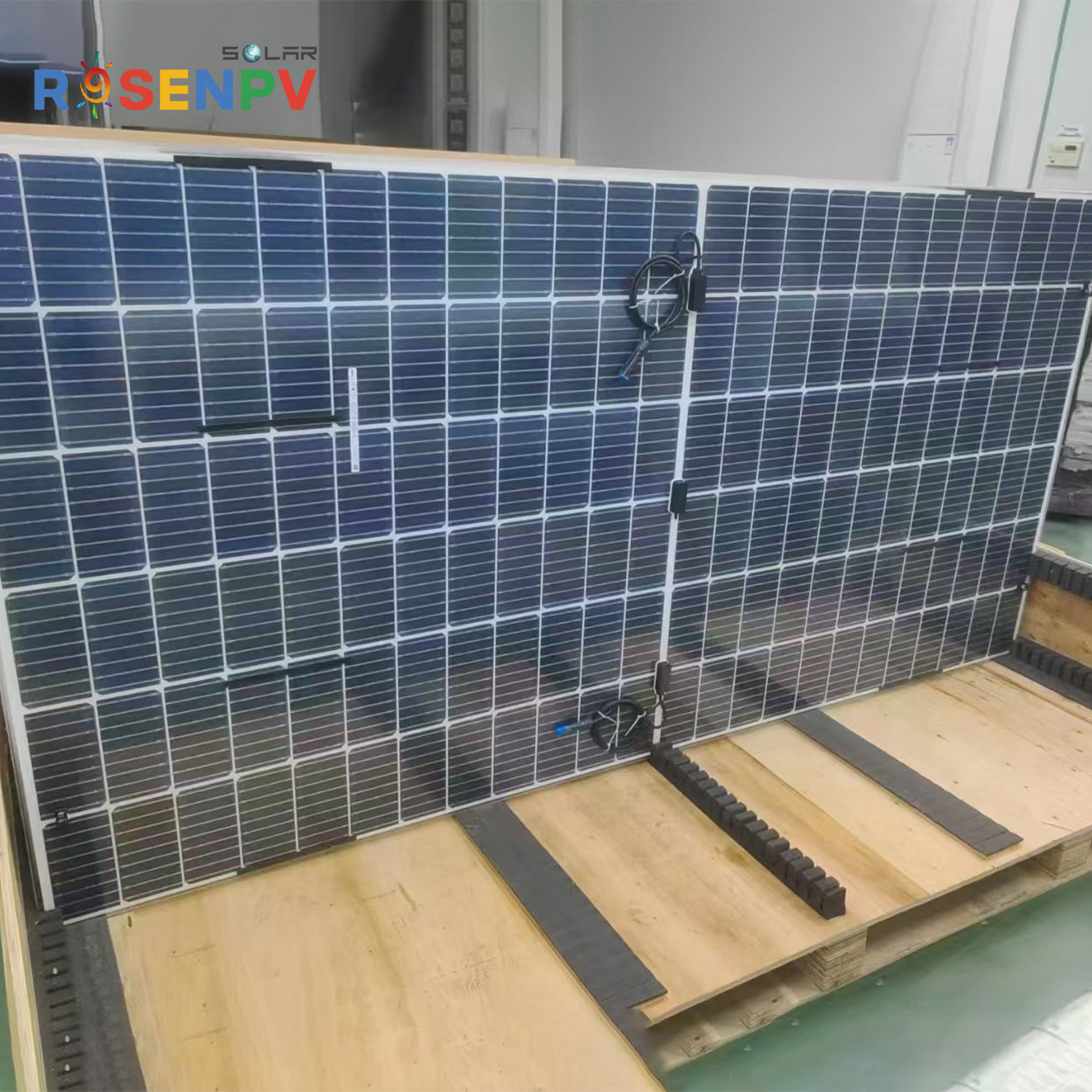

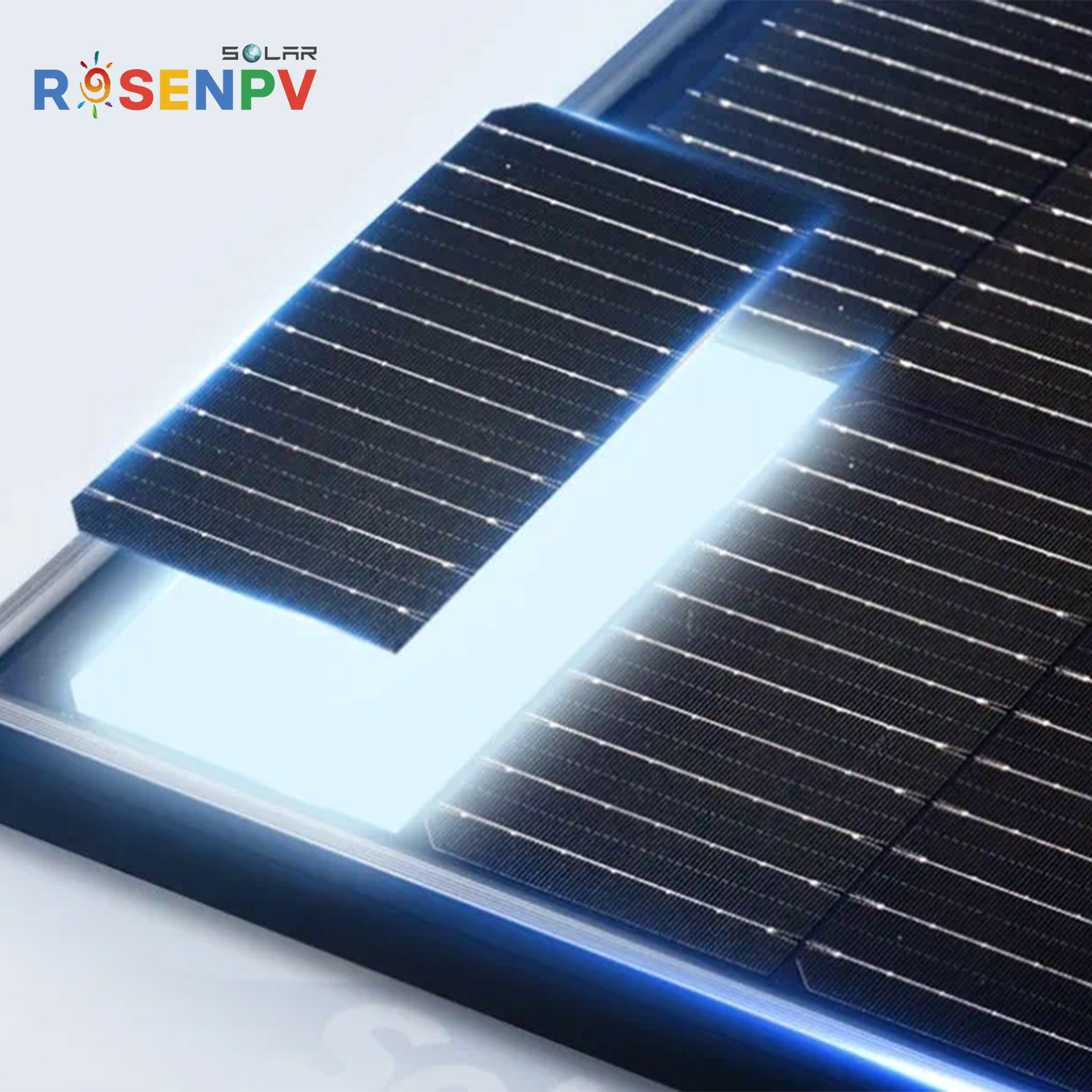

These ultra-high power panels use monocrystalline cells to maximize power density. By utilizing larger formats and advanced technologies like multi-busbar (MBB), they offer higher efficiency, reduce Bos (Balance of System) costs, lower installation effort, and generate higher yields in commercial and utility-scale projects.
STC (Standard Test Conditions) is a laboratory standard with an irradiance of 1000W/m² and cell temperature of 25°C. NOCT (Nominal Operating Cell Temperature) simulates real-world environments (800W/m² irradiance, 20°C ambient temperature, and wind speed of 1m/s), providing a closer estimate of day-to-day power generation.

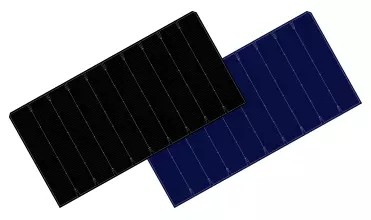

PID (Potential Induced Degradation) can significantly reduce a panel's power output over time. The anti-PID technology in these high-efficiency mono cells ensures minimal degradation and long-term durability, even in hot and humid climates.

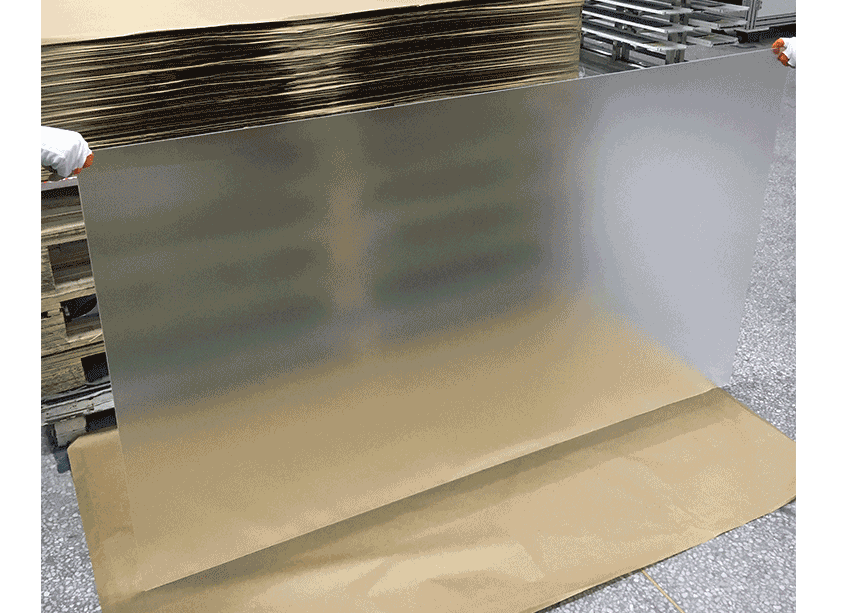

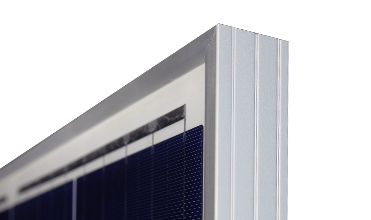

The panels are constructed with anti-reflective glass that enhances light transmission by 2% while featuring self-cleaning properties. The heavy-duty anodized aluminum frame (available in thicknesses up to 50mm) passes rigorous stress and load tests to withstand heavy snow and strong wind pressures.

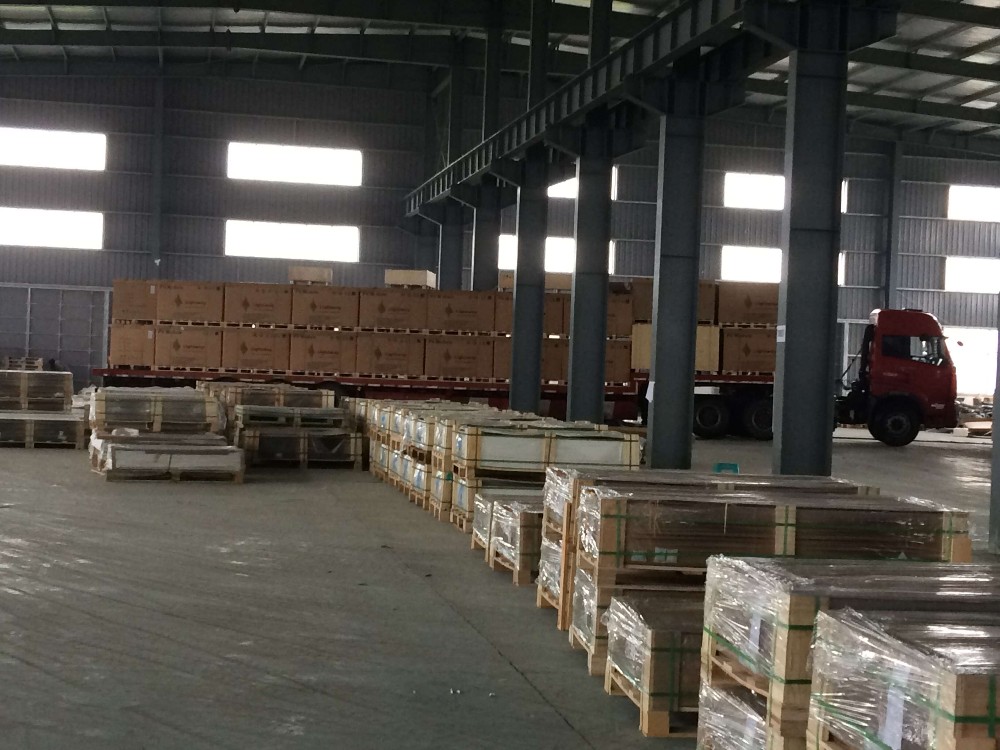

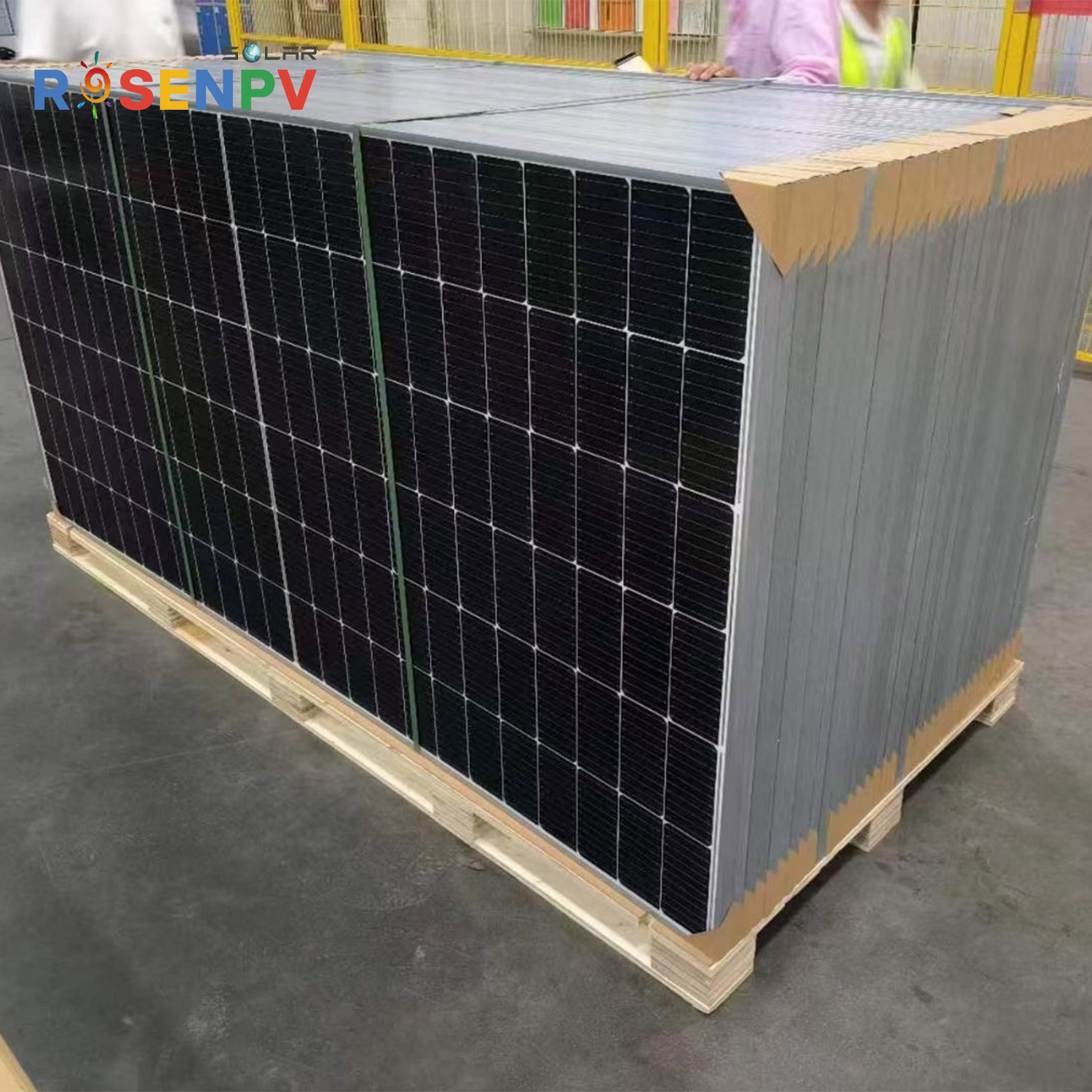

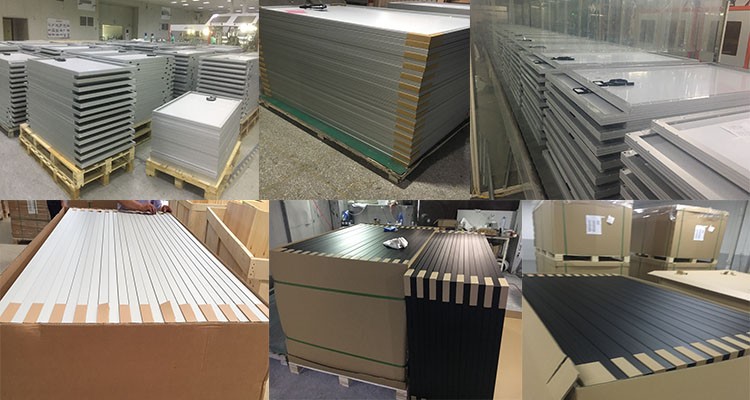

The panels are packed in standard carton-on-pallet packages or secure wooden boxes to prevent transit damage. The standard delivery window is 5 to 7 days, allowing for prompt on-site setup and installation.
