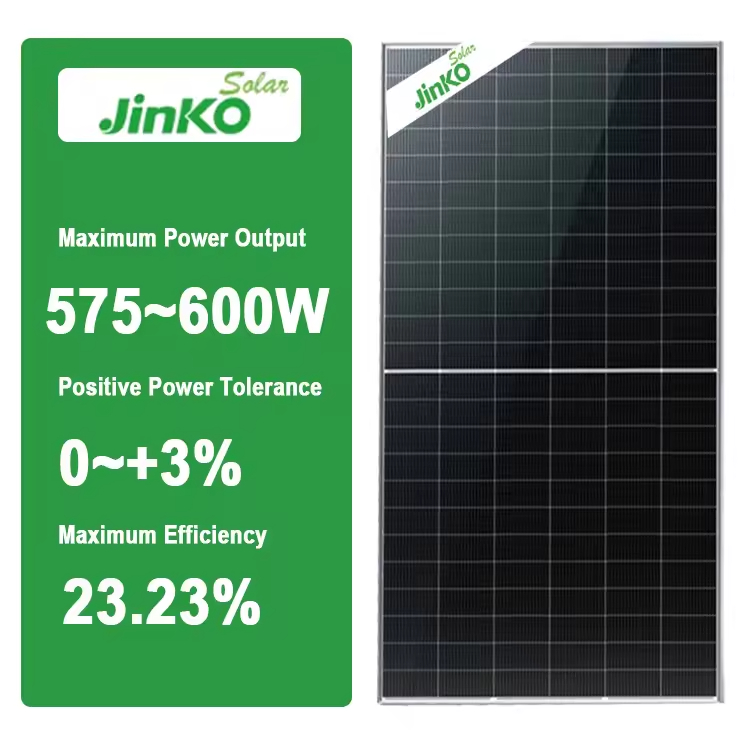

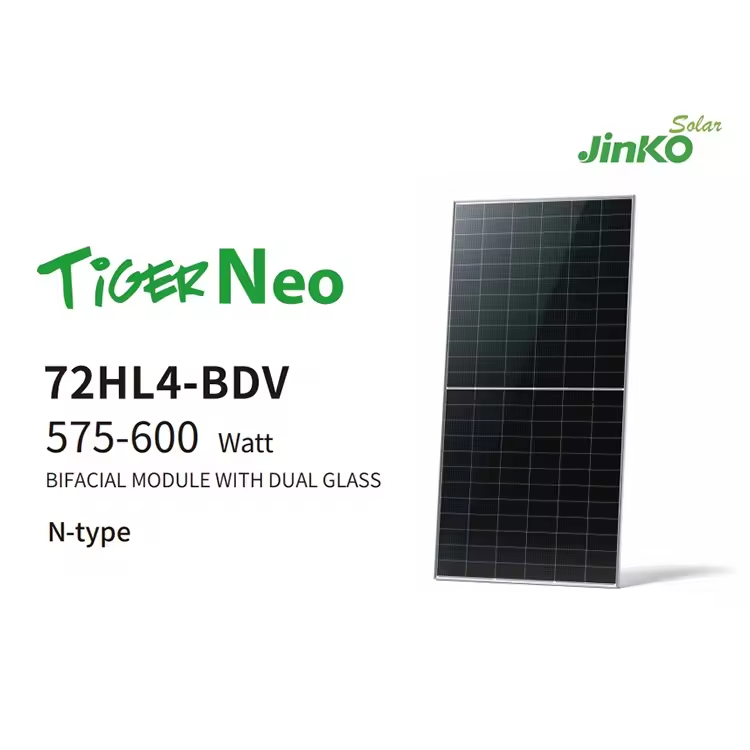

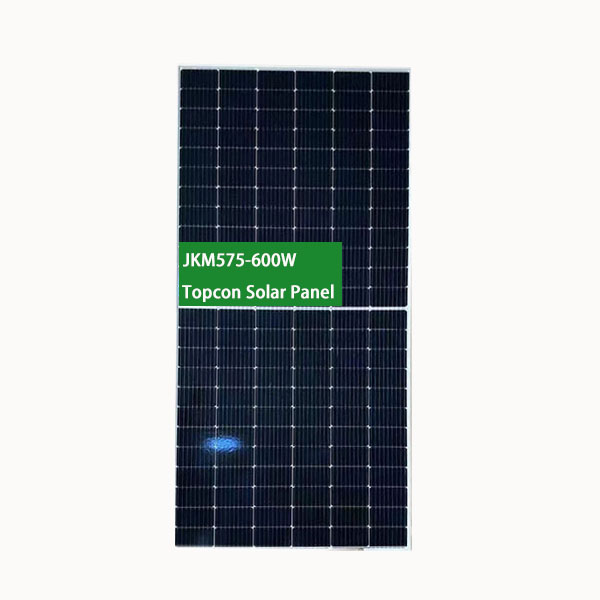

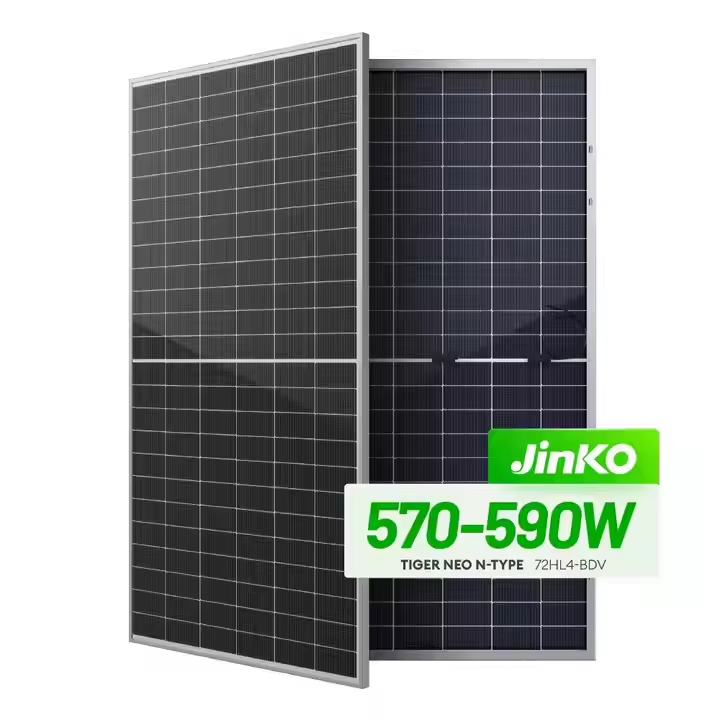

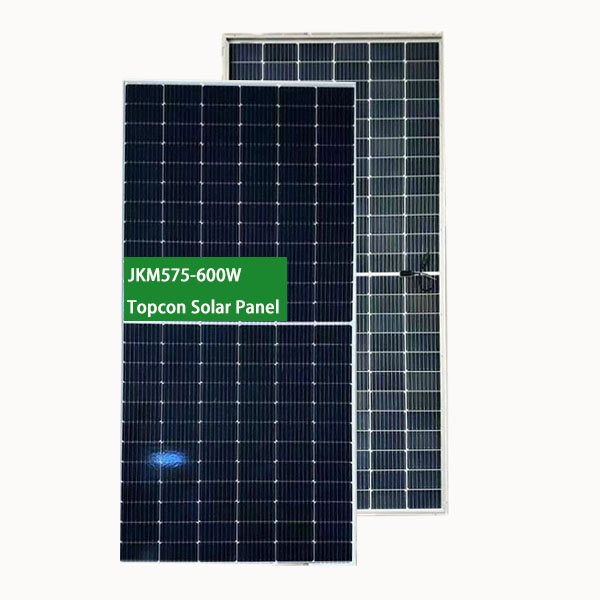

Wholesale High Quality 72HL4-BDV 575W-600W 580W 585W 590W 595W 600W Topcon Jinko Bifacial Dual Glass Solar Panel for Business

Product Description

Product Description

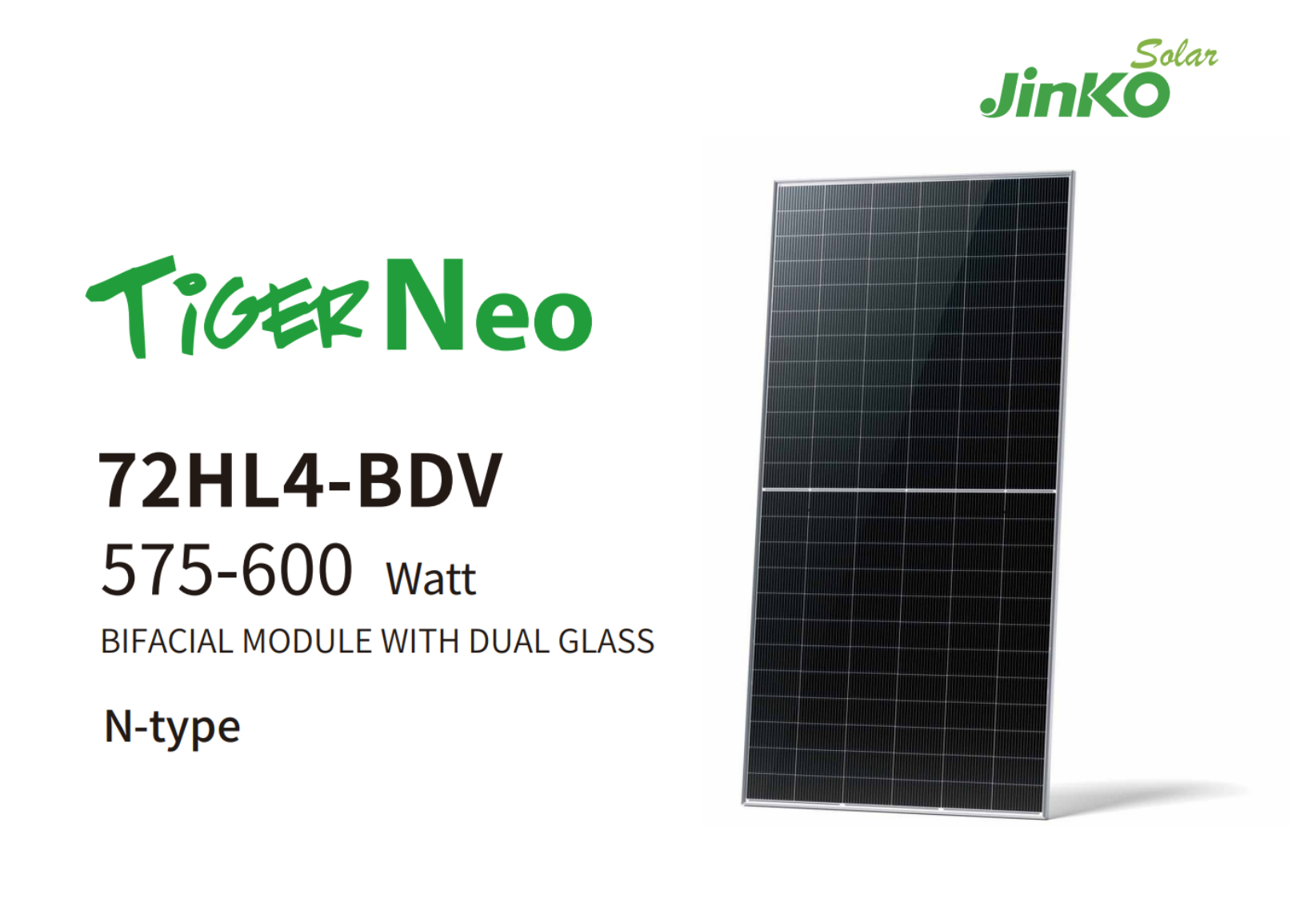

Product Layout
Solar Panel Front Detail

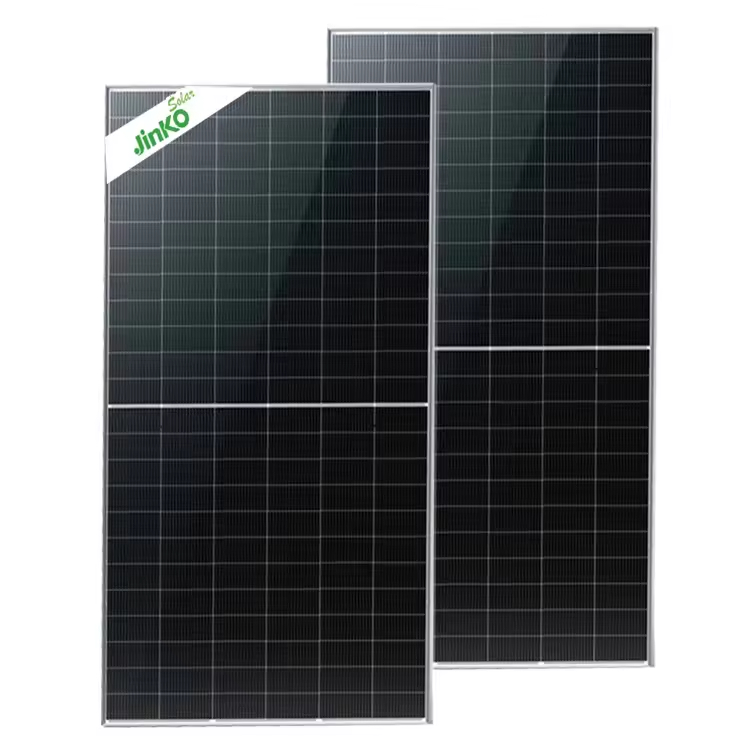

Solar Panel Back Detail
Technology Analysis
Performance Features
Application Scenario
Specification

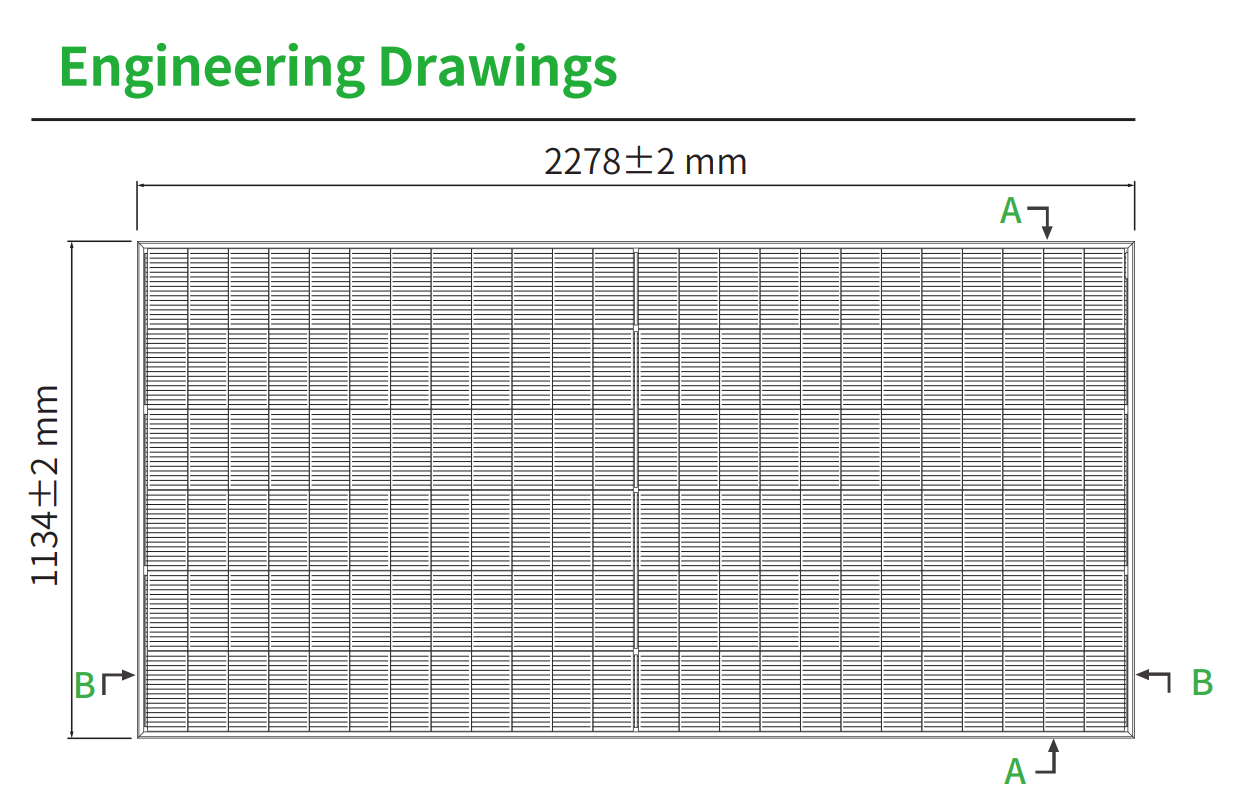

Specification Outline 1

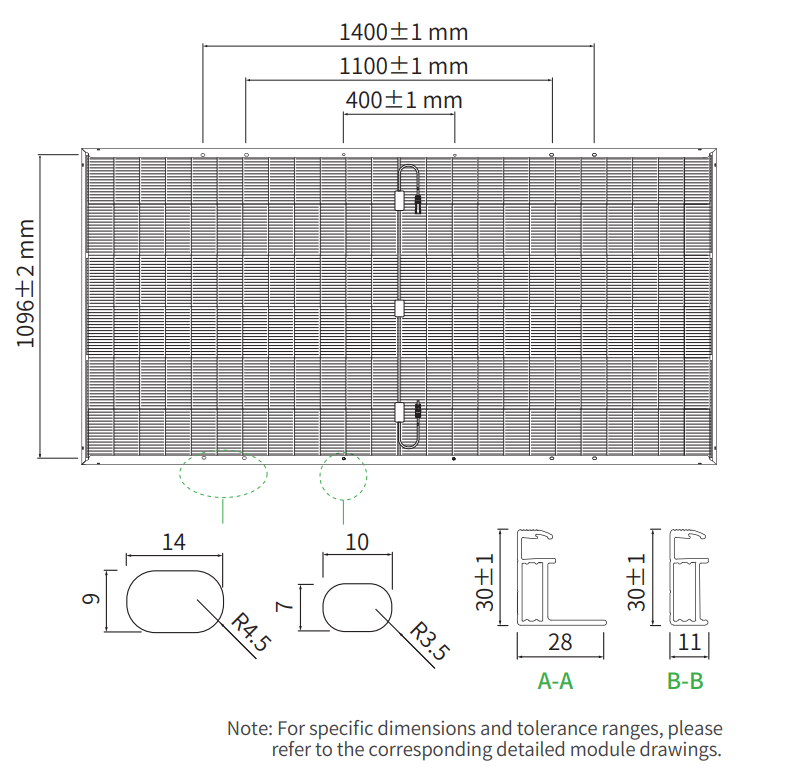

Specification Outline 2

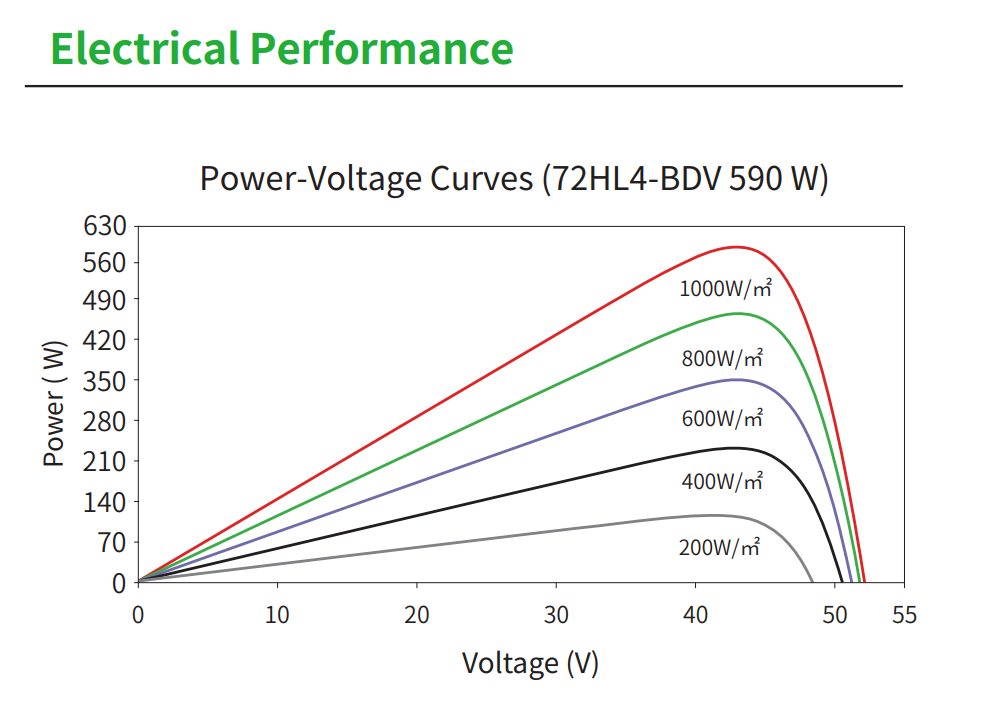

Curve Chart 1

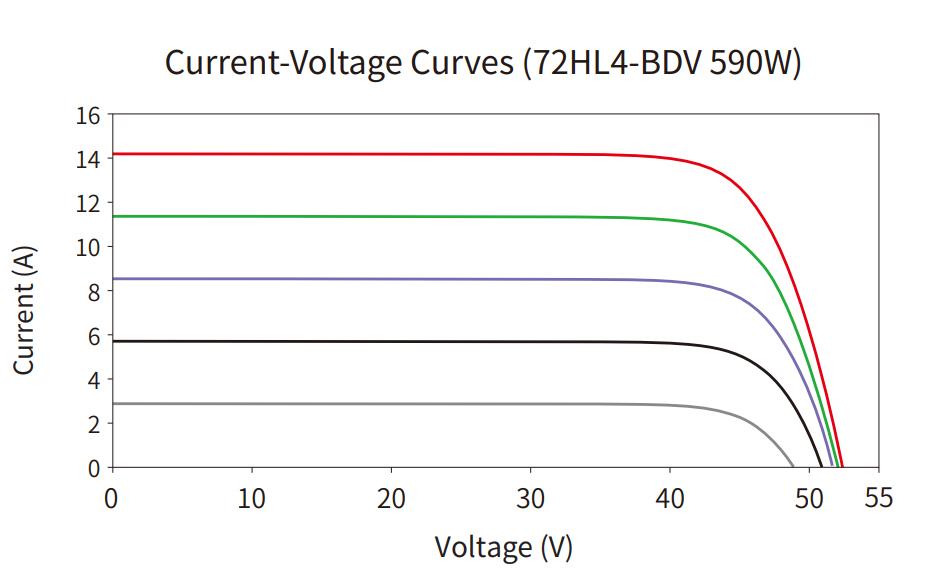

Curve Chart 2
Mechanical Characteristics
Cell Type N -type Mono-crystalline
No. of cells 144 (72×2)
Dimensions 2278×1134×30 mm
Weight 31.0 kg
Front Glass 2.0mm, Anti-reflection Coating, High Transmission, Low Iron, Tempered Glass
Frame Anodized Aluminium Alloy
Junction Box IP68 Rated
Protection Class Class II
IEC Fire Type Class C
Connector Type JK03M/MC4/Others
Output Cables 4.0 mm2(+): 400 mm , (-): 200 mm or Customized Length
Packaging Configuration
Pallet Dimensions 2338×1140×1251 mm
Packing detail (Two pallets=One stack) 36 pcs/pallets, 72 pcs/stack,720 pcs/ 40'HQ Container
Specifications (STC)
Maximum Power – Pmax [Wp] 575 580 585 590 595 600
Maximum Power Voltage – Vmp [V] 43.73 43.88 44.02 44.17 44.31 44.45
Maximum Power Current – Imp [A] 13.15 13.22 13.29 13.36 13.43 13.50
Open-circuit Voltage – Voc [V] 52.30 52.50 52.70 52.90 53.10 53.30
Short-circuit Current – Isc [A] 13.89 13.95 14.01 14.07 14.13 14.19
Module Efficiency STC [%] 22.26 22.45 22.65 22.84 23.03 23.23
Power Tolerance 0 ~ + 3 %
Temperature Coefficients of Pmax -0.29 %/°C
Temperature Coefficients of Voc -0.25 %/°C
Temperature Coefficients of Isc 0.045 %/°C
Specifications (BNPI)
Maximum Power - Pmax [Wp] 633 638 644 649 655 660
Maximum Power Voltage - Vmp [V] 43.84 44.00 44.17 44.33 44.50 44.66
Maximum Power Current - Imp [A] 14.44 14.50 15.48 14.64 14.72 14.78
Open-circuit Voltage - Voc [V] 52.33 52.53 52.73 52.93 53.13 53.33
Short-circuit Current - Isc [A] 15.19 15.25 15.31 15.37 15.43 15.49
Application Conditions
Operating Temperature -40 °C ~ +70°C
Maximum System Voltage 1000/1500 VDC (IEC)
Maximum Series Fuse Rating 25 A
Recommend Products
Recommend Product 1
Recommend Product 2
Recommend Product 3
Recommend Product 4
Recommend Product 5
Recommend Product 6
Recommend Product 7
Recommend Product 8
Company Profile
Company Showcase 1
Company Showcase 2
Company Showcase 3
Company Showcase 4
Company Showcase 5
Product packaging
Packaging Box Detail
Pallet Packaging Detail
FAQ
Q What are photovoltaic panels?
Photovoltaic (PV) panels are devices that convert light, especially sunlight, into electricity using photovoltaic cells. They are key components in solar energy systems and are widely used for generating renewable and sustainable power.
Q How do photovoltaic panels work?
PV panels work by allowing photons from sunlight to knock electrons free from atoms in the panel's silicon-based cells. This creates a flow of electricity that can be used to power homes, businesses, or stored in batteries for later use.
Q What are the benefits of using photovoltaic panels?
PV panels offer numerous benefits, including reducing reliance on fossil fuels, lowering energy costs, and decreasing greenhouse gas emissions. They also require minimal maintenance and have a long lifespan.
Q How do I choose the right photovoltaic panel for my needs?
Choosing the right PV panel depends on several factors, including your energy needs, budget, space availability, and climate. It's important to consult with a professional to assess your specific situation and recommend the best panel type and size for your needs.
Q How much energy can photovoltaic panels produce?
The amount of energy a PV panel can produce depends on several factors, including its size, efficiency, and the amount of sunlight it receives. In general, a typical residential PV system can produce enough energy to offset a significant portion of a household's electricity use.
Q Can photovoltaic panels be used in cloudy or rainy weather?
Yes, PV panels can still produce electricity on cloudy or rainy days, although they will produce less energy than on sunny days. The panels can still capture diffuse sunlight and some light can pass through clouds and be converted into electricity.
