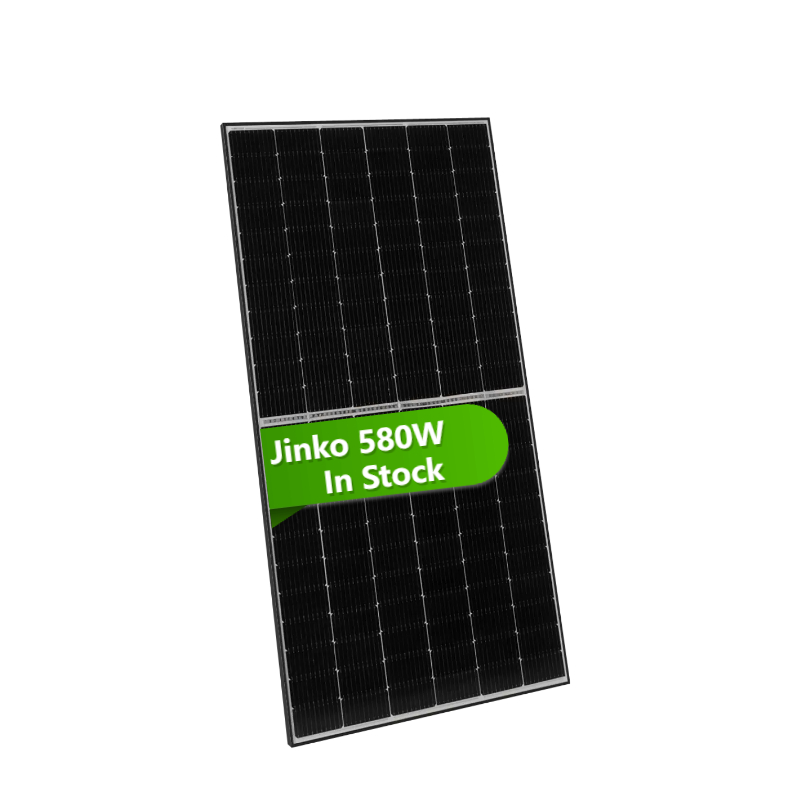

China Supplier Mono Solar Panels Jinko N Type A-Class 30 Years Warranty Panneau Solaire Jinko Solar 580 Watts

Send Inquiry

Product Description

Products Description

Specification

Module Type	JKM 570N-72HL4-V	JKM575N-72HL4-V	JKM580N-72HL4-V	JKM585N-72HL4-V	JKM590N-72HL4-V
Maximum Power (Pmax)	570Wp	575Wp	580Wp	585Wp	590Wp
Maximum Power Voltage (Vmp)	42.99V	43.17V	43.35V	43.53V	43.71V
Maximum Power Current (Imp)	13.26A	13.32A	13.38A	13.44A	13.50A
Open-circuit Voltage (Voc)	51.99V	52.15V	52.31V	52.47V	52.63V
Short-circuit Current (Isc)	13.89A	13.95A	14.01A	14.07A	14.13A
Module Efficiency STC (%)	22.07%	22.26%	22.45%	22.65%	22.84%
Operating Temperature (°C)	-40°C~+85°C
Maximum system voltage	1000/1500VDC (IEC)
Maximum series fuse rating	25A
Power tolerance	0~+3%
Temperature coefficients of Pmax	-0.29%/°C
Temperature coefficients of Voc	-0.25%/°C
Temperature coefficients of Isc	0.045%/°C
Nominal operating cell temperature (NOCT)	45±2°C

Key Features

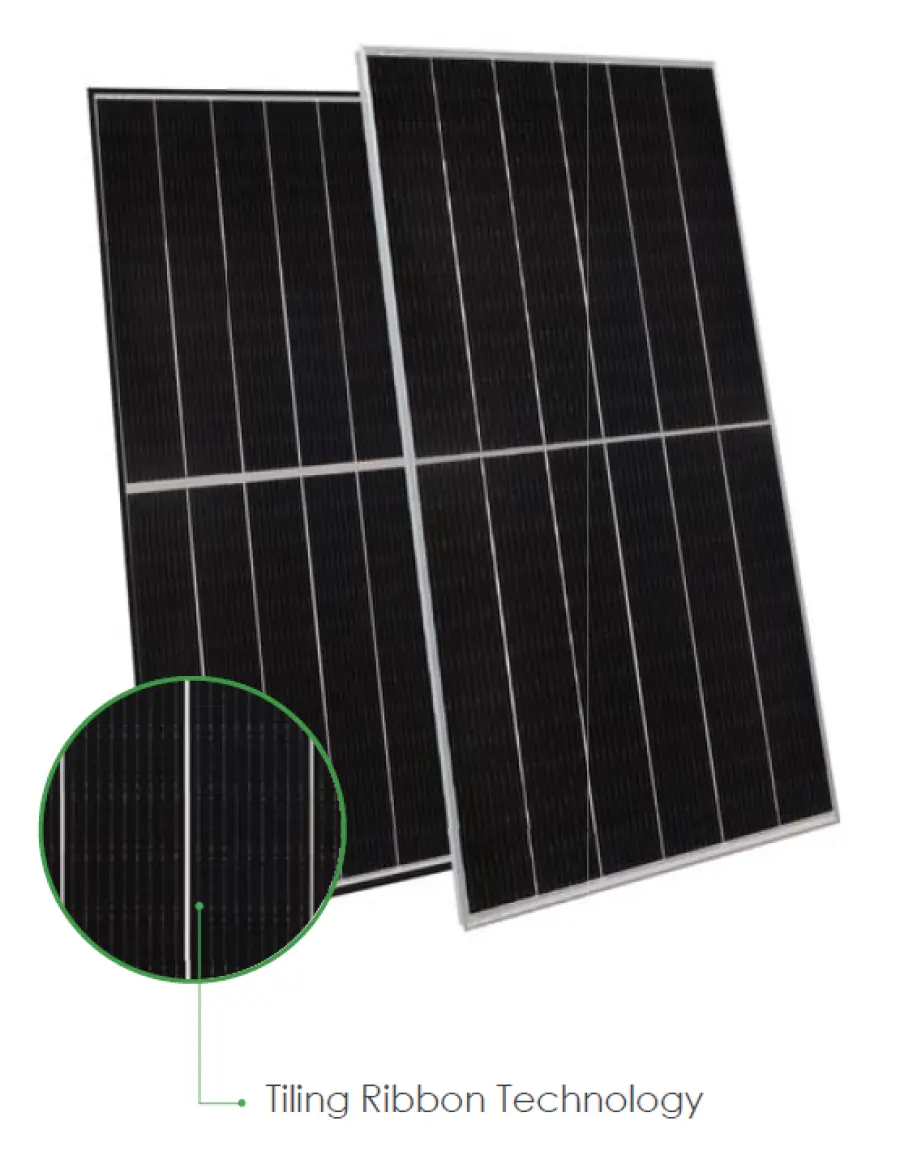

Better light trapping and current collection to improve module power output and reliability.

The N-type module with Hot 2.0 technology has better reliability and lower LID/LETID.

Excellent Anti-PID performance guarantee via optimized mass-production process and materials control.

Certified to withstand: wind load (2400 Pascal) and snow load (5400 Pascal).

High salt mist and ammonia resistance for harsh environmental conditions.

Positive power tolerance: 0~+5W. 100% EL Double-inspection ensures modules are defects free.

12 Years for product defects in materials & workmanship

25 Year Linear Power Warranty

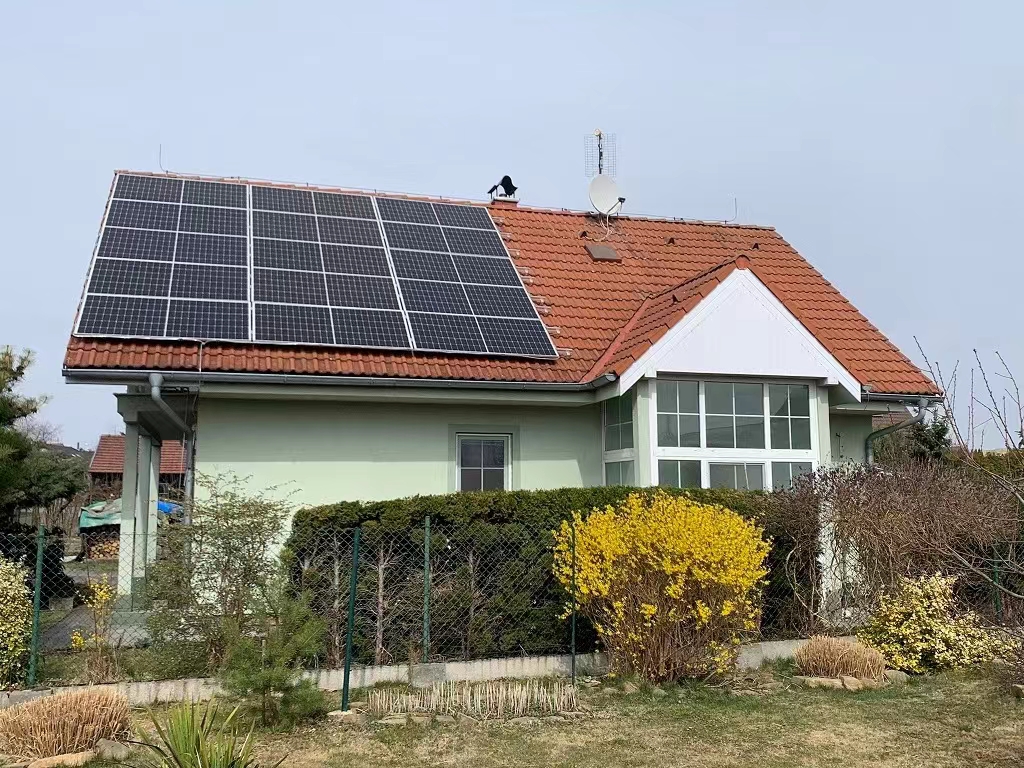

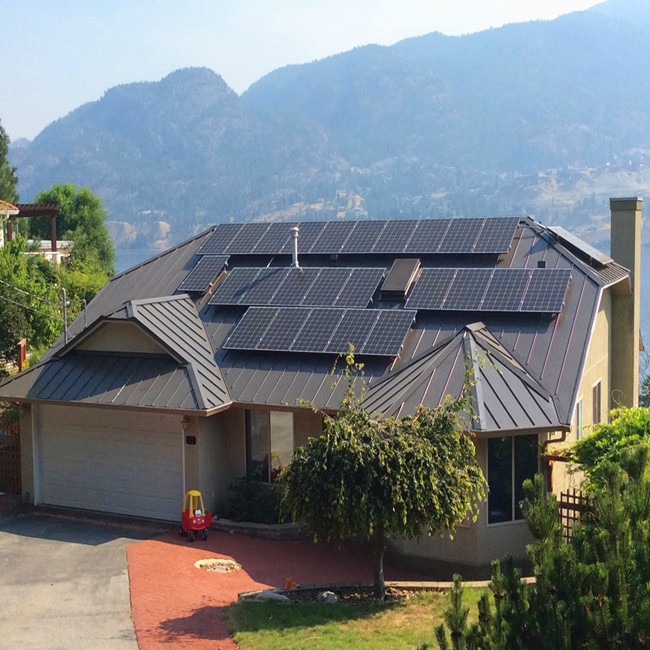

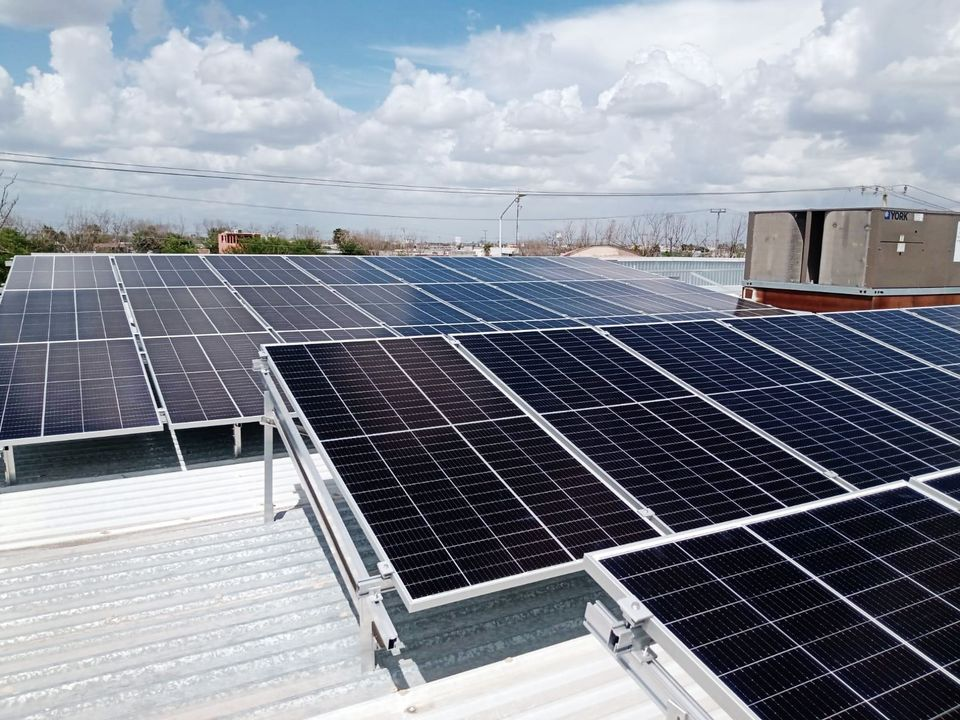

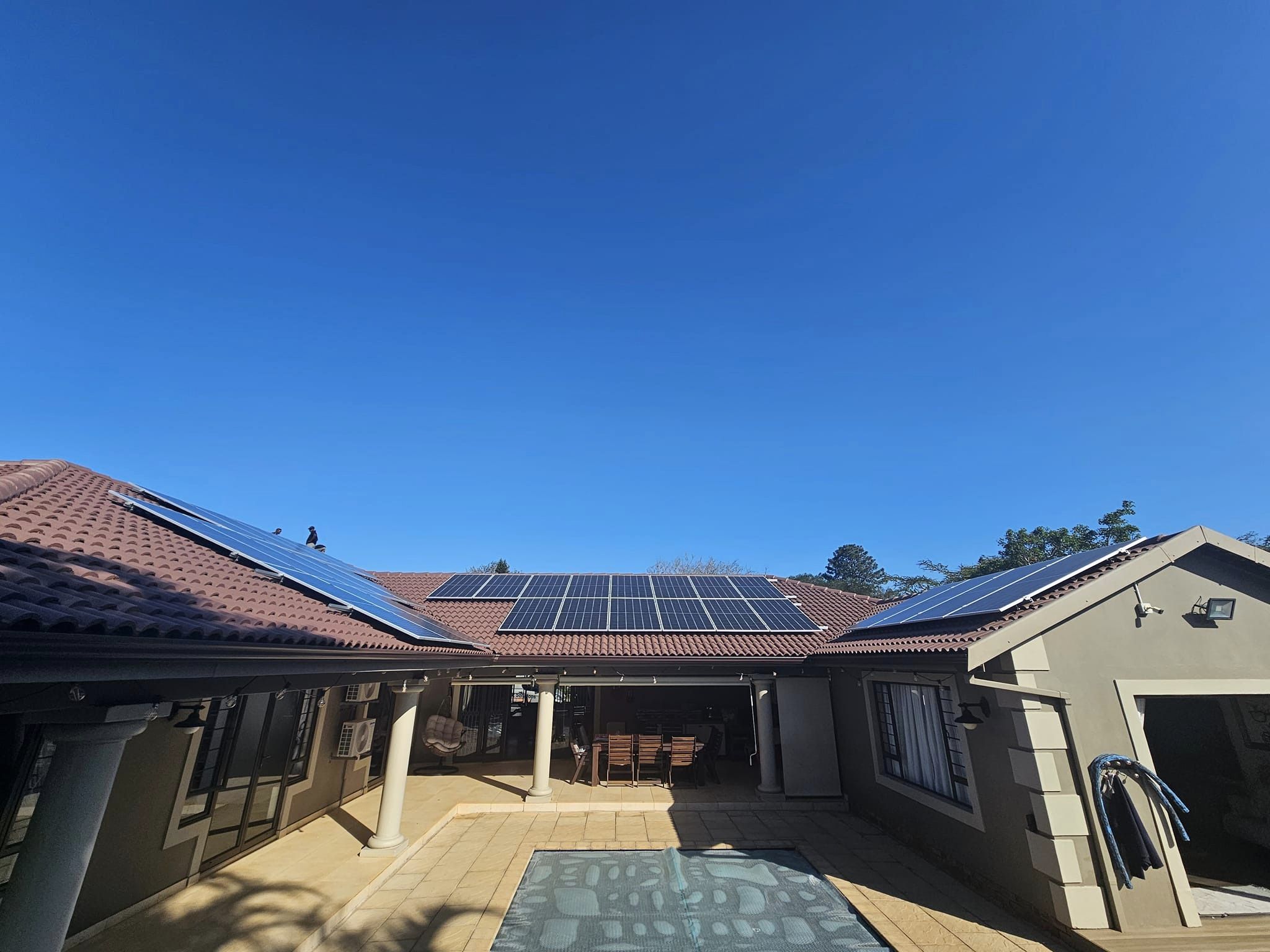

Projects

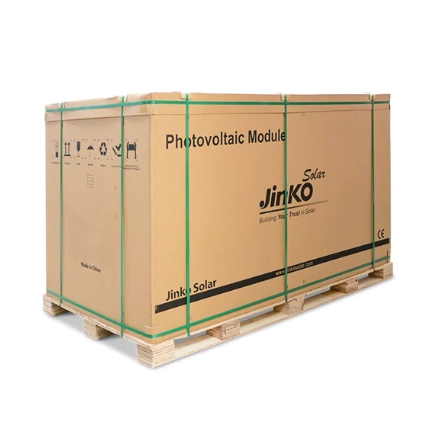

Packaging

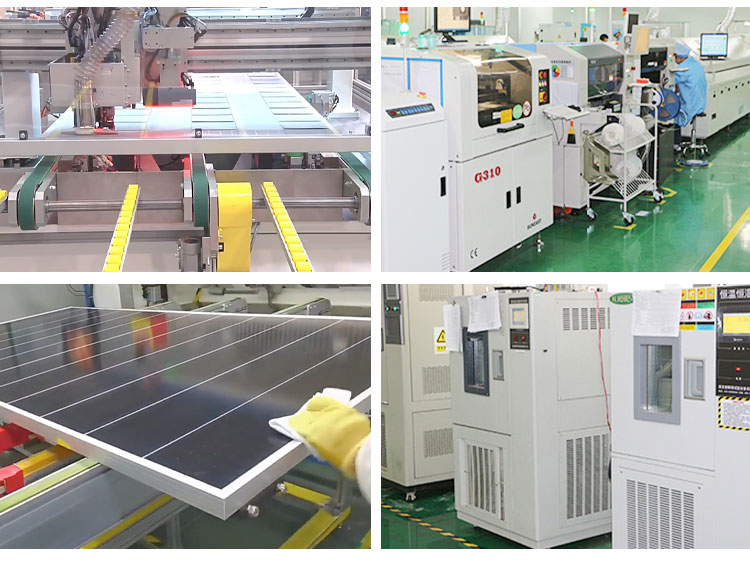

Company Information

Certifications

Buyers' Feedback

Frequently Asked Questions

What is the maximum efficiency of these solar modules?

The modules reach a high efficiency of up to 22.84% using advanced N-type technology.

What kind of warranty is provided?

We offer a 12-year warranty on materials and workmanship, along with a 25-year linear power warranty.

How does SMBB technology improve performance?

Super Multi Busbar (SMBB) technology improves light trapping and current collection, which enhances both power output and module reliability.

Are these panels resistant to extreme weather?

Yes, they are certified to withstand high wind loads of up to 2400 Pascal and snow loads of up to 5400 Pascal.

What is Hot 2.0 Technology?

Hot 2.0 is a specialized N-type module technology that provides better reliability and significantly lower LID (Light Induced Degradation) and LeTID.

Do the modules undergo quality inspection?

Yes, every module undergoes 100% EL double-inspection to ensure they are completely defect-free before shipping.
