Scalable 380W Solar Panel System with Monocrystalline Glass Modules for Residential and Small Commercial Use
Scalable 380W Solar Panel System with Monocrystalline Glass Modules for Residential and Small Commercial Use
Scalable 380W Solar Panel System with Monocrystalline Glass Modules for Residential and Small Commercial Use
Scalable 380W Solar Panel System with Monocrystalline Glass Modules for Residential and Small Commercial Use
Scalable 380W Solar Panel System with Monocrystalline Glass Modules for Residential and Small Commercial Use
1 / 5
Scalable 380W Solar Panel System with Monocrystalline Glass Modules for Residential and Small Commercial Use
Scalable 380W Solar Panel System with Monocrystalline Glass Modules for Residential and Small Commercial Use
Scalable 380W Solar Panel System with Monocrystalline Glass Modules for Residential and Small Commercial Use
Scalable 380W Solar Panel System with Monocrystalline Glass Modules for Residential and Small Commercial Use
Scalable 380W Solar Panel System with Monocrystalline Glass Modules for Residential and Small Commercial Use

Scalable 380W Solar Panel System with Monocrystalline Glass Modules for Residential and Small Commercial Use

Customization: Available
After-sales Service: Online Service
Warranty: 25 Years
Send Inquiry

Product Description

Basic Info.
Model NO. YTXN-72M-380W
Number of Cells 72pcs
Application Light Industry
Condition New
Certification EST, ISO, CB, CE
Material Monocrystalline Silicon
Max Power(Pmax) 380W
Open Circuit Voltage(Voc) 44.7V
Short Circuit Current(Isc) 9.35A
Max Power Voltage(Vmp) 36V
Max Power Current(Imp) 9.25A
Module Efficiency(%) 21.64%
Power Tolerance 0-+3W
Operation Temperature -40~+85℃
No.of Cell 72(4*18)
Weight 18kg

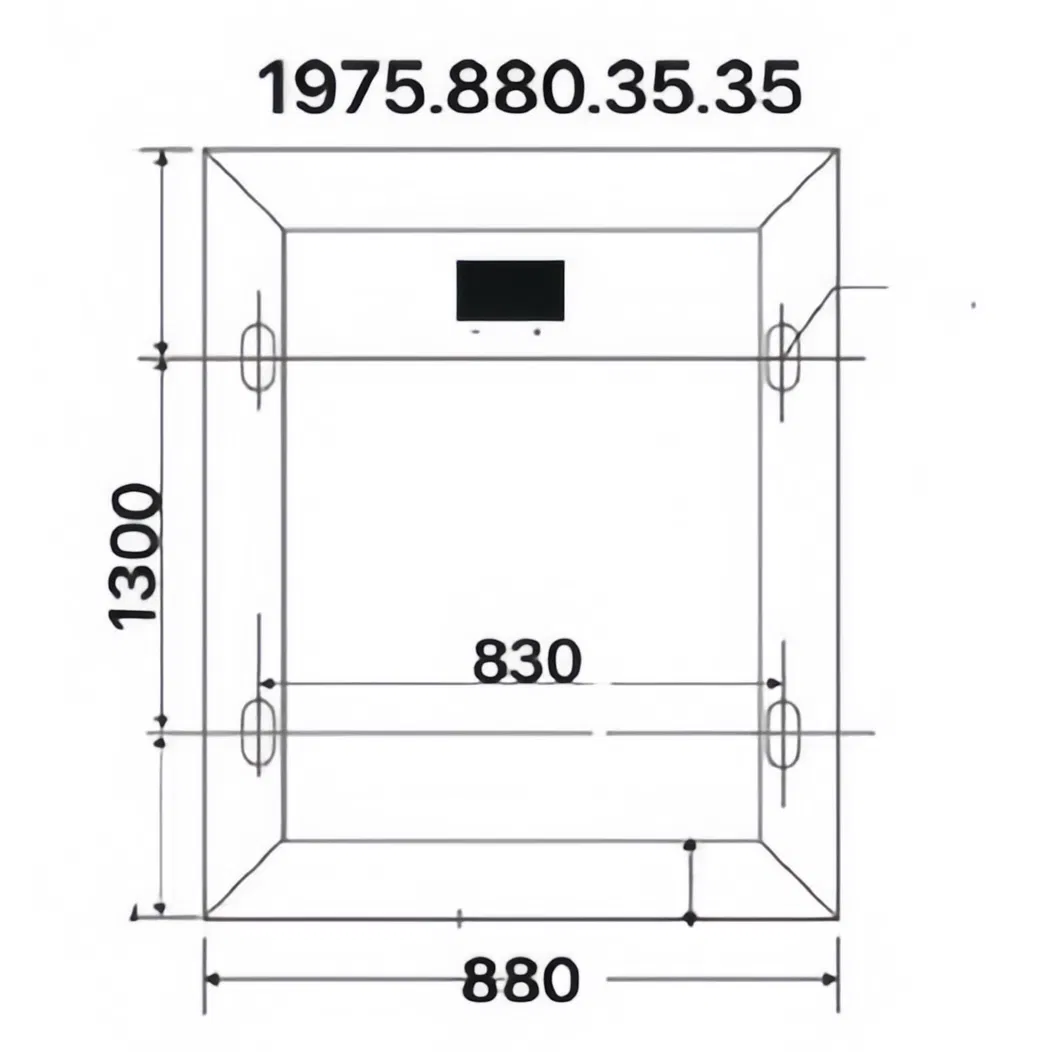

Dimensions 1975*880*35*35mm
Front Cover Single Glass 3.2mm Tempered Glass,with Anti-Reflection Coating
Transport Package Standard Packaging or Customized
Specification Standard Specification or Customized
Origin China
HS Code 8541420000
Production Capacity 50000pieces/Year
Product Description
Scalable 380W Solar Panel System with Monocrystalline Glass Modules for Residential and Small Commercial Use
Scalable 380W Solar Panel System with Monocrystalline Glass Modules for Residential and Small Commercial Use
SOLAR PANELS

Premium solar panels are designed to maximize energy efficiency and deliver substantial cost savings for residential and commercial applications. Our photovoltaic solar panel systems harness renewable solar energy to reduce electricity bills and carbon footprint while providing reliable, sustainable power generation.

Specification
Technical Parameters
Product Name Solar panel glass plate YTXN-72M-380W
Keywords Solar Panel
Max. Power 380W
Open circuit voltage(Voc) 44.7V
Short circuit current(lsc) 9.35A
Max power voltage(Vmp) 36V
Max power current(lmp) 9.25A
Module Efficiency(%) 21.64%
Power Tolerance 0-+3W
Operation temperature -40℃~+85℃
Cells Type Mono-crystalline
No.of Cell 72(4*18)
Weight 18KG
Dimensions 1975*880*35*35mm
Front Cover Single Glass 3.2mm tempered glass,with anti-reflection coating
Detailed Photos
Detailed View 1

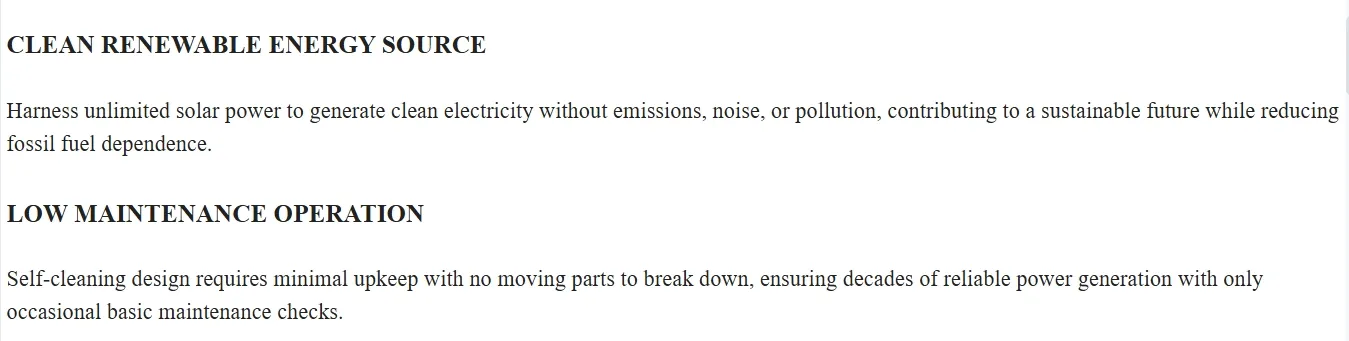

Detailed View 2

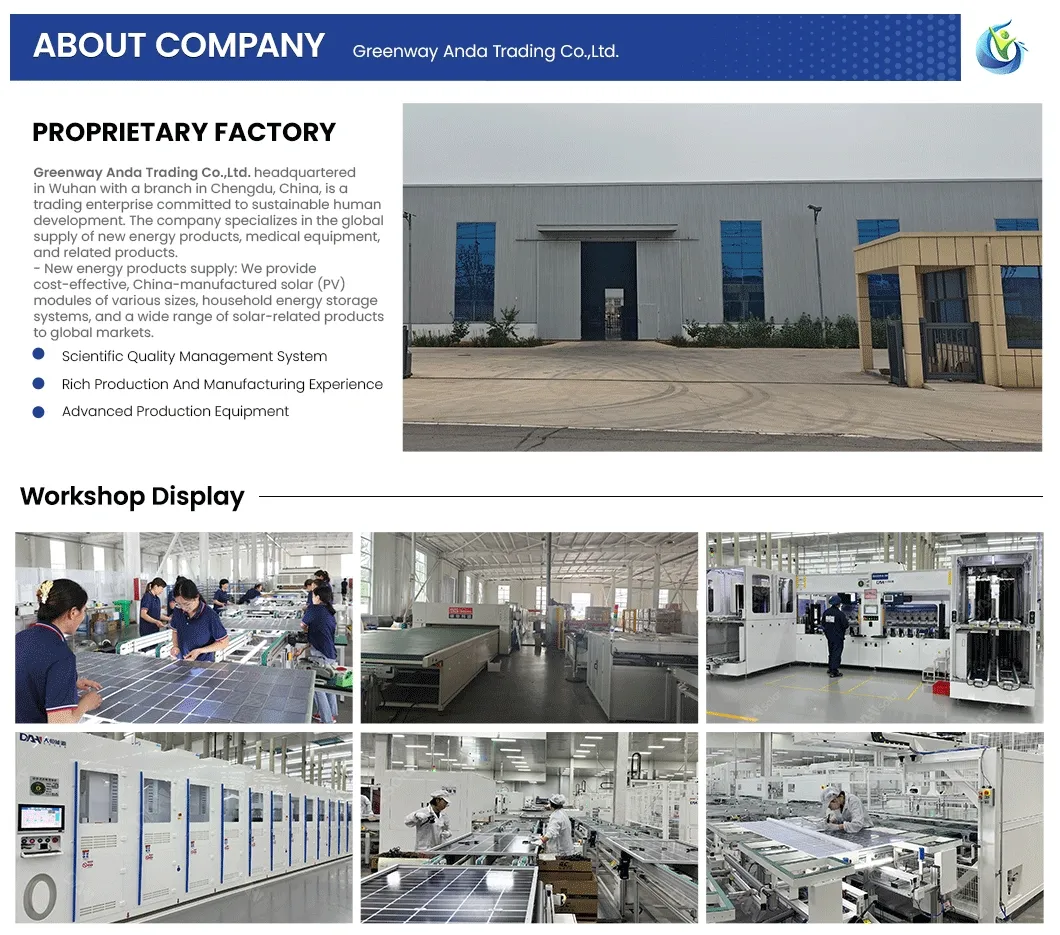

Detailed View 3
Detailed View 4
Certifications
Solar Certifications
FAQ
How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment.
Why should you buy from us not from other suppliers?
We are a global solar energy provider with a presence in more than 130 countries around the world. More than 1.5GW of solar modules have been used in residential, commercial, and off-grid systems worldwide.
What services can we provide?
Accepted Delivery Terms: FOB, CFR, CIF, EXW.
Accepted Payment Currency: USD, EUR, CNY.
Accepted Payment Type: T/T, L/C, Credit Card.
Can I print my LOGO on it?
YES, LOGO/sticker/OEM/ODM welcomed.
Can I have samples to test? And what is lead time for sample order?
Yes, we can supply samples, the lead time for samples is 15 days, and buyer pays for sample cost and shipping cost.
What is the operating temperature range and design structure?
The operating temperature range is -40℃ to +85℃. The front cover features 3.2mm tempered glass with an anti-reflection coating for robust structural support.
