Solar Panels 600W Double Glasses Solar Panels Bifacial for Residential

1 / 5

Solar Panels 600W Double Glasses Solar Panels Bifacial for Residential

Customization:	Available
After-sales Service:	Have
Warranty:	25 Years

Send Inquiry

Product Description

Basic Information

Model NO.

Number of Cells

72pcs

Application

Industrial

Condition

New

Certification

ISO, CB

Material

Monocrystalline Silicon

DC Voltage (Optional)

12VDC±5%,100W

Operating Temperature

-10°C to 50°C

Communication Interface

USB/RS232/RS485/WiFi/Dry-Contact

AC+PV Charge

16A

Transport Package

Packing Box

Specification

158.4 * 502.5 * 530.8

Trademark

OEM

Origin

China

HS Code

8541430000

Production Capacity

100000

Product Description

Technical Specification Data (STC) of Solar Panel

Model of Solar Panel	RS610M-156HC	RS615M-156HC	RS620M-156HC	RS625M-156HC	RS630M-156HC
Peak Power Watts-Pmax(Wp)*	610	615	620	625	630
Maximum Power Voltage-Vmpp(V)	45.60	45.70	45.80	45.93	46.03
Maximum Power Current-Impp(A)	13.38	13.46	13.54	13.61	13.69
Open Circuit Voltage-Voc(V)	55.25	55.40	55.55	55.70	55.85
Short Circuit Current-Isc(A)	14.11	14.18	14.25	14.32	14.39
Module Efficiency (%)	21.82	22.0	22.18	22.36	22.54
Power Output Tolerance-Pmax(W)	0~+5
Temperature Coefficient of Pmax	-0.29%/ºC
Temperature Coefficient of Voc	-0.25%/ºC
Temperature Coefficient of Isc	0.045%/ºC
STC	Irradiance 1000W/m2, Cell Temperature 25, Air Mass AM1.5

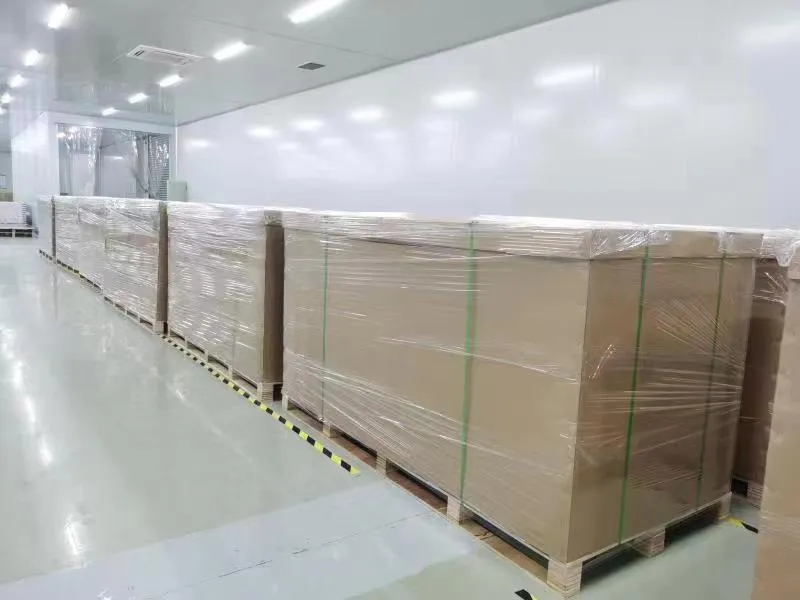

Packaging & Shipping

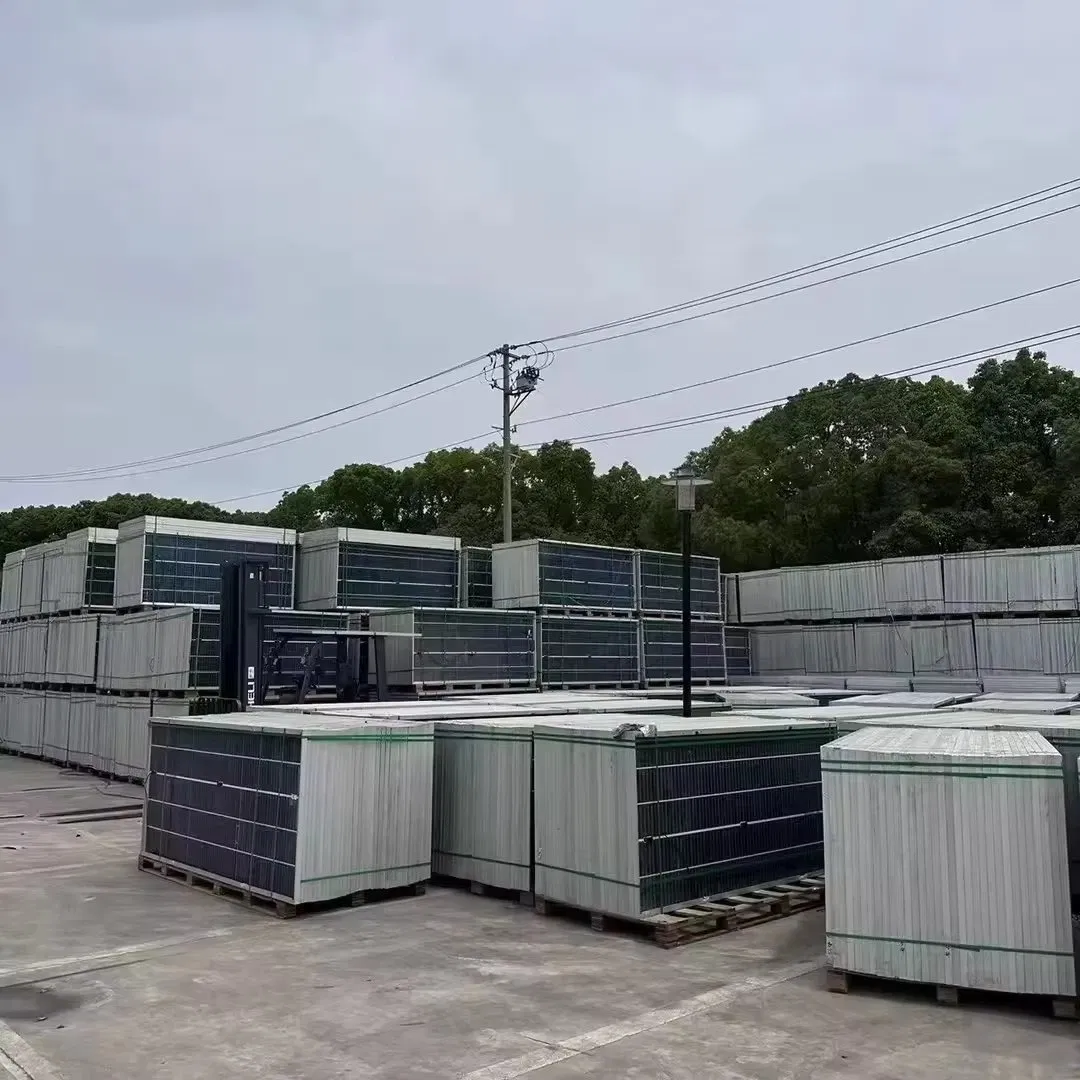

Package Information: 36pc/pallets, 72 pcs/stack, 720 pcs/40HQ

Profile

We focus on solar energy systems and solar PV modules, as a leading solar energy solution supplier in China, committed to the R&D, design, and innovation of solar energy devices to supply Green & Clean energy to our daily modern lives!

Our team has over 10 years of experience in the solar panel energy field and supplies One Stop Power Solutions to help you save time & capital and achieve advanced technologies and excellent OEM/ODM service. Quality is life, and we are committed to supplying high-quality solar solution products and the best service to our clients worldwide.

Our products have passed TUV, CE, UN38.3, RoHS, and MSDS etc certificates. We are committed to becoming a leading solution provider to go global in the Solar energy solution industry.
