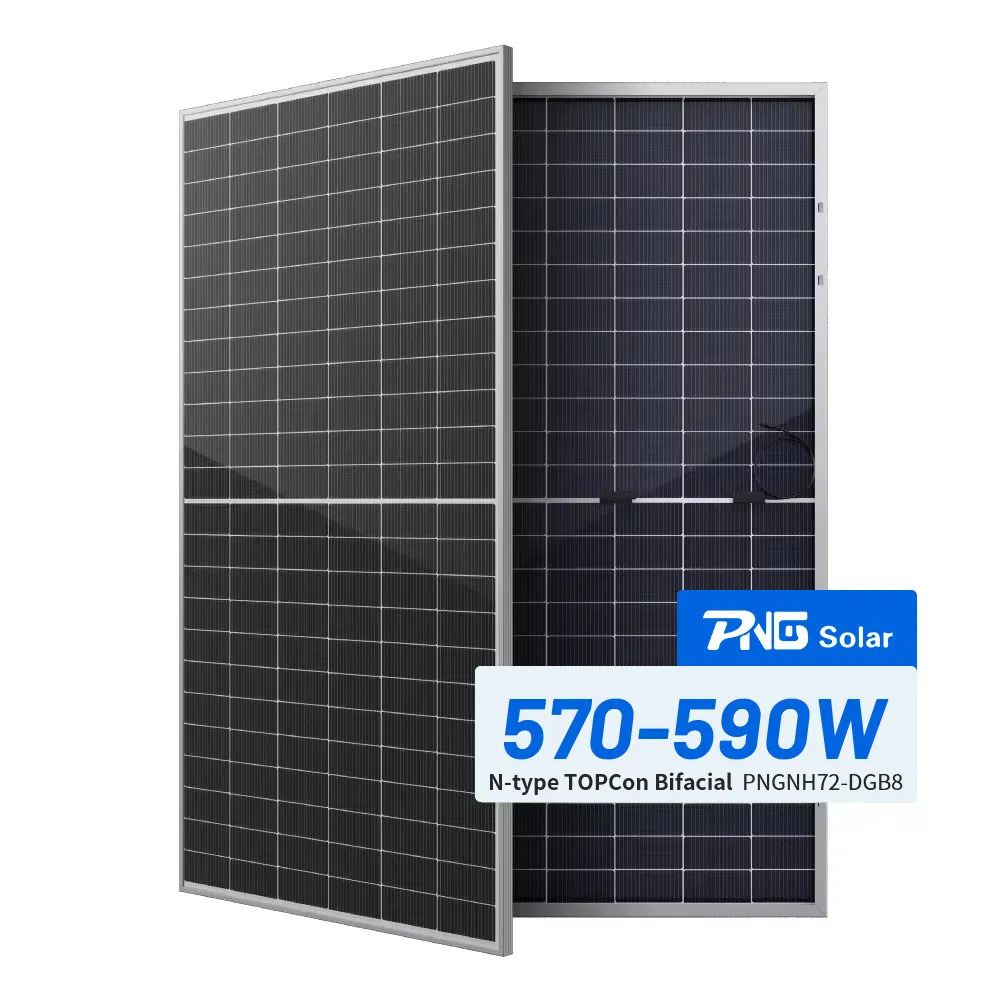

Residential, Industrial, Commercial Monocrystalline Silicon PNG 2278*1134*35mm OEM 580W Solar Panel

Basic Info

Model NO.

PNGNH72-B8 580

Number of Cells

144PCS

Application

Residential, Industrial, Commercial

Condition

New

Certification

ISO, CE, TUV

Material

Monocrystalline Silicon

Junction Box

IP68 Rated

Glass

3.2mm Coated Glass Tempered Glass

Type

Half Cut Cell

Weight

32kg

Panel Efficiency

22.4%

Backsheet

Tpt Material

Frame

Anodized Aluminium Alloy

Front Glass

3.2mm High Transmission Tempered Glass

Transport Package

31PCS One Pallet

Specification

2278*1134*35mm

Origin

China

HS Code

854143000

Production Capacity

800mwatt/Years

Product Description

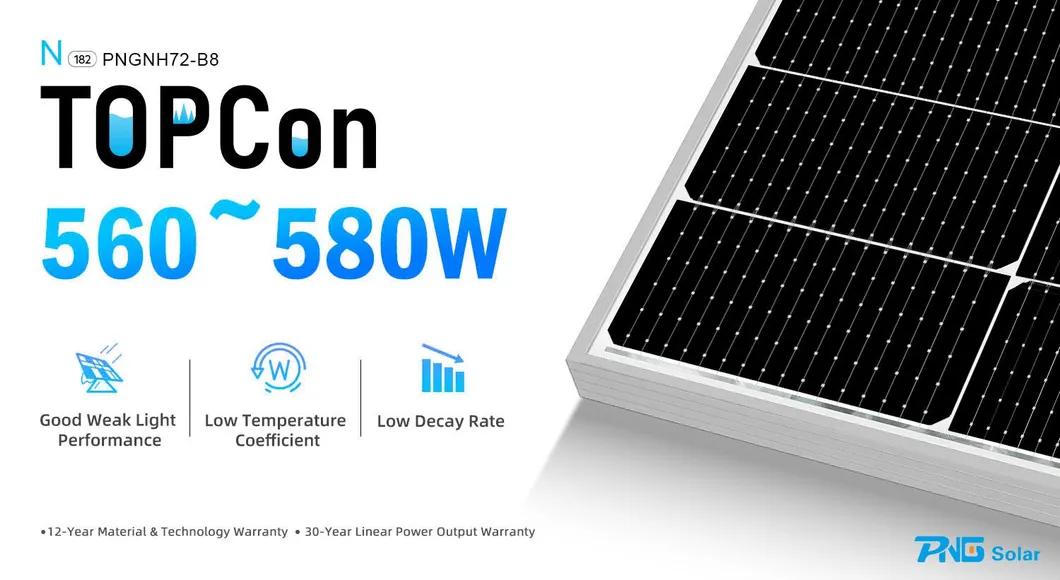

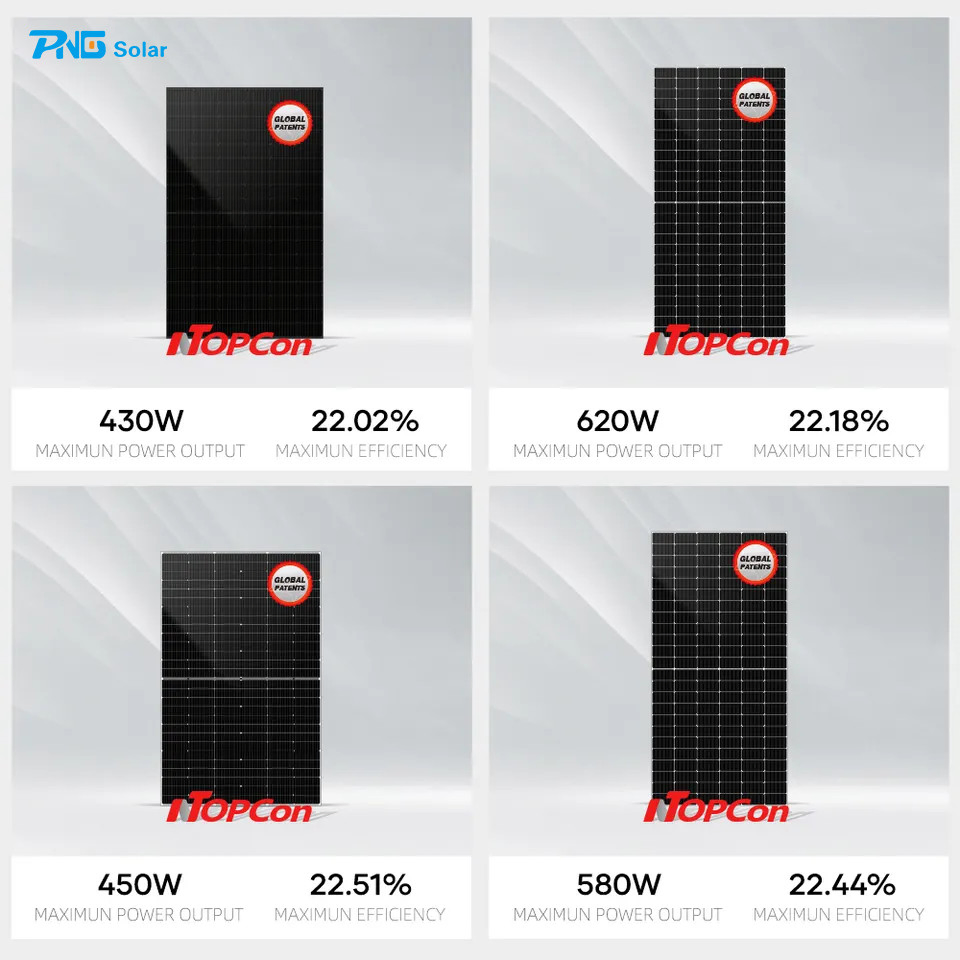

Residential, Industrial, Commercial Monocrystalline Silicon OEM 580W Solar Panel Detail 1

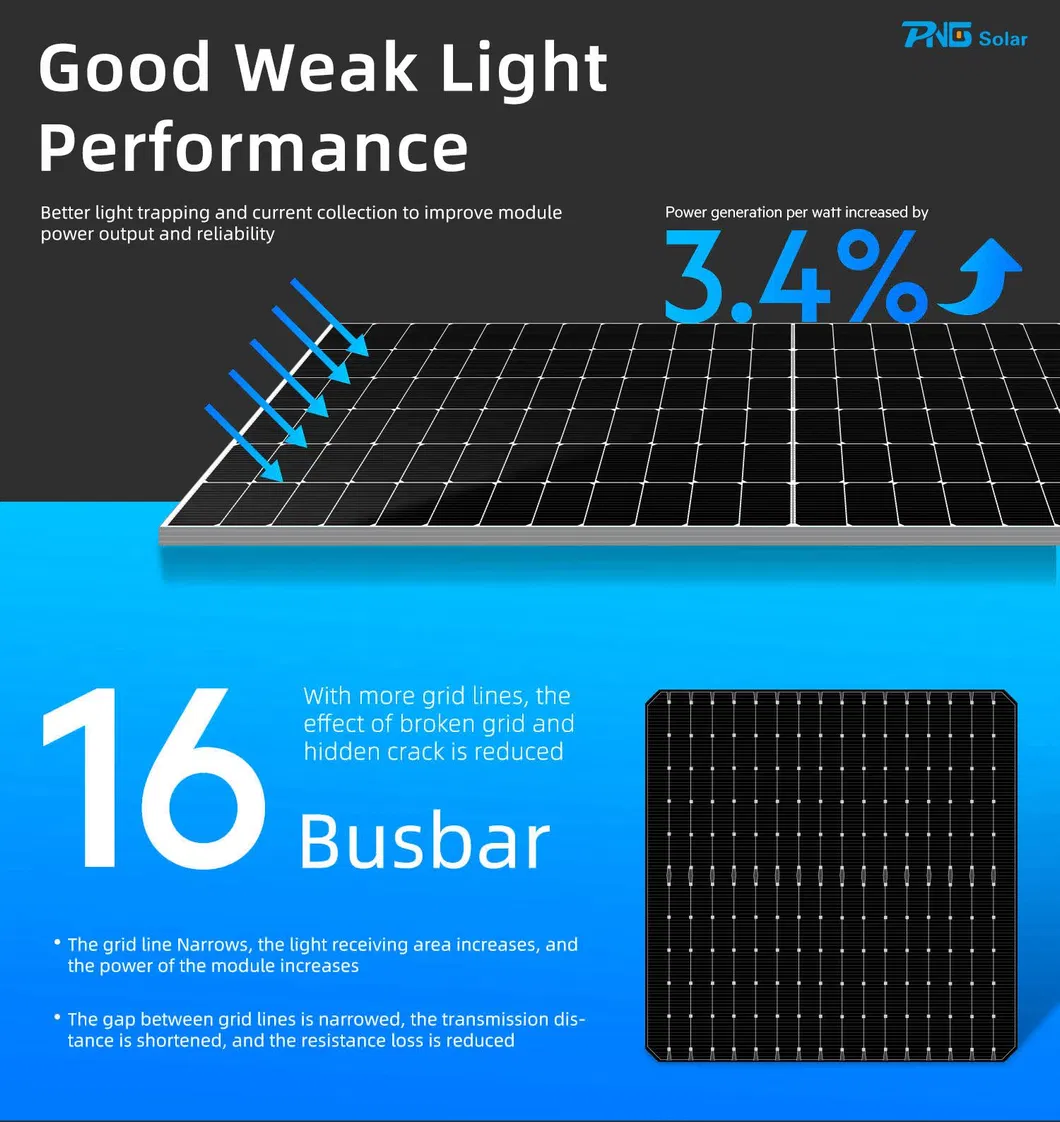

Residential, Industrial, Commercial Monocrystalline Silicon OEM 580W Solar Panel Detail 2

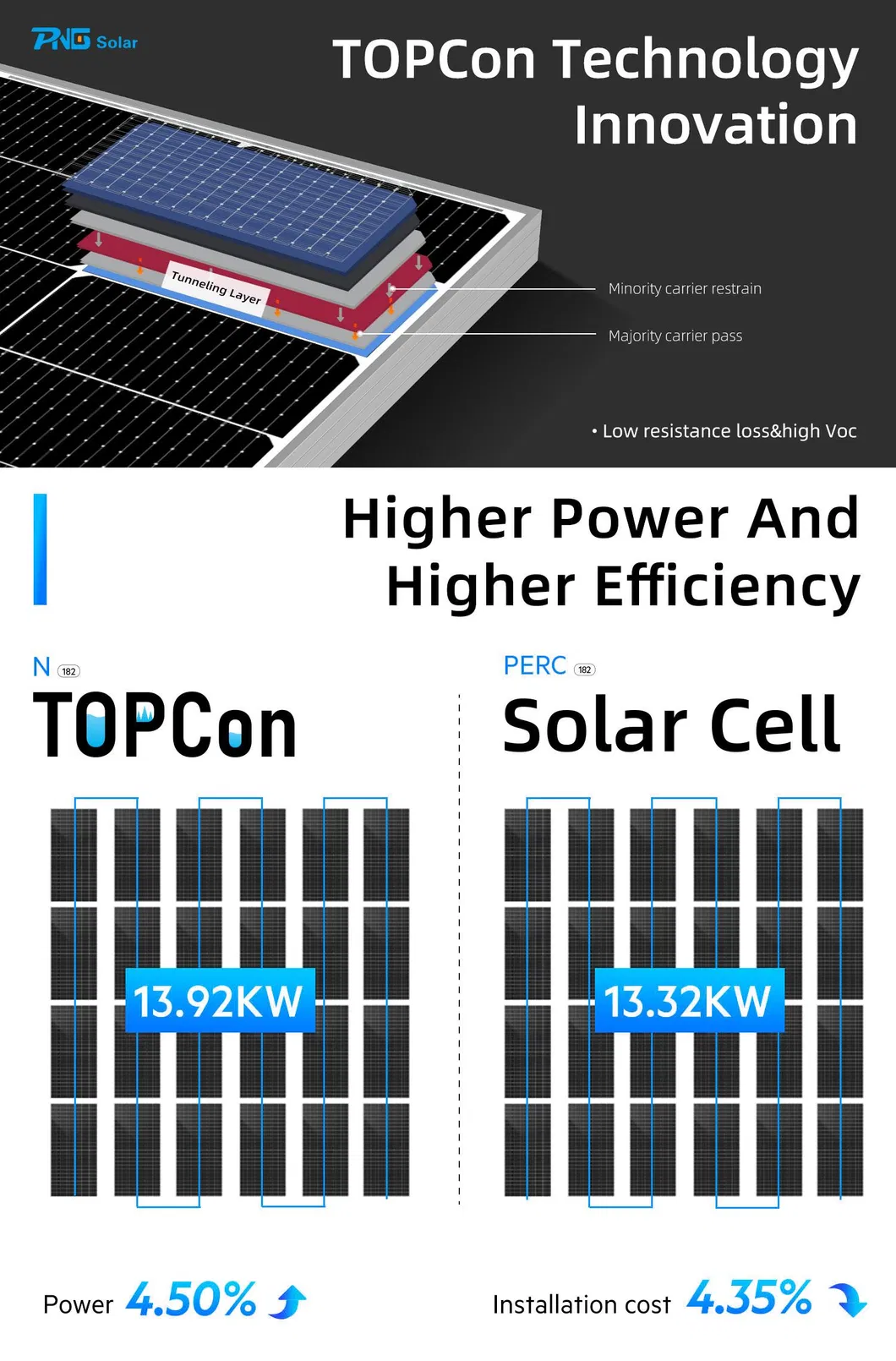

Residential, Industrial, Commercial Monocrystalline Silicon OEM 580W Solar Panel Detail 3

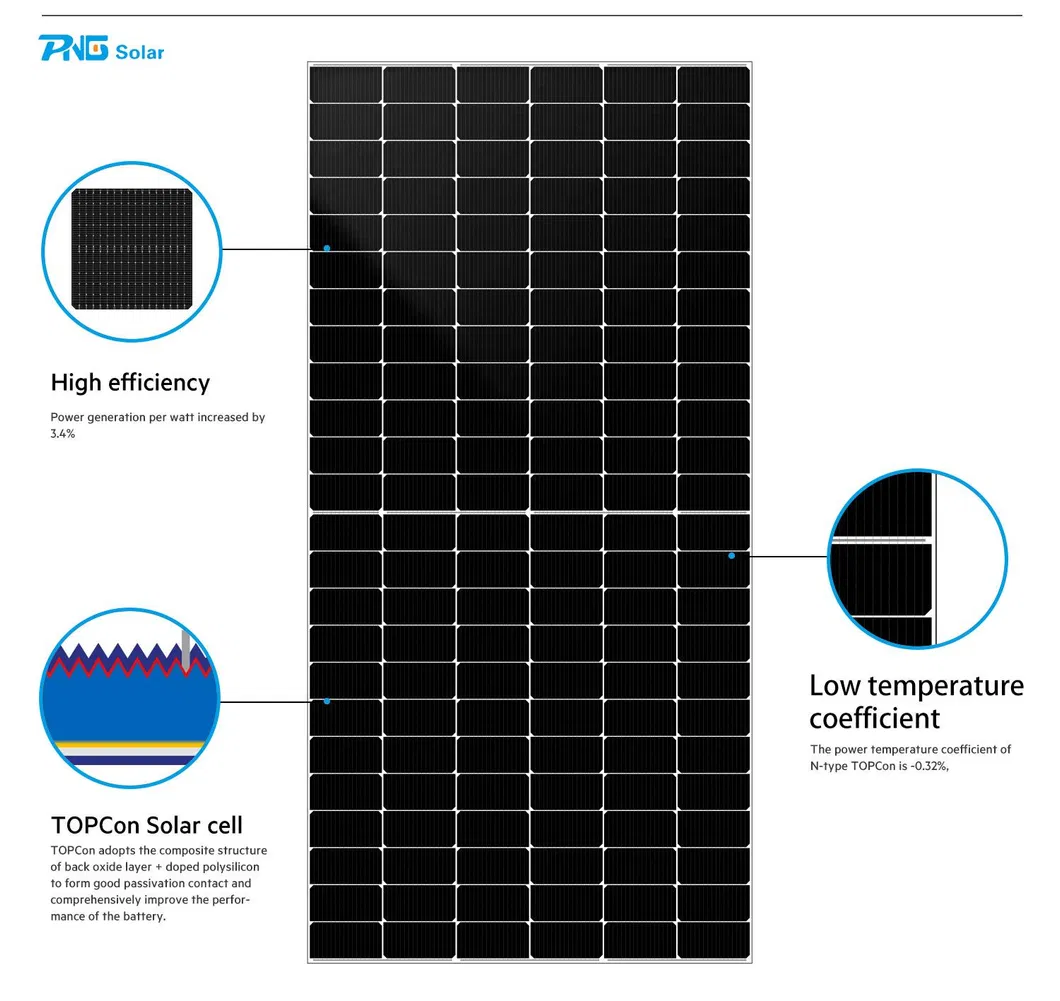

Residential, Industrial, Commercial Monocrystalline Silicon OEM 580W Solar Panel Detail 4

⚡ ELECTRICAL DATA (STC)

Module Type	PNGNH72-B8 560	PNGNH72-B8 565	PNGNH72-B8 570	PNGNH72-B8 575	PNGNH72-B8 580
Rated output (Pmp/Wp)	560W	565W	570W	575W	580W
Short Circuit Current (Isc)	13.9	13.96	14.02	14.08	14.14
Open Circuit Voltage (Voc)	50.6	50.8	51.0	51.2	51.4
Maximum Power Current (Impp)	13.8	13.14	13.19	13.25	13.3
Maximum Power Voltage (Vmpp)	42.8	43.0	43.2	43.4	43.6
Module efficiency (%)	21.67%	21.86%	22.06%	22.25%	22.44%
Standard Test Condition (STC)	Irradiance 1000W/m², Cell Temperature 25ºC, AM1.5

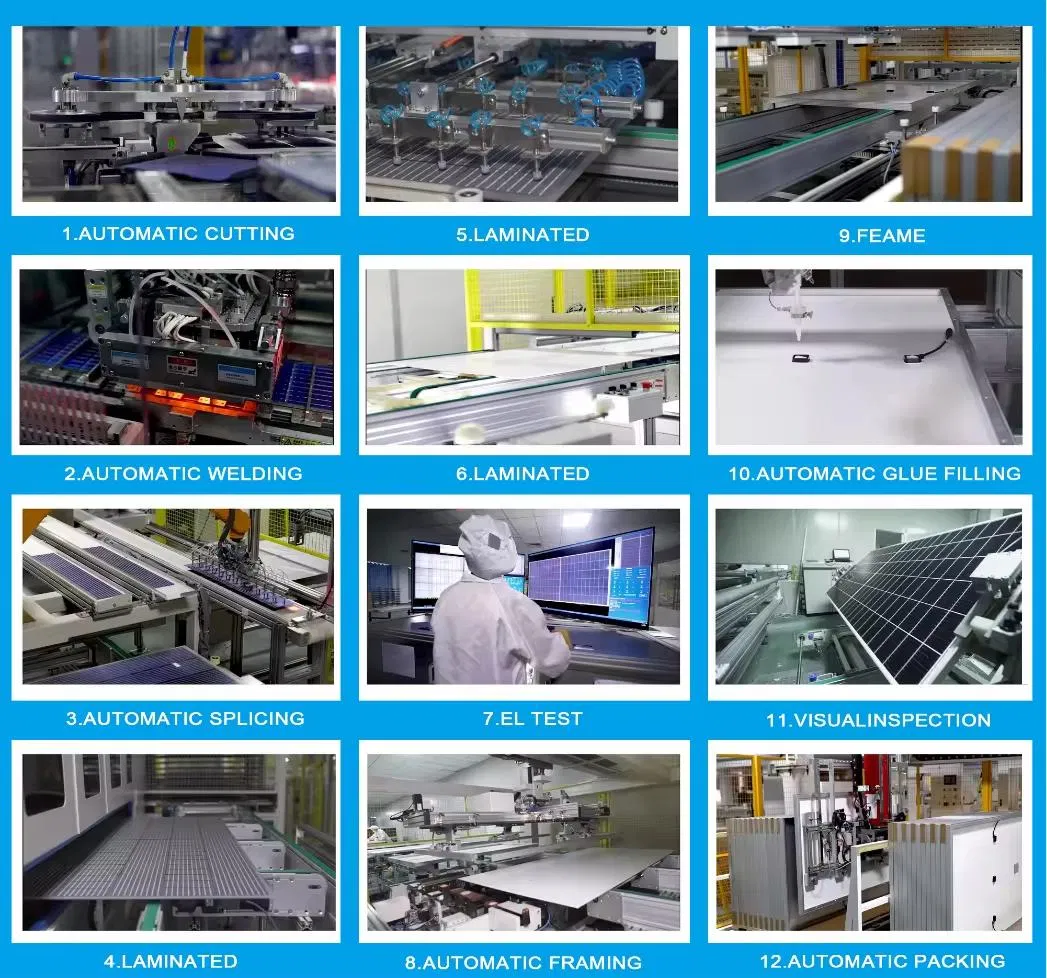

Product Process

Residential, Industrial, Commercial Monocrystalline Silicon OEM 580W Solar Panel Process Flow

Strictly QC System

We are a professional and fast-growing enterprise focusing on premium solar energy solutions. The business covers the R&D, production, and sales of PV modules, power stations, and PV system products, alongside power generation and operations & maintenance services.

Located in one of the main manufacturing bases of the global photovoltaic industry, we serve as a reliable developer and supplier of solar cells, PV modules, and complete solar energy configurations. Covering a large processing footprint of 46,000 square meters, our facility supports an annual production output capacity of 800MW, with 90% of products exported worldwide. The integration of advanced production lines combined with rigorous quality systems ensures high reliability for every customer. We hold official certifications including TUV and CE.

Currently, an extensive sales network has been built to span over 70 regions and countries, focusing heavily on primary markets across Europe, Asia, and South America.

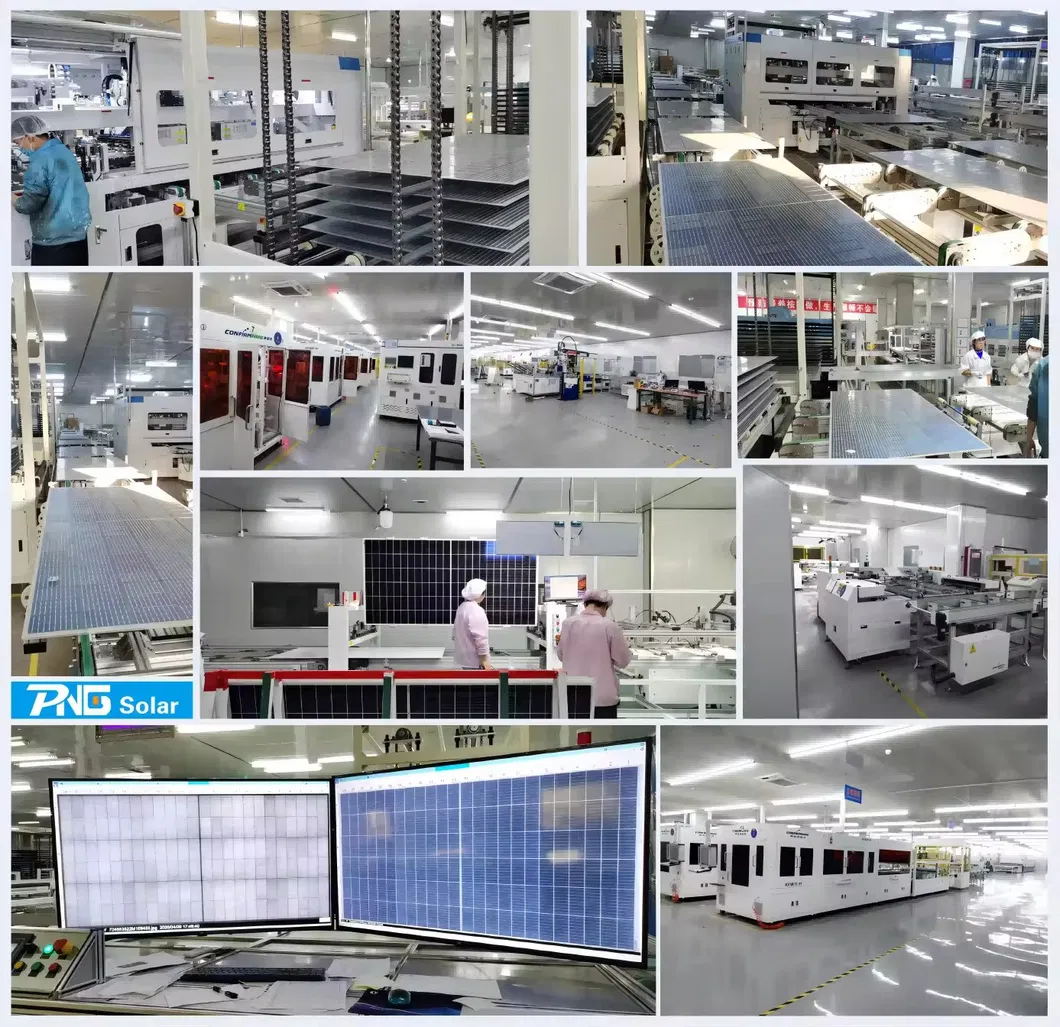

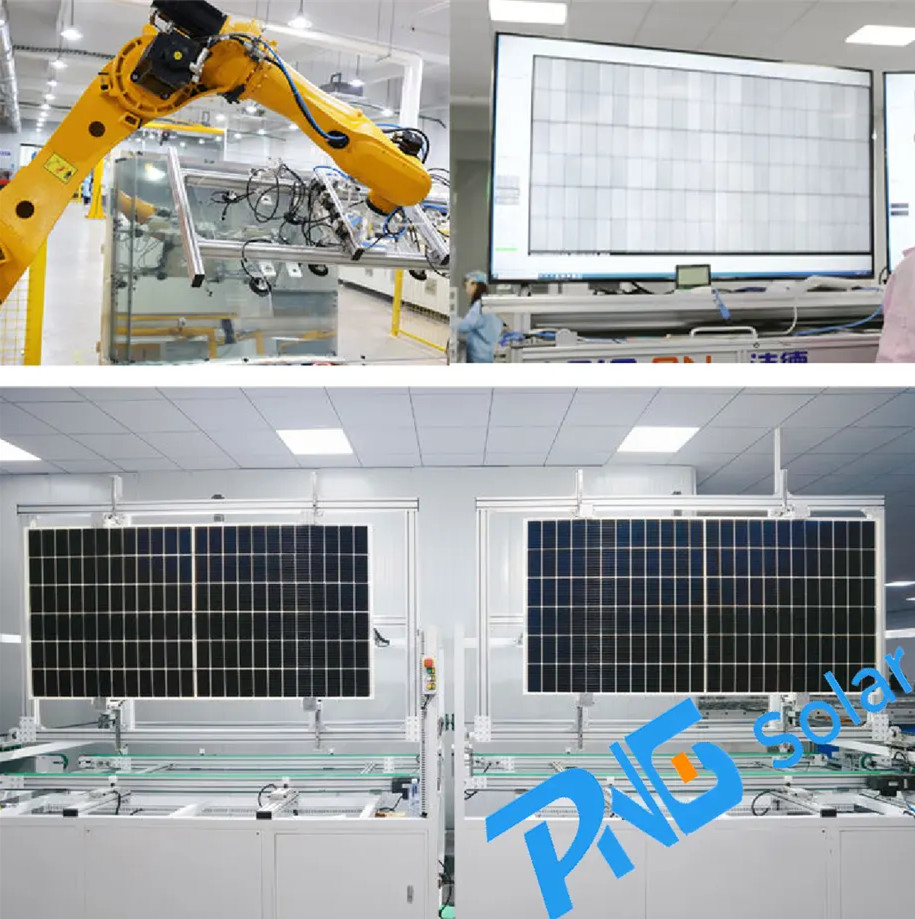

Strictly Quality Control Infrastructure and Production Standards

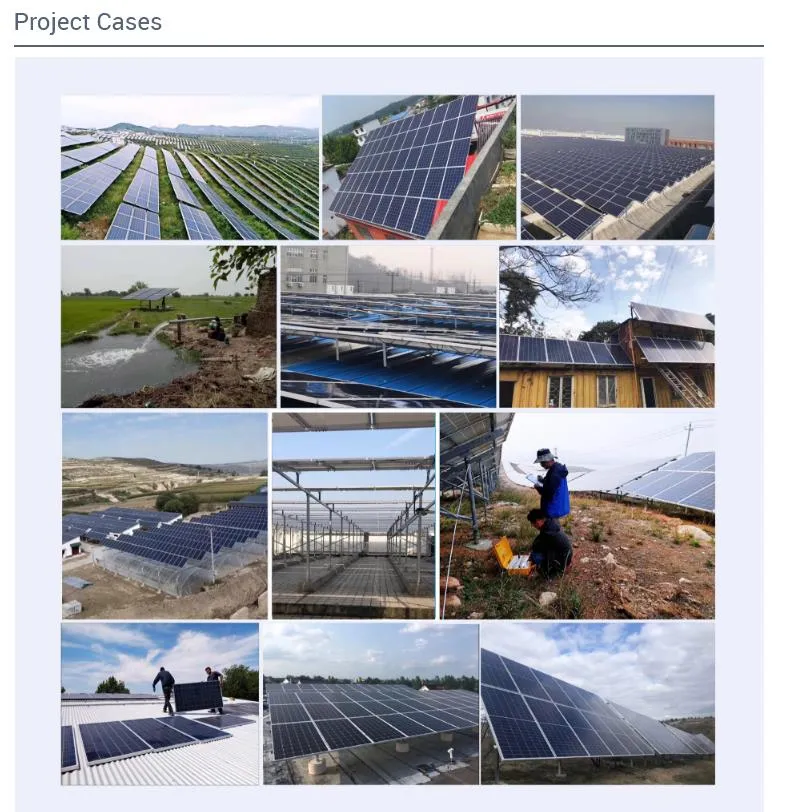

Project Cases

Global Solar Power System Project Implementations

Certifications

Frequently Asked Questions

What are the primary applications for the 580W solar panels?

These modules are highly versatile and ideal for residential setups, utility-scale power projects, and diverse industrial or commercial roof applications.

What advantages do Monocrystalline Silicon Half-Cut cells offer?

Half-cut cells reduce internal power loss and improve heat dissipation. They offer higher power output and perform exceptionally well under shaded conditions compared to standard full-cell modules.

What is the rating and function of the junction box?

The module is equipped with an IP68-rated junction box, providing complete dust-tight protection and resistance against water immersion, which ensures long-term outdoor reliability under harsh weather conditions.

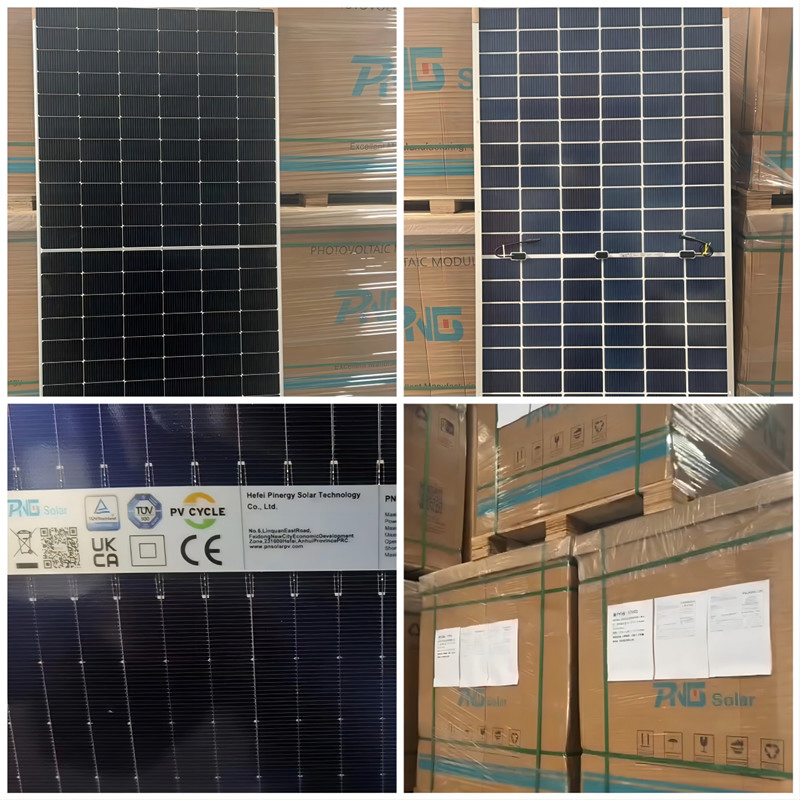

What are the dimensions and packing specifications?

Each panel measures 2278*1134*35mm and weighs approximately 32kg. The standard shipping configuration features 31 pieces packed securely on a single shipping pallet.

Which standards and certifications do these panels comply with?

Our solar PV products are manufactured under rigorous QA protocols and are fully certified by leading institutions, boasting key compliance documentation such as ISO, CE, and TUV.
