Basic Info.
Model NO.
RS350M-72B
Application
Home, Commercial, Industrial
Condition
New
Certification
EST, ISO, CB, CE, TUV, VDE, IEC61215, IEC617, Pid, Cec, Jet
Material
Monocrystalline Silicon
Weight
22kg

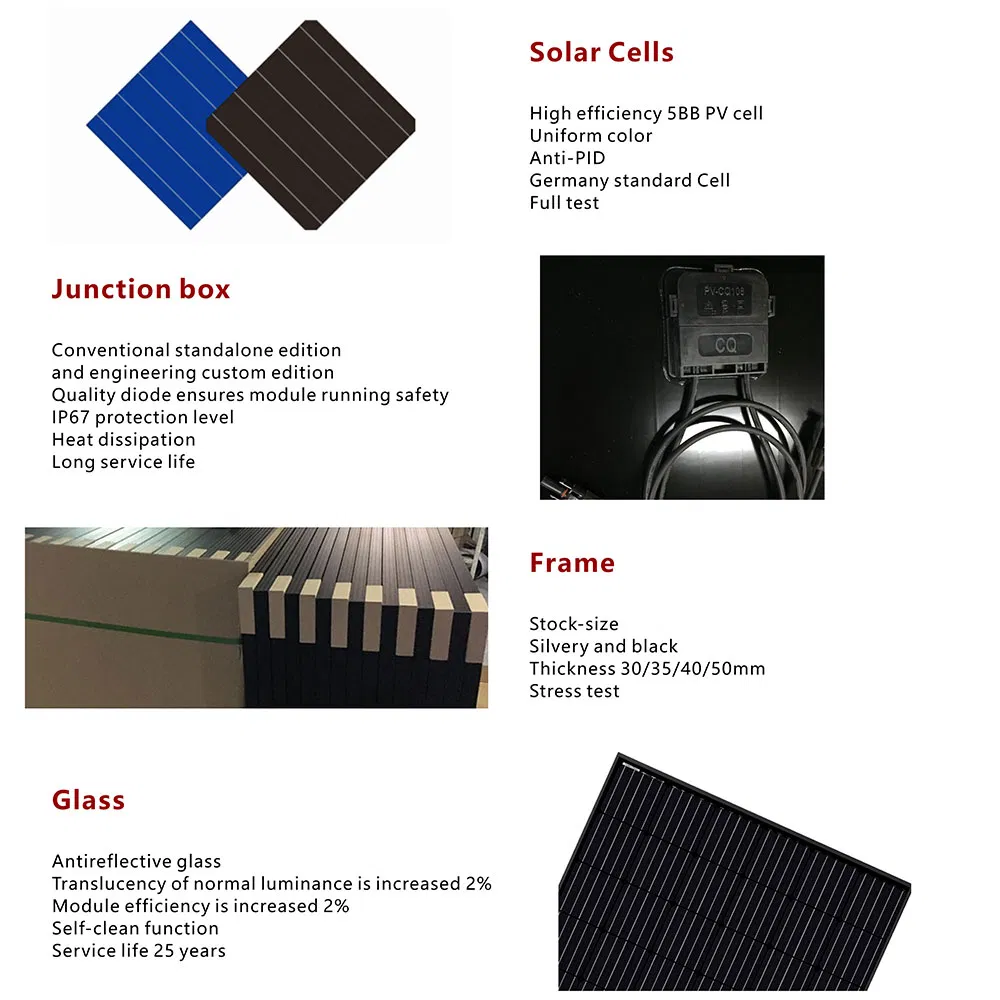

Solar Cell
Black 5bb Mono 156X156 Perc

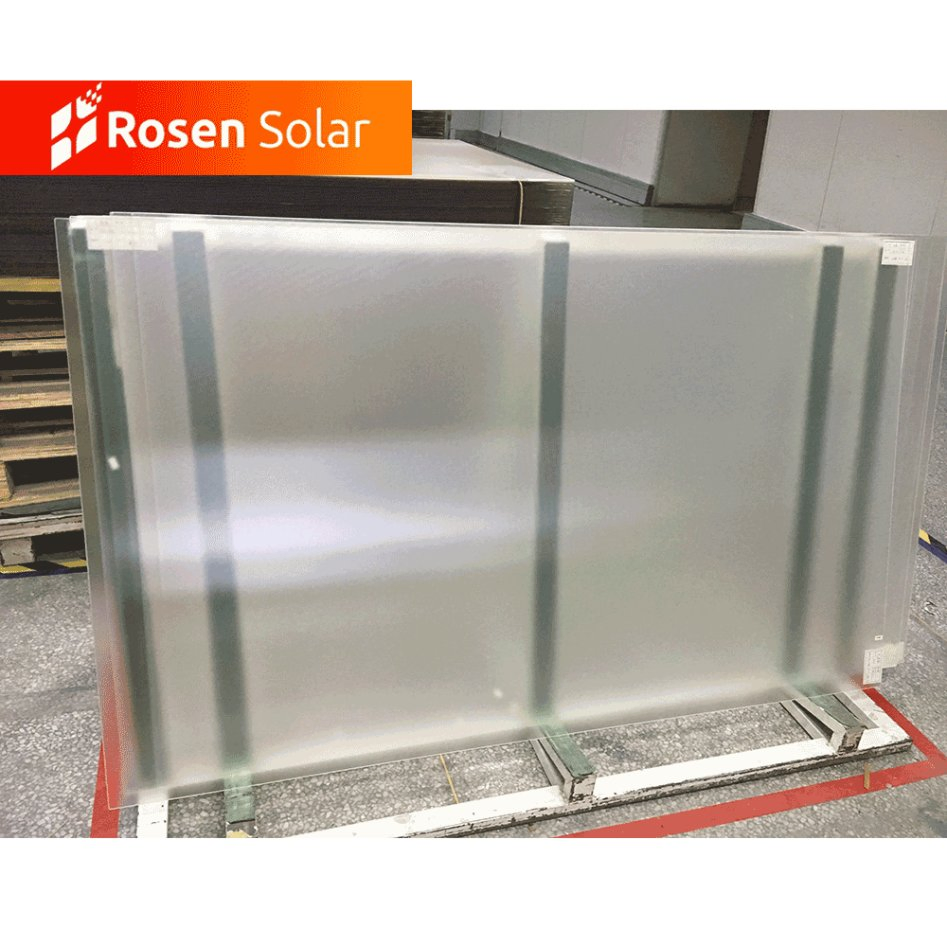

Glass
3.2mm Tempered Low Iron
Junction Box
IP67 Rated
Cable
PV Cable 4mm^2, 900mm
Cell Orientation
72cells(6*12)
Connector
Mc4
Frame
Silver/Black Anodized Aluminium Alloy
Tpt Backsheet
White/Black Backsheet
OEM
Acceptable
Transport Package
2PCS/Carton, 27PCS/Pallet
Specification

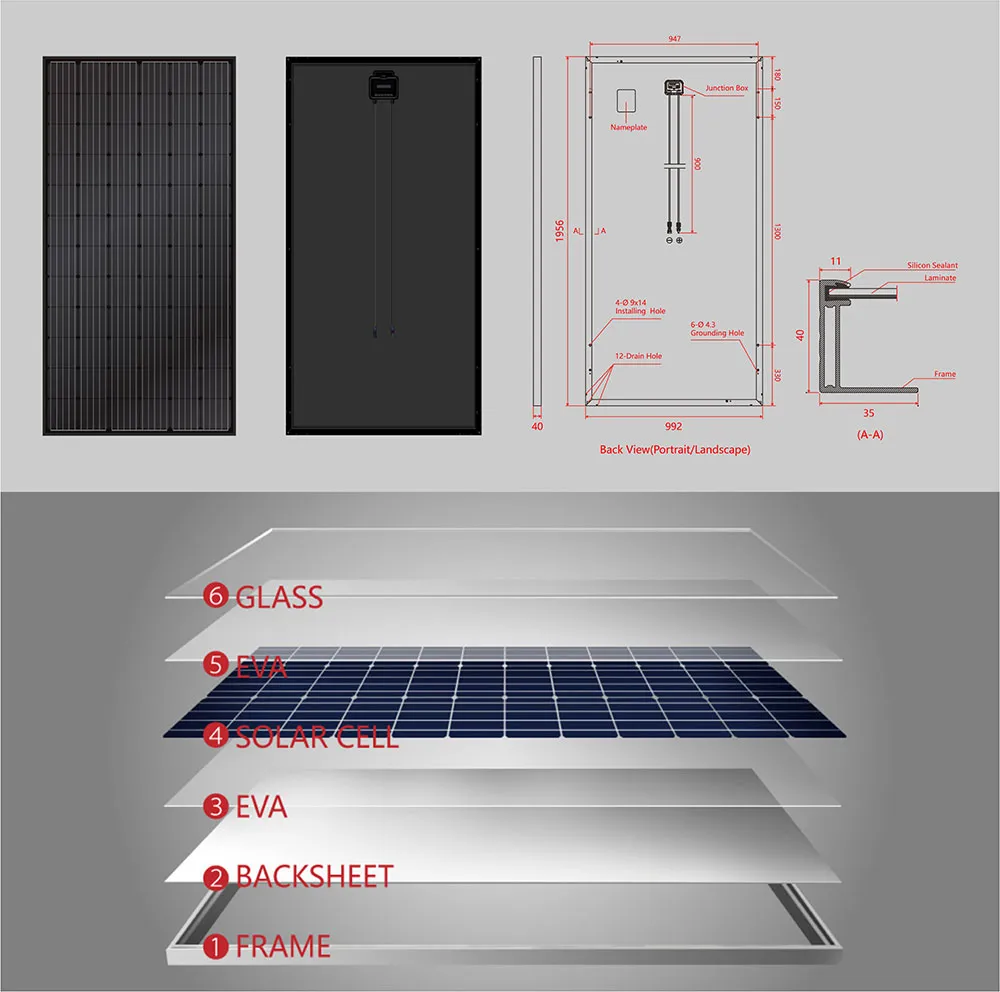

1956*992*40mm
Trademark
OEM/ODM
Origin
China
HS Code
8541402000

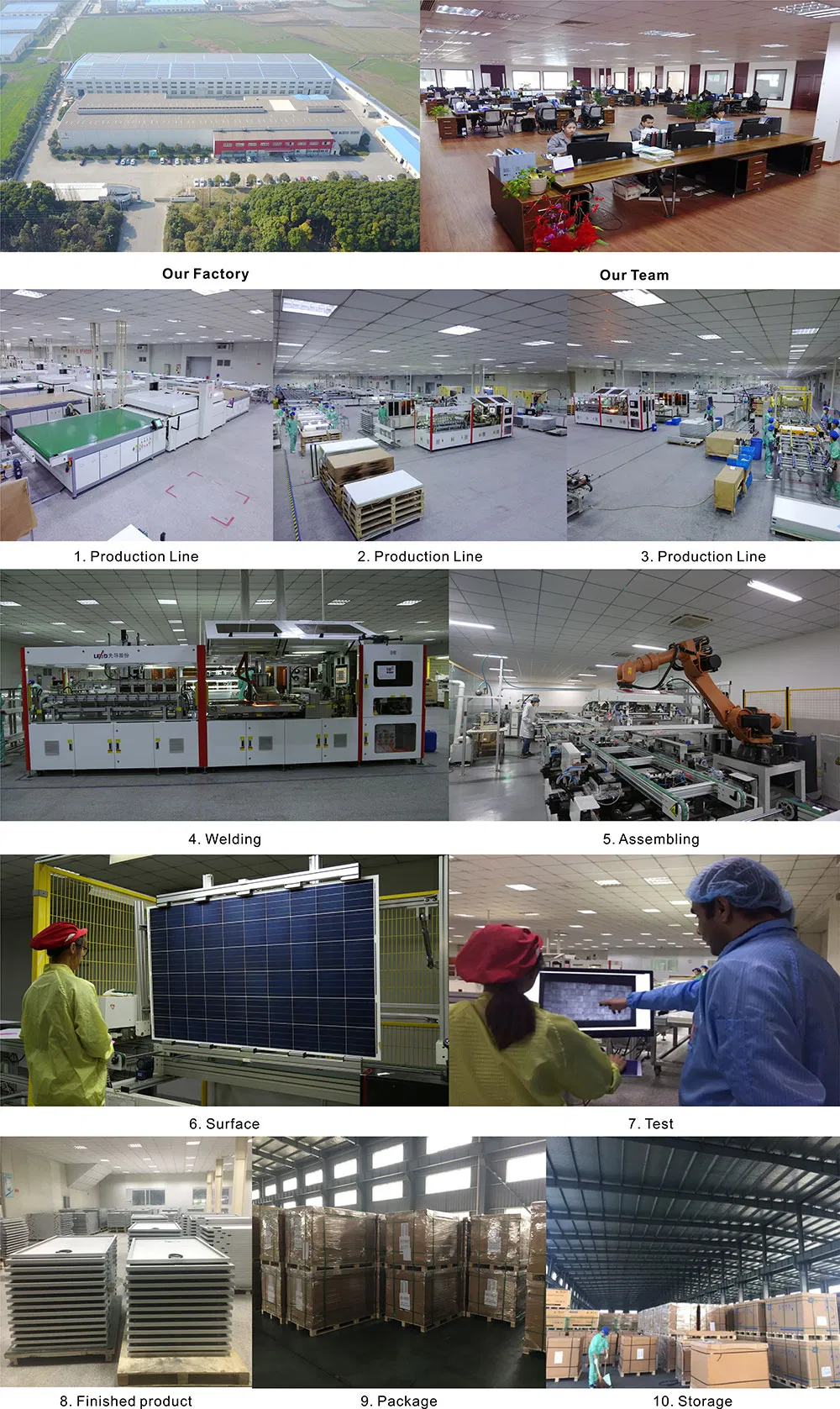

Production Capacity
15000PCS/Week
Frequently Asked Questions
What is the cell type and power range of these panels?

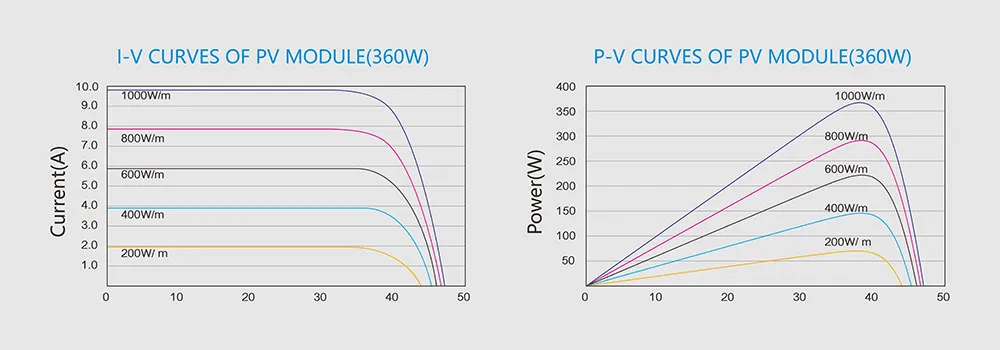

These are Monocrystalline PERC 72-cell solar panels with a peak power output ranging from 340W to 380W. They use high-efficiency black 5bb mono 156x156 PERC cells.
What certifications do the solar panels carry?
The solar panels are thoroughly certified by international bodies including TUV, CE, ISO9001, ISO14001, SGS, EST, CB, VDE, IEC61215, IEC617, Pid, Cec, and Jet.
What warranty terms are offered on these modules?
We offer a 25-year total workmanship and materials warranty. Additionally, the linear power output warranty guarantees at least 90% efficiency at 10 years and 80% efficiency at 25 years.

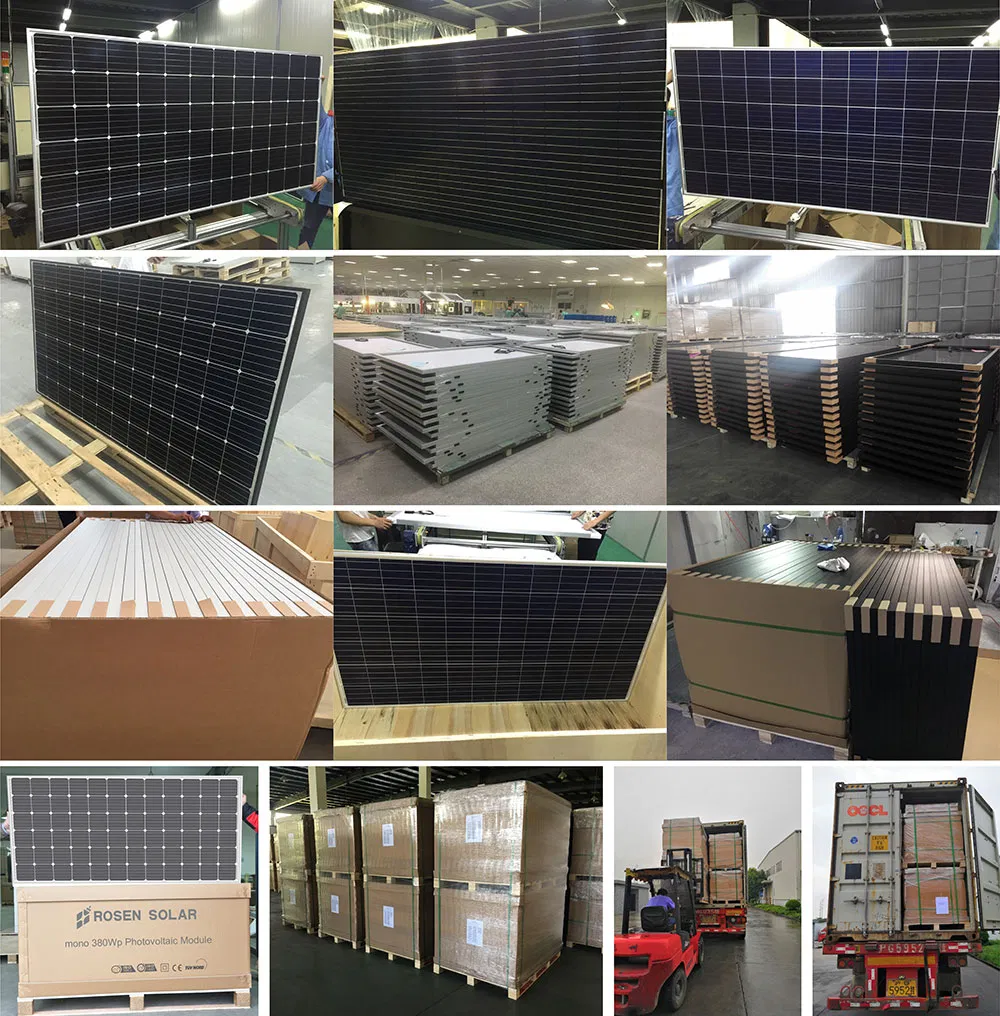

How are the panels packaged for transport?

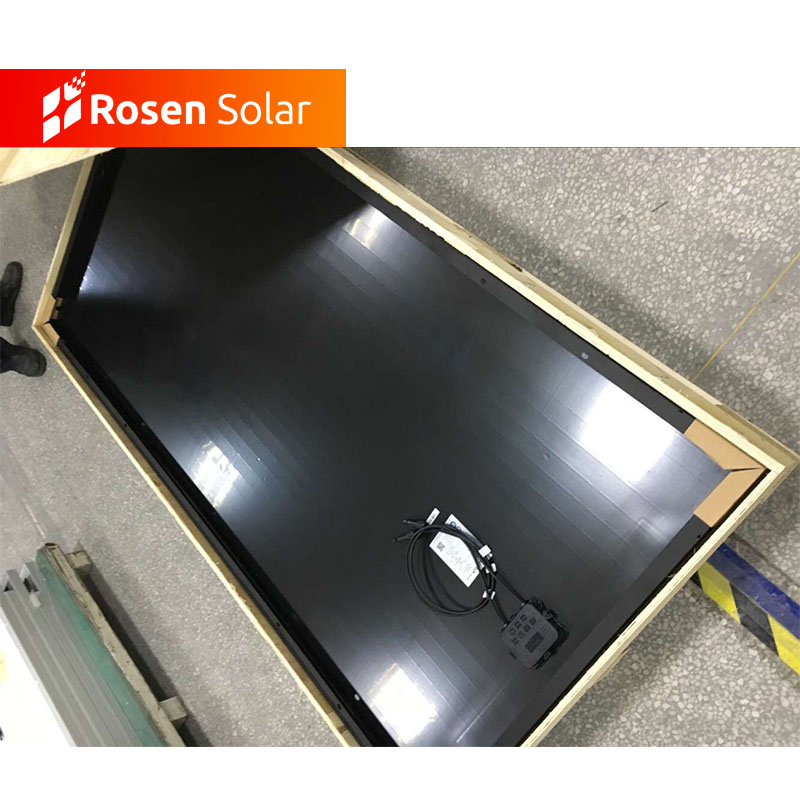

For 72-cell configurations, the panels are packed 27 pieces per pallet, and 2 pieces per carton or wooden box. A standard 40HQ container fits 26 pallets or up to 702 pieces.
Are the solar panels tested before dispatch?

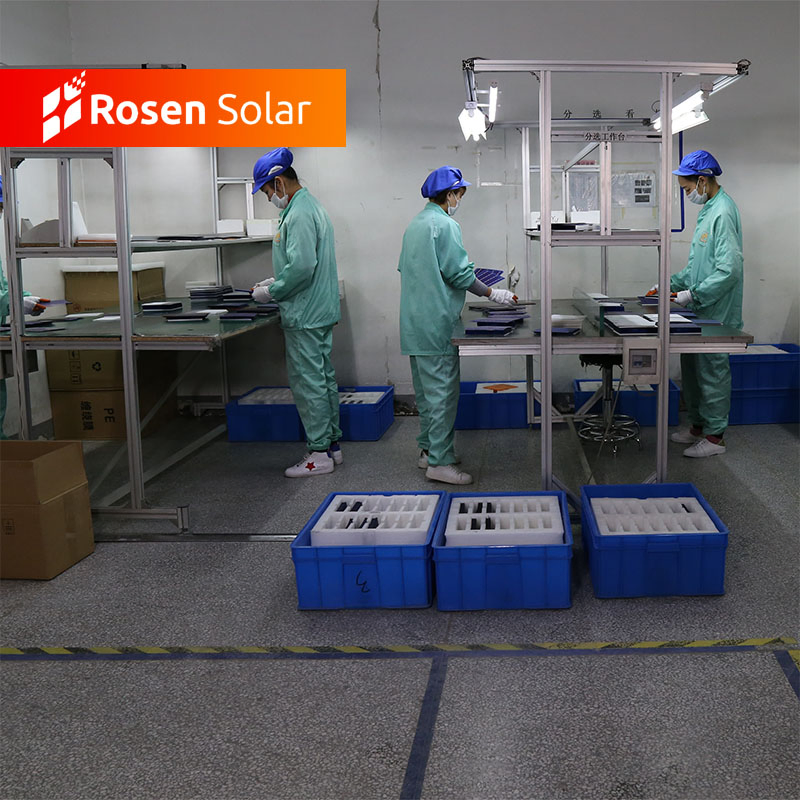

Yes, 100% of the manufactured solar panels undergo comprehensive Electroluminescence (EL) testing and Flash testing before being packed and shipped to ensure they are free of micro-cracks and meet rated power specifications.
What is the typical delivery timeframe?
The typical shipping configuration supports a delivery turnaround of 5 to 7 days, backed by a production capacity of up to 15,000 pieces per week.
