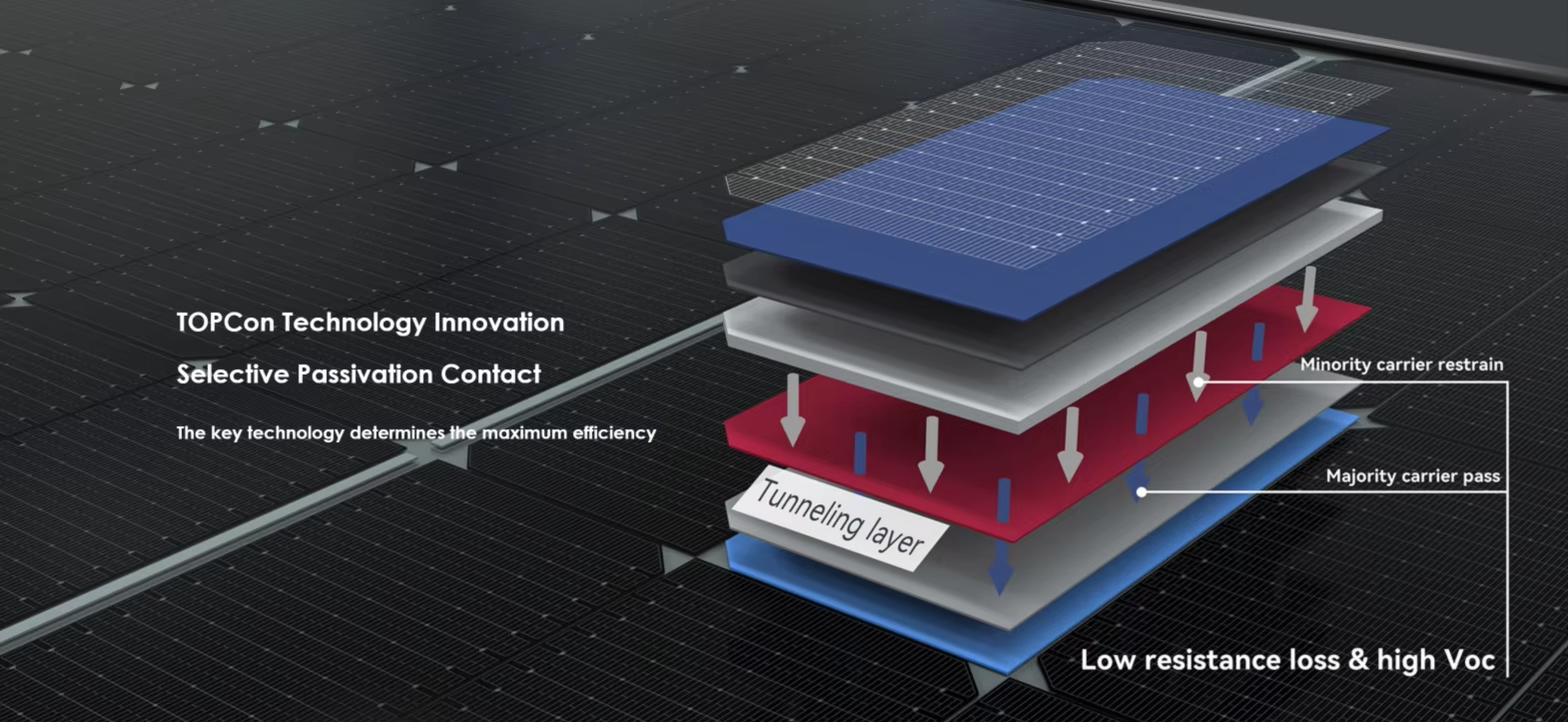

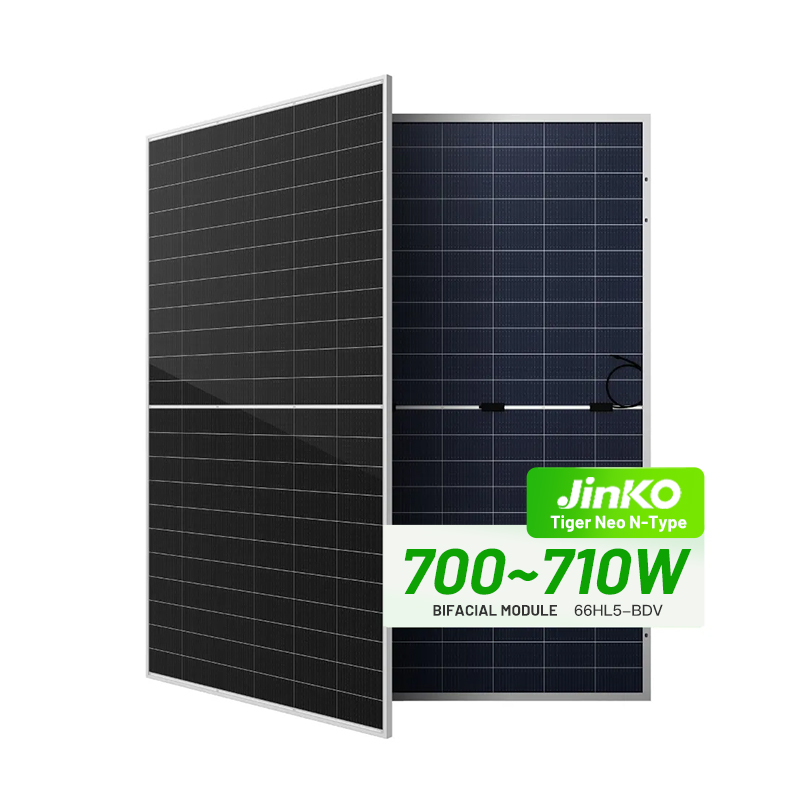

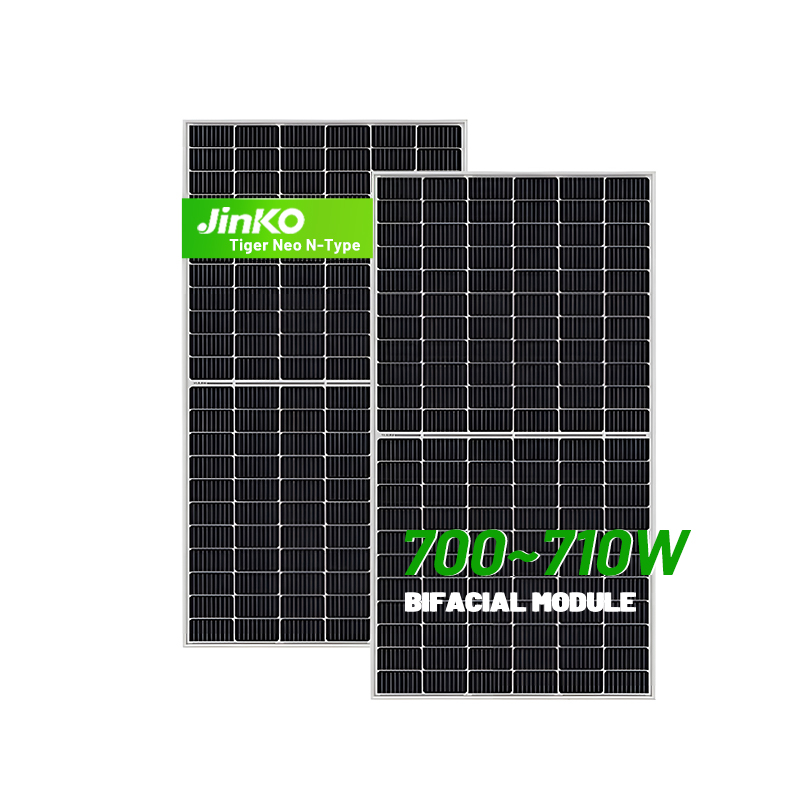

| Cell Type | N-Type Mono-crystalline | ||
| No. of Cells | 132 (66 x 2) | ||

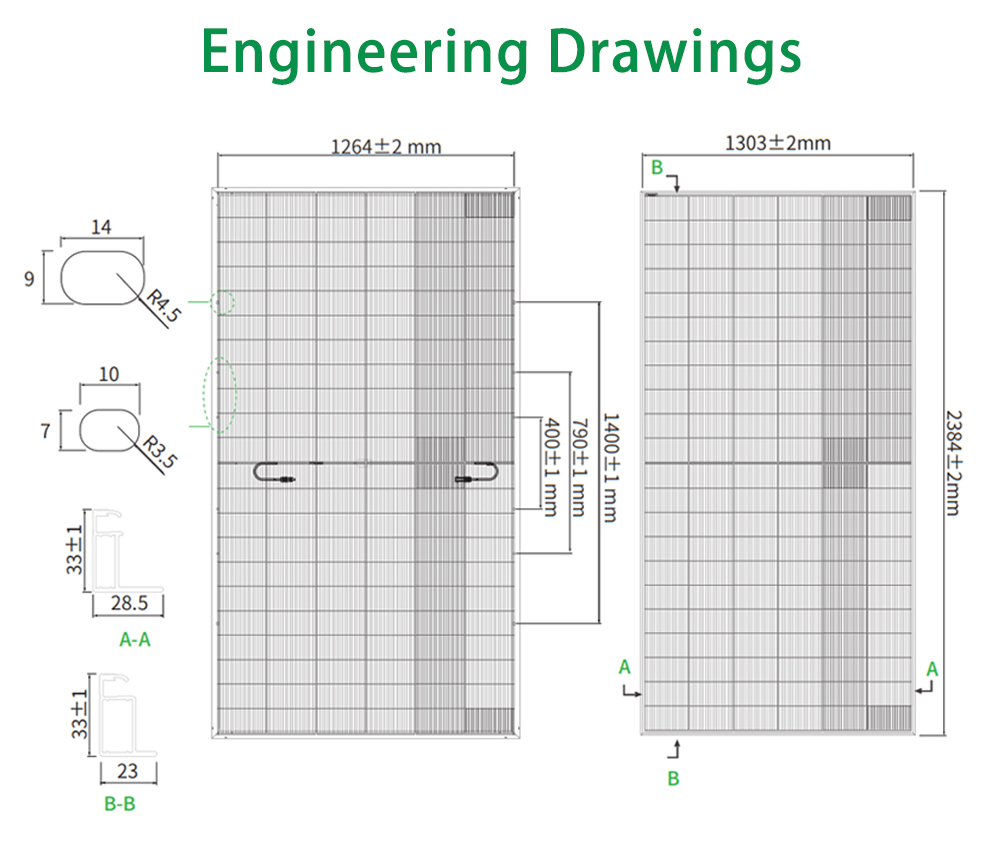

| Dimensions | 2384x1303x33 mm | ||
| Weight | 37.5 kg | ||
| Front Glass | 2.0 mm, Anti-Reflection Coating | ||
| Back Glass | 2.0 mm, Heat Strengthened Glass | ||
| Frame | Anodized Aluminium Alloy | ||
| Junction Box | IP68 Rated | ||
| Protection Class | Class II | ||
| IEC Fire Type | Class C | ||
| Output Cables | 4.0 mm² (+): 400 mm, (-): 200 mm or Customized Length | ||

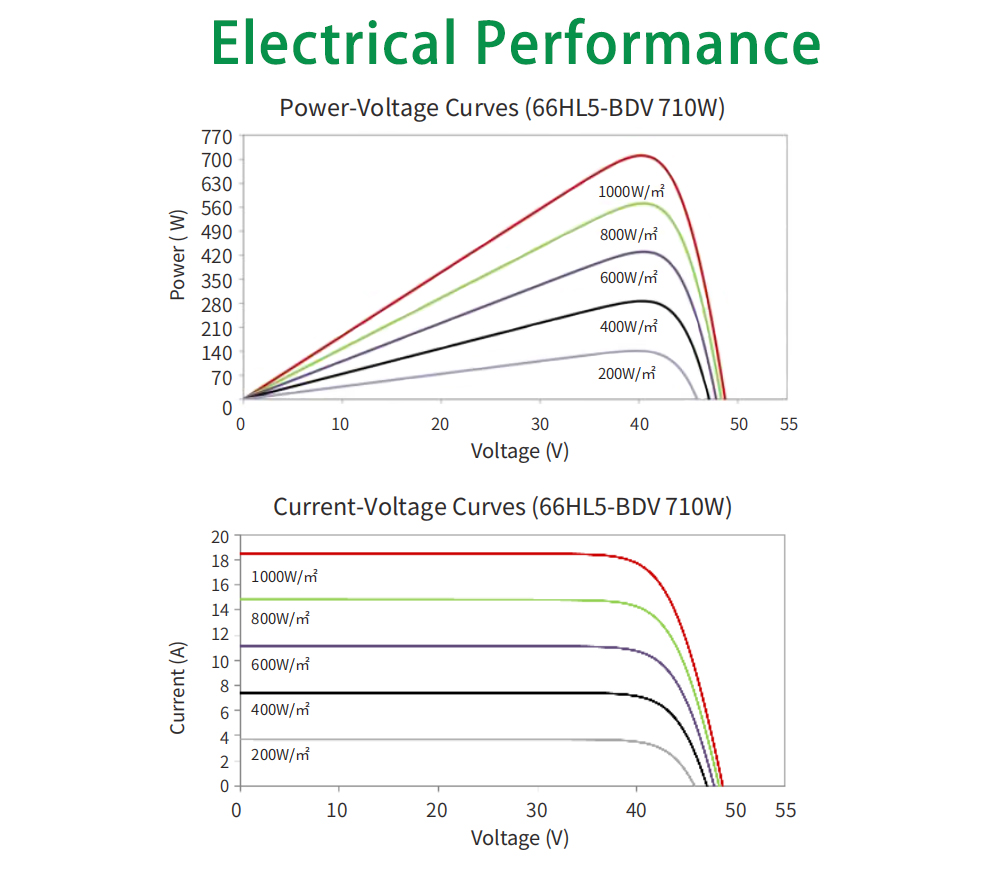

| Maximum Power - Pmax [Wp] | 700 | 705 | 710 |
| Maximum Power Voltage - Vmp [V] | 40.42 | 40.53 | 40.65 |
| Maximum Power Current - Imp [A] | 17.32 | 17.40 | 17.47 |
| Open-circuit Voltage - Voc [V] | 48.40 | 48.56 | 48.73 |
| Short-circuit Current - Isc [A] | 18.40 | 18.46 | 18.53 |
| Module Efficiency STC [%] | 22.54 | 22.70 | 22.86 |
| Power Tolerance | 0~+3 % | ||
| Temperature Coefficients of Pmax | -0.29 %/°C | ||
| Temperature Coefficients of Voc | -0.25 %/°C | ||
| Temperature Coefficients of Isc | 0.045 %/°C | ||
