10Kw Hybrid Solar Panels Energy System 5Kw 15Kw 50Kw 20Kw 30Kw Complete Kit Solar Power System With Storage Set For Home

Product Description

Solar Products Banner

Products Description

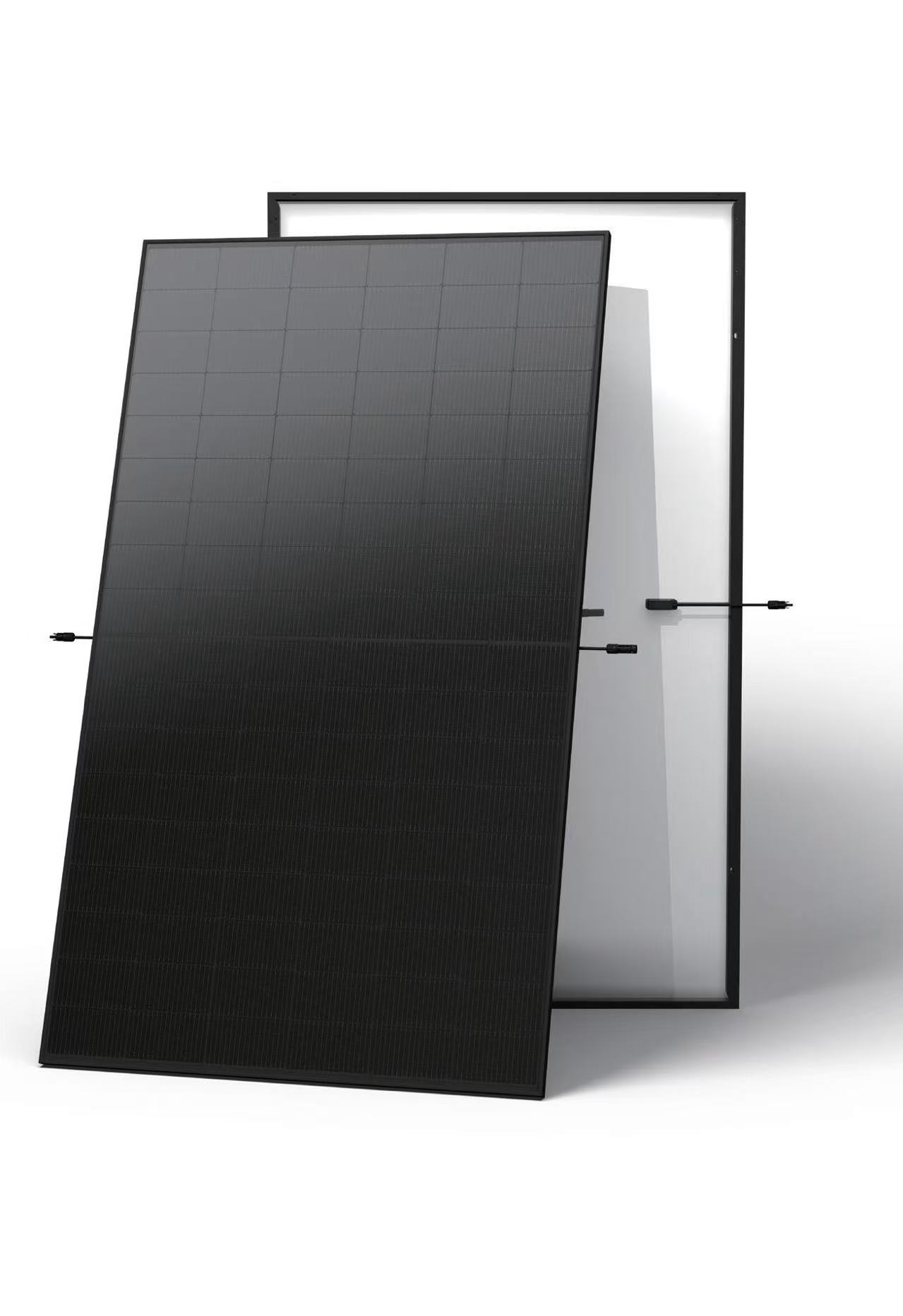

Half Cut Mono 580W Solar Panel

Half Cut Mono 580W Solar Panel

  • N-type TopCon
  • Peak Power Watt: 580W
  • Maximum Power Voltage: 42.78V
  • Maximum Power Current: 13.56A
  • Open Circuit Voltage: 51.32V
  • Short Circuit Current: 14.33A
  • Dimensions: 2278*1134*35mm
  • Weight: 27.0kg

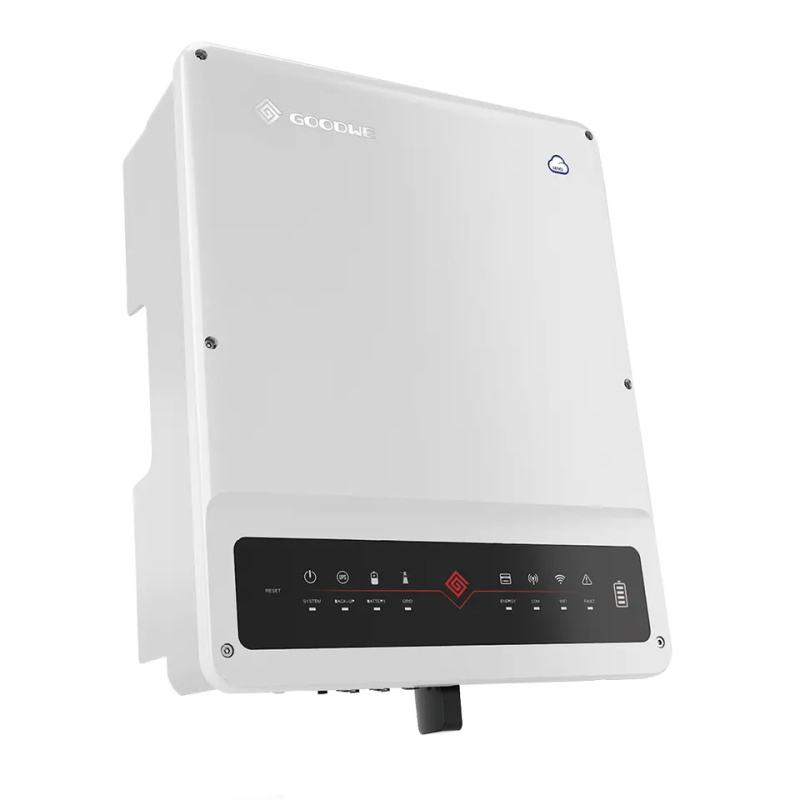

All In One Hybrid Grid Inverter

All In One Hybrid Grid Inverter

  • Colorful touch LCD, IP65 protection degree.
  • AC couple to retrofit existing solar system.
  • Max. charging/discharging current of 250A.
  • 6 time periods for battery charging /discharging.
  • Support storing energy from diesel generator.
  • Max. 16 pcs parallel for on-grid and off-grid operation; Support multiple batteries parallel.

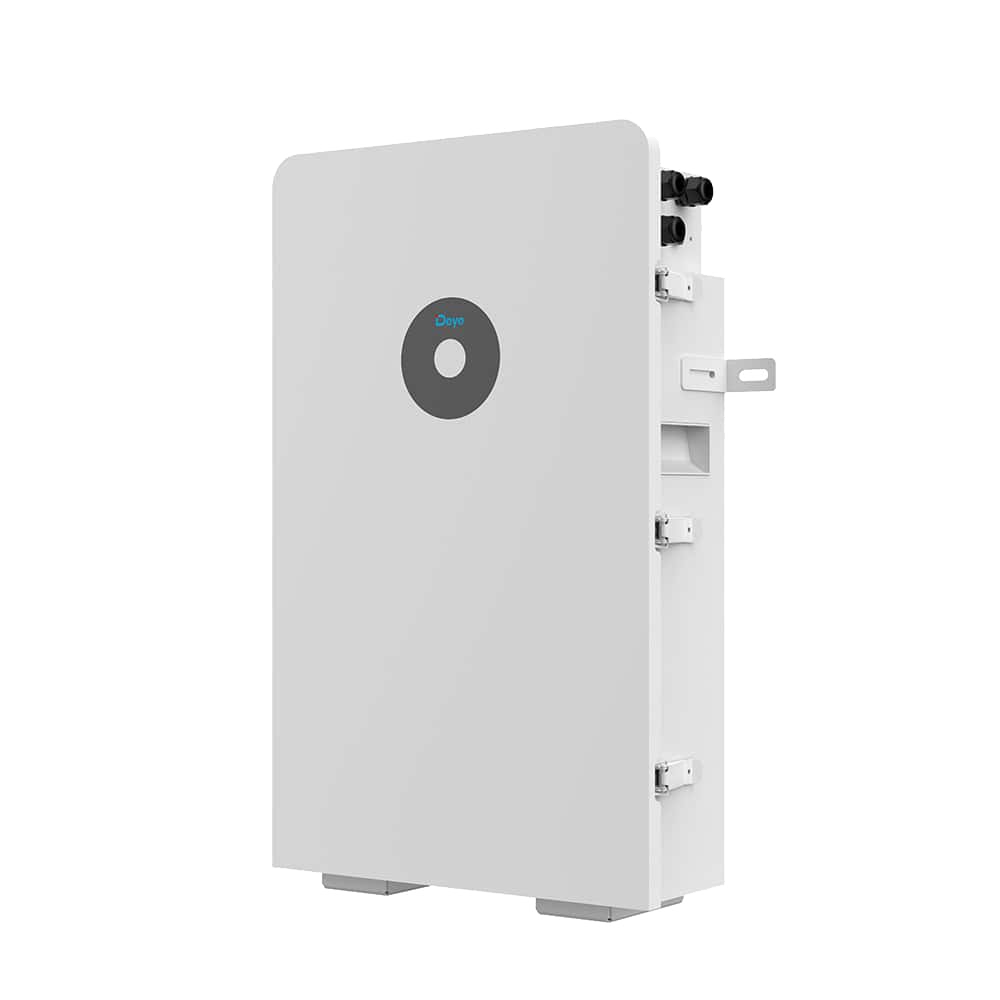

Low Voltage Lithium Battery

Low Voltage Lithium Battery

  • Rated Voltage: 48V/51.2V (Optional)
  • Rated Capacity: 100Ah/200Ah (Optional)
  • Cycle Life: 5000 cycles @80% DOD 0.5C
  • Material System: LiFePO4
  • Case Type: Wall Mounted
PV Mounting System

PV Mounting System

  • Pitched/Flat Rooftop/Ground Brackets
  • 10 Years Warranty
  • Aluminum Alloy/Galvanized Steel
  • Provide Free Brackets Installation Design
DC Cable & MC4 Connector

DC Cable & MC4 Connector

  • Cross Section: 4mm² / 6mm² (Optional)
  • Rated Voltage: 600VDC(UL) / 1000VDC(TUV)
  • Rated Current: 55A / 70A
  • Colors: Black for STD, Red (Optional)
  • Lifetime: ≤25 Years

Specification

System Model TY5KW-HY TY8KW-HY TY10KW-HY TY12KW-HY
PV MODULE SPECIFICATIONS (*half cell mono)
Power (W) 440-700
Vmp (V) 36.33-41.96
Certifications CE / TUV (IEC 61215 & IEC 61730)
INVERTER SPECIFICATIONS
Rated Power (KW) 5 8 10 12
Max DC Power (W) 6000 10400 13000 15600
Max DC Voltage (V) 500 1000
MPPT Voltage Range (V) 120-450 125-425 120-450 125-425
Output Voltage (Vac) 220/230 220/380, 230/400
BATTERY BANK SPECIFICATIONS
Number Of Batteries 1 2 3 4
Battery Bank Power (kWh) 4.8 9.6 14.4 19.2
Battery Voltage (V) 48/51.2
Battery Current (Ah) 100/200/280/304
Number Of PV Modules 10 16 20 24

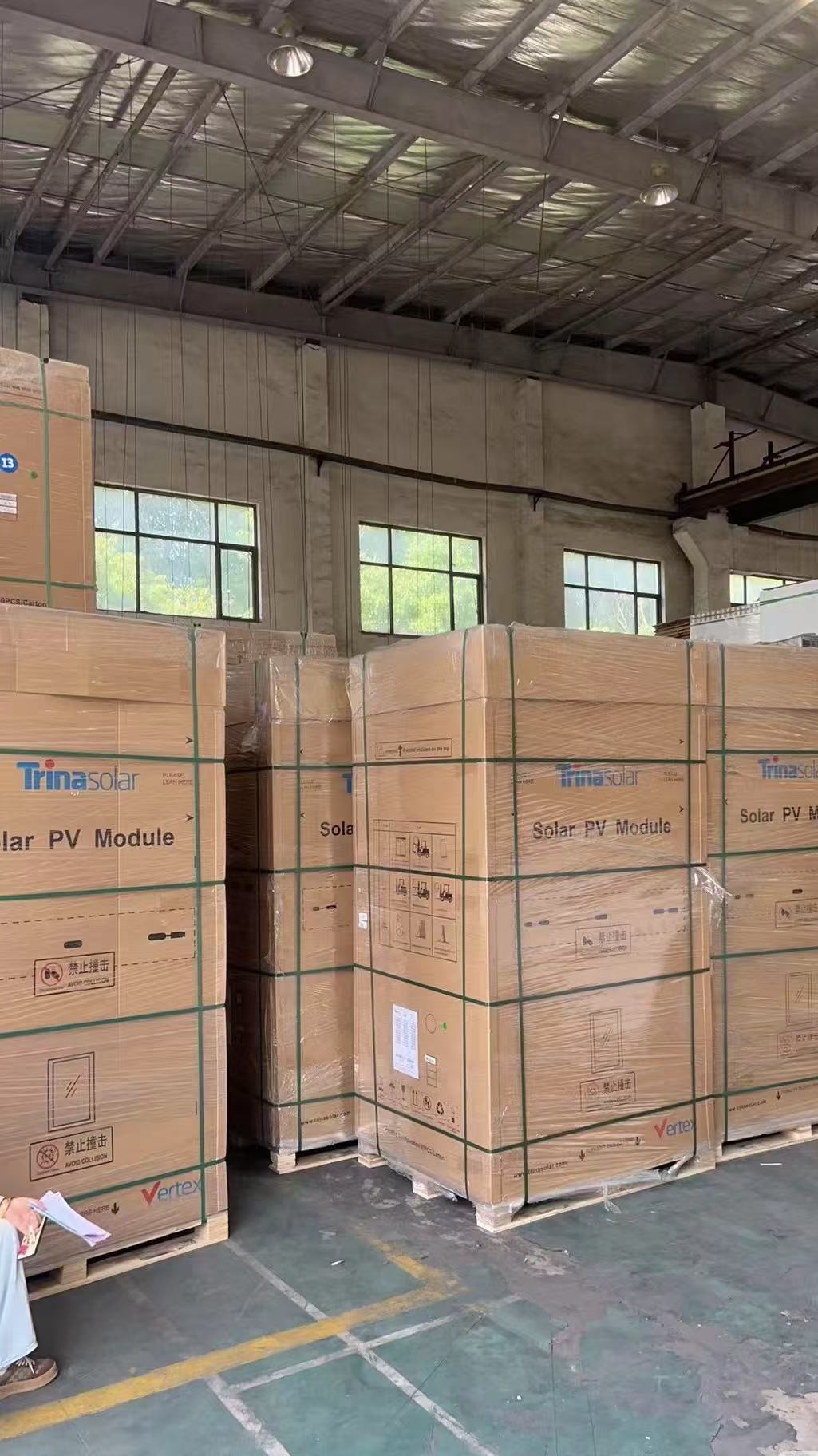

Packing and Shipping

Project Cases

Our Company

We specialize in producing solar mounting systems for domestic and international solar power markets. Our main products include solar mounting brackets, roof solar mounting accessories, solar carports, off-grid/on-grid/hybrid solar systems, and more. With a complete and scientific quality management system, we provide our customers with high-quality mounting brackets at competitive prices. Integrity, efficiency, and perfect service are our priorities. Our technical experts and consultants have rich experience in engineering, manufacturing, and international building standards, ensuring great quality and convenient usage. With high-quality products and product innovation, our mounting brackets are trusted by installers, distributors, and agents around the world. We provide a series of mounting systems covering all fields from residential and commercial to public utilities. To meet our customers' special requirements, our strong engineering team can provide customized solutions. We prioritize customer satisfaction and keep innovation as our mission, ensuring we provide the most advanced and reliable products for the PV industry.

Certificate

FAQ

What's your main products?

Our main products are solar systems, solar panels, inverters, controllers, batteries, mounting systems, and all related solar power accessories.

Are you a factory or trading company?

We are a manufacturer with export license, and we hold several quality assurance certificates.

Could you print our company logo in nameplate and package?

Yes, we can print your logo on nameplates and packaging according to your specific design requirements.

Can you support OEM and on-site installation?

Yes, as a professional solar system manufacturer, we provide OEM services and support our clients with on-site installation, including full assistance in service.

How does your factory carry out quality control?

Quality is our priority. We have a professional QC team that is dedicated to carrying out strict quality control procedures at every production stage.

What is your advantage in Solar Energy Systems?

We feature an automatic production line equipped with international advanced production equipment to guarantee high efficiency and precision.
