Our solar panels are built with LONGi's latest HPCB solar cell technology, achieving up to 26% efficiency. They deliver power generation performance comparable to SunPower, yet at only half the cost.
We fully support customization to meet your project requirements—whether for size, voltage, or connectors—with no minimum order quantity.

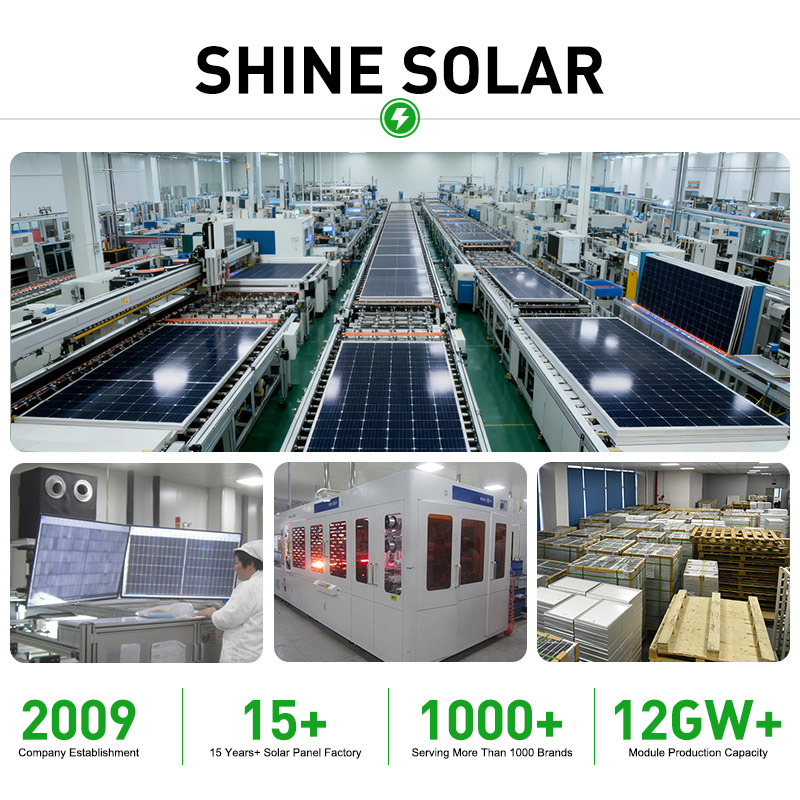

With 16 years of experience as a manufacturer, we ensure reliable products and tailored solutions. Feel free to reach out for more information or to discuss your needs.

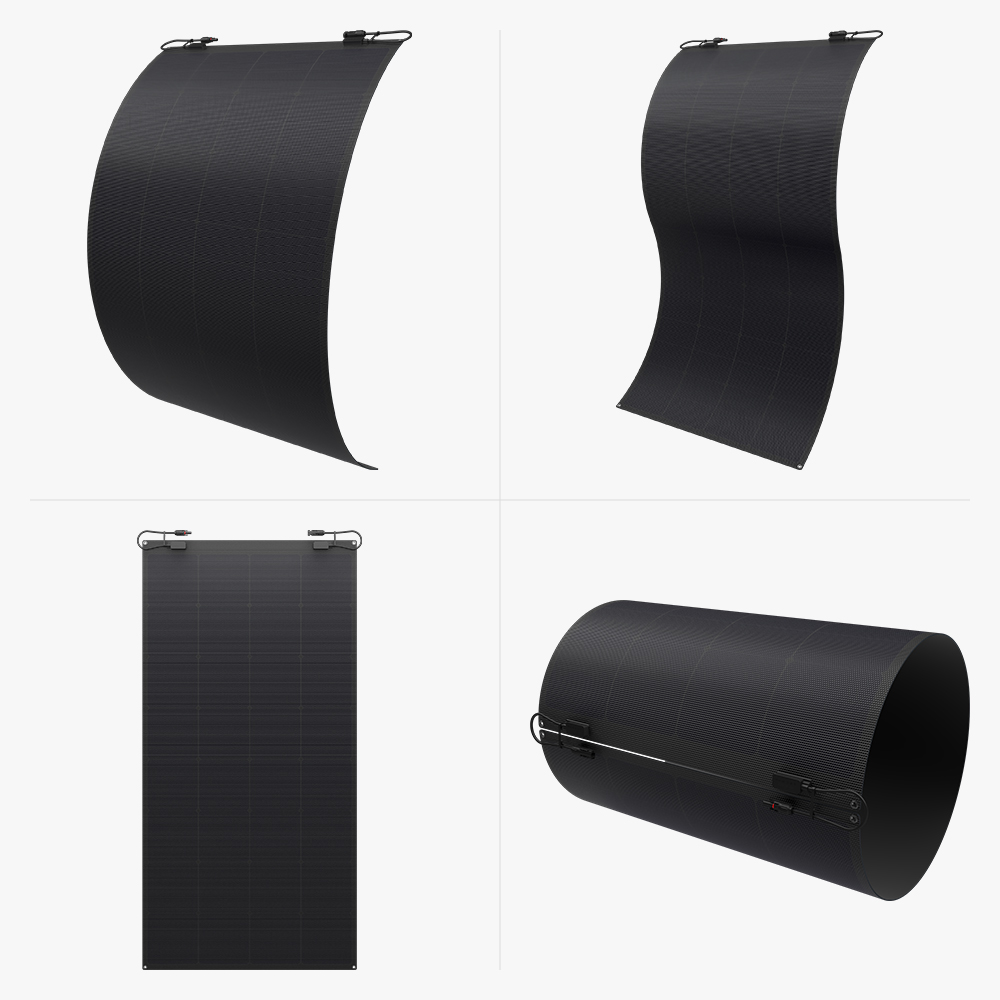

We provide lightweight solar panels in two distinct configurations:
| Model | Pmax (watt) | Vmp (V) | Imp (A) | Dimension (mm) |
|---|---|---|---|---|
| SN-HBC30W | 30W | 18V | 1.84A | 430*390*3mm or customize |
| SN-HBC40W | 40W | 18V | 2.22A | 610*390*3mm or customize |
| SN-HBC50W | 50W | 18V | 2.78A | 800*390*3mm or customize |
| SN-HBC70W | 70W | 18V | 3.89A | 760*550*3mm or customize |
| SN-HBC100W | 100W | 18V | 5.56A | 970*575*3mm or customize |
| SN-HBC150W | 150W | 18V | 8.33A | 1080*760*3mm or customize |
| SN-HBC200W | 200W | 18V | 11.11A | 970*1134*3mm or customize |
| SN-HBC300W | 300W | 18V | 16.67A | 1350*1134*3mm or customize |
| SN-HBC120W | 120W | 18V | 6.67A | 910*680*3mm or customize |
| SN-HBC150W (Alt) | 150W | 18V | 8.33A | 1135*680*3mm or customize |
| Parameter | Details | ||
|---|---|---|---|

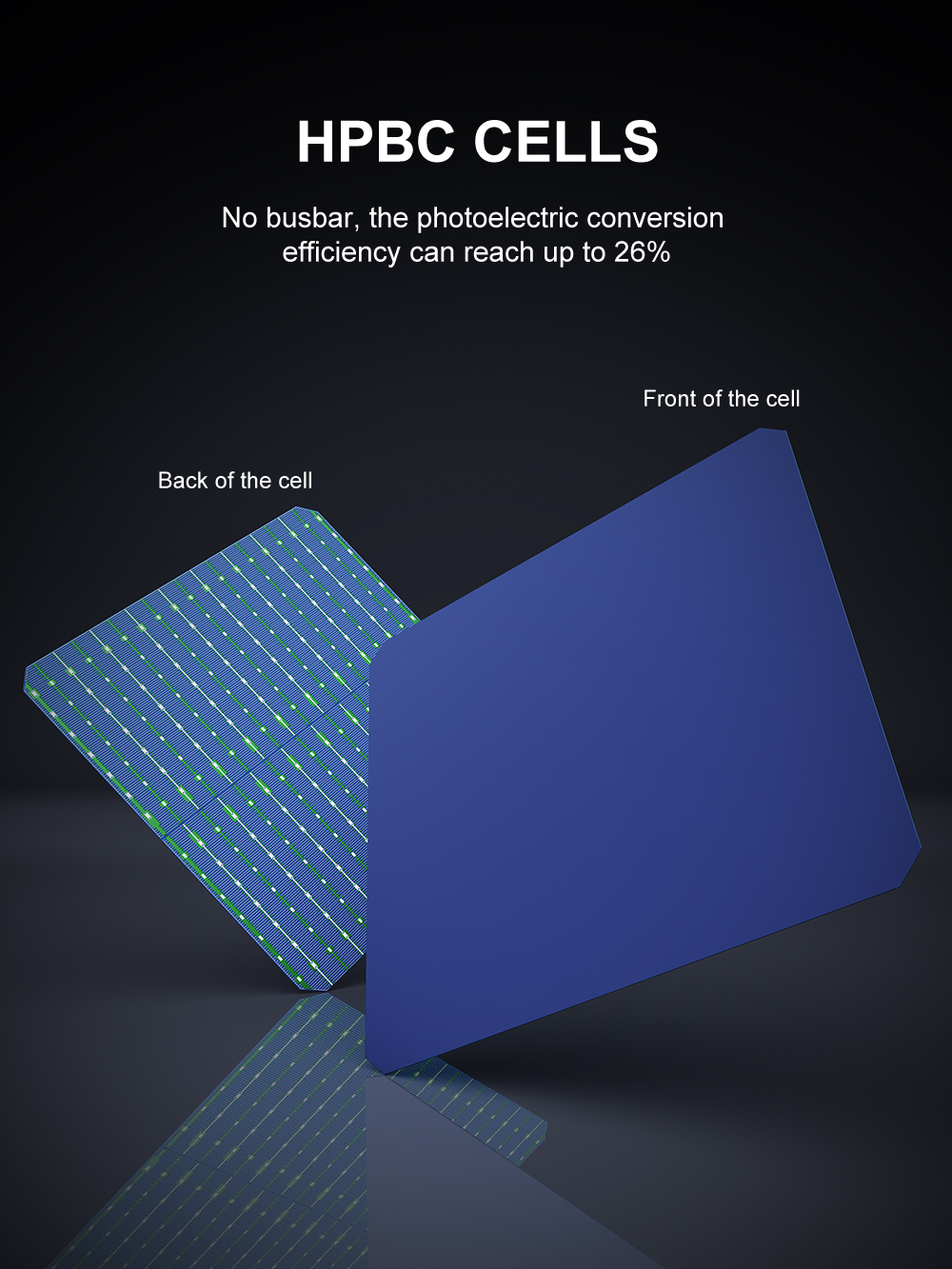

| Solar Cell Type | BC Solar Cell | ||
| Cell Efficiency | > 25% | ||
| Power Tolerance | 0~+3W | ||

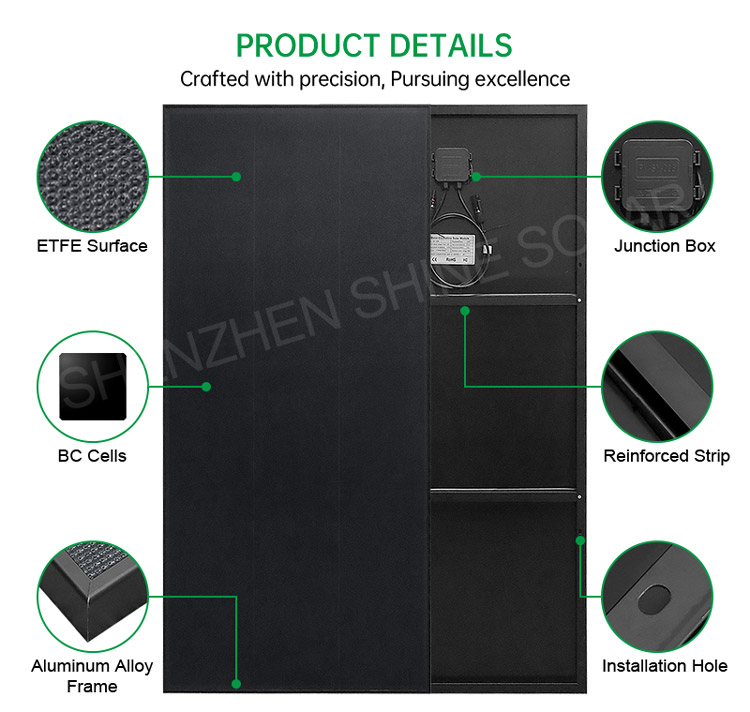

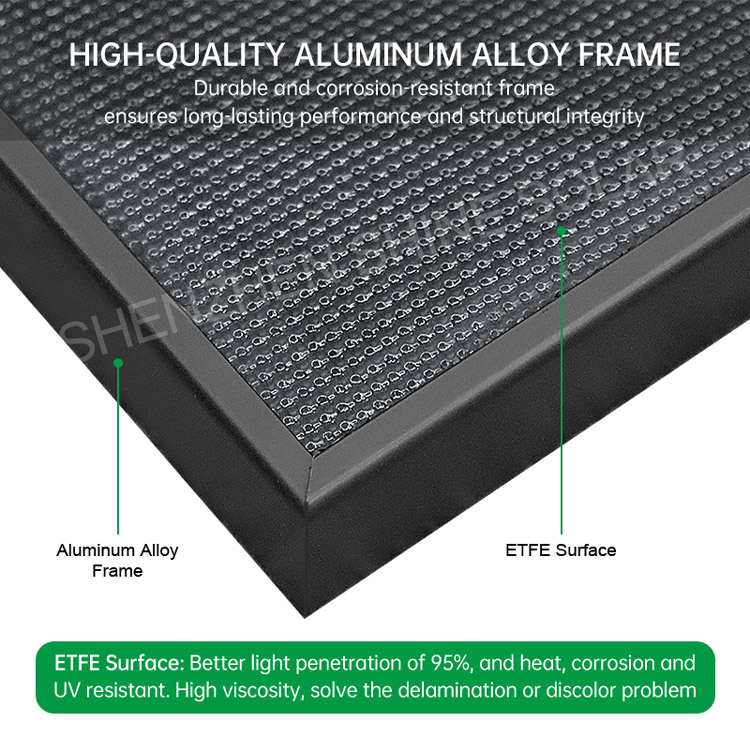

| Frame Material | Clear anodized aluminium frame, or without frame | ||
| Glass | ETFE | ||

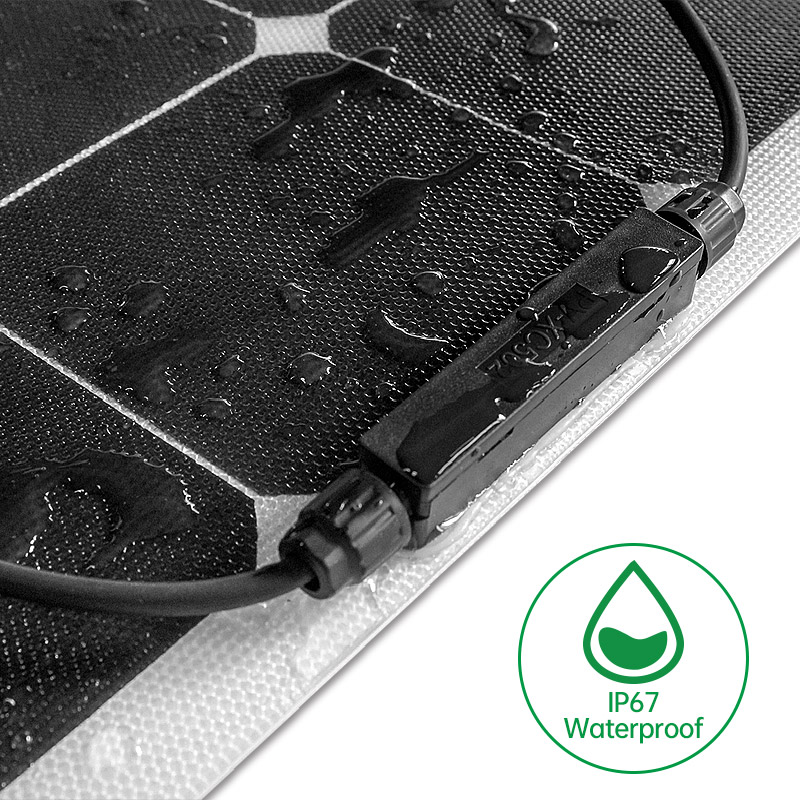

| Junction Box | ≥IP65 (1500V system voltage available) | ||
| Cable Options | 90cm 2x2.5mm² cable / 30cm 2x4.0mm² cable | ||

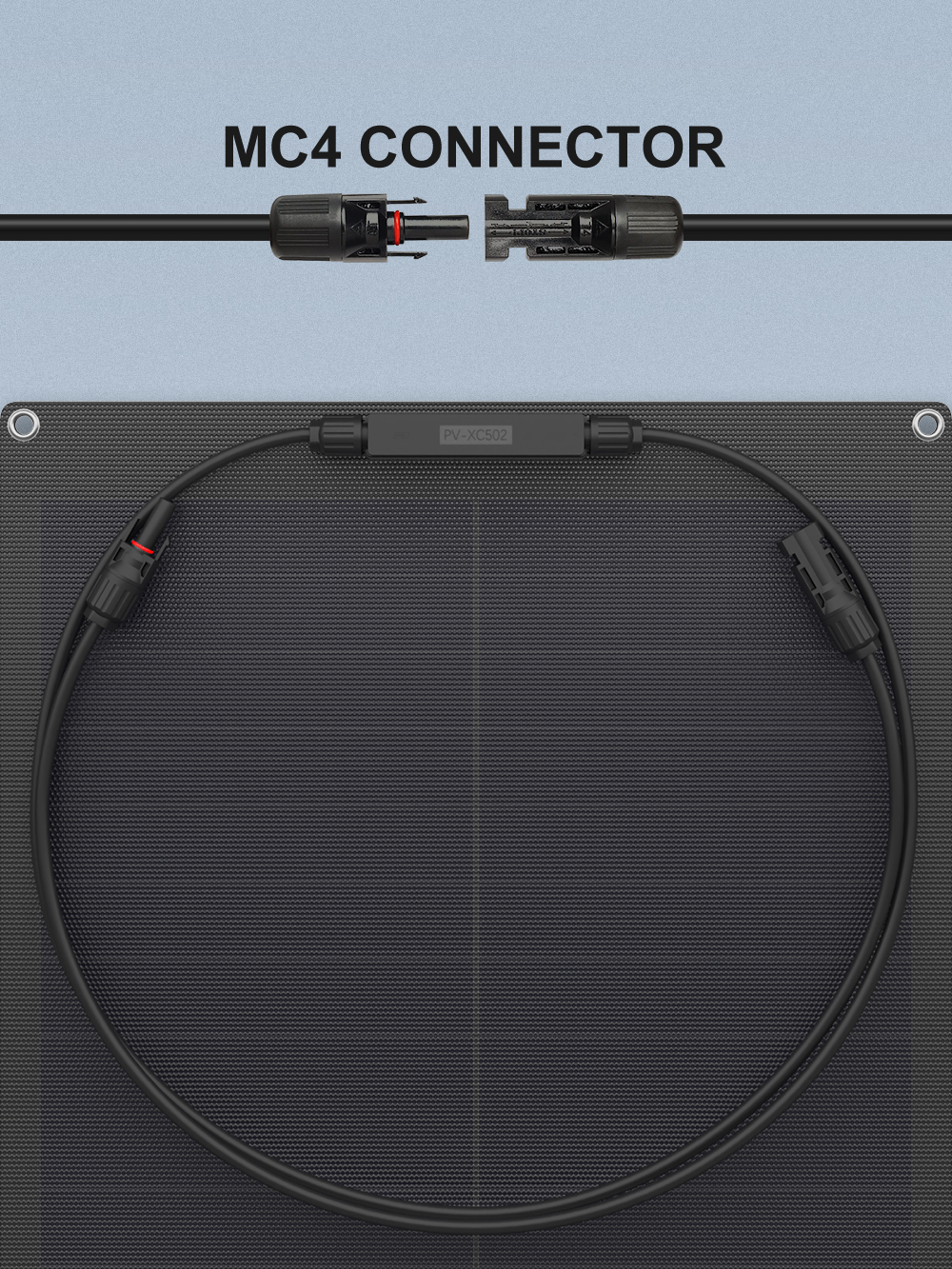

| Connector | MC4 connector or custom |
| Model No | SN-HBC40W | SN-HBC50W | SN-HBC58W | SN-HBC130W |
|---|---|---|---|---|
| Size | 1090*200mm | 1275*200mm | 1450*200mm | 1500*410mm |

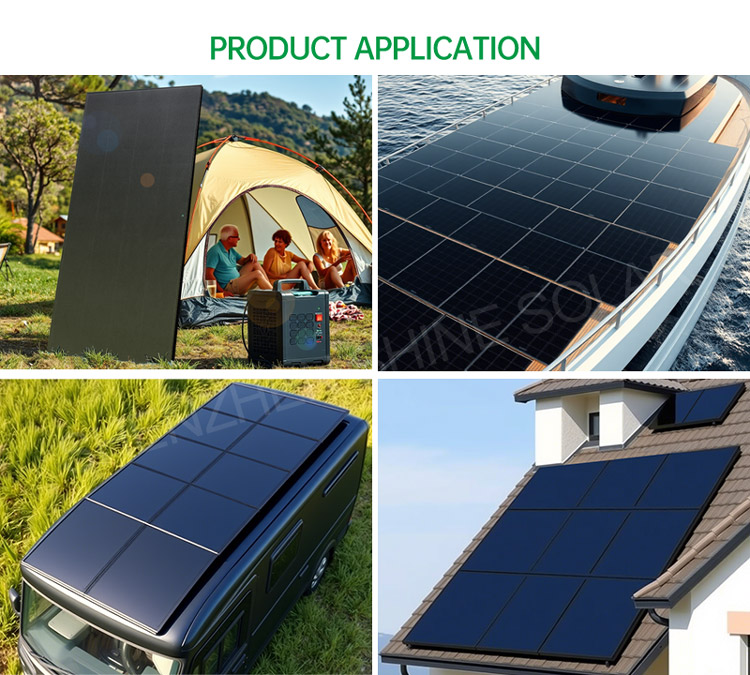

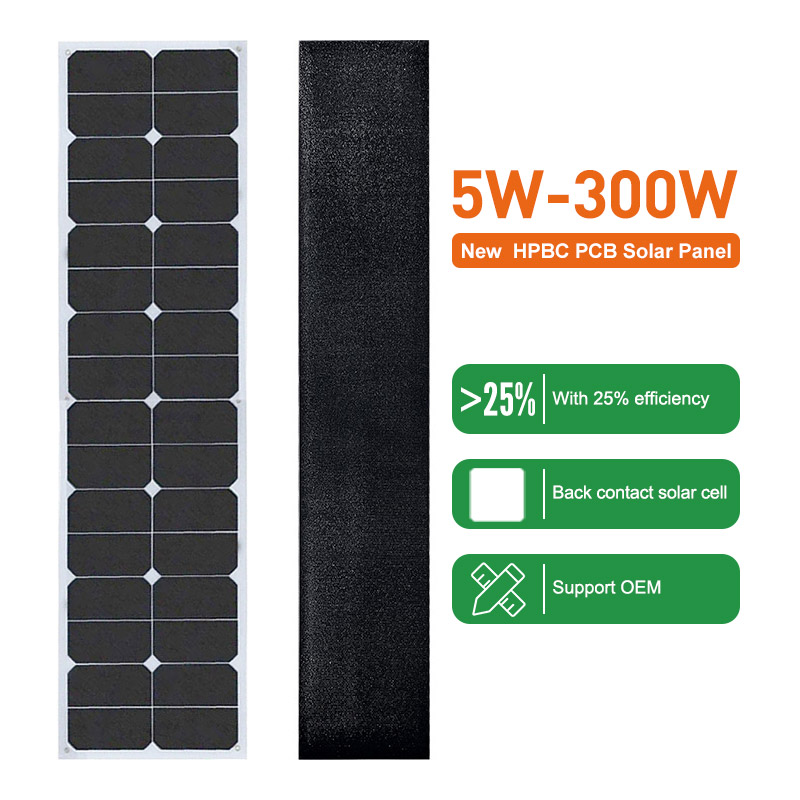

BC solar panel represents a high-performance monocrystalline solar panel range optimized for leisure applications (such as yachting, boating, camper vans), off-grid systems, or electronic signs.
The glass solar panel range is available in 2 configurations:
