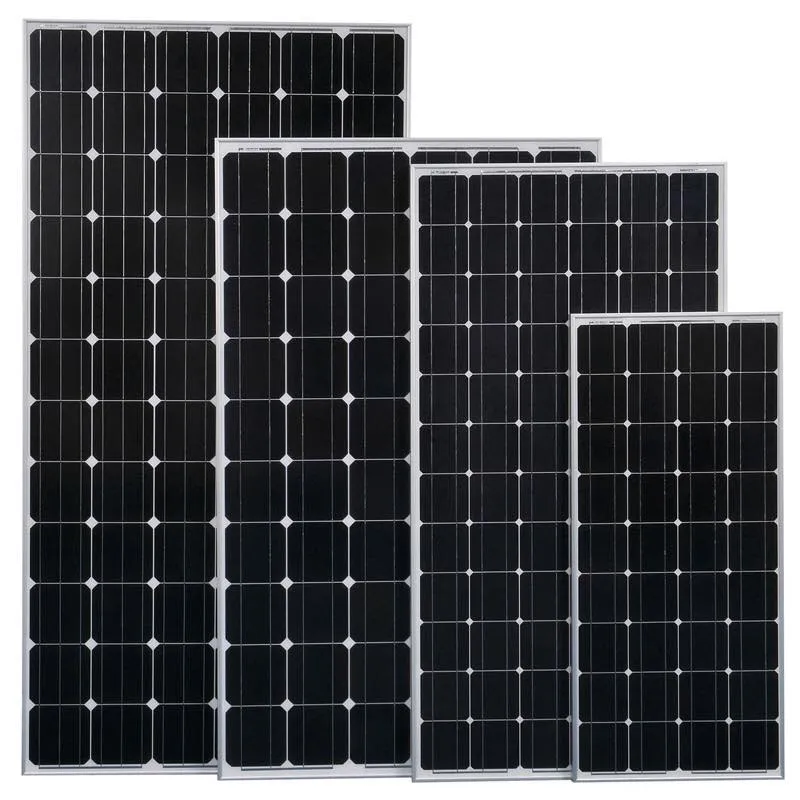

Mono Half Cell Solar Power double glass solar modules tier 1 specs:
| Parameters | 530W | 535W | 540W | 545W | 550W |
|---|---|---|---|---|---|
| Open Circuit Voltage -Voc (V) | 49.2 | 49.35 | 49.51 | 49.69 | 49.88 |
| Short Circuit Current -Isc (A) | 13.68 | 13.75 | 13.82 | 13.89 | 13.97 |
| Working Voltage -Vpm (V) | 41.53 | 41.82 | 42.12 | 42.41 | 42.71 |
| Working Current -Ipm (A) | 12.76 | 12.79 | 12.82 | 12.85 | 12.88 |
| Module Efficiency -η (%) | 20.51 | 20.7 | 20.89 | 21.09 | 21.28 |
| STC: Irradiance 1000W/m², Cell Temperature 25°C, Air Mass AM 1.5 | |||||

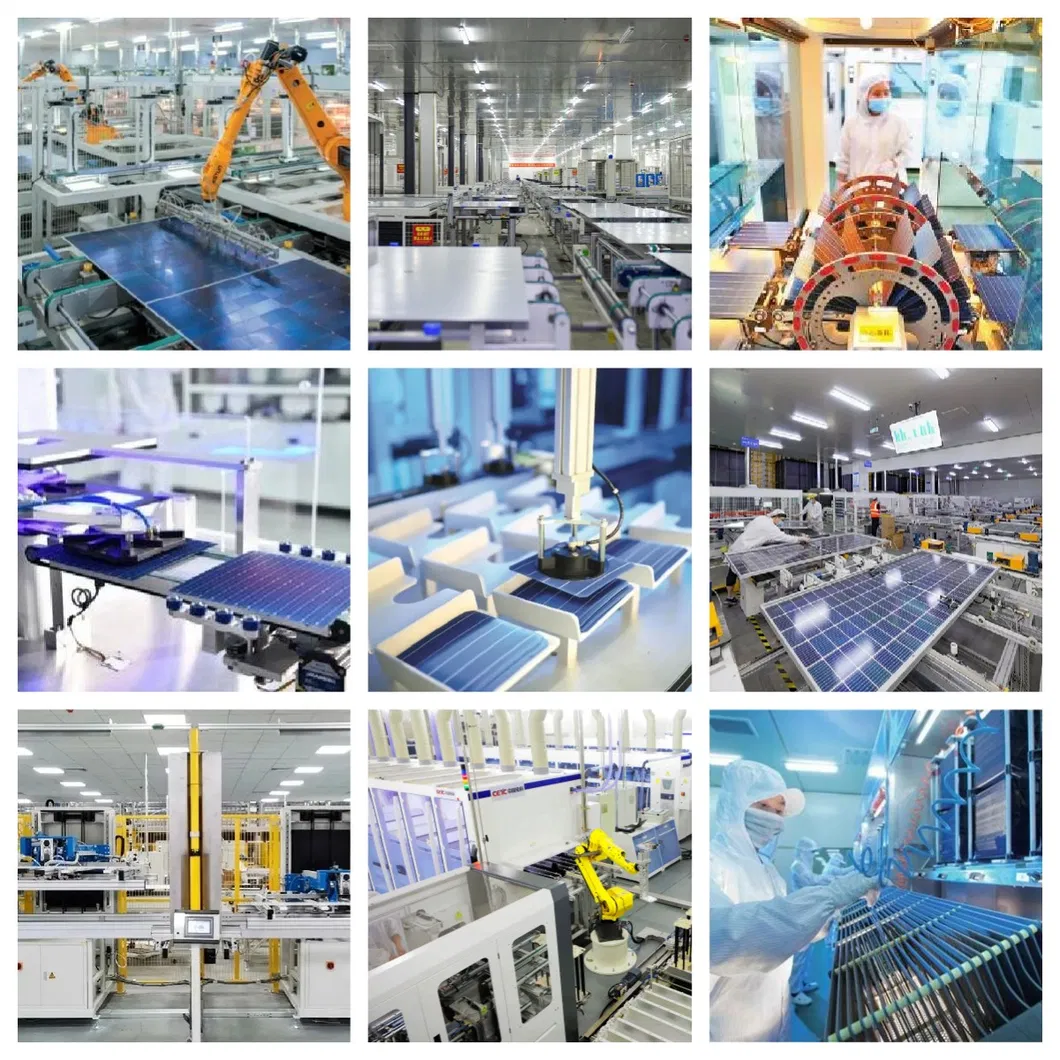

An industry-leading solar energy manufacturer with a current high-efficiency module production capacity of 10GW. By designing, manufacturing and supplying high-efficiency monocrystalline solar modules, we provide outstanding photovoltaic products, system solutions and related services to customers around the world. Committed to creating the greatest economic, social and human value for customers, partners, investors and all stakeholders. Contribute to the promotion of the global carbon peaking goal and bring dawn to energy-stressed regions.
10 days for orders under 200kW. For requests equal to or exceeding 200kW, we will negotiate the delivery timeline accordingly.
We accept 100% TT, or a maximum structure of 30% TT in advance with the remaining 70% TT due upon goods being ready prior to shipment.

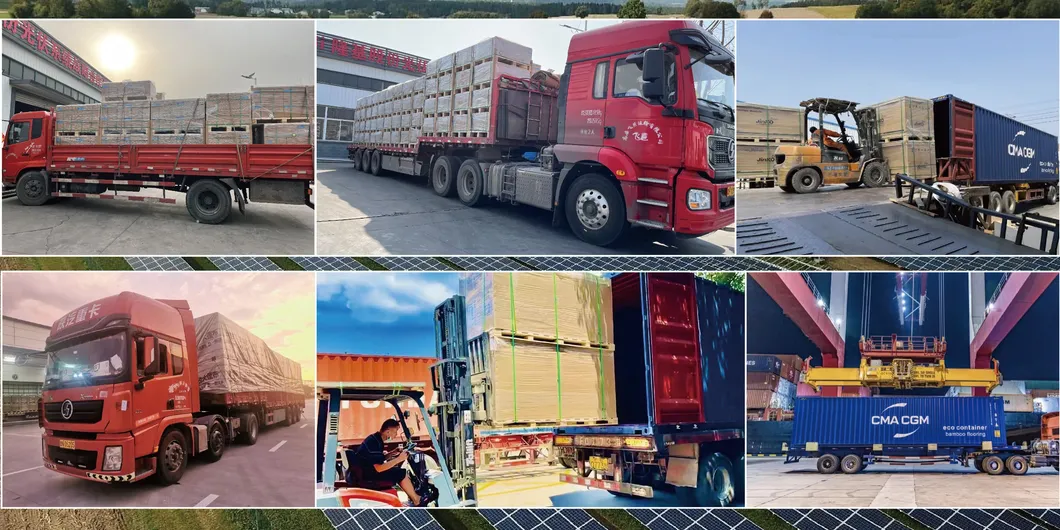

International segments are generally shipped via sea transport. Upon port entry, we utilize multimodal logistics including rail and barge transport.
We offer a 10-year enhanced product warranty on materials and workmanship, and a 25-year linear power output warranty. Please refer to our limited warranty statement for details.
Our solar panels conform to leading international safety and quality standards, carrying ISO, CE, and RoHS certifications.
The panels are constructed using 144 high-efficiency Half Cell N-Type Monocrystalline Silicon cells, measuring 78mm*166mm each, protected by a robust IP68 junction box.
