| MECHANICAL DATA SPECIFICATIONS | |
|---|---|

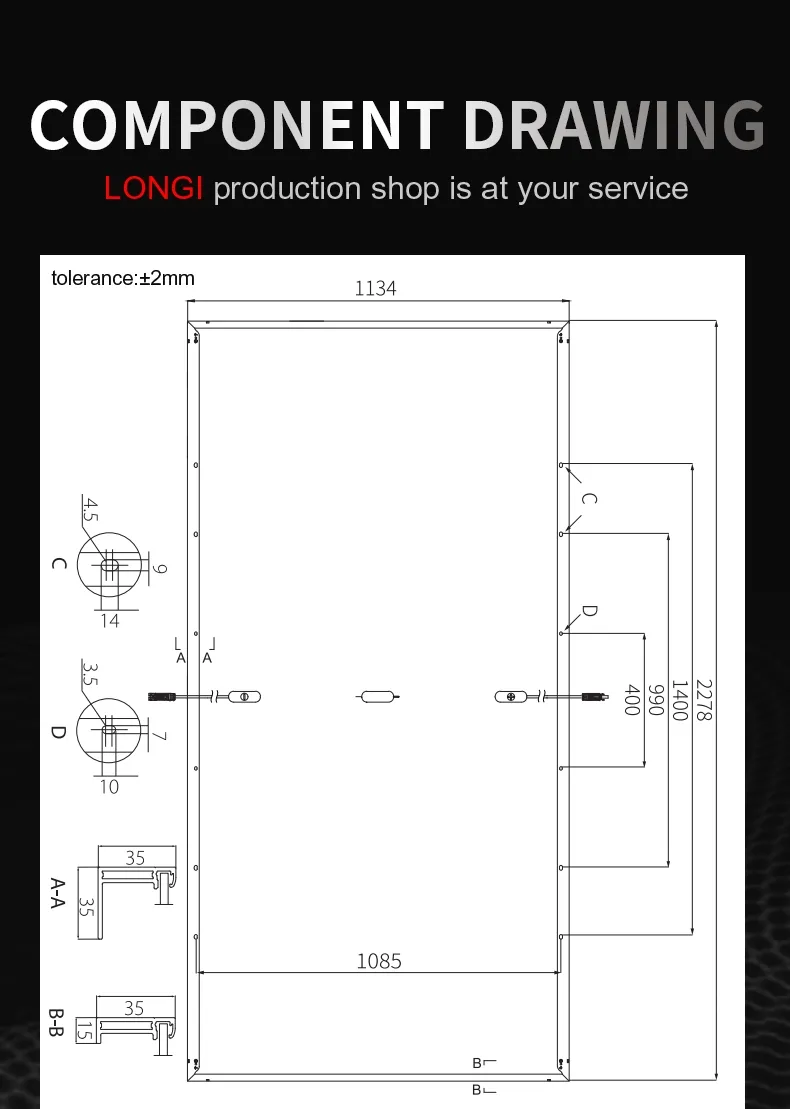

| Module Dimensions | 2278*1134*35mm |
| Weight | 27.3kg |
| Glass | 3.2 mm (0.13 inches), High Transmission, AR Coated Tempered Glass |
| Junction-Box | IP 68, three diodes |
| Cables | 4.0mm² , 300mm in length |
| Cell Orientation | 144cells(6*24) |
| Model Number | 72HTH-560M | 72HTH-565M | 72HTH-570M | 72HTH-575M | 72HTH-580M | 72HTH-585M |
|---|---|---|---|---|---|---|
| Maximum Power (Pmax/W) | 560 | 565 | 570 | 575 | 580 | 585 |
| Open Circuit Voltage (Voc/V) | 51.61 | 51.76 | 51.91 | 52.06 | 52.21 | 52.36 |
| Short Circuit Current (Isc/A) | 13.94 | 14.01 | 14.07 | 14.14 | 14.20 | 14.27 |
| Voltage at Maximum Power (Vmp/V) | 43.46 | 43.61 | 43.76 | 43.91 | 44.06 | 44.21 |
| Current at Maximum Power (Imp/A) | 12.89 | 12.96 | 13.03 | 13.10 | 13.17 | 13.24 |
| Module Efficiency (%) | 21.7 | 21.9 | 22.1 | 22.3 | 22.5 | 22.6 |
We stand as a professional manufacturer with over 15 years of expertise in the Solar Panel industry, crafting quality and innovation.
Our diverse product lineup includes poly and mono solar panels, solar batteries, power systems, charger controllers, inverters, lights, and even solar air-conditioning. We excel in bespoke solar system solutions, reaching clients across more than 60 countries in Europe, Asia, the Americas, and Africa.
Align your business with a trusted partner. Our global footprint spans Australia, Africa, Russia, the Middle East, South America, Asia, and beyond. Join us for a prosperous business journey!
