| Certification | EST, ISO, CB, CE |
| Material | Monocrystalline Silicon |
| Weight | 26.0 Kg |

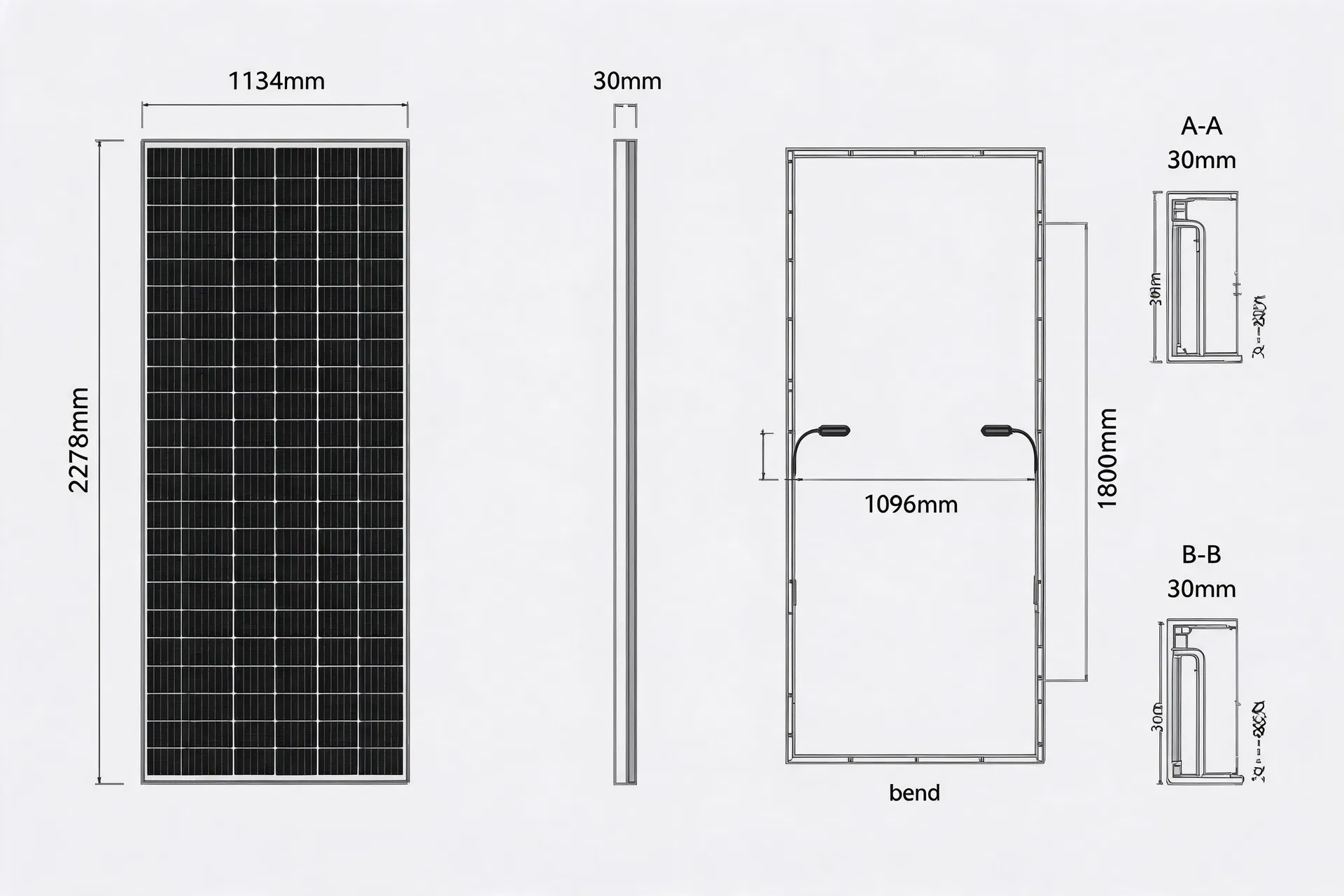

| Dimensions | 2278X 1134X 30mm |

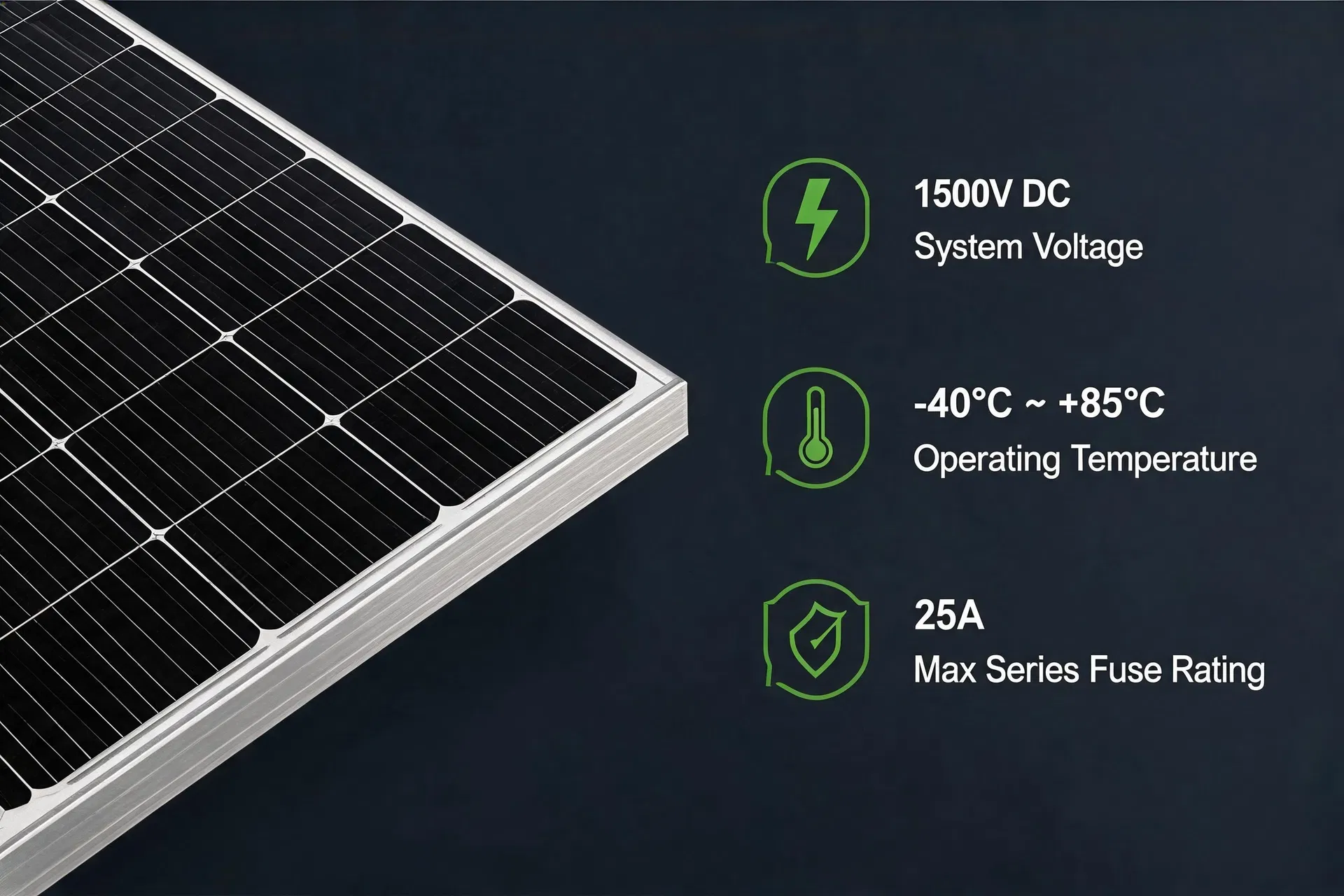

| Maximum System Voltage | 1500V DC |
| Maximum Series Fuse Rating | 25A |
| Max Snow Load | 2400 PA |
| Specification | 240/320/480kw |
| Origin | China |

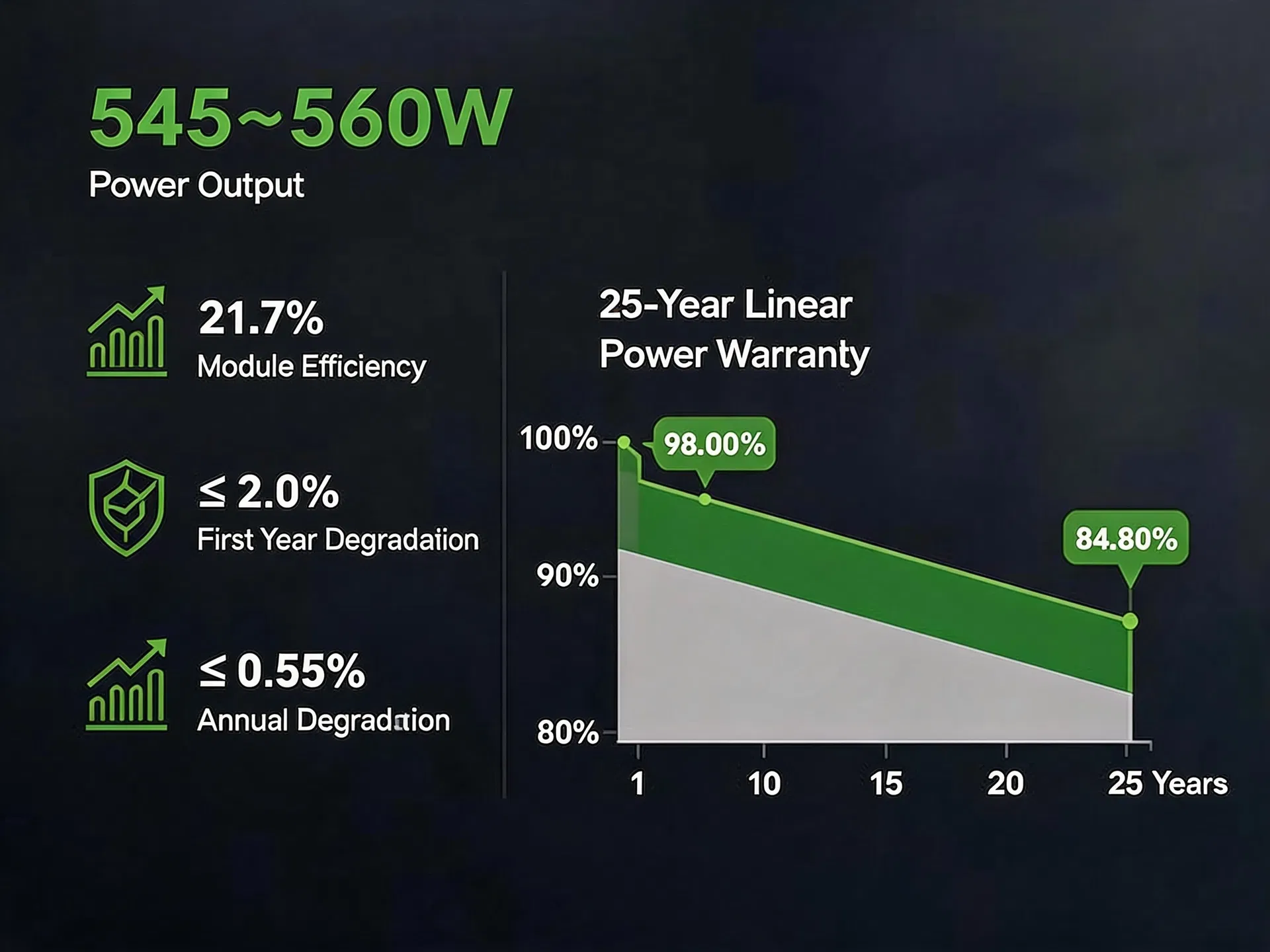

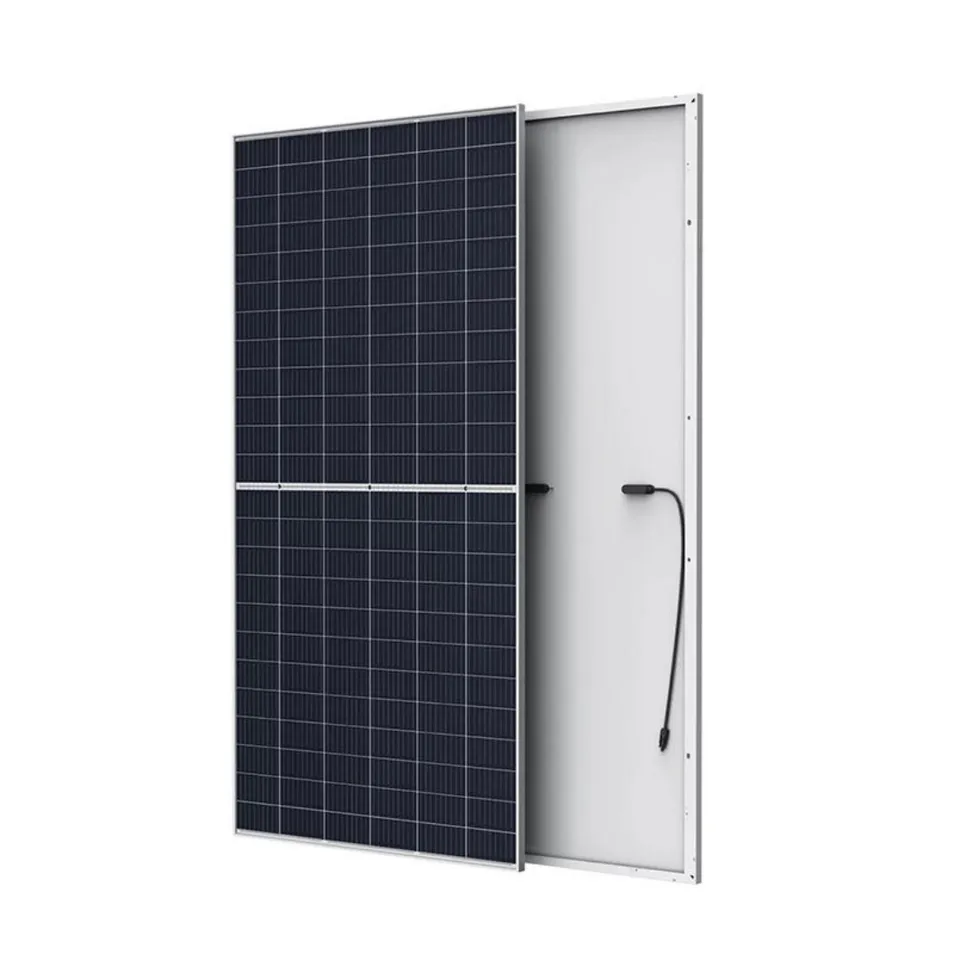

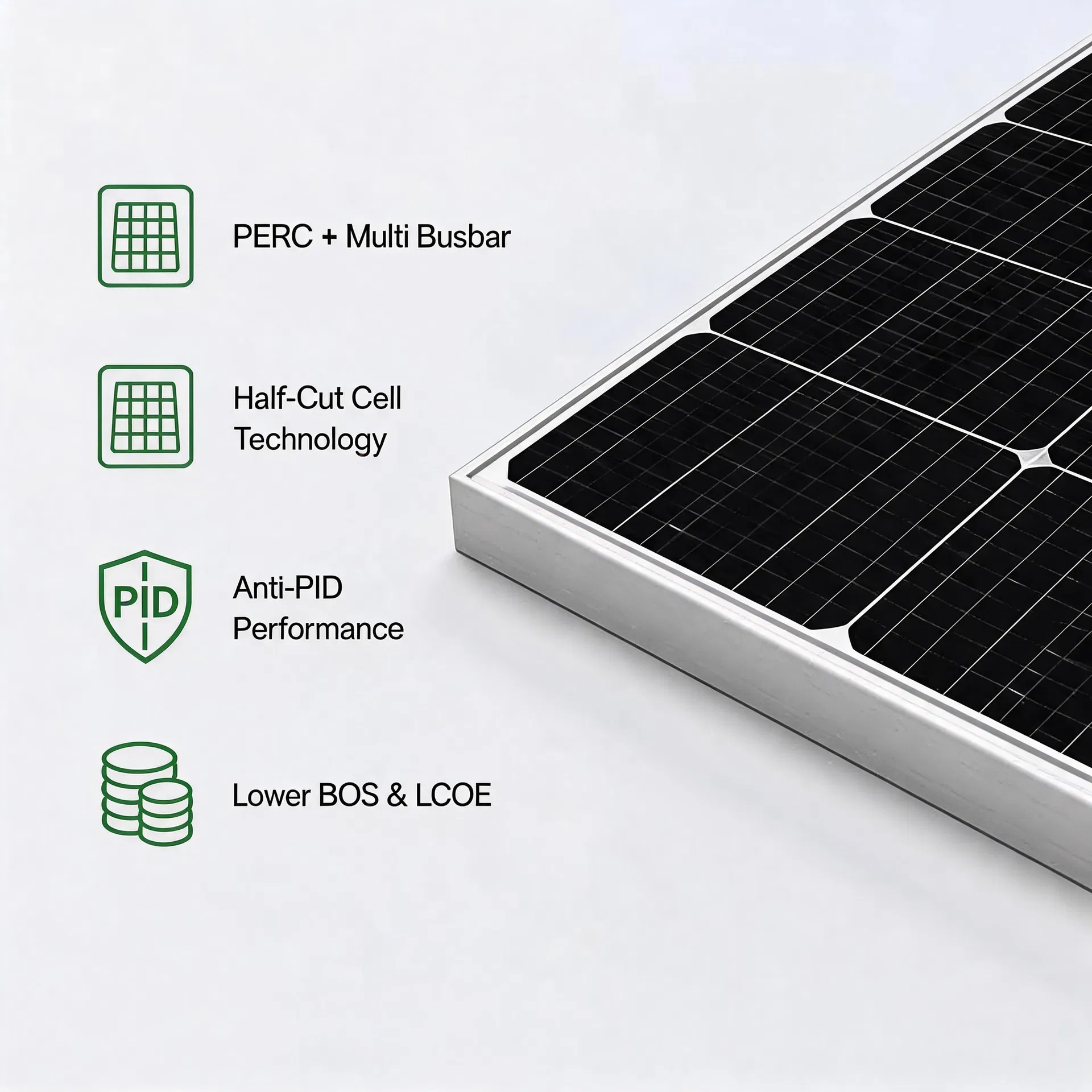

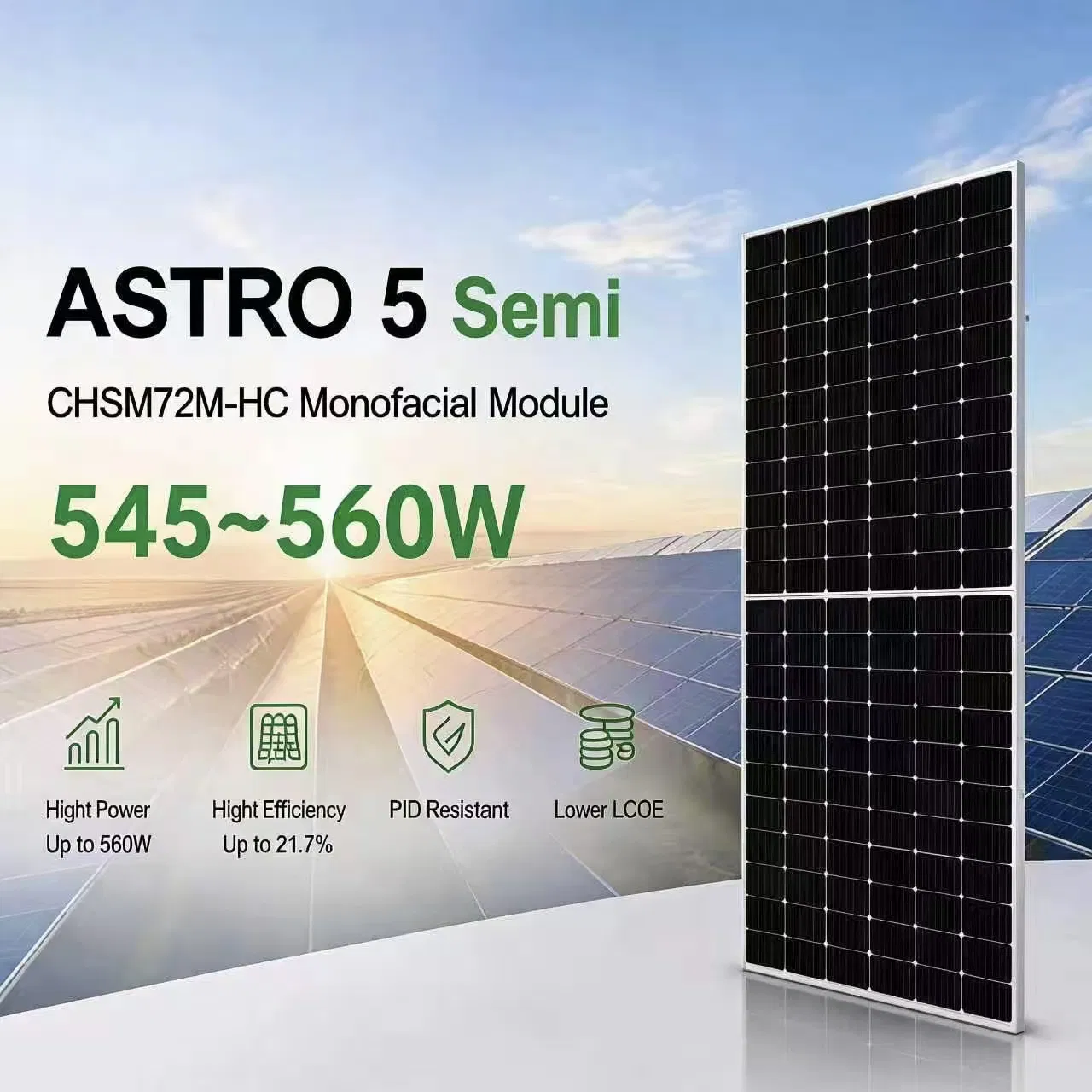

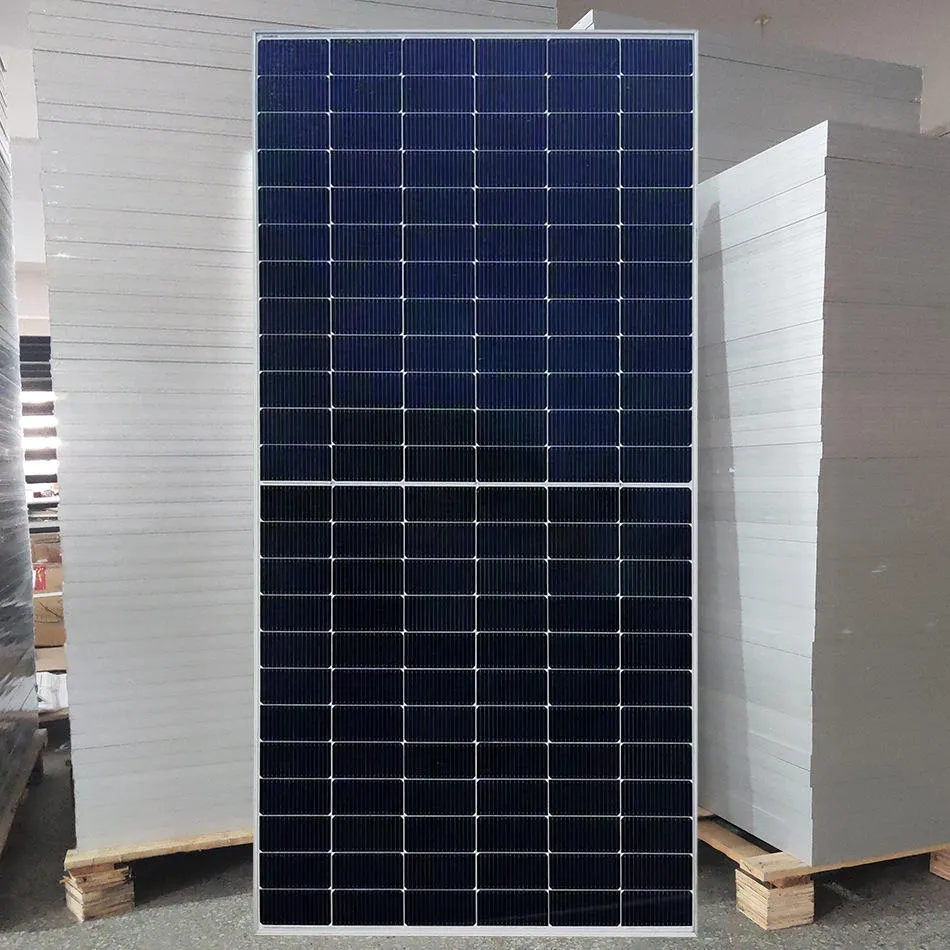

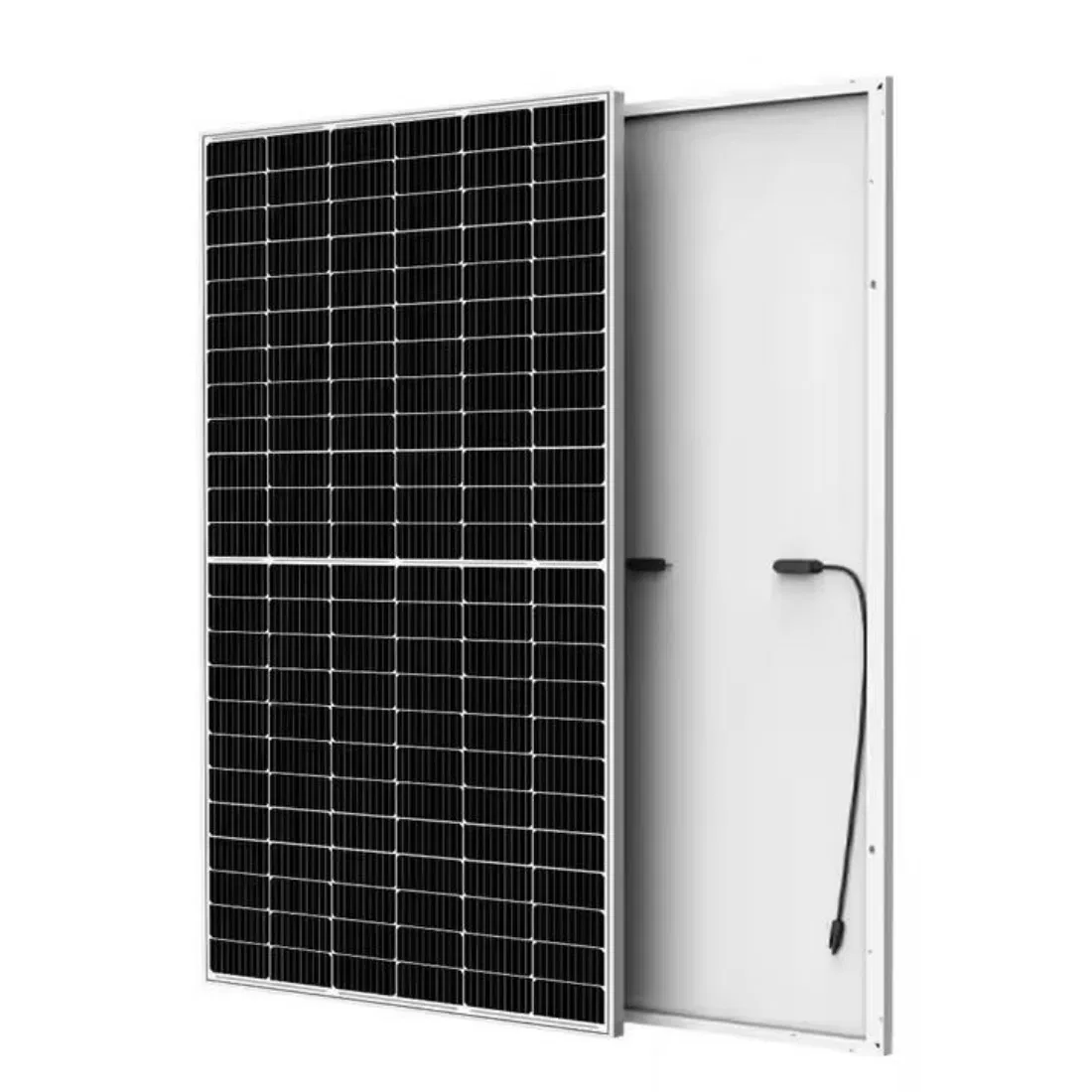

CHSM72M-HC is a high-efficiency monofacial PERC solar module with rated power ranging from 545W to 560W, adopting 144 half-cut monocrystalline cells arranged in 6×24 layout. The maximum module efficiency reaches up to 21.7%, designed for residential rooftop distributed PV systems, commercial & industrial rooftop power plants and medium-sized ground-mounted photovoltaic projects.
| Module Dimension | 2278×1134×35 mm |
| Solar Cell Type | P-type Monocrystalline Silicon |
| Cell Quantity | 144pcs (6×24 arrangement) |
| Frame Material | Silver Anodized Aluminum Alloy |
| Glass Thickness | 3.2 mm |
| Max Mechanical Load | Front: 5400 Pa / Rear: 2400 Pa |
| Connector Type | Standard: HCB40; Optional: MC4-EVO2A |
| Net Weight | 26.9 kg |
| Ambient Temp | -40℃ ~ +85℃ |

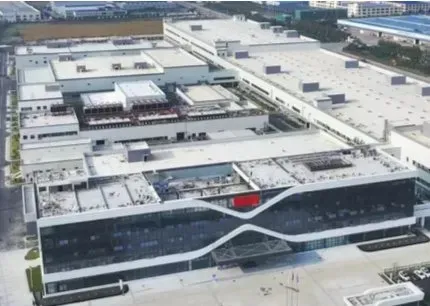

We are a high-tech enterprise focusing on the new energy industry, with core businesses covering R&D, production, sales and one-stop operation & maintenance services for photovoltaic, energy storage, EV charging piles and intelligent energy management systems. Leveraging cutting-edge technology, we build an integrated "PV-Storage-Charging-Usage" intelligent energy platform.

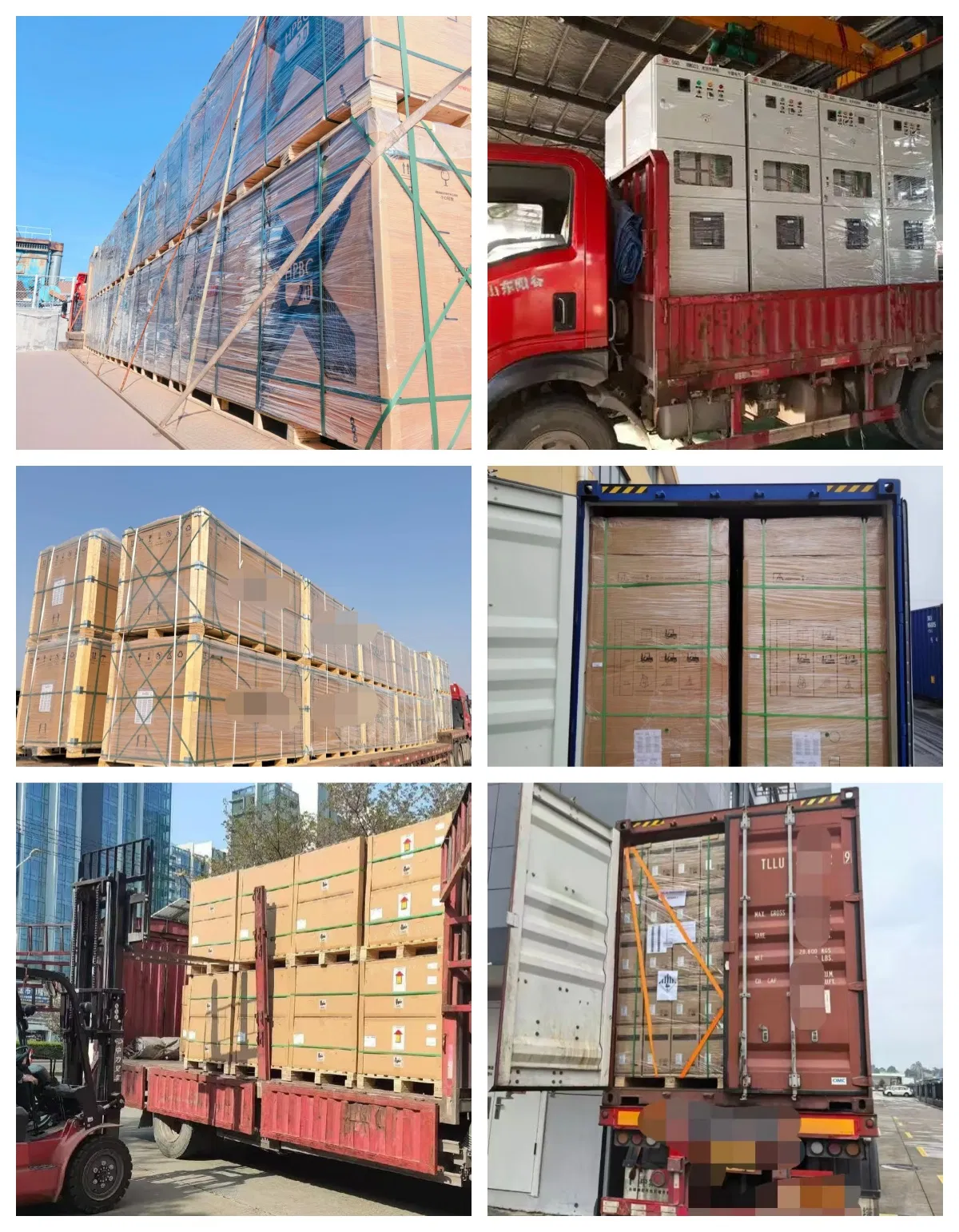

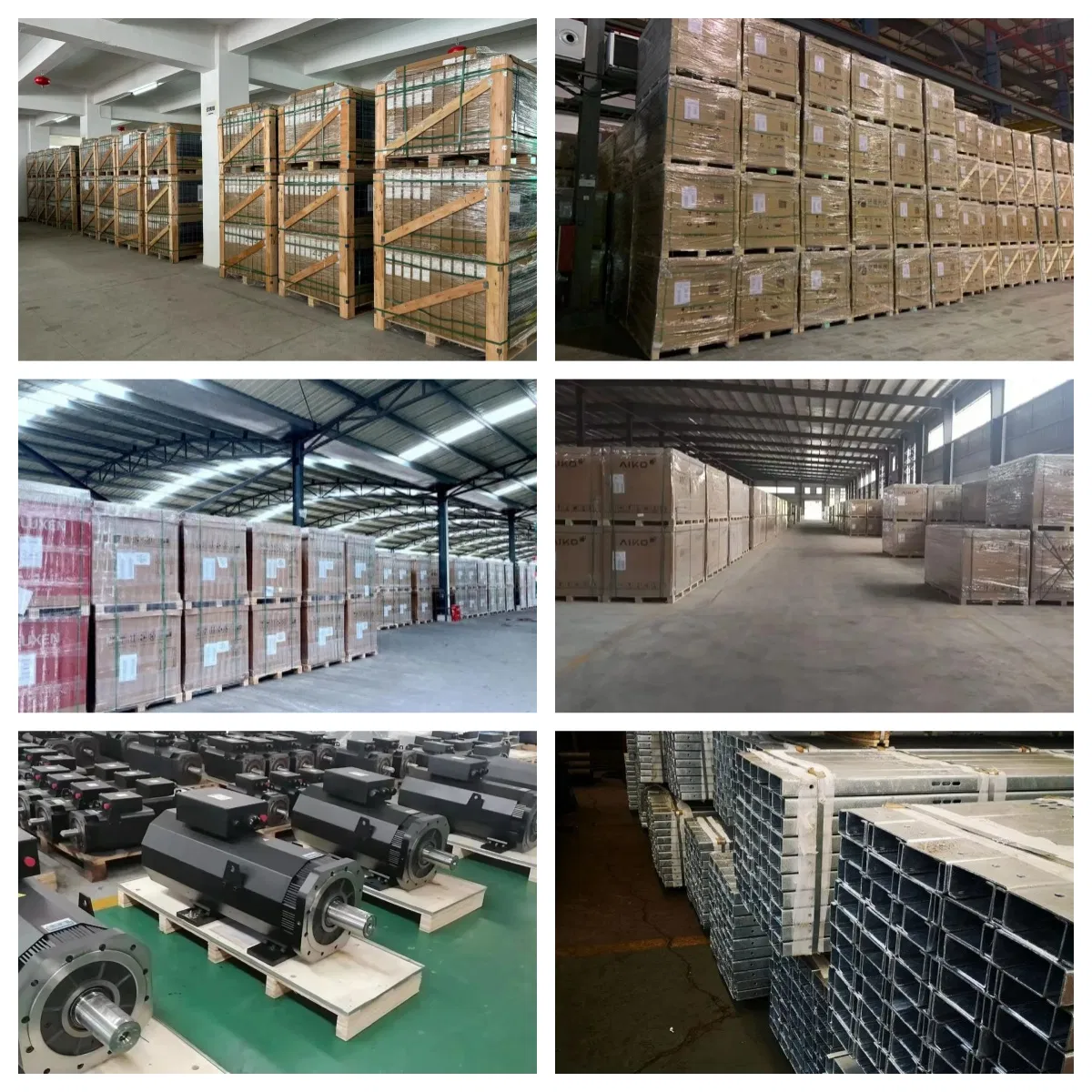

| Pieces per Pallet | 31 pcs/pallet |
| Gross Weight per Pallet | 885 kg |
| Loading Quantity | Up to 930 pcs per 17.5m flatbed truck |
