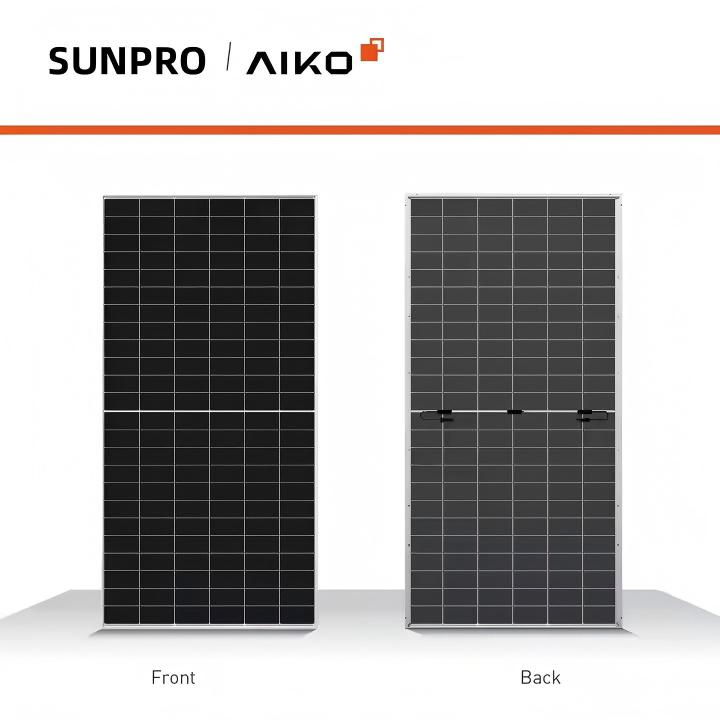

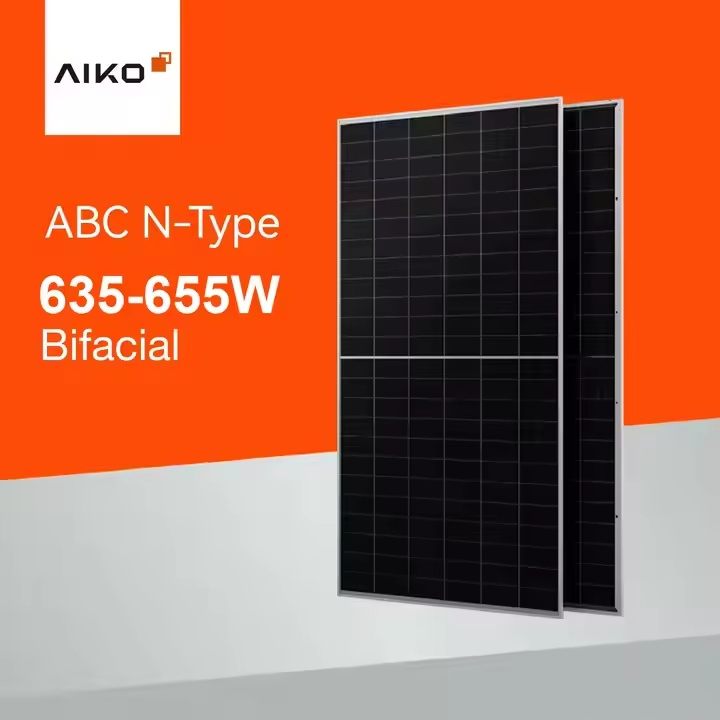

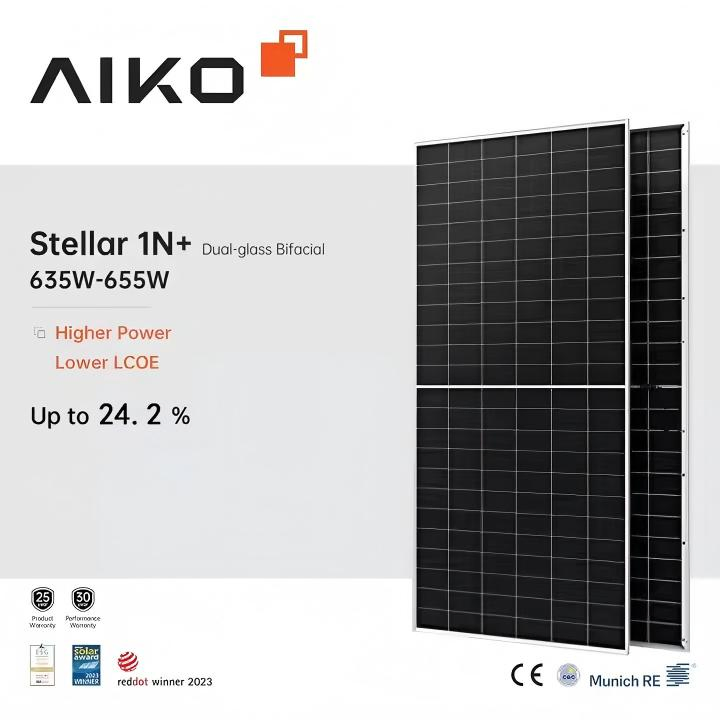

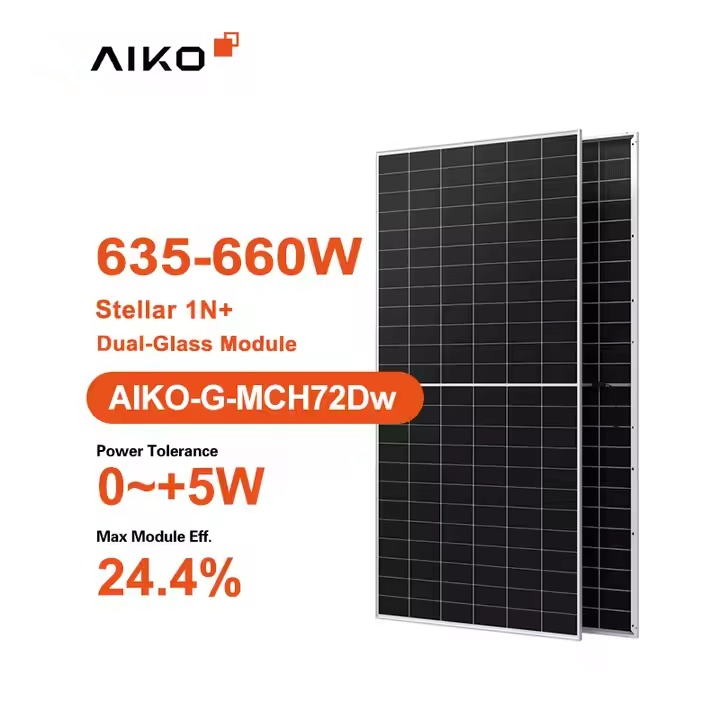

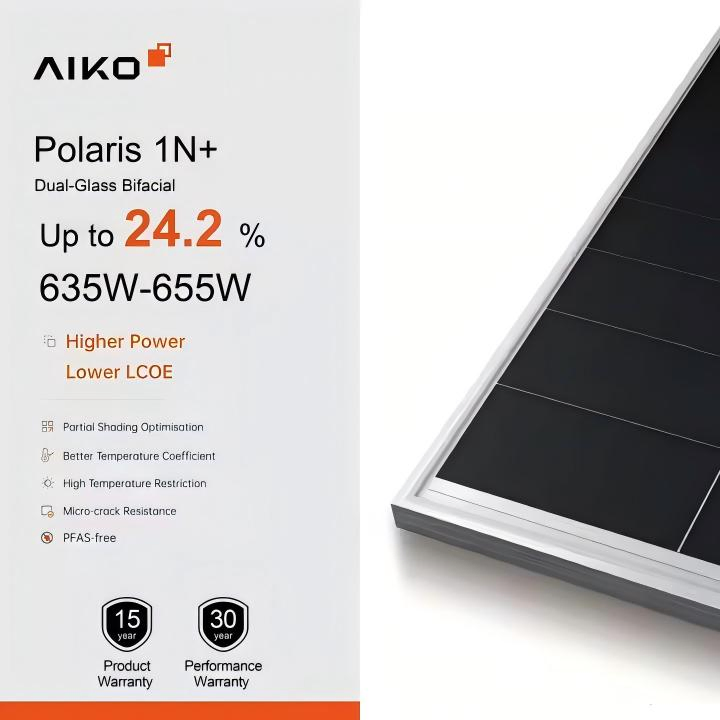

Bifacial Aiko Solar N Type ABC Techology 655W 650W 645W 640W Dual Glass PV Module 144 Cells Solar Panel Module for Commercial Use

Product Description

Aiko Solar PV Module
Aiko Solar Tech
Dual Glass PV Module

📊 Specifications

SPECIFICATIONS
Module TypeAIKO-G645-MCH72DwAIKO-G650-MCH72DwAIKO-G655-MCH72DAIKO-G660-MCH72Dw
Maximum Power (Pmax)645Wp650Wp655Wp660Wp
Max Power Voltage (Vmp)45.2045.345.445.5
Max Power Current (Imp)14.2714.3514.4314.51
Open-circuit Voltage (Voc)53.95454.154.2
Short-circuit Current (Isc)1515.0615.1215.18
Module Efficiency STC (%)23.9%24.1%24.2%24.4%
Operating Temperature-40ºC~+85ºC
Max System Voltage1500VDC (IEC)
Max Series Fuse Rating30A
Power Tolerance±3%
Temp Coefficients Pmax-0.26%/ºC
Temp Coefficients Voc-0.22%/ºC
Temp Coefficients Isc0.05%/ºC
Mechanical Characteristics
Cell TypeN-Type ABC
No. of cells144(6*24)
Dimensions2382*1134*30mm
Weight33.5kg±3%
GlassDual glass, 2.0+2.0mm Heat Strengthened Glas
FrameAnodized Aluminium
Junction BoxIP68, 3 bypass diode

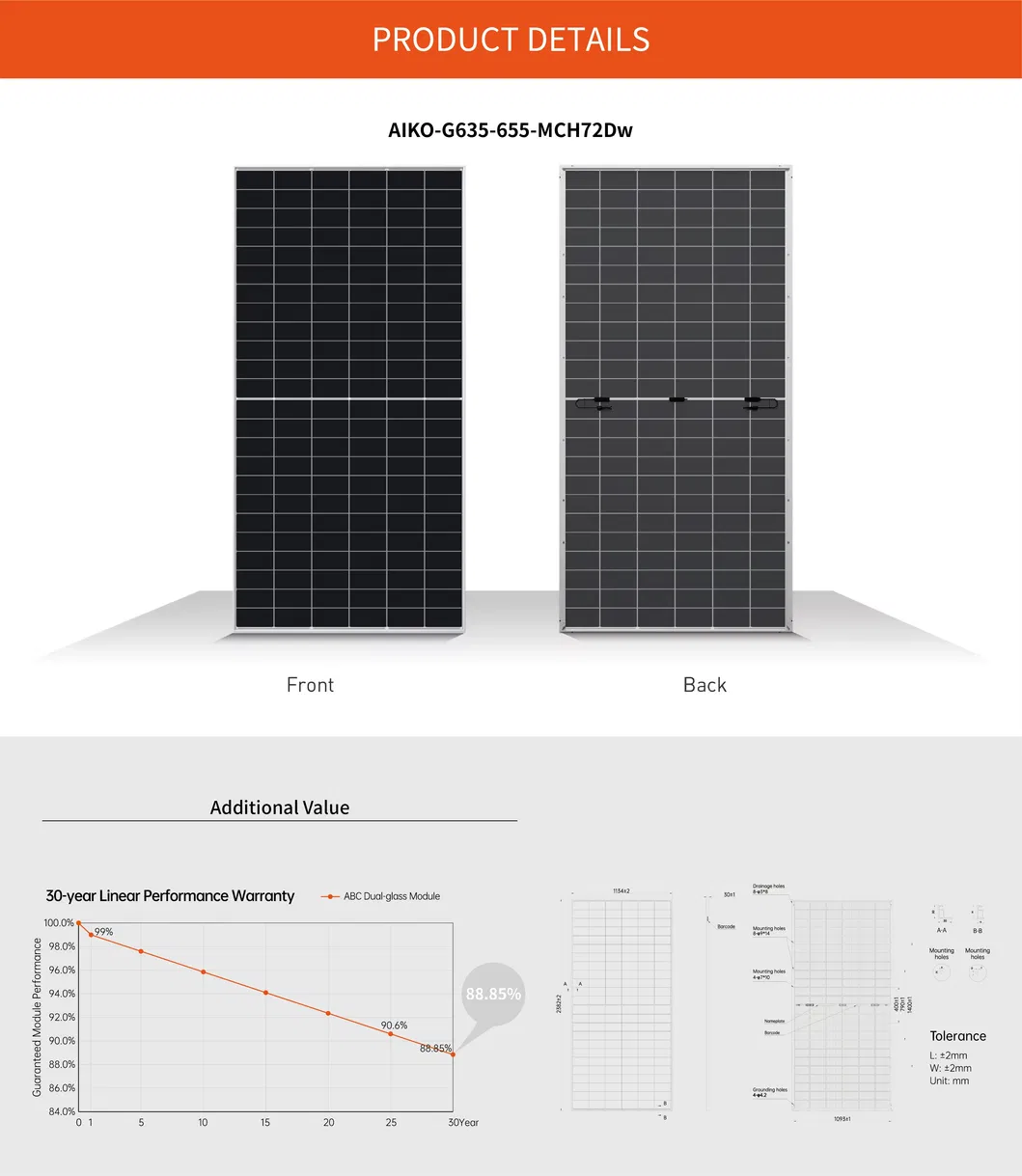

Details 1

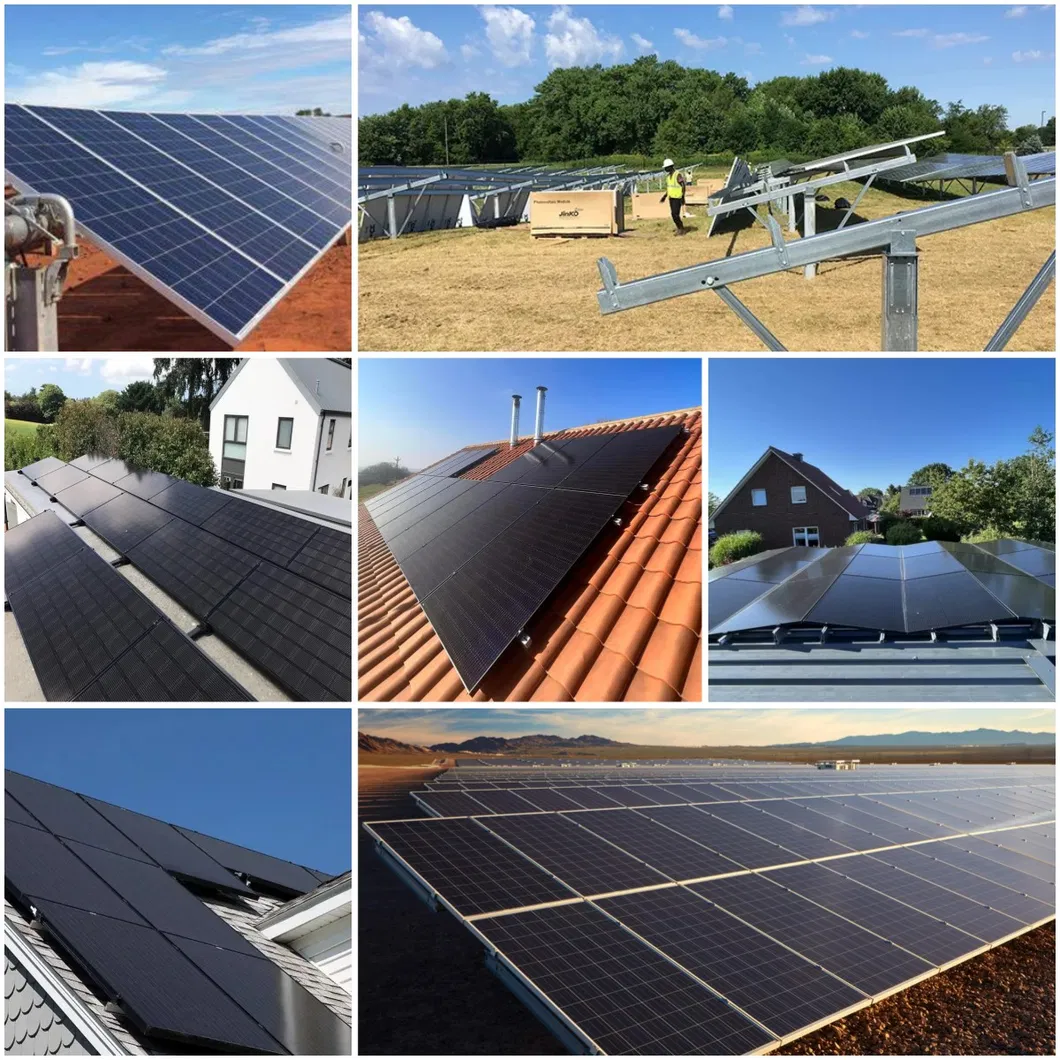

Details 2

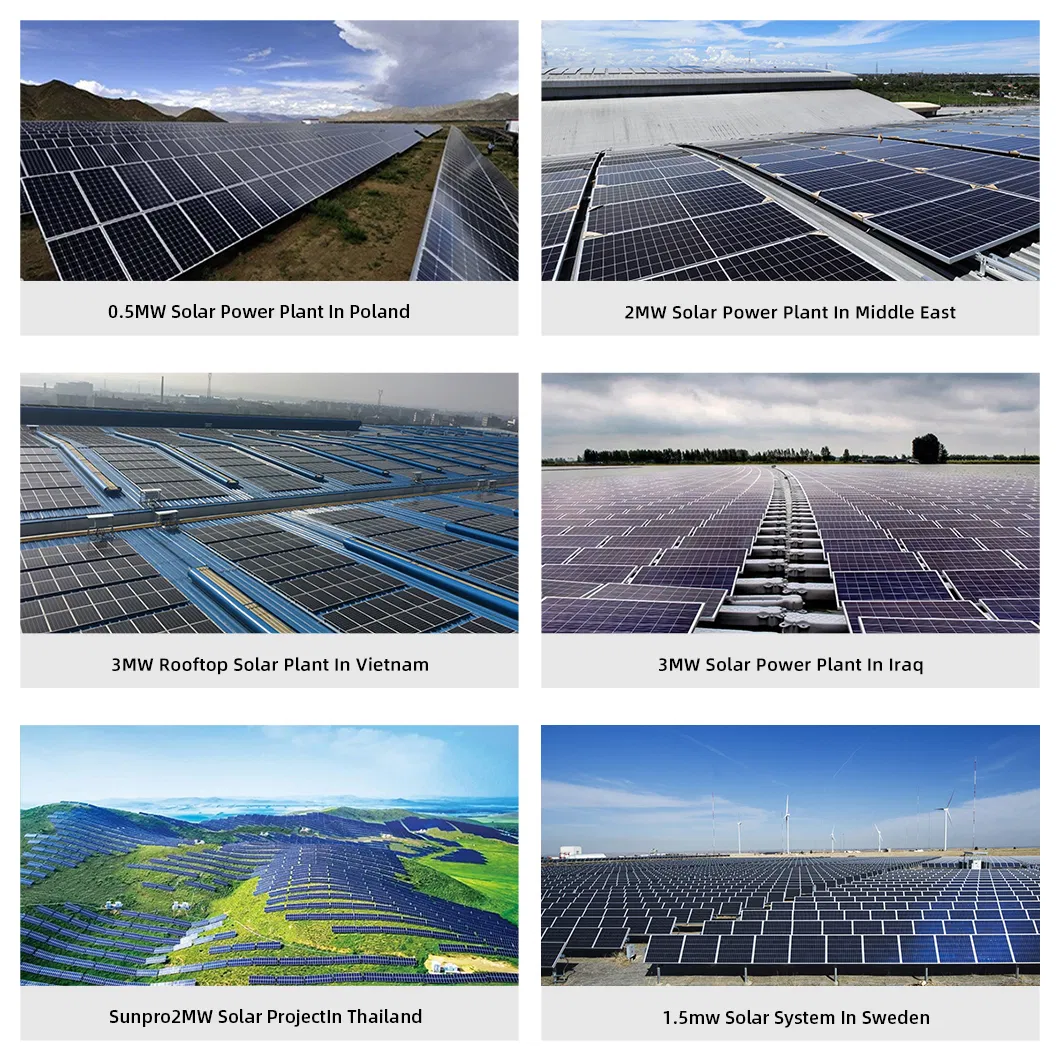

Details 3
Details 4

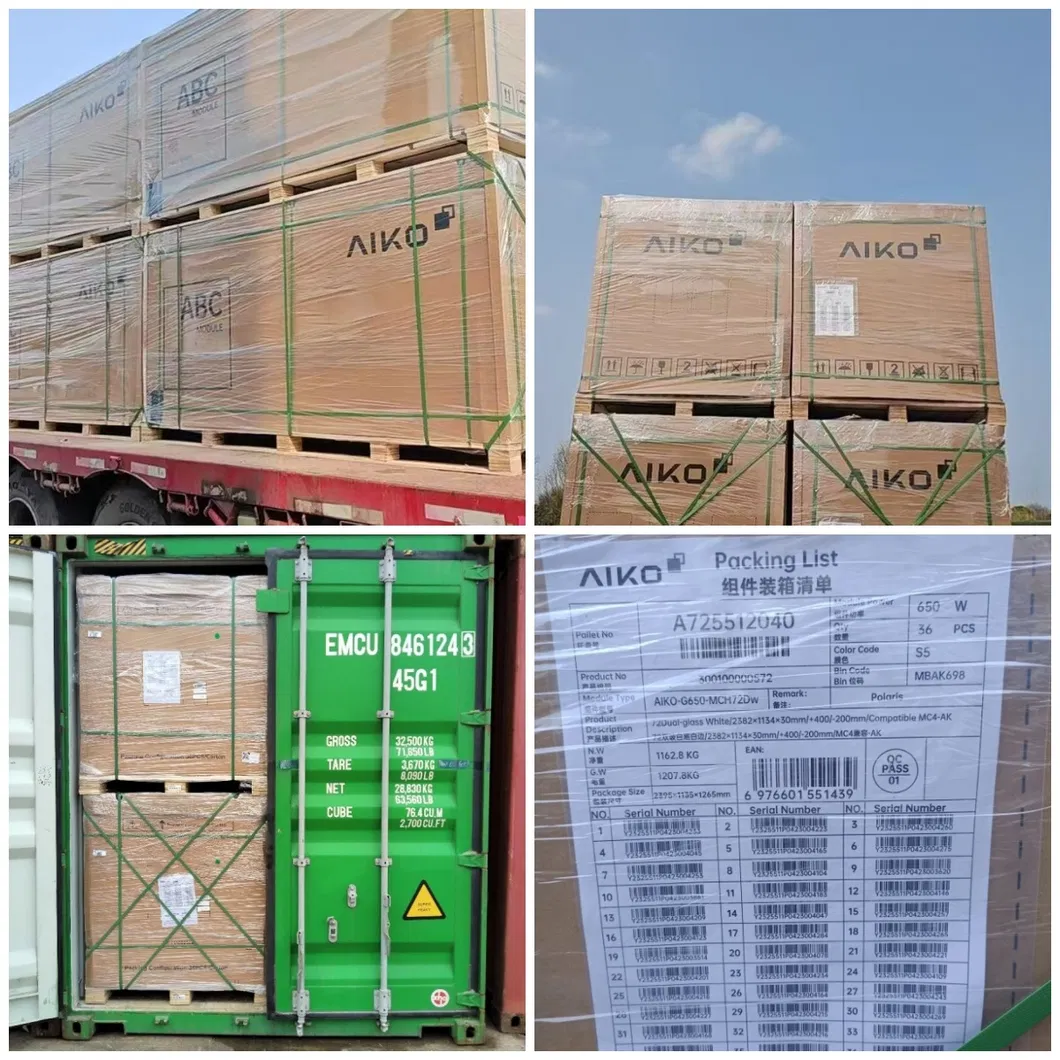

Details 5
Details 6
Details 7
Details 8

Frequently Asked Questions

1. What is the efficiency of these Aiko Solar modules? These modules offer high efficiency ranging from 23.9% to 24.4% depending on the specific model.
2. Are these solar panels suitable for commercial use? Yes, these N-Type ABC Dual Glass PV modules are specifically designed and optimized for commercial applications.
3. What is the operating temperature range? The modules are built to withstand harsh environments, with an operating temperature range of -40ºC to +85ºC.
4. What is the physical size of each panel? The dimensions of each unit are 2382mm × 1134mm × 30mm.
5. What does the "Dual Glass" design imply? The dual glass construction uses 2.0+2.0mm heat-strengthened glass, providing superior durability, bifacial capability, and protection against environmental factors.
6. How many units are included per pallet? The standard packaging configuration is 36 pieces per pallet.
