Basic Info.
Model NO.595M-144A
ApplicationResidential/Commercial
ConditionNew
CertificationISO, CE, TUV
MaterialMonocrystalline Silicon
Max Power595W
Weight30.3kg
Transport PackageCarton & Pallet
Specification2278*1134*30mm
OriginChina
HS Code8541430000
Production Capacity1800000
Packaging & Delivery
Package Size229.50cm * 113.00cm * 127.00cm
Package Gross Weight1131.000kg
Product Description

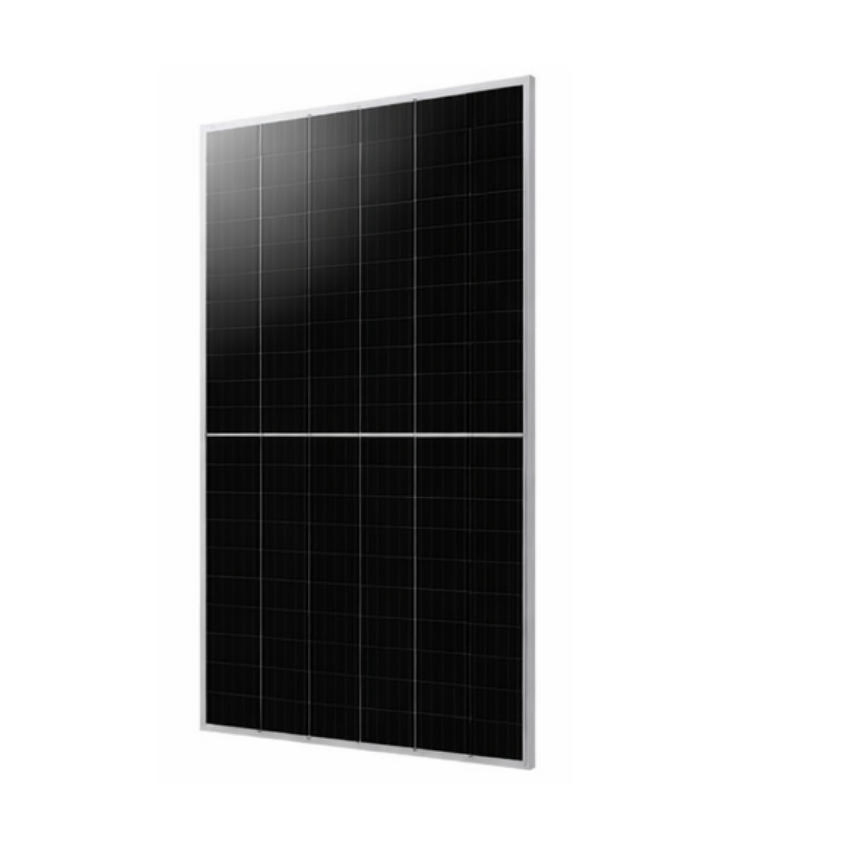

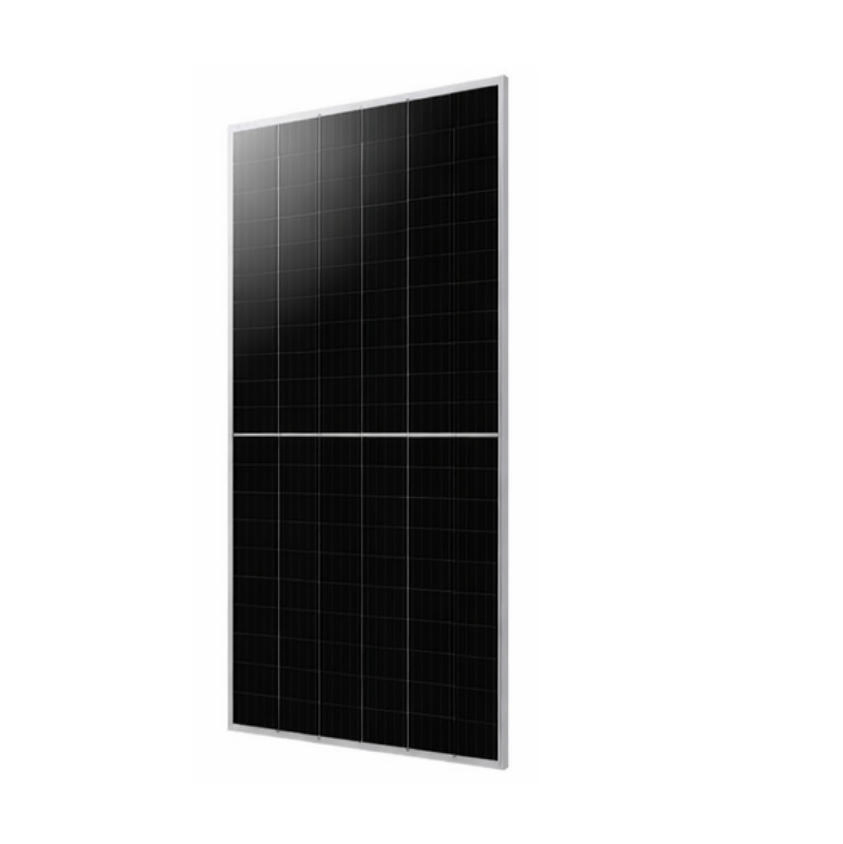

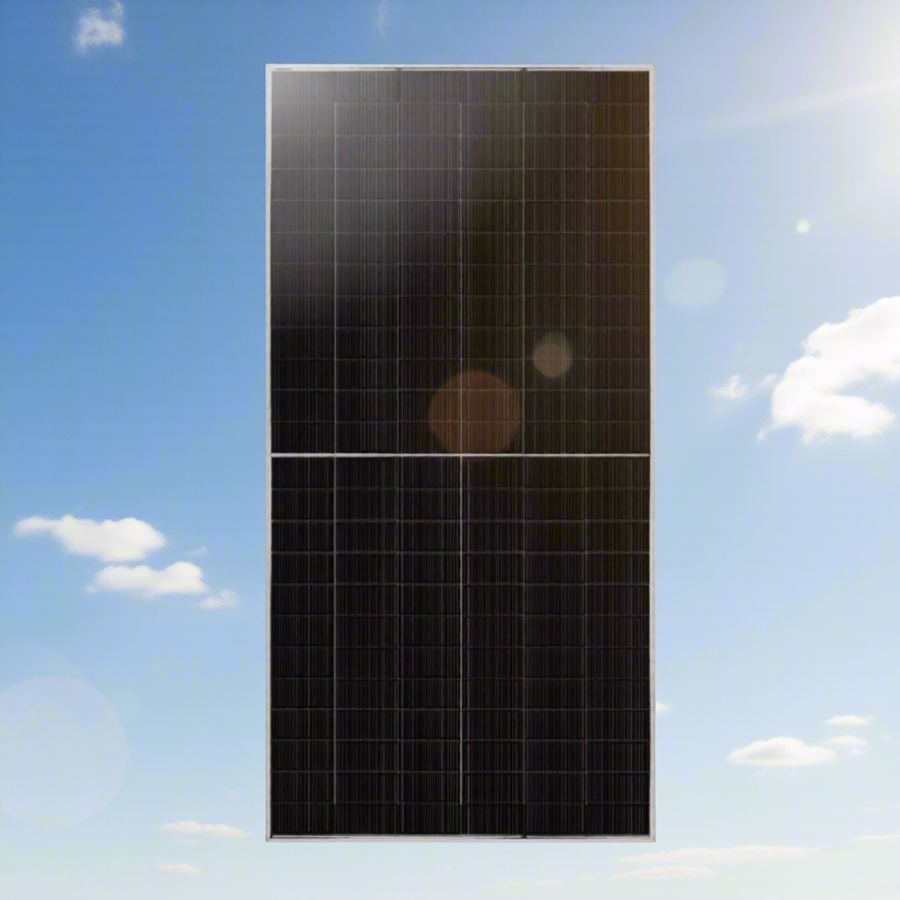

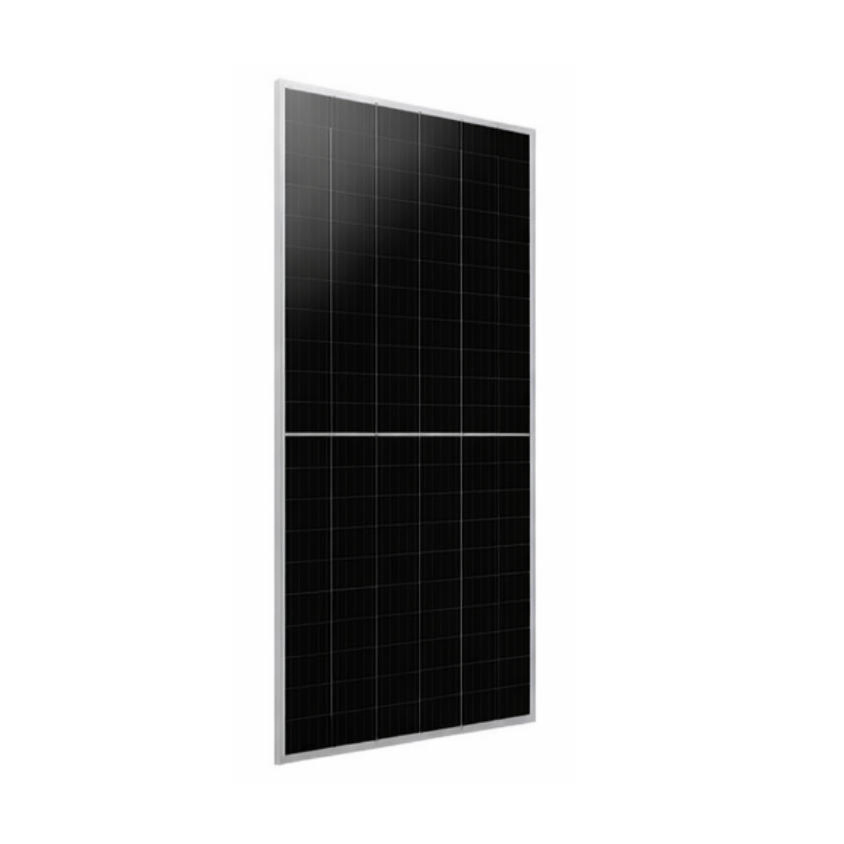

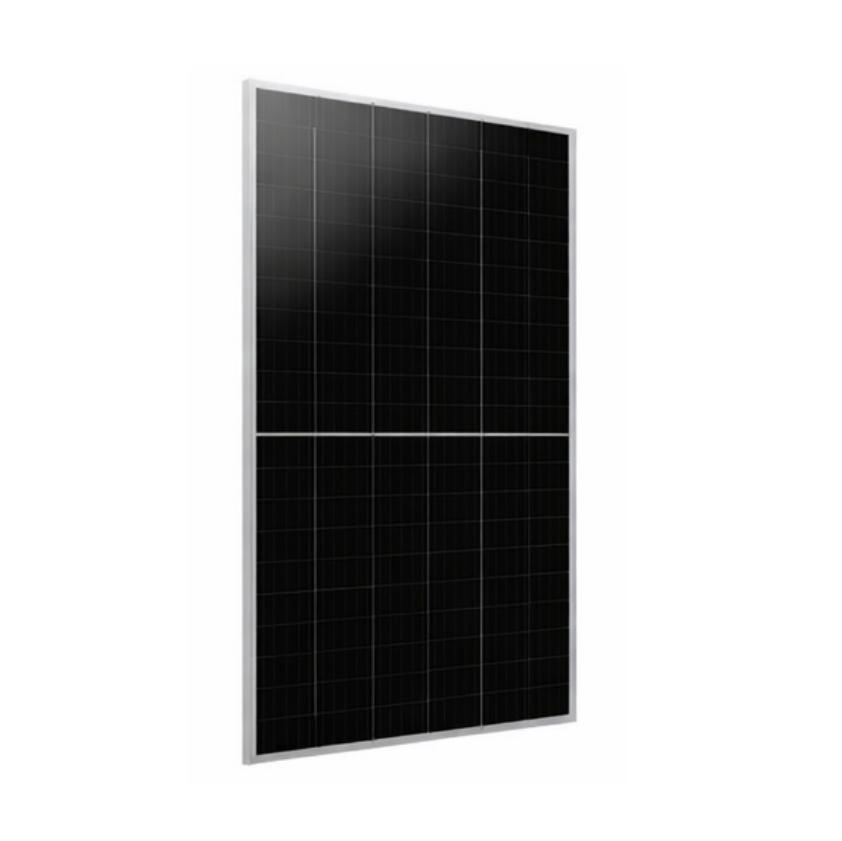

High efficiency monocrystalline PV modules

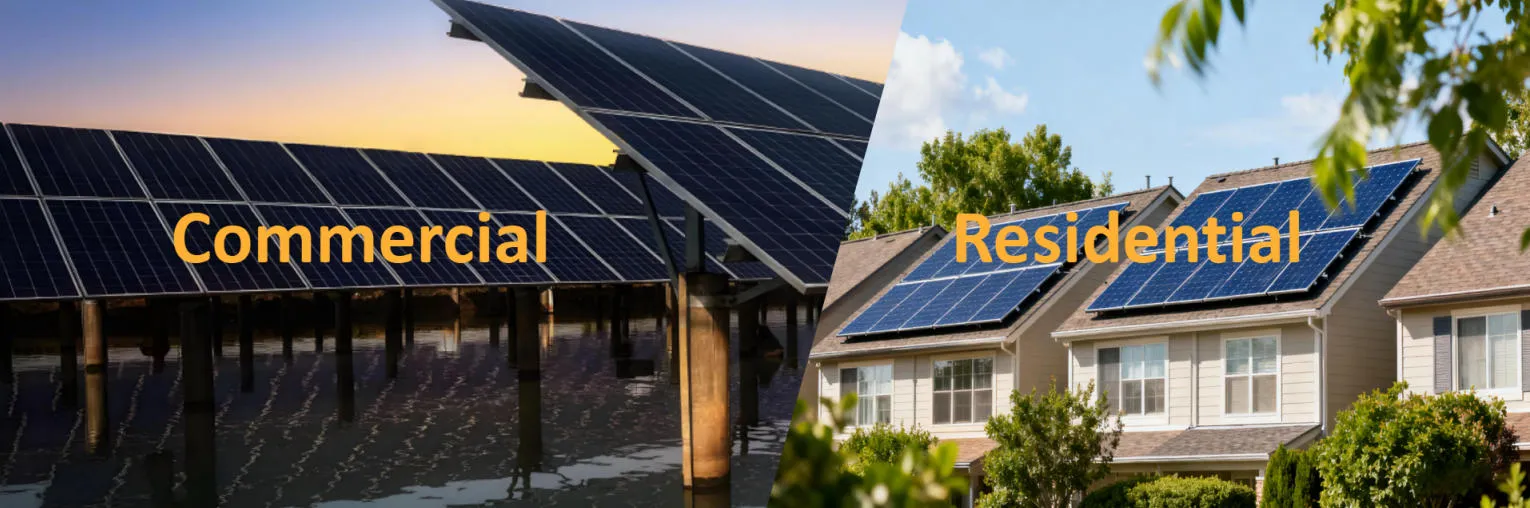

Developed for high performance, these monocrystalline solar panels are designed, developed, and manufactured by professional PV modules manufacturer with extensive industry experience. They deliver reliable and stable power for residential, commercial, off-grid applications, and utility-scale solar power plants. Backed by in-house production lines and rigorous quality control systems, each module is built to ensure long-term durability and consistent electrical performance.
Features & advantages
Bifacial Power Generation
Back-side power generation efficiency reaches 80±5% of the front side
Longer Term Reliability
Passed the IEC63209-1:2021 standard test (With testing standards 2 to 3 times stricter than regular IEC requirements)
Outstanding Mechanical Load
Resists up to 2400 Pa wind load and 5400 Pa snow load
Anti-PID Performance
Passed anti-PID test under 85°C damp heat (85% relative humidity) for 192 hours
Lower LCOE
Lower shading and resistive loss, with an optimized temperature coefficient

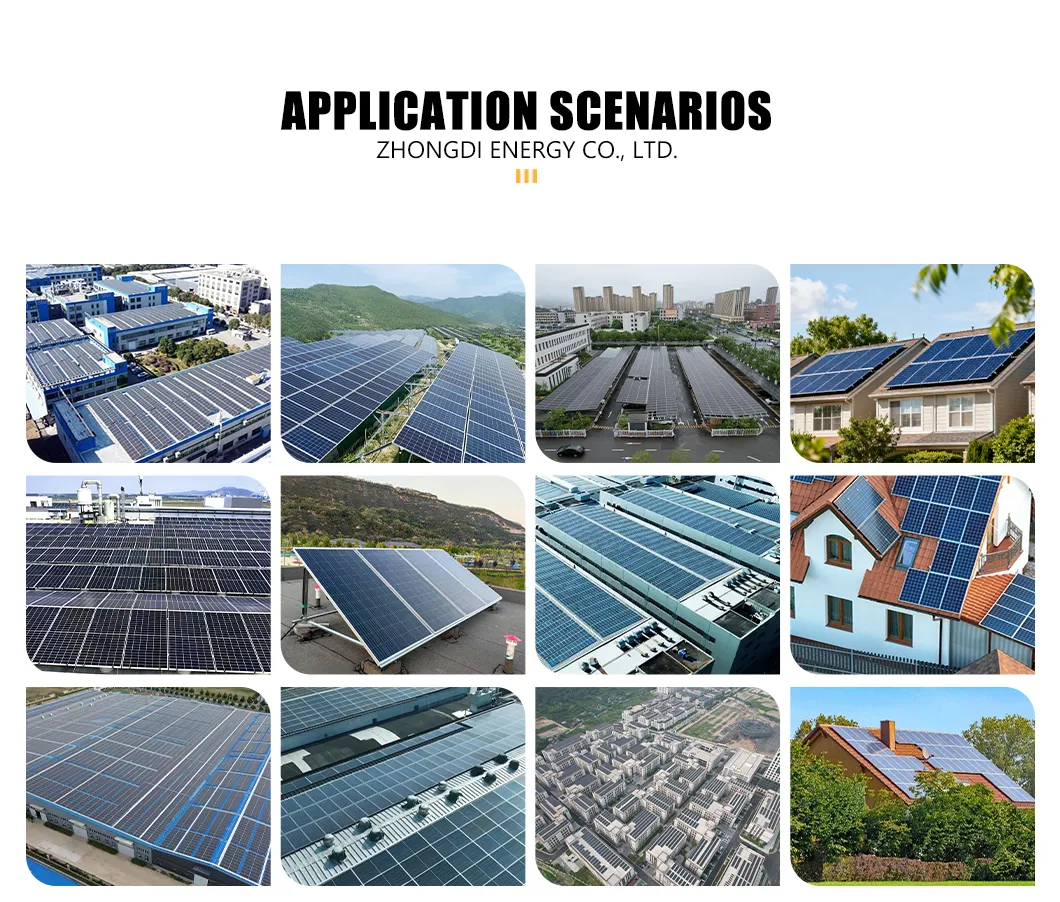

Wide Applicability
Flexibly applied to roofs, ground surfaces, water surfaces, mountainous areas, and other diverse environments

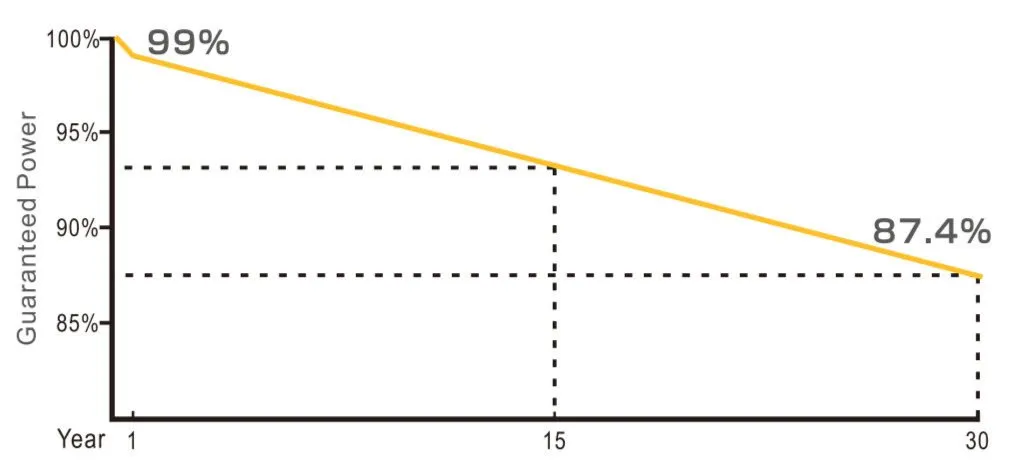

30
Year Linear Power Warranty
1%
Power Degradation (First Year)
0.4%
Linear Power Degradation

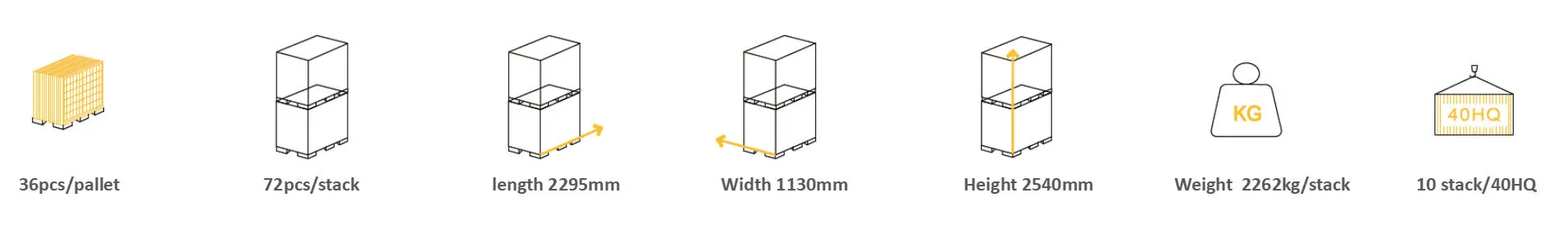

Packing size & loading quantity
Specification
| Module Type |
ZD-570M-144A |
ZD-575M-144A |
ZD-580M-144A |
ZD-585M-144A |
ZD-590M-144A |
ZD-595M-144A |
| STC* |
NOCT* |
STC* |
NOCT* |
STC* |
STC* |
STC* |
STC* |
| Max. Power (Pmax) [W] |
570 |
432 |
575 |
436 |
580 |
585 |
590 |
595 |
| Max. Power Voltage (Vmp) [V] |
43.70 |
40.20 |
43.85 |
40.34 |
44.02 |
44.17 |
44.35 |
44.55 |
| Max. Power Current (Imp) [A] |
13.04 |
10.74 |
13.11 |
10.80 |
13.18 |
13.24 |
13.30 |
13.36 |
| Open-circuit Voltage (Voc) [V] |
52.12 |
47.43 |
52.32 |
47.61 |
52.52 |
52.72 |
52.82 |
52.92 |
| Short-circuit Current (Isc) [A] |
13.83 |
11.16 |
13.89 |
11.20 |
13.95 |
14.01 |
14.02 |
14.06 |
| Module Efficiency STC [%] |
22.07 |
22.26 |
22.45 |
22.65 |
22.84 |
23.03 |
| Operating Parameters |
Temperature Parameters |
| Operating Temperature |
-40°C ~ +85°C |
Temperature Coefficient of Pmax |
-0.29% / °C |
| Max. System Voltage |
DC 1500V (IEC) |
Temperature Coefficient of Voc |
-0.25% / °C |
| Max. Series Fuse Rating |
30A |
Temperature Coefficient of Isc |
0.046% / °C |
| Nominal Operating Cell Temperature |
43±2°C |
- |
- |
| Power Tolerance |
0 ~ +3% |
- |
- |
| General Data |
| Cell Type |
N-type TOPCon Mono Half Cell |
| No. of Cells |
144 (6 × 12 × 2) |

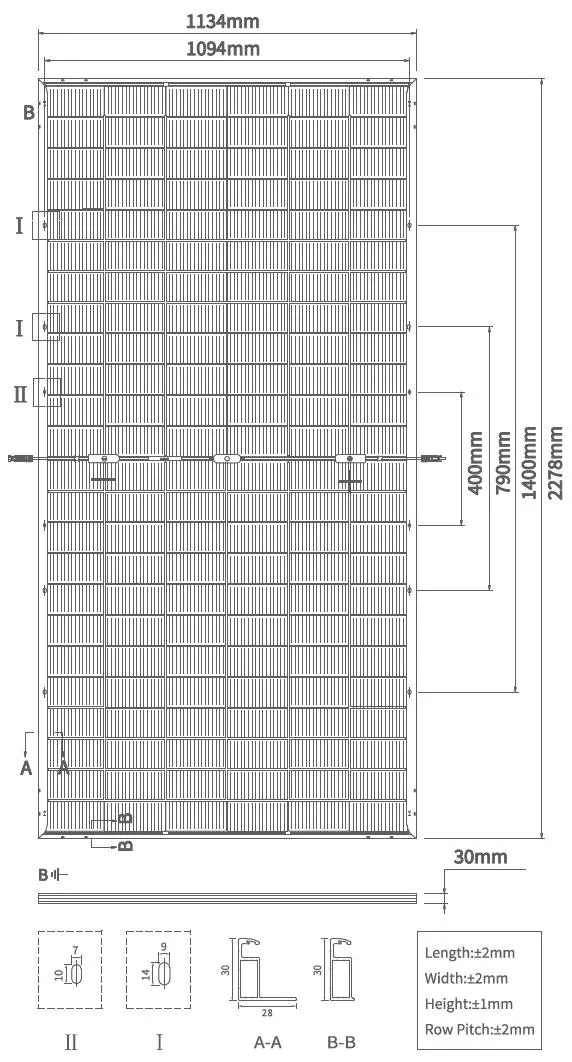

| Dimensions |
2278 * 1134 * 30 mm |
| Weight |
30.3 kg |
| Front Glass |
2.0mm, Anti-Reflection Coating, High Transmission, Low Iron, Tempered Glass |
| Back Glass |
2.0mm, High Transmission, Low Iron, Tempered Glass |
| Frame |
Anodized Aluminium Alloy |
| Junction Box |
IP68, 3 diodes |
| Connector |
MC4 Compatible: PV-UL608 or MC4-EVO2 |
| Cable Length (Including Connector) |
4mm²; Short Cable: (+)400/(-)200mm or Long Cable: (+)1400/(-)1400mm or Customized Length |

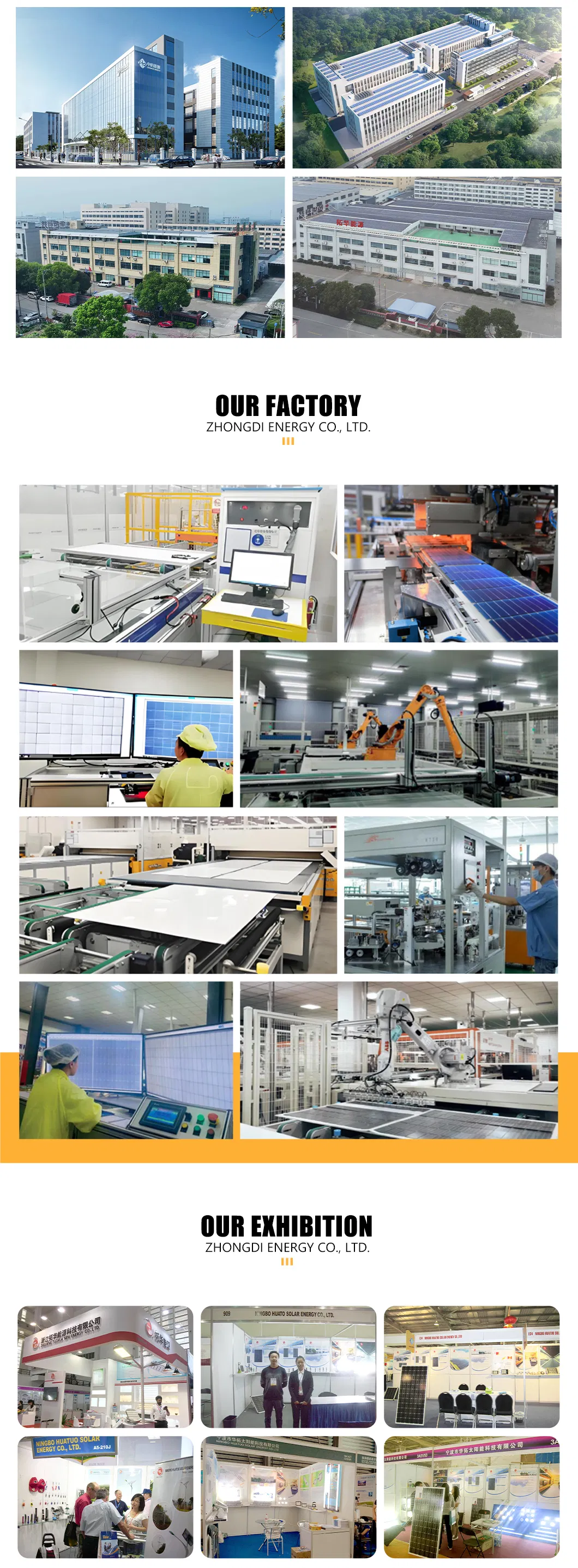

Manufacturing & Operations
FAQ
What types of solar panels do you supply?
We supply monocrystalline solar panels, including standard PV modules and customized sizes & power.
What power ranges are available?
Power output ranges from 100W to 720W, suitable for residential, commercial, off-grid, and utility-scale applications.
What is the efficiency of your solar panels?
Our monocrystalline solar panels achieve up to 23.34% conversion efficiency, depending on cell technology.
What is the warranty period?
We offer a 15-year product warranty and a 30-year linear power output warranty.
Can solar panels work in low-light conditions?
Yes. Our panels are designed to perform well under low-light and cloudy conditions.
What certifications do your solar panels have?
Our solar panels are certified with IEC, TUV, CE, and ISO standards to meet global market requirements.
