Overview
Basic Info.
| Model NO. |
SMF430F-12X12UW |
| Number of Cells |
144cells |
| Application |
Light Industry |
| Condition |
New |
| Certification |
ISO, CE, TUV |
| Material |
Monocrystalline Silicon |
| Weight |
8.6kg |
| Frame |
Frameless |
| Operating Temp. |
-40℃ to 85℃ |
| Max System Voltage |
1000V DC(IEC) |
| Max Series Fuse |
20A |
| Application Class |
Class a |
| Power Tolerance |
0/+5 W |
| Transport Package |
35PCS/Pallets, 70PCS/Stack, 770PCS/40'hq Containe |
| Specification |
2054*1080*2mm |
| Trademark |
Flexible solar panel |
| Origin |
China |
| HS Code |
8541402000 |
| Production Capacity |
2000000watt/Week |
Packaging & Delivery
| Package Size |
212.00cm * 105.00cm * 132.00cm |
| Package Gross Weight |
500.000kg |
Product Description

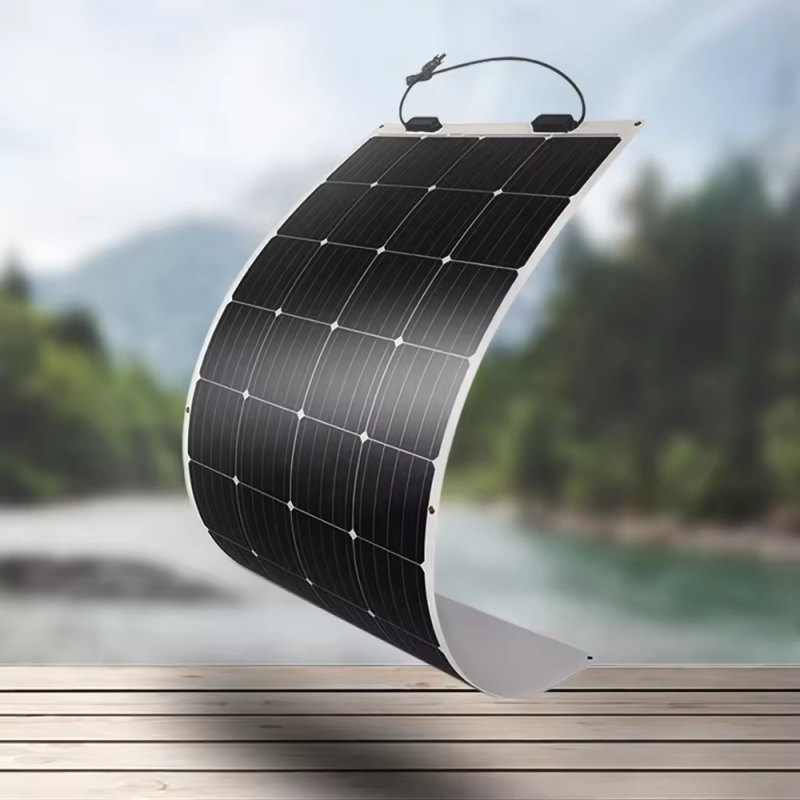

The next generation of solar energy is here. Our 430W Flexible Monocrystalline Solar Panel combines the high-power output of traditional rigid panels with the lightweight versatility of thin-film technology.
Using 144 high-efficiency half-cut cells, this panel delivers exceptional performance even in limited spaces or on curved surfaces.
Product Parameters
| STC |
SMF430F-12X12UW |
| Maximum Power ( Pmax ) |
430 |
| Maximum Power Voltage ( Vmp ) |
42.0 |
| Maximum Power Current ( Imp ) |
10.24 |
| Open-circuit Voltage ( Voc ) |
49.8 |
| Short-circuit Current ( Isc ) |
10.74 |
| Module Efficiency (%) |
19.2 |
| Operating Temperature |
-40ºC to 85ºC |
| Maximum System Voltage |
1000V DC(IEC) |
| Maximum Series Fuse Rating |
20A |
| Application Class |
Class A |
| Power Tolerance |
0/+5 W |
| Weight |
7.3KG |

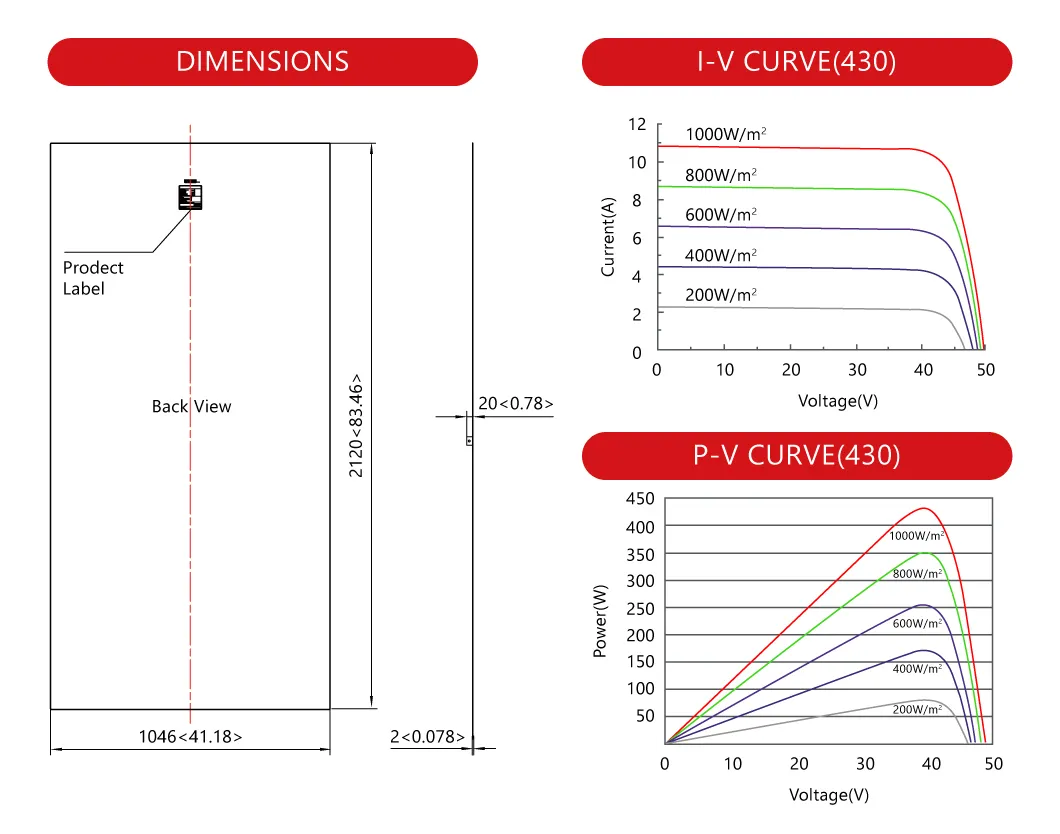

| Size |
2120*1046*2mm |
| STC: Irradiance 1000W/m2, Cell temperature 25ºC, AM=1.5 |
Tolerances of Pmax, Voc and Isc are within ±5% |
Why This Flexible Panel Stands Out
-
Ultra-Lightweight & Portable: Weighing significantly less than glass-aluminum panels, it is the perfect solution for weight-sensitive applications like RVs, boats, and portable power stations.
-

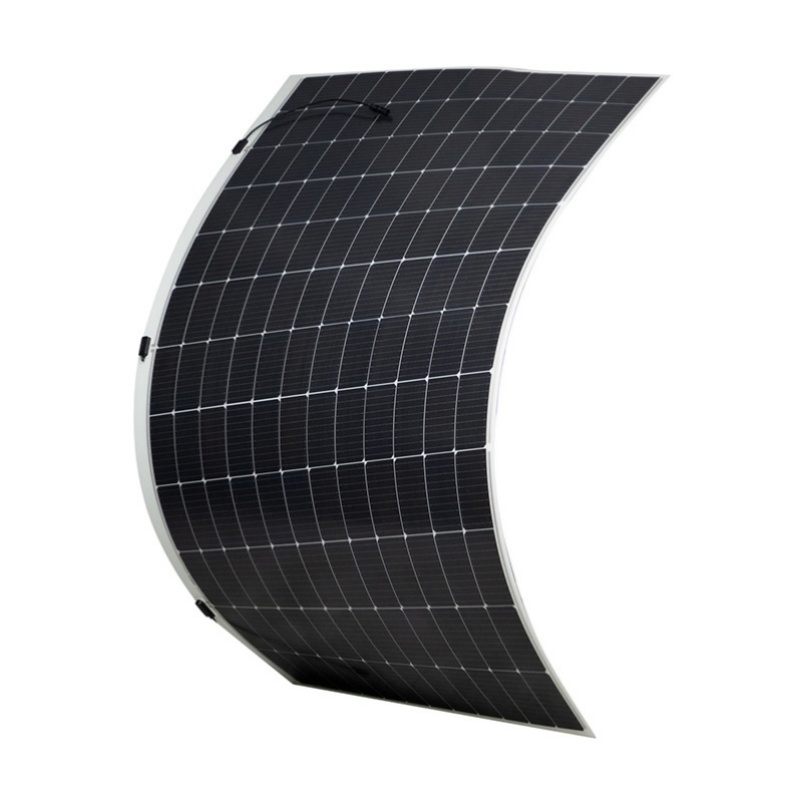

Superior Flexibility: Engineered to bend up to 240 degrees, making it ideal for curved roofs, yacht decks, and uneven surfaces where standard panels cannot be mounted.
-
144 Half-Cut Cell Technology: By using a 144-cell layout, we reduce internal resistance and heat, ensuring stable 430W output even in high-temperature or partially shaded conditions.
-

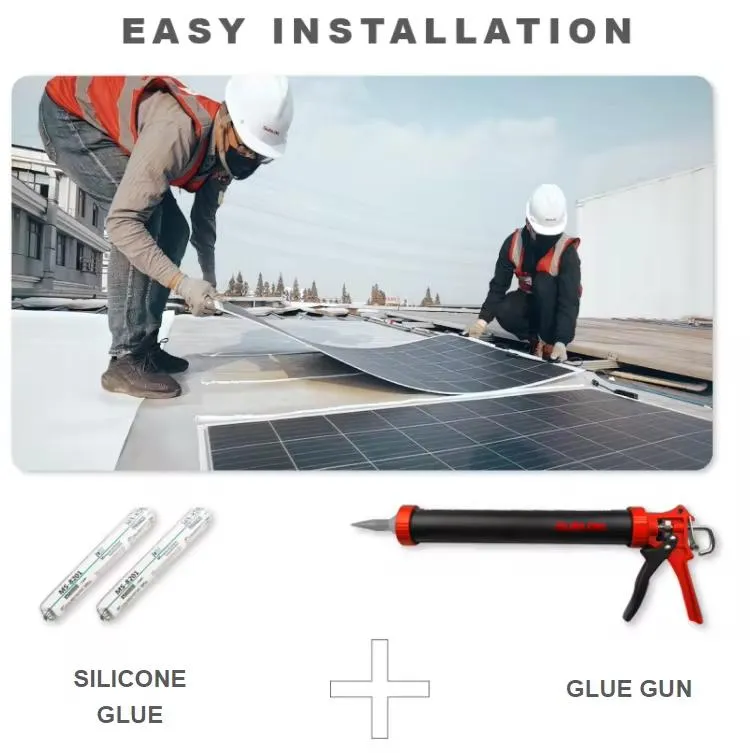

Easy Installation (Drill-Free): Features reinforced metal grommets for hanging or can be easily secured using adhesives or Velcro. No heavy mounting brackets or drilling required.
-
Extreme Weather Durability: Encapsulated in high-grade water-resistant materials, this panel is built to withstand salt spray, heavy rain, and wind loads, making it a reliable partner for marine environments.

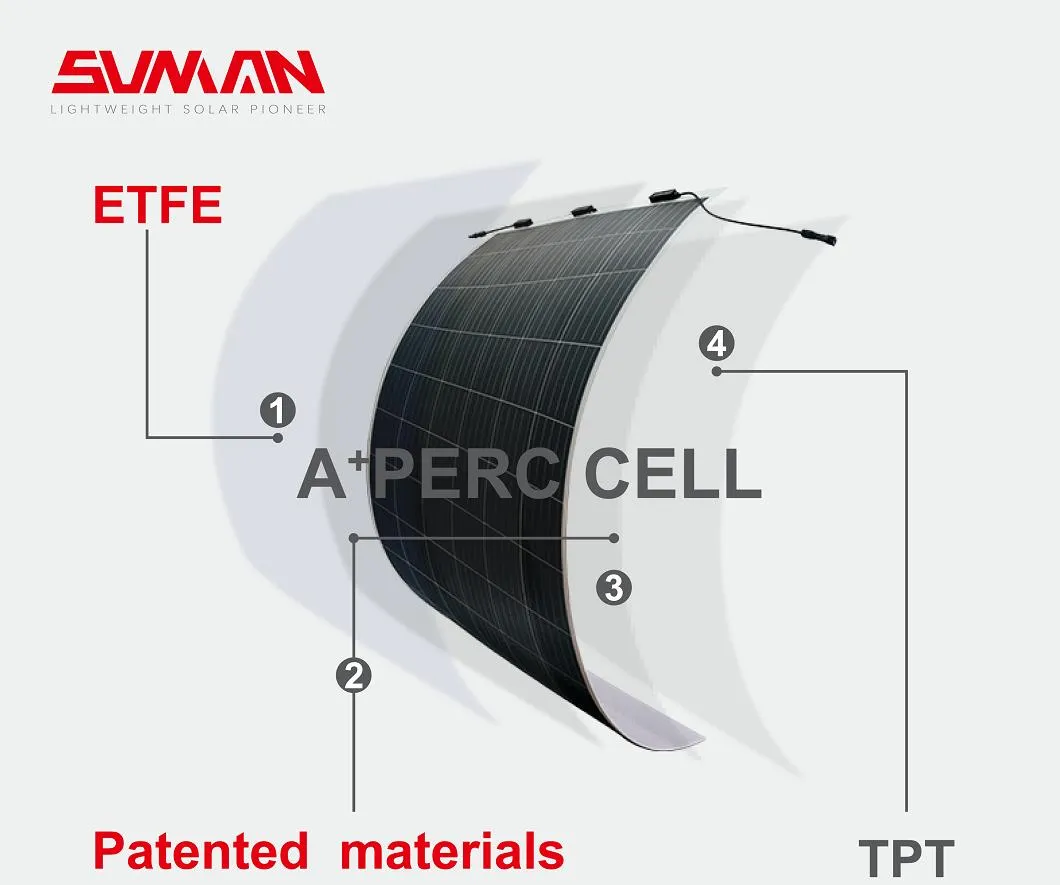

Detailed Photos

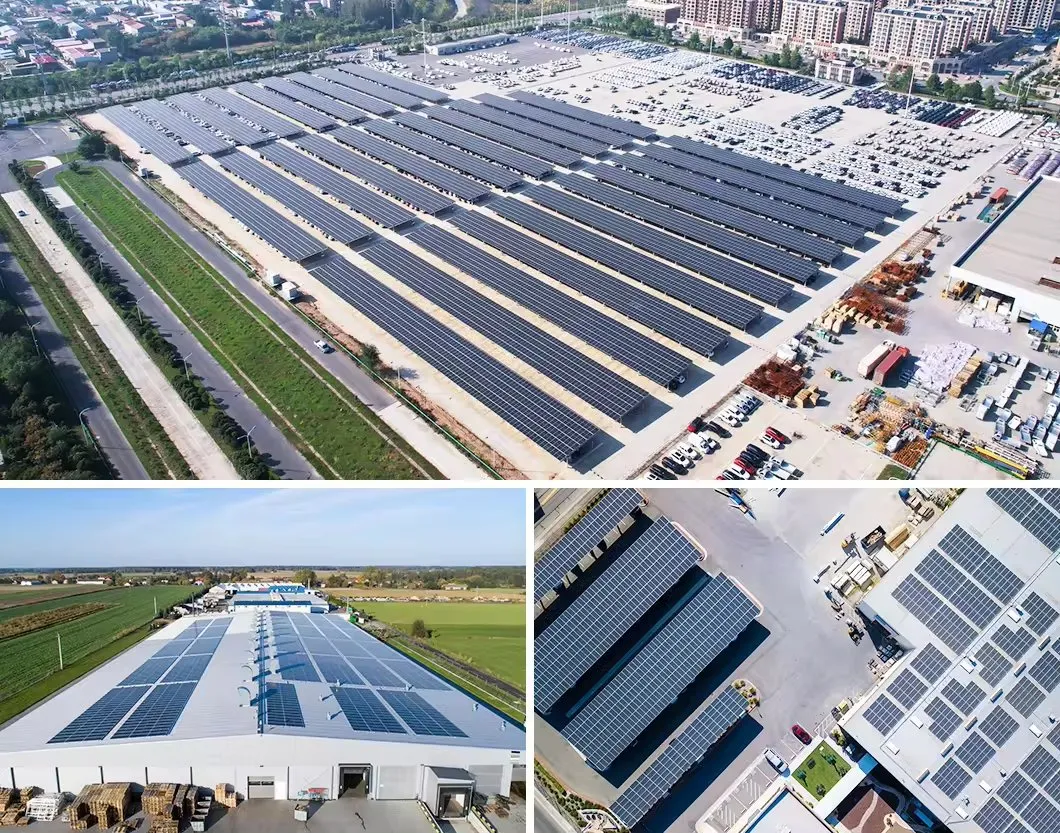

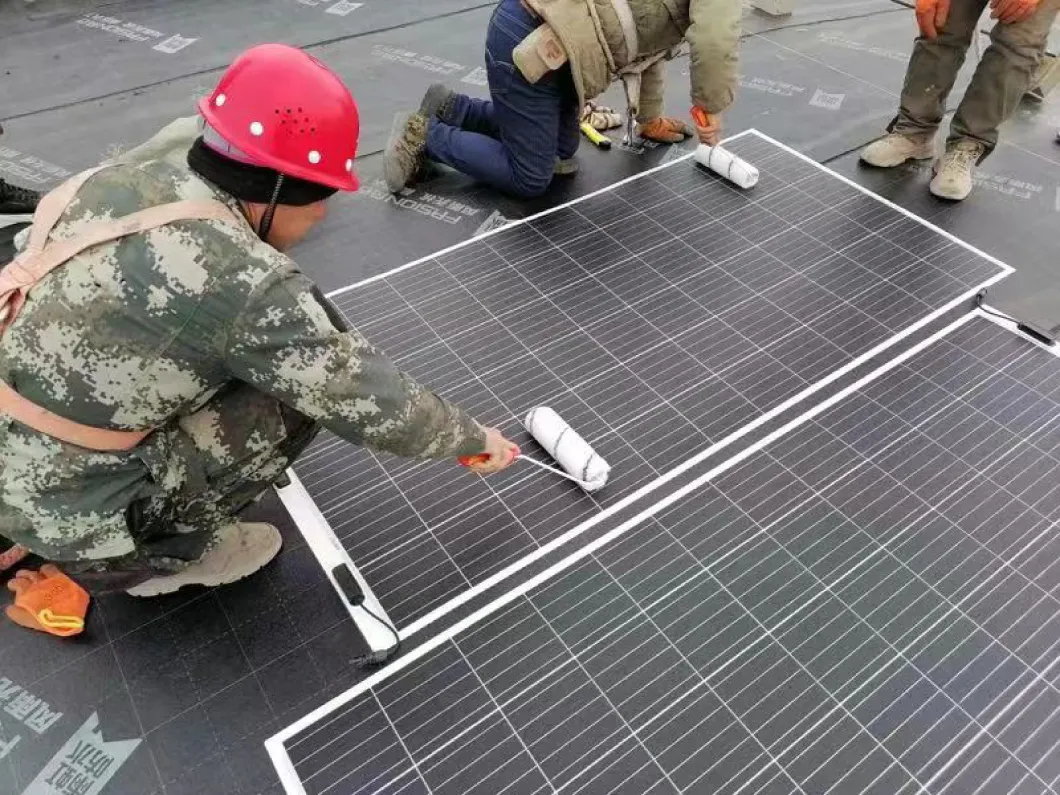

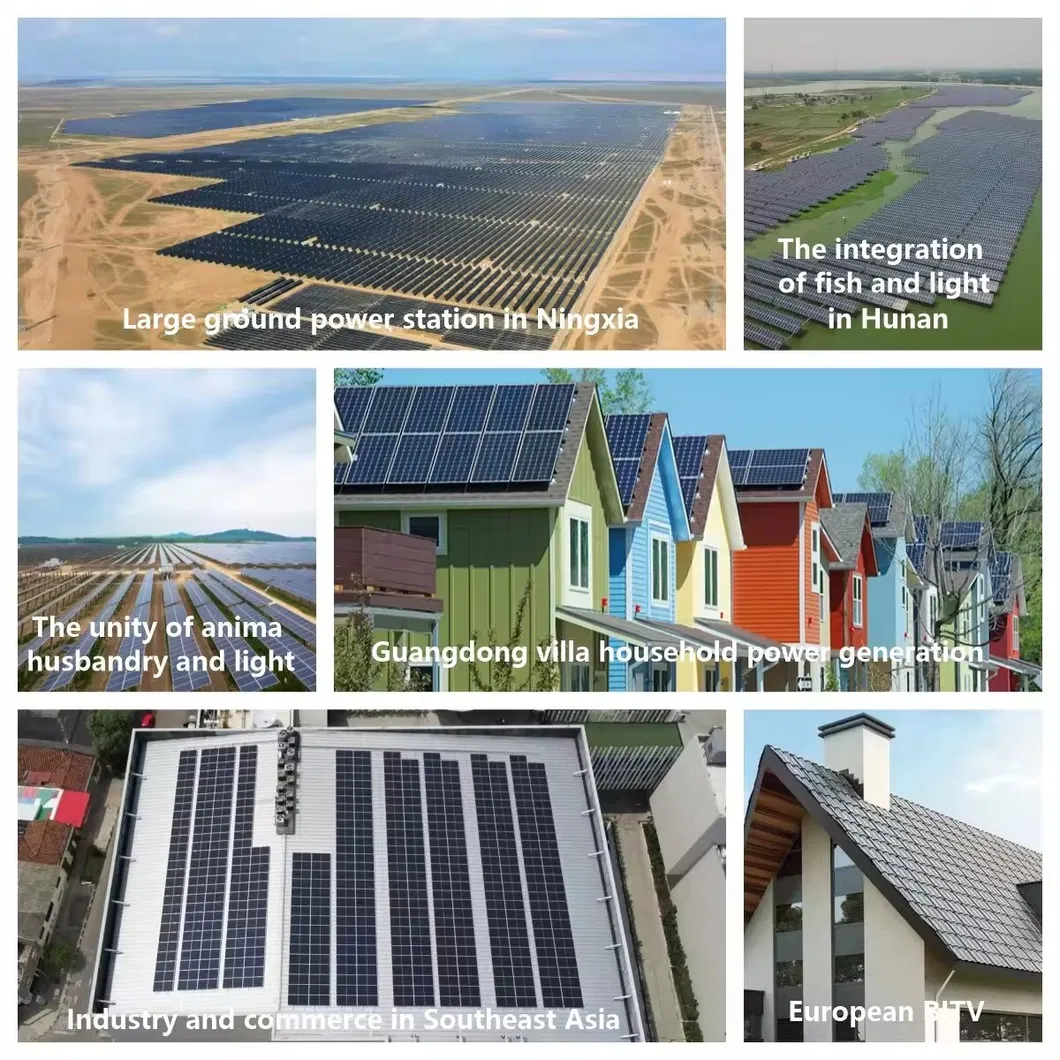

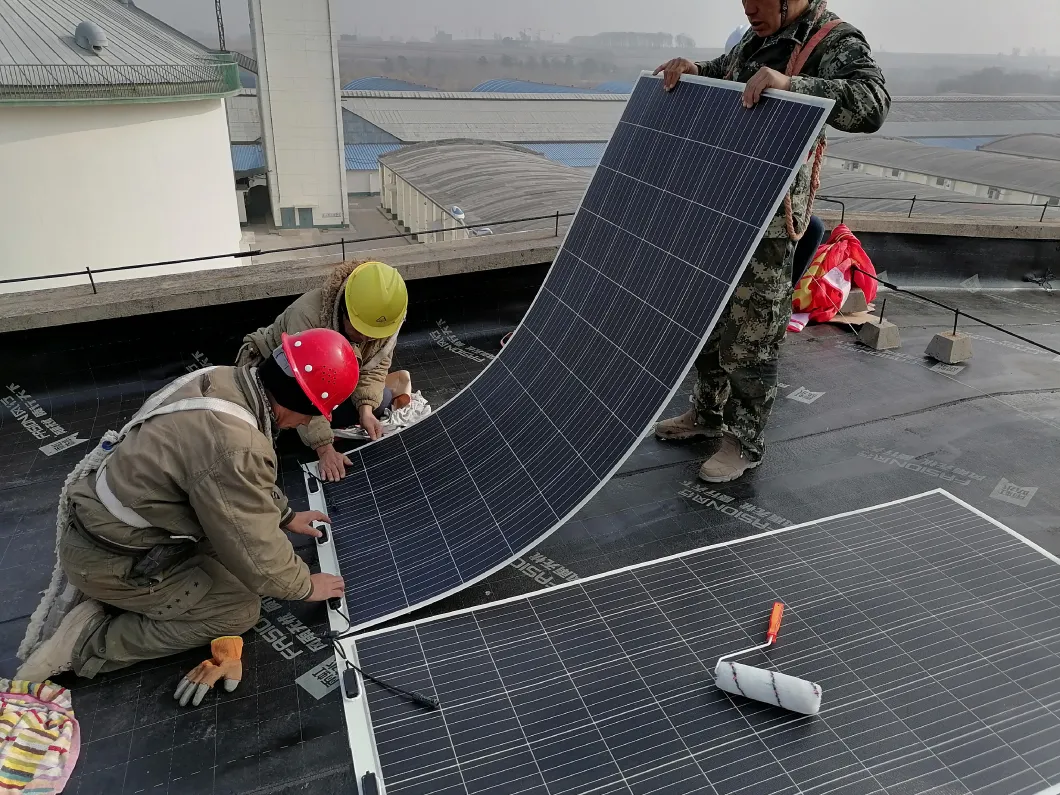

Project Case

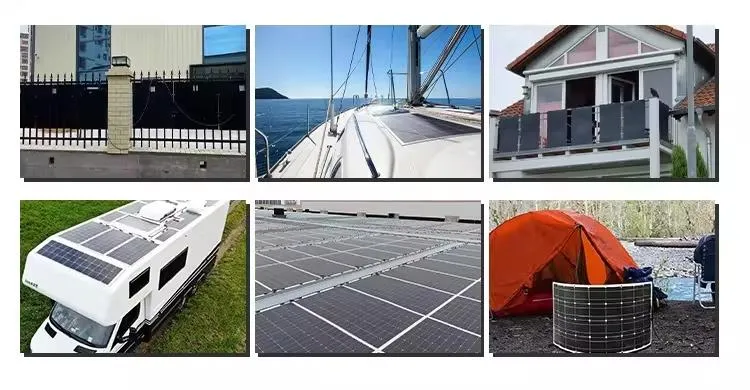

Versatile Application Scenarios
-
Marine & Yachting: Salt-resistant coating and curved fit for decks and cabins.
-
RV & Off-Road Camping: Aerodynamic low-profile design that doesn't affect vehicle height or fuel efficiency.
-
Home Backup Systems: Easy to deploy on balconies or light-load roofs that cannot support traditional glass panels.
-
Portable Solar Kits: Lightweight enough for one person to carry and set up for outdoor events or emergency power.

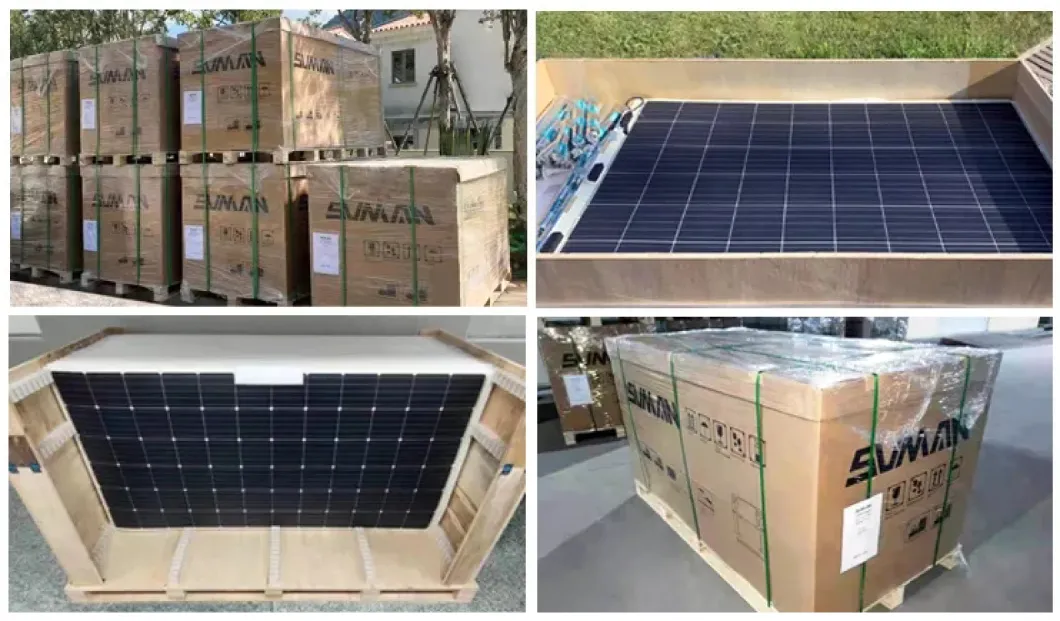

Packaging & Shipping
FAQ
Can this flexible panel be walked on?
While it is highly durable and designed for marine decks, we recommend installing it on surfaces with firm support. Walking on it with soft-soled shoes is generally acceptable for maintenance, but avoiding heavy impact will prolong the panel's lifespan.
How do I mount this without drilling holes in my roof?
Most users install the panel using industrial-strength double-sided tape or silicone adhesive (such as Sikaflex). For temporary use, you can also use the built-in grommets with carabiners or ropes.
Does the flexibility affect the efficiency compared to rigid panels?
Our 144 half-cut cell technology ensures that the efficiency remains competitive with rigid modules. While rigid panels have slightly better cooling, the 430W flexible series is optimized for heat dissipation through its thin-profile materials.
Is it waterproof for use on a boat?
Yes, the panel and the junction box are IP67/IP68 rated, meaning they are fully protected against dust and can withstand powerful water jets or temporary immersion in water.
Can I connect multiple 430W flexible panels in series or parallel?
Yes, you can connect these panels in series or parallel to match your system requirements. Make sure to check the ratings of your charge controller and inverter before connection.
What type of charge controller should I use with this panel?
An MPPT solar charge controller is highly recommended to achieve maximum efficiency, particularly under changing light conditions or partial shading.
