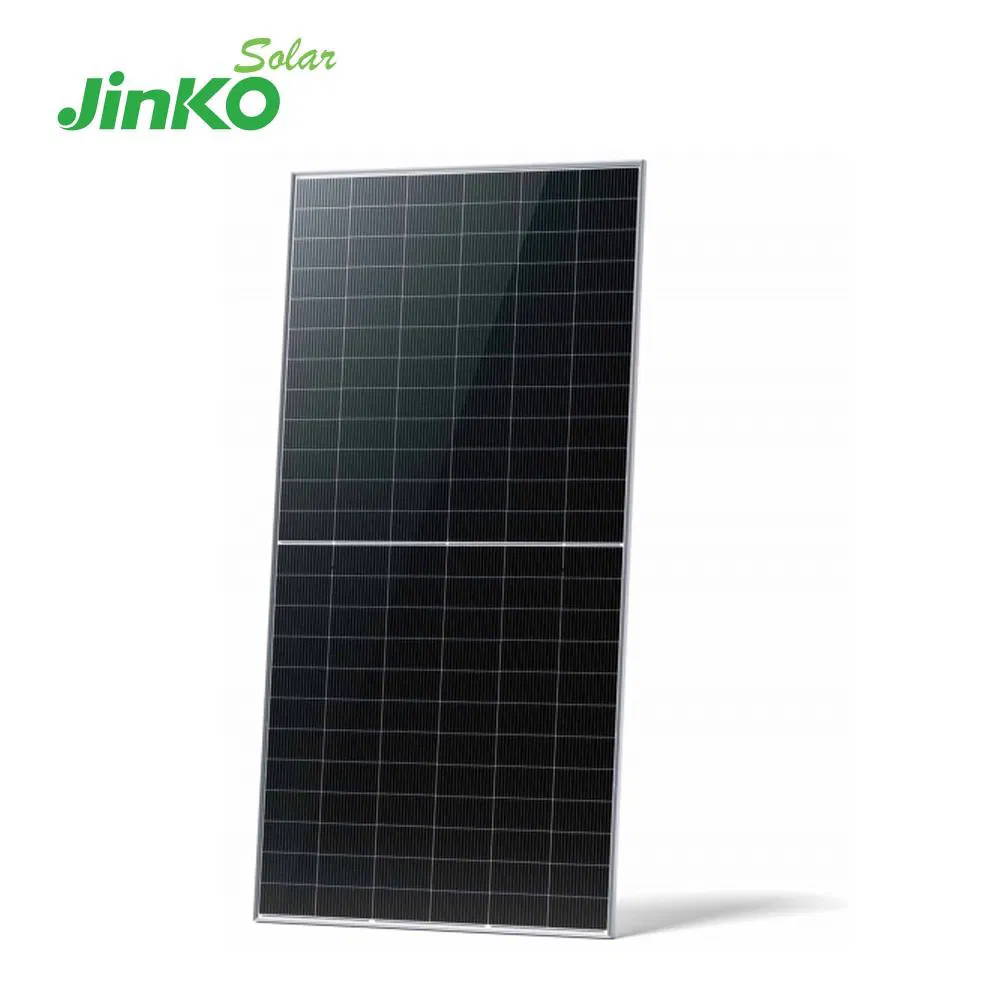

| Model | JKM410N-54HL4 | JKM415N-54HL4 | JKM420N-54HL4 | JKM425N-54HL4 | JKM430N-54HL4 |
|---|---|---|---|---|---|
| Rated Maximum Power (Pmax) [W] | 410 | 415 | 420 | 425 | 430 |
| Maximum Power Voltage (Vmp) [V] | 31.13 | 31.32 | 31.51 | 31.70 | 31.88 |
| Maximum Power Current (Imp) [A] | 13.17 | 13.25 | 13.33 | 13.41 | 13.49 |
| Open Circuit Voltage (Voc) [V] | 37.73 | 37.92 | 38.11 | 38.30 | 38.49 |
| Short Circuit Current (Isc) [A] | 13.91 | 13.99 | 14.07 | 14.15 | 14.23 |
| Module Efficiency [%] | 21.00% | 21.25% | 21.51% | 21.76% | 22.02% |
| Power Tolerance | 0~+3% | ||||
| Temperature Coefficient of Isc (α_Isc) | +0.045%/°C | ||||
| Temperature Coefficient of Voc (β_Voc) | -0.250%/°C | ||||
| Temperature Coefficient of Pmax (γ_Pmp) | -0.290%/°C | ||||
| STC Conditions | Irradiance 1000W/m², Cell Temperature 25°C, AM1.5G | ||||
| Payment Mode | Trade Terms | Payment Details |
|---|---|---|
| T/T | EXW | 30% T/T in advance, balance paid prior to dispatch |
| FOB | ||
| CFR (CNF) | 30% T/T in advance, balance paid upon receipt of B/L duplicate copy | |
| CIF | ||
| L/C | All Terms | Letter of Credit (L/C) accepted at sight for amounts exceeding 50,000 USD |
| Western Union | All Terms | Applicable exclusively for values lower than 5,000 USD |
