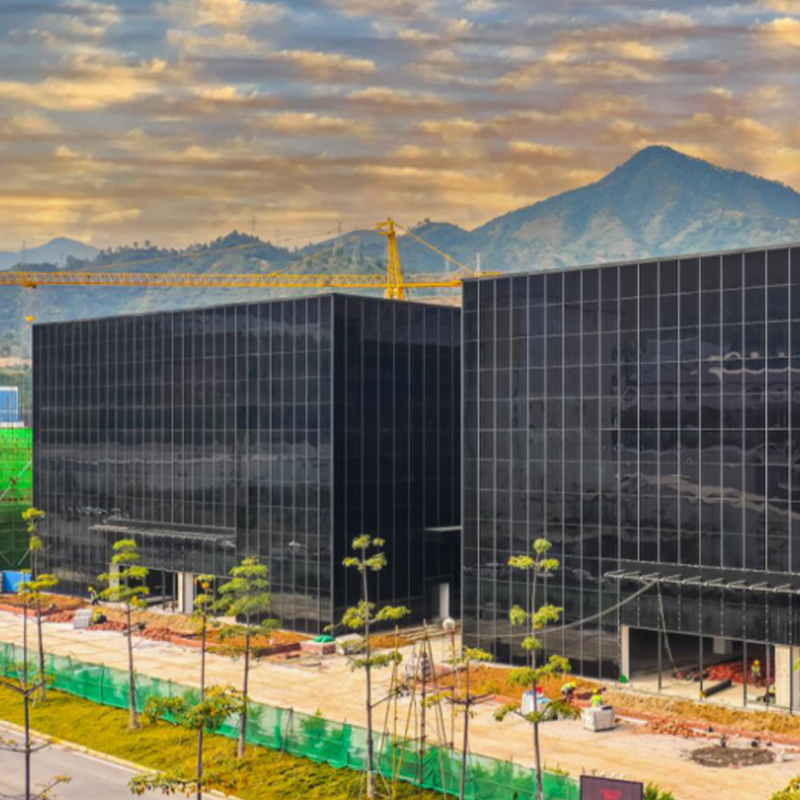

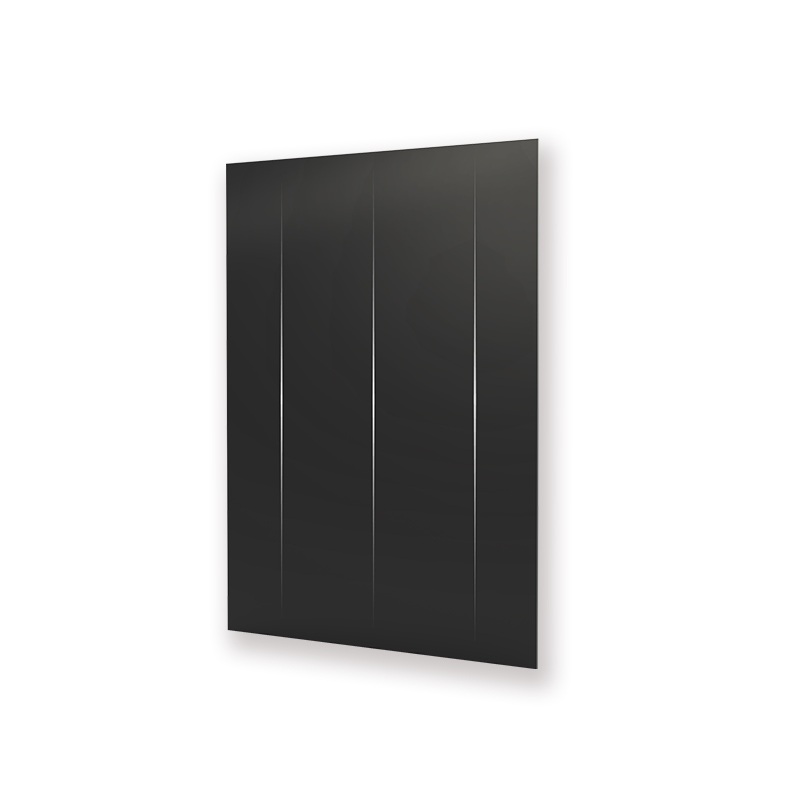

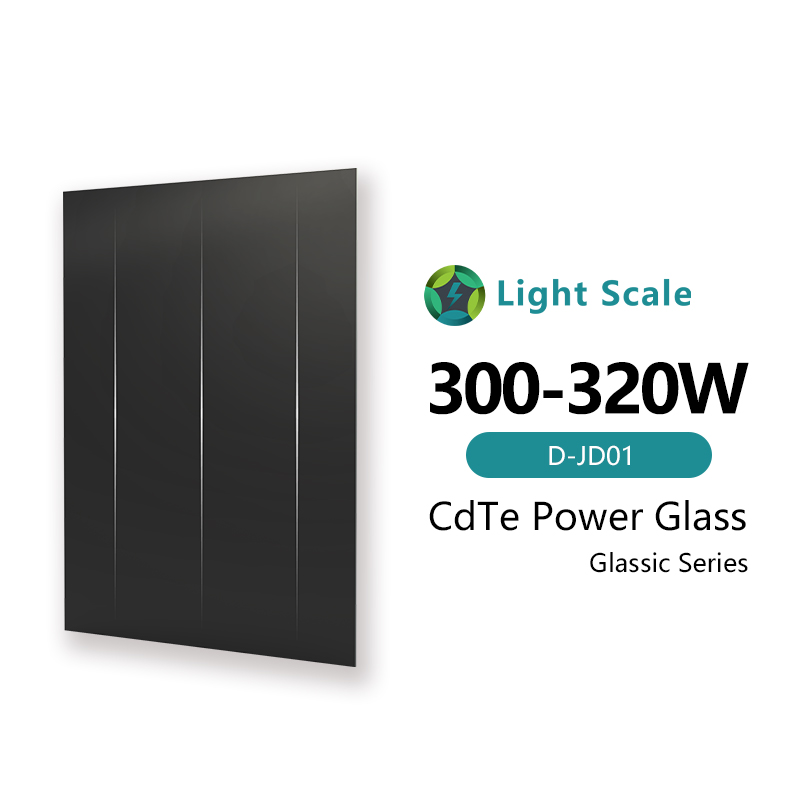

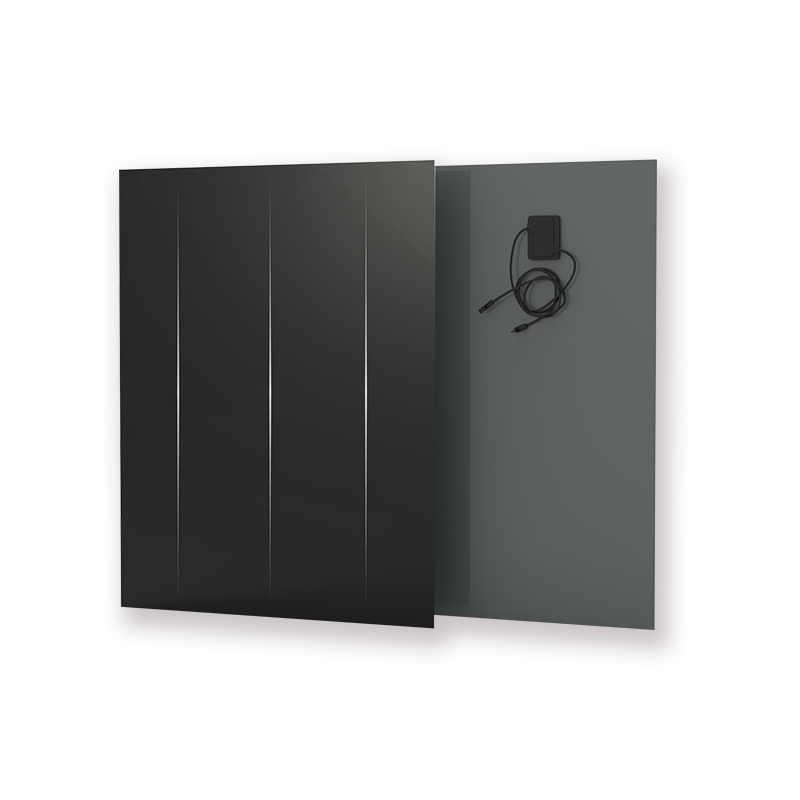

BIPV Solar Panels for House Roof Photovoltaic Sunroom Double Glass CdTe 320W High Efficiency 1.92m D-JD01

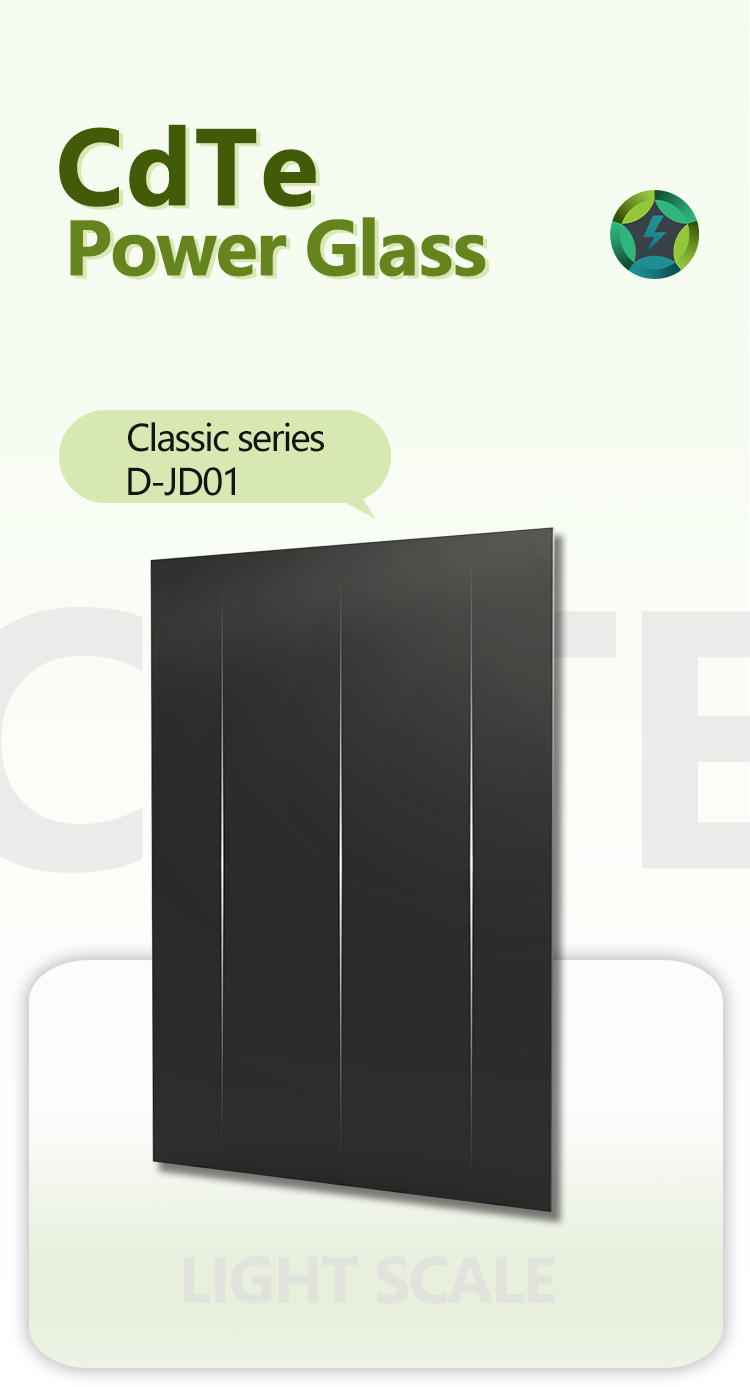

CdTe Power Glass

Classic Series - D-JD01

Product Parameters

Structure Parameters

Product ModelD-JD01
Size1600 * 1200 * 26.9 mm
Glass Thickness6.9 mm
Area1.92 m²
Wire2.5 mm²
Weight30 ± 5% kg/piece
Product StructureDouble glass 3.2mmCdTe + 3.2mm

Electrical Parameters & Standards

Pmax300W ~ 320W
Power Tolerance±5%
STC Conditions1000W/m², 25 ℃, AM1.5
Design StandardsIEC/EN 61215-2/61730
DIN V VDE 0126-3, DIN V VDE V 0126-5
UL1703, ULC/ORD-C1703-1
Fire Rating / SecurityClass A / Class II
Product Warranty25-year linear power output warranty

Redefining The Low-Carbon Aesthetics Of Architecture: The development of photovoltaic technology is not only an innovation in the field of energy, but also a redefinition of the future lifestyle!

Product Advantages

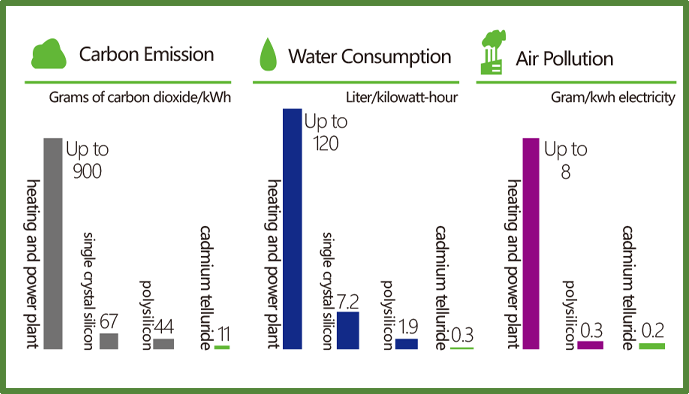

Green & Safe

Low carbon emissions

For every kilowatt hour of electricity produced, CdTe emits only 11g of carbon dioxide, which is lower than the carbon emissions of traditional thermal power plants, monocrystalline silicon, and polycrystalline silicon.

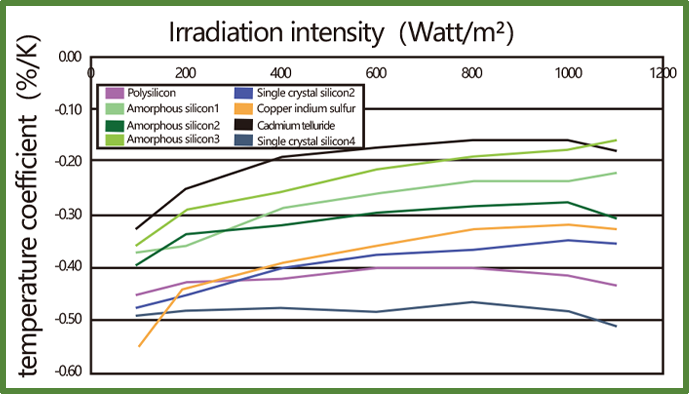

Temperature Coefficient

Low heat loss

High temperature and humidity are important factors leading to a significant reduction in the power generation capacity of solar modules. CdTe has a low temperature coefficient, providing obvious advantages in low power loss and power generation performance.

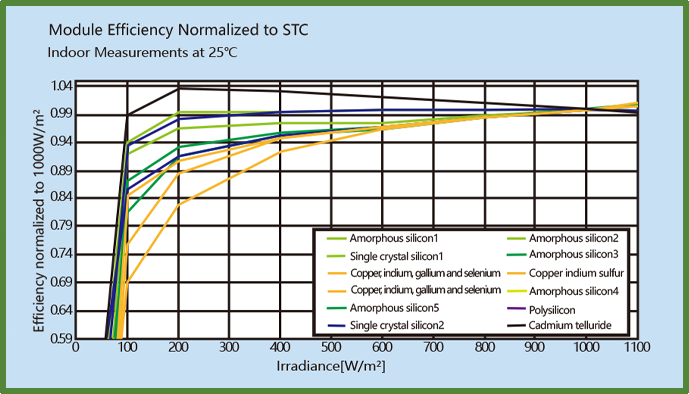

Weak Light Power Generation

Large power generation

The power generation effect under low illumination conditions such as early morning and evening is significantly better than that of indirect bandgap materials. The daily working time is long, and power generation under the same installed capacity is about 3-8% higher than traditional products.

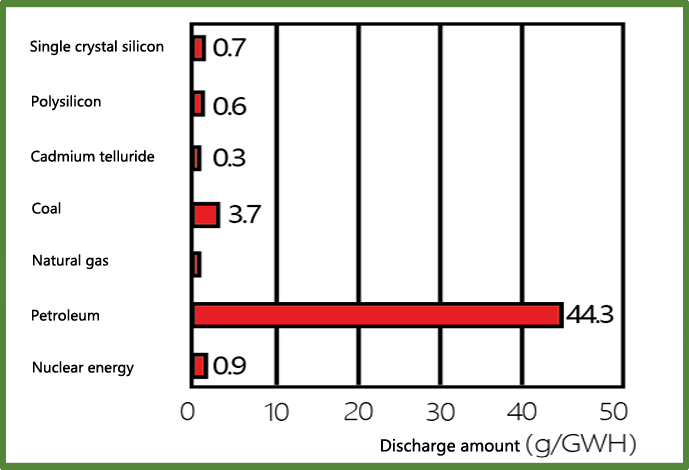

Non-toxic Environmentally Friendly

Low Cd emissions

CdTe emits only 0.3 g/GWh, equivalent to natural gas, with a highly stable lattice and safe encapsulation in CdTe power generation glass for many years. There is no Cd release at room temperature.

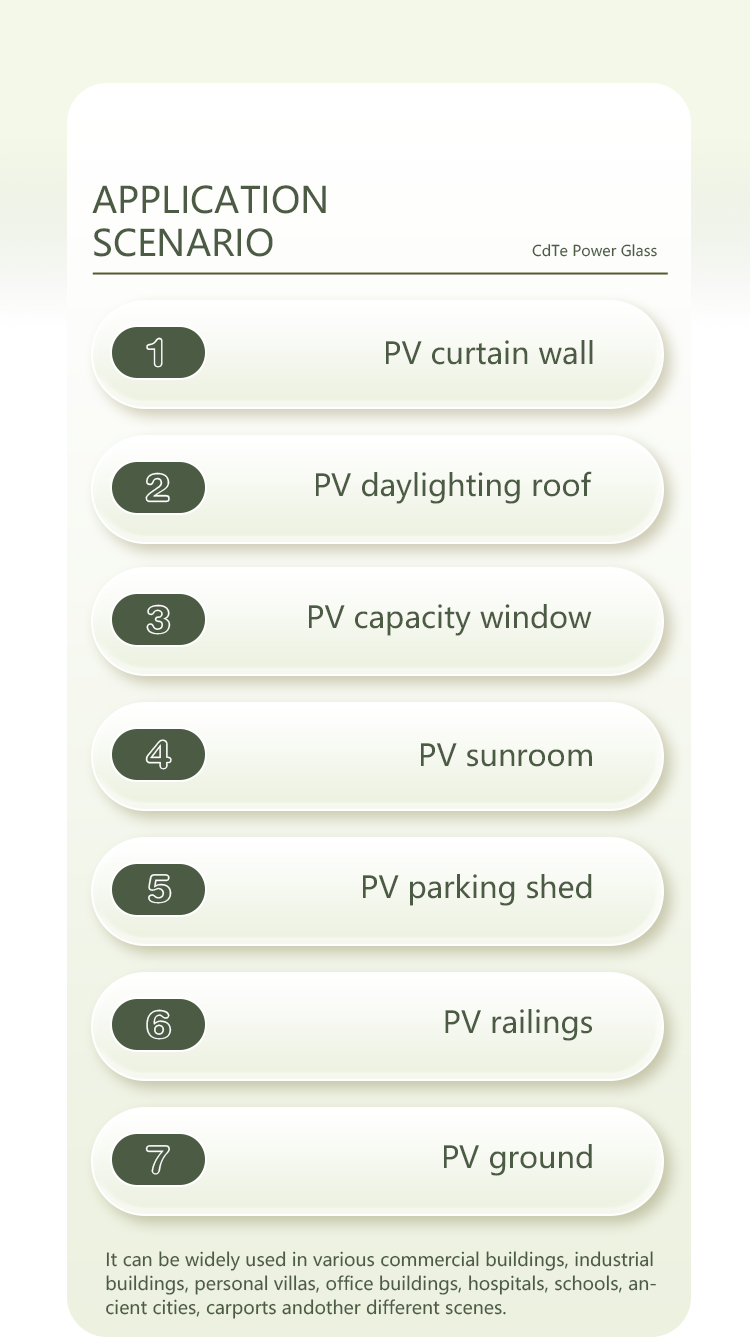

Application Scenario

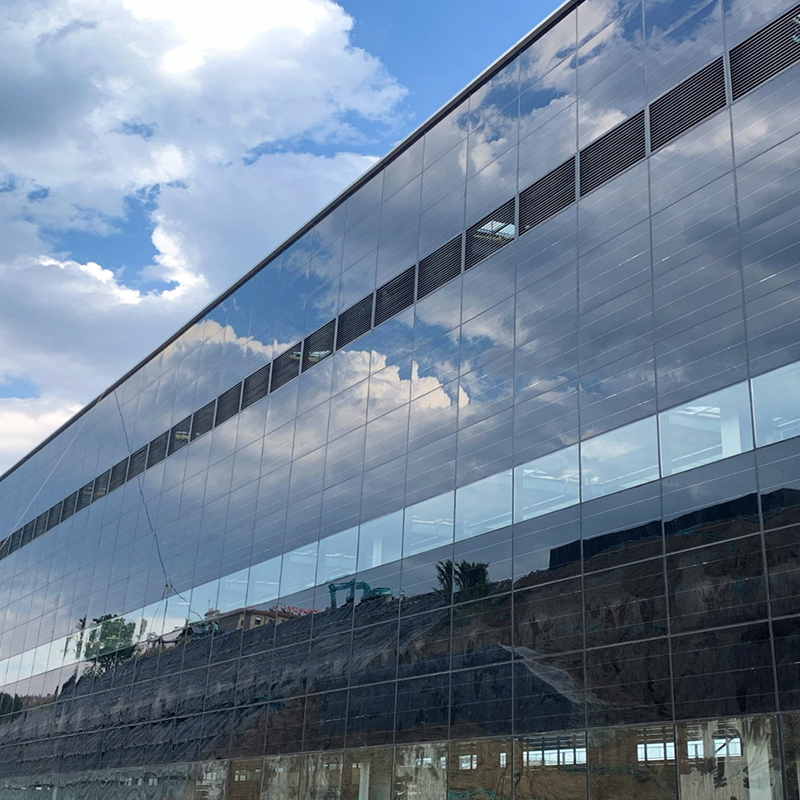

1. PV curtain wall

2. PV daylighting roof

3. PV capacity window

4. PV sunroom

5. PV parking shed

6. PV railings

7. PV ground

It can be widely used in various commercial buildings, industrial buildings, personal villas, office buildings, hospitals, schools, ancient cities, carports and other different scenes.

Project Case

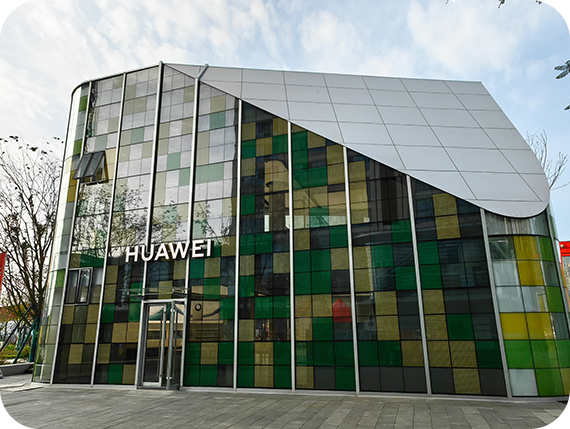

Yibin City Sanjiang Liu'an PV Curtain Wall

Location: Yibin City, Sichuan Province

Type: BIPV

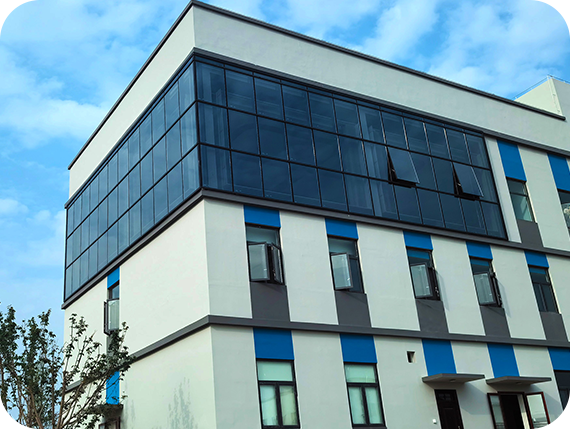

Hubei Yingcheng Compressed Air Energy Storage Demonstration

Location: Yingcheng City, Hubei Province

Type: BIPV

Area: 240m²

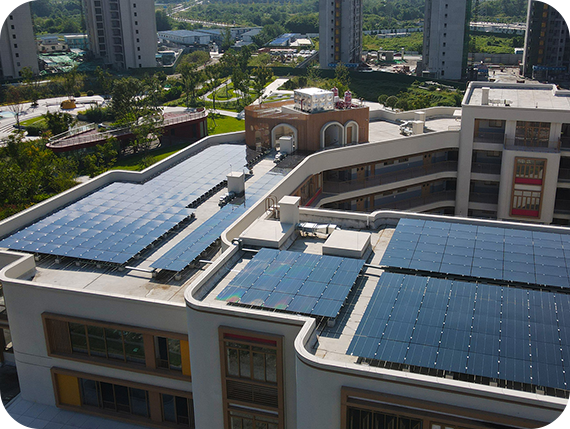

Wenjiang Hongqiao Kindergarten Roof PV Project

Location: Chengdu City, Sichuan Province

Type: BAPV

Area: 600m²

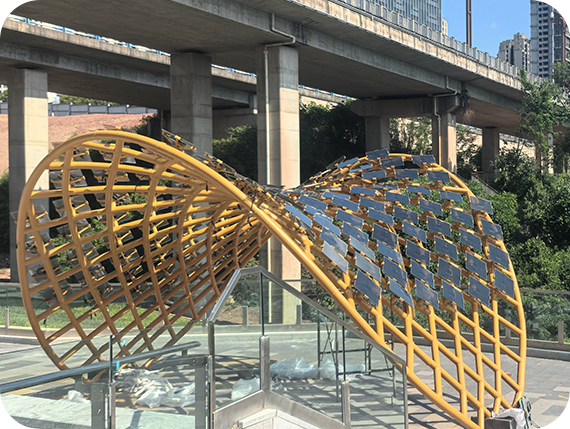

Chongqing Liangjiang Business Center

Location: Chongqing City

Type: BIPV

Product: Customized sunflower

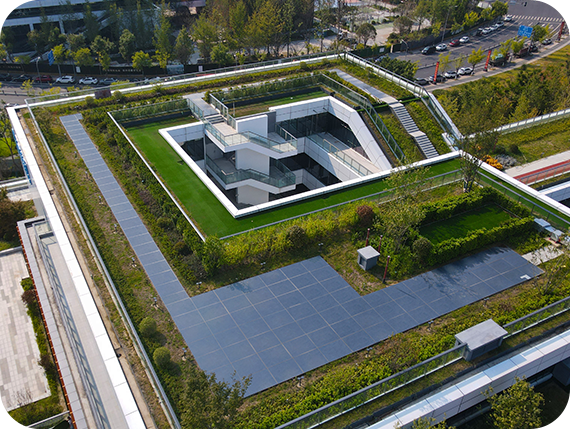

China Mobile Chengdu Industry Research Institute Project

Location: Chengdu City, Sichuan Province

Type: PV rooftop walkway

Area: 2000m²

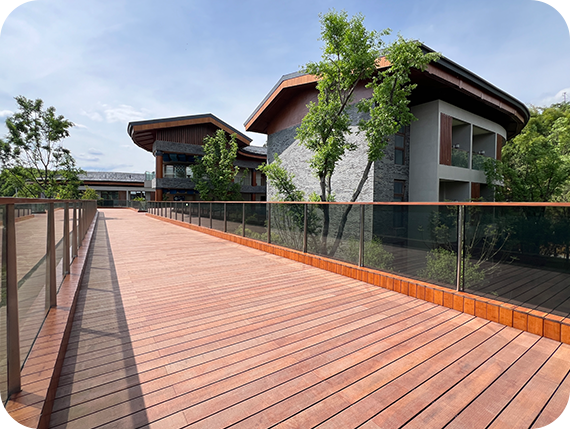

Chengdu Revolutionary History Memorial Hall

Location: Chengdu City, Sichuan Province

Type: PV railing

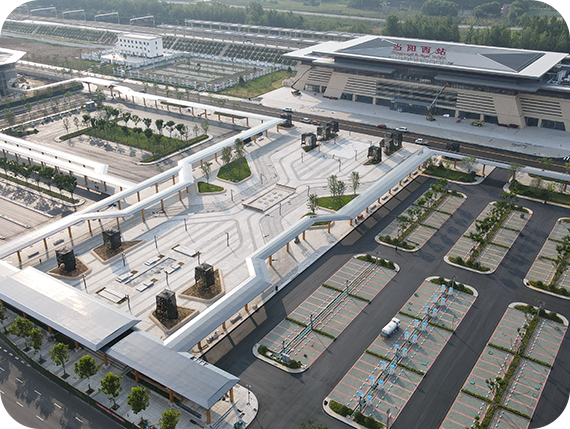

Dangyang High-speed Railway Station PV Square Project

PV project on the square in front of Dangyang High-speed Railway Station

Location: Dangyang City, Hubei Province

Type: PV corridor skylight

Area: 3000m²

Product:	CdTe Power Glass
Product Model:	D-JD01
Size:	1600mm * 1200mm * 26.9mm
Glass Thickness:	6.9mm
Area:	1.92 m²
Product Specifications:	Double glass 3.2mmCdTe + 3.2mm
Type:	BIPV
Wire:	2.5mm²
Weight:	30 ± 5% kg/piece
Pmax:	300W ~ 320W
Power Tolerance:	±5%

Frequently Asked Questions

Q1: What is the output power range of the D-JD01 CdTe Power Glass?

The nominal maximum power (Pmax) ranges from 300W to 320W, with a strict power output tolerance of ±5%.

Q2: What are the standard dimensions and physical specifications of this model?

The CdTe Power Glass D-JD01 measures 1600mm * 1200mm with a thickness of 26.9mm (utilizing double glass structure: 3.2mm CdTe + 3.2mm glass). Each piece weighs approximately 30 ± 5% kg and covers an area of 1.92 m².

Q3: How does CdTe technology compare in low-light environments?

CdTe (Cadmium Telluride) exhibits exceptional weak light power generation. Its performance in early mornings, late evenings, or cloudy conditions is 3-8% higher compared to traditional crystalline silicon-based solar panels under the same capacity.

Q4: How does high temperature affect the performance of CdTe Power Glass?

This product is designed with a low temperature coefficient. In hot and high-humidity environments where standard solar panels lose efficiency, CdTe power glass maintains stable output with significantly minimized heat loss.

Q5: Are there environmental concerns regarding Cadmium (Cd) emissions?

No, CdTe power generation glass is highly stable and safely encapsulated. Its lifetime emissions are only 0.3 g/GWh (equal to natural gas). Additionally, no Cadmium is released at room temperature.

Q6: What certifications and warranties apply to the D-JD01 model?

It meets IEC/EN 61215-2/61730, DIN V VDE 0126-3/0126-5, and UL1703/ULC-C1703-1 standards with a Class A fire rating and Class II security level. It features a 25-year linear power output warranty.
