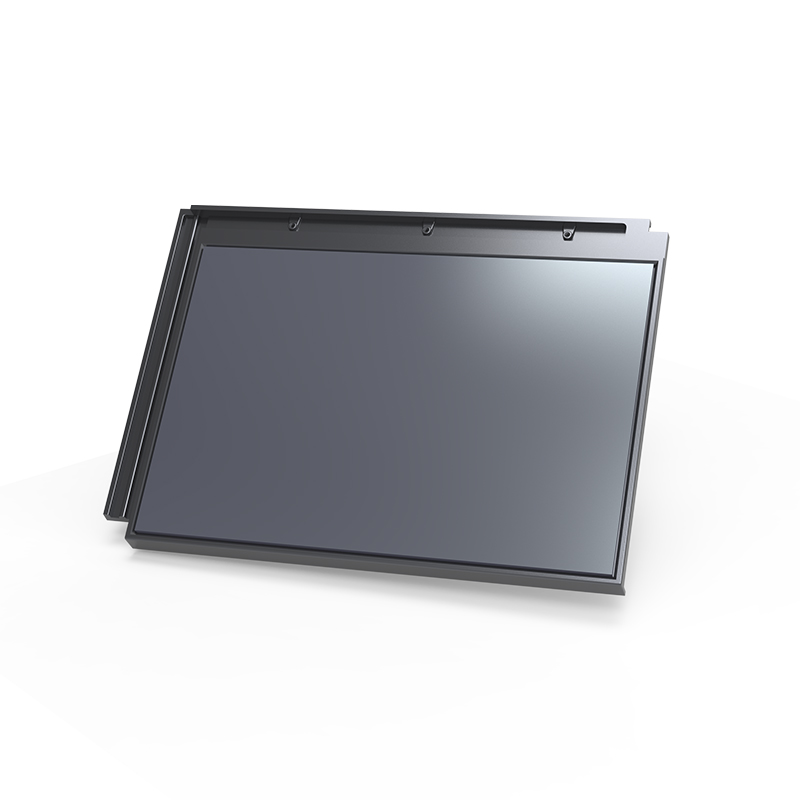

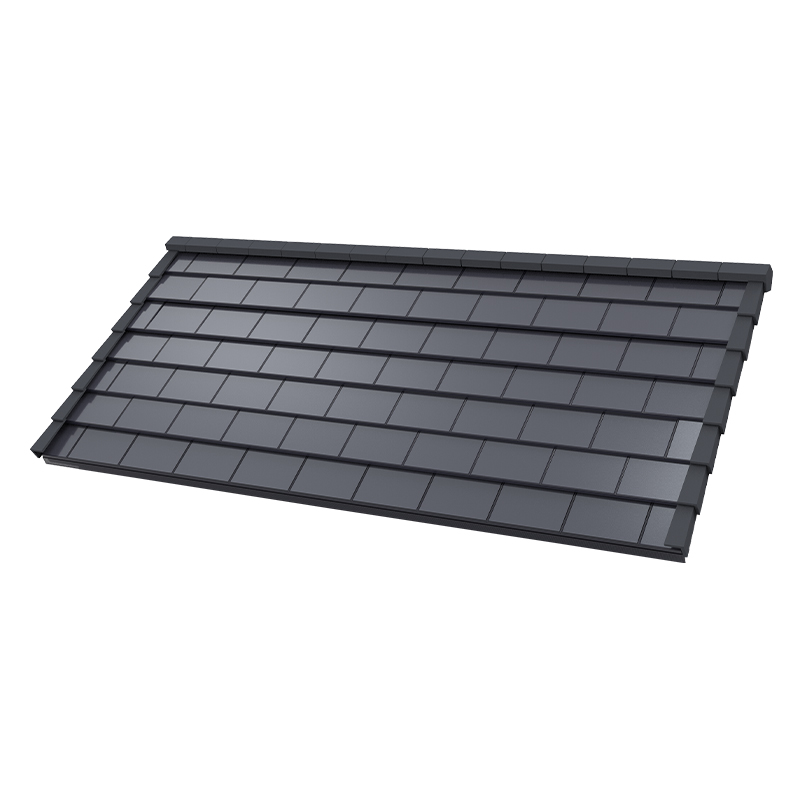

CdTe PV BIPV Roof Tiles DYW-DPB01 Solar Panels 35W for House Roofs

Product Description

Grand flat series

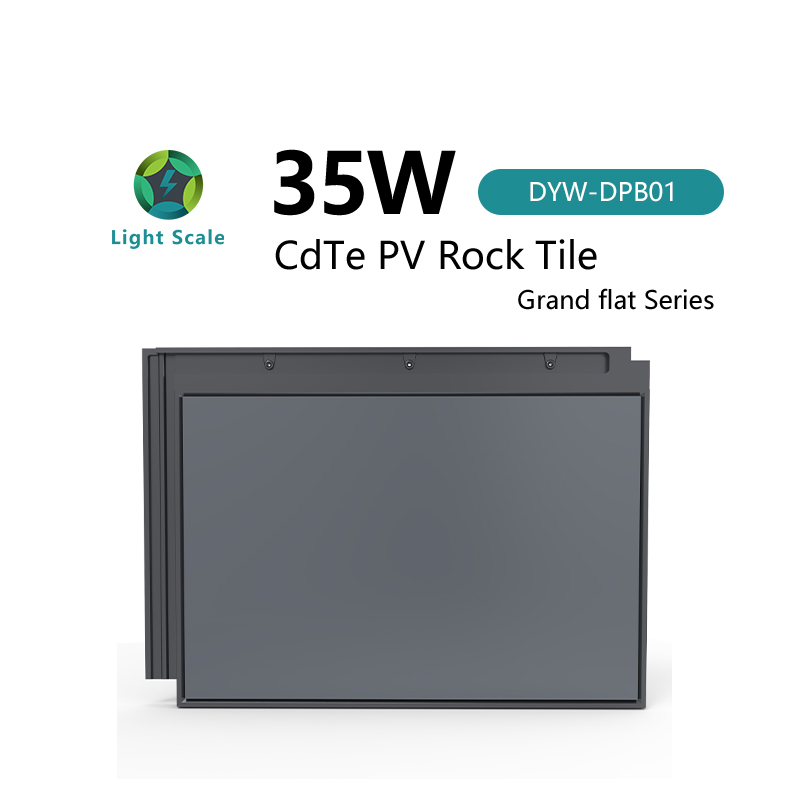

CdTe PV Rock Tile

Model: DYW-DPB01

An advanced building-integrated photovoltaic (BIPV) solution that redefines low-carbon aesthetics of architecture, combining double-glass durability with reliable cadmium telluride thin-film technology.

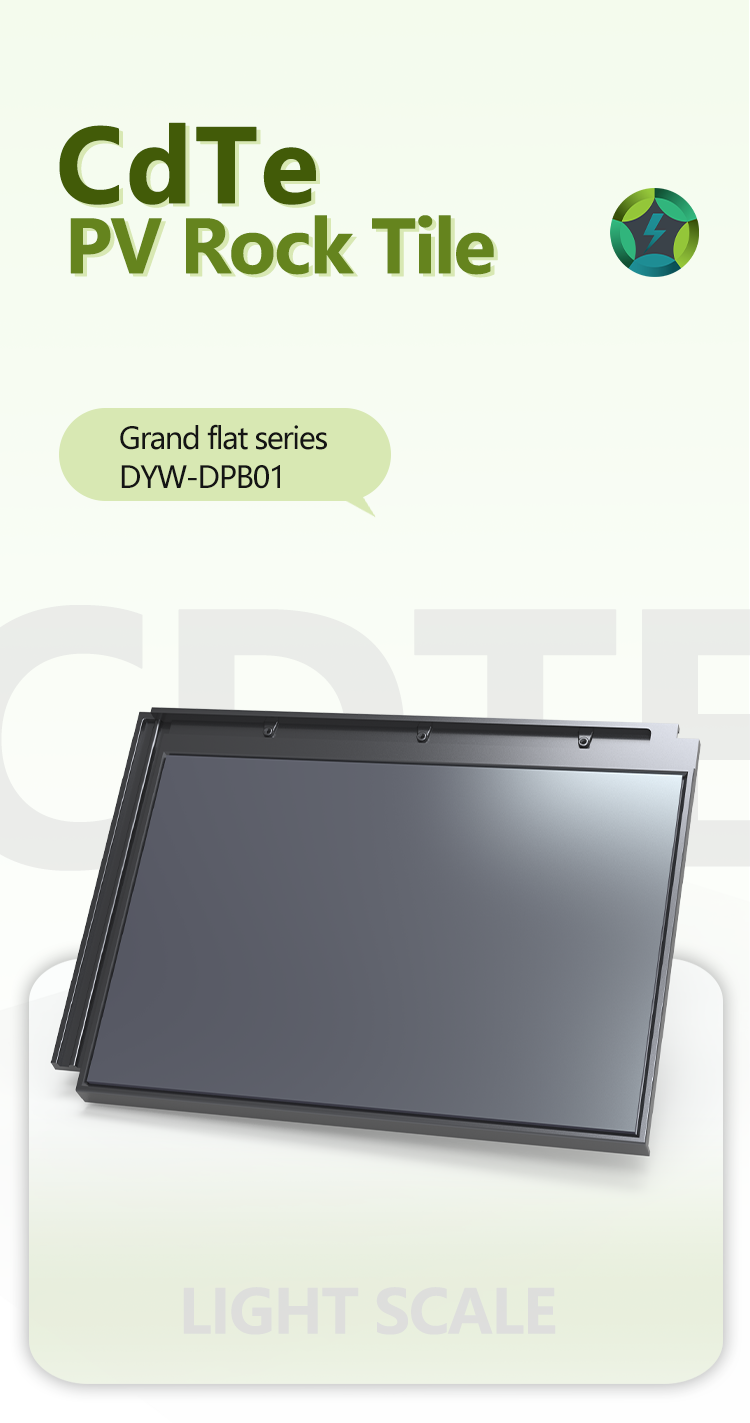

CdTe PV Rock Tile DYW-DPB01

Product Parameters

Structure Parameters
  • Product model: DYW-DPB01
  • Tile size: 670*480*33 ±2mm
  • Power glass size: 600*400mm
  • Usage per square meter: 3.8 piece/m²
  • Weight: 6.5±5% kg/piece
  • Product structure: Double glass 3.2mmCdTe+3.2mm
Electrical Parameters
  • Pmax: 35W
  • Power tolerance: ±5%
  • Vmpp: 36.52V
  • Impp: 1.02A
  • Voc: 45.70V
  • Isc: 1.15A
  • STC: Irradiance 1000W/m², Battery 25℃, AM1.5
Design Standards & Warranty

Standards: IEC/EN61215, IEC/EN61730, GB/T 36584-2018

Warranty: 25-year linear power output warranty for CdTe components

Redefining The Low-Carbon Aesthetics Of Architecture

The development of photovoltaic technology is not only an innovation in the field of energy, but also a redefinition of the future lifestyle!

Aesthetics of Architecture
Product Architecture

Product Advantages

High strength without hidden cracks

High Strength & No Hidden Cracks

The product has high impact strength. CdTe thin film technology has no hidden cracks, making it easy to handle various usage scenarios. Resistant to trampling, low loss, and safer during transportation, installation, and construction.

Installation orientation has little impact

Flexible Orientation Installation

Compared to traditional PV tiles arranged only on the south slope, CdTe PV rock tiles can be installed in East, South, West, and North directions on ordinary sloping roofs, with minimal impact on generation efficiency.

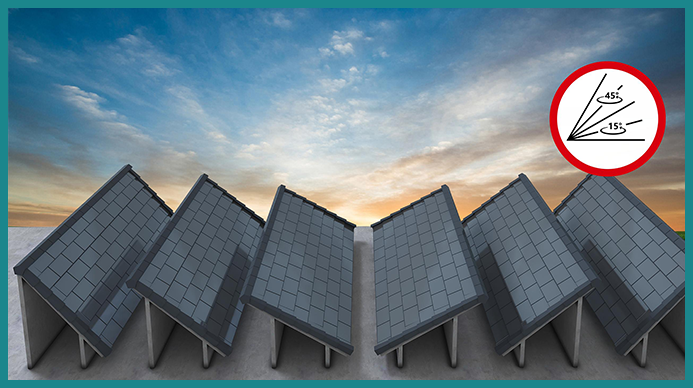

Installation angle has little impact

Free Installation Angle

Unlike traditional PV tiles requiring strict inclination and azimuth layouts, CdTe PV rock tiles offer virtually angle-free installation selection with very low impact on energy generation efficiency.

Maintenance free in the later stage

Maintenance Free Self-Cleaning

Equipped with excellent self-cleaning, pollution resistance, strong anti-blocking performance, and high electrical safety. Achieves maintenance-free operations throughout its usage lifespan.

Strong temperature adaptability

Strong Temperature Adaptability

Low power-temperature coefficient makes these tiles less affected by extreme ambient temperatures. The coefficient is only half of traditional products, ensuring continuous high-power output under high heat.

Small hot spot effect

Super Anti-Occlusion Performance

Strong resistance to obstructions such as dust or leaves. Generates minimal heat under occlusion, drastically reducing hot-spot effects while preserving overall power generation and safety.

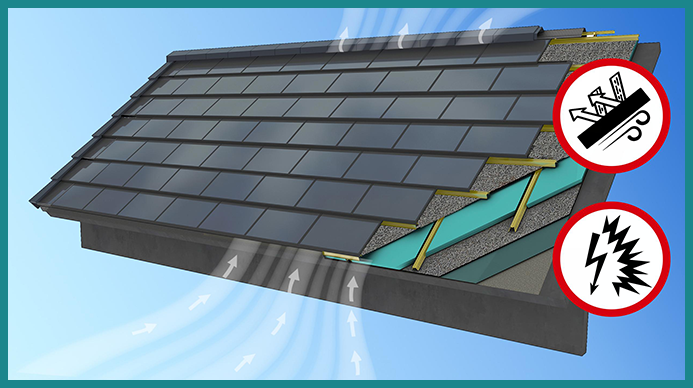

Frost and crack resistance

Thermal Insulation & Frost Resistance

Features stable physical and electrical performance, delivering superior insulation, frost, aging, and corrosion resistance. Built with robust arc resistance to withstand severe weather environments.

Quiet and comfortable

Sound Insulation & Noise Reduction

Designed with acoustics in mind, the system offers high noise reduction. It absorbs and dampens sound from heavy rain or hail, ensuring a quiet and comfortable living environment.

BIPV System Scheme

Fully compatible with traditional roof tiles

BIPV System Scheme

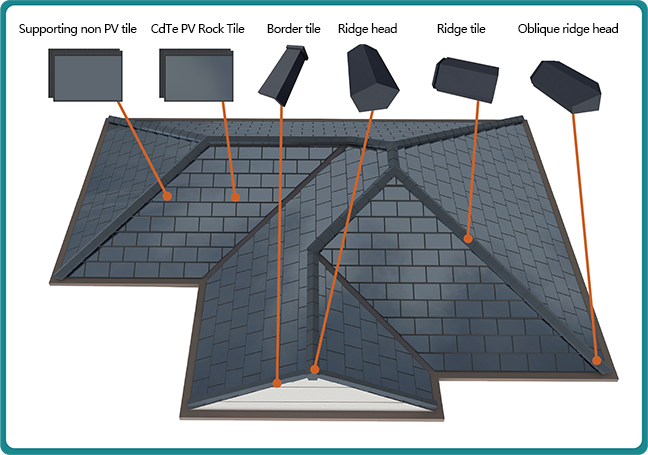

Display of supporting non-PV tiles

Supporting non-PV tiles display

All series of CdTe PV rock tiles can be manufactured with matching profile tiles to ensure architectural consistency.

Project Cases

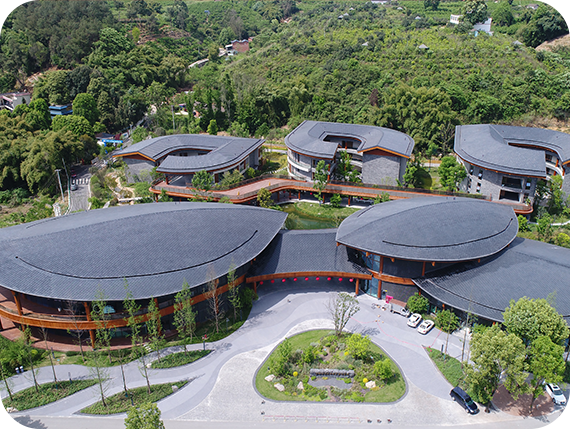

Chengdu Park City Education Practice Base

Chengdu Park City Education Practice Base

Location: Chengdu City, Sichuan Province
Type: BIPV PV Rock Tile
Area: 9000m²

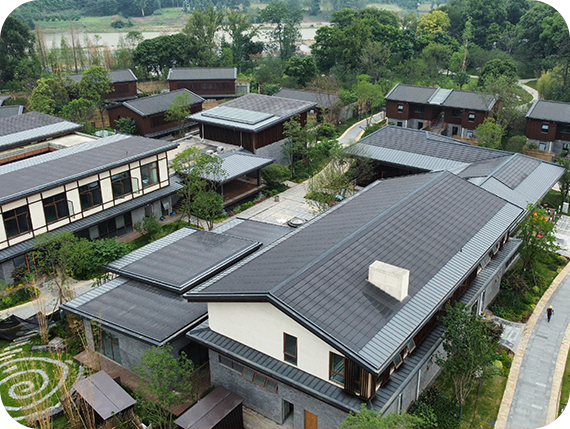

Qionglai Naked Heart Hotel

Qionglai Naked Heart Hotel

Location: Chengdu City, Sichuan Province
Type: BIPV PV Rock Tile
Area: 4200m²

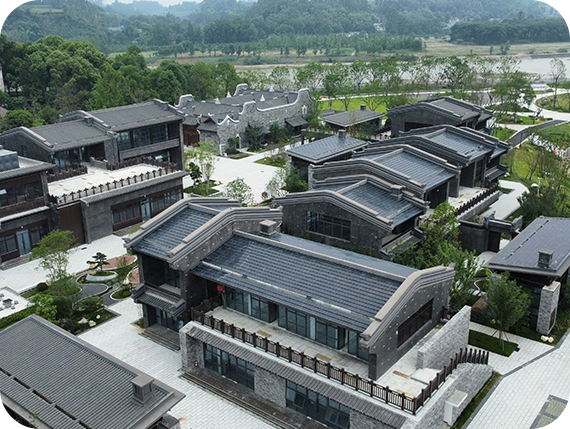

Qionglai Huilanli Characteristic Block

Qionglai Huilanli Characteristic Block PV Tile Project

Location: Chengdu City, Sichuan Province
Type: BIPV PV Rock Tile
Area: 2200m²

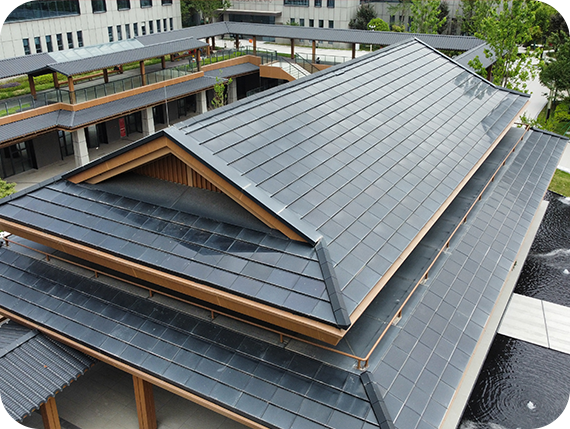

Qingcheng Mountain Tianfu Software Park

Qingcheng Mountain Tianfu Software Park

Location: Chengdu City, Sichuan Province
Type: BIPV PV Rock Tile
Area: 600m²

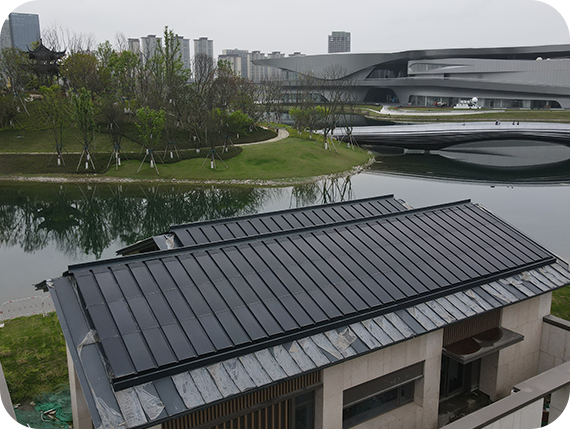

Jingrong Lake Leisure and Recreation Service Center

Jingrong Lake Leisure and Recreation Service Center

Location: Chengdu City, Sichuan Province
Type: BIPV PV Rock Tile
Area: 4200m²

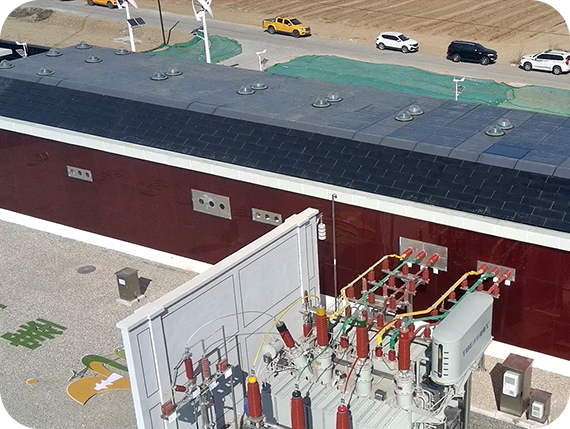

Yuanlong Substation

PV roof of Yuanlong Substation in Yinchuan, Ningxia

Location: Yinchuan City, Ningxia Province
Type: Curtain wall, railing, and roof integration
Area: Full Scene Application

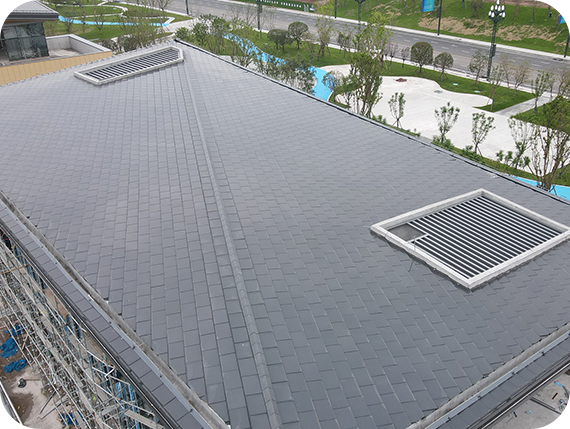

Yibin Sanjiang Yuanhai PV Roof

Yibin Sanjiang Yuanhai PV Roof

Location: Yibin City, Sichuan Province
Type: BIPV PV Rock Tile
Area: 1500m²
CdTe Tile Details

Technical Specifications

Parameter Key Technical Specification Value
Product CdTe PV Roof Tile
Product model DYW-DPB01
Cell size 600mm * 400mm
Product size 670mm * 480mm * 33mm ±2mm
Product specifications Double glass 3.2mmCdTe + 3.2mm
Type BIPV
Wire 1.5mm²
Usage per square meter 3.8 piece/m²
Weight 6.5 ±5% kg/piece
Pmax 35W
Power tolerance ±5%
Vmpp 36.52V
Impp 1.02A
Voc 45.70V
Isc 1.15A

Frequently Asked Questions

What are the mechanical and design properties of the CdTe PV Rock Tile?
The CdTe PV Rock Tile (Model DYW-DPB01) is designed with a durable double glass structure (3.2mm CdTe + 3.2mm glass), sizing at 670*480*33 ±2mm and weighing 6.5±5% kg per piece. It operates at an efficiency requiring 3.8 pieces per square meter.
How does installation orientation and angle affect the tile's performance?
Unlike traditional solar panels, CdTe PV rock tiles are highly adaptable. They can be installed on North, South, East, or West slopes, with free installation angles. These orientation variations have little to no impact on the power generation output.
Are these solar tiles resistant to micro-cracking and high impact?
Yes. CdTe thin-film technology is structurally resistant to hidden micro-cracks. With high mechanical strength, the tiles can easily support trampling during logistics and installation, ensuring very low break rates and high operating safety.
What are the benefits of the tile's low-power temperature coefficient?
The power-temperature coefficient is only half that of standard crystalline silicon products. This enables the tiles to maintain stable high-power output even in extremely hot weather conditions with very minimal degradation.
Is cleaning or routine maintenance required after installation?
No, these tiles are practically maintenance-free. They boast self-cleaning, pollution-resistant, and anti-blocking features. This significantly limits the hot-spot effect caused by falling leaves or dirt build-up.
Can the PV rock tiles be combined with traditional roof tiles?

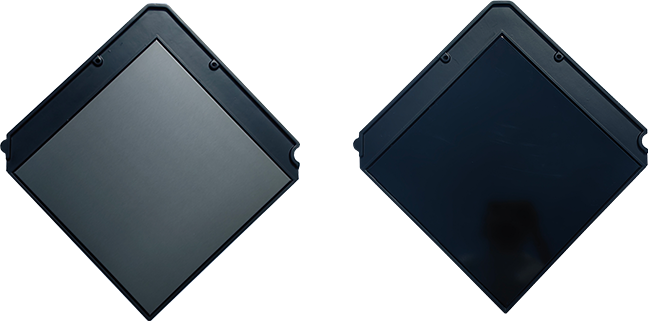

Yes, they are fully compatible with traditional roofing designs. In addition, matching non-PV support options, such as Titanium-Zinc (Ti-Zn) and Aluminum-Magnesium-Manganese (Al-Mg-Mn) metal rock tiles, are available to maintain a uniform aesthetic look.
