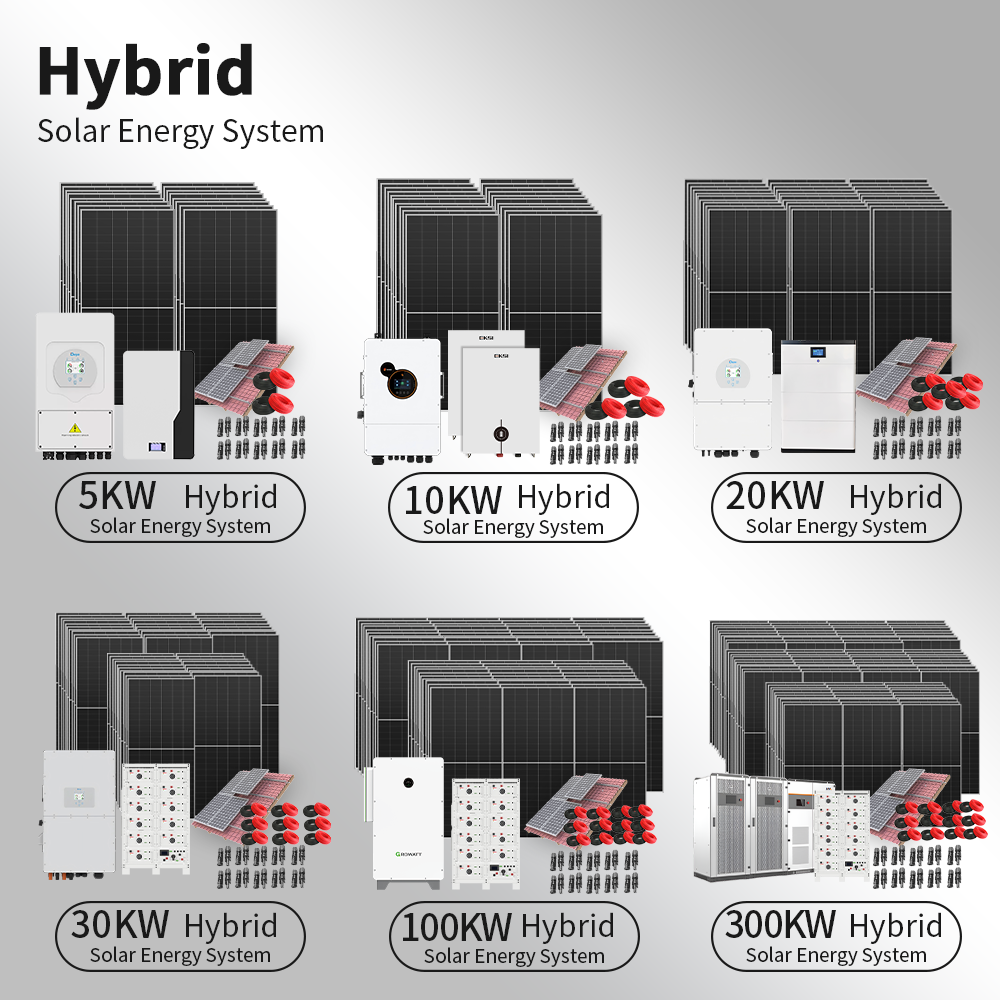

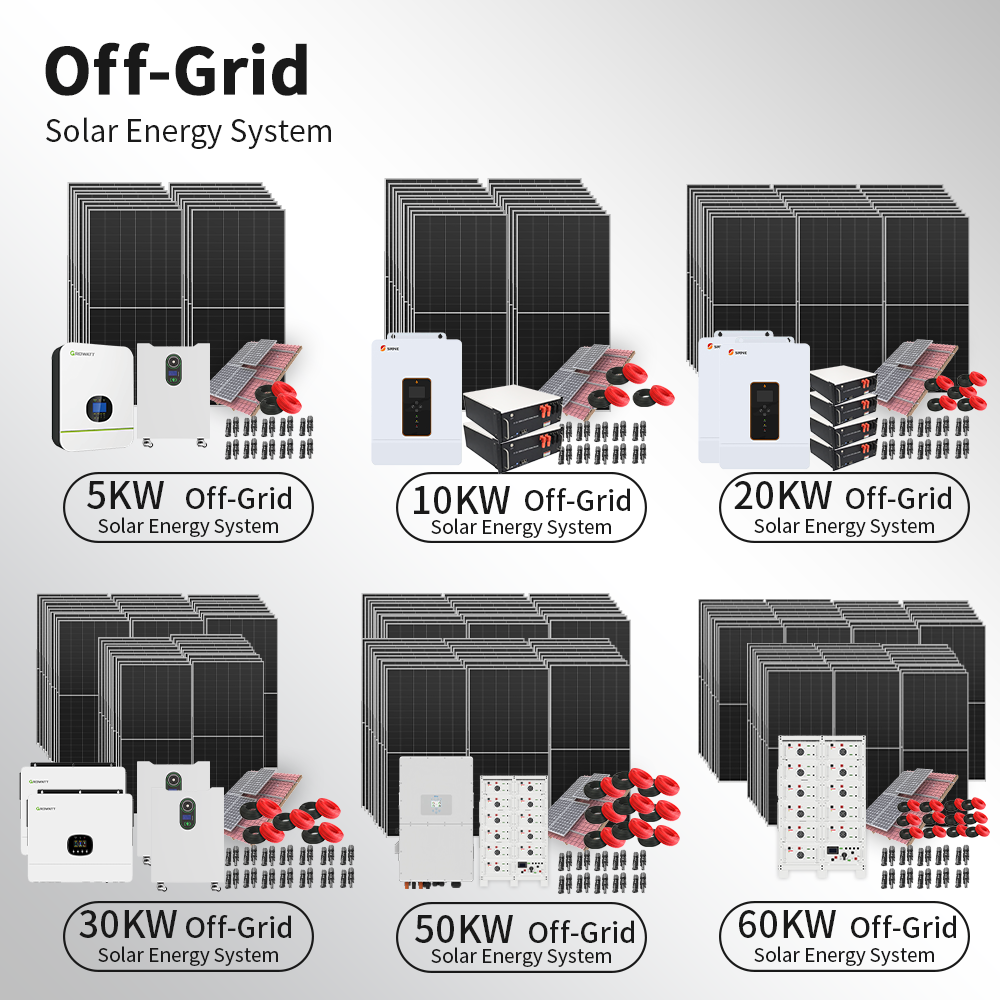

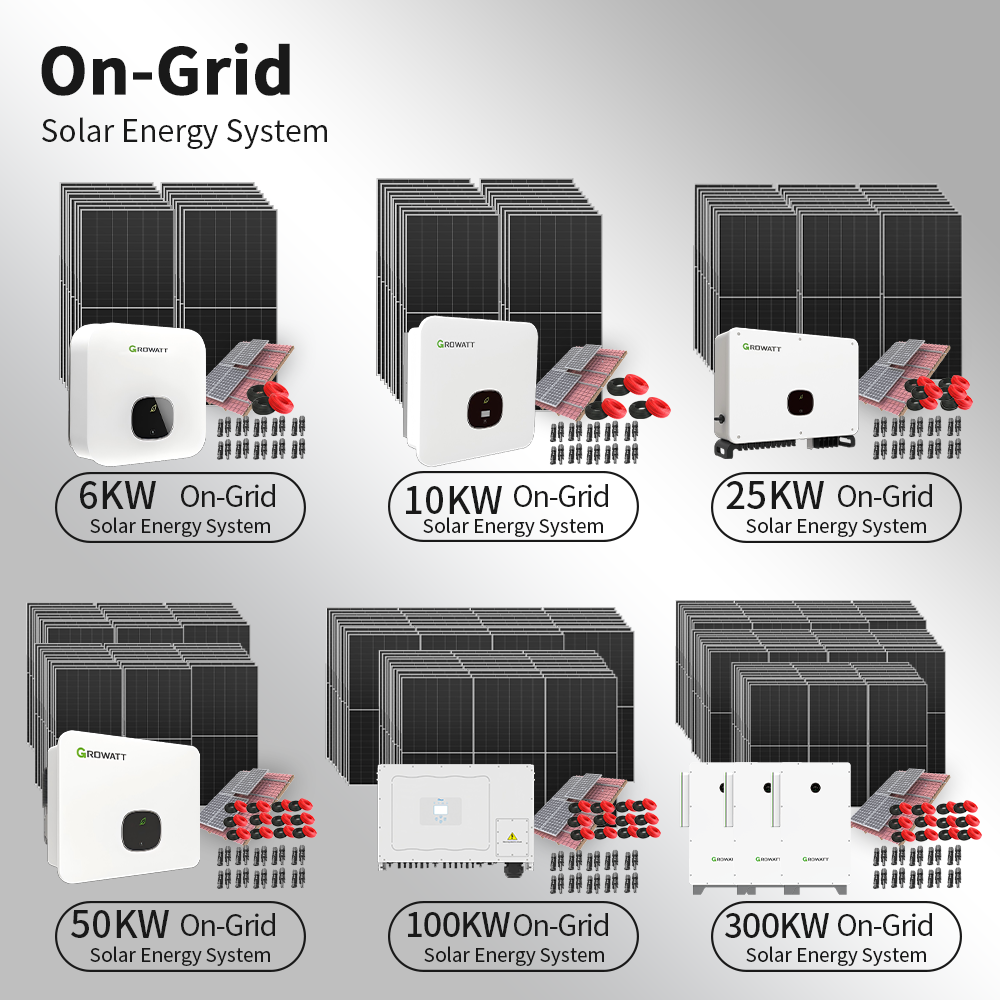

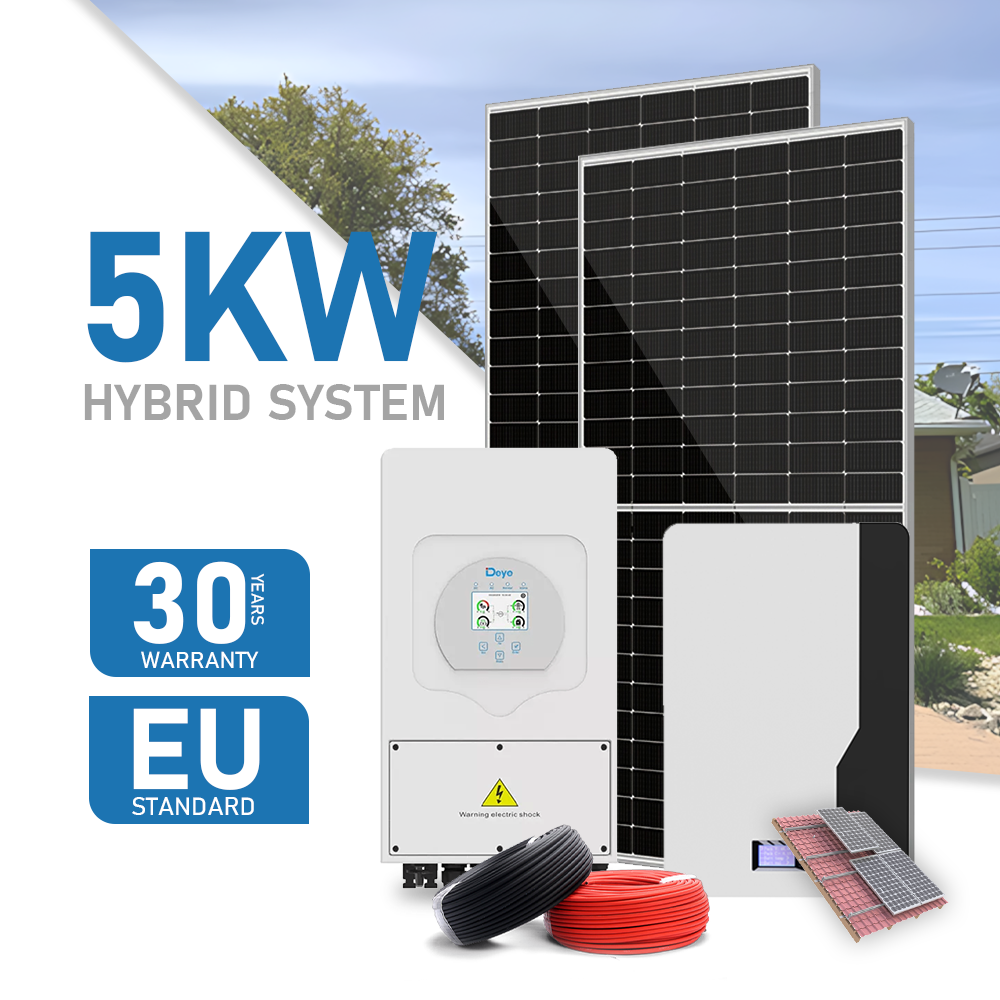

5-30kW Range Lithium Ion MPPT Hybrid Solar Power System With Solar Panels And Battery For Off/On Grid Use

Product Description

Product Description
Product Layout Diagram
Solar Array Installation

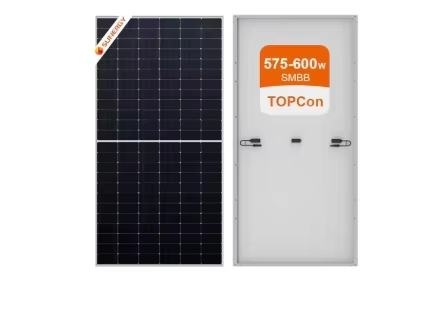

Half Cut Mono 580W Solar Panel
Half Cut Mono 580W Solar Panel
  • N-type TopCon Technology
  • Peak Power Watt: 580W
  • Maximum Power Voltage: 42.78V
  • Maximum Power Current: 13.56A
  • Open Circuit Voltage: 51.32V
  • Short Circuit Current: 14.33A
  • Dimensions: 2278 * 1134 * 35mm
  • Weight: 27.0kg

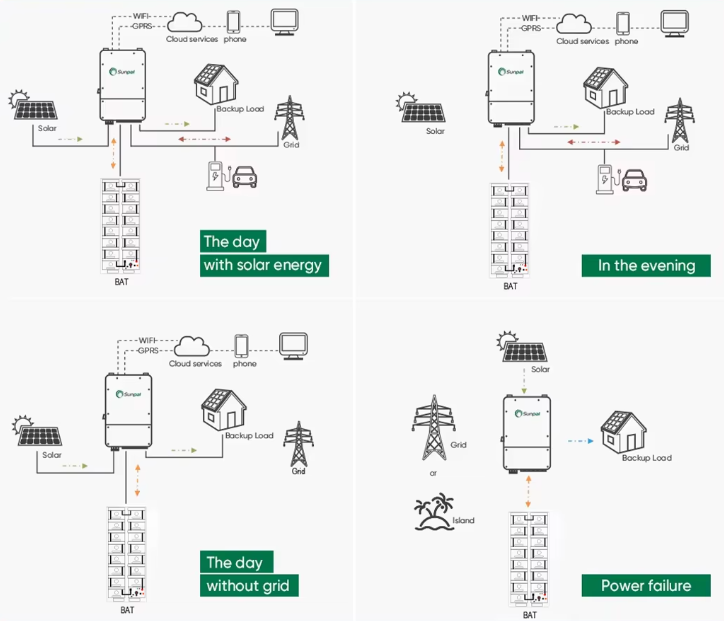

Inverter Application View

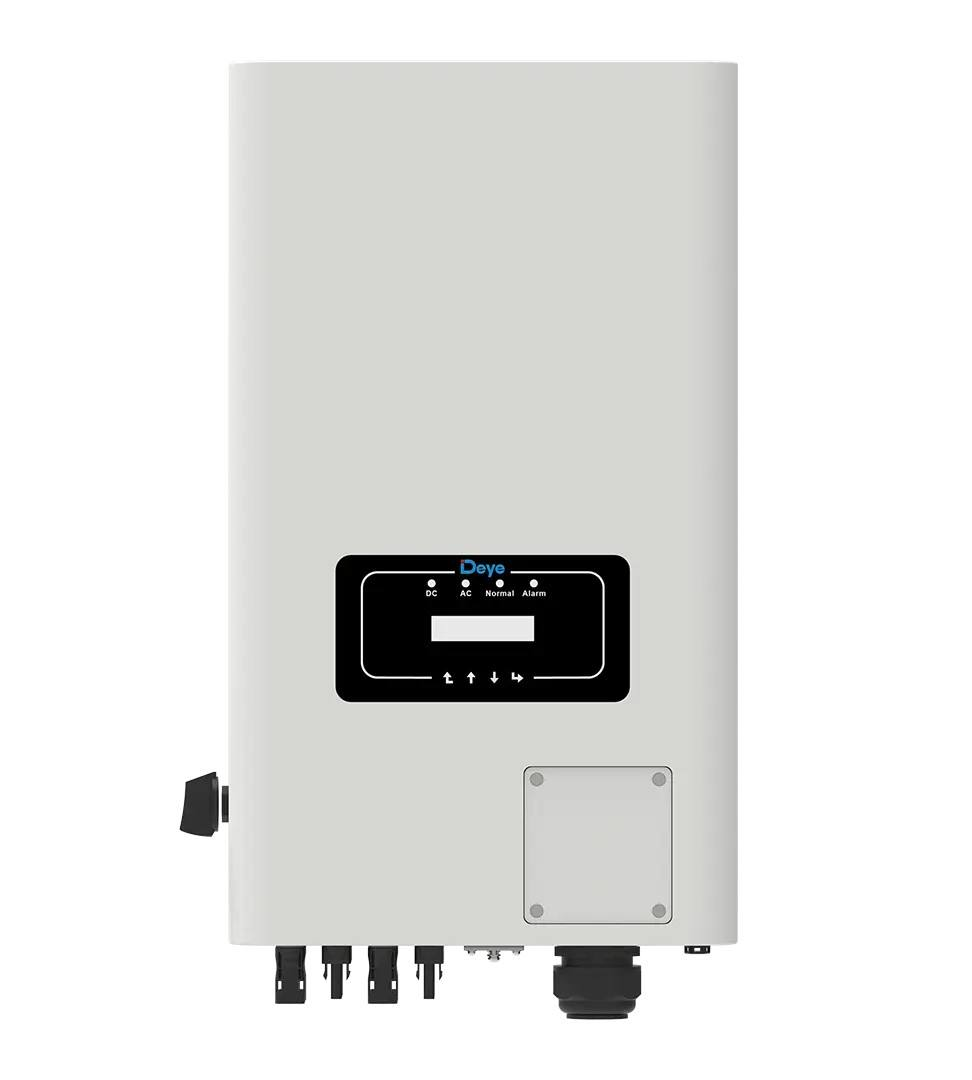

Hybrid Solar Inverter
Hybrid Solar Inverter
  • 100% unbalanced output, each phase
  • AC couple to retrofit existing solar systems
  • Max. charging/discharging current of 100A
  • High voltage battery compatibility for higher efficiency

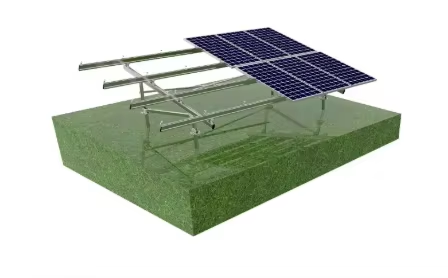

PV Mounting System
PV Mounting System
  • Pitched / Flat Rooftop / Ground Brackets (10 Years Warranty)
  • High durability Aluminum Alloy / Galvanized Steel structure
  • Complementary Brackets Installation Design services

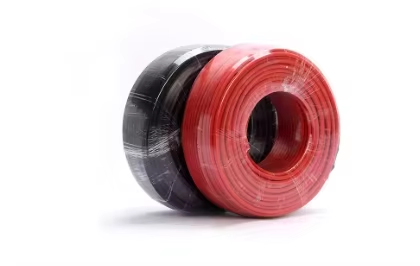

DC Cable & MC4 Connector
DC Cable & MC4 Connector
  • Cross Section: 4mm² / 6mm² (Optional)
  • Rated Voltage: 600VDC (UL) / 1000VDC (TUV)
  • Rated Current: 55A / 70A
  • Color Options: Black (Standard), Red (Optional)
  • Designed Lifetime: ≤25 Years
Specification
System Model TY5KW-HY TY8KW-HY TY10KW-HY TY12KW-HY
PV MODULE SPECIFICATIONS (*half cell mono)
Power (W) 440-700
Vmp (V) 36.33-41.96
Certifications CE / TUV (IEC 61215 & IEC 61730)
INVERTER SPECIFICATIONS
Rated Power (KW) 5 8 10 12
Max DC Power (W) 6000 10400 13000 15600
Max DC Voltage (V) 500 1000
MPPT Voltage Range (V) 120-450 125-425 120-450 125-425
Output Voltage (Vac) 220/230 220/380, 230/400
BATTERY BANK SPECIFICATIONS
Number Of Batteries 1 2 3 4
Battery Bank Power (kWh) 4.8 9.6 14.4 19.2
Battery Voltage (V) 48/51.2
Battery Current (Ah) 100/200/280/304
Number Of PV Modules 10 16 20 24
Company Profile
Factory View 1
Factory View 2
Office View

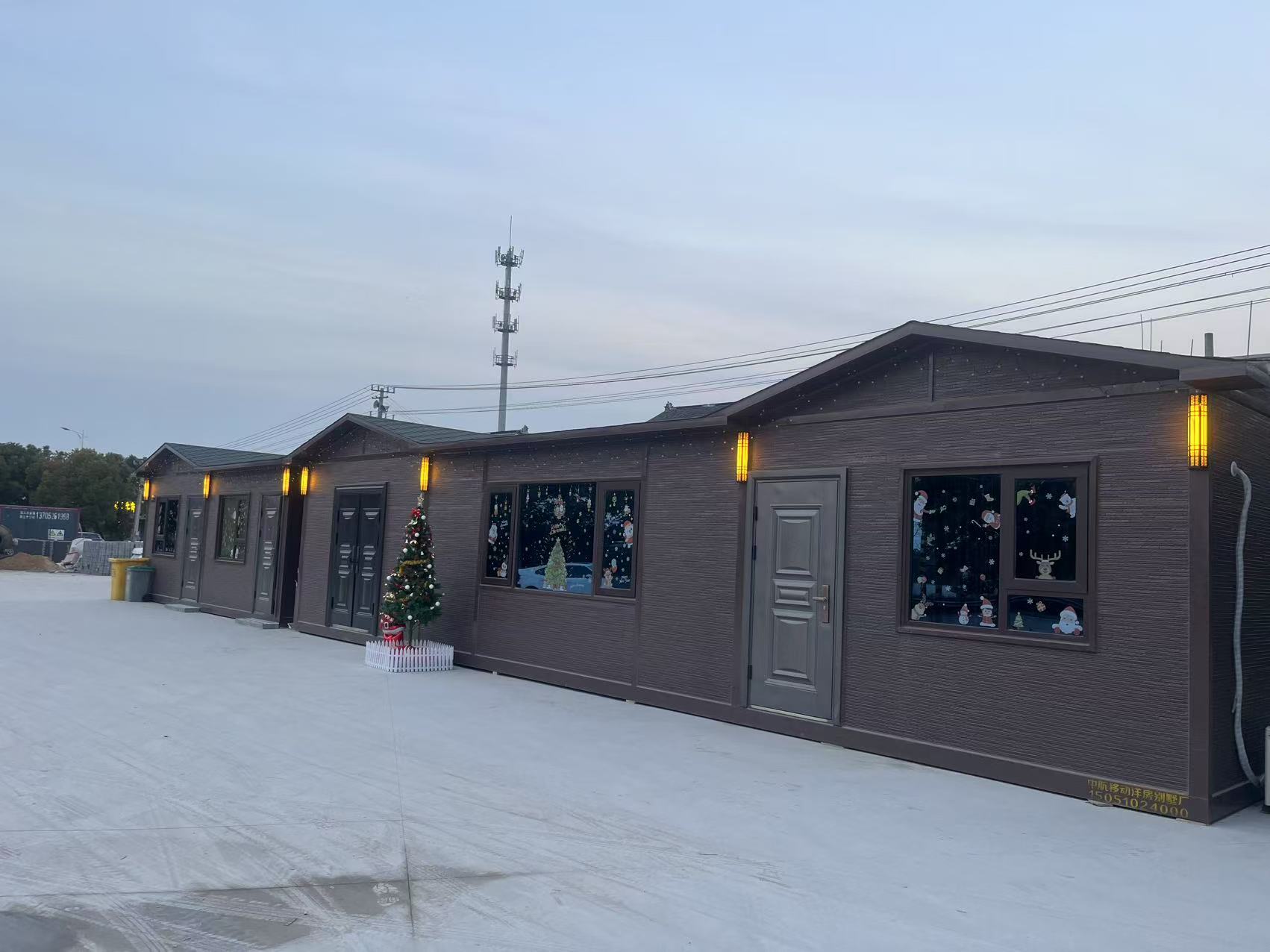

Workshop View
We specialize in producing solar mounting systems for domestic and international solar power markets. Our main products include complete solar mounting brackets, roof solar mounting accessories, solar carports, off-grid, on-grid, and hybrid solar systems. Supported by a complete and scientific quality management system, we provide high-quality mounting brackets at competitive prices. Integrity, efficiency, and exceptional service are our core values. With convenient transportation access, our technical experts and consultants have rich experience in engineering, manufacturing, and international building standards, ensuring top-tier quality and user-friendly installation. Driven by high product quality and continuous innovation, our mounting brackets are trusted by installers, distributors, and agents worldwide. We offer a wide range of mounting systems covering residential, commercial, and utility-scale applications. To meet special project requirements, our strong engineering team provides customized solutions. Customer satisfaction is our top priority, and continuous innovation is our mission, ensuring the delivery of the most advanced and reliable products for the PV industry.
Project Cases

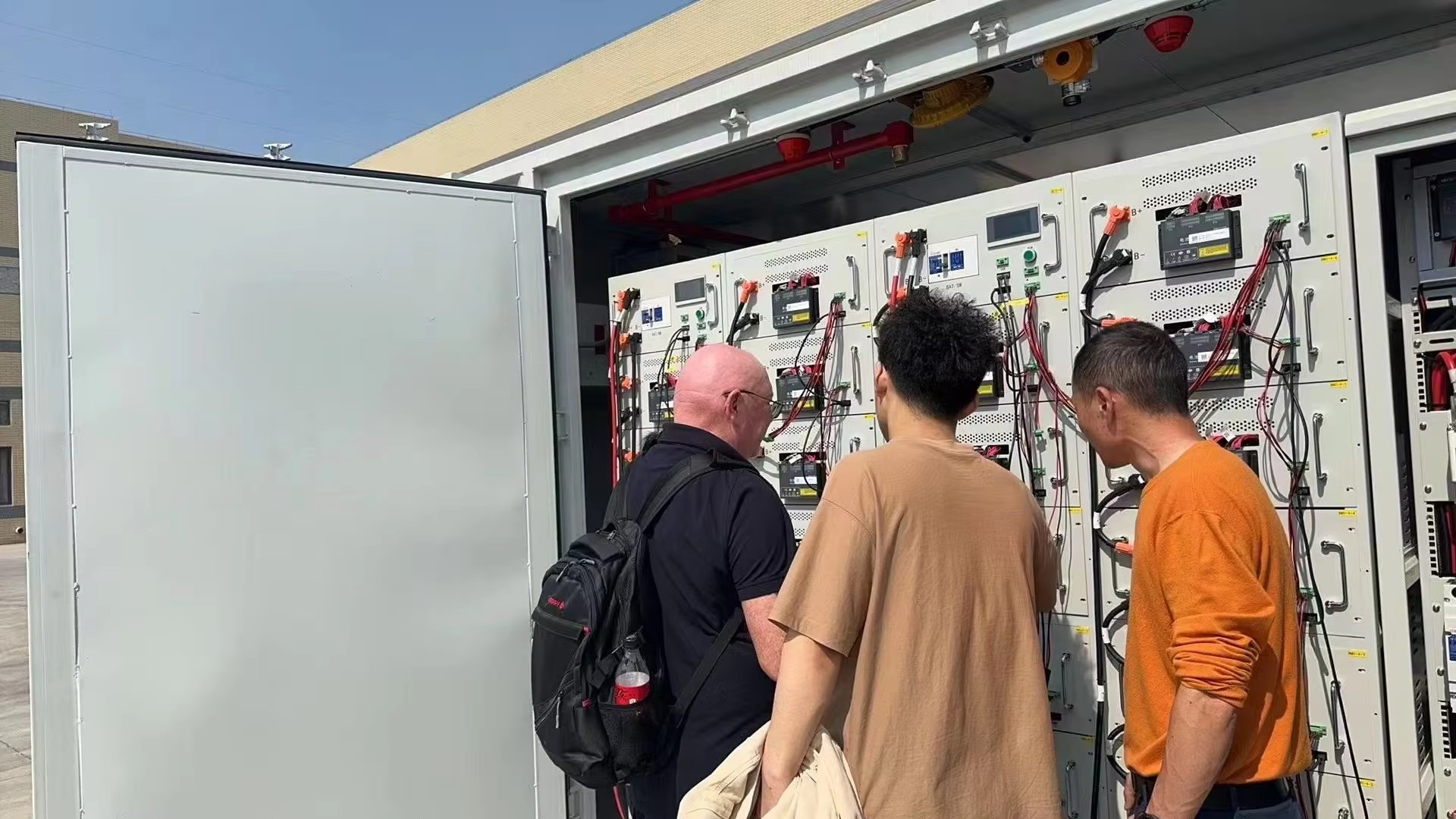

Project Case 1
Project Case 2

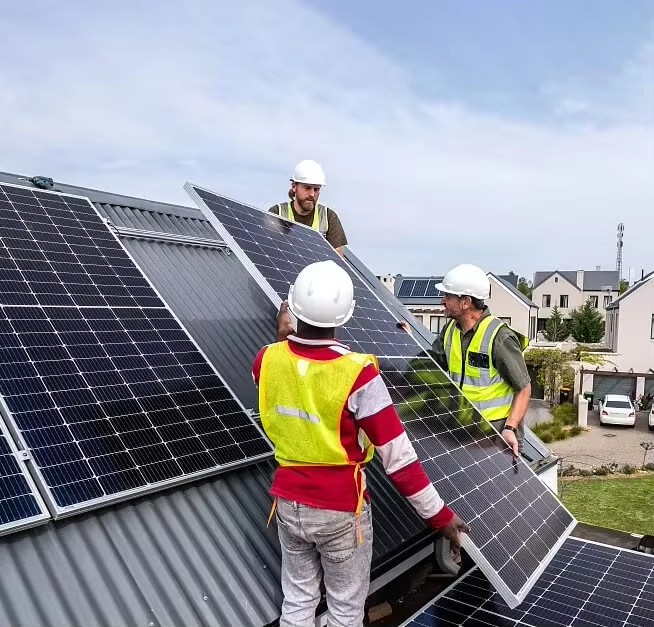

Project Case 3

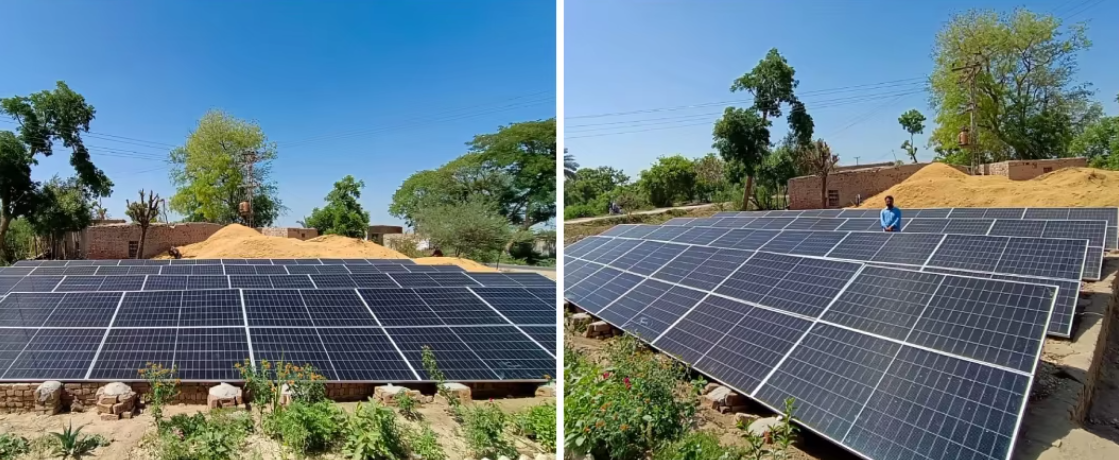

Project Case 4
Project Case 5

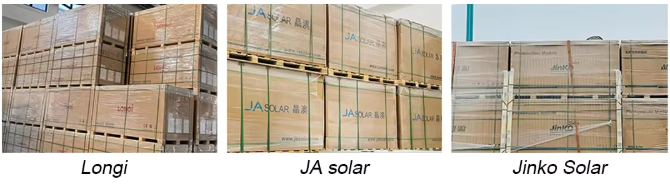

Packing & Delivery

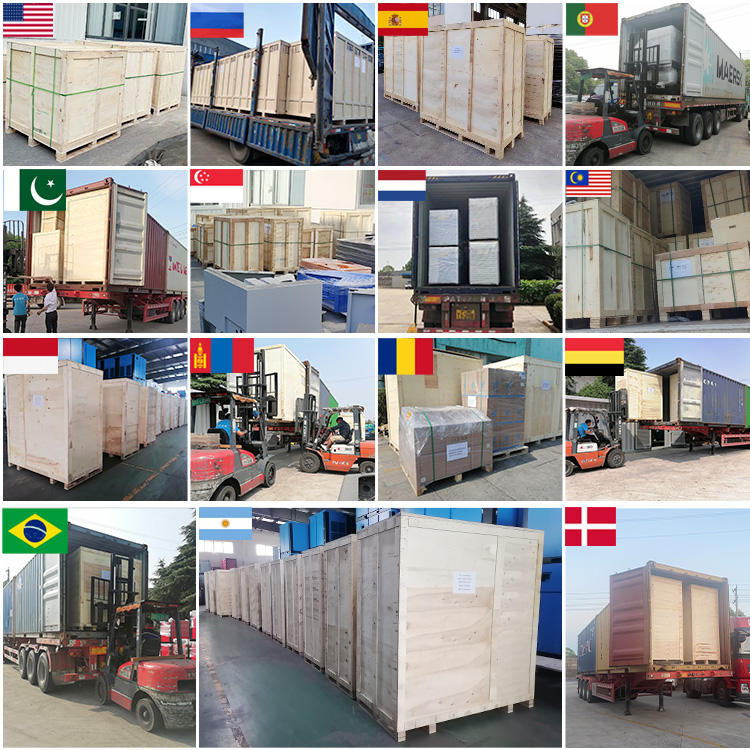

Packing Process 1
Packing Process 2

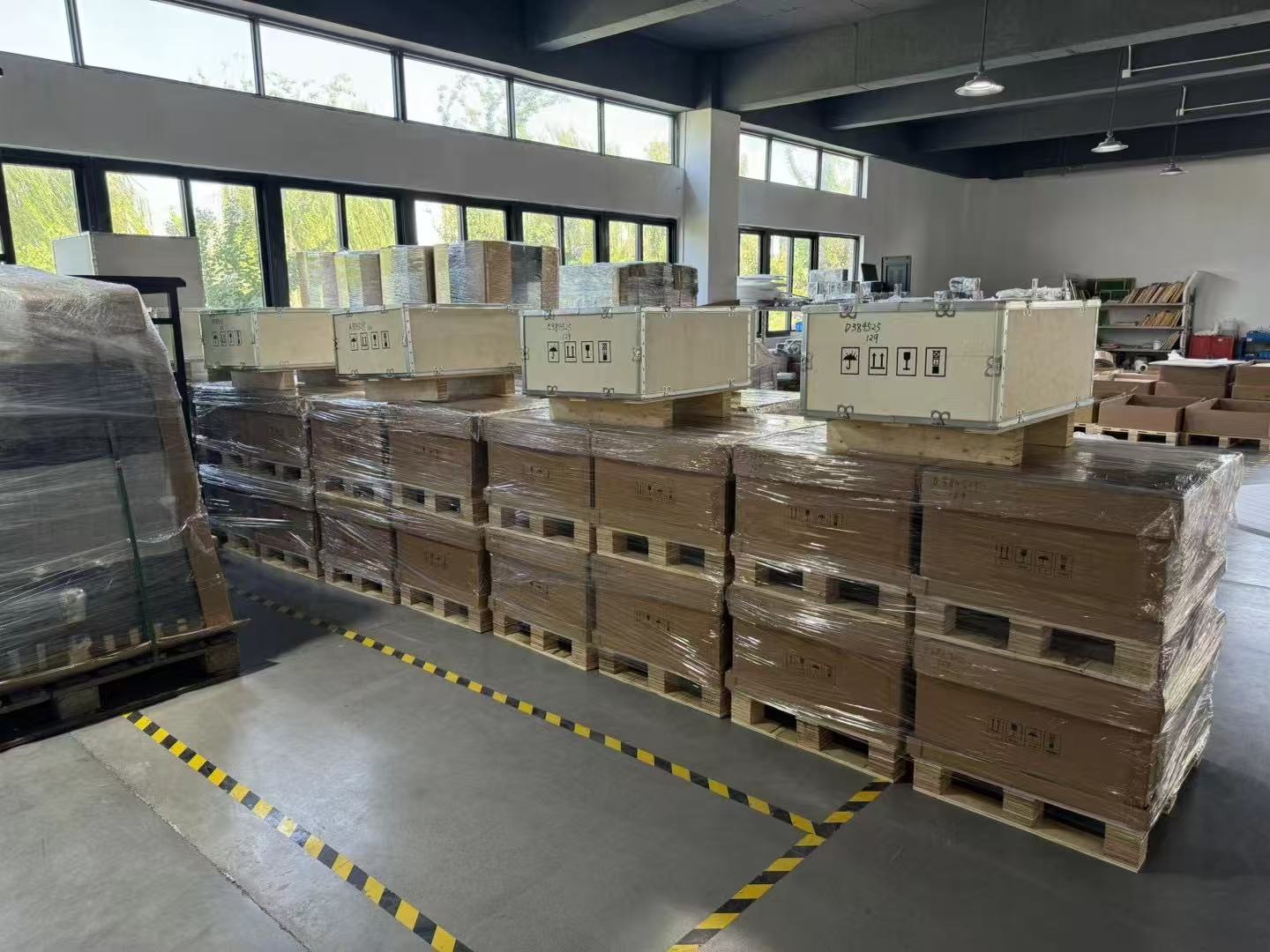

Shipping Load 1

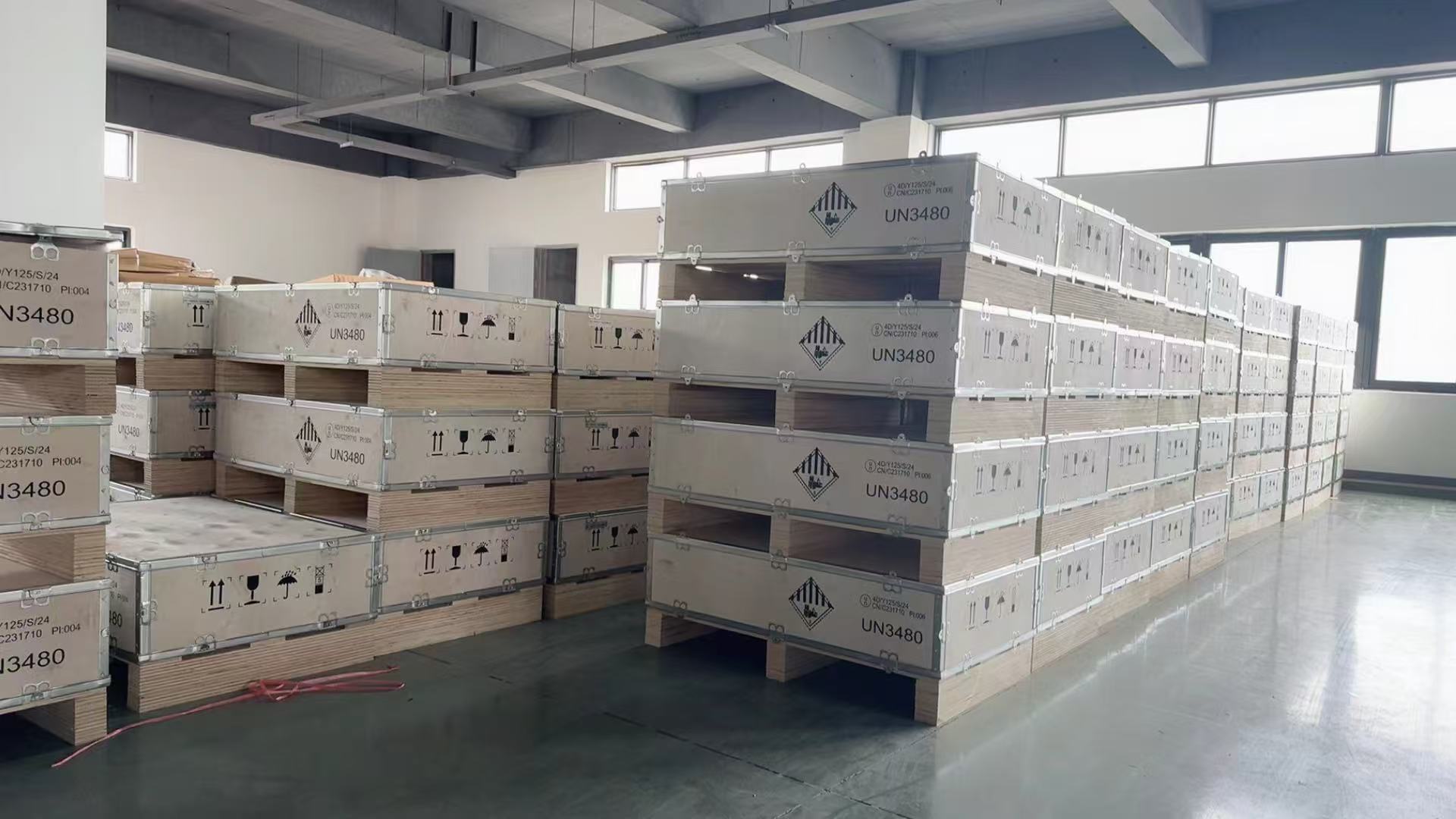

Shipping Load 2
Brand & Certifications
Brand Logo Banner
Certificate 1
Certificate 2
Certificate 3
FAQ
Q What are your main products?

Our main product line includes complete solar power systems, solar panels, hybrid/off-grid inverters, solar controllers, energy storage batteries, PV mounting systems, and all related solar accessories.

Q Are you a factory or a trading company?

We are a professional manufacturer with an export license and hold relevant international industry certifications.

Q Could you print our company logo on the nameplate and packaging?

Yes, we offer custom branding services and can print your logo on nameplates and packaging designs according to your exact requirements.

Q Do you support OEM and on-site installation services?

Yes, as an experienced solar manufacturer, we provide OEM services, detailed installation designs, and offer comprehensive support for on-site installation guidance.

Q How does your facility carry out quality control?

Quality is our core priority. We employ a dedicated and professional QC team to carry out rigorous inspections and standard control procedures at every stage of production.

Q What are your main advantages in the solar energy system market?

We operate automated production lines equipped with advanced international machinery from Japan and Germany. This advanced manufacturing capability ensures we maintain competitive pricing while delivering high-tier, reliable product quality.
