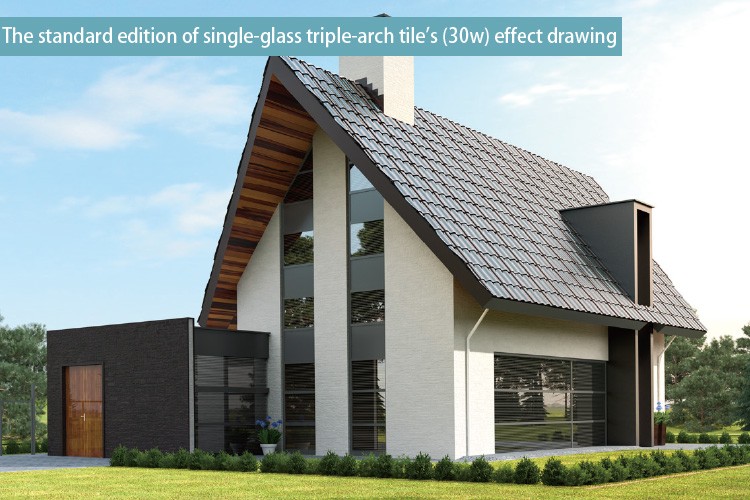

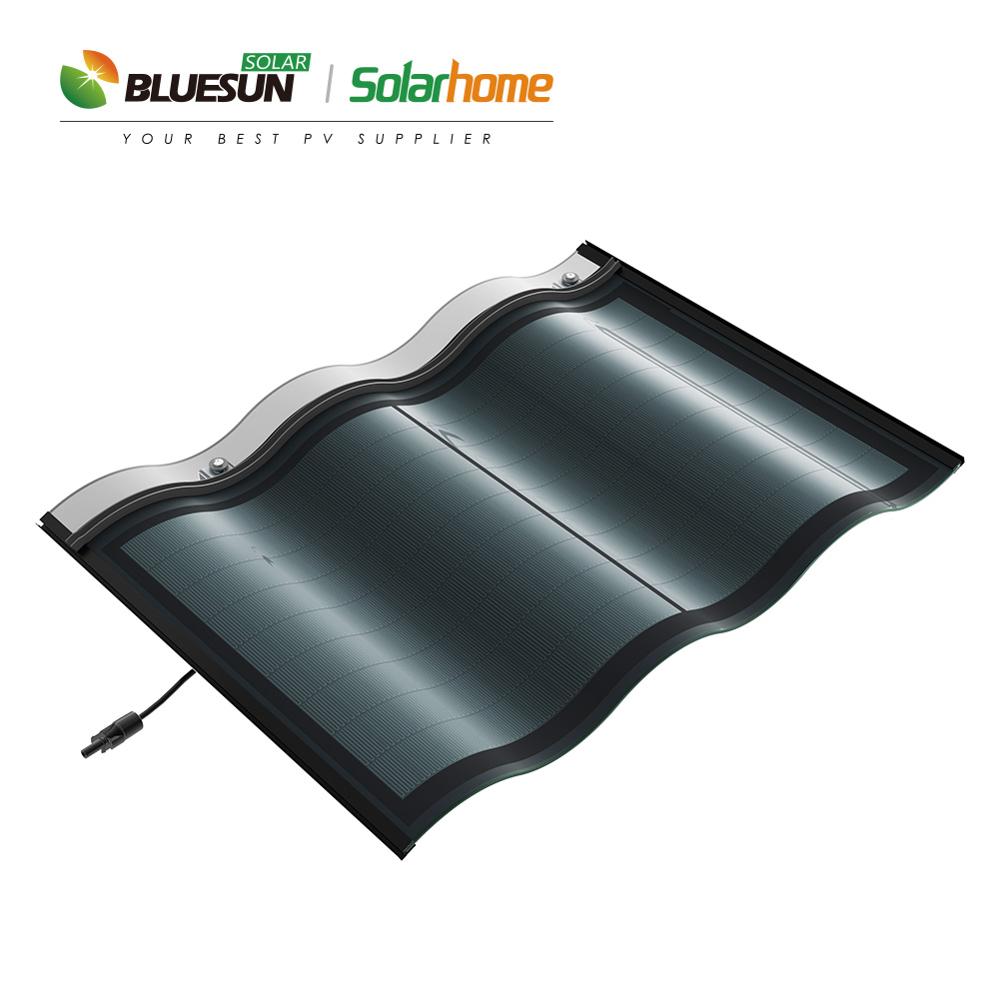

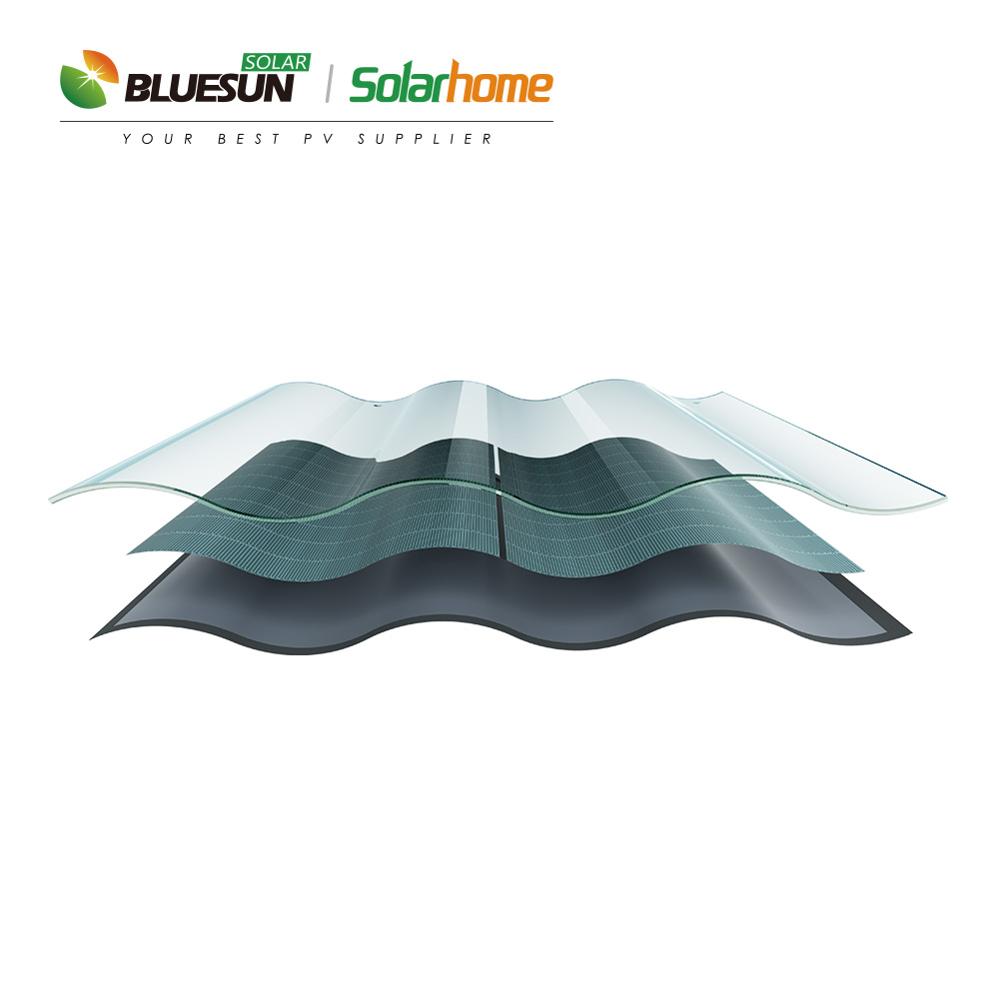

Environmentally friendly building materials. The combination of traditional building materials and thin-film solar technology can not only replace traditional tiles as building materials, but also replace traditional photovoltaic panels.
Solar tile not only has the functions of waterproofing and heat insulation, but also changes the dependence of buildings on external energy sources, making zero-energy buildings possible.
| Physical Parameters | |

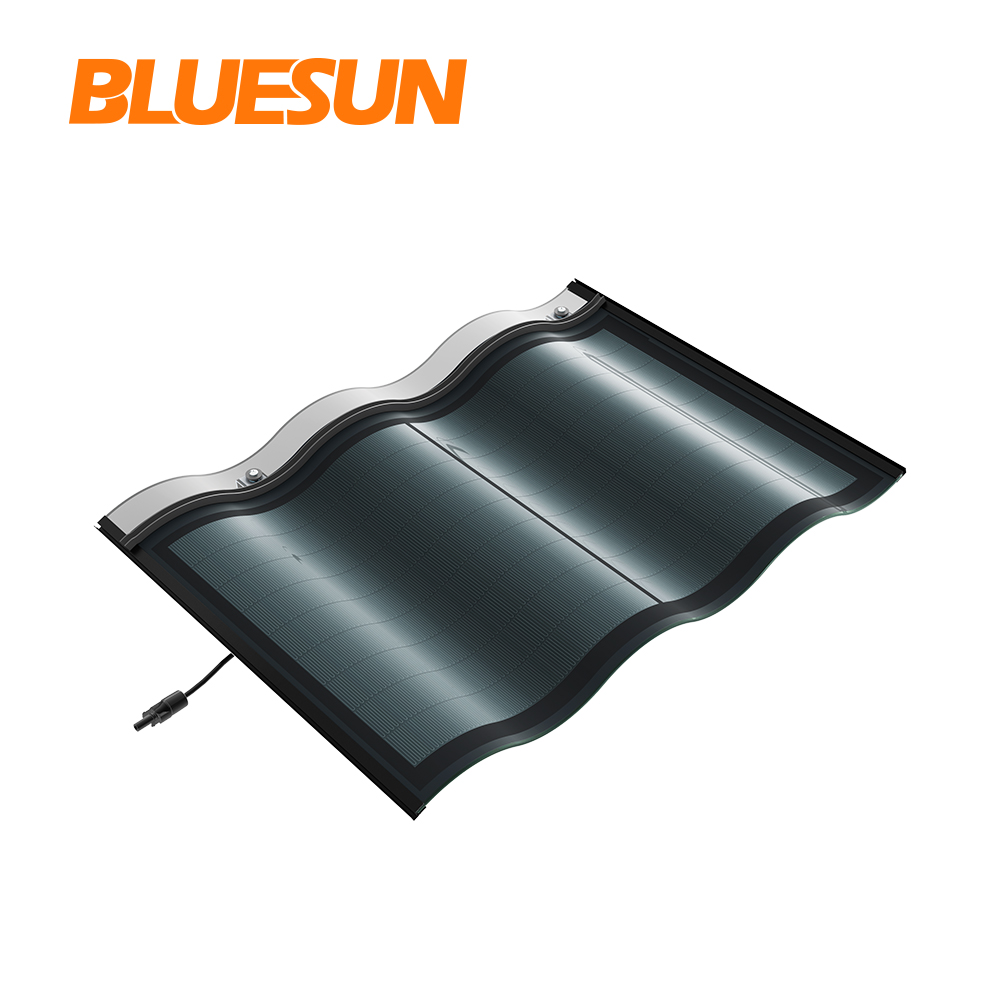

| Product Model | BSM-32S |
| Length | 700mm |
| Width | 500mm |
| Arch Height | 35mm |
| Weight | 6.5KG |
| Color | Black |
| Junction Box | 68*68*19.7 (mm) IP67 |
| Cable Type | 2.5mm solar cable 450 (+10/-0) mm |
| Cable Connector | MC4 |
| Electrical Parameters | |
| Chip Type | CIGS |
| Power | 32W |
| Short-circuit Current | 4.45A |
| Open-circuit Voltage | 10.16V |
| Current at PMPP | 3.87A |
| Voltage at PMPP | 7.79V |
| Function Grade | |
| Loading Grade | 2400Pa |
| Waterproof Grade | IP67 |
| Fire-proof Grade | B1 |
| Hail-proof Grade | Level 4 (ANSI FM 4473) |
| Working Temperature | -40°C to +85°C |

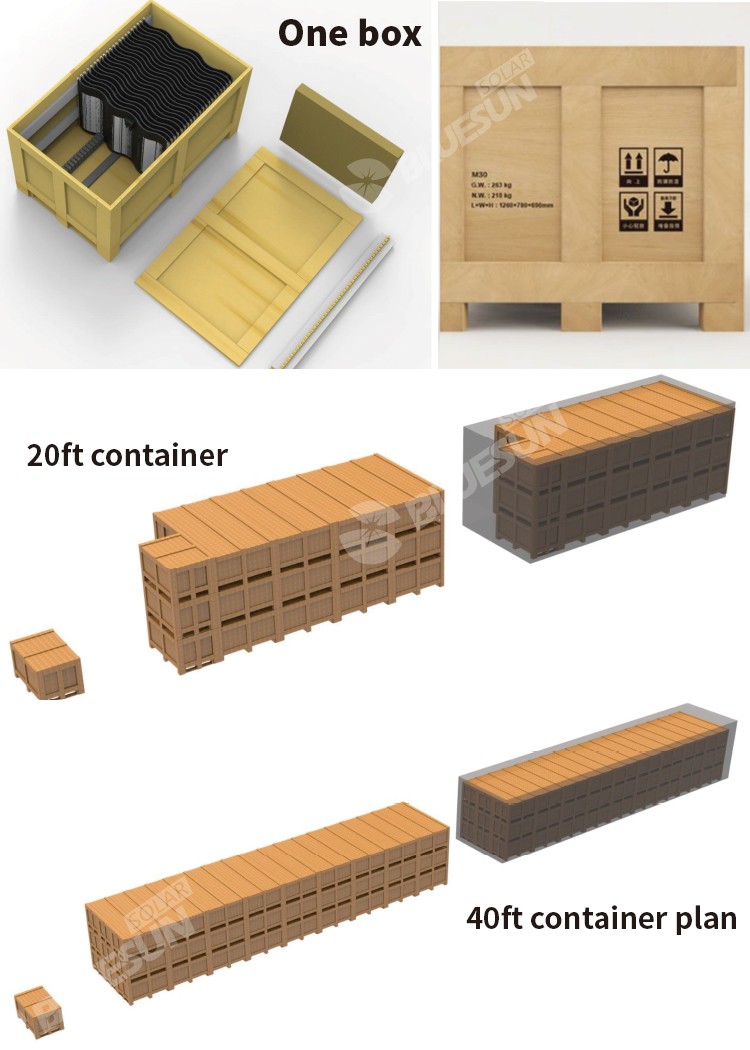

| One Box Specification | ||||
|---|---|---|---|---|
| Specification | Packing Dimension | Gross Weight | Net Weight | Quantity per Box |
| One Box | 1260 x 780 x 690 mm | 492 kg | 442 kg | 68 pcs |
| Container Loading Plan | ||||
|---|---|---|---|---|
| Container Type | Loading Quantity (Cartons) | Loading Quantity (Pieces) | Total Weight | Volume |
| 20ft | 18 ctn | 1224 pcs | 8.86 t | 27.6 m³ |
| 40ft | 42 ctn | 2856 pcs | 20.66 t | 54 m³ |
