China Factory See Through Glass Solar Panel Solar Transparent Glass Pv Panels Transparent Solar Cell for Glass windows

Products Description

CdTe thin-film solar panels are comprised of three main parts, having a layer for the semiconductor, one for the protection, and one for the conduction. These parts are:

Photovoltaic material

The photovoltaic material is the part of the CdTe thin-film solar panel that converts solar radiation into DC energy. This is manufactured by creating a p–n heterojunction, this semiconductor requires the deposition of a layer of CdTe for the p-doped section and one of CdS or MZO for the n-doped section.

Conductive sheet

The conductive sheet allows the DC energy to flow between solar cells, increasing the voltage and allowing for the connection of CdTe panels into photovoltaic (PV) systems. These layers require the deposition of a metal layer or carbon paste, introducing copper (Cu) to create conduction in the panel.

Protective layer

Photovoltaic layers tend to be very fragile, which is why thin-film solar panels require a protective layer. Instead of using an aluminum frame and tempered glass, this layer known as the Transparent Conductive Oxide (TCO) layer, is made by depositing SnO2:F or a similar material. The TCO layer is where the CdTe absorber is deposited, allowing the solar cell to be fully protected.

Product	CDTE glass
Temperature Coefficient	-0.172%/℃
Efficiency	19%
Compatibility With Inverters	Installers have to consider temperatures at the installation place concerning temperature coefficient
Required Space	Require up to 31% more space per kW installed
Applications	Commercial/Industrial
Size	1200*600mm or customized
Transmittance	0%, 20%, 40%, 50%
Power/piece(wp)	105w, 80w, 60w, 50w
Power generation (degree/sqm)	170, 135, 105, 85
Junction Box	Back, side, cable 2.5mm², 650±10mm
Connectors	MC4

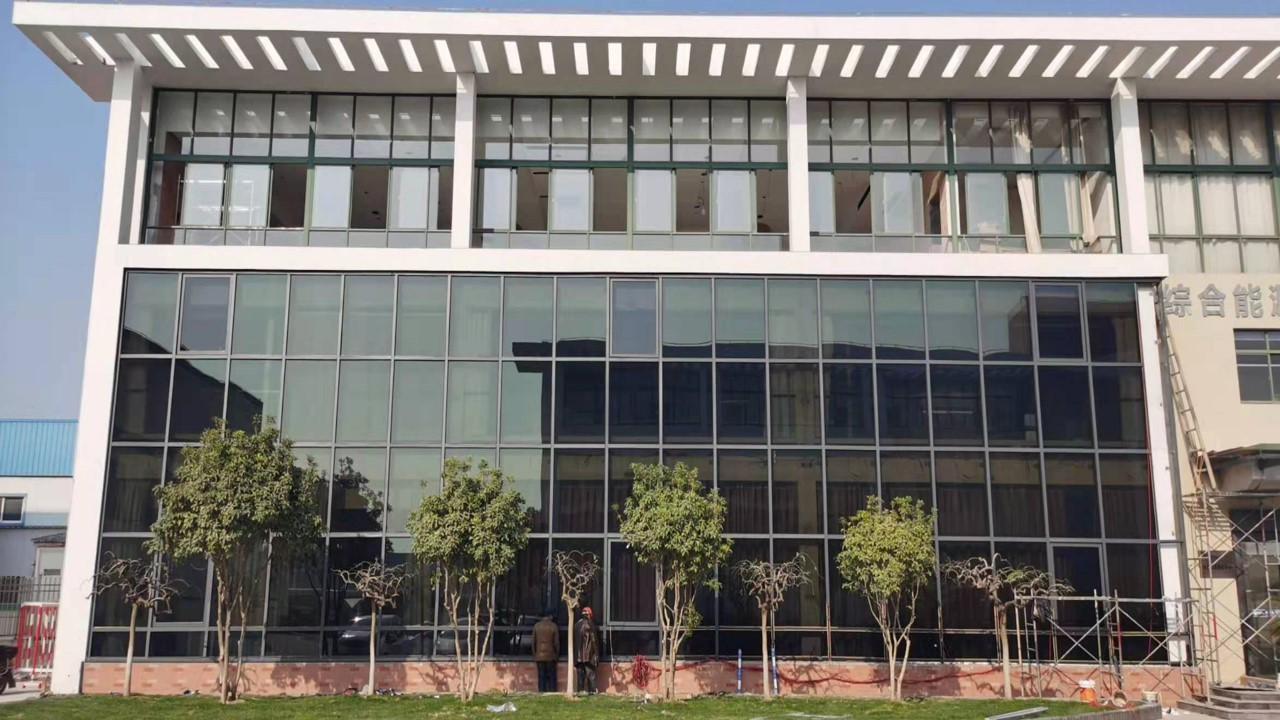

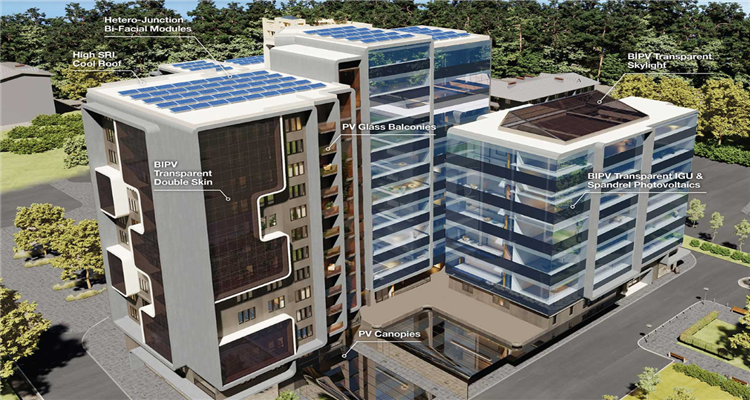

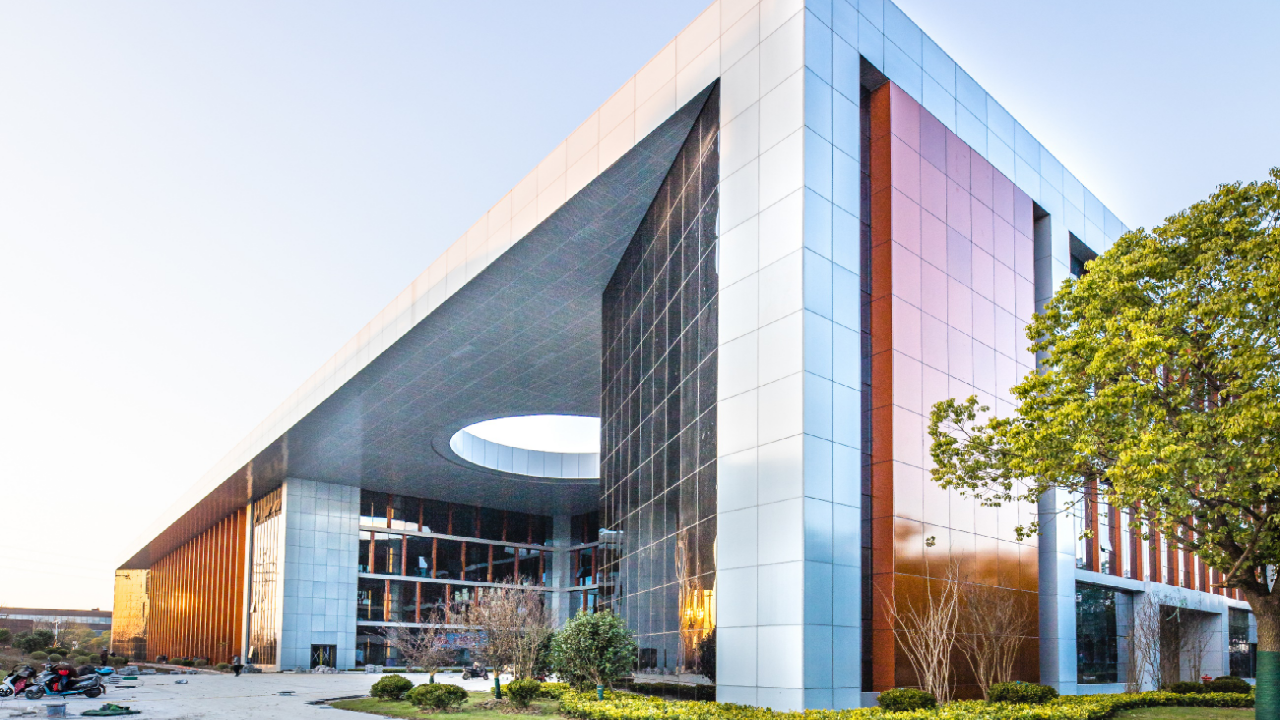

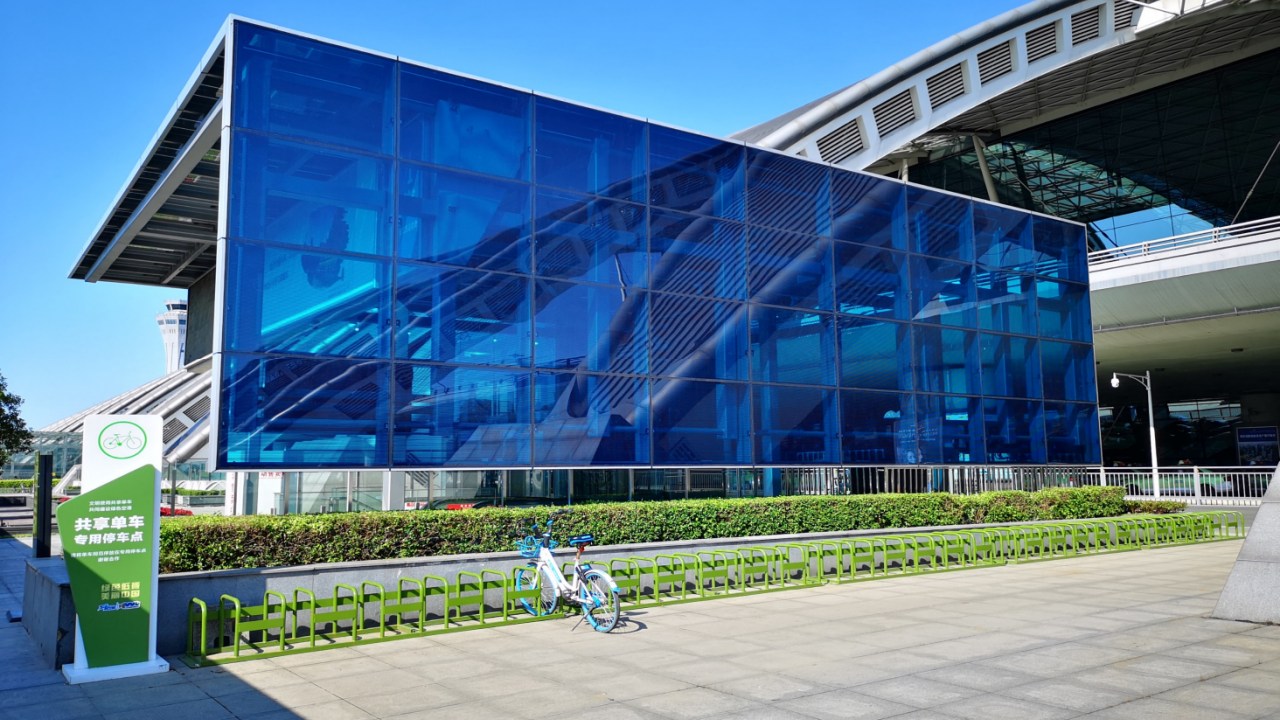

Application Scenario

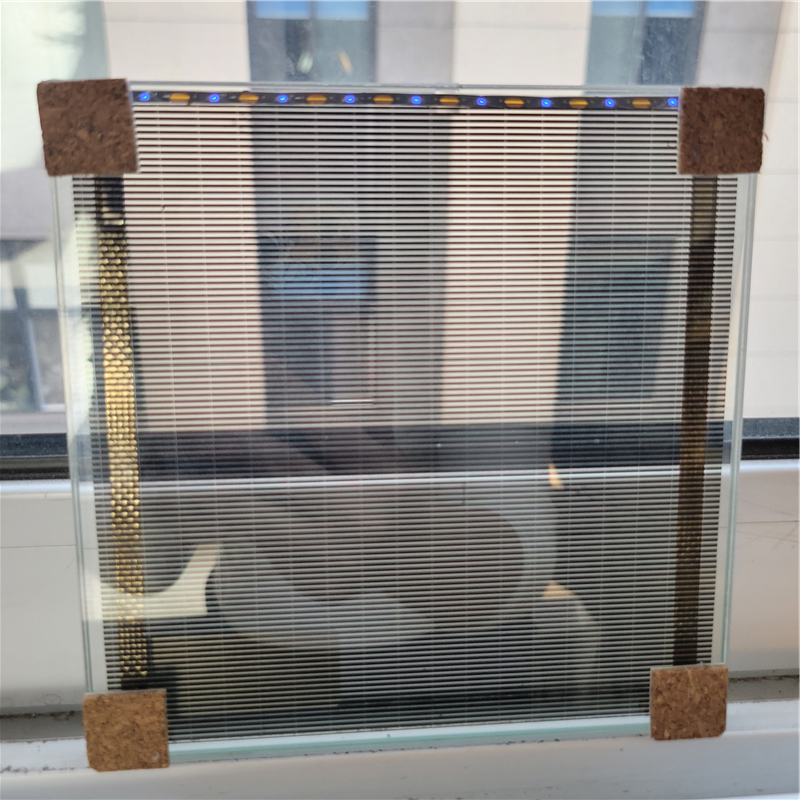

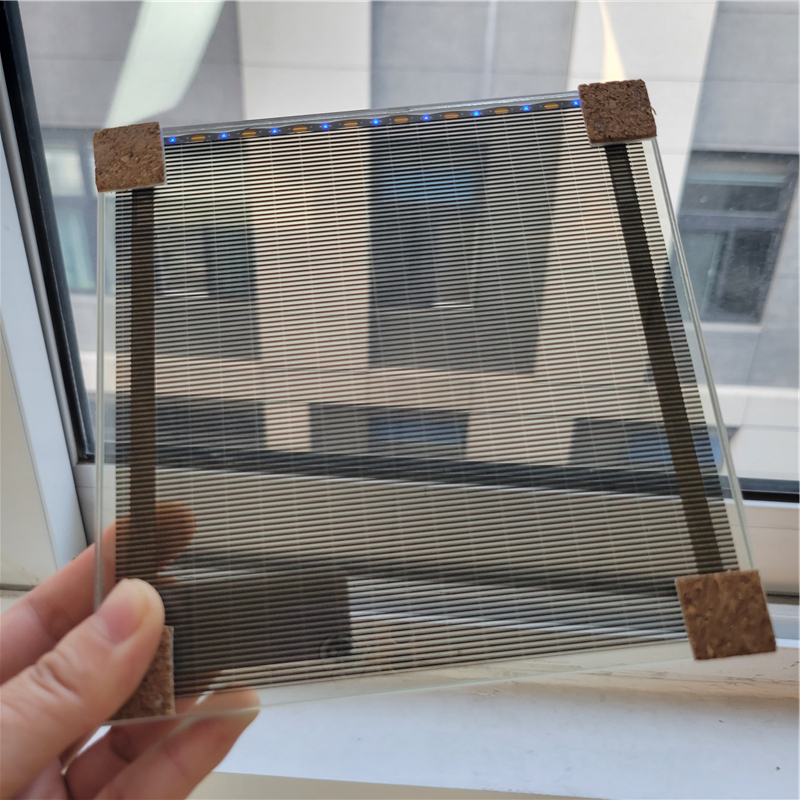

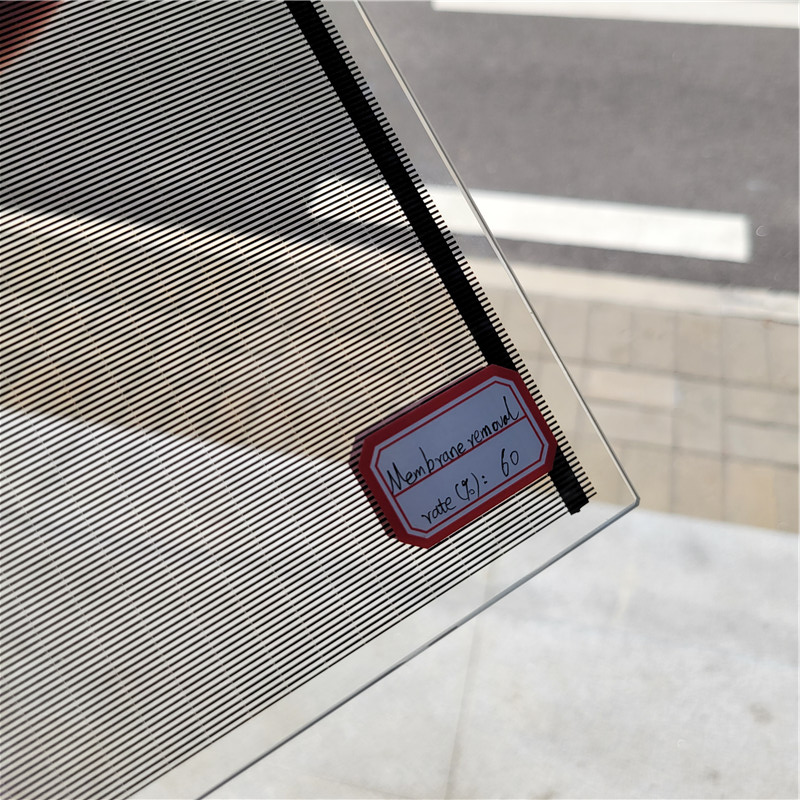

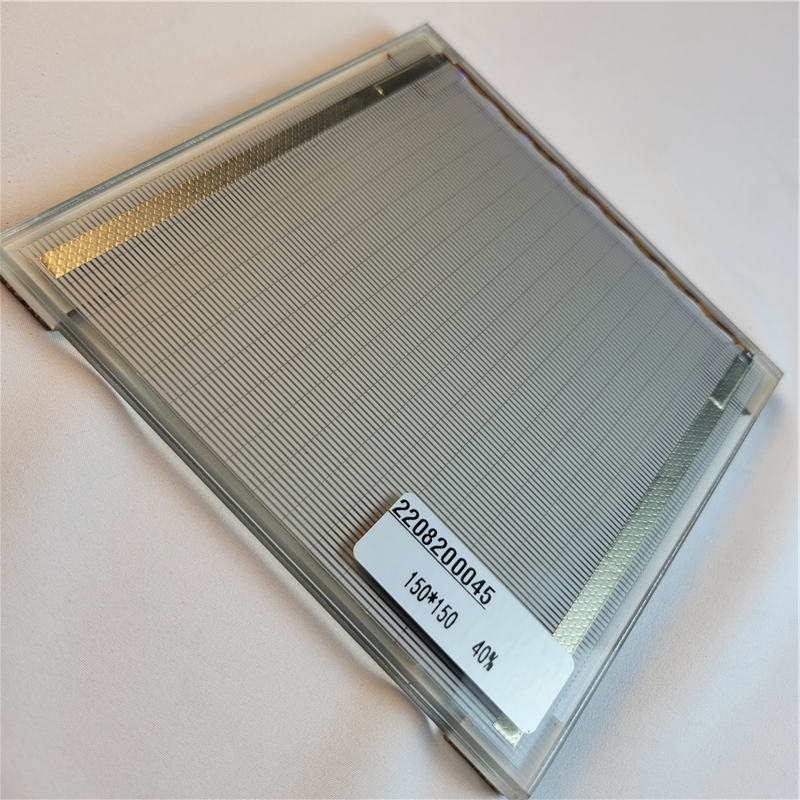

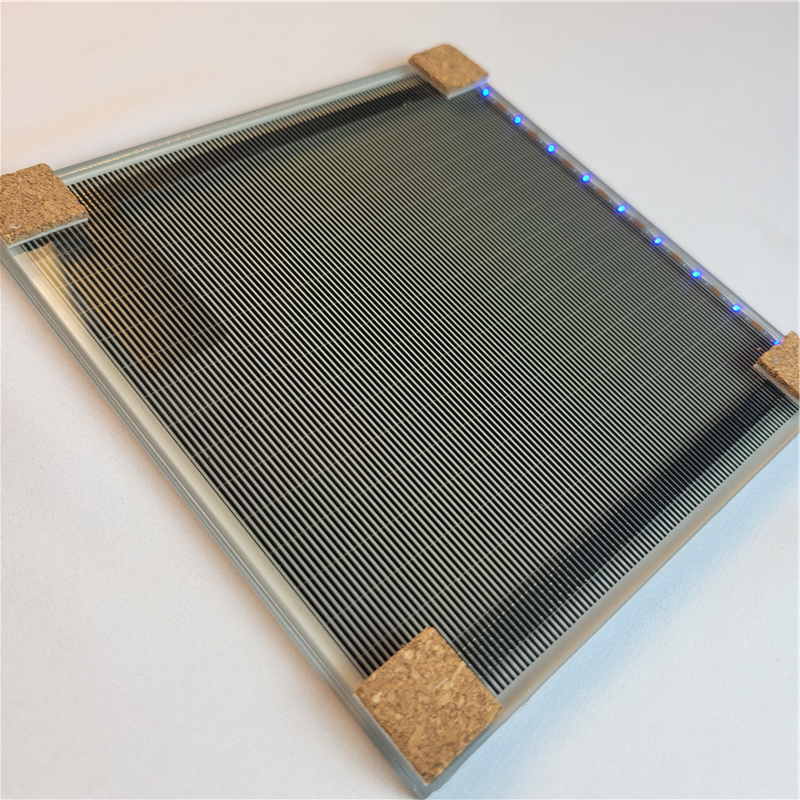

Picture Show

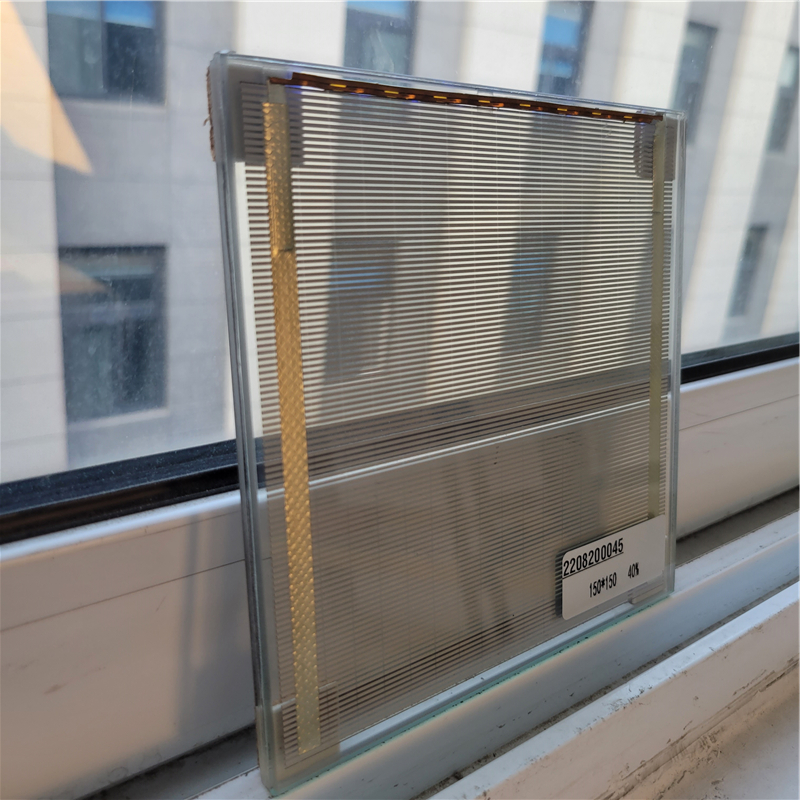

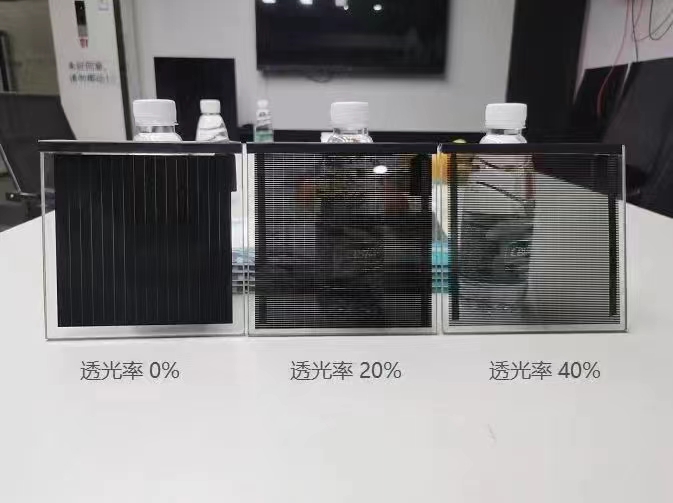

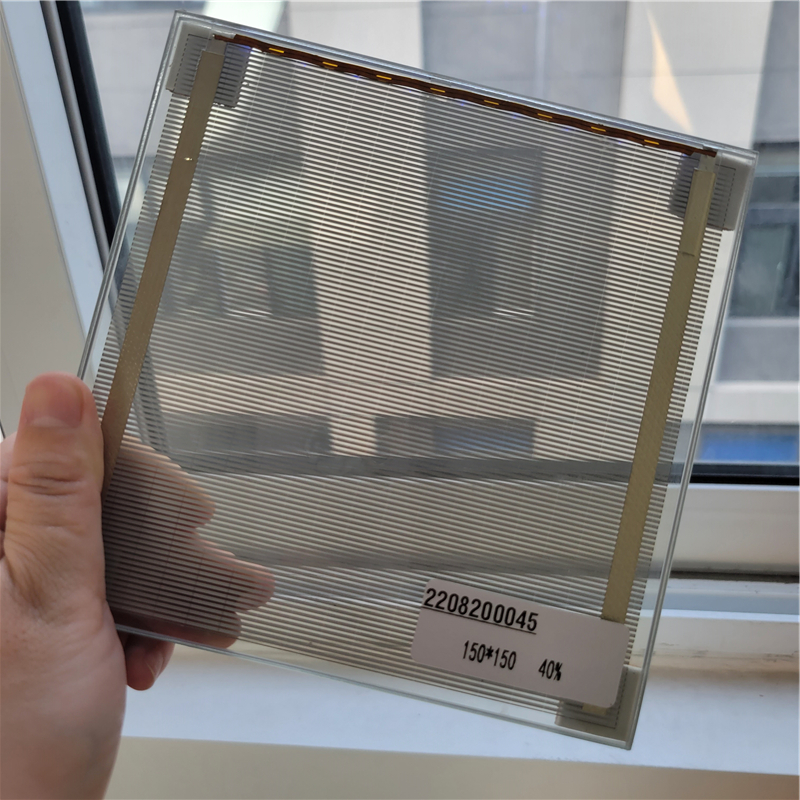

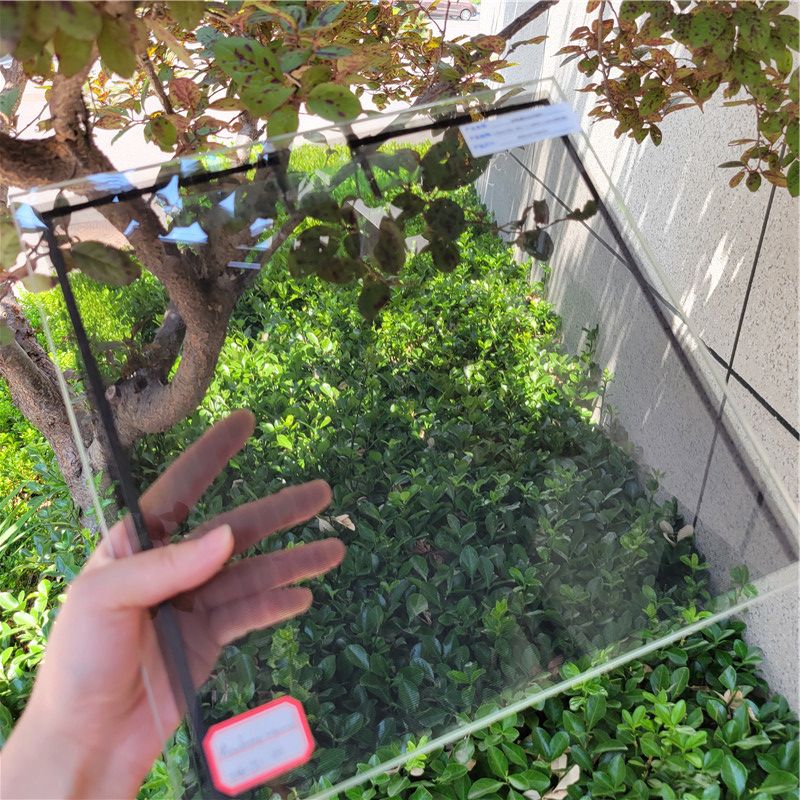

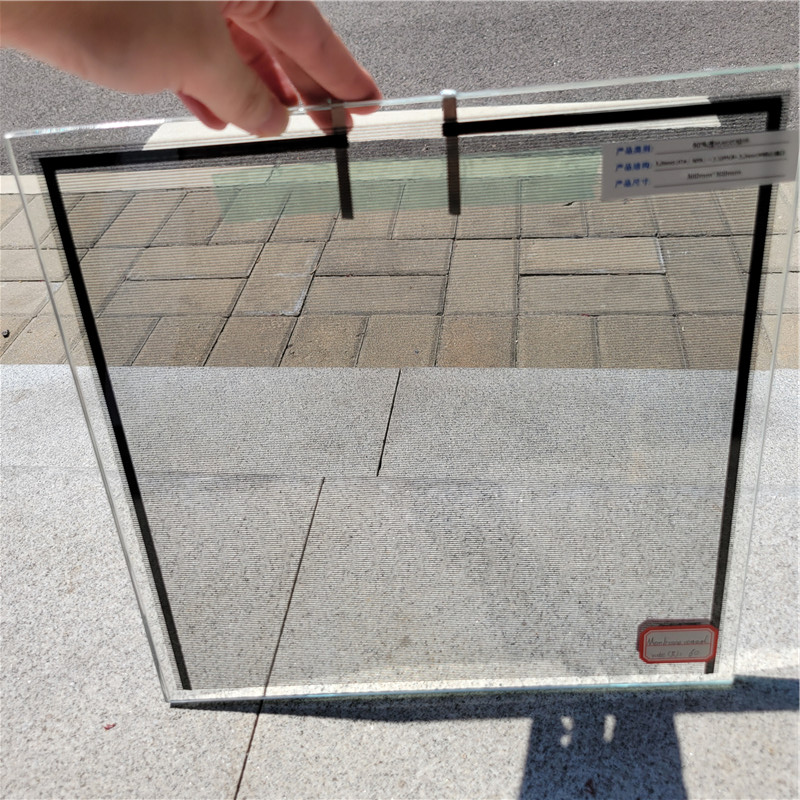

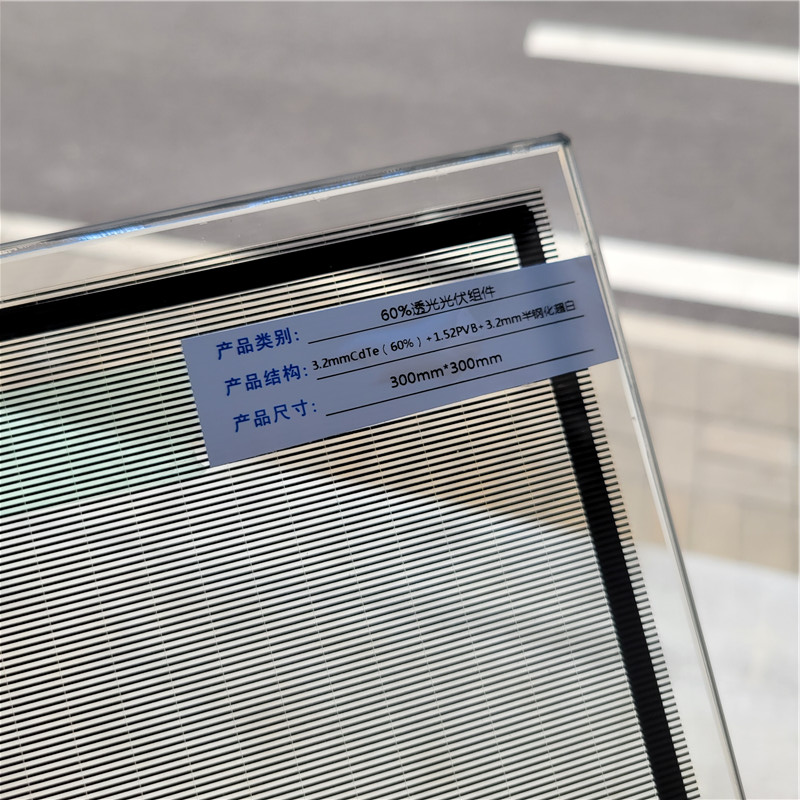

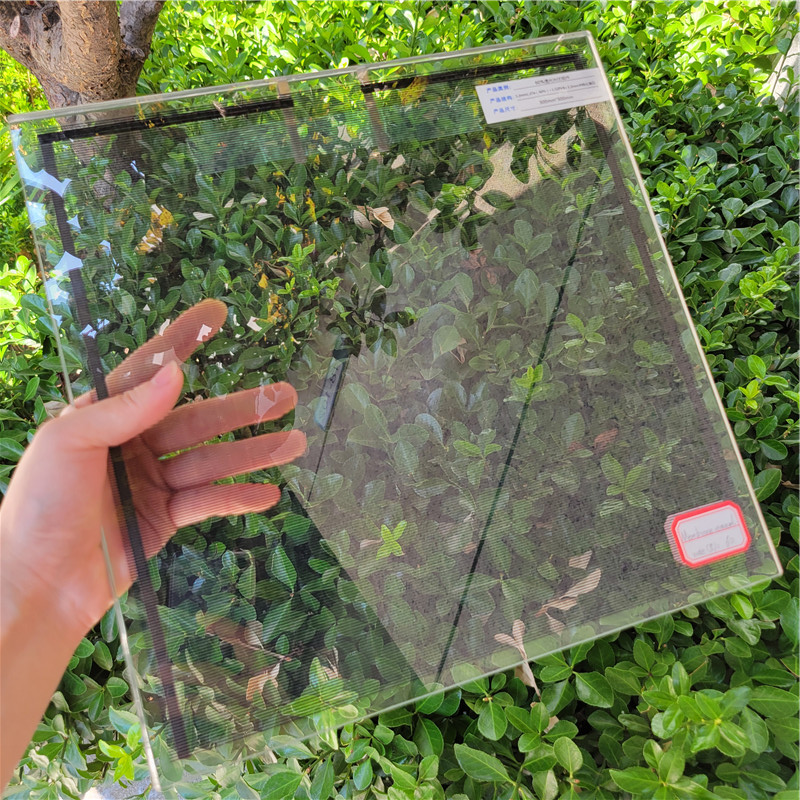

Different Transparency CDTE Glass For You to Choose

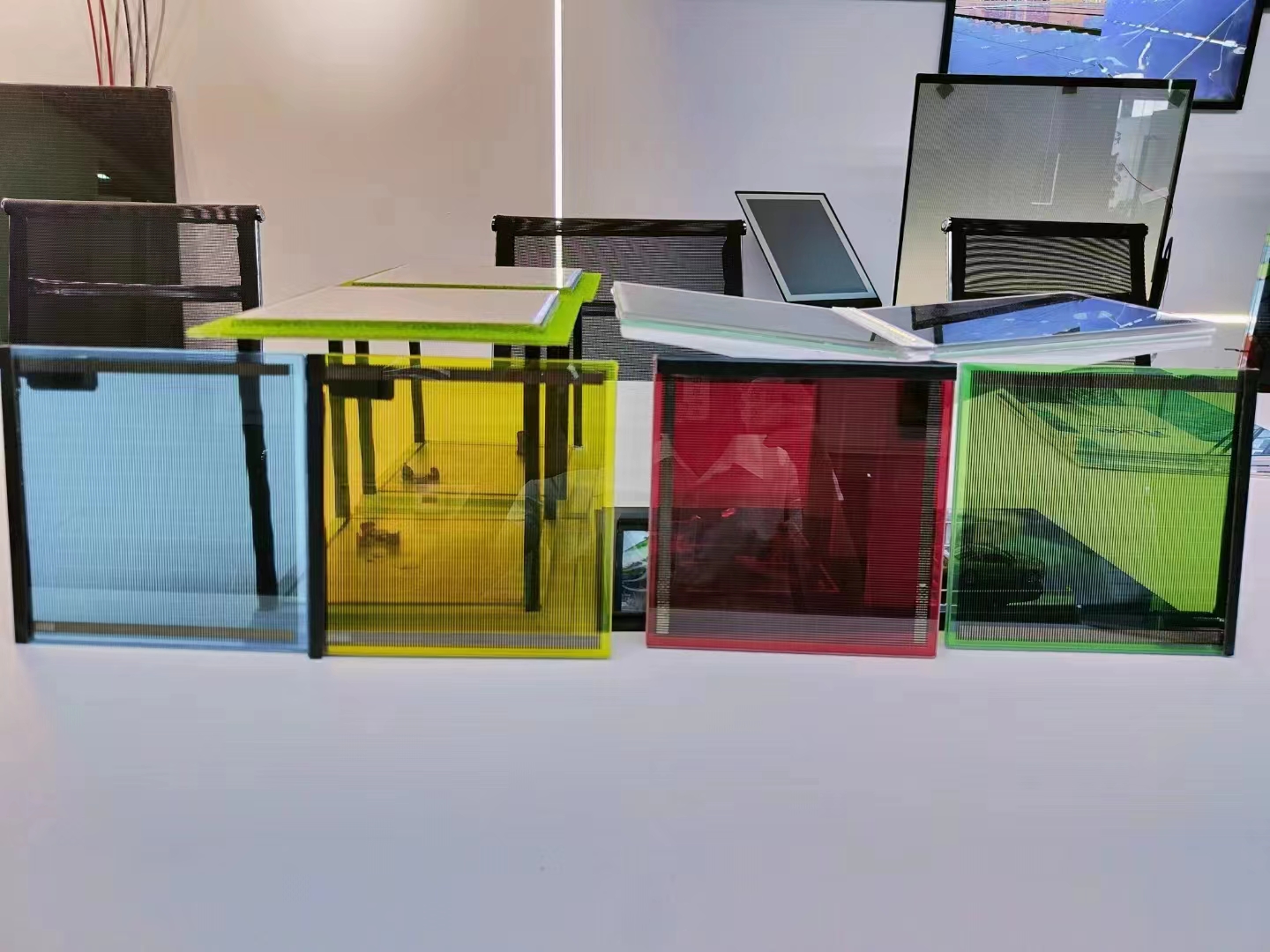

Different Colored CDTE Glass For You to Choose

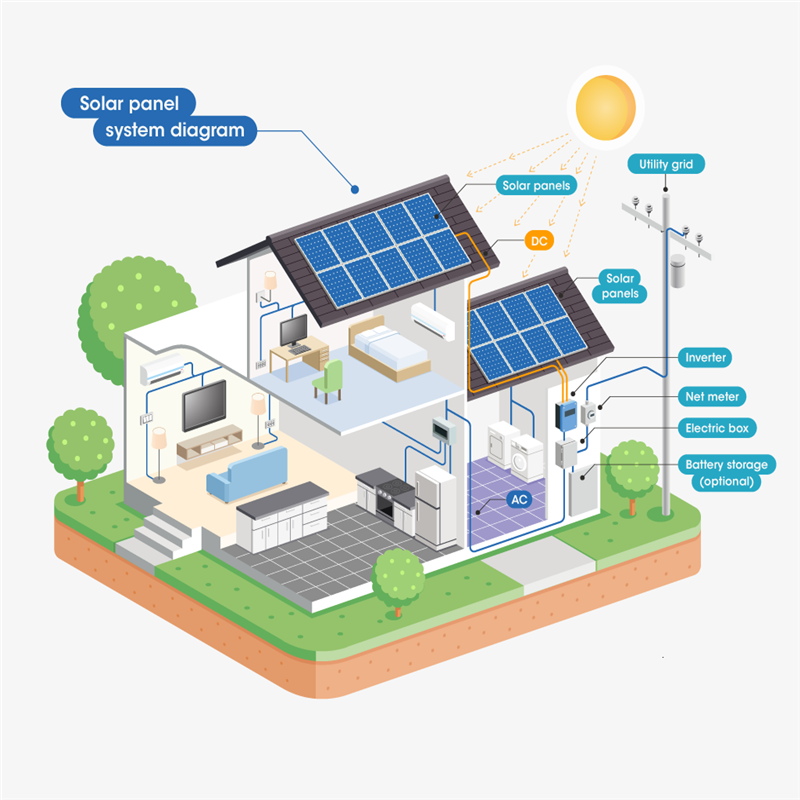

Professional Technical Support for your Solar Panel System

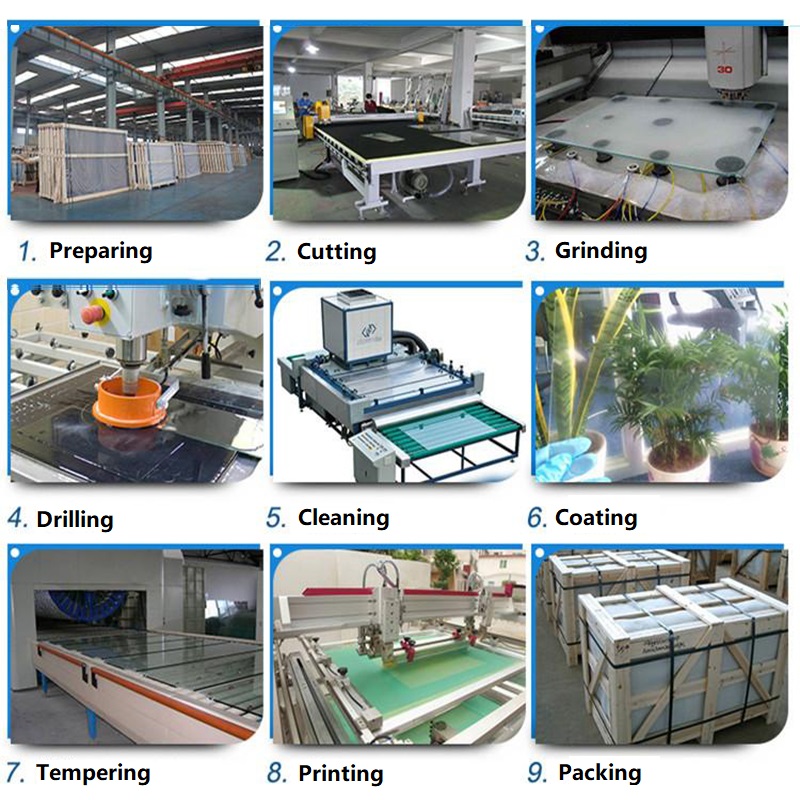

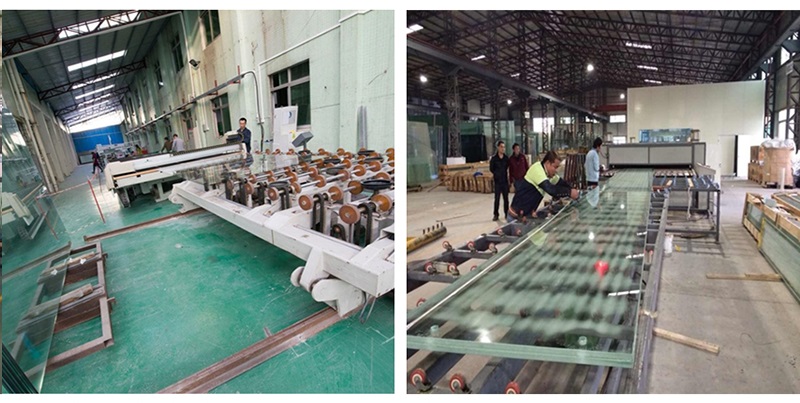

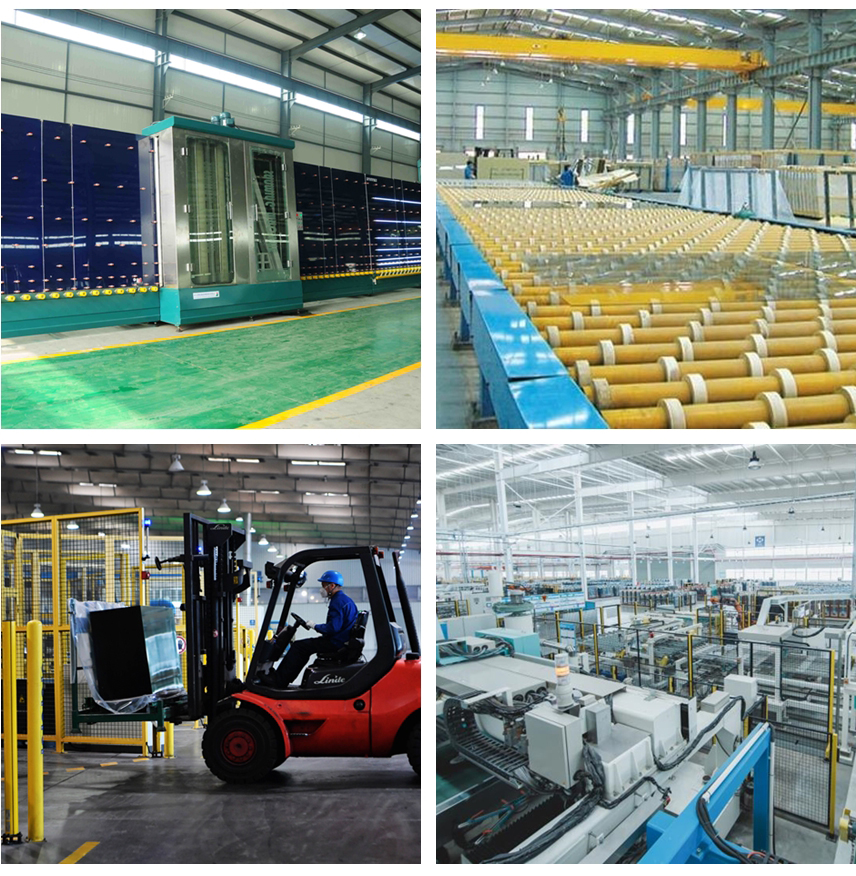

Working Process

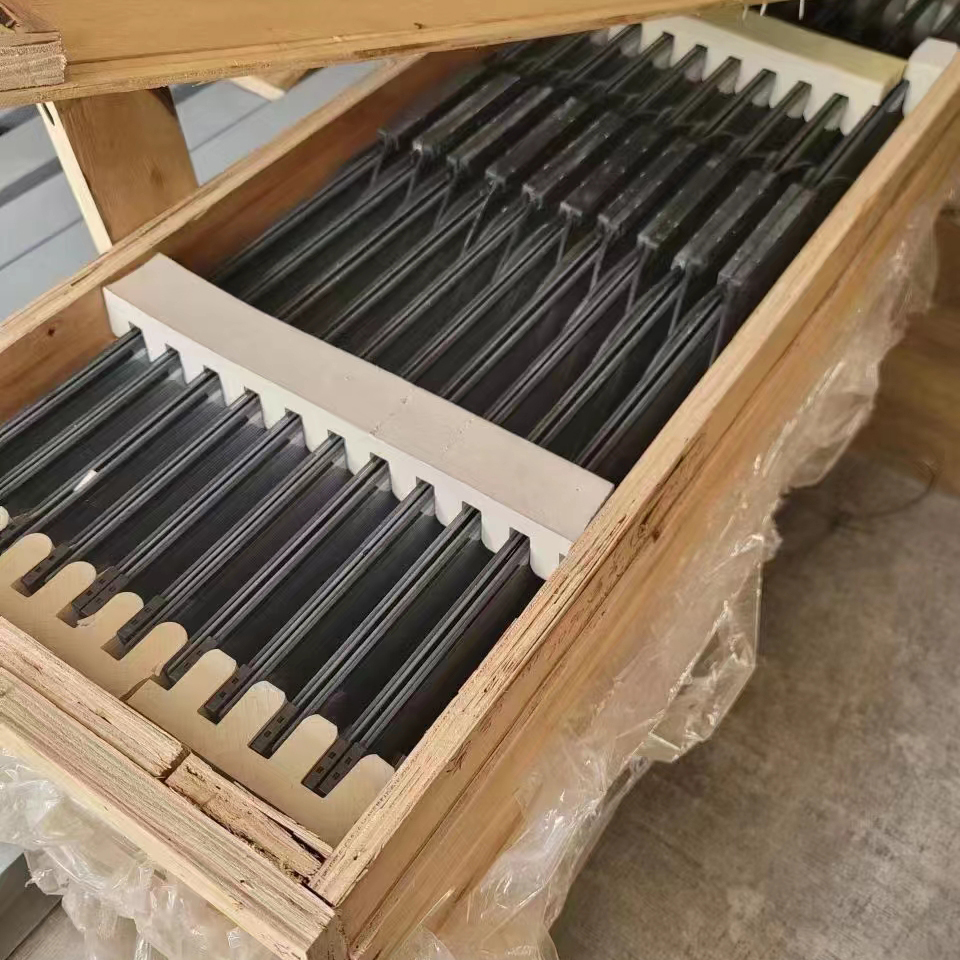

Packing Details

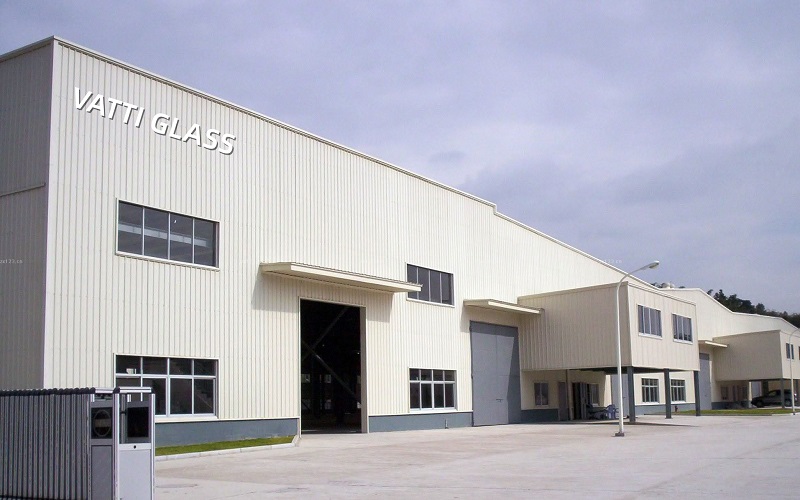

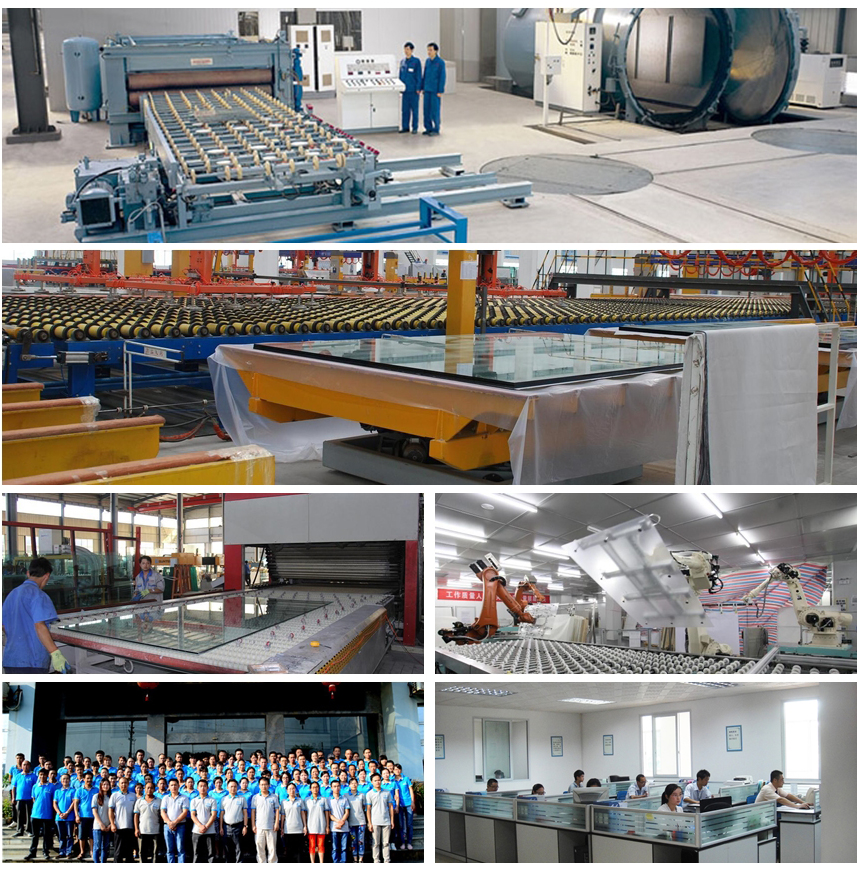

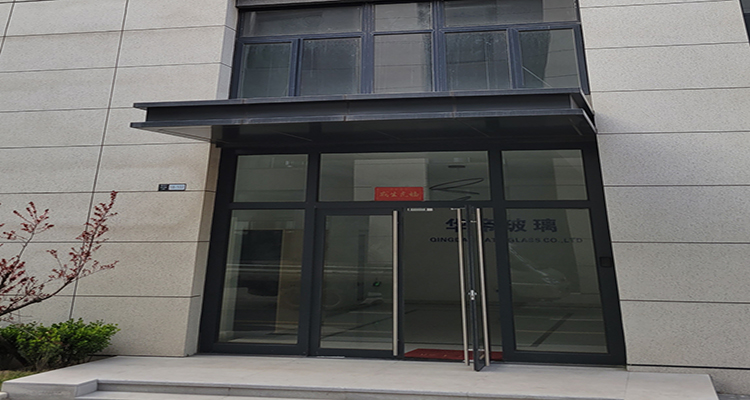

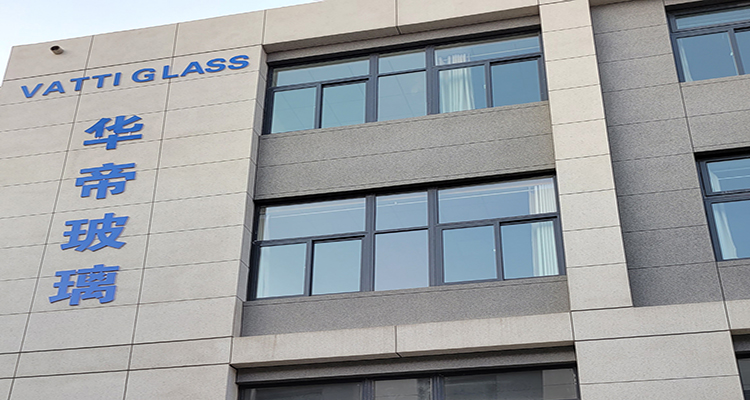

Factory & Facilities

FAQ

? How can I get the best price?

In order to offer you our best price, please send us all the details as below:
a. what kind and dimension of glass are you looking for?
b. How about the approximate quantity?
c. Do you have any special requirement like drill holes, cut notches, cutouts, acid etched, silkscreen?
d. When do you need the glass?

? What's the shortest lead time you can do?

Generally, one container is 7-15 days. But if your order is very urgent, we will do our best to finish it for you within 7 days.

? How can you make sure the glass won't break during transportation?

For all the glass, we will pack them by strong export plywood crates and load the crates into the container with metal belts as stably as possible. We purchase insurance to cover transport risks for all shipments.

? Can you accept small quantity?

Yes, but the price will be a little higher, because it needs to share more costs like depreciation of machinery and local charges.

? Can you send me some samples to check your quality?

Sure, we can send free samples (except special deep processing glass) to you at any time. However, the courier charge needs to be paid by you. If you have a courier account like DHL, TNT, or FEDEX, please share the account info with us. If not, you can transfer the courier charge to us and we will arrange the dispatch.

? Can you mix different glass in one container?

Yes, we can mix different glass in one container to optimize your shipping costs.
